SQL- 多对多缺乏外键关联的情况下处理

目录

1. 需求背景

背景：

  • 跨境电商在做Ship-confirm的时候，需要带上Tracking Number(快递单号，下文简称Trk#)；
  • 通常会发生一个订单需要带上多个Trk#s的情况；

现在业务针对同一个PORequest内的R#与Trk#，在批量处理页面，做如下要求：

  1. 如果没有TRK#生成，或者TRK#都是Pending状态，则该R#对应的TRK栏位不展示；
  2. 如果有TRK#生成，则TRK#会逐个被分配给每一个R#，直至所有的TRK#都被R#分配；

执行完2之后，会产生三种情况：

  1. R#s和TRKs刚好一一对应，则无需做任何进一步的处理；
R# TRK#
R1 TRK1
R2 TRK2
R3 TRK3
R4 TRK4
  1. 如果还有R#s没有被分配到，则随机取之前已经被分配过的任意一个TRK#分配给这些R#；
R# TRK#
R1 TRK1
R2 TRK2
R3 TRK1
R4 TRK1
  1. 如果所有R#s都被分配完，还有剩余的TRKs,则继续开始新一轮的分配，直至所有的TRKs都被分配完毕；多个TRKs用逗号隔开。
R# TRK#
R1 TRK1,TRK5
R2 TRK2,TRK6
R3 TRK3,TRK7
R4 TRK4

2. 最终实现语句


SELECT DISTINCT(PORID) INTO #PORIDs FROM T_POReplaceDetails WHERE REFPO IN @Rs

 SELECT PORID, MIN(Cou_) AS Cou_  INTO #Data1
     FROM
        (
            SELECT PORID,  COUNT(1) AS Cou_  FROM dbo.POBreakdown
            WHERE PORID IN ( SELECT PORID FROM #PORIDs )
                  AND GenerateDate IS NOT NULL
            GROUP BY PORID
         UNION
            SELECT PORID, COUNT(1) FROM dbo.T_POReplaceDetails
            WHERE PORID IN  ( SELECT PORID FROM #PORIDs )
            GROUP BY PORID
        ) AS d
        GROUP BY PORID

 SELECT a.PORID, b.REFPO, a.TRACKINGNUM
    INTO #Data23
    FROM
    (
        SELECT a.PORID,TRACKINGNUM,
               ROW_NUMBER() OVER (PARTITION BY a.PORID ORDER BY POBID) % b.Cou_ AS Rows FROM dbo.POBreakdown AS a
        INNER JOIN #Data1 AS b ON a.PORID = b.PORID
        WHERE GenerateDate IS NOT NULL AND a.PORID IN  ( SELECT PORID FROM #PORIDs )
    ) AS a

    INNER JOIN
    (
         SELECT a.PORID, REFPO,
                 ROW_NUMBER() OVER (PARTITION BY a.PORID ORDER BY REFPO) % b.Cou_ AS Rows FROM dbo.T_POReplaceDetails AS a
          INNER JOIN #Data1 AS b ON a.PORID = b.PORID
          WHERE a.PORID IN  ( SELECT PORID FROM #PORIDs )
     ) AS b
     ON a.PORID = b.PORID AND a.Rows = b.Rows;

SELECT * INTO #Trks FROM
(
    SELECT PORID, REFPO,
       STUFF( (SELECT ',' + TRACKINGNUM FROM #Data23 t
           WHERE t.PORID = t1.PORID AND t.REFPO = t1.REFPO AND t.TRACKINGNUM <> 'pending'
           FOR XML PATH('') ), 1, 1,'') AS TRK
    FROM #Data23 AS t1
    WHERE t1.TRACKINGNUM <> 'pending'
    GROUP BY PORID, REFPO
) x

SELECT trk.PORID,
       trk.REFPO,
       trk.TRK AS Tracking,
       pob.SHIPVIA,
       pob.SHIPDATE AS Shipdate
FROM #Trks trk  INNER JOIN POBreakdown pob ON trk.PORID = pob.PORID
GROUP BY trk.PORID,trk.REFPO, trk.TRK, pob.SHIPVIA, pob.SHIPDATE;

3. 思路

3.1 观察表结构

观察两张表结构：

SELECT PORID,REFPO FROM dbo.T_POReplaceDetails WHERE PORID IN ( 660693, 660488 )

dbo.T_POReplaceDetails：

PORID REFPO
660488 SF5613494-R-281204
660693 CS207743672-R-6810241
660693 CS207743672-R-6810240
660693 CS207743672-R-6810239
660693 CS207743672-R-6810238
660693 CS207743672-R-6810242
660693 CS207743672-R-6810243
660693 CS207743672-R-6810246
660693 CS207743672-R-6810244

dbo.POBreakdown：

PORID TRACKINGNUM
660488
660488 pending
660693 794637508332
660693 794637509980
660693 794637511019
660693 pending
660693 pending

首先能想到的是dbo.T_POReplaceDetails这张表上的REFPO字段对应需要取到dbo.POBreakdown上的TRK#字段，得到的最终类似于这样一个效果：

PORID REFPO 连接 PORID TRACKINGNUM
660488 SF5613494-R-281204 <=> 660488
660693 CS207743672-R-6810241 <=> 660488 pending
660693 CS207743672-R-6810240 <=> 660693 794637508332
660693 CS207743672-R-6810239 <=> 660693 794637509980
660693 CS207743672-R-6810238 <=> 660693 794637511019
660693 CS207743672-R-6810242 <=> 660693 pending
660693 CS207743672-R-6810243 <=> 660693 pending
660693 CS207743672-R-6810246 <=>
660693 CS207743672-R-6810244 <=>

3.2 能否直接Inner Join两张表呢？

直接用通过PORID对两张表做Inner Join不行，相同的PORID和不同的REFPO+Trk之间会做交叉合并：

SELECT * FROM
(
    SELECT PORID,REFPO FROM dbo.T_POReplaceDetails
    WHERE PORID IN ( 660693, 660488 )

) AS x
    INNER JOIN
    (
        SELECT a.PORID,TRACKINGNUM FROM dbo.POBreakdown AS a
        WHERE a.PORID IN ( 660693, 660488 )
    ) AS y
        ON x.PORID = y.PORID
		ORDER BY x.REFPO

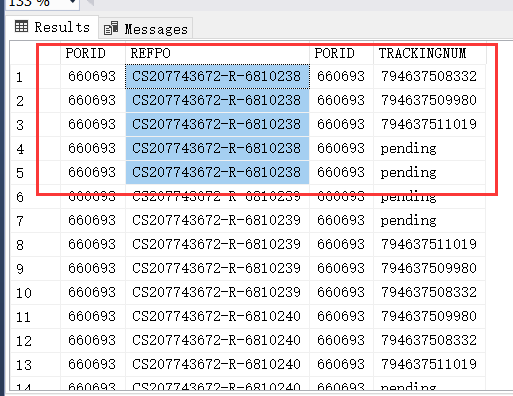

而期望的效果是 CS207743672-R-6810238有且只展示一条，后面的TRK如果全部分配一轮过后，有剩余再用逗号隔开叠加上去。

@||390x0

3.3 ROW_NUMBER() 函数登场

这时候就想到需要给2两张表进行分组排名，然后两边按照相同的排名进行连接：

SELECT * FROM
(
    SELECT PORID,REFPO
	,ROW_NUMBER() OVER(PARTITION BY PORID ORDER BY REFPO) AS Row#
	FROM dbo.T_POReplaceDetails
    WHERE PORID IN ( 660693, 660488 )

) AS x
    INNER JOIN
    (
        SELECT PORID,TRACKINGNUM as TRK#
		, ROW_NUMBER() OVER (PARTITION BY PORID ORDER BY POBID ) AS Row#
		FROM dbo.POBreakdown
        WHERE  PORID IN ( 660693, 660488 )
    ) AS y
        ON x.PORID = y.PORID AND y.Row#= x.Row#
PORID REFPO Row# PORID TRK# Row#
660488 SF5613494-R-281204 1 660488 1
660693 CS207743672-R-6810238 1 660693 794637508332 1
660693 CS207743672-R-6810239 2 660693 794637509980 2
660693 CS207743672-R-6810240 3 660693 794637511019 3
660693 CS207743672-R-6810241 4 660693 pending 4
660693 CS207743672-R-6810242 5 660693 pending 5

到目前为止，看数据结果是OK的，似乎达到了所要的目的。

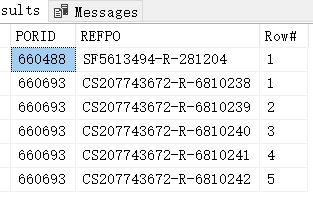

不过为了严谨性，我们还需要对TRK数量多于REFPO数量的情况下做测试。为此我们先删除掉一些REFPO，再新增一些TRK#，最终得到如下的结果：

@||270x0 @||190x0

然而我们在执行上述的脚本观察到，虽然每个REFPO都获取到了TRK，但是剩余的6和7的TRK并未重新分配。

PORID REFPO Row# PORID TRK# Row#
660488 SF5613494-R-281204 1 660488 1
660693 CS207743672-R-6810238 1 660693 794637508332 1
660693 CS207743672-R-6810239 2 660693 794637509980 2
660693 CS207743672-R-6810240 3 660693 794637511019 3
660693 CS207743672-R-6810241 4 660693 73742134 4
660693 CS207743672-R-6810242 5 660693 pending 5

3.4 取模(Modulo)函数登场

为了方便观察，我们暂时先把PORID = 660488数据移除掉：

SELECT ROW_NUMBER() OVER(PARTITION BY PORID ORDER BY REFPO) AS RowNum,PORID,REFPO
 ,ROW_NUMBER() OVER(PARTITION BY PORID ORDER BY REFPO) % 5 AS RowMod
FROM dbo.T_POReplaceDetails
WHERE PORID IN ( 660693)
RowNum PORID REFPO RowMod
1 660693 CS207743672-R-6810238 1
2 660693 CS207743672-R-6810239 2
3 660693 CS207743672-R-6810240 3
4 660693 CS207743672-R-6810241 4
5 660693 CS207743672-R-6810242 0
SELECT ROW_NUMBER() OVER (PARTITION BY PORID ORDER BY POBID ) AS RowNum, PORID,TRACKINGNUM as TRK
, ROW_NUMBER() OVER (PARTITION BY PORID ORDER BY POBID ) % 5 AS RowMod
FROM dbo.POBreakdown
WHERE  PORID IN ( 660693)
RowNum PORID TRK RowMod
1 660693 794637508332 1
2 660693 794637509980 2
3 660693 794637511019 3
4 660693 73742134 4
5 660693 pending 0
6 660693 8872621314 1
7 660693 88990564 2

再Inner Join两张表的数据到临时表#Trks中：

SELECT x.PORID,x.REFPO,x.RowMod,y.TRK  INTO #TRKs  FROM
(
    SELECT ROW_NUMBER() OVER(PARTITION BY PORID ORDER BY REFPO) AS RowNum,PORID,REFPO
	 ,ROW_NUMBER() OVER(PARTITION BY PORID ORDER BY REFPO) % 5 AS RowMod
    FROM dbo.T_POReplaceDetails
    WHERE PORID IN ( 660693 )

) AS x
    INNER JOIN
    (
        SELECT ROW_NUMBER() OVER (PARTITION BY PORID ORDER BY POBID ) AS RowNum, PORID,TRACKINGNUM as TRK
		, ROW_NUMBER() OVER (PARTITION BY PORID ORDER BY POBID ) % 5 AS RowMod
        FROM dbo.POBreakdown
        WHERE  PORID IN ( 660693)
    ) AS y
        ON x.PORID = y.PORID AND y.RowMod = x.RowMod
		ORDER BY x.REFPO

SELECT * FROM #TRKs
PORID REFPO RowMod
两边余数		 TRK
660693 CS207743672-R-6810238 1 794637508332
660693 CS207743672-R-6810238 1 8872621314
660693 CS207743672-R-6810239 2 794637509980
660693 CS207743672-R-6810239 2 88990564
660693 CS207743672-R-6810240 3 794637511019
660693 CS207743672-R-6810241 4 73742134
660693 CS207743672-R-6810242 0 pending

3.4.1 核心实现

这里是本业务实现的算法关键所在：通过对两张表数据的取模,然后对两张表的相同的余数和组ID（PORID）进行关联，从而实现REFPO和TRK的均匀分配。

被取模的数据取决于两边分组count数最小的一方。

关于取模更多的介绍，可以点击这里。

比如以上述数据为例，同一个组别内（PORID=660693 ）REFPO总计有5个（38 ~ 42）；而TRK#总计有7个； 这时候需要对两边取模的话，被除数必须是两边当中最小的那个数，也就是5。

这样子取模才能确保：

  • 6%5=1： 位于第6位的TRK会被分配到第1个REFPO
  • 7%5=2： 位于第7位的TRK会被分配给第2个REFPO

而反过来，如果是REFPO多的话，也能确保多余的REFPO获取到（虽然是重复的）TRK；

如果对这段话不明白，可以翻上去就数据取模列进行观察。

到目前为止，可以看到在进行第一轮的TRK分配之后，每个REFPO都拿到了TRK；经常第一轮分配，还剩下多余的TRK没有分配，因此又会进行第二轮的分配，以此类推，直至所有的TRK都以此被分配完。

但是分配到一个以上TRK的REFPO，又以多了的形式展示了出来。问题似乎又回到了3.2环节上了。但是这里与3.2的Inner Join结果不同的是，这里的每个REFPO的TRKs（叠加起来）都不会相同，比如CS207743672-R-6810238的TRK是794637508332、8872621314；而3.2的是每个REFPO的TRK都相同。

那么有没有一种办法，让REFPO只保留一个，而对应的多个TRKs合并，然后用逗号隔开呢？

这时候就需要SQL 的 XML FOR PATH函数登场了。

3.5 FOR XML PATH 函数登场

使用 XML FOR PATH函数配合 Group By 函数：

SELECT PORID,REFPO,
(select ',' + t.TRK from #TRKs t where t.PORID = t1.PORID AND
    t.REFPO = t1.REFPO FOR xml path(''))  AS TRK
FROM #TRKs AS t1
GROUP BY PORID,REFPO
PORID REFPO TRK
660693 CS207743672-R-6810238 ,794637508332,8872621314
660693 CS207743672-R-6810239 ,794637509980,88990564
660693 CS207743672-R-6810240 ,794637511019
660693 CS207743672-R-6810241 ,73742134
660693 CS207743672-R-6810242 ,pending

到目前为止大体接近业务需要，至于TRK列前面出现的多余的逗号，可以使用STUFF函数或LEFT/RIGHT函数去除。

3.6 STUFF函数登场

SELECT PORID,REFPO,
STUFF((select ',' + t.TRK from #TRKs t where t.PORID = t1.PORID AND
    t.REFPO = t1.REFPO FOR xml path('')),1,1,'厚礼蟹 ')  AS TRK
FROM #TRKs AS t1
GROUP BY PORID,REFPO
PORID REFPO TRK
660693 CS207743672-R-6810238 厚礼蟹 794637508332,8872621314
660693 CS207743672-R-6810239 厚礼蟹 794637509980,88990564
660693 CS207743672-R-6810240 厚礼蟹 794637511019
660693 CS207743672-R-6810241 厚礼蟹 73742134
660693 CS207743672-R-6810242 厚礼蟹 pending

3.7 RIGHT函数登场

SELECT PORID,REFPO,RIGHT(x.TRK,LEN(x.TRK)-1) AS TRK FROM
(
	SELECT PORID,REFPO,
	(select ',' + t.TRK from #TRKs t where t.PORID = t1.PORID AND  t.REFPO = t1.REFPO FOR xml path(''))  AS TRK
	FROM #TRKs AS t1
	GROUP BY PORID,REFPO
) x
PORID REFPO TRK
660693 CS207743672-R-6810238 794637508332,8872621314
660693 CS207743672-R-6810239 794637509980,88990564
660693 CS207743672-R-6810240 794637511019
660693 CS207743672-R-6810241 73742134
660693 CS207743672-R-6810242 pending

**RIGTH：返回字符串从右边开始指定个数字符: **

RIGHT(character_expression,integer_expression);

LEFT：返回字符串中从左边开始指定个数字符。

LEFT(character_expression,integer_expression);

4. 用到的SQL技术

  • ROW_NUMBER() OVER(PARTITION BY COLUMN ORDER BY COLUMN) （分组（分区）排名函数）
  • Union 函数
  • 取模方法
  • SQL STUFF方法
  • SQL FOR XML PATH方法

4.1 分区分组排名函数

partition by：关键字是分析性函数的一部分，它和聚合函数（如group by）不同的地方在于它能返回一个分组中的多条记录，而聚合函数一般只有一条反映统计值的记录;

partition by用于给结果集分组，如果没有指定那么它把整个结果集作为一个分组。

partition by 与group by不同之处在于前者返回的是分组里的每一条数据，并且可以对分组数据进行排序操作。后者只能返回聚合之后的组的数据统计值的记录。

以下面两列数据为例来解释说明：

4.1.1 原始数据

SELECT a.PORID, TRACKINGNUM FROM dbo.POBreakdown AS a
WHERE a.PORID IN ( 660693, 660488 )
PORID TRACKINGNUM
660488
660488 pending
660693 794637508332
660693 794637509980
660693 794637511019
660693 pending
660693 pending

4.1.2 Group by的数据

SELECT a.PORID, TRACKINGNUM FROM dbo.POBreakdown AS a
WHERE a.PORID IN ( 660693, 660488 )
GROUP BY  a.PORID,TRACKINGNUM;
PORID TRACKINGNUM
660488
660488 pending
660693 794637508332
660693 794637509980
660693 794637511019
660693 pending

4.1.3 ROW_NUMBER() OVER(PARTITION BY col ORDER BY col)

SELECT a.PORID, TRACKINGNUM,
	ROW_NUMBER() OVER (PARTITION BY a.PORID ORDER BY a.POBID) AS RowNumber
FROM dbo.POBreakdown AS a
WHERE a.PORID IN ( 660693, 660488 )
PORID TRACKINGNUM RowNumber
660488 1
660488 pending 2
660693 794637508332 1
660693 794637509980 2
660693 794637511019 3
660693 pending 4
660693 pending 5

相比前面，可以看到PORID=660693 ，TrackingNum = pending这条路数据并没有被合并，而是都展示出来，只是RowNumber不一样（分别是4，5）。

这就是：partition by 与group by不同之处在于前者返回的是分组里的每一条数据，并且可以对分组数据进行排序操作。后者只能返回聚合之后的组的数据统计值的记录 的意思。
