Harbor安装

Harbor安装

Harbor是一个开源的镜像仓库.

harbor官网

环境	软件	版本	下载地址	备注
系统	Centos	7.4	-	-
-	docker	18.09.0-3	传送门	-
-	docker-componse	1.24.1	传送门	-
-	harbor	v1.8.2-rc1	传送门	harbor版本要大于等于此版本否则之前出现了服务启动成功但是无法通过浏览器访问的问题





安装环境

安装docker

$ yum remove docker docker-client docker-client-latest docker-common docker-latest docker-latest-logrotate docker-logrotate docker-selinux docker-engine-selinux docker-engine
$ yum install -y yum-utils device-mapper-persistent-data lvm2
$ yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
$ yum-config-manager --enable docker-ce-edge
$ yum install -y docker-ce-18.09.0-3.el7.x86_64
$ systemctl start docker
$ systemctl enable docker



注意docker 版本要在17.06.0以上

否则在运行 ./install.sh的时候会报如下错误

[root@192 harbor]#  ./install.sh

[Step 0]: checking installation environment ...
✖ Need to upgrade docker package to 17.06.0+.



如果遇到错误

安装docker-componse

$ curl -L "https://github.com/docker/compose/releases/download/1.24.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
$ chmod +x /usr/local/bin/docker-compose
$ ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose
$ docker-compose --version
docker-compose version 1.24.1, build 1110ad01



安装harbor

下载harbor

$ wget -c https://storage.googleapis.com/harbor-releases/release-1.8.0/harbor-offline-installer-v1.8.2-rc1.tgz
$ tar zxvf harbor-offline-installer-v1.8.2-rc1.tgz
$ cd harbor



配置harbor.yml

$ vim harbor.yml
hostname: #IP地址或域名
http:
	port: 80
https:
	port: 443
	certificate: xxx
	private_key: xxx
harbor_admin_password: xxxxx #  Web端admin用户密码
database:
	password: xxxx
data_volumn: /data



安装harbor

$ ./install.sh



服务启动完成自动创建nginx和db等容器服务

$ docker-compose ps
      Name                     Command                  State                        Ports
------------------------------------------------------------------------------------------------------------
harbor-core         /harbor/start.sh                 Up (healthy)
harbor-db           /entrypoint.sh postgres          Up (healthy)   5432/tcp
harbor-jobservice   /harbor/start.sh                 Up
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up (healthy)   80/tcp
nginx               nginx -g daemon off;             Up (healthy)   0.0.0.0:443->443/tcp, 0.0.0.0:80->80/tcp
redis               docker-entrypoint.sh redis ...   Up             6379/tcp
registry            /entrypoint.sh /etc/regist ...   Up (healthy)   5000/tcp
registryctl         /harbor/start.sh                 Up (healthy)



• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12

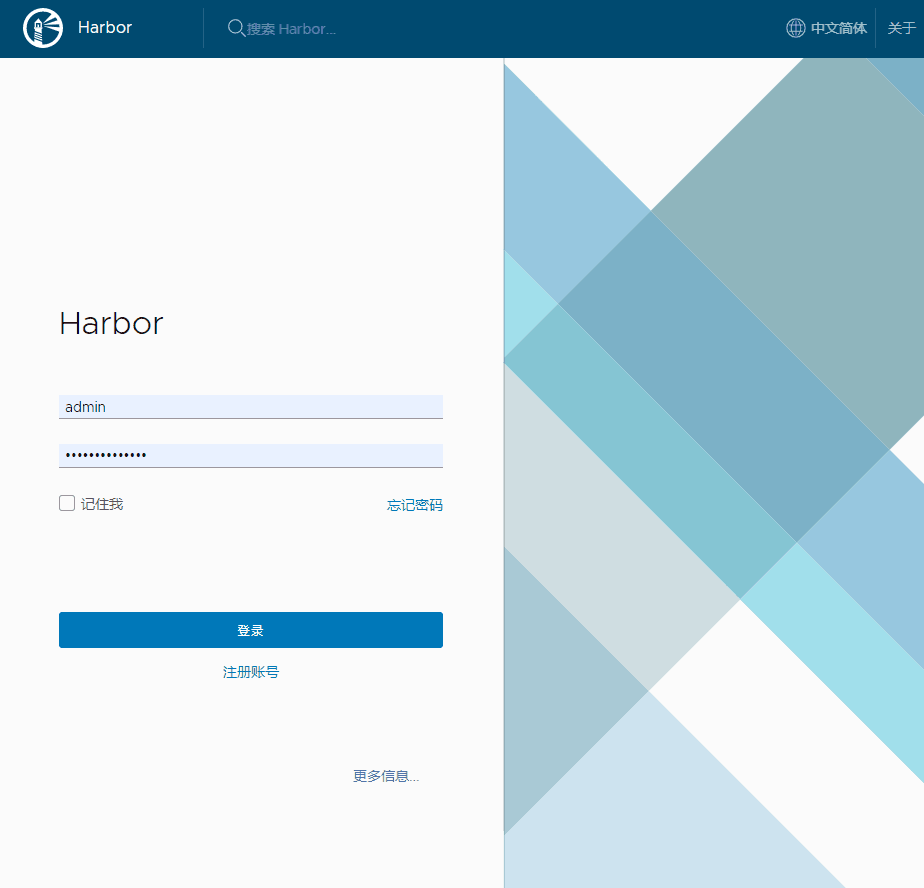

登陆界面

harbor使用

# 使用前先登录
$ docker login XXX.XXX.XXX.XXX
Username:
Password:
Login Succeeded
# 上传之前先打tag
docker pull k8s.gcr.io/kubernetes-dashboard
docker tag k8s.gcr.io/kubernetes-dashboard XXX.XXX.XXX.XXX/library/k8s.gcr.io/kubernetes-dashboard
# 上传镜像
docker push XXX.XXX.XXX.XXX/library/k8s.gcr.io/kubernetes-dashboard
# 下载镜像
docker pull XXX.XXX.XXX.XXX/library/k8s.gcr.io/kubernetes-dashboard



错误集

Requires: container-selinux >= 2.9
yum 安装的时候如果yum源找不到这个包,更换阿里云的yum源

$ mv /etc/yum.repo.d/CentOS-Base.repo /etc/yum.repo.d/CentOS-Base.repo.bak
$ wget -c -O /etc/yum.repo.d/CentOS-Base.repo http://mirrors.aliyum.com/repo/Centos-7.repo
$ yum install -y container-selinux
