基于alpine制作tomcat基础镜像

一 工作目录

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# pwd
/data/dockerfile/web/tomcat/tomcat-base

二 下载tomcat

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# wget https://mirrors.tuna.tsinghua.edu.cn/apache/tomcat/tomcat-8/v8.5.73/bin/apache-tomcat-8.5.73.tar.gz

三 编写Dockerfile

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# cat Dockerfile
FROM 192.168.174.120/baseimages/jdk-base:1.8.0_311


ENV TZ "Asia/Shanghai"
ENV TERM xterm
ENV TOMCAT_MAJOR_VERSION 8
ENV TOMCAT_MINOR_VERSION 8.5.73
ENV CATALINA_HOME /usr/local/tomcat
ENV APP_DIR /data/tomcat/webapps
ENV LANG en_US.UTF-8
ENV PATH $CATALINA_HOME/bin:$PATH


ADD apache-tomcat-8.5.73.tar.gz /usr/local/
RUN mkdir /data/tomcat/webapps /data/tomcat/logs -pv \
    && ln -sv /usr/local/apache-tomcat-8.5.73 /usr/local/tomcat


WORKDIR $CATALINA_HOME

四 编写构建镜像脚本

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# cat build-command.sh
#!/bin/bash

docker build -t 192.168.174.120/baseimages/tomcat-base:8.5.73 .
#docker push 192.168.174.120/baseimages/tomcat-base:8.5.73 .

五 构建镜像

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# ./build-command.sh
Sending build context to Docker daemon  10.59MB
Step 1/12 : FROM 192.168.174.120/baseimages/jdk-base:1.8.0_311
 ---> f7f2cc224b22
Step 2/12 : ENV TZ "Asia/Shanghai"
 ---> Using cache
 ---> ab96e6c341de
Step 3/12 : ENV TERM xterm
 ---> Using cache
 ---> 3aabe433de56
Step 4/12 : ENV TOMCAT_MAJOR_VERSION 8
 ---> Using cache
 ---> b6bf59060677
Step 5/12 : ENV TOMCAT_MINOR_VERSION 8.5.73
 ---> Using cache
 ---> fdbca4e629a1
Step 6/12 : ENV CATALINA_HOME /usr/local/tomcat
 ---> Using cache
 ---> 7a85178cb050
Step 7/12 : ENV APP_DIR /data/tomcat/webapps
 ---> Using cache
 ---> c20b03134b6d
Step 8/12 : ENV LANG en_US.UTF-8
 ---> Using cache
 ---> 6dea72790185
Step 9/12 : ENV PATH $CATALINA_HOME/bin:$PATH
 ---> Using cache
 ---> 28488a313d6d
Step 10/12 : ADD apache-tomcat-8.5.73.tar.gz /usr/local/
 ---> Using cache
 ---> 1892c0f85588
Step 11/12 : RUN mkdir /data/tomcat/webapps /data/tomcat/logs -pv     && ln -sv /usr/local/apache-tomcat-8.5.73 /usr/local/tomcat
 ---> Running in e940c7ea9c92
created directory: '/data/'
created directory: '/data/tomcat/'
created directory: '/data/tomcat/webapps'
created directory: '/data/tomcat/logs'
'/usr/local/tomcat' -> '/usr/local/apache-tomcat-8.5.73'
Removing intermediate container e940c7ea9c92
 ---> 28bc14de091a
Step 12/12 : WORKDIR $CATALINA_HOME
 ---> Running in 6973da253a69
Removing intermediate container 6973da253a69
 ---> 97996035932d
Successfully built 97996035932d
Successfully tagged 192.168.174.120/baseimages/tomcat-base:8.5.73

六 验证镜像

6.1 启动服务

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# docker run -it --rm -p 8080:8080  192.168.174.120/baseimages/tomcat-base:8.5.73 sh
/usr/local/apache-tomcat-8.5.73 # catalina.sh start
Using CATALINA_BASE:   /usr/local/tomcat
Using CATALINA_HOME:   /usr/local/tomcat
Using CATALINA_TMPDIR: /usr/local/tomcat/temp
Using JRE_HOME:        /usr/local/jdk/jre
Using CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jar
Using CATALINA_OPTS:
Tomcat started.

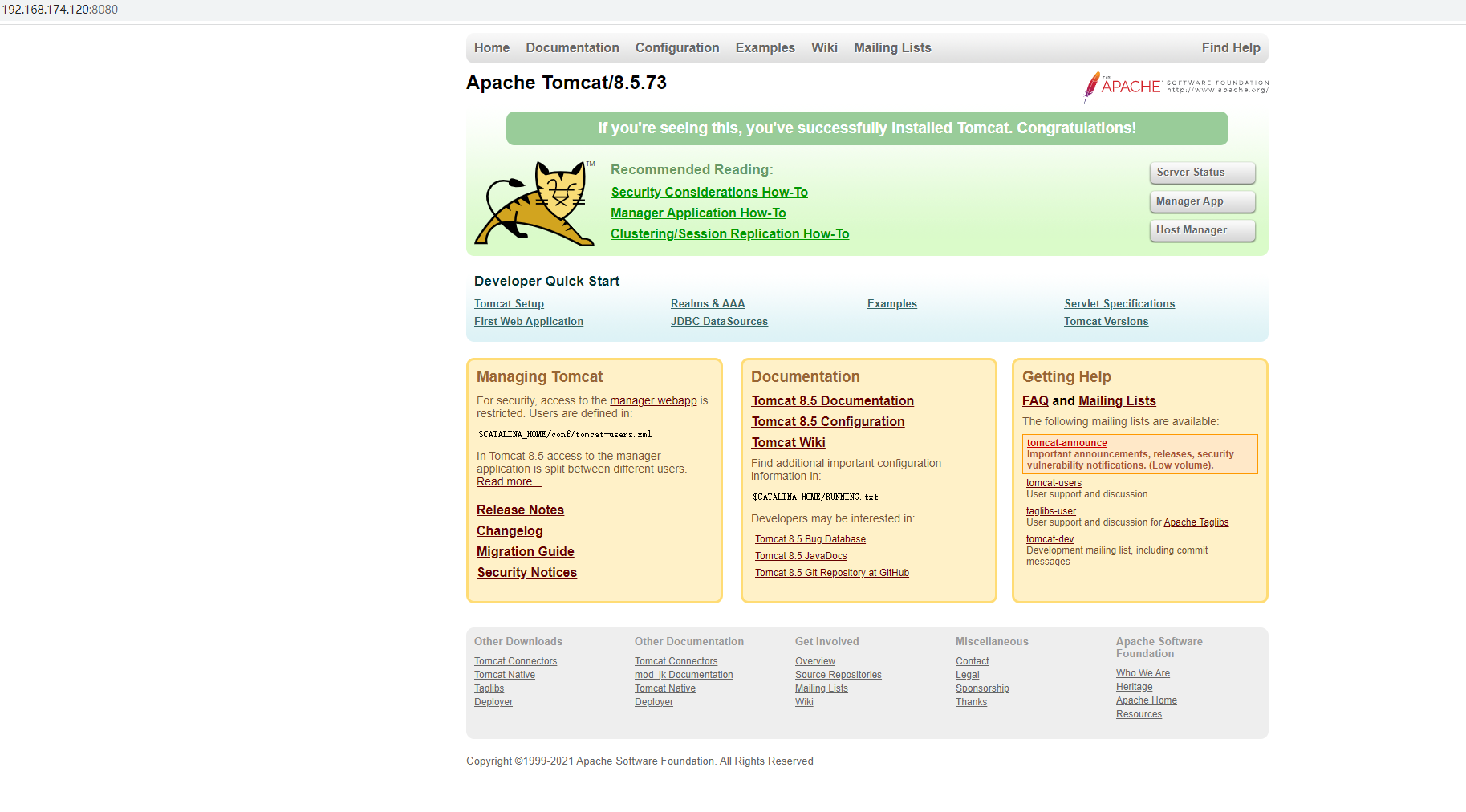

6.2 访问web界面

七 上传镜像到harbor

root@k8s-harbor-01:/data/dockerfile/web/tomcat/tomcat-base# docker push 192.168.174.120/baseimages/tomcat-base:8.5.73
