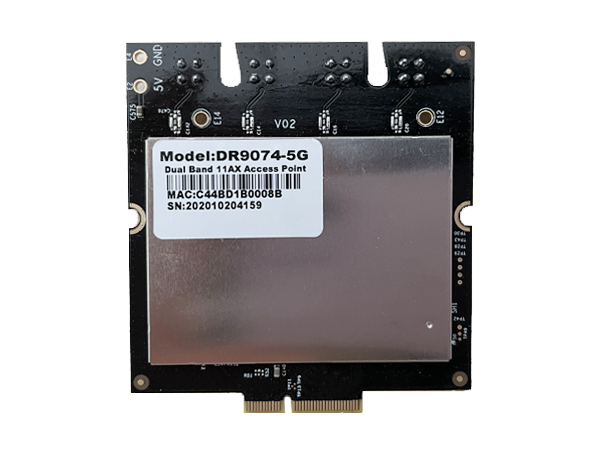

DR9074-5G(PN02.1)

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IQCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGW
Wallys Communications (SuZhou) Co., Ltd., http://www.wallystech.com,which is a professional supplier specializing in product design, manufacturing and offering superior OEM/ODM/JDM services in wireless communications. As a specialized manufacturer and exporter for these products in China,We sincerely hope to establish business relations with your esteemed corporation.
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com



https://www.wallystech.com/Network_Card/DR9074-5G-PN02.1-Wifi-6-Qualcomm-QCN9074-Single-Band-5-GHz-4T4R-M.2-E-Key-Interface-802.11ax.html

Features

■ Qualcomm Atheros QCN9074

■ 5GHz, max 23dBm per chain, up to 4949Mbps

■ Single Band 5GHz 4x4 WiFi 6 (802.11ax)

■ 4 spatial streams (4SS)

■ M.2 E Key Interface

■ PCI Express 3.0 Interface

■ Supports Dynamic Frequency Selection (DFS)

Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	ºC
Storage Temperature Range	-40 to 90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%



Hardware Specifications





Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.15GHz-5.95GHz
Data Rates for WALN	5GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz at 5GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN02.1
Dimensions (WxHxD)	57mm x 63mm x 6mm

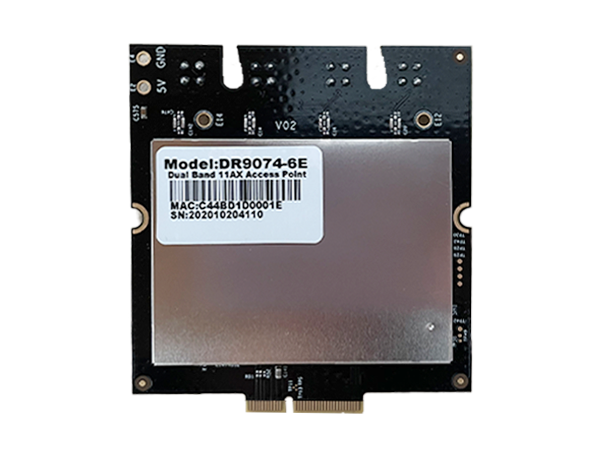

DR9074-6E(PN02.7)

https://www.wallystech.com/Network_Card/DR9074-6E-Wifi6E-Qualcomm-QCN9074-Single-Band-6GHz-4T4R-M-2-E-Key-Interface-802-11ax.html



Features

■ Qualcomm Atheros QCN9074

■ 6GHz, max 23dBm per chain, up to 4949Mbps

■ Single Band 6GHz 4x4 WiFi 6E (802.11ax)

■ 4 spatial streams (4SS)

■ M.2 E Key Interface

■ PCI Express 3.0 Interface



Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	ºC
Storage Temperature Range	-40 to 90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%



Hardware Specifications



Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.925GHz-7.125GHz
Data Rates for WALN	6GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz at 6GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN02.7
Dimensions (WxHxD)	57mm x 63mm x 6mm
