wallys/new product/PD-60 802.3AT Input Output 802.3AT/AT 85% Efficiency 10/100/1000M GE Surge Protection

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IPQ9074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

Wallys Communications (Suzhou ) Co., LTD（http://www.wallystech.com） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.

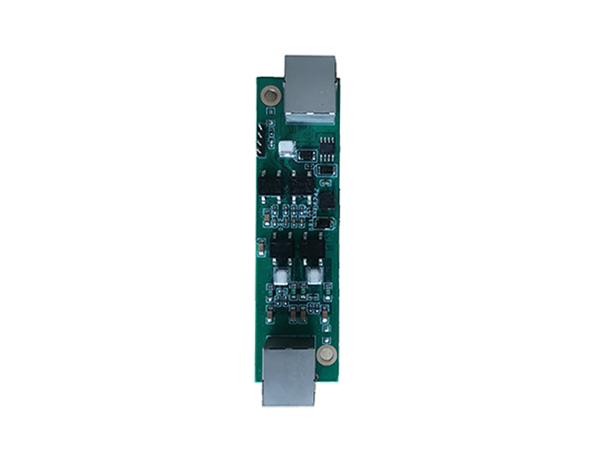

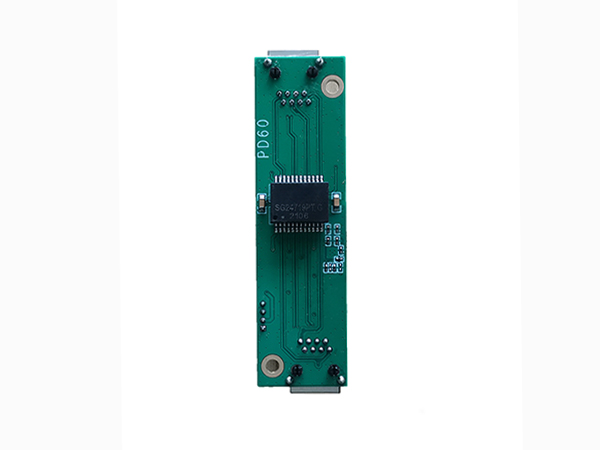

PD-60

https://www.wallystech.com/Routerboard/PD60-802.3-af-at-active-POE-to-Passive-POE-24V-adapter.html



Support 802.3BT/AT/AF

The output voltage is 48V

The efficiency is 90%

Support surge protection

Support RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals



 Applications



Parameter	Rating	Unit
Input voltage	42~56	V
Output Voltage	48	V
The maximum output voltage	56	V
10/100/1000Mbps Gigabit Ethernet	2xRJ45（one is for input，one is for output）
Surge protection	Yes
Operating Temperature	-40 to +70	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%
ROHS Compliance	YES





Applications







Parameter	Rating	Unit
Length	100.7	Mm
Width	27.4	Mm
