wallys/DR4018-l-r/IPQ4018 12V-56VDCPassive 24V-56V IPQ4018 2*MMCX 27dbm Support MU-MIMO

IPQ4018 12V-56VDCPassive 24V-56V  IPQ4018 2*MMCX 27dbm Support MU-MIMO

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IPQ9074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

Wallys Communications (Suzhou ) Co., LTD（http://www.wallystech.com） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.

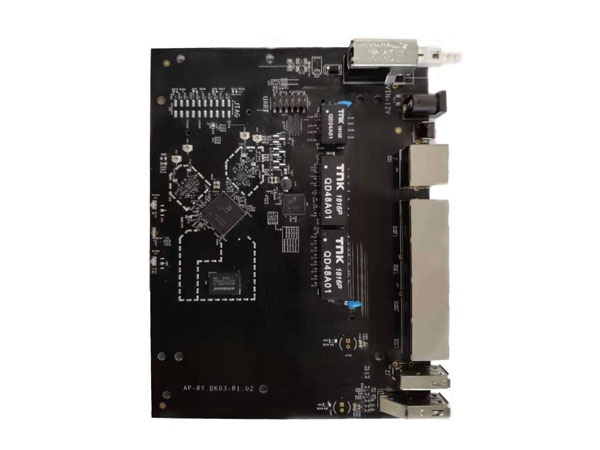

DR4018L-R

https://www.wallystech.com/Routerboard/DR4018L-R-Qualcomm-IPQ4018-2T2R-Dual-Band-2-4GHz-5GHz-support-OpenWRT-802.11ac-Wave-2.html

Featuring with industrial-grade IPQ4018 chipset

Integrated with 2x 2 5G Radio module and 2x2 Radio module

Support 5.180GHz to 5.825GHz Frequency Range

Support 2.412GHz to2.482GHz

Support 2 x 5G UFL Connectors and 2x2.4G UFL

20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/802.11AC wave2 mode

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals



Absolute Maximum Rating





Parameter	Rating	Unit
Supply Voltage	12	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-65 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%





Hardware Specifications





Symbol	Parameter
CPU	IPQ4018
Antenna Connector	4xUFL
10/100/1000Mbps Gigabit Ethernet	5xRJ45
SFP connector	NO
3G/4G connector	NO
USB connector	1xUSB 3.0 connector
POE	NO
DC Jack	12 power supply
ROHS Compliance	YES
Dimension	NA
Max Power	15W
