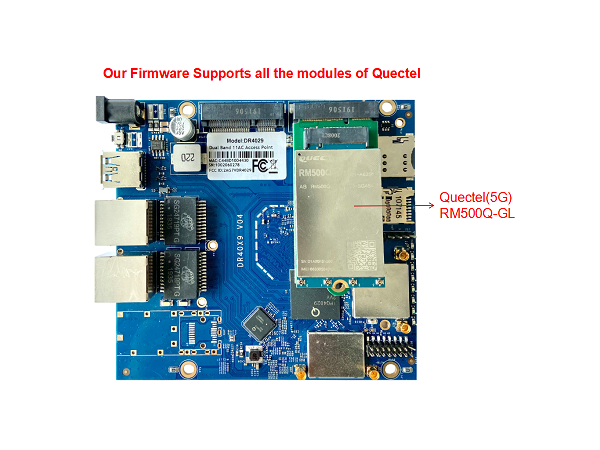

2x2 2.4Ghz&5G Support HTTPS Support all the modules of Quectel /

IPQ4018/IPQ4028 2x2 2.4Ghz 2x2 5Ghz Industrial-grade



DR40X9

IPQ4019 IPQ4029 ,802.11AC 2x2 2.4G&5G

2x2 2.4Ghz&5G Support HTTPS Support all the modules of Quectel



https://www.wallystech.com/Routerboard/DR40X9-Qualcomm-IPQ-4019-4029-DUAL-BAND-802.11AC-WAVE2-MU-MIMO-ONBOARD-WIFI-RADIO-EMBEDDED-BOARD-supporting-LTE.html

https://www.youtube.com/watch?v=6A9pKXP_lBM



Access Point Wireless Module Dual band 11AC Wave2 Module

Features

• Featuring withindustrial-grade IPQ4029 chipset
• Integrated with 2x 2 5G high power （27dbm per chain） Radio module and 2×2 2.4G high power （27dbm per chain） Radio module
• Support 4.940GHz to5.825GHz Frequency Range;
• Support 2.412GHz to 2.482GHz
• Support 2 x 5G MMCX Connectors and 2×2.4G MMCX
• 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
• Support 11ABGN/AC
• RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Applications

• Security Surveillance
• Commercial radio coverage
• Hotel Wireless application
• Country coverage
• Forest fire protection engineering
• Some special scene application

Product Description

dr4029 based on IPQ4029 chipset is an enterprise wireless module integrated with 2×2 5G high power Radio module and 2×2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.

Absolute Maximum Rating

Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-45 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
CPU	IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz）
Antenna Connector	2 x 5G MMCX connectors;2×2.4G MMCX
10/100/1000Mbps Gigabit Ethernet	2xRJ45
SFP connector	1xSFP fiber module connector (optional)
3G/4G connector	1xminipcie 3G/4G connector support with two sim card
USB connector	1xUSB 3.0 connector
POE	24V~48V passive POE
DC Jack	24V~48V power supply
ROHS Compliance	YES
Dimension	115mm x 105mm x 16mm
Max Power	48.1V x 0.180A= 8.658W
Nor Flash	2MB~32MB
Nand Flash	128MB
DDR	256MB~512MB

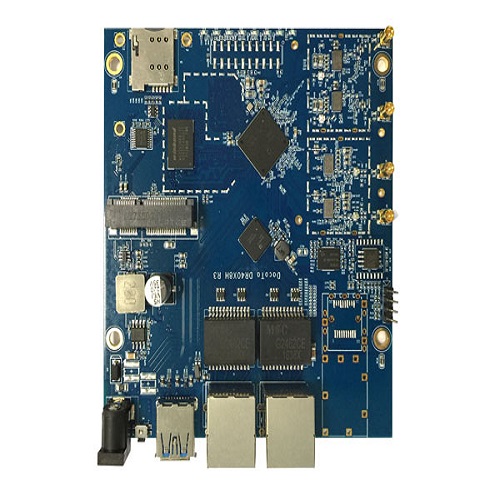

DR40X8H



IPQ4018/IPQ4028 802.11ac Wave2

IPQ4018/IPQ4028 2x2 2.4Ghz 2x2 5Ghz Industrial-grade



https://www.wallystech.com/Routerboard/DR40X8H-Qualcomm-IPQ4018-IPQ4028-2T2R-Dual-Band-2-4GHz-5GHz-high-power-support-MU-MIMO-802.11ac-Wave-2.html

https://www.youtube.com/watch?v=cqd2kPCg73E



Access Point Wireless Module Dual band 11AC Wave2 Module

Features

• Featuring with industrial-grade IPQ4018 chipset
• Integrated with 2x 2 5G high power（27dbm per chain） Radio module and 2×2 2.4G high power（27dbm per chain） Radio module
• Support 5180GHz to 5.825GHz Frequency Range;
• Support 2.412GHz to 2.482GHz
• Support 2 x 5G MMCX Connectors and 2×2.4G MMCX
• 20MHz/40MHz/80MHz Bandwidth
• Support 11ABGN/AC
• RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Applications

• Security Surveillance
• Commercial radio coverage
• Hotel Wireless application
• Country coverage
• Forest fire protection engineering
• Some special scene application

Product Description

dr40X8H based on IPQ4018 chipset is an enterprise wireless module integrated with 2×2 5G high power Radio module and 2×2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses

Absolute Maximum Rating

Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +60	ºC
Storage Temperature Range	-65 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
CPU	IPQ4018(Quad core ARM Cortex A7 at 710 MHz)
Antenna Connector	2 x 5G MMCX connectors;2×2.4G MMCX
10/100/1000Mbps Gigabit Ethernet	2xRJ45
SFP connector	1xSFP fiber module connector (optional)
3G/4G connector	1xminipcie 3G/4G connector support with two sim card
USB connector	1xUSB 3.0 connector
POE	24V~48V passive POE
DC Jack	24V~48V power supply
ROHS Compliance	YES
Dimension	115mm x 105mm x 16mm
Nor Flash	2MB~32MB
Nand Flash	128MB
DDR	256MB

Radio TX Specifications(5180MHz-5825MHz)

Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	27dBm	30dbm	±2dB
	54 Mbps	23dBm	26dbm	±2dB
802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
	MCS7, MCS15	22dBm	25dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	21dBm	24dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	19dBm	22dbm	±2dB
