Wallys/Routerboard/DR40X8H/IPQ4018/IPQ4028/ 802.11ac/Wave2

IPQ4018/IPQ4028 802.11ac Wave2

IPQ4018/IPQ4028 2x2 2.4Ghz 2x2 5Ghz Industrial-grade

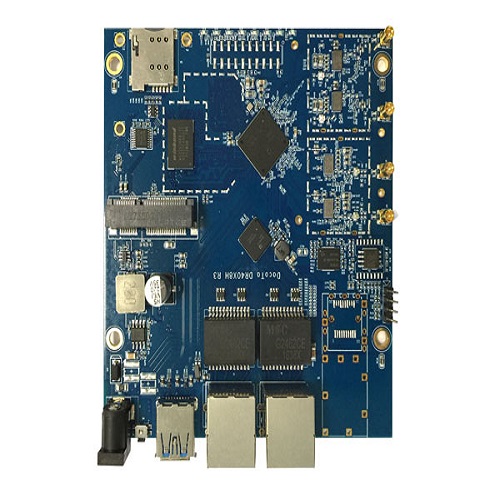

DR40X8H

https://www.wallystech.com/Routerboard/DR40X8H-Qualcomm-IPQ4018-IPQ4028-2T2R-Dual-Band-2-4GHz-5GHz-high-power-support-MU-MIMO-802.11ac-Wave-2.html



Wallys Communications (Suzhou ) Co., LTD (http://www.wallystech.com) is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period. We are also a supplier to Facebook, the quality of the product is unquestionable



IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /



Featuring with industrial-grade IPQ4018/IPQ4028 chipset

Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module

Support 4.940GHz to 5.825GHz Frequency Range;

Support 2.400GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/AC

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals



Absolute Maximum Rating



Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +60	ºC
Storage Temperature Range	-65 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%



Hardware Specifications



Symbol	Parameter
CPU	IPQ4018 (Quad core ARM Cortex A7 at 710 MHz)
Antenna Connector	2 x 5G MMCX connectors;2x2.4G MMCX
10/100/1000Mbps Gigabit Ethernet	2xRJ45
SFP connector	1xSFP fiber module connector (optional)
3G/4G connector	1xminipcie 3G/4G connector support with two sim card
USB connector	1xUSB 3.0 connector
POE	24V~48V passive POE
DC Jack	24V~48V power supply
ROHS Compliance	YES
Dimension	115mm x 105mm x 16mm
Nor Flash	2MB~32MB
Nand Flash	128MB
DDR	256MB





Radio TX Specifications(5180MHz-5825MHz)





Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	27dBm	30dbm	±2dB
	54 Mbps	23dBm	26dbm	±2dB
802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
	MCS7, MCS15	22dBm	25dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	21dBm	24dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	19dBm	22dbm	±2dB
