QCN9074 QCN9024 802.11ax 4x4 MU-MIMO 5GHz wifi6

QCN9074 11ax 4x4 5G M.2

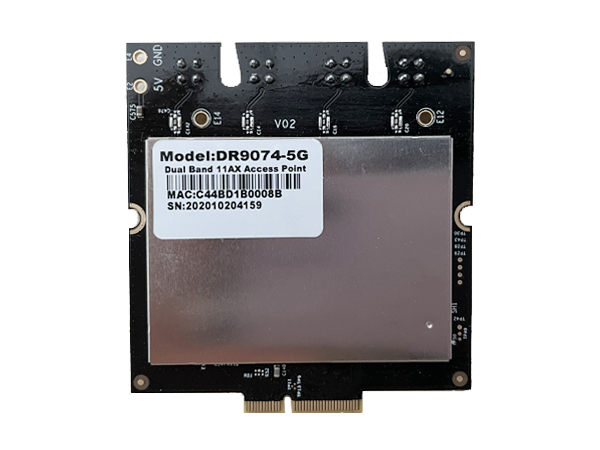

DR9074-5G(PN02.1)

https://www.wallystech.com/Network_Card/DR9074-5G-PN02.1-Wifi-6-Qualcomm-QCN9074-Single-Band-5-GHz-4T4R-M.2-E-Key-Interface-802.11ax.html

Wallys Communications (Suzhou ) Co., LTD (http://www.wallystech.com) is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period. We are also a supplier to Facebook, the quality of the product is unquestionable

IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /





Features

■ Qualcomm Atheros QCN9074

■ 5GHz, max 23dBm per chain, up to 4949Mbps

■ Single Band 5GHz 4x4 WiFi 6 (802.11ax)

■ 4 spatial streams (4SS)

■ M.2 E Key Interface

■ PCI Express 3.0 Interface

■ Supports Dynamic Frequency Selection (DFS)





Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	ºC
Storage Temperature Range	-40 to 90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%



Hardware Specifications





Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.15GHz-5.95GHz
Data Rates for WALN	5GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz at 5GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN02.1
Dimensions (WxHxD)	57mm x 63mm x 6mm









M.2 Pin Definitions







Pin No.	Name	Pin No.	Name
1	GND	2	VDD3P3_PCIE
3		4	VDD3P3_PCIE
5		6	PCIE_LED0
7	GND	8	GPIO46_WCI2_UART_TXD_PCIE
9	TP19	10	GPIO47_WCI2_UART_RXD_PCIE
11		12
13		14
15	VDD_XPA_PCIE	16	PCIE_LED1
17	VDD_XPA_PCIE	18	GND
19	VDD_XPA_PCIE	20
21	VDD_XPA_PCIE	22
23	VDD_XPA_PCIE
33	GND	32
35	PCIE0_RX0_P	34
37	PCIE0_RX0_N	36
39	GND	38	MOD_BT_STS_2
41	PCIE0_TX0_P	40	MOD_WL_ACT_2
43	PCIE0_TX0_N	42	PINE_BT_ACT_2
45	GND	44	MOD_BT_STS
47	PCIE0_REFCLK_P	46	MOD_WL_ACT
49	PCIE0_REFCLK_N	48	PINE_BT_ACT
51	GND	50
53	PCIE0_CLKREQ_3P3_N	52	PCIE0_PERST_3P3
55	PCIE0_WAKE_3P3_N	54
57	GND	56
59	PCIE0_RX1_P	58
61	PCIE0_RX1_N	60
63	GND	62
65	PCIE0_TX1_P	64
67	PCIE0_TX1_N	66
69	GND	68
71		70
73		72	VDD3P3_PCIE
75	GND	74	VDD3P3_PCIE
