wallys/IPQ8072/ 4x4 2.4G & 5G /802.11ax

Support WiFi 6E Card,802.11ax,QCN9074

IPQ8072 4x4 2.4G & 5G 802.11ax

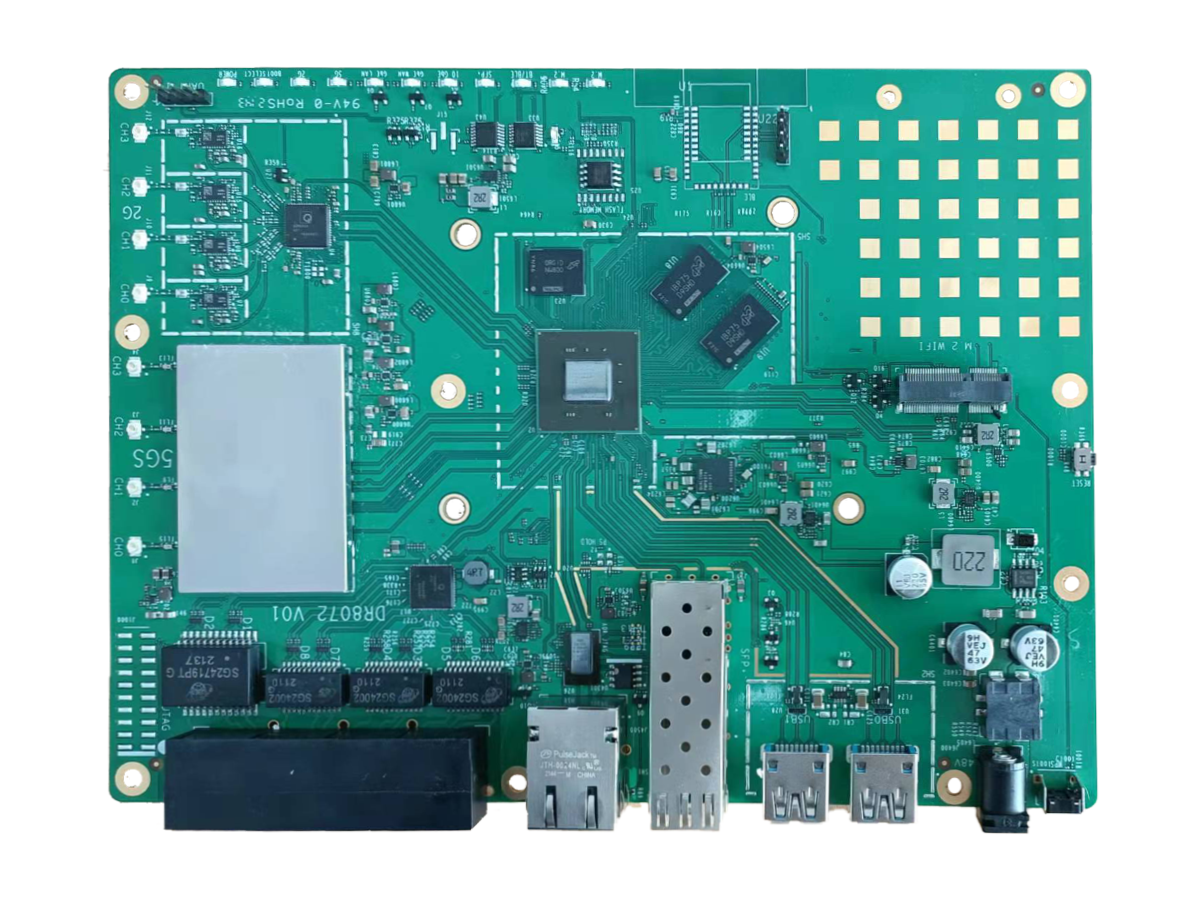

DR8072 V01

PRODUCTS_Wallys Communications (Suzhou ) Co., LTD (wallystech.com)

Wallys Qualcomm Atheros IPQ8072A AR Quad Core CPU DR8072 V01 Support WiFi 6E Card 4x4 802.11ax - YouTube



Wallys Communications (Suzhou ) Co., LTD（http://www.wallystech.com） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.

IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344/AR9531

BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /





Features

■ Qualcomm Atheros IPQ8072A AR Quad Core CPU

■ On-board 5GHz radio, up to 2475 Mbps physical data rate,On-board 2.4GHz radio, up to 1147Mbps physical data rate

■ 8 MB NOR Flash, 256MB NAND Flash（NAND Flash can be up to 1GB as optional）

■ Support 11ax TX Beamforming,Support 11ac/ax MU-MIMO DL and UL,Support OFDMA DL and UL

■ Supports Dynamic Frequency Selection (DFS)

■ DDR 1GB DDR3L(Support DDR3L can be up to 2GB as optional)

■ M.2 connector can support QCN9074 production



Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 to +70	ºC
Storage Temperature Range	-40 to +90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%



Hardware Specifications





Symbol	Parameter
CPU	Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU
CPU Frequency	Derived from Qualcomm Atheros AP.HK09
System Memory	1x 512MB, DDR4 2400MHz 16-bit interface(RAM can be up to 2GB as optional)
Frequency Range	2.412~2.472GHz,  5.150~5.825GHz
M.2 Slot	1x M.2 Slot with PCIe 3.0
Modulation Techniques	OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Environmental Temperature	Operating: -20ºC to 70ºC,  Storage: -40ºC to 90ºC
Flash	NOR Flash: 8 MB  NAND Flash: 256MB(1GB optional)
Wireless	On-board 4x4 2.4GHz MU-MIMO OFDMA 802.11b/802.11g/802.11n/802.11ax, max 17dBm per chain  On-board 4x4 5GHz MU-MIMO OFDMA 802.11a/802.11n/80.211ac/802.11ax, max 17dBm per chain  8x U.FL Connectors
Reset Buttons	1x S/W Reset Button
DC Jack Input	1x DC Jack Connector: 12V
Interface	4x 1Gbps Ethernet Port,  1x 10Gbps Ethernet Port  1x 10Gbps SFP 2x USB 3.0 Port  1x JTAG 20 Pin Connector  1x Serial Port 4 Pin Connector
LED	2x RGB LED Indicators
Power Consumption	TBD
