Wallys/IPQ4019/openWRT /2.4/5G dual bands

IPQ4019 openWRT 2.4/5G dual bands 802.11ac

IPQ4019 openWRT 2.4/5G dual bands

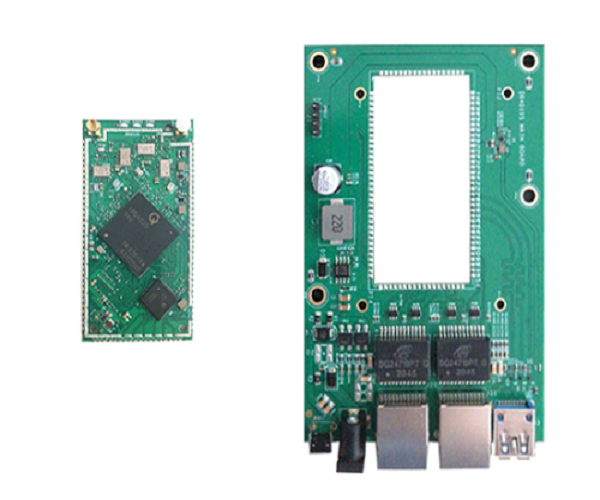

DR4019S

PRODUCTS_Wallys Communications (Suzhou ) Co., LTD (wallystech.com)



Wallys Communications (Suzhou ) Co., LTD（http://www.wallystech.com） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.

IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344/AR9531

BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /



Featuring withindustrial-grade IPQ4019  chipset

Integrated with 2x 2 5G high power

Radio module and 2x2 2.4G high power  Radio module

Support 5.180GHz to5.825GHz Frequency Range;

Support 2.412GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/802.11AC

RoHS compliance ensure a high level

protection of human health and the environment from risks that can be posed by

Absolute Maximum Rating



Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-45 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%





Hardware Specifications



Symbol	Parameter
CPU	IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）
Antenna Connector	2 x 5G MMCX connectors;2x2.4G MMCX
10/100/1000Mbps      Gigabit Ethernet	2xRJ45
DC Jack	12 power supply
ROHS Compliance	YES
Dimension	65mmx35mm x 16mm
Max Power	12V x 0.8A= 9.6W
Nor Flash	32MB
DDR	256MB





Radio TX Specifications(5180MHz-5825MHz)



Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	26dBm	29dbm	±2dB
	54 Mbps	22dBm	25dbm	±2dB
802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
	MCS7, MCS15	22dBm	25dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	21dBm	24dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	19dBm	22dbm	±2dB
