Wallys/IPQ8074A /4x4 2.4G /8x8 5G 802.11ax

IPQ8074A 4x4 2.4G 8x8 5G 802.11ax

IPQ8074A 4x4 2.4G 8x8 5G 802.11ax



DR8074A(HK01)

PRODUCTS_Wallys Communications (Suzhou ) Co., LTD (wallystech.com)

Wallys Communications (Suzhou ) Co., LTD（http://www.wallystech.com） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.

IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344/AR9531

BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /



Features

■ Qualcomm Atheros IPQ8074A AR Quad Core CPU

■ On-board 5GHz radio, up to 4804Mbps physical data rate 32MB NOR Flash, 256MB NAND Flash

■ On-board 2.4GHz radio, up to 1147Mbps physical data rate

■ Support 11ax TX Beamforming

■ Support 11ac/ax MU-MIMO DL and UL

■ Support OFDMA DL and UL

■ Tri-band support with 5G SBS (4x4/5GHz + 4x4/5GHz) + 4x4/2.4GHz

■ Supports Dynamic Frequency Selection (DFS)



 Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 to +70	ºC
Storage Temperature Range	-40 to +90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%

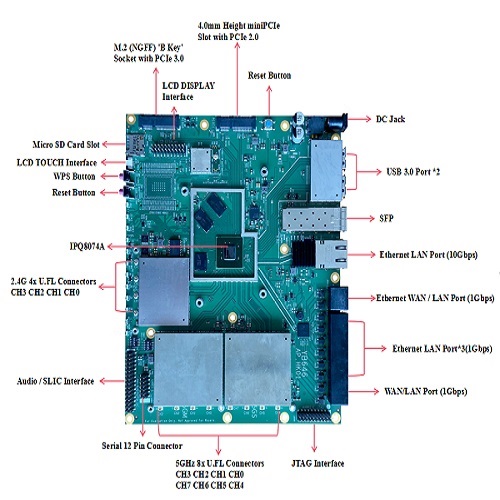

Hardware Specifications



Symbol	Parameter
CPU	Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8074A 2.2GHz CPU
CPU Frequency	Derived from Qualcomm Atheros AP.HK01
System Memory	1GB (2x 512MB) DDR3L 32-bit interface
Frequency Range	2.412GHz to 2.472GHz, 5.150GHz to 5.825GHz
Modulation Techniques	OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
NGFF Slot for 5G Module	M.2 (NGFF) “B Key” Socket with PCIe 3.0 interface
Optional Onboard Modules	Supports 1x BT module,1x ZigBee module,1x Touch pad connector,1x Audio header,1x LCD display header
Flash	NOR Flash: 32MB NAND Flash: 256MB eMMC: 8GB
Wireless	On-board 4x4 2.4GHz MU-MIMO 802.11b/g/n/ax, max TBDdBm per chain On-board 2x(4x4) or 8x8 5GHz MU-MIMO 802.11a/802.11n/802.11ac/802.11ax, max TBDdBm per chain 12x U.FL connectors
Reset Buttons	2x Hardware reset button, 1x WPS reset button
DC Jack Input	1x DC Jack Connector: 12V, 5A
Interface	5x Gigabit Ethernet (1GbE) LAN/WAN RJ45 Port (Auto MDI-X)  1x 10Gigabit Ethernet (10GbE) LAN/WAN RJ45 Port (Auto MDI-X) 1x SFP+ Port 2x USB 3.0 Port 1x Serial Port 12 Pin Connector 1x JTAG 20 Pin Connector 1x micro SD Card Socket 1x M.2 Slot
LED	13x LED indicators, 2 additional LED on Ethernet port
Power Consumption	TBD
