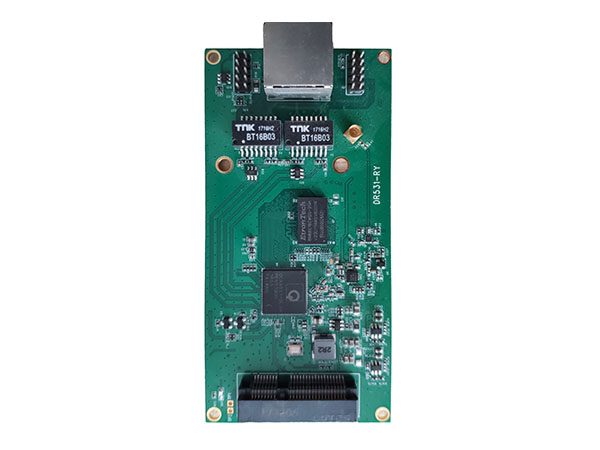

Routerboard/DR531-S-Qualcomm-QCA9531-1x-2.4G-MMCX-connector-high-power-support-LTE.1-ETH-port



https://www.wallystech.com/Routerboard/DR531-S-Qualcomm-QCA9531-1x-2.4G-MMCX-connector-high-power-support-LTE.1-ETH-port.html

contact:​​sales3@wallystech.com



Featuring with industrial-grade QCA-Atheros AR9531 (550 MHz)chipset

Integrated with 1 x 2.4G high power Radio wifi Card.

Supports 1 x 10/100Mbps FE Port.

Supports 1 x 2.4G MMCX connectors.

Support 5M/10M/20M/40M Bandwidth.

Supports operating frequency from 2.312 GHz to 2.7 GHz.

RoHS compliance

Part Number	DR531-S
Chipset	QCA9531
Power supply	5V
100/10 M FE	1
2.4G	27dbm@mcs0 perchain  -93dbm@mcs0 Rssi  1*MMCX
MiniPCIe/MiniPCI	Used for connected to Minipcie module
