Wallys/IPQ6010 (IPQ6018 FAMILY) EMBEDDED BOARD WITH ON-BOARD WIFI DUAL BAND DUAL CONCURRENT / 802.11AX MU-MIMO OFDMA / 2* GE PORTS

IPQ6010 (IPQ6018 FAMILY) EMBEDDED BOARD WITH ON-BOARD WIFI DUAL BAND DUAL CONCURRENT / 802.11AX MU-MIMO OFDMA / 2* GE PORTS

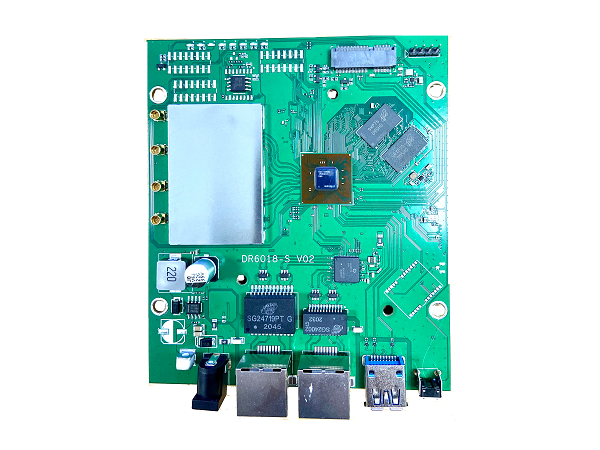

DR6018-S

https://www.wallystech.com/Routerboard/DR6018-S-V02-wifi6-Qualcomm-IPQ6010-2T2R-2-GE-port-supporting-QCN9074-wifi-card-802.11AX-MU-MIMO-OFDMA.html

MT7915/MT 7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

Product Description

6018-S based on IPQ6010 chipset is an enterprise wireless module integrated with 2×2 5G high power Radio module and 2×2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment. Passive POE 24-48V supported, DC jack 24-48V. If you need 802.3af/bt active POE support , then please order 524wifi 6018-S HV version.

Compact “524wifi 6018-S” router board that runs Linux on a Qualcomm IPQ6010 with 802.11ax (Wi-Fi 6) and an M.2 slot plus dual GbE ports, including one with active or passive PoE, and optional micro-SD, GPS, and USB 3.0.

This board has followed up on its 5-port 524wifi 6018-S v3 router board with a smaller 524wifi 6018-S board with the same Qualcomm-Atheros IPQ6010 SoC with 802.11a/n/ac/ax (Wi-Fi 6), but with only 2x GbE ports. The 125 x 105 x 20mm 524wifi 6018-S features 802.3bt-compliant, active and passive, 24-48V Power-over-Ethernet on one of the ports. By comparison, the 524wifi 6018-S v3 offers a single passive PoE port along with 3x standard GbE and a 2.5GbE port.

The up to 1.8GHz, quad-core, Cortex-A53 IPQ6010, which has also appeared on 8devices’ Mango module and DVK, features built-in support for dual-band MU-MIMO, 2.4GHz/5GHz 802.11ax. Wi-Fi 6 is faster than 802.11ac (Wi-Fi 5) and supports concurrency for simultaneous WiFi connections to multiple devices. Wally’s does not list the OS, but has previously informed us its Qualcomm boards run Linux.

 Although not listed in the specs, the detail view suggests you can optionally choose to remove the 2.4GHz radio and use only the 5GHz connection. In addition to the built-in 802.11ax, there is an M.2 E-key slot for adding a Qualcomm QCN9074 802.11ax module. Four x U.FL antenna connectors are included along with a Bluetooth 4.2 radio and optional GPS.

The 524wifi 6018-S ships with 256MB to 1GB DDR3L RAM via dual sockets plus 8MB NOR and 256MB NAND flash. A micro-SD and USB 3.0 port are optional. An FFC/FPC connector provides an LCD display output and there is a 12-pin serial interface.

 In addition to the PoE port, a DC jack operates at the same 24-48V range. The board has a -40 to 70°C operating range with 5-95% non-condensing humidity resistance. The 524wifi 6018-S supports an EasyMeshHotel Wireless application.



Features

• Quad-core ARM 64bit A53@1.8GHz Processor
• 1GB DDRL3L System Memory
• 8MB NOR Flash, 256MB NAND Flash
• Supports Dynamic Frequency Selection (DFS)
• 2x2On-board 2.4GHz radio, up to 573Mbps physical Data Rate
• 2x2On-board 5GHz radio, up to 1201Mbps physical Data Rate

Applications

• 802.11ax MU-MIMO OFDMA Access Point
• Mesh router supporting EasyMeshHotel Wireless application
• Smart AP TWT



Absolute Maximum Rating

Parameter	Rating	Unit
Supply Voltage	24V~48V(DC Jack)	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-45 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
CPU	Qualcomm-Atheros IPQ6010
CPU Frequency	Quad-core ARM 64 bit A53 @1.8 GHz processor
System Memory	1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port	1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports
NGFF Slot	M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)
SD Card Slot	1x SD Card Slot(Option)
USB /header	1x USB 3.0 Port(Option)
POE	LV Version : 24V~48V passive POE  /   HV version: Active POE(Suport 802.3bt)
DC Jack	24V~48V power supply
LED header	FFC/FPC Connector
Serial Port	1x Serial Port 12 Pin Connector
Wireless	On-board 2×2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chainOn-board 2×2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain4 x MMCX Connectors
Bluetooth	CSR8811 BLE 4.2
Nor Flash	8MB
Nand Flash	256MB
DDR	256MB~512MB
Dimension	125mm x 105mm x 20mm

Radio TX Specifications(5180MHz-5825MHz)

Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
5Ghz 802.11ax HE20	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE400	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE80	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB

Radio TX Specifications(2412MHz-2482MHz)

Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
2.4Ghz 802.11ax HE20	MCS0	23dbm	26dbm	±2dB
	MCS1	23dBm	26dBm	±2dB
	MCS2	23dBm	26dBm	±2dB
	MCS3	23dBm	26dBm	±2dB
	MCS4	23dBm	26dBm	±2dB
	MCS5	23dBm	26dBm	±2dB
	MCS6	23dBm	26dBm	±2dB
	MCS7	22dBm	25dBm	±2dB
	MCS8	21dBm	24dBm	±2dB
	MCS9	21dBm	24dBm	±2dB
	MCS10	18dBm	21dBm	±2dB
	MCS11	17dbm	20dbm	±2dB
2.4Ghz 802.11ax HE40	MCS0	23dbm	26dbm	±2dB
	MCS1	23dBm	26dBm	±2dB
	MCS2	23dBm	26dBm	±2dB
	MCS3	23dBm	26dBm	±2dB
	MCS4	23dBm	26dBm	±2dB
	MCS5	23dBm	26dBm	±2dB
	MCS6	23dBm	26dBm	±2dB
	MCS7	22dBm	25dBm	±2dB
	MCS8	21dBm	24dBm	±2dB
	MCS9	21dBm	24dBm	±2dB
	MCS10	21dBm	24dBm	±2dB
	MCS11	19dbm	22dbm	±2dB

GPIO Pin Mapping

GPIO Pin Mapping
Pin	Signal	Pin	Signal
GPIO_0	AUDIO_MUTE_BUT	GPIO_1	QPIC_BUSY_N
GPIO_2	MIC_VOL_M	GPIO_3	QPIC_WE_N
GPIO_4	QPIC_RE_N	GPIO_5	QPIC_DAT4
GPIO_6	QPIC_DAT5	GPIO_7	QPIC_DAT6
GPIO_8	QPIC_DAT7	GPIO_9	WPS
GPIO_10	QPIC_CLE_N	GPIO_11	QPIC_NAND_CE_N
GPIO_12	QPIC_DAT1	GPIO_13	QPIC_DAT2
GPIO_14	QPIC_DAT3	GPIO_15	QPIC_DAT0
GPIO_16	MIC_KPD_PWR_N	GPIO_17	QPIC_ALE
GPIO_18	KYPD_HOME_N	GPIO_19	GND
GPIO_20	Boot_Config(PULL_DOWN)	GPIO_21	MUTE_ON
GPIO_22	ADC_RST	GPIO_23	WSA_SWR_CLK
GPIO_24	WSA_SWR_DATA	GPIO_25	PWM_LED_RST
GPIO_26	Boot_Config(PULL_DOWN)	GPIO_27	WSA_EN_R
GPIO_28	WSA_EN_L	GPIO_29	PDM_CLK0
GPIO_30	PDM_DATA0	GPIO_31	PDM_CLK1
GPIO_32	PDM_DATA1	GPIO_33	EXT_MCLK2_ADC
GPIO_34	MIC_VOL_P	GPIO_35	LED_5G
GPIO_36	PCIE0_WAKE	GPIO_37	LED_2GS
GPIO_38	SPI0_CLK	GPIO_39	SPI0_CS_NI
GPIO_40	SPI0_MISO	GPIO_41	SPI0_MOSI
GPIO_42	BLSP2_SCL	GPIO_43	BLSP2_SDA
GPIO_44	BLSP2_UART_RX	GPIO_45	BLSP2_UART_TX
GPIO_46	BLSP5_SCL	GPIO_47	BLSP5_SDA
GPIO_48	NC	GPIO_49	Boot_Config(PULL_DOWN)
GPIO_50	LED_USB0	GPIO_51	BT_PRIORITY_PTA11
GPIO_52	WLA_ACTI_PTA12	GPIO_53	BT_ACT_PTA10
GPIO_54	Boot_Config(PULL_DOWN)	GPIO_55	NC
GPIO_56	NC	GPIO_57	NC
GPIO_58	NC	GPIO_59	PCIE0_CLK_REQ
GPIO_60	PCIE0_RSTn	GPIO_61	NC
GPIO_62	SD_DET	GPIO_63	SD_WP
GPIO_64	MDC	GPIO_65	MDIO
GPIO_66	SD_LDO_EN	GPIO_67	NC
GPIO_68	NC	GPIO_69	SPI_CLK_UART_RTSn
GPIO_70	SPI_CS_UART_CTSn	GPIO_71	SPI_MISO_UART_RX
GPIO_72	SPI_MOSI_UART_TX	GPIO_73	USB_OTG
GPIO_74	NC	GPIO_75	Malibu_RESET
GPIO_76	NAPA_INT0	GPIO_77	NAPA_RESET
GPIO_78	QTZ_INT	GPIO_79	QTZ_RESET
