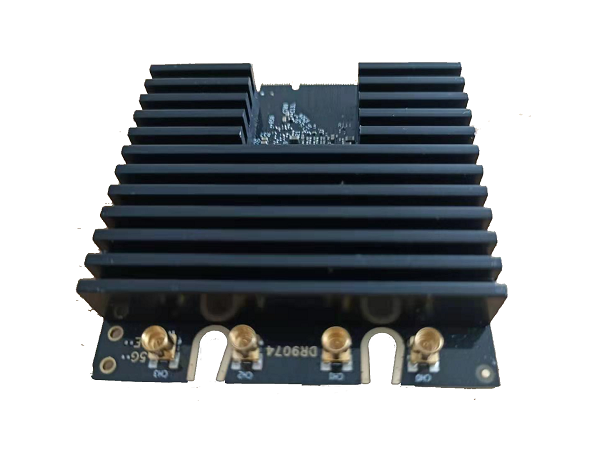

DR9074-5G-PN02.1-Wifi-6-Qualcomm-QCN9074-Single-Band-5-GHz-4T4R-M.2-E-Key-Interface-802.11ax



https://www.wallystech.com/Network_Card/DR9074-5G-PN02.1-Wifi-6-Qualcomm-QCN9074-Single-Band-5-GHz-4T4R-M.2-E-Key-Interface-802.11ax.html

contact:​​sales3@wallystech.com





Features

■ Qualcomm Atheros QCN9074

■ 5GHz, max 23dBm per chain, up to 4949Mbps

■ Single Band 5GHz 4x4 WiFi 6 (802.11ax)

■ 4 spatial streams (4SS)

■ M.2 E Key Interface

■ PCI Express 3.0 Interface

■ Supports Dynamic Frequency Selection (DFS)



Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	ºC
Storage Temperature Range	-40 to 90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%



Hardware Specifications





Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.15GHz-5.95GHz
Data Rates for WALN	5GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz at 5GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN02.1
Dimensions (WxHxD)	57mm x 63mm x 6mm
