linux下V4l2编程步骤

int init()
{
　　struct v4l2_cropcap cropcap;
    struct v4l2_capability capability;
    struct v4l2_fmtdesc fmtdesc;
    struct v4l2_format fmt;
    struct v4l2_format g_fmt;
    struct v4l2_streamparm fps;
    struct v4l2_requestbuffers reqbuf;
    struct v4l2_buffer querybuf;
    struct v4l2_crop crop;
    //VIDIOC_ENUM_FRAMESIZES    _IOWR('V', 74, struct v4l2_frmsizeenum)
    //#define VIDIOC_ENUM_FRAMEINTERVALS _IOWR('V', 75, struct v4l2_frmivalenum)

    struct v4l2_frmsizeenum frm_sizes;
    struct v4l2_frmivalenum frm_ivalenum;

    uint32_t stream_on = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    int32_t ret = 0;

    m_fd = open("/dev/video0", O_RDWR);
    qDebug("fd is :%d\n", m_fd);
#if 1
    memset(&cropcap, 0, sizeof(cropcap));
    ret = ioctl(m_fd, VIDIOC_CROPCAP, &cropcap);
    qDebug("cropcap bounds:%d %d %d %d\n",cropcap.bounds.height, cropcap.bounds.width, cropcap.bounds.top, cropcap.bounds.left);
    qDebug("cropcap defrect:%d %d %d %d\n",cropcap.defrect.height, cropcap.defrect.width, cropcap.defrect.top, cropcap.defrect.left);
#endif
#if 1
    fmtdesc.index = 0;
    fmtdesc.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    while(ioctl(m_fd, VIDIOC_ENUM_FMT, &fmtdesc) != -1)
    {
        qDebug("--:index:%d, %s %d\n", fmtdesc.index, fmtdesc.description, fmtdesc.pixelformat);
        fmtdesc.index++;
    }
#endif

#if 1
        frm_sizes.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        frm_sizes.pixel_format = V4L2_PIX_FMT_YUYV;
        frm_sizes.index = 0;

        while(ioctl(m_fd, VIDIOC_ENUM_FRAMESIZES, &frm_sizes) != -1)
        {
            qDebug("support frm size:index:%d h:%d w:%d\n", frm_sizes.index, frm_sizes.discrete.height, frm_sizes.discrete.width);
            frm_sizes.index++;
        }
#endif

#if 1
        frm_ivalenum.pixel_format = V4L2_PIX_FMT_YUYV;
        frm_ivalenum.index = 0;
        frm_ivalenum.height = CAM_HEIGHT;
        frm_ivalenum.width = CAM_WIDTH;

        while(ioctl(m_fd, VIDIOC_ENUM_FRAMEINTERVALS, &frm_ivalenum) != -1)
        {
            qDebug("support frame interval:%d %d %d\n",frm_ivalenum.index, frm_ivalenum.discrete.denominator, frm_ivalenum.discrete.numerator);
            frm_ivalenum.index++;
        }
#endif

#if 1
        struct v4l2_control control;

        /*亮度(V4L2_CID_BRIGHTNESS)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_BRIGHTNESS;
        control.value = 60;//默认值50 (0~100)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("BRIGHTNESS failed \n");
        }

        /*饱和度(V4L2_CID_SATURATION)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_SATURATION;
        control.value = 50;//默认值32(0~100)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("SATURATION failed \n");
        }

        /*对比度(V4L2_CID_CONTRAST)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_CONTRAST;
        control.value = 32;//默认值32 (0~100)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("CONTRAST failed \n");
        }

        /*色调(HUE)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_HUE;
        control.value = 0;//默认值0(-180~180)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("HUE failed \n");
        }

        /*自动白平衡(AUTO_WHITE_BALANCE)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_AUTO_WHITE_BALANCE;
        control.value = 1;//默认值1(0~1)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("WHITE_BALANCE failed \n");
        }


        /*伽马(V4L2_CID_GAMMA)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_GAMMA;
        control.value = 8;//默认值8(0~16)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("GAMMA failed \n");
        }

        /*低亮度补偿(V4L2_CID_BACKLIGHT_COMPENSATION)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_BACKLIGHT_COMPENSATION;
        control.value = 1;//默认值0(0~1)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("test  failed \n");
        }

        /*清晰度(V4L2_CID_SHARPNESS)*/
        memset(&control, 0, sizeof(control));
        control.id = V4L2_CID_SHARPNESS;
        control.value = 1;//默认值4(0~20)
        if(ioctl(m_fd, VIDIOC_S_CTRL, &control) < 0)
        {
            qDebug("V4L2_CID_SHARPNESS failed \n");
        }

#endif

#if 1
    fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    fmt.fmt.pix.width = CAM_WIDTH;
    fmt.fmt.pix.height = CAM_HEIGHT;
    fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_YUYV;//V4L2_PIX_FMT_YUV422P;//V4L2_PIX_FMT_MJPEG
    fmt.fmt.pix.field = V4L2_FIELD_ANY;
    ret = ioctl(m_fd, VIDIOC_S_FMT, &fmt);

    g_fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    g_fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_YUYV;
    ret = ioctl(m_fd, VIDIOC_G_FMT, &g_fmt);
    qDebug("--:%d %d %d\n", ret, g_fmt.fmt.pix.width, g_fmt.fmt.pix.height);
#endif
#if 0
    crop.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    crop.c.top = 80;
    crop.c.left = 0;
    crop.c.width = CAM_WIDTH;
    crop.c.height = CAM_HEIGHT;
    ret = ioctl(m_fd_framebuffer, VIDIOC_S_CROP, &crop);

    qDebug("-------VIDIOC_S_CROP:%d\n", ret);
#endif


#if 1
    fps.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    fps.parm.capture.timeperframe.numerator = 1;
    fps.parm.capture.timeperframe.denominator = 10;

    ret = ioctl(m_fd, VIDIOC_S_PARM, &fps);
#endif
    reqbuf.count = CAM_BUFF_COUNT;
    reqbuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    reqbuf.memory = V4L2_MEMORY_MMAP;
    ret = ioctl(m_fd, VIDIOC_REQBUFS, &reqbuf);

#if 1
    for(int i = 0; i < CAM_BUFF_COUNT; i++)
    {
        memset(&querybuf, 0, sizeof(querybuf));
        querybuf.index = i;
        querybuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        querybuf.memory = V4L2_MEMORY_MMAP;
        ret = ioctl(m_fd, VIDIOC_QUERYBUF, &querybuf);
        camera_buff[i] = (uint8_t *)mmap(0, querybuf.length, PROT_READ, MAP_SHARED, m_fd, querybuf.m.offset);
    }

    for(int i = 0; i < CAM_BUFF_COUNT; i++)
    {
        memset(&querybuf, 0, sizeof(querybuf));
        querybuf.index = i;
        querybuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        querybuf.memory = V4L2_MEMORY_MMAP;
        ret = ioctl(m_fd, VIDIOC_QBUF, &querybuf);
    }

    ret = ioctl(m_fd, VIDIOC_STREAMON, &stream_on);
#endif
}
void VideoThread::main_loop()
{
    struct timeval tv;

    struct v4l2_buffer deqbuf;
    fd_set fds_set;
    FD_ZERO(&fds_set);

    FD_SET(m_fd, &fds_set);
    while(1)
    {
        tv.tv_sec = 1;
        tv.tv_usec = 0;
        int32_t ret = 0;
        ret = select(m_fd + 1, &fds_set,NULL,NULL, &tv);
        if(ret < 0)
        {
            qDebug("select)error\n");
        }
        else if(ret == 0)
        {
            qDebug("time out\n");
        }
        if(FD_ISSET(m_fd, &fds_set))
        {
            memset(&deqbuf, 0, sizeof(deqbuf));
            deqbuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
            deqbuf.memory = V4L2_MEMORY_MMAP;
            ioctl(m_fd, VIDIOC_DQBUF, &deqbuf);
            //qDebug("get buffer index:%d size:%d\n", deqbuf.index, deqbuf.bytesused);
            //memcpy(camera_buf, camera_buff[deqbuf.index], deqbuf.bytesused);
            //emit camera_capture_picture(camera_buf, deqbuf.bytesused);
            framebuffer_display(deqbuf.index, deqbuf.bytesused);

            //hdmi_framebuffer_display(deqbuf.index, deqbuf.bytesused);
            //m_h264_decoder->push_encode(camera_buff[deqbuf.index], (int)deqbuf.bytesused);
            //m_vpu_encoder.push_encode(camera_buff[deqbuf.index], (int)deqbuf.bytesused);
            //void h264decoder::push_encode(uint8_t *buf, int size);
            deqbuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
            deqbuf.memory = V4L2_MEMORY_MMAP;
            ioctl(m_fd, VIDIOC_QBUF, &deqbuf);

        }
    }
}

linux下V4l2编程步骤，查看摄像头支持分辨率和帧率

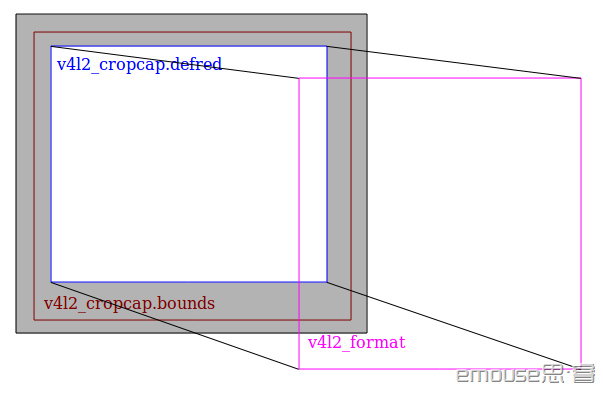

图片来自https://www.cnblogs.com/emouse/archive/2013/03/04/2943243.html这个图片描述cropcap和format关系比较形象
