软件定义网络-实验 7:OpenDaylight 实验——Python 中的 REST API 调用
一、实验目的
对 Python 调用 OpenDaylight 的 REST API 方法有初步了解。
二、实验任务
本实验需要用另一种方法完成上一个实验相同的功能,即通过 Python 程序调用 OpenDaylight 的北向接口下发关于硬超时的流表,实现拓扑内主机在一定时间 内的网络通断。实验拓扑如下:
三、实验步骤
1. 实验环境
安装了 Ubuntu 18.04.5 Desktop amd64 的虚拟机
2. 实验过程
(1)生成拓扑

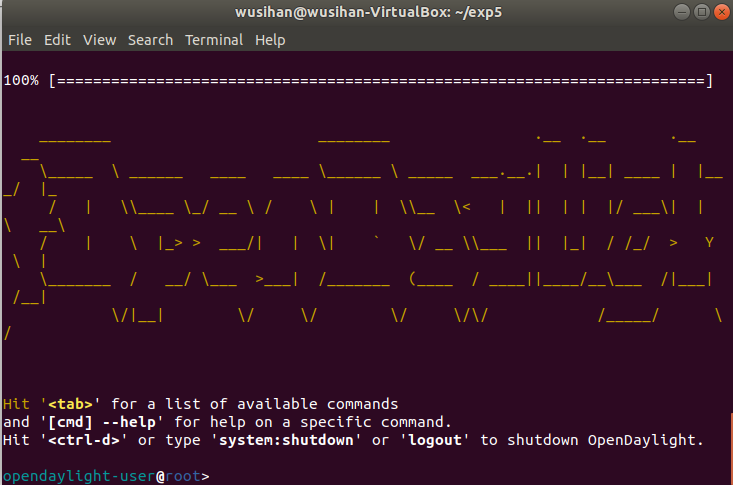

打开控制器
生成拓扑并测试是否ping通
$ sudo mn --topo=single,3 --controller=remote,ip=127.0.0.1,port=6633 --switch ovsk,protocols=OpenFlow13
(2)编写 Python 代码和 JSON 格式的请求内容
$ nano odlnorth.py
1 #!/usr/bin/python 2 3 import requests 4 from requests.auth import HTTPBasicAuth 5 6 def http_put(url,jstr): 7 url= url 8 headers = {'Content-Type':'application/json'} 9 resp = requests.put(url,jstr,headers=headers,auth=HTTPBasicAuth('admin', 'admin')) 10 return resp 11 12 if __name__ == "__main__": 13 url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/flownode-inventory:table/0/flow/1' 14 with open('hardtimeout.json') as f: 15 jstr = f.read() 16 resp = http_put(url,jstr) 17 print resp.content
由于是下发流表,因此需要有 http 请求的具体内容,同之前的 Postman 一样, 也是以 JSON 格式来表示。 编辑 hardtimeout.json 文件:由于是下发流表,因此需要有 http 请求的具体内容,同之前的 Postman 一样, 也是以 JSON 格式来表示。 编辑 hardtimeout.json 文件:
$ nano hardtimeout.json
文件中不包含 http 请求的 url 地址
1 { 2 "flow": [ 3 { 4 "id": "1", 5 "match": { 6 "in-port": "1", 7 "ethernet-match": { 8 "ethernet-type": { 9 "type": "0x0800" 10 } 11 }, 12 "ipv4-destination": "10.0.0.3/32" 13 }, 14 "instructions": { 15 "instruction": [ 16 { 17 "order": "0", 18 "apply-actions": { 19 "action": [ 20 { 21 "order": "0", 22 "drop-action": {} 23 } 24 ] 25 } 26 } 27 ] 28 }, 29 "flow-name": "flow1", 30 "priority": "65535", 31 "hard-timeout": "10", 32 "cookie": "2", 33 "table_id": "0" 34 } 35 ] 36 }
(3)运行 Python 代码,完成流表下发
$ python odlnorth.py
h1 ping h3测试结果
四、实验心得
运行代码如果报错:ImportError: No module named requests,可尝试 如下方法。
1 $ sudo apt-get install python-pip //如果 pip 没装的话需要运行 2 $ sudo pip install requests
