Halcon快速入门笔记7

• ball.hdev: Inspection of Ball Bonding

dev_update_window (‘off’)
dev_close_window ()
dev_open_window (0, 0, 728, 512, ‘black’, WindowID)

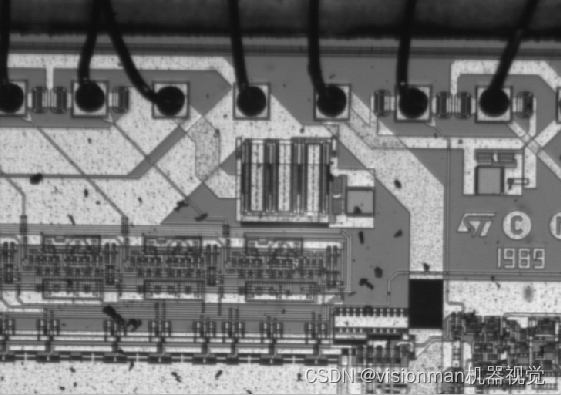

read_image (Bond, ‘die/die_03’)
dev_display (Bond)
set_display_font (WindowID, 14, ‘mono’, ‘true’, ‘false’)
disp_continue_message (WindowID, ‘black’, ‘true’)
stop ()
threshold (Bond, Bright, 100, 255)
shape_trans (Bright, Die, ‘rectangle2’)
dev_set_color (‘green’)
dev_set_line_width (3)
dev_set_draw (‘margin’)
dev_display (Die)
disp_continue_message (WindowID, ‘black’, ‘true’)
stop ()
reduce_domain (Bond, Die, DieGrey)
threshold (DieGrey, Wires, 0, 50)
fill_up_shape (Wires, WiresFilled, ‘area’, 1, 100)
dev_display (Bond)
dev_set_draw (‘fill’)
dev_set_color (‘red’)
dev_display (WiresFilled)
