Halcon快速入门笔记11

dev_close_window ()
dev_open_window (0, 0, 512, 512, ‘black’, WindowHandle)
set_display_font (WindowHandle, 20, ‘mono’, ‘true’, ‘false’)

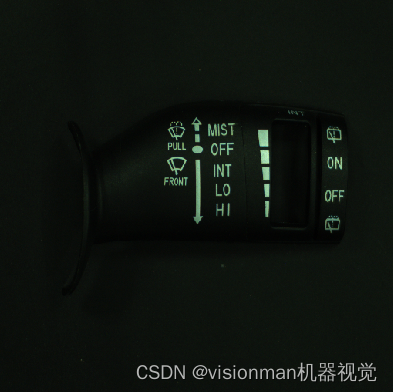

read_image (ModelImage, ‘模板.bmp’)
get_image_size (ModelImage, Width, Height)
binary_threshold (ModelImage, Region, ‘max_separability’, ‘light’, UsedThreshold)
connection (Region, ConnectedRegions)
select_shape (ConnectedRegions, SelectedRegions, ‘area’, ‘and’, 321.1, 10000)
union1 (SelectedRegions, RegionUnion)
gen_rectangle1 (ROI_0, 671.547, 657.625, 1020.86, 1629.63)
shape_trans (RegionUnion, RegionTrans, ‘convex’)
dilation_circle (RegionTrans, RegionDilation, 40)
concat_obj (ROI_0, RegionDilation, ObjectsConcat)
union1 (ObjectsConcat, RegionDilation)
area_center (RegionDilation, Area, RowModel, ColumnModel)
reduce_domain (ModelImage, RegionDilation, ImageRed
