2025-2026-1 20231301 《信息安全设计》第十一周学习总结

2025-2026-1 20231301 《信息安全设计》第十一周学习总结

目录

• 作业信息
• 学习内容总结
  • 网络编程核心概念
    • 1. 套接字类型与协议
    • 2. 完整的TCP服务器实现
    • 3. 高级客户端实现
  • 并发服务器架构
    • 多进程并发服务器
  • 思维导图

作业信息

作业	链接
作业课程	<班级>（2025-2026-1 信息安全设计）
作业要求	<作业>(2025-2026-1 信息安全设计 预习作业要求)
作业目标	《Head First C 嗨翻C语⾔》> 预习第十一章
作业正文	<博客>（第十一周学习总结）

学习内容总结

第十一章：套接字与网络编程

网络编程核心概念

1. 套接字类型与协议

#include <sys/socket.h>

void socket_types_demo() {
    // 流式套接字 (TCP)
    int tcp_socket = socket(PF_INET, SOCK_STREAM, 0);

    // 数据报套接字 (UDP)
    int udp_socket = socket(PF_INET, SOCK_DGRAM, 0);

    // 原始套接字 (直接IP访问)
    int raw_socket = socket(PF_INET, SOCK_RAW, IPPROTO_RAW);

    printf("TCP socket: %d\n", tcp_socket);
    printf("UDP socket: %d\n", udp_socket);

    close(tcp_socket);
    close(udp_socket);
}

2. 完整的TCP服务器实现

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>

#define PORT 8080
#define BUFFER_SIZE 1024

void tcp_echo_server() {
    int server_fd, new_socket;
    struct sockaddr_in address;
    int opt = 1;
    int addrlen = sizeof(address);
    char buffer[BUFFER_SIZE] = {0};

    // 创建套接字文件描述符
    if ((server_fd = socket(AF_INET, SOCK_STREAM, 0)) == 0) {
        perror("socket failed");
        exit(EXIT_FAILURE);
    }

    // 设置套接字选项
    if (setsockopt(server_fd, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt))) {
        perror("setsockopt");
        exit(EXIT_FAILURE);
    }

    address.sin_family = AF_INET;
    address.sin_addr.s_addr = INADDR_ANY;
    address.sin_port = htons(PORT);

    // 绑定套接字到端口
    if (bind(server_fd, (struct sockaddr *)&address, sizeof(address)) < 0) {
        perror("bind failed");
        exit(EXIT_FAILURE);
    }

    // 开始监听
    if (listen(server_fd, 3) < 0) {
        perror("listen");
        exit(EXIT_FAILURE);
    }

    printf("Server listening on port %d\n", PORT);

    while (1) {
        printf("Waiting for connections...\n");

        if ((new_socket = accept(server_fd, (struct sockaddr *)&address,
                               (socklen_t*)&addrlen)) < 0) {
            perror("accept");
            exit(EXIT_FAILURE);
        }

        printf("Connection accepted from %s:%d\n",
               inet_ntoa(address.sin_addr), ntohs(address.sin_port));

        // 读取客户端数据
        ssize_t valread = read(new_socket, buffer, BUFFER_SIZE);
        printf("Received: %s\n", buffer);

        // 发送响应
        const char* response = "Hello from server";
        send(new_socket, response, strlen(response), 0);
        printf("Response sent\n");

        close(new_socket);
    }

    close(server_fd);
}

3. 高级客户端实现

#include <netdb.h>

int create_connected_socket(const char* hostname, const char* port) {
    struct addrinfo hints, *result, *rp;
    int sockfd;

    memset(&hints, 0, sizeof(hints));
    hints.ai_family = AF_UNSPEC;    // IPv4 或 IPv6
    hints.ai_socktype = SOCK_STREAM; // TCP 套接字

    // 解析主机名和服务名
    int status = getaddrinfo(hostname, port, &hints, &result);
    if (status != 0) {
        fprintf(stderr, "getaddrinfo: %s\n", gai_strerror(status));
        return -1;
    }

    // 尝试每个地址直到成功连接
    for (rp = result; rp != NULL; rp = rp->ai_next) {
        sockfd = socket(rp->ai_family, rp->ai_socktype, rp->ai_protocol);
        if (sockfd == -1)
            continue;

        if (connect(sockfd, rp->ai_addr, rp->ai_addrlen) != -1)
            break; // 成功连接

        close(sockfd); // 连接失败，关闭套接字继续尝试
    }

    freeaddrinfo(result);

    if (rp == NULL) {
        fprintf(stderr, "Could not connect to %s:%s\n", hostname, port);
        return -1;
    }

    return sockfd;
}

void http_client_demo() {
    int sockfd = create_connected_socket("www.example.com", "80");
    if (sockfd == -1) return;

    // 发送 HTTP 请求
    const char* http_request =
        "GET / HTTP/1.1\r\n"
        "Host: www.example.com\r\n"
        "Connection: close\r\n"
        "\r\n";

    if (send(sockfd, http_request, strlen(http_request), 0) == -1) {
        perror("send");
        close(sockfd);
        return;
    }

    // 接收响应
    char buffer[4096];
    ssize_t bytes_received;

    printf("HTTP Response:\n");
    while ((bytes_received = recv(sockfd, buffer, sizeof(buffer)-1, 0)) > 0) {
        buffer[bytes_received] = '\0';
        printf("%s", buffer);
    }

    close(sockfd);
}

并发服务器架构

多进程并发服务器

void concurrent_server() {
    int server_fd = socket(AF_INET, SOCK_STREAM, 0);
    // ... 绑定和监听代码同上

    while (1) {
        int client_socket = accept(server_fd, NULL, NULL);
        if (client_socket < 0) {
            perror("accept");
            continue;
        }

        pid_t pid = fork();
        if (pid == 0) {
            // 子进程
            close(server_fd); // 子进程不需要监听套接字

            handle_client(client_socket);
            close(client_socket);
            _exit(0);
        } else if (pid > 0) {
            // 父进程
            close(client_socket); // 父进程不需要客户端套接字
        } else {
            perror("fork");
            close(client_socket);
        }
    }
}

void handle_client(int client_socket) {
    char buffer[1024];
    ssize_t bytes_read;

    // 处理客户端请求
    while ((bytes_read = recv(client_socket, buffer, sizeof(buffer), 0)) > 0) {
        // 处理数据...
        send(client_socket, buffer, bytes_read, 0);
    }
}

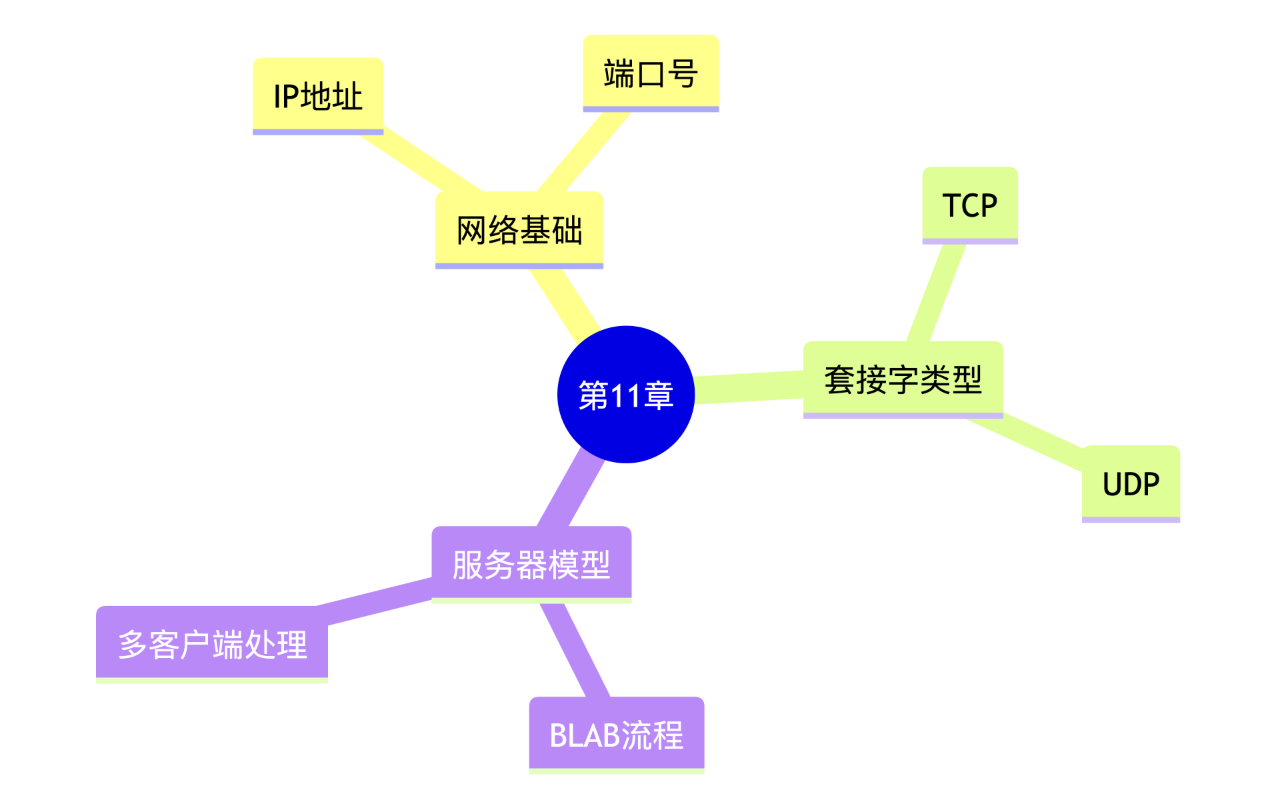

思维导图
