2025-2026-1 20231301 《信息安全设计》第七周学习总结

2025-2026-1 20231301 《信息安全设计》第七周学习总结

目录

• 作业信息
• 学习内容总结
• 第十章：身份认证和PKI理论基础
  • 一、PKI体系架构深度解析
  • 二、证书处理实战代码
• 第十一章：实战PKI
  • 一、OpenSSL CA搭建完整实战
  • 二、证书编程高级实战

作业信息

作业	链接
作业课程	<班级>（2025-2026-1 信息安全设计）
作业要求	<作业>(2025-2026-1 信息安全设计 预习作业要求)
作业目标	《Windows C/C++ 加密解密实战》> 预习第十、十一章
作业正文	<博客>（第七周学习总结）

学习内容总结

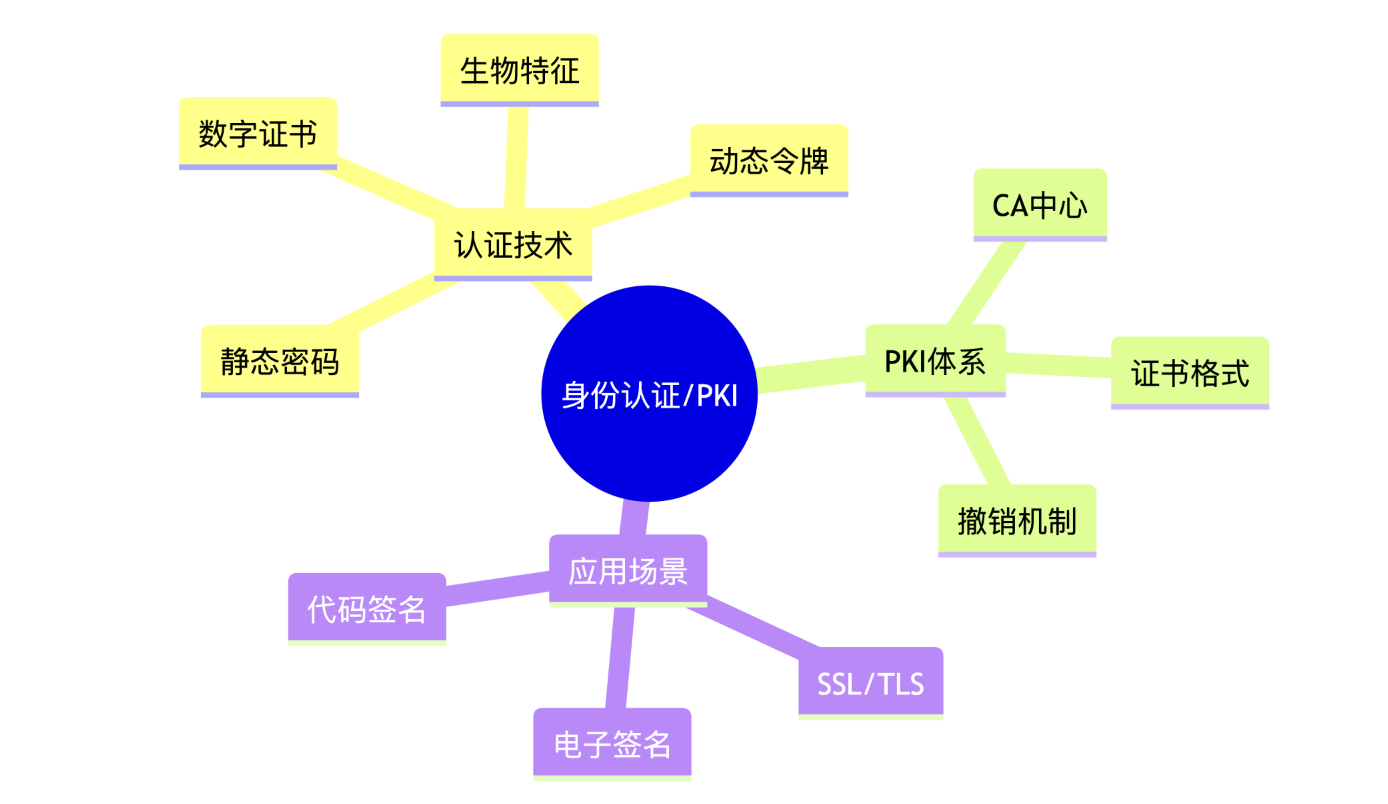

第十章：身份认证和PKI理论基础

一、PKI体系架构深度解析

1. PKI核心组件关系图

graph LR A[终端实体] --> B[数字证书] B --> C[认证机构CA] C --> D[注册机构RA] D --> E[证书库] E --> F[CRL/OCSP] F --> A C --> G[根CA] G --> H[子CA] H --> C subgraph 信任体系 I[信任锚] --> J[证书链] J --> K[路径验证] end

2. X.509证书结构详解

// X.509证书的ASN.1主要结构
Certificate ::= SEQUENCE {
    tbsCertificate       TBSCertificate,
    signatureAlgorithm   AlgorithmIdentifier,
    signatureValue       BIT STRING
}

TBSCertificate ::= SEQUENCE {
    version         [0] EXPLICIT Version DEFAULT v1,
    serialNumber         CertificateSerialNumber,
    signature            AlgorithmIdentifier,
    issuer               Name,
    validity             Validity,
    subject              Name,
    subjectPublicKeyInfo SubjectPublicKeyInfo,
    issuerUniqueID [1] IMPLICIT UniqueIdentifier OPTIONAL,
    subjectUniqueID [2] IMPLICIT UniqueIdentifier OPTIONAL,
    extensions      [3] EXPLICIT Extensions OPTIONAL
}

二、证书处理实战代码

1. OpenSSL证书解析与验证

#include <openssl/x509.h>
#include <openssl/x509v3.h>
#include <openssl/pem.h>

// 解析X.509证书详细信息
void parse_certificate_details(X509* cert) {
    BIO* out = BIO_new_fp(stdout, BIO_NOCLOSE);

    // 显示证书主题
    X509_NAME* subject = X509_get_subject_name(cert);
    printf("证书主题:\n");
    X509_NAME_print_ex(out, subject, 0, XN_FLAG_MULTILINE);
    printf("\n\n");

    // 显示证书颁发者
    X509_NAME* issuer = X509_get_issuer_name(cert);
    printf("证书颁发者:\n");
    X509_NAME_print_ex(out, issuer, 0, XN_FLAG_MULTILINE);
    printf("\n\n");

    // 显示证书序列号
    ASN1_INTEGER* serial = X509_get_serialNumber(cert);
    BIGNUM* bn = ASN1_INTEGER_to_BN(serial, NULL);
    char* serial_hex = BN_bn2hex(bn);
    printf("证书序列号: %s\n", serial_hex);
    OPENSSL_free(serial_hex);
    BN_free(bn);

    // 显示证书有效期
    ASN1_TIME* not_before = X509_get_notBefore(cert);
    ASN1_TIME* not_after = X509_get_notAfter(cert);
    printf("有效期从: ");
    ASN1_TIME_print(out, not_before);
    printf("\n有效期至: ");
    ASN1_TIME_print(out, not_after);
    printf("\n\n");

    // 显示公钥信息
    EVP_PKEY* pkey = X509_get_pubkey(cert);
    printf("公钥算法: ");
    const char* key_type = OBJ_nid2ln(EVP_PKEY_id(pkey));
    printf("%s\n", key_type);

    // 显示证书扩展信息
    printf("证书扩展:\n");
    for (int i = 0; i < X509_get_ext_count(cert); i++) {
        X509_EXTENSION* ext = X509_get_ext(cert, i);
        ASN1_OBJECT* obj = X509_EXTENSION_get_object(ext);
        char buffer[100];
        OBJ_obj2txt(buffer, sizeof(buffer), obj, 1);
        printf("  %s\n", buffer);
    }

    EVP_PKEY_free(pkey);
    BIO_free(out);
}

// 完整的证书验证流程
int verify_certificate_chain(X509_STORE* store, X509* cert,
                           STACK_OF(X509)* chain) {
    X509_STORE_CTX* ctx = X509_STORE_CTX_new();
    if (!ctx) return -1;

    // 初始化验证上下文
    if (X509_STORE_CTX_init(ctx, store, cert, chain) != 1) {
        X509_STORE_CTX_free(ctx);
        return -1;
    }

    // 执行证书验证
    int result = X509_verify_cert(ctx);

    if (result == 1) {
        printf("证书验证成功!\n");
    } else {
        printf("证书验证失败!\n");
        int error = X509_STORE_CTX_get_error(ctx);
        printf("错误代码: %d (%s)\n", error,
               X509_verify_cert_error_string(error));

        // 检查错误深度
        int depth = X509_STORE_CTX_get_error_depth(ctx);
        printf("错误深度: %d\n", depth);
    }

    X509_STORE_CTX_free(ctx);
    return result;
}

2. 证书链构建与验证

// 构建证书链并验证
int build_and_verify_chain(const char* cert_file, const char* ca_file) {
    X509_STORE* store = X509_STORE_new();
    X509_STORE_CTX* ctx = NULL;
    STACK_OF(X509)* certs = NULL;
    X509* target_cert = NULL;
    BIO* bio = NULL;
    int ret = 0;

    // 创建证书存储并添加信任的CA
    X509_STORE_load_locations(store, ca_file, NULL);
    X509_STORE_set_default_paths(store);

    // 加载目标证书
    bio = BIO_new_file(cert_file, "r");
    if (!bio) goto cleanup;

    target_cert = PEM_read_bio_X509(bio, NULL, NULL, NULL);
    if (!target_cert) goto cleanup;

    // 创建证书链（这里简化处理，实际应从证书中提取）
    certs = sk_X509_new_null();
    sk_X509_push(certs, target_cert);

    // 创建验证上下文
    ctx = X509_STORE_CTX_new();
    if (!ctx) goto cleanup;

    if (!X509_STORE_CTX_init(ctx, store, target_cert, certs)) {
        goto cleanup;
    }

    // 设置验证参数
    X509_VERIFY_PARAM* param = X509_VERIFY_PARAM_new();
    X509_VERIFY_PARAM_set_flags(param, X509_V_FLAG_X509_STRICT);
    X509_STORE_CTX_set0_param(ctx, param);

    // 执行验证
    ret = X509_verify_cert(ctx);

    if (ret == 1) {
        printf("证书链验证成功!\n");

        // 获取验证后的证书链
        STACK_OF(X509)* verified_chain = X509_STORE_CTX_get1_chain(ctx);
        printf("验证后的证书链包含 %d 个证书\n", sk_X509_num(verified_chain));
        sk_X509_pop_free(verified_chain, X509_free);
    } else {
        int error = X509_STORE_CTX_get_error(ctx);
        printf("证书链验证失败: %s\n", X509_verify_cert_error_string(error));
    }

cleanup:
    if (ctx) X509_STORE_CTX_free(ctx);
    if (bio) BIO_free(bio);
    if (target_cert) X509_free(target_cert);
    if (certs) sk_X509_pop_free(certs, X509_free);
    if (store) X509_STORE_free(store);
    return ret;
}

---

第十一章：实战PKI

一、OpenSSL CA搭建完整实战

1. 创建私有CA的完整脚本

#!/bin/bash
# create_ca.sh - 创建完整的PKI CA环境

CA_DIR="./my_ca"
mkdir -p $CA_DIR/{certs,crl,newcerts,private,requests}
touch $CA_DIR/index.txt
echo 1000 > $CA_DIR/serial
echo 1000 > $CA_DIR/crlnumber

# 生成根CA私钥
openssl genrsa -aes256 -out $CA_DIR/private/ca.key.pem 4096
chmod 400 $CA_DIR/private/ca.key.pem

# 生成根CA证书
openssl req -config openssl.cnf \
    -key $CA_DIR/private/ca.key.pem \
    -new -x509 -days 7300 -sha256 -extensions v3_ca \
    -out $CA_DIR/certs/ca.cert.pem

# 生成中间CA私钥
openssl genrsa -aes256 -out $CA_DIR/private/intermediate.key.pem 4096
chmod 400 $CA_DIR/private/intermediate.key.pem

# 生成中间CA证书请求
openssl req -config openssl.cnf -new -sha256 \
    -key $CA_DIR/private/intermediate.key.pem \
    -out $CA_DIR/requests/intermediate.csr.pem

# 根CA签署中间CA证书
openssl ca -config openssl.cnf -extensions v3_intermediate_ca \
    -days 3650 -notext -md sha256 \
    -in $CA_DIR/requests/intermediate.csr.pem \
    -out $CA_DIR/certs/intermediate.cert.pem

# 创建证书链文件
cat $CA_DIR/certs/intermediate.cert.pem $CA_DIR/certs/ca.cert.pem > \
    $CA_DIR/certs/ca-chain.cert.pem

echo "CA环境创建完成!"

2. OpenSSL配置文件示例（openssl.cnf）

[ ca ]
default_ca = CA_default

[ CA_default ]
dir               = ./my_ca
certs             = $dir/certs
crl_dir           = $dir/crl
new_certs_dir     = $dir/newcerts
database          = $dir/index.txt
serial            = $dir/serial
RANDFILE          = $dir/private/.rand

private_key       = $dir/private/ca.key.pem
certificate       = $dir/certs/ca.cert.pem

crlnumber         = $dir/crlnumber
crl               = $dir/crl/ca.crl.pem
crl_extensions    = crl_ext
default_crl_days  = 30

default_md        = sha256
name_opt          = ca_default
cert_opt          = ca_default
default_days      = 375
preserve          = no
policy            = policy_strict

[ policy_strict ]
countryName             = match
stateOrProvinceName     = match
organizationName        = match
organizationalUnitName  = optional
commonName              = supplied
emailAddress            = optional

[ req ]
default_bits        = 2048
distinguished_name  = req_distinguished_name
string_mask         = utf8only
default_md          = sha256

[ req_distinguished_name ]
countryName                     = Country Name (2 letter code)
stateOrProvinceName             = State or Province Name
localityName                    = Locality Name
0.organizationName              = Organization Name
organizationalUnitName          = Organizational Unit Name
commonName                      = Common Name
emailAddress                    = Email Address

[ v3_ca ]
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid:always,issuer
basicConstraints = critical, CA:true
keyUsage = critical, digitalSignature, cRLSign, keyCertSign

[ v3_intermediate_ca ]
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid:always,issuer
basicConstraints = critical, CA:true, pathlen:0
keyUsage = critical, digitalSignature, cRLSign, keyCertSign

[ server_cert ]
basicConstraints = CA:FALSE
nsCertType = server
nsComment = "OpenSSL Generated Server Certificate"
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid,issuer:always
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth

[ client_cert ]
basicConstraints = CA:FALSE
nsCertType = client
nsComment = "OpenSSL Generated Client Certificate"
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid,issuer:always
keyUsage = critical, nonRepudiation, digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth

二、证书编程高级实战

1. 证书签发完整流程代码

#include <openssl/x509.h>
#include <openssl/x509v3.h>
#include <openssl/pem.h>

// 创建并签发证书
X509* create_and_sign_certificate(EVP_PKEY* ca_key, X509* ca_cert,
                                 EVP_PKEY* subject_key,
                                 const X509_NAME* subject_name,
                                 int days_valid) {
    X509* cert = X509_new();
    if (!cert) return NULL;

    // 设置证书版本
    X509_set_version(cert, 2); // X509v3

    // 设置序列号
    ASN1_INTEGER_set(X509_get_serialNumber(cert), rand());

    // 设置主题名称
    X509_set_subject_name(cert, subject_name);

    // 设置颁发者名称（使用CA的主题）
    X509_set_issuer_name(cert, X509_get_subject_name(ca_cert));

    // 设置有效期
    X509_gmtime_adj(X509_get_notBefore(cert), 0);
    X509_gmtime_adj(X509_get_notAfter(cert), days_valid * 24 * 60 * 60);

    // 设置公钥
    X509_set_pubkey(cert, subject_key);

    // 添加扩展
    add_certificate_extensions(cert, ca_cert);

    // 使用CA私钥签名
    if (X509_sign(cert, ca_key, EVP_sha256()) == 0) {
        X509_free(cert);
        return NULL;
    }

    return cert;
}

// 添加证书扩展
int add_certificate_extensions(X509* cert, X509* issuer) {
    X509V3_CTX ctx;
    X509V3_set_ctx(&ctx, issuer, cert, NULL, NULL, 0);

    // 添加基本约束
    X509_EXTENSION* ext = X509V3_EXT_conf_nid(NULL, &ctx,
        NID_basic_constraints, "critical,CA:FALSE");
    if (ext) {
        X509_add_ext(cert, ext, -1);
        X509_EXTENSION_free(ext);
    }

    // 添加密钥用法
    ext = X509V3_EXT_conf_nid(NULL, &ctx,
        NID_key_usage, "critical,digitalSignature,keyEncipherment");
    if (ext) {
        X509_add_ext(cert, ext, -1);
        X509_EXTENSION_free(ext);
    }

    // 添加扩展密钥用法
    ext = X509V3_EXT_conf_nid(NULL, &ctx,
        NID_ext_key_usage, "serverAuth,clientAuth");
    if (ext) {
        X509_add_ext(cert, ext, -1);
        X509_EXTENSION_free(ext);
    }

    // 添加主题密钥标识符
    ext = X509V3_EXT_conf_nid(NULL, &ctx,
        NID_subject_key_identifier, "hash");
    if (ext) {
        X509_add_ext(cert, ext, -1);
        X509_EXTENSION_free(ext);
    }

    // 添加颁发者密钥标识符
    ext = X509V3_EXT_conf_nid(NULL, &ctx,
        NID_authority_key_identifier, "keyid:always");
    if (ext) {
        X509_add_ext(cert, ext, -1);
        X509_EXTENSION_free(ext);
    }

    return 1;
}
