SpringBoot使用外部Servelet容器及外部servlet容器启动SpringBoot应用原理
前言
嵌入式Servlet容器：应用打成可执行的jar（内置Servlet打成JAR包，而外置打成WAR包）
优点：简单、便携；
缺点：默认不支持JSP、优化定制比较复杂
（2.x之前的使用定制器【ServerProperties、自定义EmbeddedServletContainerCustomizer】，自己编写嵌入式Servlet容器的创建工厂 【EmbeddedServletContainerFactory】）；
配置外部servlet容器的方式
1、新建项目时，选择WAR包的打包方式；
2、建立WEB应用目录结构，如下图，可手工建，也可以通过红框中的工具
注意 Application Context 的配置
之前版本如下
注意以下模块的变化
①maven中scope的范围为provided
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-tomcat</artifactId> <scope>provided</scope> </dependency>
②新增一个springboot的初始化器
public class ServletInitializer extends SpringBootServletInitializer {
@Override
protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
//传入SpringBoot应用的主程序
return application.sources(Demo2Application.class);
}
}
外部servlet容器启动SpringBoot应用原理
外部servlet如何启动springboot容器，要从servlet3.0之后的启动规则说起
servlet3.0规则：
1）、服务器启动（web应用启动）会创建当前web应用里面每一个jar包里面ServletContainerInitializer实例：
2）、ServletContainerInitializer的实现放在jar包的META-INF/services文件夹下，有一个名为javax.servlet.ServletContainerInitializer的文件，内容就是ServletContainerInitializer的实现类的全类名
3）、还可以使用@HandlesTypes，在应用启动的时候加载我们感兴趣的类；

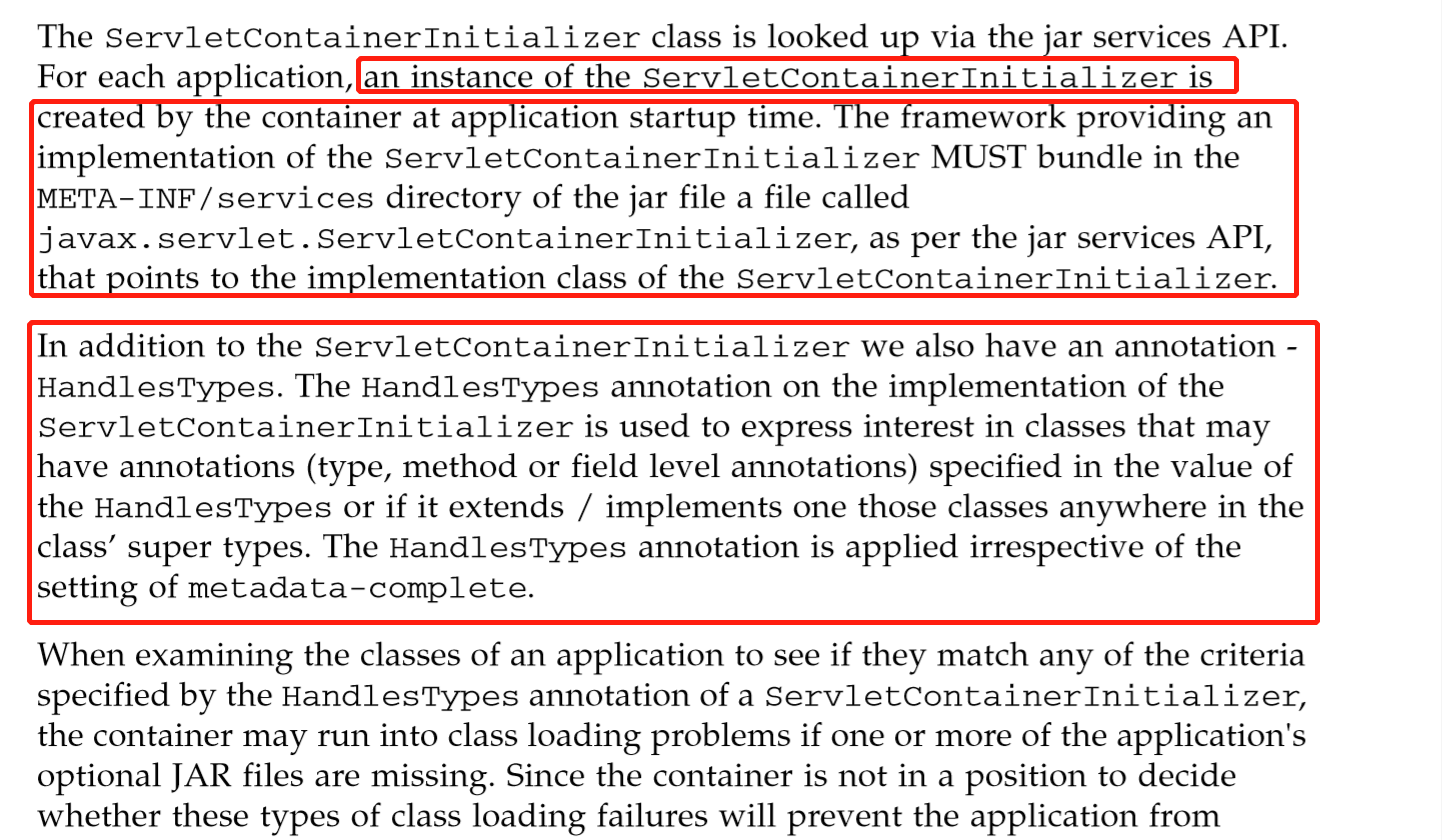

原文如下：
javax.servlet.ServletContainerInitializer
启动流程
①启动外部的Tomcat

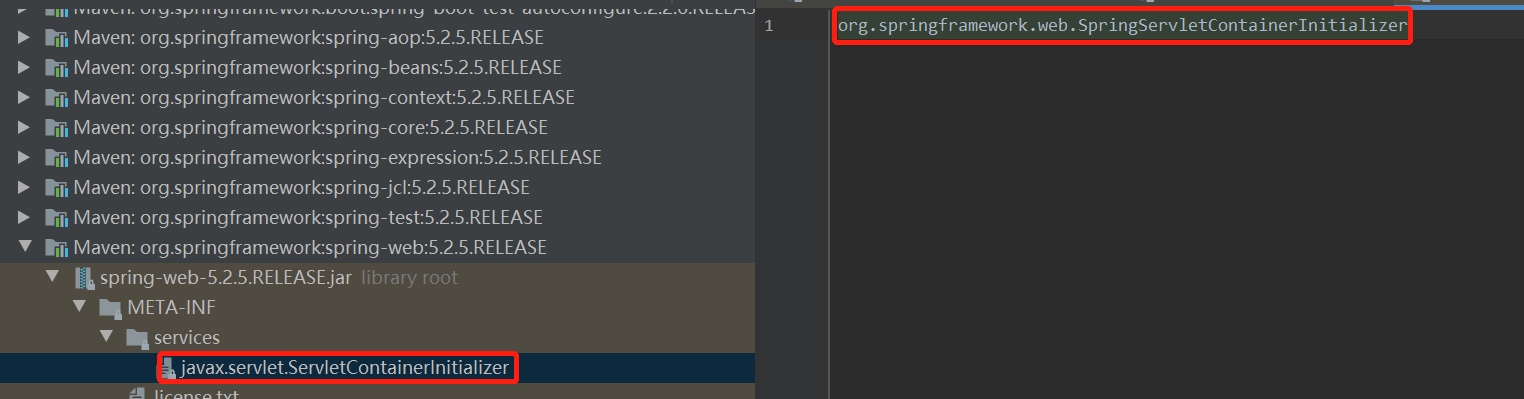

②org\springframework\spring-web\4.3.14.RELEASE\spring-web-4.3.14.RELEASE.jar!\META-INF\services\javax.servlet.ServletContainerInitializer：
Spring的web模块里面有这个文件：org.springframework.web.SpringServletContainerInitializer

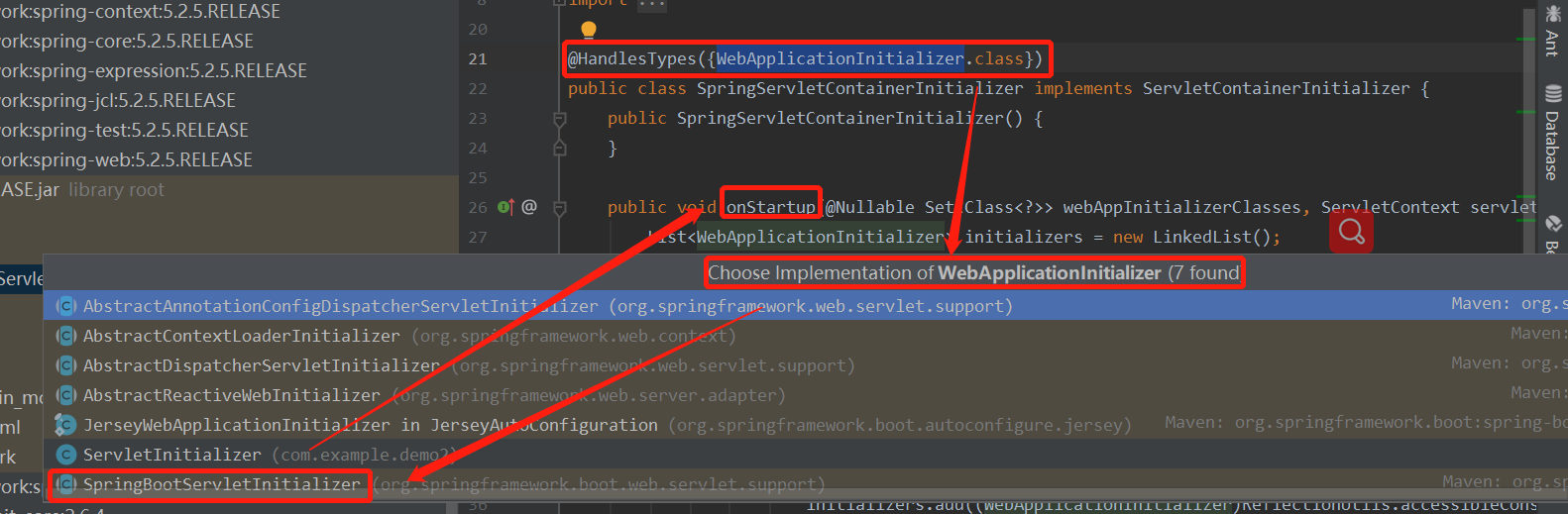

③SpringServletContainerInitializer将@HandlesTypes(WebApplicationInitializer.class)标注的所有这个类型的类都传入到onStartup方法的Set<Class<?>>；为这些WebApplicationInitializer类型的类创建实例；
⑤相当于我们的SpringBootServletInitializer的类会被创建对象，并执行onStartup方法
⑥SpringBootServletInitializer实例执行onStartup的时候会createRootApplicationContext；创建容器
public void onStartup(@Nullable Set<Class<?>> webAppInitializerClasses, ServletContext servletContext) throws ServletException {
List<WebApplicationInitializer> initializers = new LinkedList();
Iterator var4;
if (webAppInitializerClasses != null) {
var4 = webAppInitializerClasses.iterator();
while(var4.hasNext()) {
Class<?> waiClass = (Class)var4.next();
if (!waiClass.isInterface() && !Modifier.isAbstract(waiClass.getModifiers()) && WebApplicationInitializer.class.isAssignableFrom(waiClass)) {
try {
initializers.add((WebApplicationInitializer)ReflectionUtils.accessibleConstructor(waiClass, new Class[0]).newInstance());
} catch (Throwable var7) {
throw new ServletException("Failed to instantiate WebApplicationInitializer class", var7);
}
}
}
}
if (initializers.isEmpty()) {
servletContext.log("No Spring WebApplicationInitializer types detected on classpath");
} else {
servletContext.log(initializers.size() + " Spring WebApplicationInitializers detected on classpath");
AnnotationAwareOrderComparator.sort(initializers);
var4 = initializers.iterator();
while(var4.hasNext()) {
WebApplicationInitializer initializer = (WebApplicationInitializer)var4.next();
initializer.onStartup(servletContext);
}
}
}
public void onStartup(ServletContext servletContext) throws ServletException {
this.logger = LogFactory.getLog(this.getClass());
WebApplicationContext rootAppContext = this.createRootApplicationContext(servletContext);
if (rootAppContext != null) {
servletContext.addListener(new ContextLoaderListener(rootAppContext) {
public void contextInitialized(ServletContextEvent event) {
}
});
} else {
this.logger.debug("No ContextLoaderListener registered, as createRootApplicationContext() did not return an application context");
}
}
protected WebApplicationContext createRootApplicationContext(ServletContext servletContext) {
//1、创建SpringApplicationBuilder
SpringApplicationBuilder builder = this.createSpringApplicationBuilder();
builder.main(this.getClass());
ApplicationContext parent = this.getExistingRootWebApplicationContext(servletContext);
if (parent != null) {
this.logger.info("Root context already created (using as parent).");
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, (Object)null);
builder.initializers(new ApplicationContextInitializer[]{new ParentContextApplicationContextInitializer(parent)});
}
builder.initializers(new ApplicationContextInitializer[]{new ServletContextApplicationContextInitializer(servletContext)});
builder.contextClass(AnnotationConfigServletWebServerApplicationContext.class);
//调用configure方法，子类重写了这个方法，将SpringBoot的主程序类传入了进来
builder = this.configure(builder);
builder.listeners(new ApplicationListener[]{new SpringBootServletInitializer.WebEnvironmentPropertySourceInitializer(servletContext)});
//使用builder创建一个Spring应用
SpringApplication application = builder.build();
if (application.getAllSources().isEmpty() && MergedAnnotations.from(this.getClass(), SearchStrategy.TYPE_HIERARCHY).isPresent(Configuration.class)) {
application.addPrimarySources(Collections.singleton(this.getClass()));
}
Assert.state(!application.getAllSources().isEmpty(), "No SpringApplication sources have been defined. Either override the configure method or add an @Configuration annotation");
if (this.registerErrorPageFilter) {
application.addPrimarySources(Collections.singleton(ErrorPageFilterConfiguration.class));
}
//启动Spring应用
return this.run(application);
}
⑦Spring的应用就启动并且创建IOC容器
public ConfigurableApplicationContext run(String... args) {
StopWatch stopWatch = new StopWatch();
stopWatch.start();
ConfigurableApplicationContext context = null;
Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList();
this.configureHeadlessProperty();
SpringApplicationRunListeners listeners = this.getRunListeners(args);
listeners.starting();
Collection exceptionReporters;
try {
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
ConfigurableEnvironment environment = this.prepareEnvironment(listeners, applicationArguments);
this.configureIgnoreBeanInfo(environment);
Banner printedBanner = this.printBanner(environment);
context = this.createApplicationContext();
exceptionReporters = this.getSpringFactoriesInstances(SpringBootExceptionReporter.class, new Class[]{ConfigurableApplicationContext.class}, context);
this.prepareContext(context, environment, listeners, applicationArguments, printedBanner);
//刷新IOC容器
this.refreshContext(context);
this.afterRefresh(context, applicationArguments);
stopWatch.stop();
if (this.logStartupInfo) {
(new StartupInfoLogger(this.mainApplicationClass)).logStarted(this.getApplicationLog(), stopWatch);
}
listeners.started(context);
this.callRunners(context, applicationArguments);
} catch (Throwable var10) {
this.handleRunFailure(context, var10, exceptionReporters, listeners);
throw new IllegalStateException(var10);
}
try {
listeners.running(context);
return context;
} catch (Throwable var9) {
this.handleRunFailure(context, var9, exceptionReporters, (SpringApplicationRunListeners)null);
throw new IllegalStateException(var9);
}
}
原理
jar包：执行SpringBoot主类的main方法，启动ioc容器，创建嵌入式的Servlet容器；
war包：启动服务器，服务器启动SpringBoot应用【SpringBootServletInitializer】，启动ioc容器；
==启动Servlet容器，再启动SpringBoot应用==
