Springboot 中嵌入式Servlet容器启动原理

前言

　　上一篇文章中讲述了 springboot 应用中嵌入式的 servlet 容器的自动配置原理，springboot 根据导入的依赖情况给容器中加入相应的 servlet 容器工厂，

具体什么时候创建嵌入式的Servlet容器工厂？什么时候获取嵌入式的Servlet容器并启动Tomcat？也可以看做我们知道加入@Componet是意味着

将这个组件加入到 spring 容器当中，加入的具体细节的梳理

创建嵌入式的Servlet容器工厂

我们知道在springboot应用启动的时候，springboot 将相关组件加入到 spring 容器当中因此可以

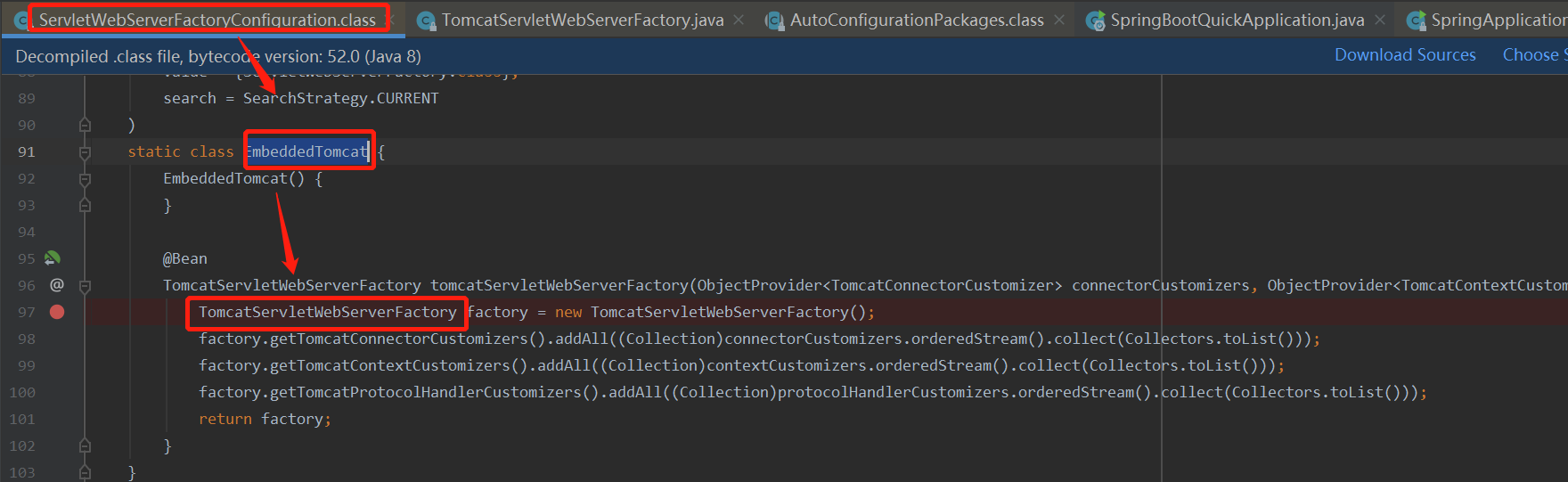

在 EmbeddedTomcat 中创建 TomcatServletWebServerFactory 打上断点，启动应用，通过方法调用栈查看 springboot 的在次之前都干了什么





 调用栈如下





1）、SpringBoot应用启动运行run方法

public ConfigurableApplicationContext run(String... args) {
		StopWatch stopWatch = new StopWatch();
		stopWatch.start();
		ConfigurableApplicationContext context = null;
		Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
		configureHeadlessProperty();
		SpringApplicationRunListeners listeners = getRunListeners(args);
		listeners.starting();
		try {
			ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
			ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
			configureIgnoreBeanInfo(environment);
			Banner printedBanner = printBanner(environment);
　　　　　　　　　　　　　　//创建 ioc  容器
			context = createApplicationContext();
			exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
					new Class[] { ConfigurableApplicationContext.class }, context);
			prepareContext(context, environment, listeners, applicationArguments, printedBanner);
　　　　　　　　　　　　　　//刷新 ioc 容器　　　　
			refreshContext(context);
			afterRefresh(context, applicationArguments);

 创建 ioc 容器时

protected ConfigurableApplicationContext createApplicationContext() {
		Class<?> contextClass = this.applicationContextClass;
		if (contextClass == null) {
			try {
				switch (this.webApplicationType) {
				case SERVLET:
					contextClass = Class.forName(DEFAULT_SERVLET_WEB_CONTEXT_CLASS);
					break;
				case REACTIVE:
					contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
					break;
				default:
					contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
				}
			}
			catch (ClassNotFoundException ex) {
				throw new IllegalStateException(
						"Unable create a default ApplicationContext, please specify an ApplicationContextClass", ex);
			}
		}

其中

/**
 * The class name of application context that will be used by default for non-web
 * environments.
 */
public static final String DEFAULT_CONTEXT_CLASS = "org.springframework.context."
      + "annotation.AnnotationConfigApplicationContext";

/**
 * The class name of application context that will be used by default for web
 * environments.
 */
public static final String DEFAULT_SERVLET_WEB_CONTEXT_CLASS = "org.springframework.boot."
      + "web.servlet.context.AnnotationConfigServletWebServerApplicationContext";

/**
 * The class name of application context that will be used by default for reactive web
 * environments.
 */
public static final String DEFAULT_REACTIVE_WEB_CONTEXT_CLASS = "org.springframework."
      + "boot.web.reactive.context.AnnotationConfigReactiveWebServerApplicationContext";



如果是web应用创建

AnnotationConfigServletWebServerApplicationContext

，

否则：AnnotationConfigReactiveWebServerApplicationContext

2）、refreshContext(context);

SpringBoot刷新IOC容器【创建IOC容器对象，并初始化容器，创建容器中的每一个组件】；

3）、refresh(context);刷新刚才创建好的ioc容器；

 public void refresh() throws BeansException, IllegalStateException {
        synchronized(this.startupShutdownMonitor) {
            this.prepareRefresh();
            ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
            this.prepareBeanFactory(beanFactory);

            try {
                this.postProcessBeanFactory(beanFactory);
                this.invokeBeanFactoryPostProcessors(beanFactory);
                this.registerBeanPostProcessors(beanFactory);
                this.initMessageSource();
                this.initApplicationEventMulticaster();
                this.onRefresh();
                this.registerListeners();
                this.finishBeanFactoryInitialization(beanFactory);
                this.finishRefresh();
            } catch (BeansException var9) {
                if (this.logger.isWarnEnabled()) {
                    this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var9);
                }
                this.destroyBeans();
                this.cancelRefresh(var9);
                throw var9;
            } finally {
                this.resetCommonCaches();
            }

        }
    }



4）、 onRefresh(); web的ioc容器重写了onRefresh方法

	@Override
	protected void onRefresh() {
		super.onRefresh();
		try {
			createWebServer();
		}
		catch (Throwable ex) {
			throw new ApplicationContextException("Unable to start web server", ex);
		}
	}



5）、webioc容器会创建嵌入式的Servlet容器工厂； ServletWebServerFactory

private void createWebServer() {
		WebServer webServer = this.webServer;
		ServletContext servletContext = getServletContext();
		if (webServer == null && servletContext == null) {
　　　　　　　　　　　　　　　//获取servlet工厂
			ServletWebServerFactory factory = getWebServerFactory();
　　　　　　　　　　　　　　//通过Servlet工厂获取servlet容器，启动容器
			this.webServer = factory.getWebServer(getSelfInitializer());
		}
		else if (servletContext != null) {
			try {
				getSelfInitializer().onStartup(servletContext);
			}
			catch (ServletException ex) {
				throw new ApplicationContextException("Cannot initialize servlet context", ex);
			}

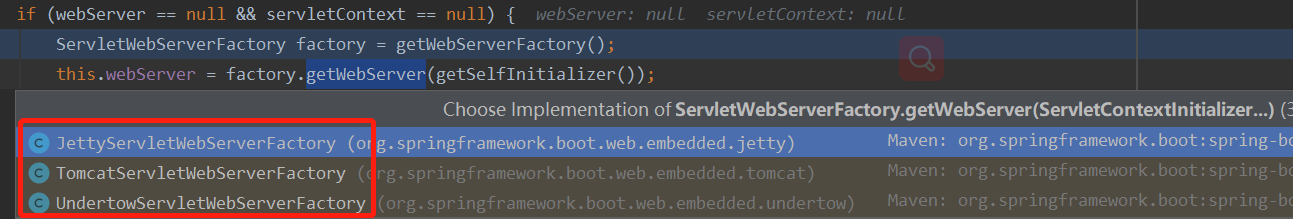

6）、通过Servlet容器工厂启动servlet：

@Override
	public WebServer getWebServer(ServletContextInitializer... initializers) {
		if (this.disableMBeanRegistry) {
			Registry.disableRegistry();
		}
		Tomcat tomcat = new Tomcat();
		File baseDir = (this.baseDirectory != null) ? this.baseDirectory : createTempDir("tomcat");
		tomcat.setBaseDir(baseDir.getAbsolutePath());
		Connector connector = new Connector(this.protocol);
		connector.setThrowOnFailure(true);
		tomcat.getService().addConnector(connector);
		customizeConnector(connector);
		tomcat.setConnector(connector);
		tomcat.getHost().setAutoDeploy(false);
		configureEngine(tomcat.getEngine());
		for (Connector additionalConnector : this.additionalTomcatConnectors) {
			tomcat.getService().addConnector(additionalConnector);
		}
		prepareContext(tomcat.getHost(), initializers);
　　　　　　　　　 //启动tomcat容器
		return getTomcatWebServer(tomcat);
	}

获取并启动Servelet容器的代码如下：

protected TomcatWebServer getTomcatWebServer(Tomcat tomcat) {
		return new TomcatWebServer(tomcat, getPort() >= 0);
	}

public TomcatWebServer(Tomcat tomcat, boolean autoStart) {
		Assert.notNull(tomcat, "Tomcat Server must not be null");
		this.tomcat = tomcat;
		this.autoStart = autoStart;
		initialize();
	}

	private void initialize() throws WebServerException {
		logger.info("Tomcat initialized with port(s): " + getPortsDescription(false));
		synchronized (this.monitor) {
			try {
				addInstanceIdToEngineName();

				Context context = findContext();
				context.addLifecycleListener((event) -> {
					if (context.equals(event.getSource()) && Lifecycle.START_EVENT.equals(event.getType())) {
						// Remove service connectors so that protocol binding doesn't
						// happen when the service is started.
						removeServiceConnectors();
					}
				});

				// Start the server to trigger initialization listeners
				this.tomcat.start();

				// We can re-throw failure exception directly in the main thread
				rethrowDeferredStartupExceptions();

				try {
					ContextBindings.bindClassLoader(context, context.getNamingToken(), getClass().getClassLoader());
				}
				catch (NamingException ex) {
					// Naming is not enabled. Continue
				}

				// Unlike Jetty, all Tomcat threads are daemon threads. We create a
				// blocking non-daemon to stop immediate shutdown
				startDaemonAwaitThread();
			}
			catch (Exception ex) {
				stopSilently();
				destroySilently();
				throw new WebServerException("Unable to start embedded Tomcat", ex);
			}
		}
