4_SSM框架整合

1、环境要求

环境：

• IDEA
• MySQL 5.7.19
• Tomcat 9
• Maven 3.8

要求：

• 需要熟练掌握MySQL数据库，Spring，JavaWeb及MyBatis知识，简单的前端知识；

2、数据库环境

创建一个存放书籍数据的数据库表

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
    `bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
    `bookName` VARCHAR(100) NOT NULL COMMENT '书名',
    `bookCounts` INT(11) NOT NULL COMMENT '数量',
    `detail` VARCHAR(200) NOT NULL COMMENT '描述',
    KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8;

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

3、基本环境搭建

1、新建一Maven项目！ssmbuild ， 添加web的支持

2、导入相关的pom依赖！

<dependencies>
    <!--Junit-->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
    </dependency>
    <!--数据库驱动-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.47</version>
    </dependency>
    <!-- 数据库连接池 -->
    <dependency>
        <groupId>com.mchange</groupId>
        <artifactId>c3p0</artifactId>
        <version>0.9.5.2</version>
    </dependency>

    <!--Servlet - JSP -->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>servlet-api</artifactId>
        <version>2.5</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet.jsp</groupId>
        <artifactId>jsp-api</artifactId>
        <version>2.2</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>

    <!--Mybatis-->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.2</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.2</version>
    </dependency>

    <!--Spring-->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.1.9.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.1.9.RELEASE</version>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.20</version>
    </dependency>
</dependencies>

3、Maven资源过滤设置

<build>
    <resources>
        <resource>
            <directory>src/main/java</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>false</filtering>
        </resource>
        <resource>
            <directory>src/main/resources</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>false</filtering>
        </resource>
    </resources>
</build>

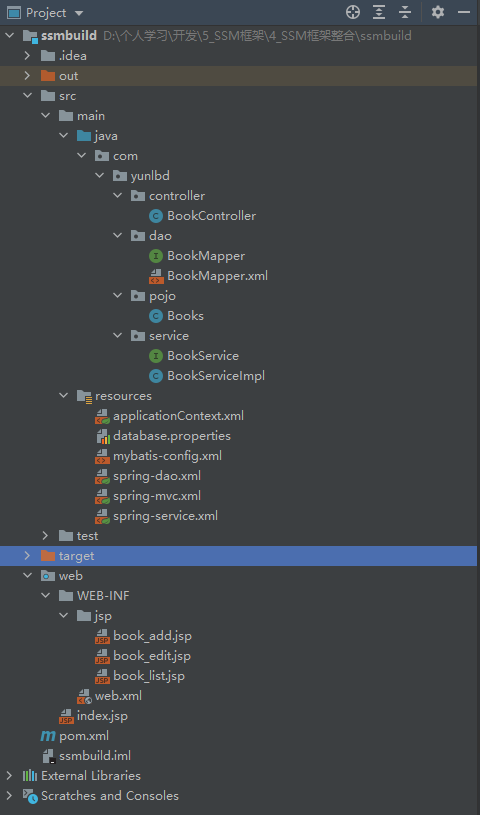

4、建立基本结构和配置框架！

• com.yunlbd.pojo

• com.yunlbd.dao

• com.yunlbd.service

• com.yunlbd.controller

• mybatis-config.xml

  <?xml version="1.0" encoding="UTF-8" ?>
  <!DOCTYPE configuration
         PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
         "http://mybatis.org/dtd/mybatis-3-config.dtd">
  <configuration>

  </configuration>


• applicationContext.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

  </beans>


4、Mybatis层编写

1、数据库配置文件 database.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=111111

2、IDEA关联数据库

3、编写MyBatis的核心配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

   <typeAliases>
       <package name="com.yunlbd.pojo"/>
   </typeAliases>

</configuration>

4、编写数据库对应的实体类 com.yunlbd.pojo.Books

使用lombok插件！

package com.yunlbd.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Books {
    private int bookID;
    private String bookName;
    private int bookCounts;
    private String detail;
}

5、编写Dao层的 Mapper接口！

package com.yunlbd.dao;

import com.yunlbd.pojo.Books;

import java.util.List;

public interface BookMapper {

    //增加一个Book
    int addBook(Books book);

    //根据id删除一个Book
    int deleteBookById(int id);

    //更新Book
    int updateBook(Books books);

    //根据id查询,返回一个Book
    Books queryBookById(int id);

    //查询全部Book,返回list集合
    List<Books> queryBooks(String bookName);
}

6、编写接口对应的 Mapper.xml 文件。需要导入MyBatis的包；

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.yunlbd.dao.BookMapper">

    <!--增加一个Book-->
    <insert id="addBook" parameterType="Books">
        insert into ssmbuild.books(bookName,bookCounts,detail)
        values (#{bookName}, #{bookCounts}, #{detail})
    </insert>

    <!--根据id删除一个Book-->
    <delete id="deleteBookById" parameterType="int">
        delete from ssmbuild.books where bookID=#{bookID}
    </delete>

    <!--更新Book-->
    <update id="updateBook" parameterType="Books">
        update ssmbuild.books
        set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
        where bookID = #{bookID}
    </update>

    <!--根据id查询,返回一个Book-->
    <select id="queryBookById" resultType="Books">
        select * from ssmbuild.books
        where bookID = #{bookID}
    </select>

    <!--根据bookName查询Book-->
    <select id="queryBooks" parameterType="String" resultType="Books">
        SELECT * from ssmbuild.books
        where bookName like #{bookName}
        order by bookID
    </select>

</mapper>

7、编写Service层的接口和实现类

接口：

package com.yunlbd.service;

import com.yunlbd.pojo.Books;

import java.util.List;

public interface BookService {

    //增加一个Book
    int addBook(Books book);

    //根据id删除一个Book
    int deleteBookById(int id);

    //更新Book
    int updateBook(Books books);

    //根据id查询,返回一个Book
    Books queryBookById(int id);

    //查询全部Book,返回list集合
    List<Books> queryBooks(String bookName);
}

实现类：

package com.yunlbd.service;

import com.yunlbd.dao.BookMapper;
import com.yunlbd.pojo.Books;

import java.util.List;

public class BookServiceImpl implements BookService {

    //调用dao层的操作，设置一个set接口，方便Spring管理
    private BookMapper bookMapper;

    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }

    public int addBook(Books book) {
        return bookMapper.addBook(book);
    }

    public int deleteBookById(int id) {
        return bookMapper.deleteBookById(id);
    }

    public int updateBook(Books books) {
        return bookMapper.updateBook(books);
    }

    public Books queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }

    public List<Books> queryBooks(String bookName) {
        return bookMapper.queryBooks(bookName);
    }
}

OK，到此，底层需求操作编写完毕！

5、Spring层编写

1、配置Spring整合MyBatis，我们这里数据源使用c3p0连接池；

2、我们去编写Spring整合Mybatis的相关的配置文件；spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           https://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 配置整合mybatis -->
    <!-- 1.关联数据库文件 -->
    <context:property-placeholder location="classpath:database.properties"/>

    <!-- 2.数据库连接池 -->
    <!--数据库连接池
        dbcp 半自动化操作 不能自动连接
        c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
    -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!-- 配置连接池属性 -->
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
        <!-- 当获取连接失败重试次数 -->
        <property name="acquireRetryAttempts" value="2"/>
    </bean>

    <!-- 3.配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.yunlbd.dao"/>
    </bean>
</beans>

3、Spring整合service层

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 扫描service相关的bean -->
    <context:component-scan base-package="com.yunlbd.service" />

    <!--BookServiceImpl注入到IOC容器中-->
    <bean id="bookServiceImpl" class="com.yunlbd.service.BookServiceImpl">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource" />
    </bean>
</beans>

Spring层搞定！再次理解一下，Spring就是一个大杂烩，一个容器！对吧！

6、SpringMVC层编写

1、web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>
</web-app>

2、spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd
                           http://www.springframework.org/schema/mvc
                           https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 配置SpringMVC -->
    <!-- 1.开启SpringMVC注解驱动 -->
    <mvc:annotation-driven/>
    <!-- 2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!-- 4.扫描web相关的bean -->
    <context:component-scan base-package="com.yunlbd.controller"/>
</beans>

3、Spring配置整合文件，applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="spring-dao.xml"/>
    <import resource="spring-service.xml"/>
    <import resource="spring-mvc.xml"/>
</beans>

7、Controller 和 视图层编写

1、BookController 类编写 ， 方法一：根据bookName查询书籍

@Controller
@RequestMapping("/book")
public class BookController {

    @Autowired
    @Qualifier("bookServiceImpl")
    private BookService bookService;

    @RequestMapping("/queryBook/{bookName}")
    public String list(Model model, @PathVariable("bookName") String bookName) {
        if (bookName.equals("0")) {
            bookName = "%%";
        } else {
            bookName = "%" + bookName + "%";
        }
        List<Books> list = bookService.queryBooks(bookName);
        model.addAttribute("list", list);
        return "book_list";
    }
}

2、编写首页 index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
<!DOCTYPE HTML>
<html>
    <head>
        <title>首页</title>
        <style type="text/css">
            a {
                text-decoration: none;
                color: black;
                font-size: 18px;
            }

            h3 {
                width: 180px;
                height: 38px;
                margin: 100px auto;
                text-align: center;
                line-height: 38px;
                background: deepskyblue;
                border-radius: 4px;
            }
        </style>
    </head>
    <body>
        <h3>
            <a href="${pageContext.request.contextPath}/book/queryBook/0">点击进入列表页</a>
        </h3>
    </body>
</html>

3、编写书籍列表页面 book_list.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>书籍列表</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>书籍列表 —— 显示所有书籍</small>
                </h1>
            </div>
        </div>
    </div>

    <div class="row">
        <div class="col-md-4 column">
            <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
        </div>
    </div>

    <div class="row clearfix">
        <div class="col-md-12 column">
            <table class="table table-hover table-striped">
                <thead>
                <tr>
                    <th>书籍编号</th>
                    <th>书籍名字</th>
                    <th>书籍数量</th>
                    <th>书籍详情</th>
                    <th>操作</th>
                </tr>
                </thead>

                <tbody>
                <c:forEach var="book" items="${requestScope.get('list')}">
                    <tr>
                        <td>${book.getBookID()}</td>
                        <td>${book.getBookName()}</td>
                        <td>${book.getBookCounts()}</td>
                        <td>${book.getDetail()}</td>
                        <td>
                            <a href="${pageContext.request.contextPath}/book/toEditBook?id=${book.getBookID()}">更改</a>
                            |
                            <a href="${pageContext.request.contextPath}/book/toDelBook/${book.getBookID()}">删除</a>
                        </td>
                    </tr>
                </c:forEach>
                </tbody>
            </table>
        </div>
    </div>
</div>
</body>
</html>

4、BookController 类编写 ， 方法二：添加书籍

@RequestMapping("/toAddBook")
public String toAddBook() {
    return "book_add";
}

@RequestMapping("/addBook")
public String addBook(Books books) {
    bookService.addBook(books);
    return "redirect:/book/queryBook/0";
}

5、编写添加书籍页面book_add.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>新增书籍</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>新增书籍</small>
                </h1>
            </div>
        </div>
    </div>
    <form action="${pageContext.request.contextPath}/book/addBook" method="post">
        书籍名称：<input type="text" name="bookName"><br><br><br>
        书籍数量：<input type="text" name="bookCounts"><br><br><br>
        书籍详情：<input type="text" name="detail"><br><br><br>
        <input type="submit" class="btn btn-primary" value="添加">
    </form>
</div>
</body>
</html>

6、BookController 类编写 ， 方法三：修改书籍

@RequestMapping("/toEditBook")
public String toEditBook(Model model, int id) {
    Books books = bookService.queryBookById(id);
    model.addAttribute("book", books);
    return "book_edit";
}

@RequestMapping("/editBook")
public String editBook(Model model, Books book) {
    bookService.updateBook(book);
    Books books = bookService.queryBookById(book.getBookID());
    model.addAttribute("books", books);
    return "redirect:/book/queryBook/0";
}

7、修改书籍页面 book_edit.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>修改信息</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>修改信息</small>
                </h1>
            </div>
        </div>
    </div>

    <form action="${pageContext.request.contextPath}/book/editBook" method="post">
        <input type="hidden" name="bookID" value="${book.getBookID()}"/>
        书籍名称：<input type="text" name="bookName" value="${book.getBookName()}"/><br><br>
        书籍数量：<input type="text" name="bookCounts" value="${book.getBookCounts()}"/><br><br>
        书籍详情：<input type="text" name="detail" value="${book.getDetail() }"/><br><br>
        <input type="submit" class="btn btn-primary" value="提交"/>
    </form>
</div>
</body>
</html>

8、BookController 类编写 ， 方法四：删除书籍

@RequestMapping("/toDelBook/{bookId}")
public String deleteBook(@PathVariable("bookId") int id) {
    bookService.deleteBookById(id);
    return "redirect:/book/queryBook/0";
}

8、配置Tomcat，运行测试

记住要在Artifacts配置lib，把所有maven依赖的包全都放进去，不然项目无法启动！

到目前为止，这个SSM项目整合已经完全的OK了，可以直接运行进行测试！这个练习十分的重要，大家需要保证，不看任何东西，自己也可以完整的实现出来！

9、项目结构图
