springboot框架的搭建（6）--》swagger-ui +新的mybatis生成器配置（包括swagger注解自动生成）

引入新的依赖

 <!-- MyBatis 生成器 -->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.3</version>
        </dependency>

 <!--Swagger-UI API文档生产工具-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.7.0</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.7.0</version>
        </dependency>

先配置代码生成器吧配置文件： generator.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>

    <context id="MySqlContext" targetRuntime="MyBatis3" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>
        <property name="javaFileEncoding" value="UTF-8"/>
        <!-- 为模型生成序列化方法-->
        <plugin type="org.mybatis.generator.plugins.SerializablePlugin"/>
        <!-- 为生成的Java模型创建一个toString方法 -->
        <plugin type="org.mybatis.generator.plugins.ToStringPlugin"/>
        <!--生成mapper.xml时覆盖原文件  注释掉了 好像新版本取消了 不然会报错-->
        <!-- <plugin type="org.mybatis.generator.plugins.UnmergeableXmlMappersPlugin" />-->
        <!--可以自定义生成model的代码注释-->
        <commentGenerator type="com.lin.durid1.Generator.CommentGenerator">
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true"/>
            <property name="suppressDate" value="true"/>
            <property name="addRemarkComments" value="true"/>
        </commentGenerator>
        <!--jdbc的数据库连接-->
        <!--这里是以变量的形式定义，具体的值在 application.properties 文件中-->
        <!--jdbc:mysql://localhost:3306/数据库名?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC-->
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/test1?serverTimezone=UTC&amp;useUnicode=true&amp;characterEncoding=UTF-8&amp;useSSL=false"
                        userId="root"
                        password="root">
        </jdbcConnection>
        <!--指定生成model的路径-->
        <javaModelGenerator targetPackage="com.lin.durid1.mbg.model" targetProject="src\main\java"/>
        <!--指定生成mapper.xml的路径-->
        <sqlMapGenerator targetPackage="com.lin.durid1.mbg.mapper" targetProject="src\main\resources"/>
        <!--指定生成mapper接口的的路径-->
        <javaClientGenerator type="XMLMAPPER" targetPackage="generator.mapper"
                             targetProject="src\main\java"/>
        <!--生成与表对应的类名-->
        <table tableName="people" domainObjectName="people" enableCountByExample="false"
               enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false" selectByExampleQueryId="false"></table>
        <table tableName="account" domainObjectName="account" enableCountByExample="false"
               enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false" selectByExampleQueryId="false"></table>

    </context>
</generatorConfiguration>

CommentGenerator.class 重写注释生成（用于生成swaggerui 注解）

package com.lin.durid1.Generator;

import org.mybatis.generator.api.IntrospectedColumn;
import org.mybatis.generator.api.IntrospectedTable;
import org.mybatis.generator.api.dom.java.CompilationUnit;
import org.mybatis.generator.api.dom.java.Field;
import org.mybatis.generator.api.dom.java.FullyQualifiedJavaType;
import org.mybatis.generator.internal.DefaultCommentGenerator;
import org.mybatis.generator.internal.util.StringUtility;

import java.util.Properties;

/**
 * 自定义注释生成器
 * Created by macro on 2018/4/26.
 */
public class CommentGenerator extends DefaultCommentGenerator {
    private boolean addRemarkComments = false;
    private static final String EXAMPLE_SUFFIX="Example";
    private static final String API_MODEL_PROPERTY_FULL_CLASS_NAME="io.swagger.annotations.ApiModelProperty";

    /**
     * 设置用户配置的参数
     */
    @Override
    public void addConfigurationProperties(Properties properties) {
        super.addConfigurationProperties(properties);
        this.addRemarkComments = StringUtility.isTrue(properties.getProperty("addRemarkComments"));
    }

    /**
     * 给字段添加注释
     */
    @Override
    public void addFieldComment(Field field, IntrospectedTable introspectedTable,
                                IntrospectedColumn introspectedColumn) {
        String remarks = introspectedColumn.getRemarks();
        //根据参数和备注信息判断是否添加备注信息
        if(addRemarkComments&&StringUtility.stringHasValue(remarks)){
//            addFieldJavaDoc(field, remarks);
            //数据库中特殊字符需要转义
            if(remarks.contains("\"")){
                remarks = remarks.replace("\"","'");
            }
            //给model的字段添加swagger注解
            field.addJavaDocLine("@ApiModelProperty(value = \""+remarks+"\")");
        }
    }

    /**
     * 给model的字段添加注释
     */
    private void addFieldJavaDoc(Field field, String remarks) {
        //文档注释开始
        field.addJavaDocLine("/**");
        //获取数据库字段的备注信息
        String[] remarkLines = remarks.split(System.getProperty("line.separator"));
        for(String remarkLine:remarkLines){
            field.addJavaDocLine(" * "+remarkLine);
        }
        addJavadocTag(field, false);
        field.addJavaDocLine(" */");
    }

    @Override
    public void addJavaFileComment(CompilationUnit compilationUnit) {
        super.addJavaFileComment(compilationUnit);
        //只在model中添加swagger注解类的导入
        if(!compilationUnit.isJavaInterface()&&!compilationUnit.getType().getFullyQualifiedName().contains(EXAMPLE_SUFFIX)){
            compilationUnit.addImportedType(new FullyQualifiedJavaType(API_MODEL_PROPERTY_FULL_CLASS_NAME));
        }
    }
}

代码启动器 -这次用main方法启动

Generator.class 注意修改xml配置的名字

package com.lin.durid1.Generator;

import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;

import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;

/**
 * 用于生产MBG的代码
 */
public class Generator {
    public static void main(String[] args) throws Exception {
        //MBG 执行过程中的警告信息
        List<String> warnings = new ArrayList<String>();
        //当生成的代码重复时，覆盖原代码
        boolean overwrite = true;
        //读取我们的 MBG 配置文件
        InputStream is = Generator.class.getResourceAsStream("/generator.xml");
        ConfigurationParser cp = new ConfigurationParser(warnings);
        Configuration config = cp.parseConfiguration(is);
        is.close();

        DefaultShellCallback callback = new DefaultShellCallback(overwrite);
        //创建 MBG
        MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
        //执行生成代码
        myBatisGenerator.generate(null);
        //输出警告信息
        for (String warning : warnings) {
            System.out.println(warning);
        }
    }
}

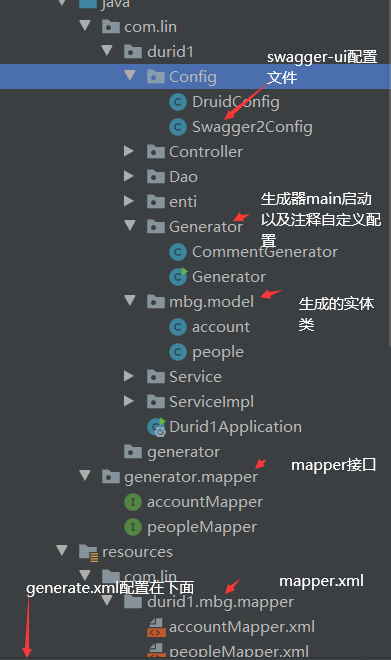

文件目录图：

swagger-ui配置

常用注解

@Api：用于修饰Controller类，生成Controller相关文档信息
@ApiOperation：用于修饰Controller类中的方法，生成接口方法相关文档信息
@ApiParam：用于修饰接口中的参数，生成接口参数相关文档信息
@ApiModelProperty：用于修饰实体类的属性，当实体类是请求参数或返回结果时，直接生成相关文档信息

添加swagger-ui 配置

Swagger2Config.class

package com.lin.durid1.Config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2Config {
    @Bean
    public Docket createRestApi(){
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                //为当前包下controller生成API文档
                .apis(RequestHandlerSelectors.basePackage("com.lin.durid1.Controller"))
                //为有@Api注解的Controller生成API文档
//                .apis(RequestHandlerSelectors.withClassAnnotation(Api.class))
                //为有@ApiOperation注解的方法生成API文档
//                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("SwaggerUI演示")
                .description("lin-swagger")
                .contact("lin")
                .version("1.0")
                .build();
    }
}

给controller层添加 swagger注解

package com.lin.durid1.Controller;
import com.lin.durid1.Dao.accountDao;
import com.lin.durid1.Dao.accountMapper;
import com.lin.durid1.enti.account;
import com.lin.durid1.enti.people;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.apache.ibatis.annotations.Param;
import org.mybatis.logging.Logger;
import org.mybatis.logging.LoggerFactory;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


import javax.annotation.Resource;
import javax.sql.DataSource;
import java.sql.SQLException;
import java.util.List;

/**
 * swagger
 * Controller
 * Created by lin on 2020/2/19.
 */
@Api(tags = "userController", description = "演示 ")
@RestController
@RequestMapping("/test")
public class UserController {

    @Resource
    DataSource dataSource;
    private static final Logger LOGGER = LoggerFactory.getLogger(UserController.class);



    @Resource
    accountDao accountDao;



    @ApiOperation("数据库连接状态")
    @GetMapping("/w")
    public void show() throws SQLException {
        System.out.println(dataSource.getConnection());
    }

    @ApiOperation("字符串返回")
    @GetMapping("/hello")
    public String hello(){
        return "hellotheganster";
    }

    @ApiOperation("通过id查询")
    @GetMapping("/mybatis")
    public List<account> find(@RequestParam(value = "id")int id){
        return accountDao.selectByPrimaryKey(id);}

    @ApiOperation("查询所以")
    @GetMapping("/my")
    public List<account> selectAll(){
        return accountDao.selectAll();
    }

    /*@GetMapping("/in")
    public void inAll(@RequestParam(value = "id")int id,@RequestParam(value = "money")int money,@RequestParam(value = "vip")int vip){
       accountDao.insertSelective(id,money,vip);
    }*/

    @ApiOperation("插入操作根据id")
    @GetMapping("/in")
    public void inAll(account account){
        accountDao.insertSelective(account);
    }

    @ApiOperation("更新操作根据id")
    @GetMapping("/up")
    public void updateSelective(account account){
        accountDao.updateSelective(account);
    }

    @ApiOperation("删除操作根据id")
    @GetMapping("/de")
    public void delete(@RequestParam(value ="id")int peopeleid){
        accountDao.delete(peopeleid);//给到mapper 的是peopleid 接受的是id
    }



}

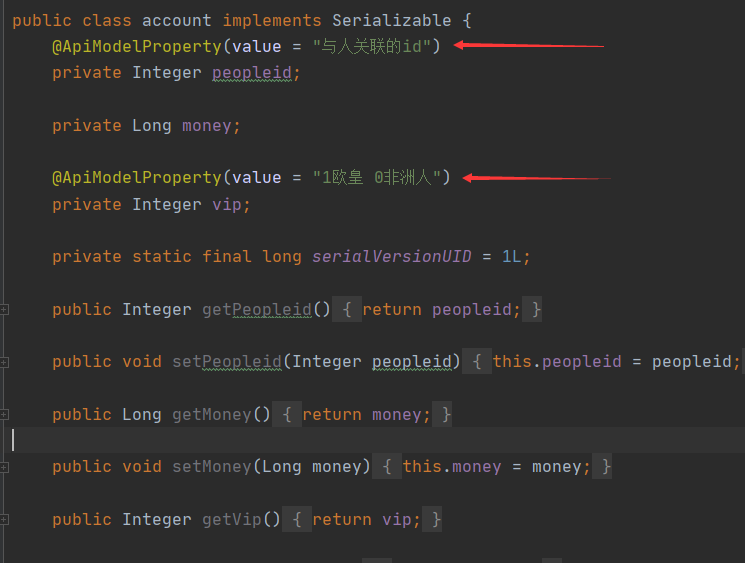

实体类注解为自动生成如下

运行项目访问接口地址：http://localhost:8080/swagger-ui.html

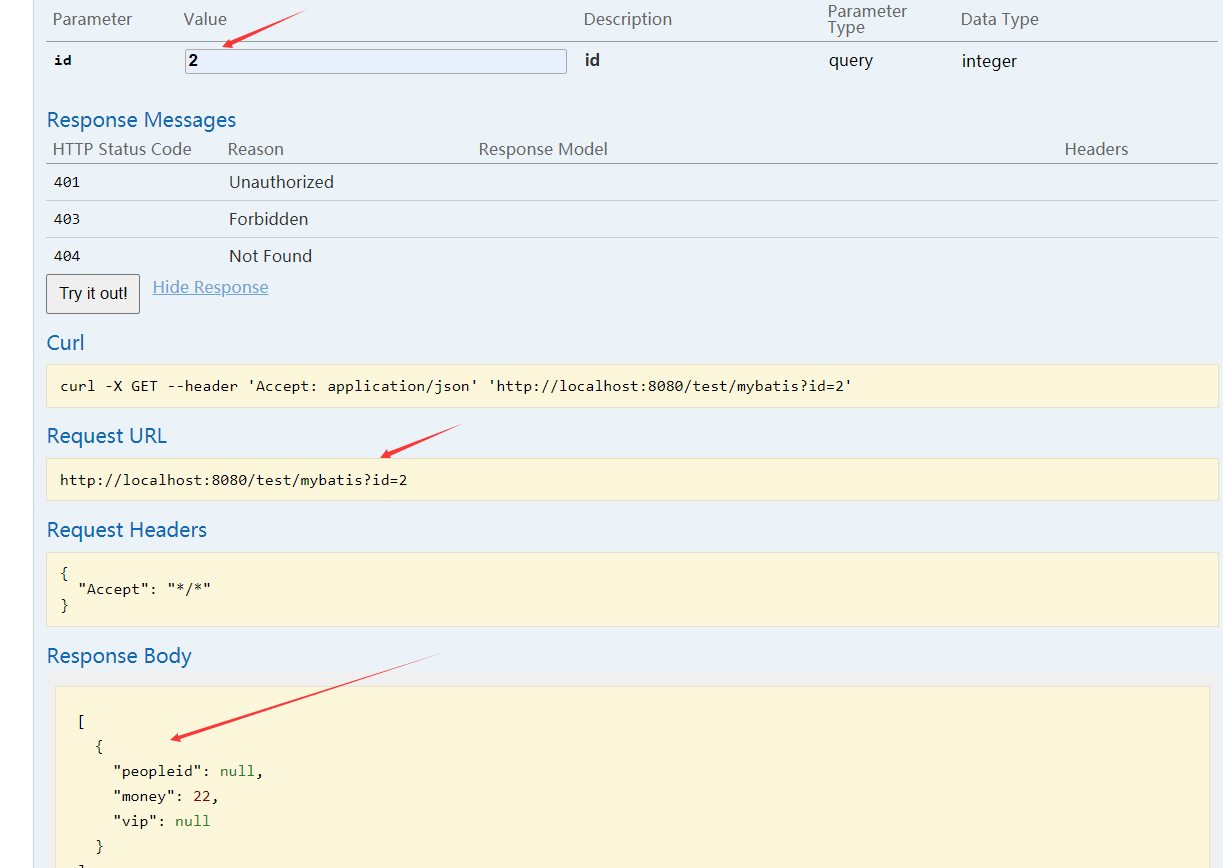

测试一下
