深入解析：使用C#自定义Windows任务栏图标与应用程序标识

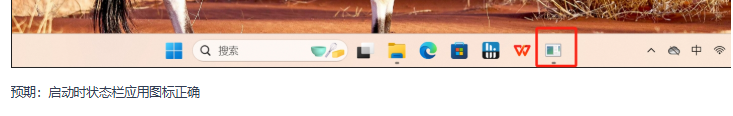

偶现安装完成后自启动状态栏应用图标错误

 在Windows应用程序开发中，任务栏图标和应用程序标识是用户体验的重要组成部分。通过合理设置这些元素，开发者可以提升应用程序的专业性和用户友好度。本文将详细介绍如何使用C#和Windows API来自定义任务栏图标和应用程序标识，包括技术原理、实现步骤和最佳实践。

Windows任务栏图标和应用程序标识的管理依赖于Windows Shell提供的属性系统。System.AppUserModel命名空间下的属性允许开发者控制应用程序在任务栏中的表现方式。其中两个关键属性是：

1. ​System.AppUserModel.ID​：应用程序的唯一标识符，用于区分不同的应用程序实例
2. ​System.AppUserModel.RelaunchIconResource​：指定任务栏中显示的图标资源

这些属性通过Windows属性系统(IPropertyStore接口)进行设置，需要调用Shell32.dll提供的API

核心实现解析

1. 获取窗口属性存储

设置任务栏属性的第一步是获取窗口的IPropertyStore接口，这通过SHGetPropertyStoreForWindowAPI实现：

[DllImport("shell32.dll")]
public static extern int SHGetPropertyStoreForWindow(
IntPtr hwnd, ref Guid riid, out IPropertyStore propertyStore);

函数需要窗口句柄(HWND)和接口ID(IID_IPropertyStore)作为参数

2. 定义属性键

Windows属性系统使用PROPERTYKEY结构来标识特定属性。对于应用程序标识和图标，我们使用以下GUID和属性ID：

// System.AppUserModel.ID
new PROPERTYKEY(new Guid("{9F4C2855-9F79-4B39-A8D0-E1D42DE1D5F3}"), 5);

// System.AppUserModel.RelaunchIconResource
new PROPERTYKEY(new Guid("{9F4C2855-9F79-4B39-A8D0-E1D42DE1D5F3}"), 3);

3. 设置属性值

属性值通过PROPVARIANT结构传递，这是一个可以容纳多种数据类型的通用结构。对于字符串值（如应用程序ID和图标路径），我们使用VT_LPWSTR类型：

[StructLayout(LayoutKind.Explicit)]
public struct PROPVARIANT
{
[FieldOffset(0)] public ushort vt;
[FieldOffset(8)] public IntPtr ptrVal;

public void SetValue(string value)
{
vt = 31; // VT_LPWSTR
ptrVal = Marshal.StringToCoTaskMemUni(value);
}
}

4. 完整的属性设置流程

设置属性的完整流程包括：

1. 获取窗口句柄
2. 获取属性存储接口
3. 创建并填充PROPVARIANT
4. 设置属性值
5. 清理资源

private void SetAppUserModelId(IntPtr hwnd, string appId)
{
// 获取属性存储接口
NativeMethods.IPropertyStore propStore;
int hr = NativeMethods.SHGetPropertyStoreForWindow(
hwnd, ref NativeMethods.IID_IPropertyStore, out propStore);
if (hr != 0) Marshal.ThrowExceptionForHR(hr);

try
{
// 设置属性值
NativeMethods.PROPVARIANT pv = new NativeMethods.PROPVARIANT();
pv.SetValue(appId);
propStore.SetValue(ref appIdKey, ref pv);
NativeMethods.PropVariantClear(ref pv);
}
finally
{
Marshal.ReleaseComObject(propStore);
}
}



完整代码如下：

 public partial class MainWindow : Window
 {
     public MainWindow()
     {
         InitializeComponent();
         SourceInitialized += MainWindow_SourceInitialized;
     }

     private void MainWindow_SourceInitialized(object sender, EventArgs e)
     {
         SetTaskbarProperties();
     }

     private void SetTaskbarProperties()
     {
         IntPtr hwnd = new WindowInteropHelper(this).Handle;
         // 1. 首先设置AppUserModelID
         SetAppUserModelId(hwnd, "Terry.Aes");
         string iconPath = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "icon.ico");
         // 2. 然后设置RelaunchIconResource
         SetRelaunchIconResource(hwnd, iconPath);
     }

     private void SetAppUserModelId(IntPtr hwnd, string appId)
     {
         NativeMethods.PROPERTYKEY appIdKey = new NativeMethods.PROPERTYKEY(new Guid("{9F4C2855-9F79-4B39-A8D0-E1D42DE1D5F3}"), 5); // System.AppUserModel.ID

         NativeMethods.IPropertyStore propStore;
         int hr = NativeMethods.SHGetPropertyStoreForWindow(
             hwnd, ref NativeMethods.IID_IPropertyStore, out propStore);
         if (hr != 0) Marshal.ThrowExceptionForHR(hr);

         try
         {
             NativeMethods.PROPVARIANT pv = new NativeMethods.PROPVARIANT();
             pv.SetValue(appId);
             propStore.SetValue(ref appIdKey, ref pv);
             NativeMethods.PropVariantClear(ref pv);
         }
         finally
         {
             Marshal.ReleaseComObject(propStore);
         }
     }

     private void SetRelaunchIconResource(IntPtr hwnd, string iconPath)
     {
         NativeMethods.PROPERTYKEY iconKey = new NativeMethods.PROPERTYKEY(new Guid("{9F4C2855-9F79-4B39-A8D0-E1D42DE1D5F3}"), 3); // System.AppUserModel.RelaunchIconResource

         NativeMethods.IPropertyStore propStore;
         int hr = NativeMethods.SHGetPropertyStoreForWindow(
             hwnd, ref NativeMethods.IID_IPropertyStore, out propStore);
         if (hr != 0) Marshal.ThrowExceptionForHR(hr);

         try
         {
             NativeMethods.PROPVARIANT pv = new NativeMethods.PROPVARIANT();
             pv.SetValue(iconPath);
             propStore.SetValue(ref iconKey, ref pv);
             NativeMethods.PropVariantClear(ref pv);
         }
         finally
         {
             Marshal.ReleaseComObject(propStore);
         }
     }
 }

 internal static class NativeMethods
 {
     [DllImport("shell32.dll")]
     public static extern int SHGetPropertyStoreForWindow(IntPtr hwnd, ref Guid riid, out IPropertyStore propertyStore);

     [DllImport("ole32.dll")]
     public static extern int PropVariantClear(ref PROPVARIANT pvar);

     // IPropertyStore接口定义
     [ComImport]
     [InterfaceType(ComInterfaceType.InterfaceIsIUnknown)]
     [Guid("886D8EEB-8CF2-4446-8D02-CDBA1DBDCF99")]
     public interface IPropertyStore
     {
         void GetCount(out uint cProps);
         void GetAt(uint iProp, out PROPERTYKEY pkey);
         void GetValue(ref PROPERTYKEY key, out PROPVARIANT pv);
         void SetValue(ref PROPERTYKEY key, ref PROPVARIANT pv);
         void Commit();
     }

     // IPropertyStore接口ID
     public static Guid IID_IPropertyStore = new Guid("886D8EEB-8CF2-4446-8D02-CDBA1DBDCF99");
     // PROPERTYKEY结构定义
     [StructLayout(LayoutKind.Sequential, Pack = 4)]
     public struct PROPERTYKEY
     {
         public Guid fmtid;
         public uint pid;
         public PROPERTYKEY(Guid fmtid, uint pid)
         {
             this.fmtid = fmtid;
             this.pid = pid;
         }
     }

     // PROPVARIANT结构定义（支持字符串和布尔值）
     [StructLayout(LayoutKind.Explicit)]
     public struct PROPVARIANT
     {
         [FieldOffset(0)] public ushort vt;
         [FieldOffset(8)] public IntPtr ptrVal;
         [FieldOffset(8)] public byte boolVal;
         public void SetValue(string value)
         {
             vt = 31; // VT_LPWSTR
             ptrVal = Marshal.StringToCoTaskMemUni(value);
         }
     }
 }

 资料：System.AppUserModel.RelaunchIconResource - Win32 apps | Microsoft Learn
