HTML5 App with MVVM and Knockout Study(1)

Study (1) Bindings and Observables

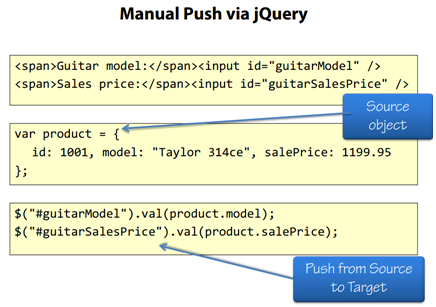

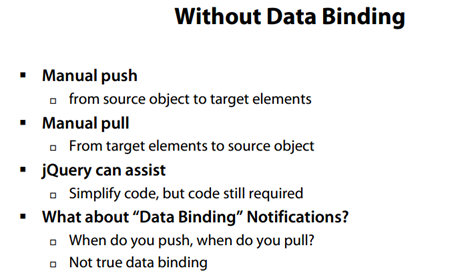

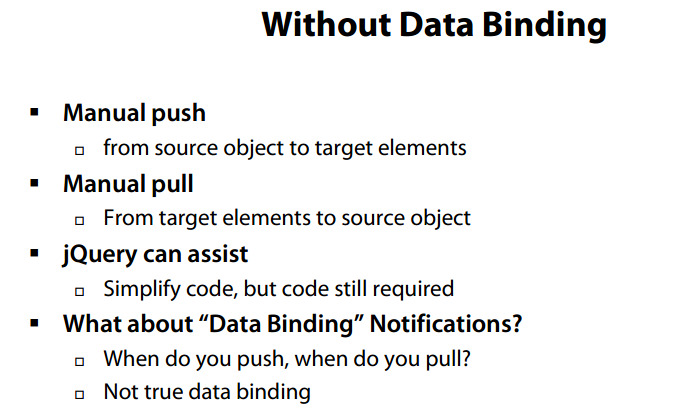

• Use jQuery to push data to DOM elements, without data binding

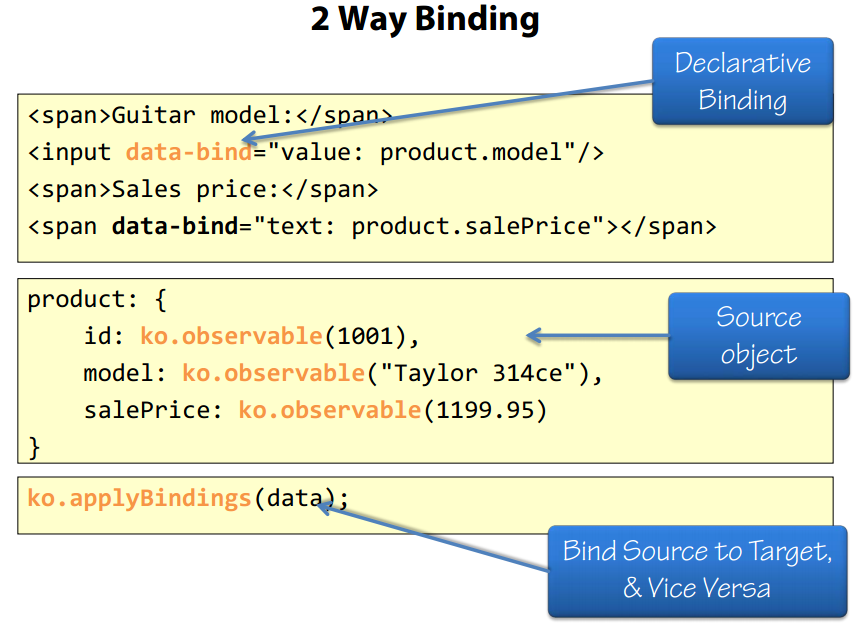

• Use Knockout’s Observables to bind data



data.js

var my = { }; //my namespace
my.sampleData = (function (my) {
    "use strict";
    var data = { Products: [
                        { "ModelId": 1, "SalePrice": 1649.01, "ListPrice": 2199.00, "Rating": 5, "Photo": "Taylor 314-CE Left-Handed Grand Auditorium Acoustic-Electric Guitar.png", "CategoryId": 1, "ItemNumber": "T314CE", "Description": "Taylor 314-CE Left-Handed Grand Auditorium Acoustic-Electric Guitar", "Reviews": [{ "ProductId": 4, "ReviewerName": "guitarhero", "Description": "This guitar has never let me down. I gig 3-6 nights a week and the 314CE just keeps on ticking. Change the battery and the strings regularly and she sounds like a dream everytime. If you want great sound, playability, dependability and just great playing fun get this guitar. You won\u0027t be sorry.", "ReviewDate": "\/Date(1302181440000)\/", "Id": 3 }, { "ProductId": 4, "ReviewerName": "billyjack", "Description": "Best guitar ever!", "ReviewDate": "\/Date(1302218040000)\/", "Id": 4}], "Model": { "Name": "Taylor 314ce", "Id": 1 }, "Category": { "Name": "Acoustic Guitars", "Id": 1 }, "Id": 4 },
                        { "ModelId": 8, "SalePrice": 4199.00, "ListPrice": 5199.00, "Rating": 5, "Photo": "Taylor Koa Series K66ce Grand Symphony 12-String Cutaway Acoustic Electric Guitar.png", "CategoryId": 1, "ItemNumber": "TK66CE", "Description": "Taylor Koa Series K66ce Grand Symphony 12-String Cutaway Acoustic Electric Guitar", "Reviews": [], "Model": { "Name": "Taylor K66e", "Id": 8 }, "Category": { "Name": "Acoustic Guitars", "Id": 1 }, "Id": 11 },
                        { "ModelId": 9, "SalePrice": 299.00, "ListPrice": 399.00, "Rating": 3, "Photo": "Taylor Baby Taylor Left-Handed Acoustic Guitar.png", "CategoryId": 1, "ItemNumber": "TBTL", "Description": "Taylor Baby Taylor Left-Handed Acoustic Guitar", "Reviews": [], "Model": { "Name": "Taylor Baby", "Id": 9 }, "Category": { "Name": "Acoustic Guitars", "Id": 1 }, "Id": 12 },
                        { "ModelId": 10, "SalePrice": 1999.00, "ListPrice": 2399.00, "Rating": 4, "Photo": "Taylor T5 Standard Acoustic-Electric Guitar with Spruce Top.png", "CategoryId": 1, "ItemNumber": "TT5E", "Description": "Taylor T5 Standard Acoustic-Electric Guitar with Spruce Top", "Reviews": [], "Model": { "Name": "Taylor T5", "Id": 10 }, "Category": { "Name": "Acoustic Guitars", "Id": 1 }, "Id": 13 },
                        { "ModelId": 11, "SalePrice": 149.99, "ListPrice": 169.99, "Rating": 4, "Photo": "El Dorado Vintage Hand-Tooled Leather Guitar Strap.png", "CategoryId": 4, "ItemNumber": "87123", "Description": "El Dorado Vintage Hand-Tooled Leather Guitar Strap", "Reviews": [], "Model": { "Name": "El Dorado Vintage", "Id": 11 }, "Category": { "Name": "Straps", "Id": 4 }, "Id": 14 },
                        { "ModelId": 12, "SalePrice": 16.99, "ListPrice": 19.99, "Rating": 3, "Photo": "Moody 2 half Inch Luxury Black Leather Guitar Strap with Tobacco Leather Back.png", "CategoryId": 4, "ItemNumber": "89120", "Description": "Moody 2 half Inch Luxury Black Leather Guitar Strap with Tobacco Leather Back", "Reviews": [], "Model": { "Name": "Moody Luxury", "Id": 12 }, "Category": { "Name": "Straps", "Id": 4 }, "Id": 15 },
                        { "ModelId": 13, "SalePrice": 150.00, "ListPrice": 180.00, "Rating": 2, "Photo": "LM Products Iron Cross Stud 2 Inch Guitar Strap.png", "CategoryId": 4, "ItemNumber": "12972", "Description": "LM Products Iron Cross Stud 2 Inch Guitar Strap", "Reviews": [], "Model": { "Name": "LM Iron Cross", "Id": 13 }, "Category": { "Name": "Straps", "Id": 4 }, "Id": 17 },
                        { "ModelId": 14, "SalePrice": 64.99, "ListPrice": 64.99, "Rating": 4, "Photo": "Jodi Head 3 Inch Denny Wide Art Deco Guitar Strap - Brown and Tan Sequin Sparkle.png", "CategoryId": 4, "ItemNumber": "98612", "Description": "Jodi Head 3\" Denny Wide Art Deco Guitar Strap - Brown and Tan Sequin Sparkle", "Reviews": [], "Model": { "Name": "Jodi Deco", "Id": 14 }, "Category": { "Name": "Straps", "Id": 4 }, "Id": 18 },
                        { "ModelId": 15, "SalePrice": 59.99, "ListPrice": 64.99, "Rating": 3, "Photo": "Levy\u0027s Leather Guitar Strap with Dog Tags.png", "CategoryId": 4, "ItemNumber": "71203", "Description": "Levy\u0027s Leather Guitar Strap with Dog Tags", "Reviews": [], "Model": { "Name": "Levy\u0027s Dog Tags", "Id": 15 }, "Category": { "Name": "Straps", "Id": 4 }, "Id": 19 },
                        { "ModelId": 16, "SalePrice": 14.99, "ListPrice": 19.99, "Rating": 5, "Photo": "Dunlop Trigger Classical Guitar Capo.png", "CategoryId": 3, "ItemNumber": "76123", "Description": "Dunlop Trigger Classical Guitar Capo", "Reviews": [], "Model": { "Name": "Dunlop Trigger", "Id": 16 }, "Category": { "Name": "Capos", "Id": 3 }, "Id": 20 },
                        { "ModelId": 17, "SalePrice": 16.99, "ListPrice": 17.99, "Rating": 4, "Photo": "Paige 6-String Guitar Capo.png", "CategoryId": 3, "ItemNumber": "36581", "Description": "Paige 6-String Guitar Capo", "Reviews": [], "Model": { "Name": "Paige", "Id": 17 }, "Category": { "Name": "Capos", "Id": 3 }, "Id": 21 },
                        { "ModelId": 18, "SalePrice": 24.99, "ListPrice": 25.99, "Rating": 4, "Photo": "Glider GL-1 Guitar Capo.png", "CategoryId": 3, "ItemNumber": "23421", "Description": "Glider GL-1 Guitar Capo", "Reviews": [], "Model": { "Name": "Glider GL-1", "Id": 18 }, "Category": { "Name": "Capos", "Id": 3 }, "Id": 22 },
                        { "ModelId": 19, "SalePrice": 14.99, "ListPrice": 18.99, "Rating": 1, "Photo": "Planet Waves NS Classical Guitar Capo.png", "CategoryId": 3, "ItemNumber": "25232", "Description": "Planet Waves NS Classical Guitar Capo", "Reviews": [], "Model": { "Name": "Planet Waves NS", "Id": 19 }, "Category": { "Name": "Capos", "Id": 3 }, "Id": 23 },
                        { "ModelId": 2, "SalePrice": 649.00, "ListPrice": 899.00, "Rating": 4, "Photo": "Taylor 314-CE Left-Handed Grand Auditorium Acoustic-Electric Guitar.png", "CategoryId": 1, "ItemNumber": "T110CE", "Description": "Taylor 114-CE Left-Handed Grand Auditorium Acoustic-Electric Guitar", "Reviews": [], "Model": { "Name": "Taylor 110ce", "Id": 2 }, "Category": { "Name": "Acoustic Guitars", "Id": 1 }, "Id": 25 }
    ]
    };
    return {
        data: data
    };
})(my);



2-02-observable.html

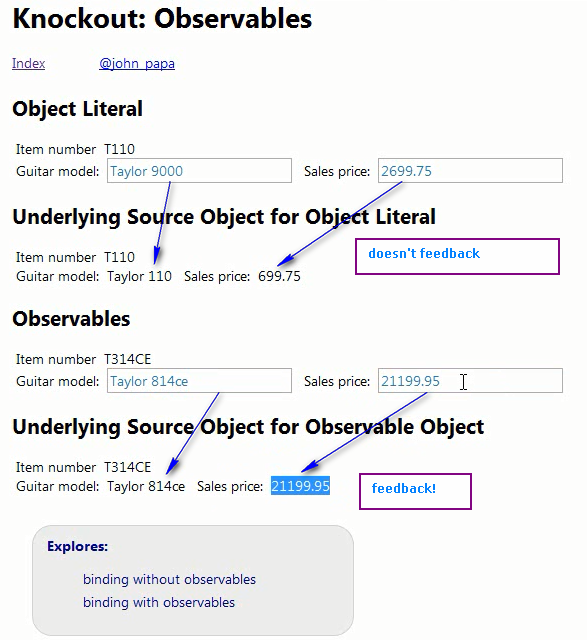

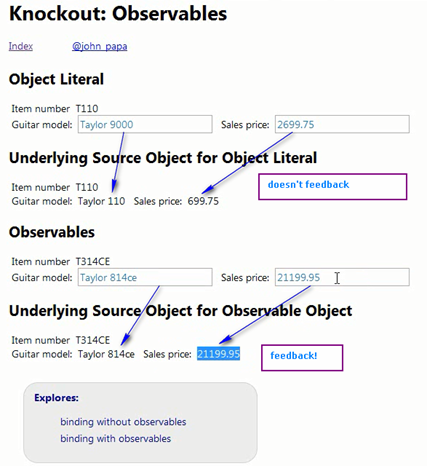

Note that product1 doesn’t use observables, therefore, the object value can  be bound to the DOM element, but the value changes in DOM element doesn’t update the object value.

    <script type="text/javascript">
        $(function () {
            // Note:
            // it is likely that you would get your object from some
            // web service, but we'll mock it for simplicity.

            my.data = {
                metadata: {
                    pageTitle: "Knockout: Observables",
                    personal: {
                        link: "http://twitter.com/john_papa",
                        text: "@john_papa"
                    }
                },
                product1: {
                    id: 1002,
                    itemNumber: "T110",
                    model: "Taylor 110",
                    salePrice: 699.75
                },
                product2: {
                    id: ko.observable(1001),
                    itemNumber: ko.observable("T314CE"),
                    model: ko.observable("Taylor 314ce"),
                    salePrice: ko.observable(1199.95)
                }
            };

            //Note: Data bind the values between the source and the targets using Knockout
            ko.applyBindings(my.data);
        });
    </script>

    <div class="page">
        <div class="header" data-bind="with: metadata">
            <h1 data-bind="text: pageTitle"></h1>
            <div data-bind="with:personal">
                <a href="00-index.html">Index</a>
                <a data-bind="attr: {href: link, title: text}, text: text" class="personalCss"></a>
            </div>
        </div>
        <div>
            <h2>Object Literal</h2>
            <span>Item number</span><span data-bind="text: product1.itemNumber"></span>
            <br />
            <span>Guitar model:</span><input data-bind="value: product1.model" />
            <span>Sales price:</span><input data-bind="value: product1.salePrice" />
        </div>
        <div>
            <h2>Underlying Source Object for Object Literal</h2>
            <span>Item number</span><span data-bind="text: product1.itemNumber"></span>
            <br />
            <span>Guitar model:</span><span data-bind="text: product1.model"></span> <span>Sales
                price:</span><span data-bind="text: product1.salePrice"></span>
        </div>
        <div>
            <h2>Observables</h2>
            <span>Item number</span><span data-bind="text: product2.itemNumber" ></span>
            <br />
            <span>Guitar model:</span><input data-bind="value: product2.model" />
            <span>Sales price:</span><input data-bind="value: product2.salePrice" />
        </div>
        <div>
            <h2>Underlying Source Object for Observable Object</h2>
            <span>Item number</span><span data-bind="text: product2.itemNumber"></span>
            <br />
            <span>Guitar model:</span><span data-bind="text: product2.model"></span> <span>Sales price:</span><span data-bind="text: product2.salePrice"></span>
        </div>
        <div class="topics">
            <span>Explores:</span>
            <ul>
                <li>binding without observables</li>
                <li>binding with observables</li>
            </ul>
        </div>
    </div>

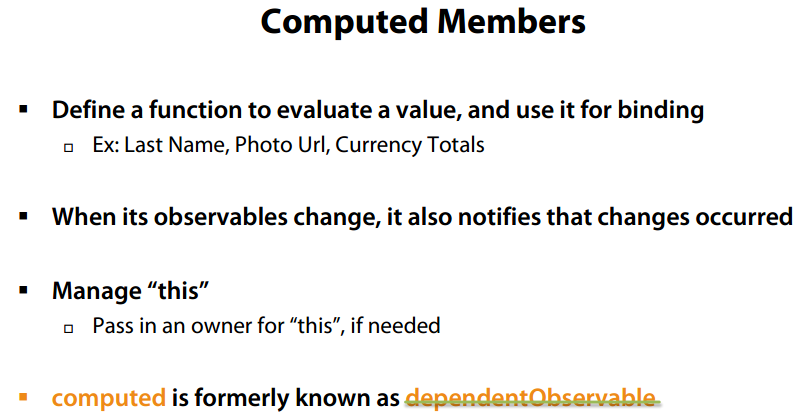

• Computed Members in Knockout



demo: 2-04-computed.html

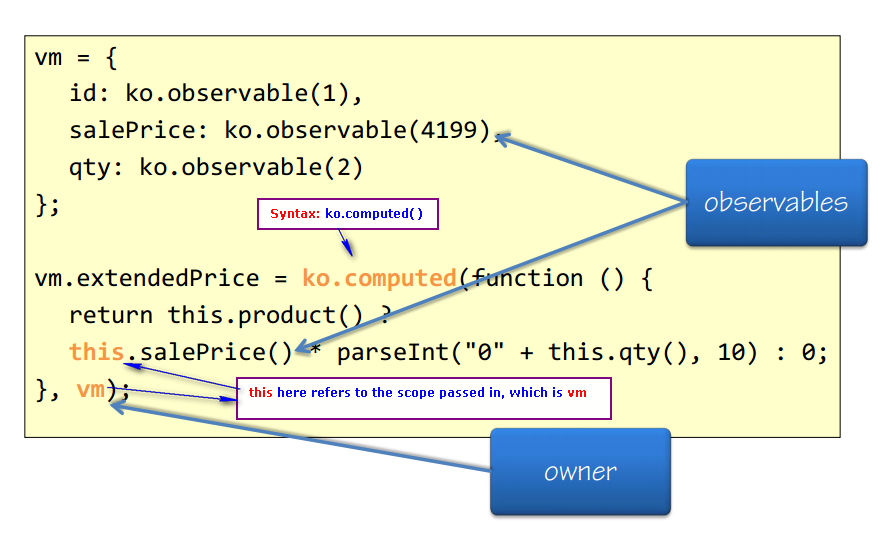

Note that, two computed observables use different owners because of different definition scopes

    <script type="text/javascript">
        $(function () {
            var photoPath = "/images/";

            // function helper
            my.formatCurrency = function (value) {
                return "$" + value.toFixed(2);
            };

            // for creating Product Models
            my.Product = function () {
                this.id = ko.observable();
                this.salePrice = ko.observable();
                this.photo = ko.observable();
                this.shortDescription = ko.observable();
                // photo url
                // the computed field is defined inside the object, so pass "this" as owner
                this.photoUrl = ko.computed(function () {
                    return photoPath + this.photo();
                }, this);

            };

            // NOTE: I am showing 2 ways to handle "this" with a computed observable.
            // 1st way is to pass in what "this should" represent.
            // 2nd way is to skip it, and use a variable that is scoped
            // outside of the computed function.

            // The ViewModel
            my.vm = {
                metadata: {
                    pageTitle: "Knockout: Computed",
                    personal: {
                        link: "http://twitter.com/john_papa",
                        text: "@john_papa"
                    }
                },
                product: ko.observable(
                    new my.Product()
                        .shortDescription("Taylor Koa Series K66ce")
                        .salePrice(4199)
                        .photo("Taylor Koa Series K66ce Grand Symphony 12-String Cutaway Acoustic Electric Guitar.png")
                    ),
                quantity: ko.observable(2)
            };

            //extended price
            // this computed field is defined outside the object scope, so pass the object "my.vm" as owner
            my.vm.extendedPrice = ko.computed(function () {
                return this.product() ?
                    this.product().salePrice() * parseInt("0" + this.quantity(), 10) : 0;
            }, my.vm);

            ko.applyBindings(my.vm);
        });
    </script>

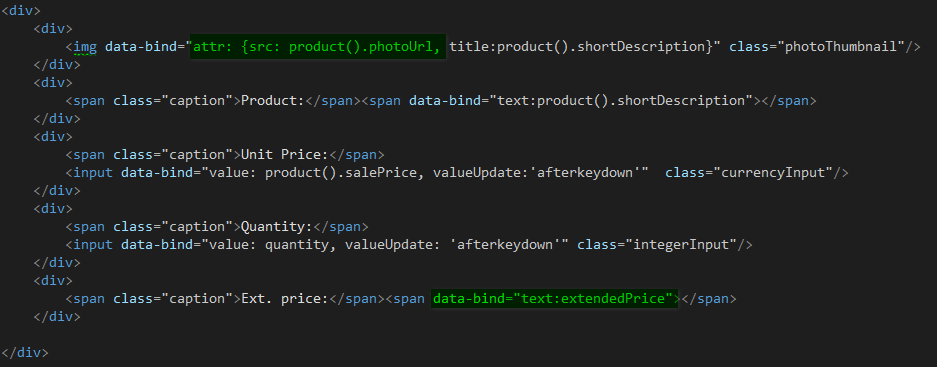

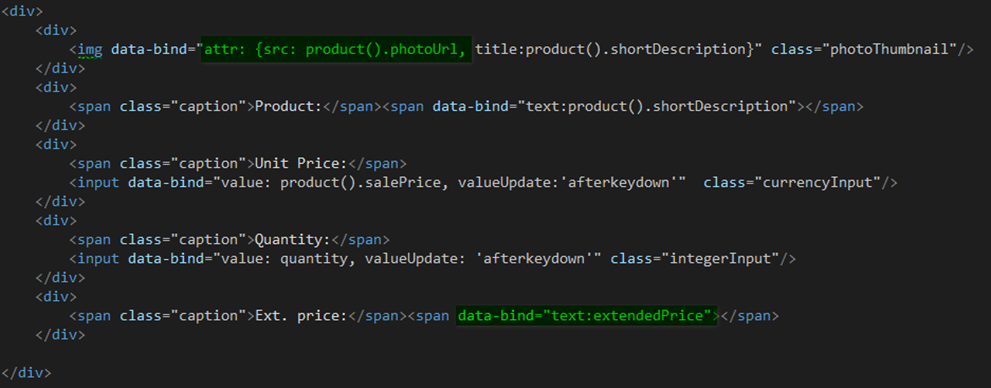

Data binding in DOM elements. Not that binding to an observable within another observable, the upper level one needs the parentheses, like product().photoUrl

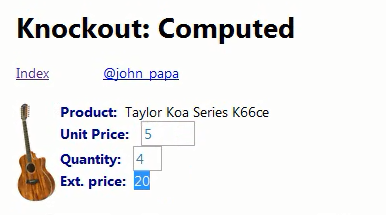

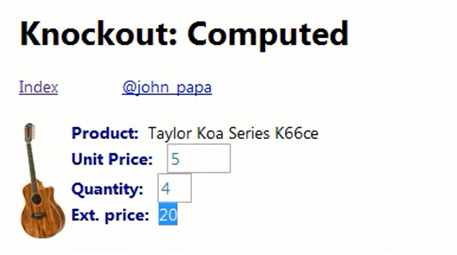

result:

• More complicated example of computed observable

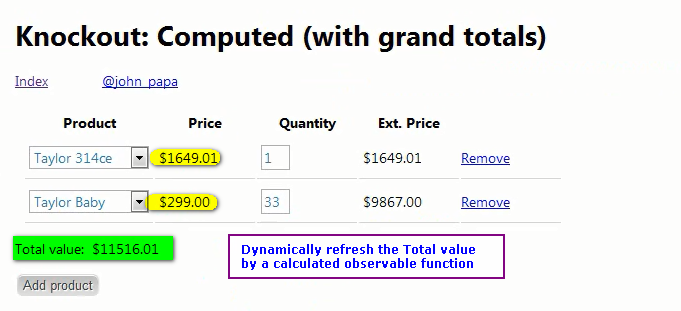

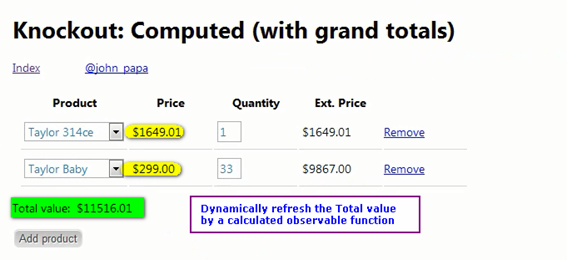

Computed with grand totals:

Code:2-05-computed-with-grand-totals.html

            // Computed observable function.
            // We append it to the ViewModel here.
            my.vm.grandTotal = ko.computed(function () {
                var total = 0;
                $.each(this.lines(), function () {
                    // "this" is part of the inner function
                    total += this.extendedPrice();
                });
                return total;
            }, my.vm);

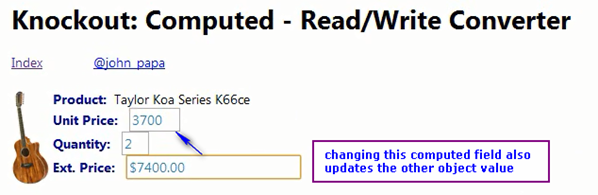

• Two-way binding of computed observable

            ///////////////////////////////////////////////////
            // read/write computed
            ///////////////////////////////////////////////////
            my.vm.extendedPrice = ko.computed({
                read: function () {
                    var extPrice = this.product() ?
                       this.product().salePrice() * parseInt("0" + this.quantity(), 10) : 0;
                    return '$' + extPrice.toFixed(2);
                },
                write: function (value) {
                    value = parseFloat(value.replace(/[^\.\d]/g, ""));
                    value = isNaN(value) ? 0 : value;
                    var unitPrice = value / this.quantity();
                    this.product().salePrice(unitPrice);
                },
                owner: my.vm
            });

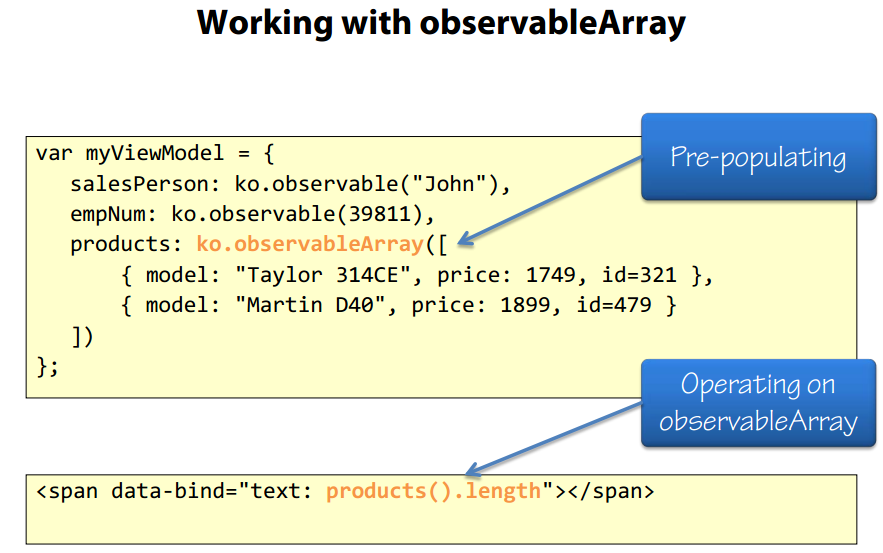

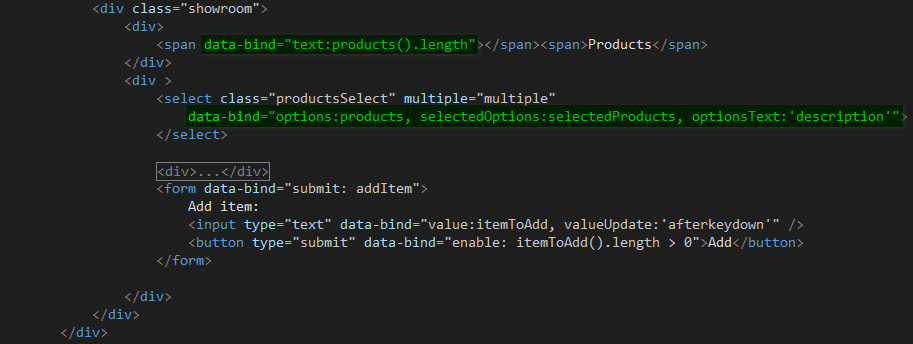

• ObservableArray

        $(function () {
            var photoPath = "/images/";

            // Product construction
            var Product = function () {
                this.id = ko.observable();
                this.salePrice = ko.observable();
                this.photo = ko.observable();
                this.itemNumber = ko.observable();
                this.description = ko.observable();
                this.photoUrl = ko.computed(function () {
                    return photoPath + this.photo();
                }, this);
            };

            my.vm = {
                metadata: {
                    pageTitle: "Knockout: Observable Arrays",
                    personal: {
                        link: "http://twitter.com/john_papa",
                        text: "@john_papa"
                    }
                },

                // observable array of products
                products: ko.observableArray([]),
                selectedProducts: ko.observableArray([]),
                itemToAdd: ko.observable(""),

                // loading the observable array with sample data
                load: function () {
                    $.each(my.sampleData.data.Products, function (i, p) {
                        my.vm.products.push(new Product()
                                .id(p.Id)
                                .salePrice(p.SalePrice)
                                .photo(p.Photo)
                                .itemNumber(p.ItemNumber)
                                .description(p.Description)
                        );
                    });
                }
            };

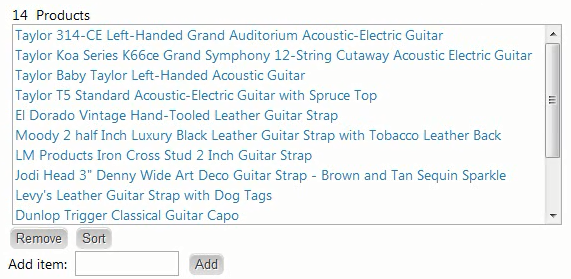

result:

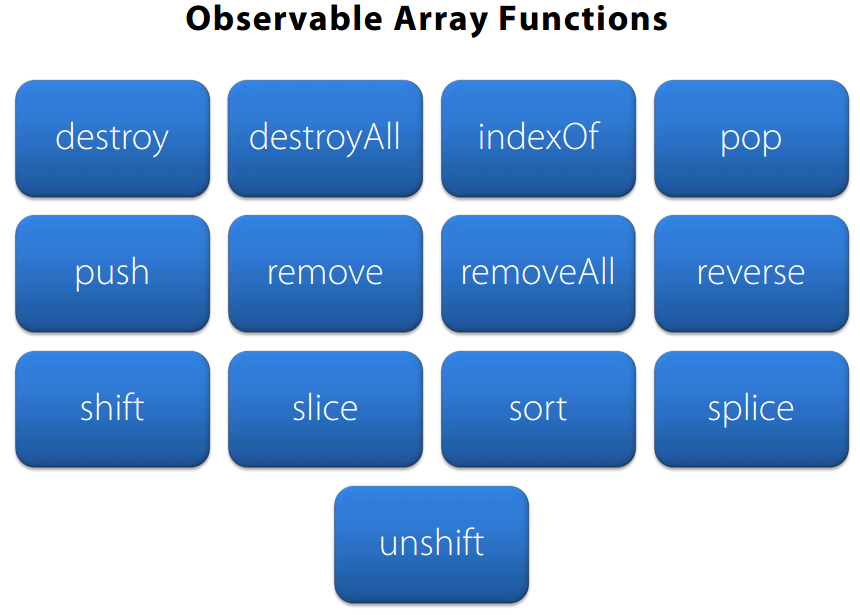

• Observable Array Functions

            my.vm.canAddViaSplice = ko.computed(function () {
                return this.productsAreSelected() && this.itemToAddViaSplice();
            }, my.vm);

            my.vm.canReplace = ko.computed(function () {
                return this.productsAreSelected() && this.replacementItem();
            }, my.vm);

            my.vm.canAddViaUnshift = ko.computed(function () {
                //return this.itemToAddViaUnshift();
                return this.itemToAddViaUnshift().length > 0;
            }, my.vm);

            my.vm.sortProducts = function () {
                my.vm.products.sort(
                    function (left, right) {
                        return left.toLowerCase() === right.toLowerCase()
                            ? 0 : (left.toLowerCase() < right.toLowerCase() ? -1 : 1);
                    }
                    );
            };

            my.vm.reverseProducts = function () {
                my.vm.products.reverse();
            };

            my.vm.spliceProduct = function () {
                if (!my.vm.productsAreSelected()) { return; }
                var start = my.vm.products().indexOf(my.vm.selectedProducts()[0]);
                my.vm.products.splice(start, 0, my.vm.itemToAddViaSplice());
                my.vm.itemToAddViaSplice("");
            };

            my.vm.replaceProduct = function () {
                if (!my.vm.productsAreSelected()) { return; }
                my.vm.products.replace(my.vm.selectedProducts()[0], my.vm.replacementItem());
                my.vm.selectedProducts.push(my.vm.replacementItem());
                my.vm.replacementItem("");
            };

            my.vm.unshiftProduct = function () {
                my.vm.products.unshift(my.vm.itemToAddViaUnshift());
                my.vm.itemToAddViaUnshift("");
            };

            my.vm.shiftProduct = function () {
                var item = my.vm.products.shift();
            };

            my.vm.popProduct = function () {
                var item = my.vm.products.pop();
            };

            my.vm.removeSelected = function () {
                // NOTE: Could use remove function if we had only 1 to remove
                // my.vm.products.remove(my.vm.selectedProducts()[0]);
                my.vm.products.removeAll(my.vm.selectedProducts());
                my.vm.selectedProducts([]);
            };

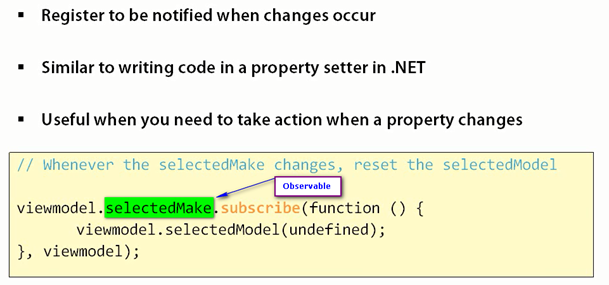

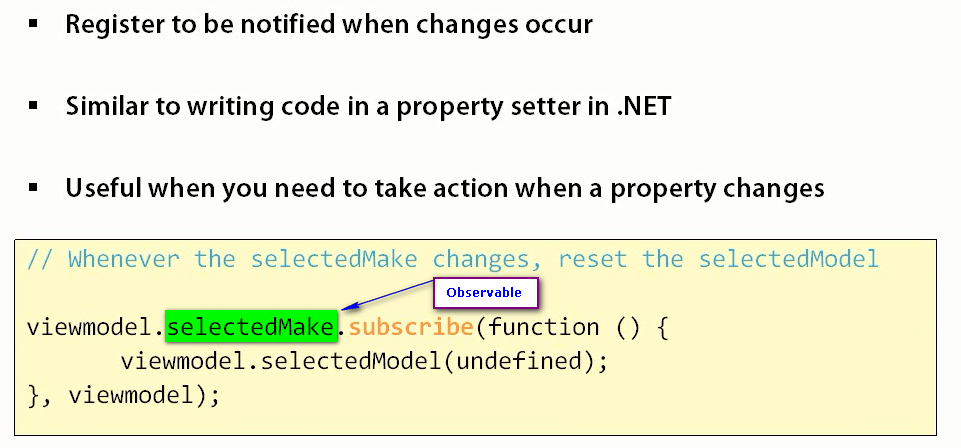

• Subscribing to changes

the code to subscribe:

            // Whenever the selectedMake changes, reset the selectedModel
            my.viewmodel.selectedMake.subscribe(function () {
                my.viewmodel.selectedModel(undefined);
            }, my.viewmodel);

            // Whenever the selectedModel changes, reset the selectedCar
            var mysub = my.viewmodel.selectedModel.subscribe(function () {
                my.viewmodel.selectedCar(undefined);
            }, my.viewmodel);
            //mysub.dispose();

            <ul>
                <li><span class="alignedCaption">Make: </span>
                    <select data-bind="options: makes, value: selectedMake, optionsText: 'name', optionsCaption: 'Choose a make'">
                    </select>
                    <!-- ko with: makes() -->
                    <span data-bind="text:length" class="textValues"></span>
                    <!-- /ko -->
                </li>
                <li><span class="alignedCaption">Model: </span>
                    <select data-bind="options: models, value: selectedModel, optionsText: 'name', optionsCaption: 'Choose a model'">
                    </select>
                    <!-- ko with: models() -->
                    <span data-bind="text:length" class="textValues"></span>
                    <!-- /ko -->
                </li>
                <li><span class="alignedCaption">Car: </span>
                    <select data-bind="options: cars, value: selectedCar, optionsText: 'desc', optionsCaption: 'Choose a car'">
                    </select>
                    <!-- ko with: cars() -->
                    <span data-bind="text:length" class="textValues"></span>
                    <!-- /ko -->
                </li>
            </ul>

 Run the demo in jsFiddle
