My WCF Note(1): A Simple WCF App with Self-Hosting

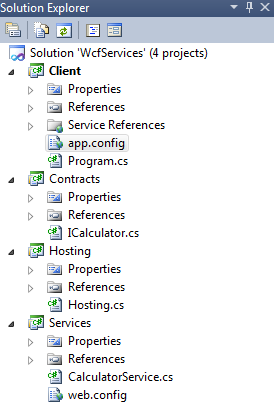

1. Solution Structure

Add Reference to project Contract and Service



2.Code

 (1)Contracts.ICalculator

using System.ServiceModel;
namespace Leon.WcfServices.Contracts
{
    [ServiceContract(Name = "CalculatorService", Namespace = "http://www.leon.com")]
    public interface ICalculator
    {
        [OperationContract]
        double Add(double x, double y);
        [OperationContract]
        double Subtract(double x, double y);
        [OperationContract]
        double Multiply(double x, double y);
        [OperationContract]
        double Divide(double x, double y);
    }
}

(2)Services.CalculatorService

using Leon.WcfServices.Contracts;
namespace Leon.WcfServices.Services
{
    public class CalculatorService : ICalculator
    {
        #region ICalculator Members
        public double Add(double x, double y) { return x + y; }
        public double Subtract(double x, double y) { return x - y; }
        public double Multiply(double x, double y) { return x * y; }
        public double Divide(double x, double y) { return x / y; }
        #endregion
    }
}

(3)Using ServiceHost to create Self-Hosting

using System;
using System.ServiceModel;
using System.ServiceModel.Description;
using Leon.WcfServices.Contracts;
using Leon.WcfServices.Services;

namespace Leon.WcfServices.Hosting
{
    class Program
    {
        static void Main(string[] args)
        {
            using (ServiceHost host = new ServiceHost(typeof(CalculatorService)))
            {
                host.AddServiceEndpoint(typeof(ICalculator), new WSHttpBinding(), "http://127.0.0.1:9999/calculatorservice");
                if (host.Description.Behaviors.Find<ServiceMetadataBehavior>() == null)
                {
                    var behavior = new ServiceMetadataBehavior();
                    behavior.HttpGetEnabled = true;
                    behavior.HttpGetUrl = new Uri("http://127.0.0.1:9999/calculatorservice/metadata");
                    host.Description.Behaviors.Add(behavior);
                }
                host.Opened += delegate { Console.WriteLine("CalculatorService has been started, press any key to stop the service!"); };
                host.Open();
                Console.Read();
            }
        }
    }
}

(4)Run the Host and test the service:

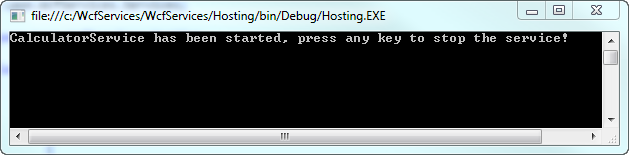

Run the Host Service has been started

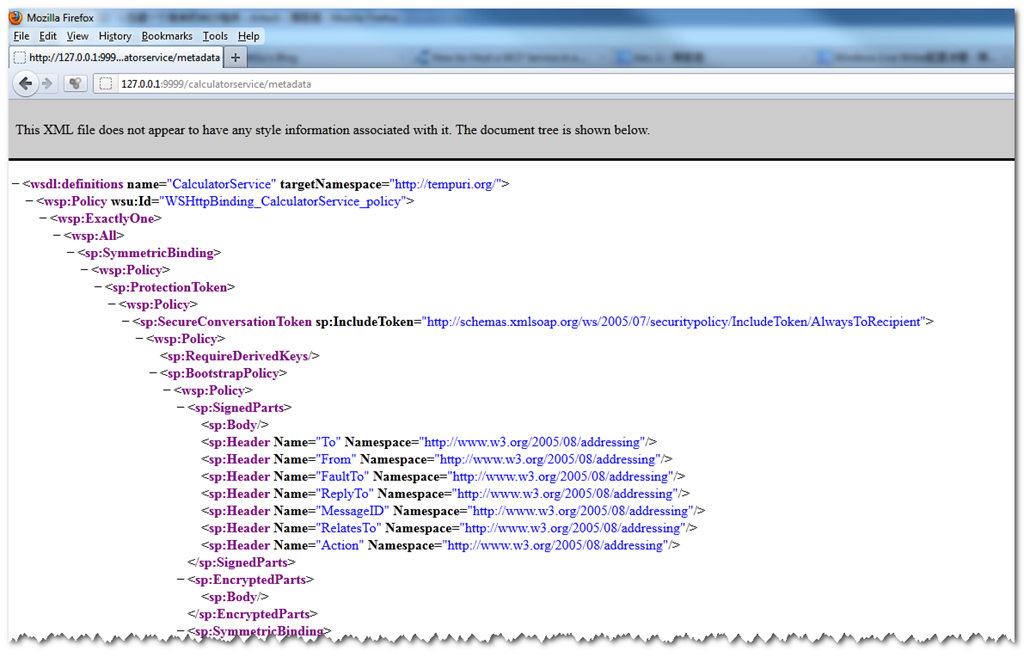

Test the Service:

(5)Create consuming Client

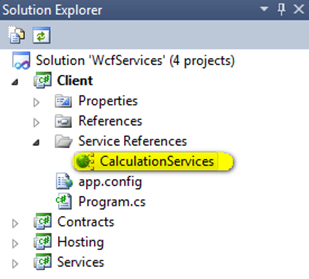

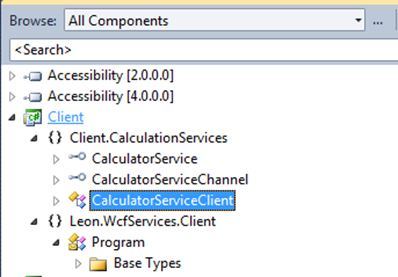

(5.1) Using the proxy which is automatically created by Add Service Reference





 Client.cs

using System;
using System.ServiceModel;
using Client.CalculationServices;
using Leon.WcfServices.Contracts;

namespace Leon.WcfServices.Client
{
    class Program
    {
        static void Main(string[] args)
       {
           //using the proxy [CalculatorServiceClient] which is automatically created by "Add Service Reference"
            using (CalculatorServiceClient proxy = new CalculatorServiceClient())
            {
                Console.WriteLine("x + y = {2} when x = {0} and y = {1}", 1, 2, proxy.Add(1, 2));
                Console.WriteLine("x - y = {2} when x = {0} and y = {1}", 1, 2, proxy.Subtract(1, 2));
                Console.WriteLine("x * y = {2} when x = {0} and y = {1}", 1, 2, proxy.Multiply(1, 2));
                Console.WriteLine("x / y = {2} when x = {0} and y = {1}", 1, 2, proxy.Divide(1, 2));
                Console.ReadLine();
            }
        }
    }
}

(5.2) Create the proxy by myself using ChannelFactory

            using (var channelFactory = new ChannelFactory<ICalculator>(new WSHttpBinding(),"http://127.0.0.1:9999/Calculatorservice"))
            {
                var proxy = channelFactory.CreateChannel();
                Console.WriteLine("x + y = {2} when x = {0} and y = {1}", 1, 2, proxy.Add(1, 2));
                Console.WriteLine("x - y = {2} when x = {0} and y = {1}", 1, 2, proxy.Subtract(1, 2));
                Console.WriteLine("x * y = {2} when x = {0} and y = {1}", 1, 2, proxy.Multiply(1, 2));
                Console.WriteLine("x / y = {2} when x = {0} and y = {1}", 1, 2, proxy.Divide(1, 2));
                Console.ReadLine();
            }

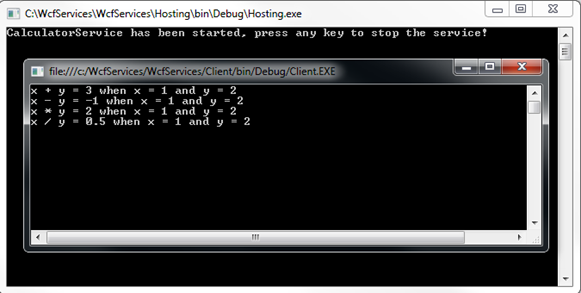

(5.3) Test the Client
