脚本仿真+do+Xilinx ip +

脚本每条的意思是可以参考b站

modelsim脚本独立仿真VIVADO的IP核

https://www.bilibili.com/video/BV1HVJNzmE8V/?spm_id_from=333.337.search-card.all.click&vd_source=ac9167e61e0c909658ec9e3b6350cd4e

# 退出当前仿真
quit -sim
# 清除命令和信息
.main clear
#创建一个库目录 modelsim_lib
vlib ./modelsim_lib
#创建一个库的子目录 modelsim_lib/user
vlib ./modelsim_lib/user
#user库名称与库的路径对应
vmap user ./modelsim_lib/user
#将仿真文件编译进指定的库中
#vlog -incr -work user "D:/usms/do_sim_test_example/rtl/counter.v"
#vlog -incr -work user "D:/usms/do_sim_test_example/rtl/tb_counter.v"

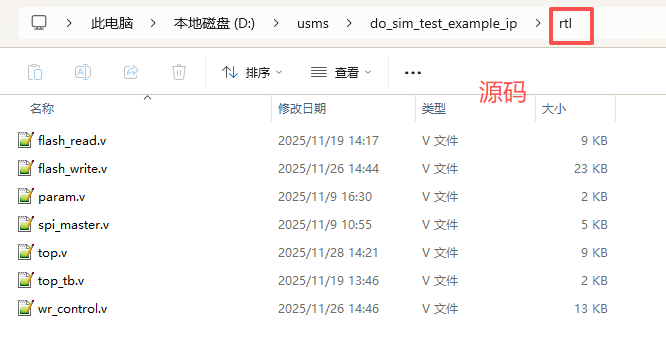

vlog -incr -work user "D:/usms/do_sim_test_example_ip/rtl/*.v"

#--------------fifo_ip中comile.do------------------------------
vlib modelsim_lib/work
vlib modelsim_lib/msim

vlib modelsim_lib/msim/xil_defaultlib
vlib modelsim_lib/msim/xpm
vlib modelsim_lib/msim/fifo_generator_v13_2_4

vmap xil_defaultlib modelsim_lib/msim/xil_defaultlib
vmap xpm modelsim_lib/msim/xpm
vmap fifo_generator_v13_2_4 modelsim_lib/msim/fifo_generator_v13_2_4

vlog -work xil_defaultlib -64 -incr -sv \
"D:/Xilinx/Vivado/2019.1/data/ip/xpm/xpm_cdc/hdl/xpm_cdc.sv" \
"D:/Xilinx/Vivado/2019.1/data/ip/xpm/xpm_memory/hdl/xpm_memory.sv" \

vcom -work xpm -64 -93 \
"D:/Xilinx/Vivado/2019.1/data/ip/xpm/xpm_VCOMP.vhd" \

vlog -work fifo_generator_v13_2_4 -64 -incr \
"../top.ip_user_files/ipstatic/simulation/fifo_generator_vlog_beh.v" \

vcom -work fifo_generator_v13_2_4 -64 -93 \
"../top.ip_user_files/ipstatic/hdl/fifo_generator_v13_2_rfs.vhd" \

vlog -work fifo_generator_v13_2_4 -64 -incr \
"../top.ip_user_files/ipstatic/hdl/fifo_generator_v13_2_rfs.v" \

vlog -work xil_defaultlib -64 -incr \
"../top.srcs/sources_1/ip/flash_fifo/sim/flash_fifo.v" \

#启动仿真，并指定优化选项，翻转包含的全部库，以及顶层文件
vsim -voptargs="+acc"  \
-L user \
-L xil_defaultlib          \
-L xpm                     \
-L fifo_generator_v13_2_4  \
-L unisims_ver             \
-L unimacro_ver            \
-L secureip                \
-lib user top_tb glbl

#Add signal into wave window
do wave.do
############################## 运行#############################
run 4ms

sim.do

vlib modelsim_lib/work
vlib modelsim_lib/msim

vlib modelsim_lib/msim/xil_defaultlib
vlib modelsim_lib/msim/xpm
vlib modelsim_lib/msim/fifo_generator_v13_2_4

vmap xil_defaultlib modelsim_lib/msim/xil_defaultlib
vmap xpm modelsim_lib/msim/xpm
vmap fifo_generator_v13_2_4 modelsim_lib/msim/fifo_generator_v13_2_4

vlog -work xil_defaultlib -64 -incr -sv \
"D:/Xilinx/Vivado/2019.1/data/ip/xpm/xpm_cdc/hdl/xpm_cdc.sv" \
"D:/Xilinx/Vivado/2019.1/data/ip/xpm/xpm_memory/hdl/xpm_memory.sv" \

vcom -work xpm -64 -93 \
"D:/Xilinx/Vivado/2019.1/data/ip/xpm/xpm_VCOMP.vhd" \

vlog -work fifo_generator_v13_2_4 -64 -incr \
"../../../ipstatic/simulation/fifo_generator_vlog_beh.v" \

vcom -work fifo_generator_v13_2_4 -64 -93 \
"../../../ipstatic/hdl/fifo_generator_v13_2_rfs.vhd" \

vlog -work fifo_generator_v13_2_4 -64 -incr \
"../../../ipstatic/hdl/fifo_generator_v13_2_rfs.v" \

vlog -work xil_defaultlib -64 -incr \
"../../../../top.srcs/sources_1/ip/flash_fifo/sim/flash_fifo.v" \

vlog -work xil_defaultlib \
"glbl.v"

compile.do

onbreak {quit -f}
onerror {quit -f}

vsim -voptargs="+acc" -t 1ps -L xil_defaultlib -L xpm -L fifo_generator_v13_2_4 -L unisims_ver -L unimacro_ver -L secureip -lib xil_defaultlib xil_defaultlib.flash_fifo xil_defaultlib.glbl

do {wave.do}

view wave
view structure
view signals

do {flash_fifo.udo}

run -all

quit -force

simulate.do

simulate.do中只需要参考vsim 那一条，库，

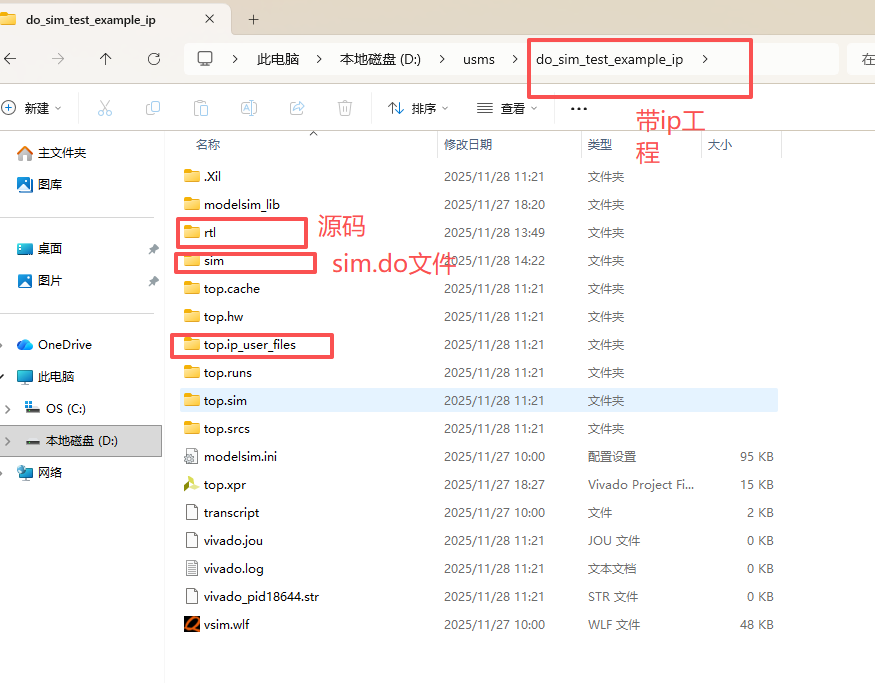

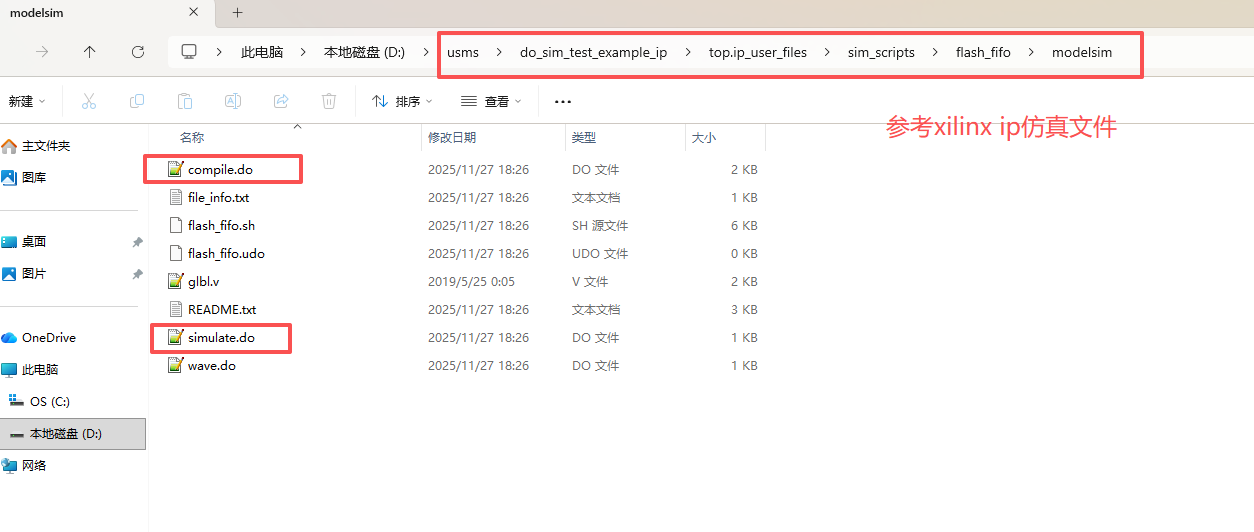

这里的工程使用了fifo ip，可从工程中的top.ip_user_files\sim_scripts\flash_fifo文件夹下找到compile.do与simulate.do文件作为参考

融合到自己写的sim.do文件中，

注意点是：

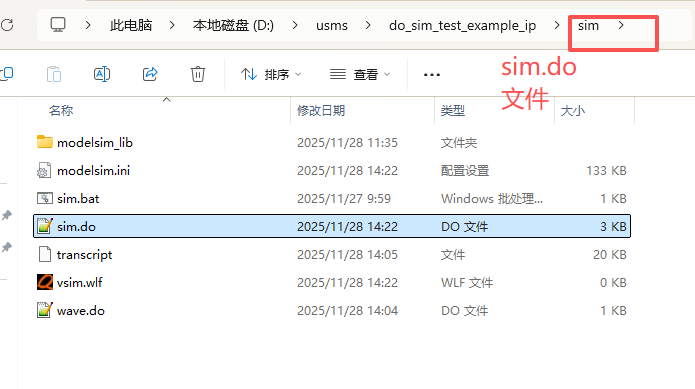

1.从compile.do复制到sim.do，路径需要修改；从sim.do起始去找那个对应的文件，../表示向上一层目录

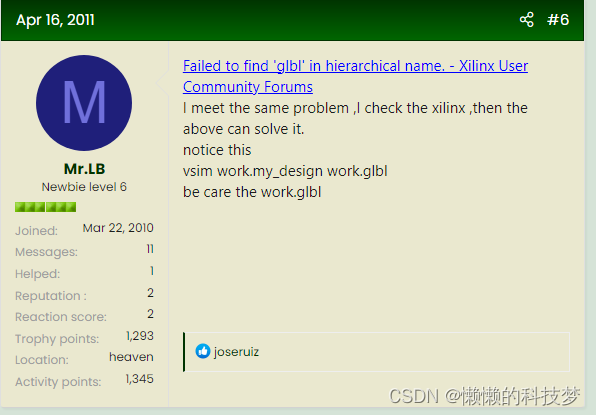

2.glbl，如果提示报错，将glbl作为顶级模块仿真,如:-lib user top_tb glbl

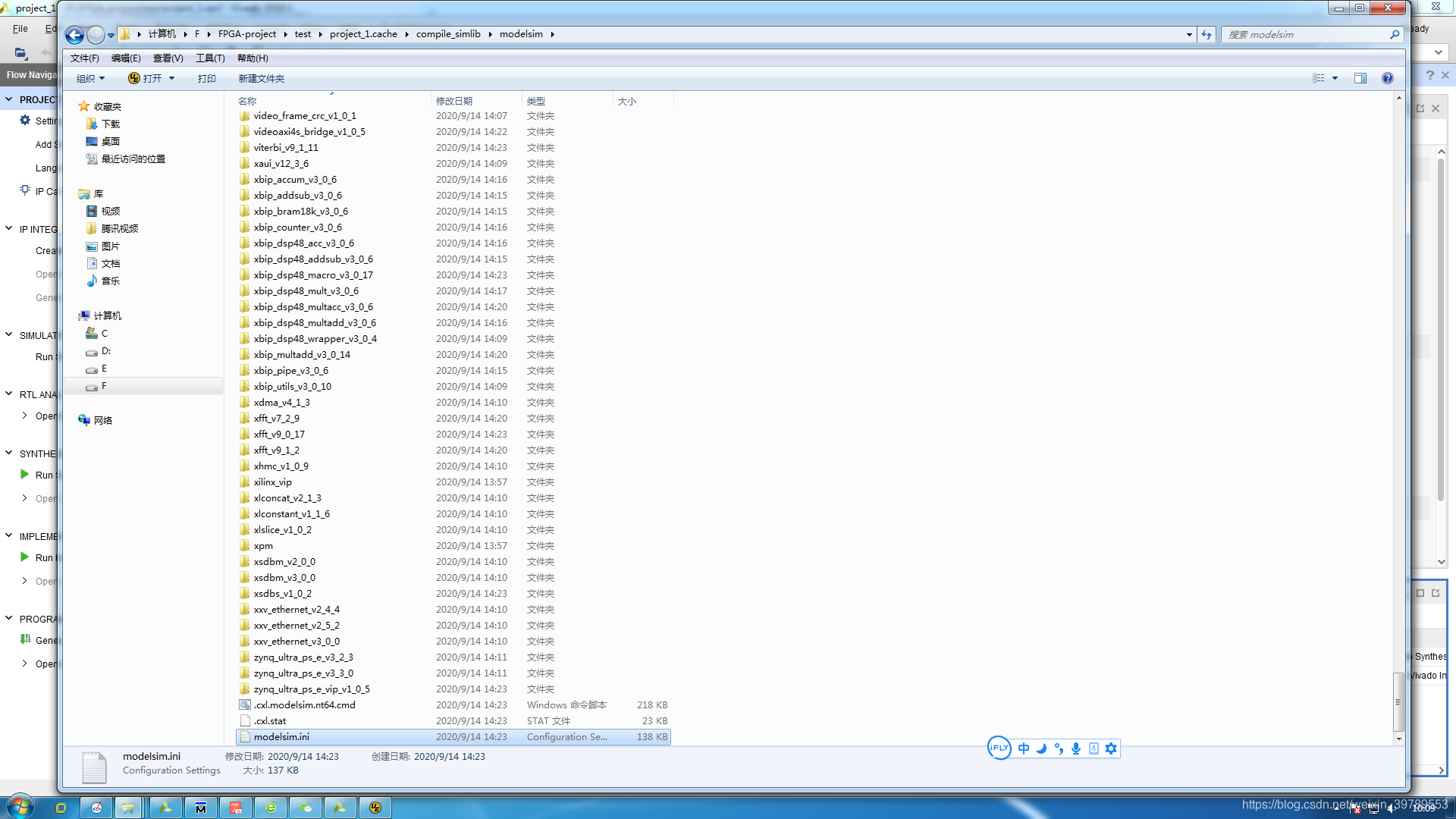

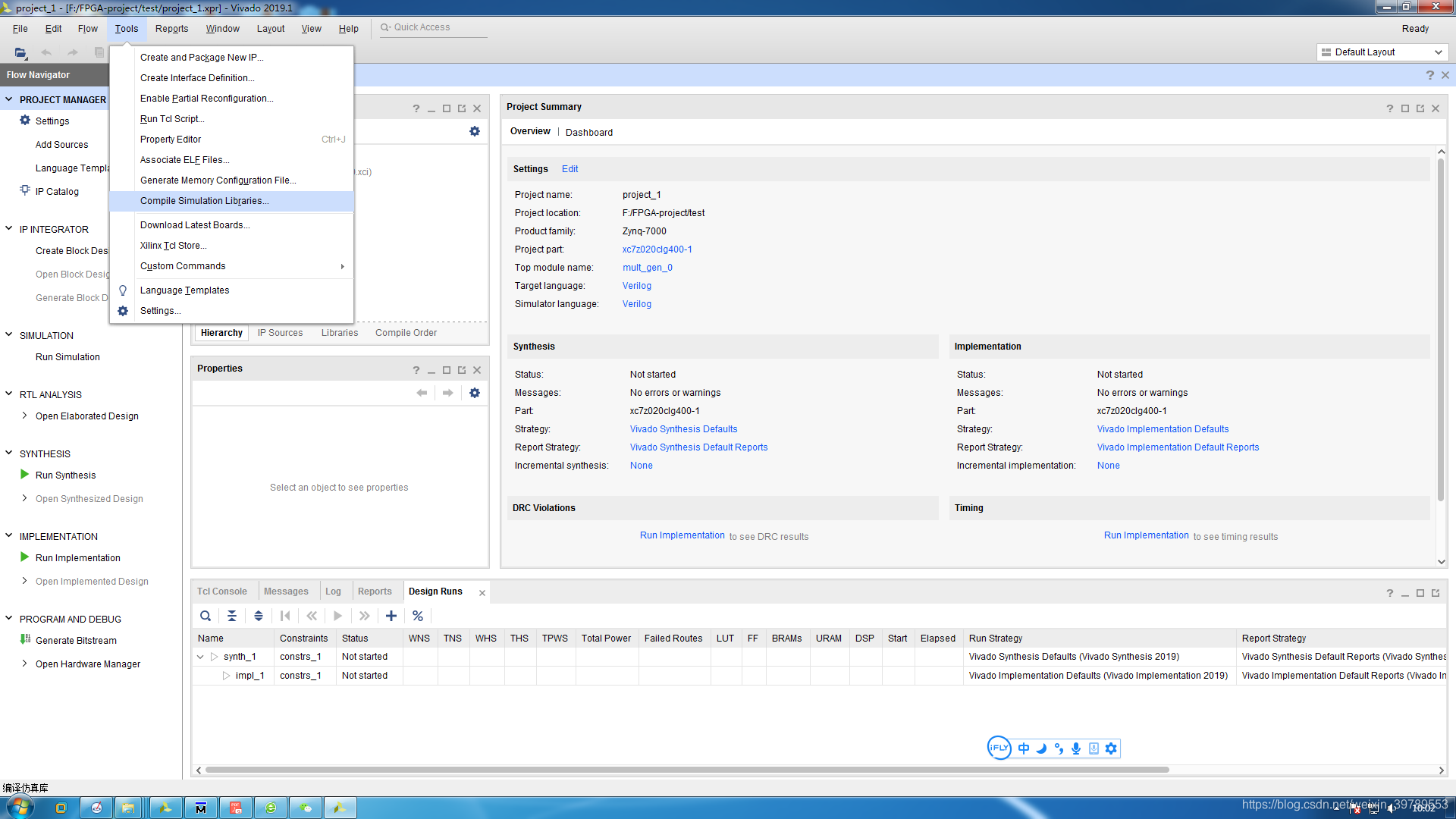

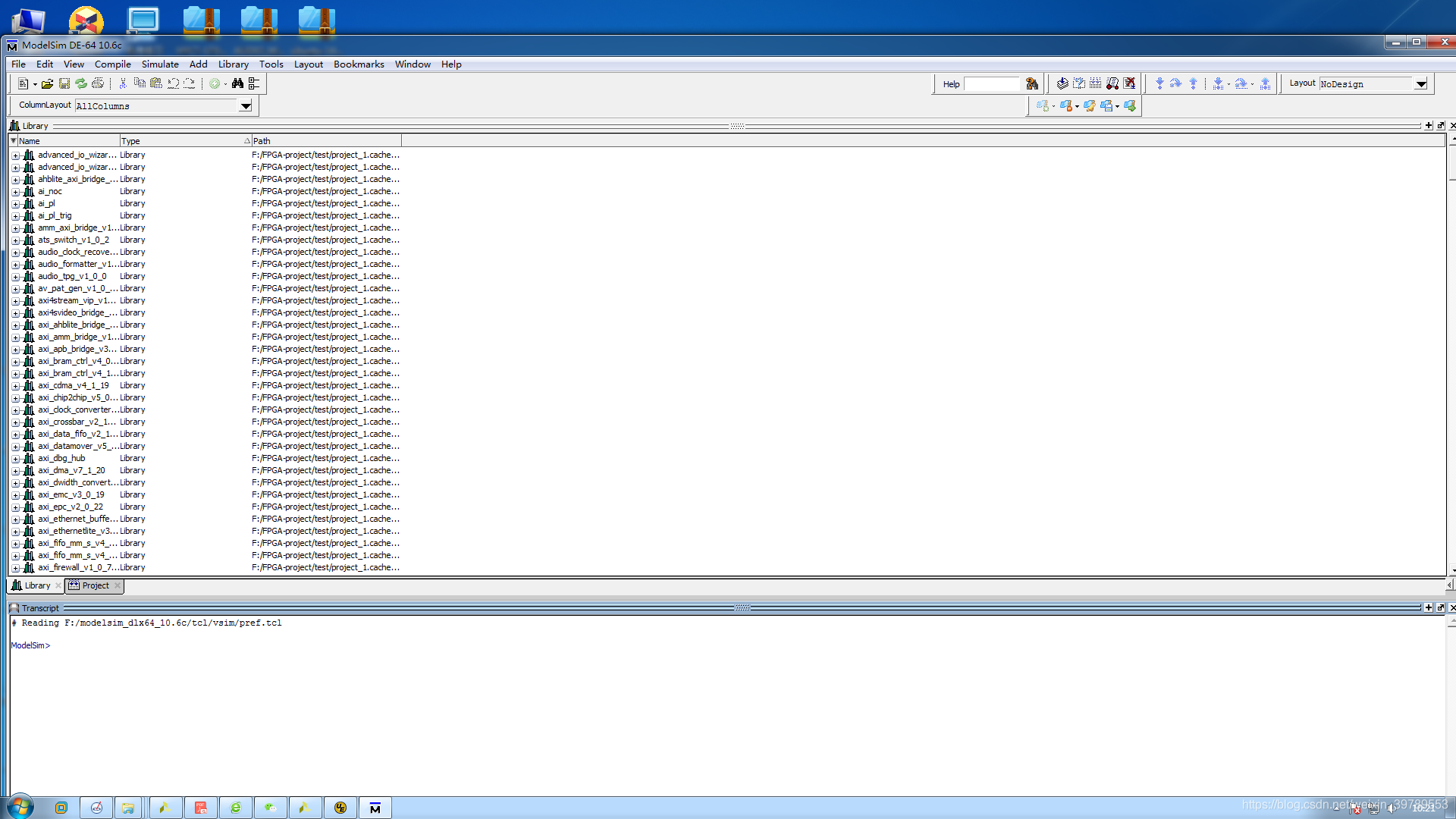

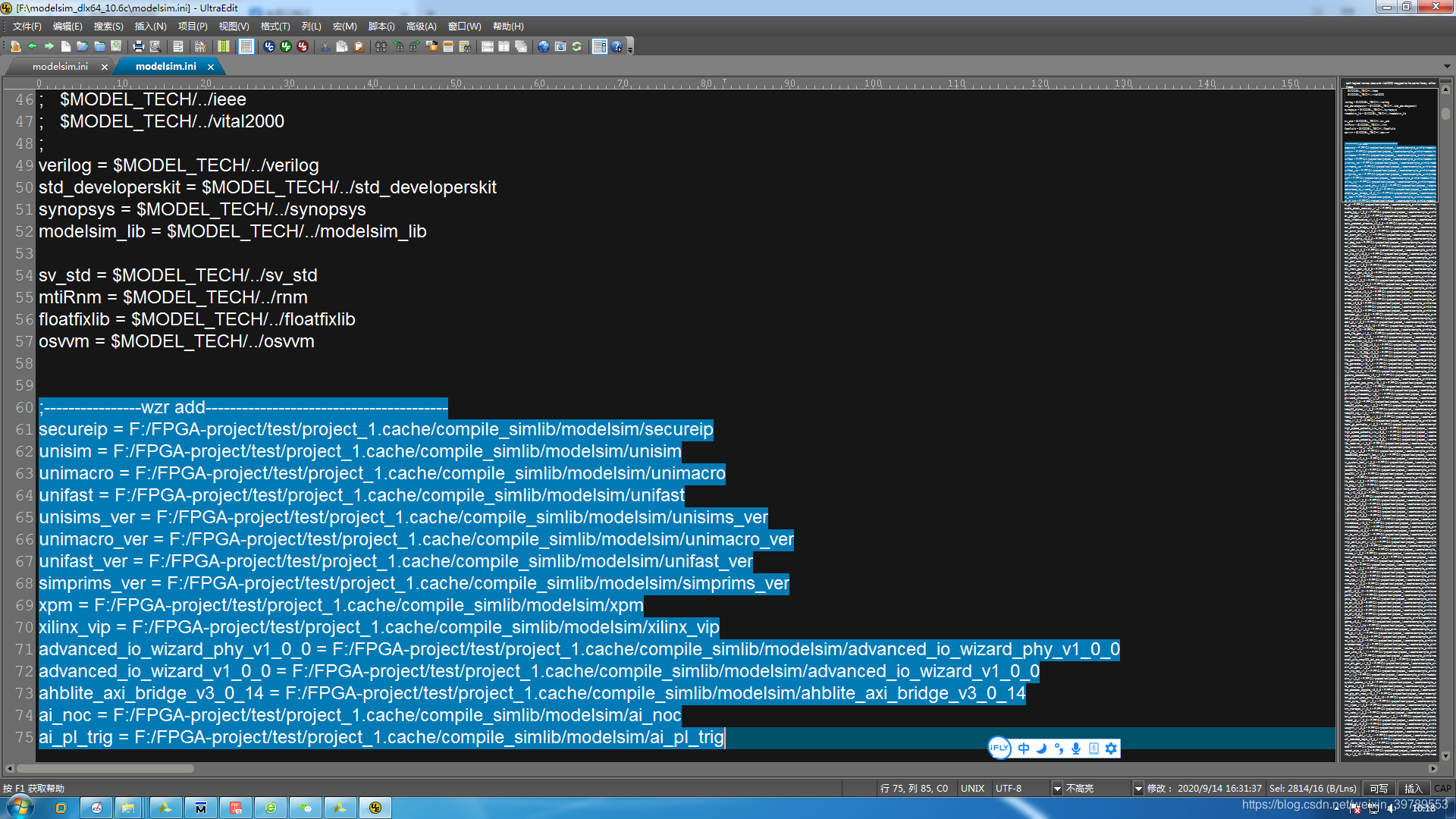

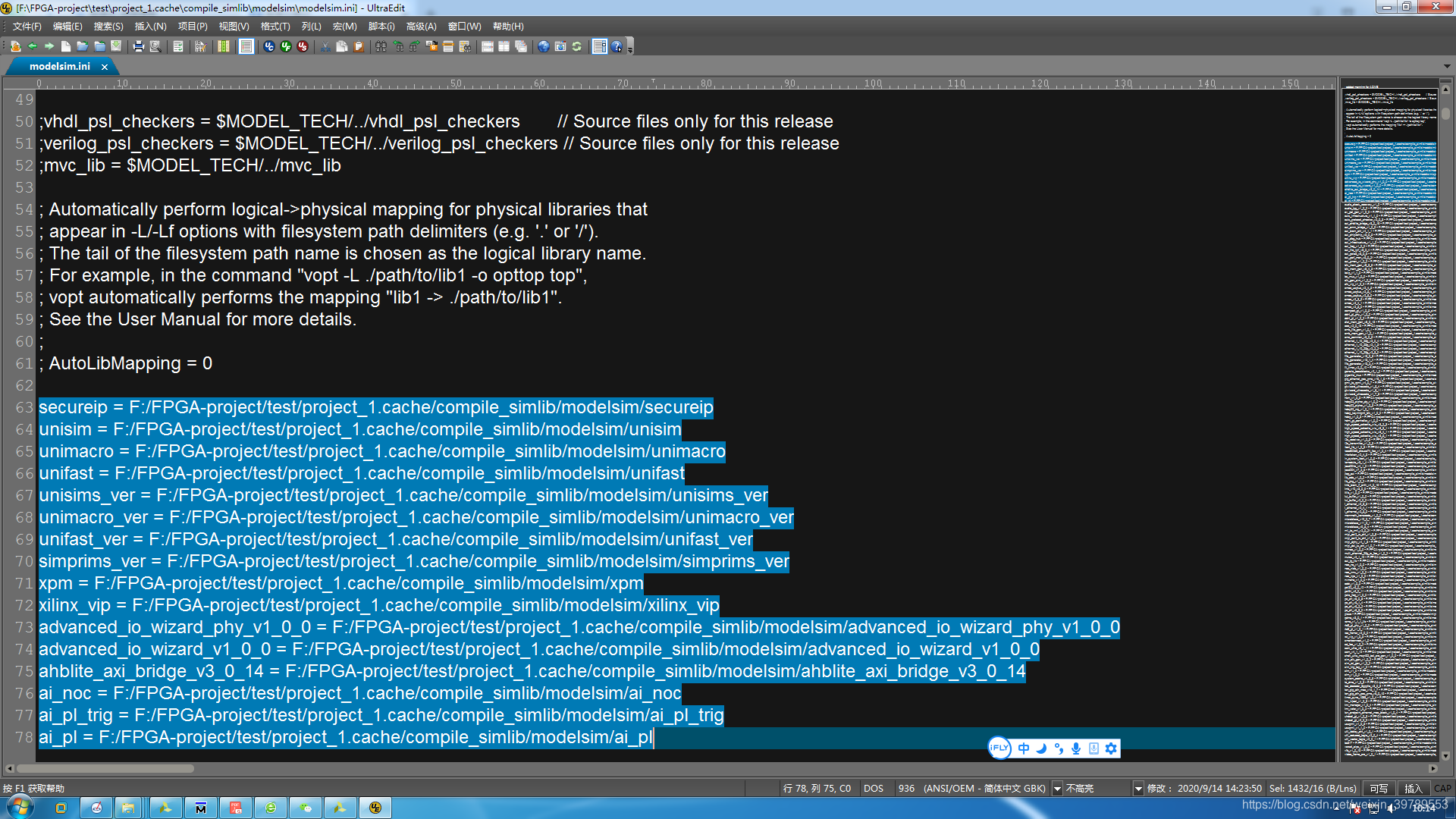

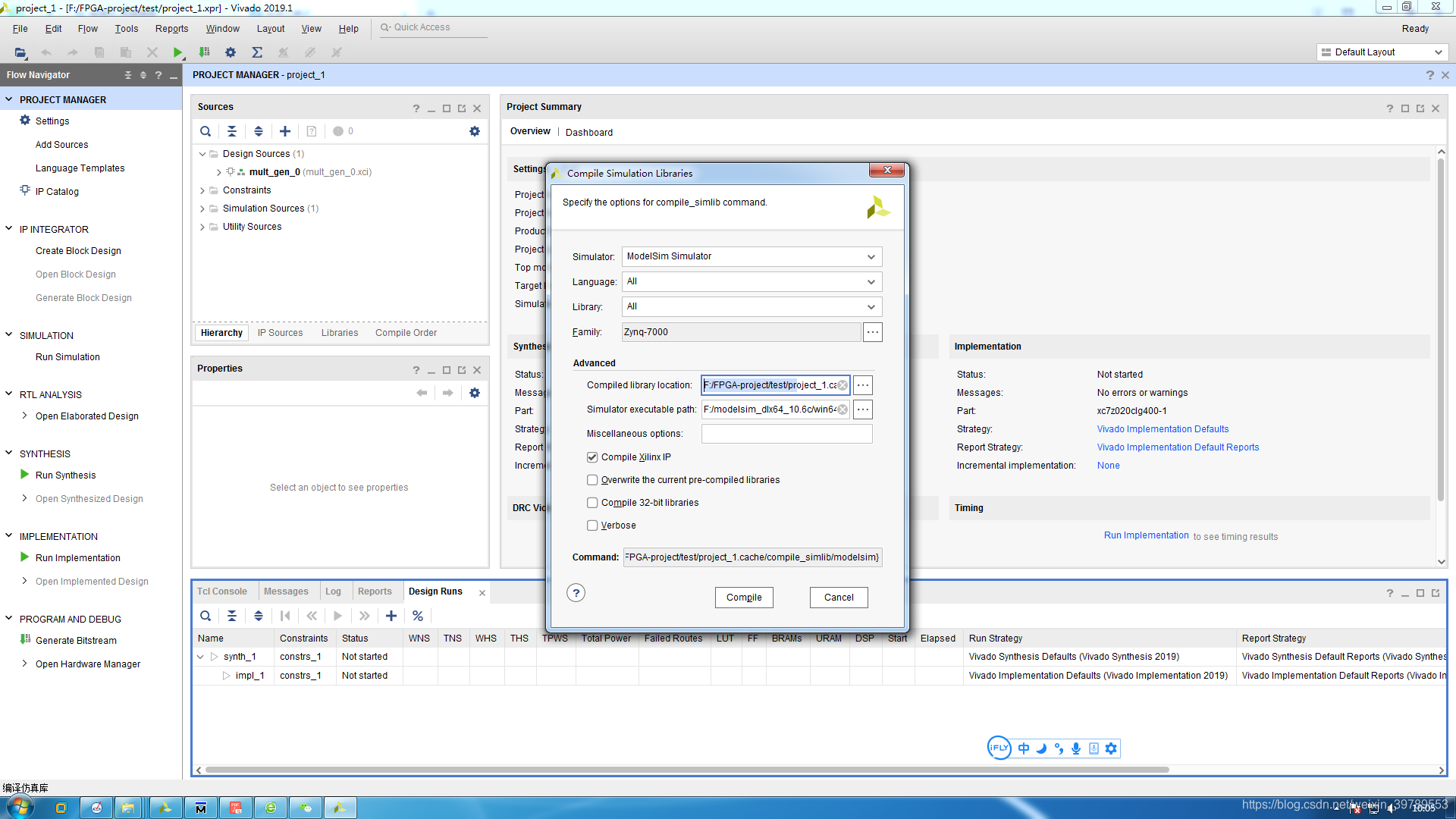

3.最好把xilinx仿真库文件添加上我们仿真工程的modelsim.ini文件中，（下文有参考）
