GH60刷配列，Mac系统

1.先安装环境

brew install dfu-programmer
brew install Caskroom/cask/crosspack-avr

2.设计配列

http://www.keyboard-layout-editor.com/#/
配列参考：

0层配列

["Esc","!\n1","@\n2","#\n3","$\n4","%\n5","^\n6","&\n7","*\n8","(\n9",")\n0","_\n-","+\n=",{w:2},"Backspace"],
[{w:1.5},"Tab","Q","W","E","R","T","Y","U","I","O","P","{\n[","}\n]",{w:1.5},"|\n\\"],
[{w:1.75},"Caps Lock","A","S","D","F","G","H","J","K","L",":\n;","\"\n'",{w:2.25},"Enter"],
[{w:2.25},"Shift","Z","X","C","V","B","N","M","<\n,",">\n.","?\n/",{w:1.75},"↑","~\n`"],
[{w:1.25},"Ctrl",{w:1.25},"Alt",{w:1.25},"Win",{w:6.25},"Space",{w:1.25},"Fn0",{w:1.25},"←",{w:1.25},"↓",{w:1.25},"→"]

1层配列

["~\n`","F1","F2","F3","F4","F5","F6","F7","F8","F9","F10","F11","F12",{w:2},"Delete"],
[{w:1.5},"Fn4","Btn1","Mouse Up","Btn2","Wheel Up",{a:7},"","","",{a:4},"Ins",{a:7},"",{a:4},"Psc","Scrlk","Pause\nBreak",{w:1.5},"Calc"],
[{a:7,w:1.75},"",{a:4},"Mouse Left","Mouse Down","Mouse Right","Wheel Down",{a:7},"",{a:4},"Whome",{a:7},"","","","","",{w:2.25},""],
[{w:2.25},"",{a:4},"Fn2","Fn1","Fn3",{a:7},"","","","",{a:4},"VolDn","VolUp","Mute",{w:1.75},"PgUp",{a:7},""],
[{w:1.25},"",{w:1.25},"",{w:1.25},"",{w:6.25},"",{a:4,w:1.25},"Fn0",{w:1.25},"Home",{w:1.25},"PgDn",{w:1.25},"End"]

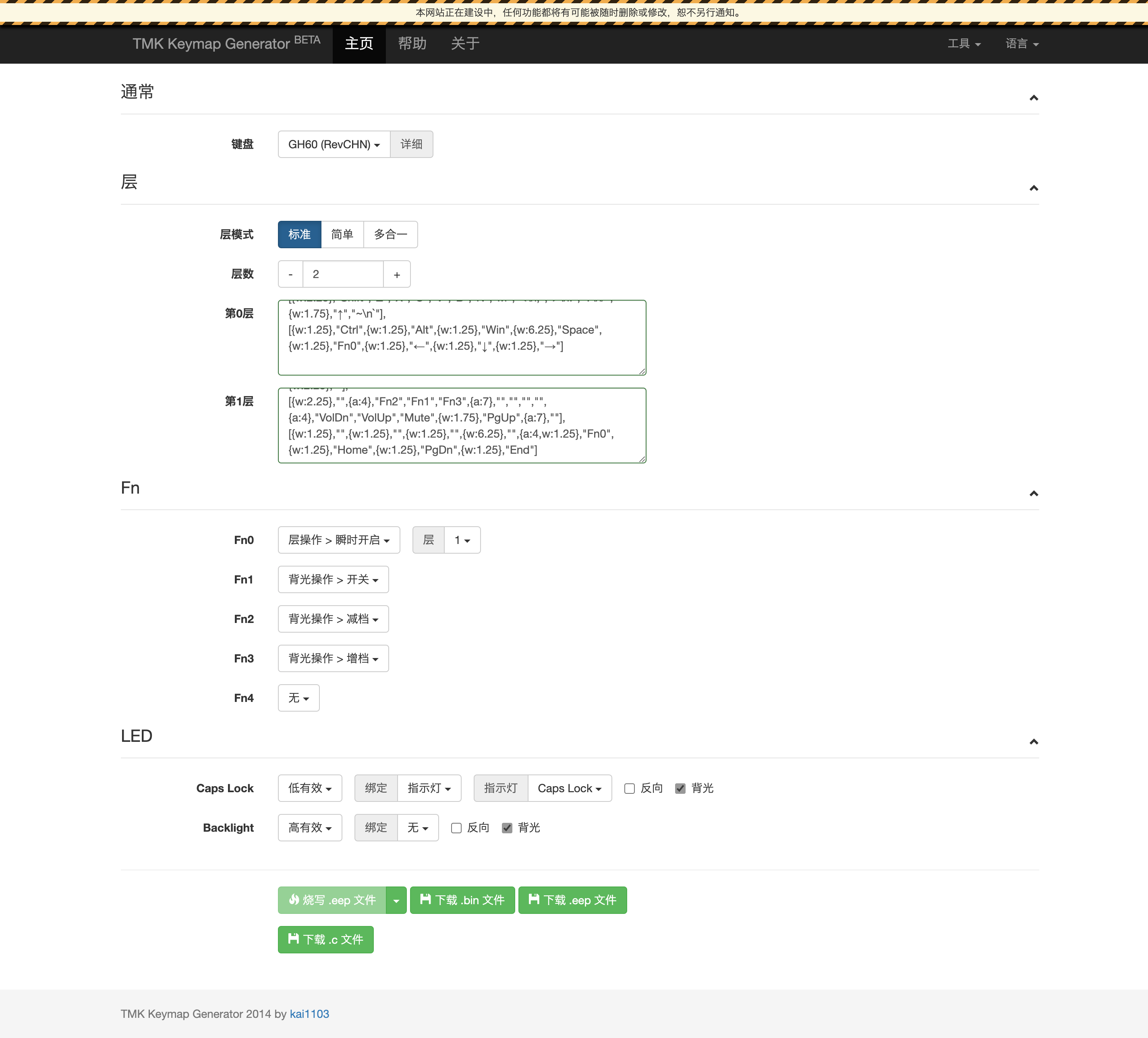

3.在线刷配列

进入 https://tkg.io/ ，确保谷歌浏览器先安装TKG Chrome App扩展插件

4.按下PCB上按钮，点击烧写.eep文件

system_profiler SPUSBDataType 按下按钮后，此命令可以查看是键盘是否在可烧写状态

---
