Biz-SIP中间件之xbank项目实战(6)——应用层对延迟服务的组装
xbank项目版本库：https://gitee.com/szhengye/xbank.git
项目实践：应用服务对延迟服务的组装
1. SAF存储转发的实现
在领域层中，开发Payment2SinkService，根据tranMode交易模式，实现处理超时、处理失败和处理成功的各种异常情况：
@Service
public class Payment2SinkService implements JSONObjectSinkBeanInterface {
@Autowired
private TimeoutCmdExe timeoutCmdExe;
@Autowired
private TimeoutAndFailCmdExe timeoutAndFailCmdExe;
@Autowired
private TimeoutAndSuccessCmdExe timeoutAndSuccessCmdExe;
@Autowired
private SuccessCmdExe successCmdExe;
@Override
public JSONObject process(JSONObject jsonObject) throws BizException {
log.info("传入消息:\n{}", jsonObject.toString());
AbstractSinkBeanCmdExe sinkBeanCmdExe;
String tranMode = (String)jsonObject.get("tranMode");
switch (tranMode) {
case "timeout":
// 收到交易后，永远返回超时
return timeoutCmdExe.execute(jsonObject);
case "3timeout-fail":
// 收到交易后，前3次返回超时，第4次返回失败码
return timeoutAndFailCmdExe.execute(jsonObject);
case "3timeout-success":
// 收到交易后，前3次返回超时，第4次成功返回原报文
return timeoutAndSuccessCmdExe.execute(jsonObject);
default:
//其它情况,成功返回原报文
return successCmdExe.execute(jsonObject);
}
}
}

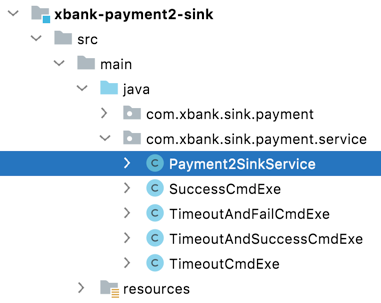

注意，Payment2领域服务在封装时，涉及到多个接口调用，对每个接口采用命令执行器（Command Executor），这里是传入标准的JSONObject数据，所以所有的接口实现继承AbstractSinkBeanCmdExe类来实现：
在应用层中，在原有的PersonalAppInterface应用层接口、PersonalAppService服务类中，增加send2Payment2()、getCustomerAndSaf2Payment2()这2个方法接口和实现，通过personalAppDelayInterface延迟调用接口，实现对原有send2Payment2()方法的多次SAF调用：
@Service
public class PersonalAppService implements PersonalAppInterface {
...
private BizMessageInterface payment2SinkInterface = IntegratorClientFactory
.getSinkClient(BizMessageInterface.class,"payment2-sink");
private PersonalAppInterface personalAppDelayInterface = IntegratorClientFactory
.getDelayBizServiceClient(PersonalAppInterface.class,"app/personal",
0,1000,2000,4000,8000,16000,32000);
...
@Override
public BizMessage send2Payment2(String tranMode, String tranCode, Object message) throws BizException {
JSONObject jsonObject = new JSONObject();
jsonObject.set("tranCode",tranCode);
jsonObject.set("tranMode",tranMode);
jsonObject.set("message",message);
return this.payment2SinkInterface.call(jsonObject);
}
@Override
public Customer getCustomerAndSaf2Payment2(String tranMode,String customerId) throws BizException {
Customer customer = this.customerSinkInterface.getCustomer(customerId);
this.personalAppDelayInterface.send2Payment2(tranMode,"send-customer", customer);
return customer;
}
...
}
传入交易模式为”timeout“（收到交易后，永远返回超时），这将导致发送7次，最后交易状态为失败：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"getCustomerAndSaf2Payment2","params":["timeout","001"]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "c1d2ffb7f0b44bf4b0cb7e13e5c0c0fa",
"parentTraceId": null,
"timestamp": 1631274896174,
"data": {
"result": {
"sex": "1",
"customerName": "张三",
"customerId": "001",
"age": 30
}
}
}
Payment2SinkApplication日志：
2021-09-10 19:54:56.650 INFO 14993 --- [nio-8004-exec-3] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:54:56.651 INFO 14993 --- [nio-8004-exec-3] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:54:57.753 INFO 14993 --- [nio-8004-exec-4] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:54:57.754 INFO 14993 --- [nio-8004-exec-4] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:54:59.920 INFO 14993 --- [nio-8004-exec-5] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:54:59.920 INFO 14993 --- [nio-8004-exec-5] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:55:04.015 INFO 14993 --- [nio-8004-exec-6] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:55:04.015 INFO 14993 --- [nio-8004-exec-6] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:55:12.041 INFO 14993 --- [nio-8004-exec-7] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:55:12.042 INFO 14993 --- [nio-8004-exec-7] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:55:28.080 INFO 14993 --- [nio-8004-exec-8] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:55:28.080 INFO 14993 --- [nio-8004-exec-8] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:56:00.228 INFO 14993 --- [nio-8004-exec-9] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"timeout","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:56:00.228 INFO 14993 --- [nio-8004-exec-9] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
传入交易码为”3timeout-fail“（收到交易后，前3次返回超时，第4次返回失败），这将导致发送4次，最后交易状态为失败：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"getCustomerAndSaf2Payment2","params":["3timeout-fail","001"]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "d3589b169d654a409c2f7d15f83f5113",
"parentTraceId": null,
"timestamp": 1631275051123,
"data": {
"result": {
"sex": "1",
"customerName": "张三",
"customerId": "001",
"age": 30
}
}
}
Payment2SinkApplication日志：
2021-09-10 19:57:31.379 INFO 14993 --- [nio-8004-exec-1] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-fail","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:57:31.379 INFO 14993 --- [nio-8004-exec-1] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:57:32.647 INFO 14993 --- [nio-8004-exec-2] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-fail","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:57:32.647 INFO 14993 --- [nio-8004-exec-2] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:57:34.672 INFO 14993 --- [nio-8004-exec-3] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-fail","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:57:34.673 INFO 14993 --- [nio-8004-exec-3] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:57:38.733 INFO 14993 --- [nio-8004-exec-4] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-fail","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:57:38.733 INFO 14993 --- [nio-8004-exec-4] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回交易处理失败!
传入交易码为”3timeout-success“（收到交易后，前3次返回超时，第4次成功返回原报文），这将导致发送4次，最后交易状态为成功：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"getCustomerAndSaf2Payment2","params":["3timeout-success","001"]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "75b76cf518164964bedf477ea488698c",
"parentTraceId": null,
"timestamp": 1631275117934,
"data": {
"result": {
"sex": "1",
"customerName": "张三",
"customerId": "001",
"age": 30
}
}
}
Payment2SinkApplication日志：
2021-09-10 19:58:38.146 INFO 14993 --- [nio-8004-exec-5] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-success","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:58:38.146 INFO 14993 --- [nio-8004-exec-5] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:58:39.200 INFO 14993 --- [nio-8004-exec-6] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-success","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:58:39.200 INFO 14993 --- [nio-8004-exec-6] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:58:41.409 INFO 14993 --- [nio-8004-exec-7] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-success","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:58:41.409 INFO 14993 --- [nio-8004-exec-7] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回超时异常!
2021-09-10 19:58:45.539 INFO 14993 --- [nio-8004-exec-8] c.x.d.p.service.Payment2DomainService : 传入消息:
{"tranMode":"3timeout-success","message":{"sex":"1","customerName":"张三","customerId":"001","age":30},"tranCode":"send-customer"}
2021-09-10 19:58:45.539 INFO 14993 --- [nio-8004-exec-8] c.x.d.p.service.Payment2DomainService : 交易:send-customer,返回交易成功!
2. 向前补偿的实现
向前补偿机制是指当交易无应答时，系统会对原交易进行查询，如查询超时会重试多次。如原交易成功则继续后续交易，如原交易失败则对前续交易进行交易补偿，向前补偿一般是针对第三方接入方无法提供补偿交易时的解决方案。
在金融领域，这类交易补偿动作常被称为“冲正”。
在应用层中，在原有的PersonalAppInterface应用层接口、PersonalAppService服务类中，增加payoutForward()、payoutForwardCompensate()这2个方法接口和实现，通过personalAppDelayInterface延迟调用接口，实现对原有payoutForwardCompensate()方法的多次重复延迟调用：
@Service
public class PersonalAppService implements PersonalAppInterface {
private AccountSinkInterface accountSinkInterface = IntegratorClientFactory
.getSinkClient(AccountSinkInterface.class,"account-sink");
private CustomerSinkInterface customerSinkInterface = IntegratorClientFactory
.getSinkClient(CustomerSinkInterface.class,"customer-sink");
private BizMessageInterface payment1SinkInterface = IntegratorClientFactory
.getSinkClient(BizMessageInterface.class,"payment1-sink");
private BizMessageInterface payment2SinkInterface = IntegratorClientFactory
.getSinkClient(BizMessageInterface.class,"payment2-sink");
private PersonalAppInterface personalAppDelayInterface = IntegratorClientFactory
.getDelayBizServiceClient(PersonalAppInterface.class,"app/personal",
0,1000,2000,4000,8000,16000,32000);
......
@Override
public void payoutForward(String tranMode,String accountId, long amount) throws BizException {
log.info("account出金:{},{}",accountId,amount);
this.accountDomainInterface.payout(accountId,amount);
JSONObject jsonObject = new JSONObject();
jsonObject.set("tranCode","pay");
jsonObject.set("tranMode",tranMode);
jsonObject.set("accountId",accountId);
jsonObject.set("tranAmount",amount);
BizMessage<JSONObject> bizMessage = null;
try {
log.info("payment缴费...");
bizMessage = this.payment2SinkInterface.call(jsonObject);
} catch (BizException e) {
if (e.isTimeOutException()) {
log.info("payment交易超时,开始payout补偿...");
this.personalAppDelayInterface.payoutForwardCompensate(jsonObject);
return;
}
else {
throw e;
}
}
log.info("payment缴费成功!");
log.info("payout成功!");
}
@Override
public void payoutForwardCompensate(JSONObject jsonObject) throws BizException{
jsonObject.set("tranCode","pay-query");
BizMessage<JSONObject> bizMessage = null;
try {
log.info("payment查询缴费订单...");
bizMessage = this.payment2SinkInterface.call(jsonObject);
} catch (BizException e) {
if (e.isTimeOutException()) {
log.info("payment交易超时...");
throw e;
}
else {
log.info("payment查询缴费订单返回错误（表示对方订单没执行）...");
String accountId = (String)jsonObject.get("accountId");
long amount = (Integer) jsonObject.get("tranAmount");
log.info("account出金补偿:{},{}",accountId,amount);
this.accountDomainInterface.payoutCompensation(accountId,amount);
return;
}
}
log.info("payment查询缴费订单成功（表示对方订单已执行）");
log.info("payout成功!");
}
传入交易模式为”3timeout-success“（收到订单交易后，前3次返回超时，第4次成功返回模拟订单已执行），这将导致发送4次，最后交易状态为成功：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"payoutForward","params":["3timeout-success","0001",1]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "e0127a25e2514da682ad77042917087a",
"parentTraceId": null,
"timestamp": 1631275840559,
"data": {}
}
XbankAppApplication日志：
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:40.560 INFO 16503 [11034350FE38437BB459F1E8DC6CCE17] [http-nio-8888-exec-5] c.xbank.app.service.PersonalAppService account出金:0001,1
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:40.822 INFO 16503 [11034350FE38437BB459F1E8DC6CCE17] [http-nio-8888-exec-5] c.xbank.app.service.PersonalAppService payment缴费...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:40.831 INFO 16503 [11034350FE38437BB459F1E8DC6CCE17] [http-nio-8888-exec-5] c.xbank.app.service.PersonalAppService payment交易超时,开始payout补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:42.086 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService payment查询缴费订单...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:42.095 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService payment交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:43.268 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-3] c.xbank.app.service.PersonalAppService payment查询缴费订单...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:43.277 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-3] c.xbank.app.service.PersonalAppService payment交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:45.296 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-2] c.xbank.app.service.PersonalAppService payment查询缴费订单...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:45.306 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-2] c.xbank.app.service.PersonalAppService payment查询缴费订单成功（表示对方订单已执行）
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:10:45.306 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-2] c.xbank.app.service.PersonalAppService payout成功!
传入交易模式为”3timeout-success“（收到订单交易后，前3次返回超时，第4次成功返回模拟订单已执行），这将导致发送4次，最后交易状态为成功：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"payoutForward","params":["3timeout-fail","0001",1]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "a04163bf05484fa28071650a085d4124",
"parentTraceId": null,
"timestamp": 1631275997342,
"data": {}
}
XbankAppApplication日志：
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:17.342 INFO 16503 [5E5951618A27430684C5552E1F782D8B] [http-nio-8888-exec-7] c.xbank.app.service.PersonalAppService account出金:0001,1
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:17.568 INFO 16503 [5E5951618A27430684C5552E1F782D8B] [http-nio-8888-exec-7] c.xbank.app.service.PersonalAppService payment缴费...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:17.579 INFO 16503 [5E5951618A27430684C5552E1F782D8B] [http-nio-8888-exec-7] c.xbank.app.service.PersonalAppService payment交易超时,开始payout补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:17.775 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-5] c.xbank.app.service.PersonalAppService payment查询缴费订单...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:17.788 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-5] c.xbank.app.service.PersonalAppService payment交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:18.827 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-1] c.xbank.app.service.PersonalAppService payment查询缴费订单...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:18.836 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-1] c.xbank.app.service.PersonalAppService payment交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:20.890 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService payment查询缴费订单...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:20.900 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService payment查询缴费订单返回错误（表示对方订单没执行）...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:13:20.901 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService account出金补偿:0001,1
3. 向后补偿的实现
向后补偿机制是指当交易无应答时，系统会对原交易发起多次交易补偿重试，如补偿交易成功则对前续交易进行补偿。
在应用层中，在原有的PersonalAppInterface应用层接口、PersonalAppService服务类中，增加payoutBackward()、payoutBackwardCompensate()这2个方法接口和实现，通过personalAppDelayInterface延迟调用接口，实现对原有payoutForwardCompensate()方法的多次重复延迟调用：
@Service
public class PersonalAppService implements PersonalAppInterface {
private AccountSinkInterface accountSinkInterface = IntegratorClientFactory
.getSinkClient(AccountSinkInterface.class,"account-sink");
private CustomerSinkInterface customerSinkInterface = IntegratorClientFactory
.getSinkClient(CustomerSinkInterface.class,"customer-sink");
private BizMessageInterface payment1SinkInterface = IntegratorClientFactory
.getSinkClient(BizMessageInterface.class,"payment1-sink");
private BizMessageInterface payment2SinkInterface = IntegratorClientFactory
.getSinkClient(BizMessageInterface.class,"payment2-sink");
private PersonalAppInterface personalAppDelayInterface = IntegratorClientFactory
.getDelayBizServiceClient(PersonalAppInterface.class,"app/personal",
0,1000,2000,4000,8000,16000,32000);
......
@Override
public void payoutBackward(String tranMode, String accountId, long amount) throws BizException {
log.info("account出金:{},{}",accountId,amount);
this.accountDomainInterface.payout(accountId,amount);
JSONObject jsonObject = new JSONObject();
jsonObject.set("tranCode","pay");
jsonObject.set("tranMode",tranMode);
jsonObject.set("accountId",accountId);
jsonObject.set("tranAmount",amount);
BizMessage<JSONObject> bizMessage = null;
try {
log.info("payment缴费...");
bizMessage = this.payment2SinkInterface.call(jsonObject);
} catch (BizException e) {
if (e.isTimeOutException()) {
log.info("payment交易超时,开始payout冲正...");
this.personalAppDelayInterface.payoutBackwardCompensate(jsonObject);
return;
}
else {
log.info("payment缴费交易返回错误");
log.info("account出金补偿:{},{}",accountId,amount);
this.accountDomainInterface.payoutCompensation(accountId,amount);
log.info("payout交易补偿成功！");
return;
}
}
log.info("payment缴费成功");
log.info("payout成功!");
}
@Override
public void payoutBackwardCompensate(JSONObject jsonObject) throws BizException {
jsonObject.set("tranCode","pay-reversal");
BizMessage<JSONObject> bizMessage;
try {
log.info("payment缴费补偿...");
bizMessage = this.payment2SinkInterface.call(jsonObject);
log.info("payment缴费补偿成功");
} catch (BizException e) {
if (e.isTimeOutException()) {
log.info("payment缴费补偿交易超时...");
throw e;
}
log.info("payment缴费补偿交易失败,需要人工干预调整!");
return;
}
String accountId = (String)jsonObject.get("accountId");
long amount = (Integer)jsonObject.get("tranAmount");
log.info("account出金补偿:{},{}",accountId,amount);
this.accountDomainInterface.payoutCompensation(accountId,amount);
log.info("payout补偿成功！");
}
传入交易模式为”3timeout-success“（收到订单交易后，前3次返回补偿交易超时，第4次成功返回补偿交易执行成功），这将导致发送4次，最后交易状态为成功：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"payoutBackward","params":["3timeout-success","0001",1]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "26c58fe44b3f4ceba462762494fa5981",
"parentTraceId": null,
"timestamp": 1631276405513,
"data": {}
}
XbankAppApplication日志：
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:05.513 INFO 16503 [84936F44451449C5A92183EF93C3690C] [http-nio-8888-exec-2] c.xbank.app.service.PersonalAppService account出金:0001,1
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:05.952 INFO 16503 [84936F44451449C5A92183EF93C3690C] [http-nio-8888-exec-2] c.xbank.app.service.PersonalAppService payment缴费...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:05.961 INFO 16503 [84936F44451449C5A92183EF93C3690C] [http-nio-8888-exec-2] c.xbank.app.service.PersonalAppService payment交易超时,开始payout冲正...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:06.396 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-1] c.xbank.app.service.PersonalAppService payment缴费补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:06.405 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-1] c.xbank.app.service.PersonalAppService payment缴费补偿交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:07.468 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService payment缴费补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:07.475 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-4] c.xbank.app.service.PersonalAppService payment缴费补偿交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:09.560 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-3] c.xbank.app.service.PersonalAppService payment缴费补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:09.570 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-3] c.xbank.app.service.PersonalAppService payment缴费补偿成功
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:09.571 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-3] c.xbank.app.service.PersonalAppService account出金补偿:0001,1
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:20:09.726 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-3] c.xbank.app.service.PersonalAppService payout补偿成功！
传入交易模式为”3timeout-fail“（收到订单交易后，前3次返回超时，第4次成功返回模拟补偿交易失败），这将导致发送4次，最后交易状态为失败：
$ curl -H "Content-Type:application/json" -H "Biz-Service-Id:app/personal" -X POST --data '{"methodName":"payoutBackward","params":["3timeout-fail","0001",1]}' http://localhost:8888/api|jq
{
"code": 0,
"message": "success",
"extMessage": null,
"traceId": "40aed8f06bba436ba67ff93e769d5a33",
"parentTraceId": null,
"timestamp": 1631276555599,
"data": {}
}
XbankAppApplication日志：
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:35.599 INFO 16503 [B54A535614A64492A7A00D987F12B529] [http-nio-8888-exec-4] c.xbank.app.service.PersonalAppService account出金:0001,1
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:35.760 INFO 16503 [B54A535614A64492A7A00D987F12B529] [http-nio-8888-exec-4] c.xbank.app.service.PersonalAppService payment缴费...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:35.767 INFO 16503 [B54A535614A64492A7A00D987F12B529] [http-nio-8888-exec-4] c.xbank.app.service.PersonalAppService payment交易超时,开始payout冲正...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:35.979 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-2] c.xbank.app.service.PersonalAppService payment缴费补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:35.993 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-2] c.xbank.app.service.PersonalAppService payment缴费补偿交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:37.073 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-5] c.xbank.app.service.PersonalAppService payment缴费补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:37.083 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-5] c.xbank.app.service.PersonalAppService payment缴费补偿交易超时...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:39.111 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-1] c.xbank.app.service.PersonalAppService payment缴费补偿...
[bizsip-integrator:192.169.1.101:8888] 2021-09-10 20:22:39.121 INFO 16503 [] [org.springframework.amqp.rabbit.RabbitListenerEndpointContainer#0-1] c.xbank.app.service.PersonalAppService payment缴费补偿交易失败,需要人工干预调整!
Biz-SIP官方网站：http://bizsip.bizmda.com
Gitee：https://gitee.com/szhengye/biz-sip
浙公网安备 33010602011771号
