[dubbo学习]springboot 整合dubbo 项目打包

基于简单的springboot-dubbo项目进行修改,参照springcloud项目

https://www.cnblogs.com/suphowe/p/13048865.html

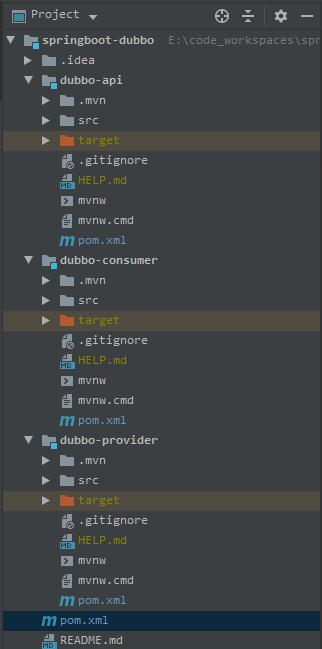

1.修改sprinboot-dubbo的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>springboot-dubbo</groupId>
    <artifactId>springboot-dubbo</artifactId>
    <version>v1.0</version>

    <!--设置maven工程类型为pom类型-->
    <packaging>pom</packaging>

    <name>springboot-dubbo</name>
    <description>dubbo for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.0.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <modules>
        <module>dubbo-api</module>
        <module>dubbo-provider</module>
        <module>dubbo-consumer</module>
    </modules>


    <properties>
        <java.version>1.8</java.version>
    </properties>
</project>

2.修改dubbo-api的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>springboot-dubbo</groupId>
        <artifactId>springboot-dubbo</artifactId>
        <version>v1.0</version>
    </parent>

    <groupId>com.soft</groupId>
    <artifactId>dubbo-api</artifactId>
    <version>v1.0</version>


</project>

3.修改dubbo-consumer的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>springboot-dubbo</groupId>
        <artifactId>springboot-dubbo</artifactId>
        <version>v1.0</version>
    </parent>

    <groupId>com.soft</groupId>
    <artifactId>dubbo-consumer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>dubbo-consumer</name>
    <description>dubbo-consumer</description>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--服务提供者的接口API-->
        <dependency>
            <groupId>com.soft</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>v1.0</version>
        </dependency>

        <!-- dubbo依赖 -->
        <dependency>
            <groupId>com.alibaba.spring.boot</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>

        <!-- 引入zookeeper的依赖 -->
        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.10</version>
        </dependency>

        <!--swagger2-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
    </dependencies>

    <build>
        <!-- 包名称 -->
        <finalName>dubbo-consumer</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <!--添加自己的启动类路径！-->
                <configuration>
                    <mainClass>com.soft.consumer.DubboConsumerApplication</mainClass>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <!--可以把依赖的包都打包到生成的Jar包中-->
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.21.0</version>
                <configuration>
                    <!-- 跳过测试 -->
                    <skipTests>true</skipTests>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

　　

4.修改dubbo-provider的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>springboot-dubbo</groupId>
        <artifactId>springboot-dubbo</artifactId>
        <version>v1.0</version>
    </parent>
    <groupId>com.soft</groupId>
    <artifactId>dubbo-provider</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>dubbo-provider</name>
    <description>dubbo-provider</description>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--服务提供者的接口API-->
        <dependency>
            <groupId>com.soft</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>v1.0</version>
        </dependency>

        <!-- dubbo依赖 -->
        <dependency>
            <groupId>com.alibaba.spring.boot</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>

        <!-- 引入zookeeper的依赖 -->
        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.10</version>
        </dependency>

    </dependencies>

    <build>
        <!-- 包名称 -->
        <finalName>dubbo-provider</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <!--添加自己的启动类路径！-->
                <configuration>
                    <mainClass>com.soft.provider.DubboProviderApplication</mainClass>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <!--可以把依赖的包都打包到生成的Jar包中-->
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.21.0</version>
                <configuration>
                    <!-- 跳过测试 -->
                    <skipTests>true</skipTests>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

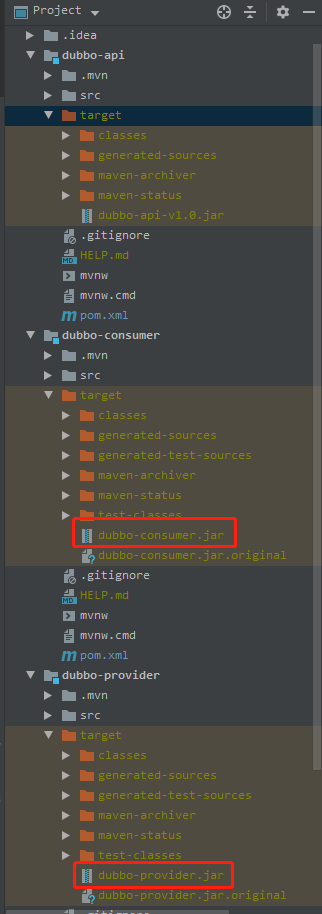

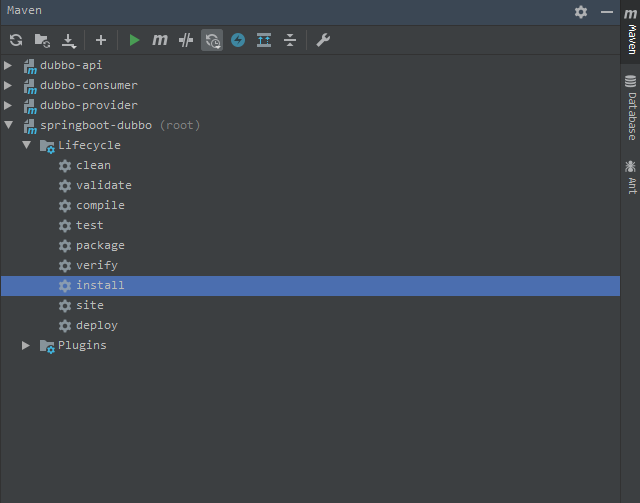

5.打包测试

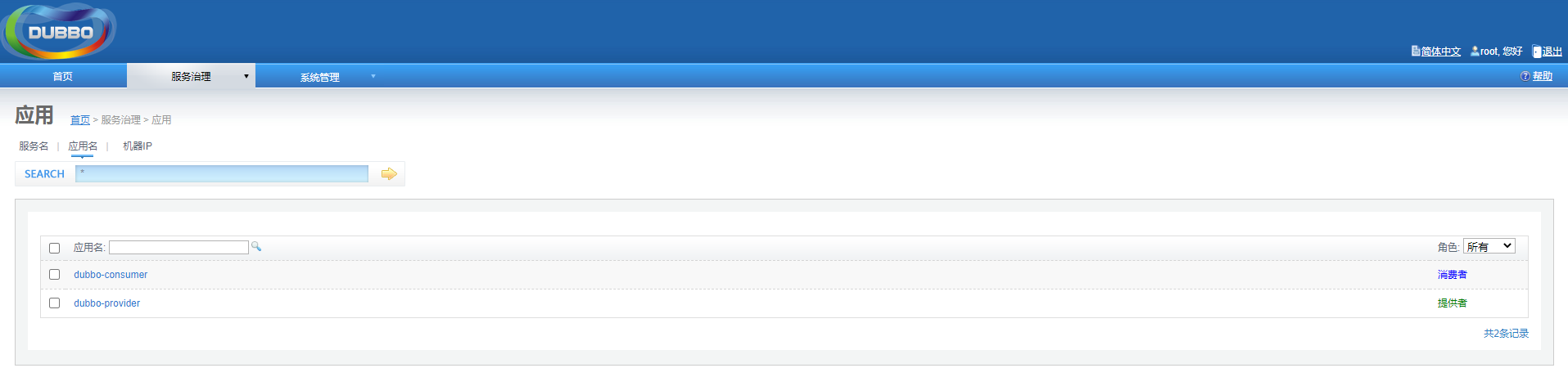

 6.Terminal 测试

运行

java -jar dubbo-provider.jar

java -jar dubbo-consumer.jar
