00.微服务架构编码构建准备工作

代码编写核心贯穿
约定 > 配置 > 编码

1.IDEA新建project工作空间

微服务cloud整体聚合父工程Project

整个springcloud的学习在建立的父工程基础上，新建模块

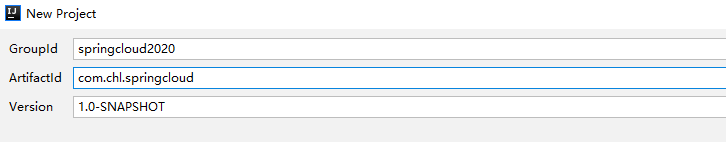

1.New Project
新建立一个maven的父工程
其余东西删除，留下一个pom文件，打包模式 改为pom
引入依赖如下
    <packaging>pom</packaging>

    <!-- 统一管理jar包版本 -->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <mysql.version>5.1.47</mysql.version>
        <druid.version>1.1.16</druid.version>
        <mybatis.spring.boot.version>1.3.0</mybatis.spring.boot.version>
        <mybatis-plus.version>3.2.0</mybatis-plus.version>
    </properties>

    <!-- 子模块继承之后，提供作用：锁定版本+子modlue不用写groupId和version  -->
    <dependencyManagement>
        <dependencies>
            <!--spring boot 2.2.2-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.2.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud Hoxton.SR1-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud alibaba 2.1.0.RELEASE-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.1.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.spring.boot.version}</version>
            </dependency>
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
                <optional>true</optional>
            </dependency>
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatis-plus.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>
        </plugins>
    </build>

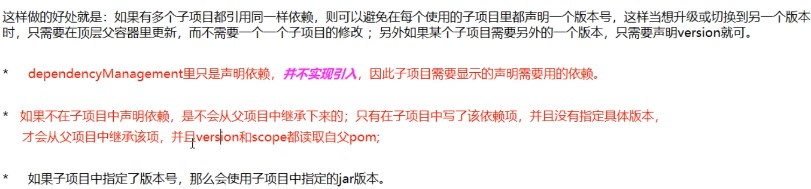

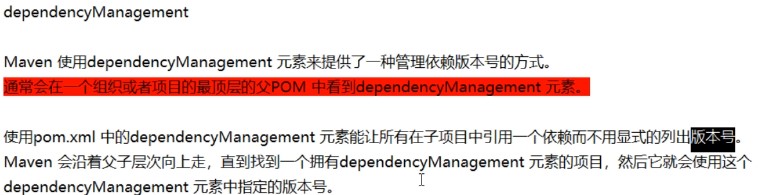

maven的dependencyManagement说明



2.Rest微服务工程构建

本次的springcloud学习围绕着
  • 订单模块
  • 支付模块
来学习

微服务提供者支付Module模块

新创建cloud-provider-payment8001模块
pom
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud2020</artifactId>
        <groupId>com.chl.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8001</artifactId>

     <dependencies>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-jdbc -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-devtools -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
           <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-test -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

</project>

yml
server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://localhost:3306/springcloud2020?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 123456

mybatis:
  mapperLocations: classpath:mapper/*/*.xml
  type-aliases-package: com.chl.springcloud.entity
主启动
@SpringBootApplication
public class Payment8001 {
    public static void main(String[] args) {
        SpringApplication.run(Payment8001.class,args);
    }
}
业务类
1.建表SQL
CREATE TABLE payment (
 id BIGINT(20) NOT NULL AUTO_INCREMENT COMMENT ID,
 'serial' VARCHAR(200) DEFAULT,
 PRIMARY KEY(id)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8
2.entitiy
Payment
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {

    private Long id;
    private String serial;
}
Json封装体CommonResult
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult <T>{

    private Integer code;
    private String message;
    private T data;

    public CommonResult(Integer code,String message){
        this(code,message,null);
    }
}
3.dao
PaymentMapper
@Mapper
public interface PaymentMapper{

    int savePayment(Payment payment);

    Payment getPaymentById(Long id);
}
PaymentMapper.xml    这个位置 src\main\resources\mapper\PaymentMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.chl.springcloud.mapper.PaymentMapper">

    <!--保存-->
    <insert id="savePayment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial) values(${serial});
    </insert>

    <!--获取-->
    <select id="getPaymentById" resultType="com.chl.springcloud.entity.Payment">
        select * from payment where id=#{id}
    </select>

</mapper>
4.service
PaymentService
public interface  {

    /**
     * 添加payment
     * @param payment
     * @return
     */
    int savePayment(Payment payment);

    /**
     * 获取payment
     * @param id
     * @return
     */
    Payment getPaymentById(Long id);
}
PaymentServiceImpl
@Service
public class PaymentServiceImpl  implements PaymentService {

    @Autowired
    private PaymentMapper paymentMapper;

    @Override
    public int savePayment(Payment payment) {
      return  paymentMapper.savePayment(payment);
    }

    @Override
    public Payment getPaymentById(Long id) {
        return paymentMapper.getPaymentById(id);
    }
}
5.controller

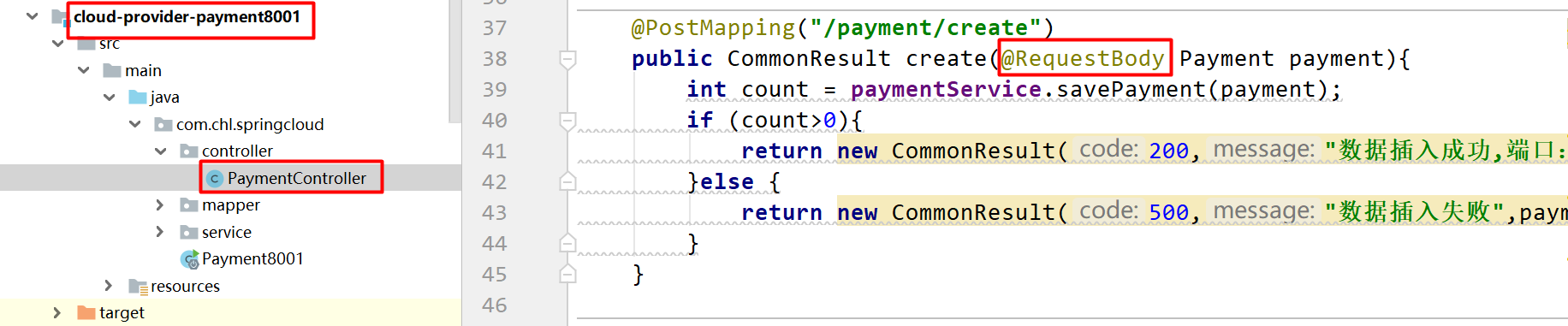

PaymentController
@RestController
@Slf4j
public class PaymentController {

    @Autowired
    private PaymentService paymentService;

   @PostMapping(value = "/payment/create")
    public CommonResult create(Payment payment){
       int result = paymentService.create(payment);
       log.info("*****插入结果："+result);
       if (result>0){  //成功
           return new CommonResult(200,"插入数据库成功",result);
       }else {
           return new CommonResult(444,"插入数据库失败",null);
       }
    }
    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("*****查询结果："+payment);
        if (payment!=null){  //说明有数据，能查询成功
            return new CommonResult(200,"查询成功",payment);
        }else {
            return new CommonResult(444,"没有对应记录，查询ID："+id,null);
        }
    }

}
测试

小总结
  • 1.建module
  • 2.改POM
  • 3.写YML
  • 4.主启动
  • 4.主启动

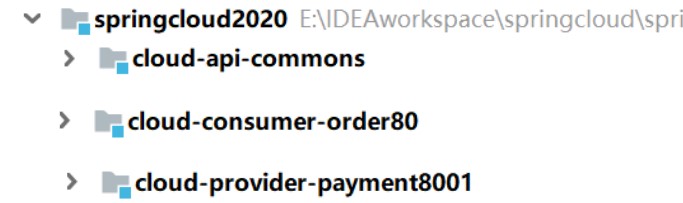

微服务消费者订单Module模块

建cloud-consumer-order80
pom
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud2020</artifactId>
        <groupId>com.chl.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumer-order80</artifactId>
    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web  -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-devtools -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-test -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>


</project>
yml
server:
  port: 80

spring:
  application:
    name: cloud-order-service
主启动
@SpringBootApplication
public class OrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class,args);
    }

}
业务类

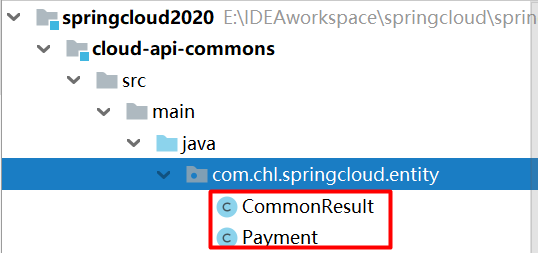

创建entity(将cloud-provider-payment8001工程下的entity包下的两个实体类复制过来)

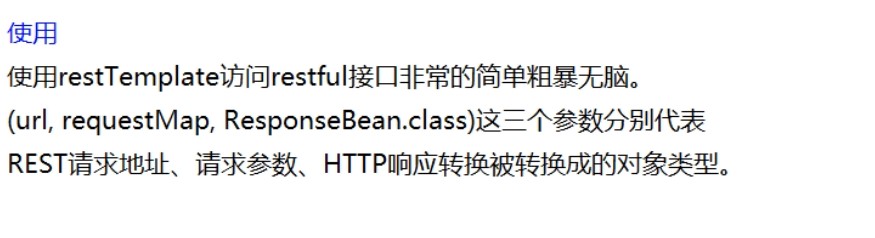

首说RestTemplate

官网地址：


ApplicationContextConfig

要使用restTemplate,要创建restTemplate，放进spring容器
@Configuration
public class ApplicationContextConfig {

    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}
OrderController
@RestController
@Slf4j
public class OrderController {

    public static final String PAYMENT_URL = "http://localhost:8001";

    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/create")
    public CommonResult<Payment>   create(Payment payment){
        return restTemplate.postForObject(PAYMENT_URL+"/payment/create",payment,CommonResult.class);  //写操作
    }

    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") Long id){
        return restTemplate.getForObject(PAYMENT_URL+"/payment/get/"+id,CommonResult.class);
    }
}

测试
先启动cloud-provider-payment8001
再启动cloud-consumer-order80

创建create方法，不要忘记@RequestBody注解

3.工程重构

由于两个工程entity下面的payment实体类，还有commonResult
所以直接抽取出来，作为通用的

新建立模块cloud-api-commons

pom
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud2020</artifactId>
        <groupId>com.chl.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-api-commons</artifactId>
    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-devtools -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/cn.hutool/hutool-all -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.1.0</version>
        </dependency>
    </dependencies>

</project>

将这两个实体类搬到这里

支付模块还有订单模块的改造

订单80和支付8001分别删除原来的entity文件夹的两个实体类
分别引入通用模块
<dependency>
    <groupId>com.chl.springcloud</groupId>
    <artifactId>cloud-api-commons</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

目前工程样图








posted @ 2020-12-29 12:50  超极本online  阅读(135)  评论(0)    收藏  举报
