02.SpringCloud Alibaba Sentinel (实现熔断与限流)

1.sentinel的简介

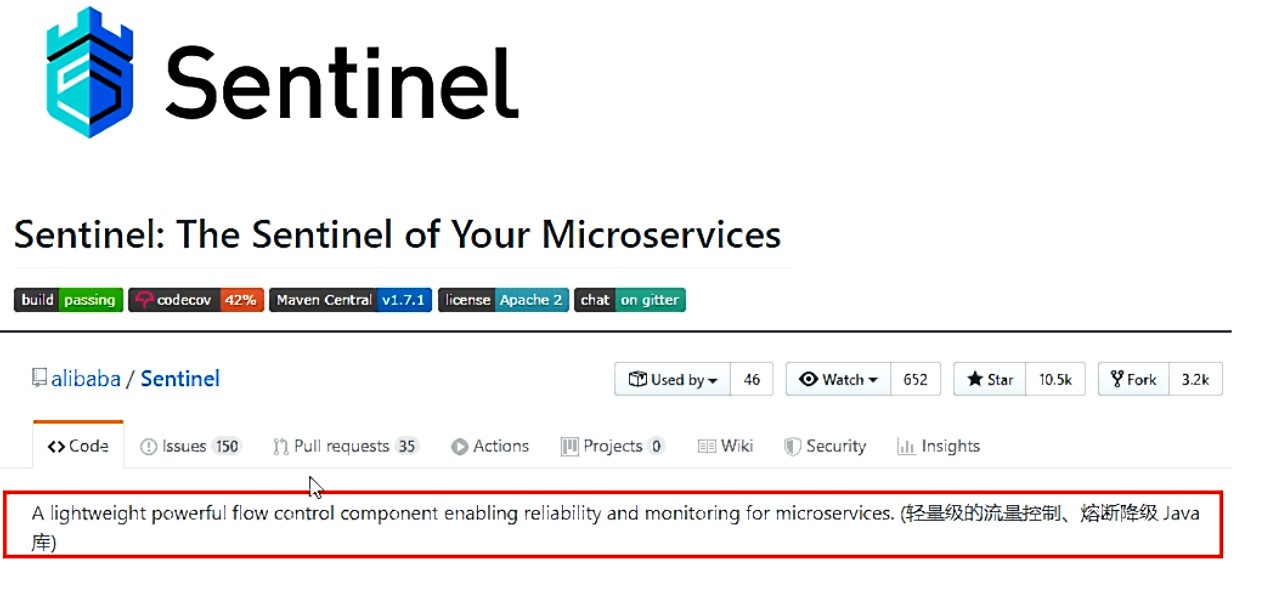

官网

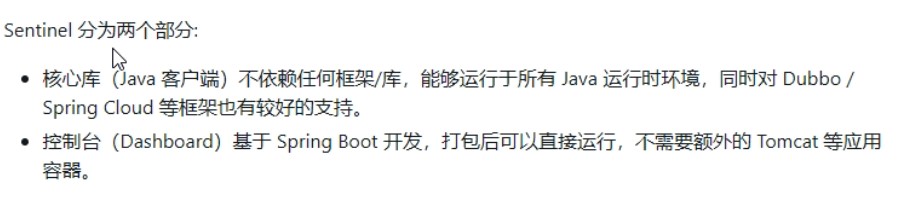

是什么

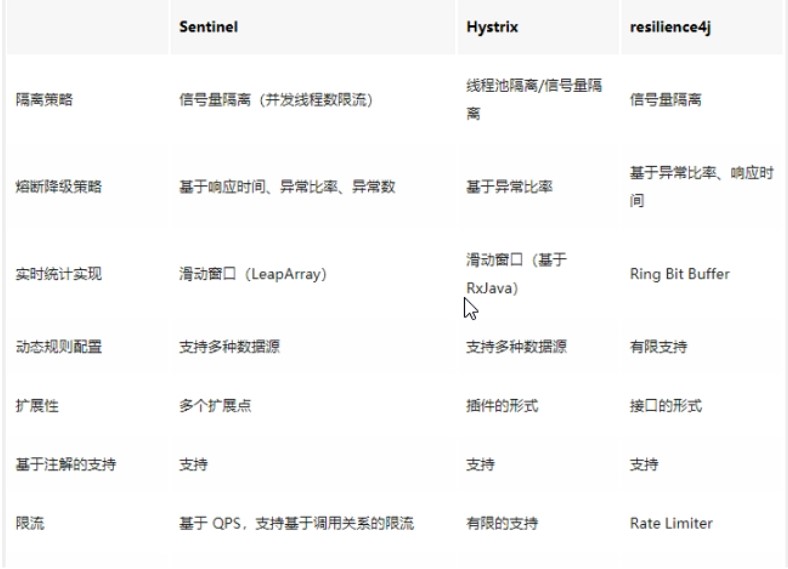

一句话解释，就是之前的Hystrix，负责熔断，降级，限流
去哪下
直接下载1.7版本

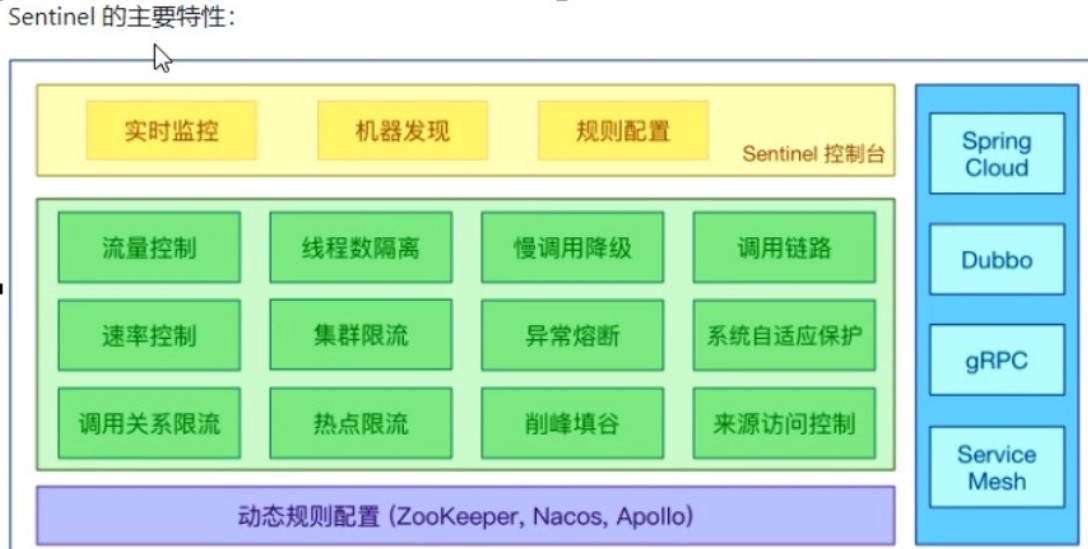

能干吗

怎么玩
服务中的各种问题
  • 服务雪崩
  • 服务降级
  • 服务熔断
  • 服务限流

2.sentinel控制台的安装

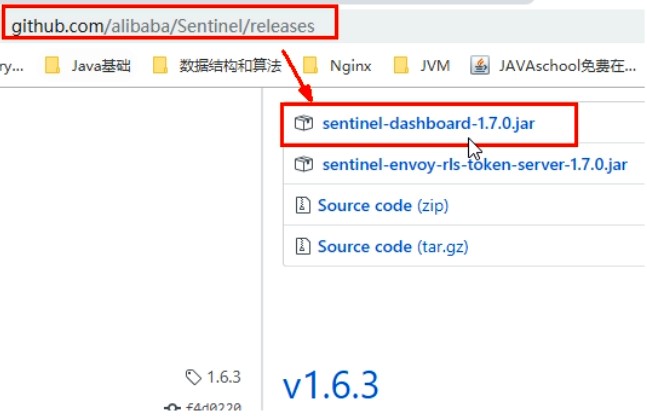

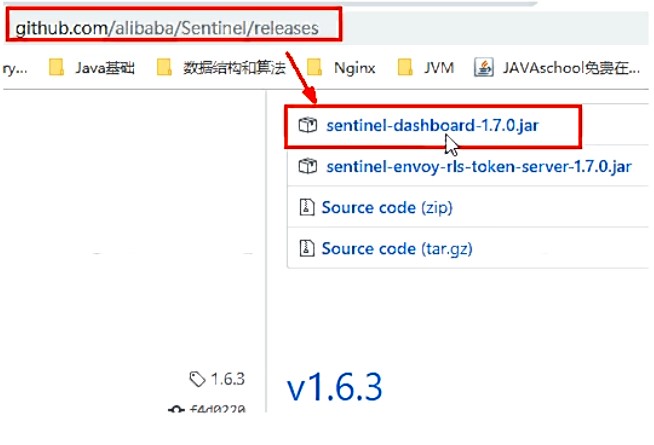

下载地址

下载到本地sentinel-dashboard-1.7.0.jar
运行命令
前提
java8环境OK，8080端口不能被占用，直接启动即可
java -jar sentinel-dashboard-1.7.0.jar

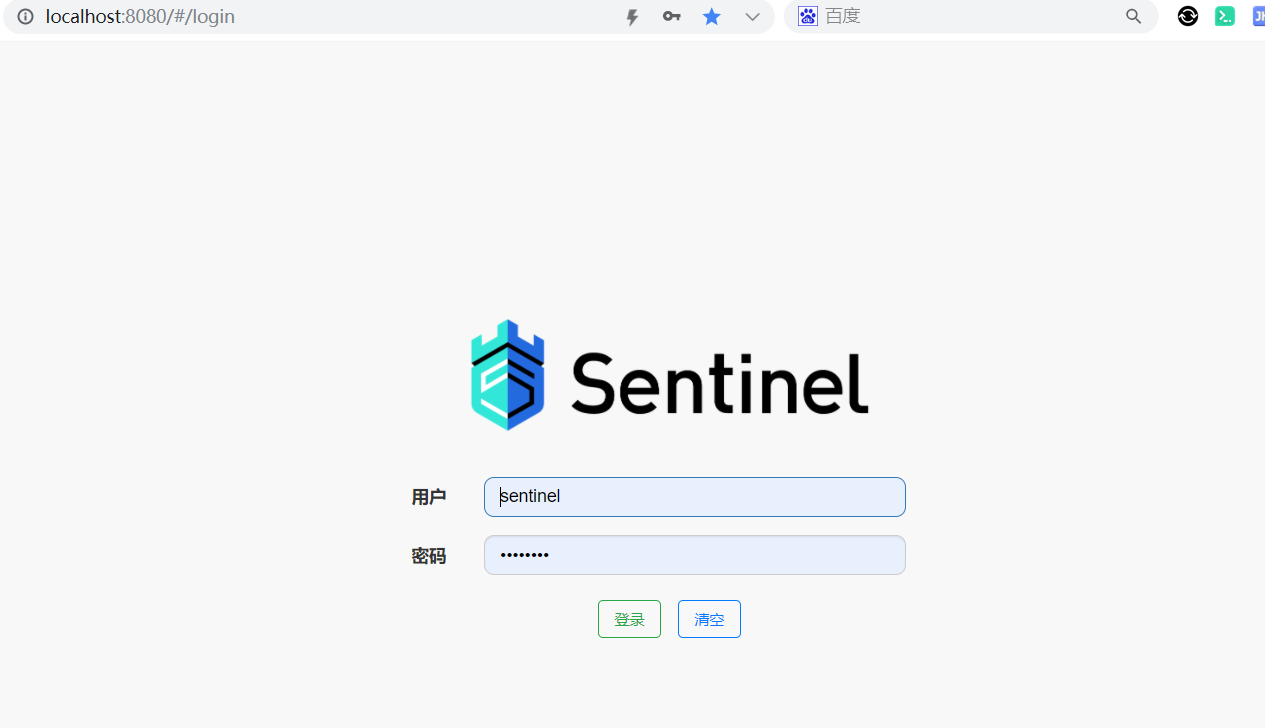

访问地址  http://localhost:8080  访问sentinel管理界面
登录账号密码均为sentinel

3.初始化演示工程

依赖问题  父pom是如下
<!--spring cloud alibaba 2.1.0.RELEASE-->
<dependency>
  <groupId>com.alibaba.cloud</groupId>
  <artifactId>spring-cloud-alibaba-dependencies</artifactId>
  <version>2.1.0.RELEASE</version>
  <type>pom</type>
  <scope>import</scope>
</dependency>
启动Nacos8848成功
创建新模块cloudalibaba-sentinel-service8401
pom
<dependencies>
        <dependency>
            <groupId>com.chl.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!--sentinel和nacos的整合 将sentinel的数据存到nocas-->
        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-datasource-nacos</artifactId>
        </dependency>

        <!--sentinel的依赖-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>4.6.3</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>
yml
server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848  #注册到nacos
    sentinel:
      transport:
        dashboard: localhost:8080 #sentinal的控制面板
        port: 8719  #默认8719，假如被占用了会自动从8719开始依次+1扫描。直至找到未被占用的端口

#暴露这个，被监控
management:
  endpoints:
    web:
      exposure:
        include: '*'
主启动
@EnableDiscoveryClient
@SpringBootApplication
public class MainApp8401{
    public static void main(String[] args) {
        SpringApplication.run(MainApp8401.class, args);
    }
}
业务类
@RestController
public class FlowLimitController{
    @GetMapping("/testA")
    public String testA() {
        return "------testA";
    }

    @GetMapping("/testB")
    public String testB() {

        return "------testB";
    }

}
启动Sentinel8080
java -jar sentinel-dashboard-1.7.0
启动微服务8401

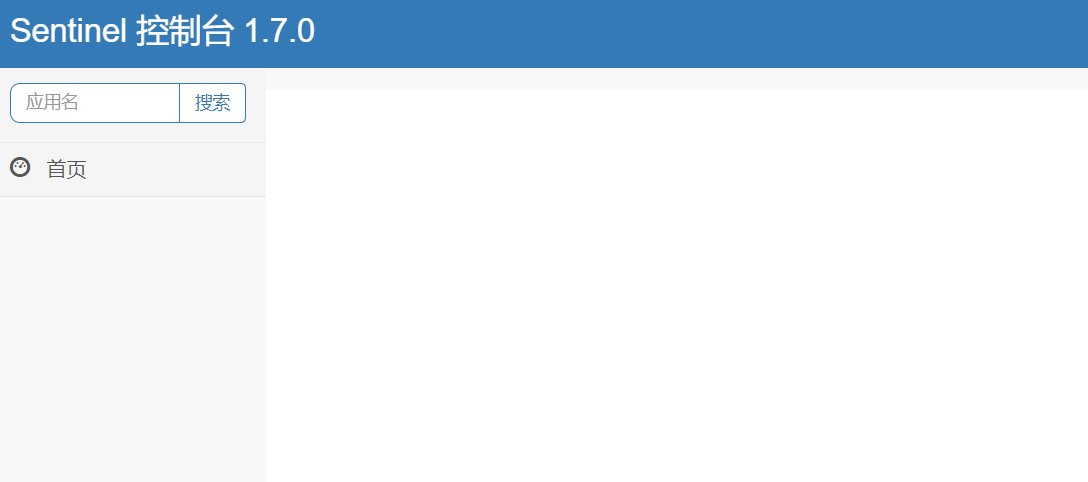

启动8401微服务后查看sentienl控制台，会发现控制台什么都没有空空如也，啥都没有

Sentinel采用的懒加载说明

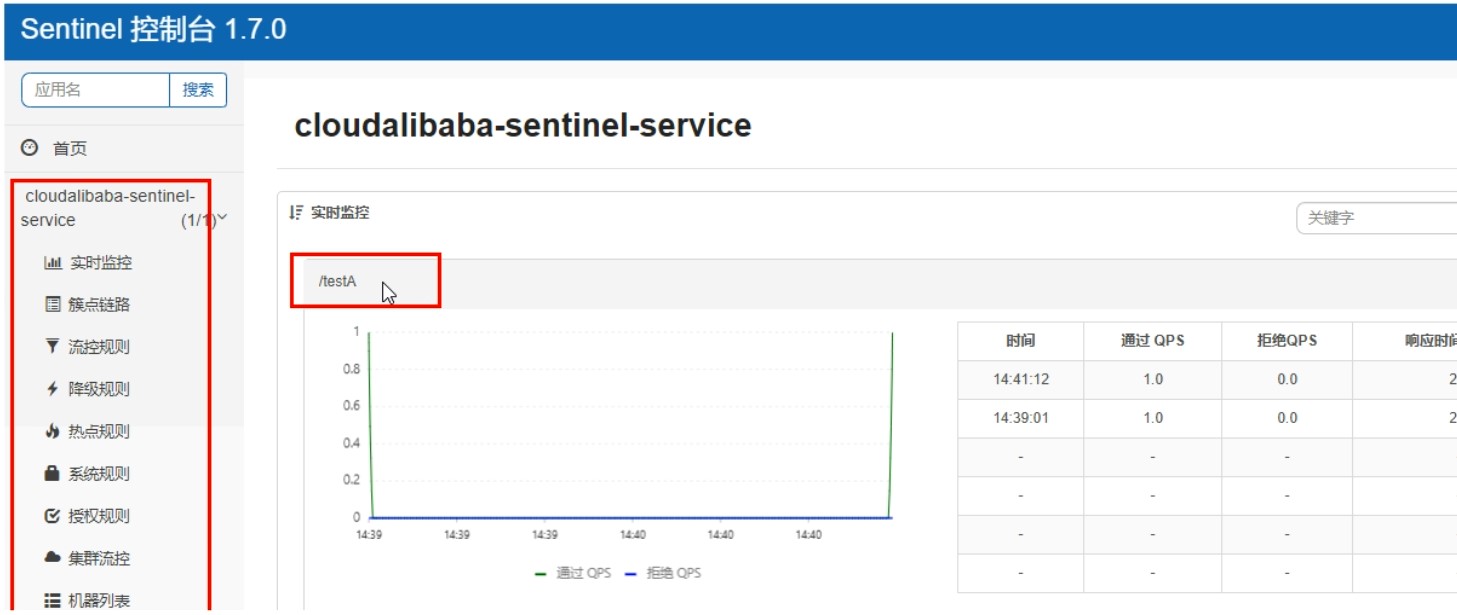

需要你访问这个才会出现，所以执行一次访问即可
所以结论就是，sentinel8080正在监控微服务8401

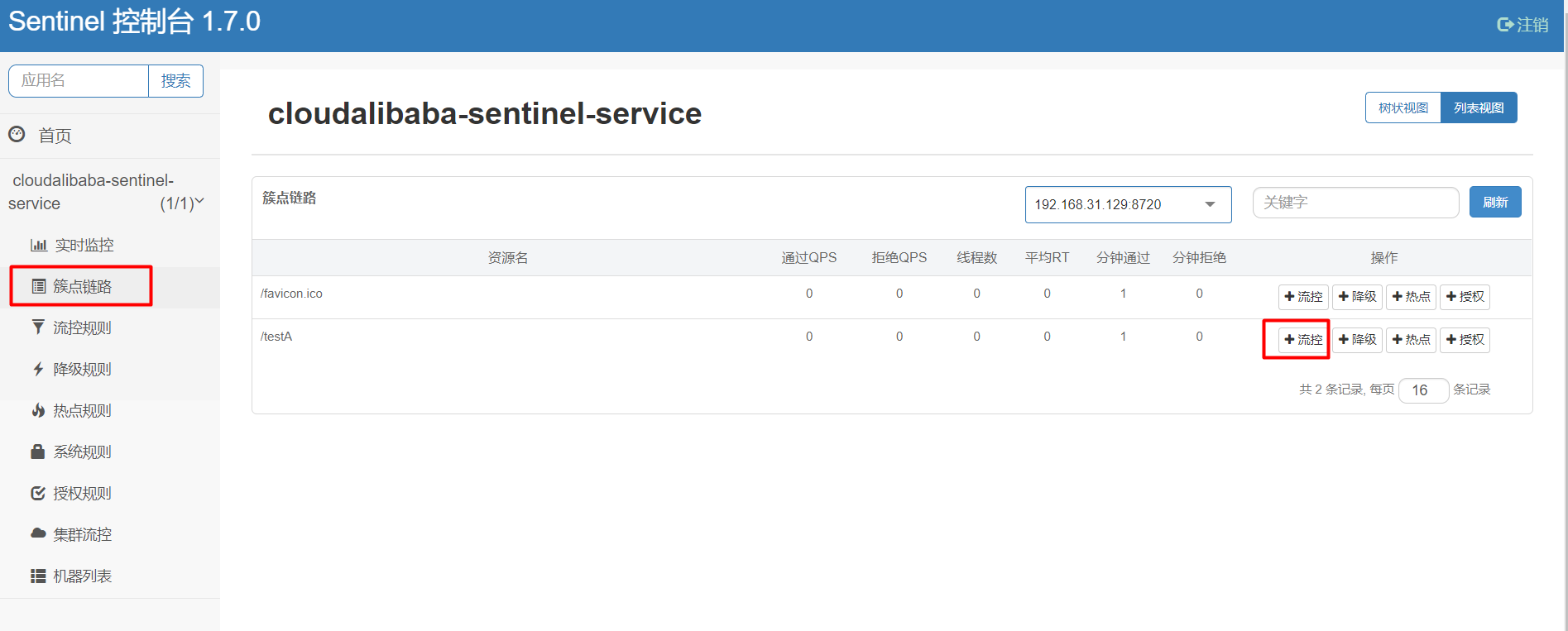

常见添加配置操作

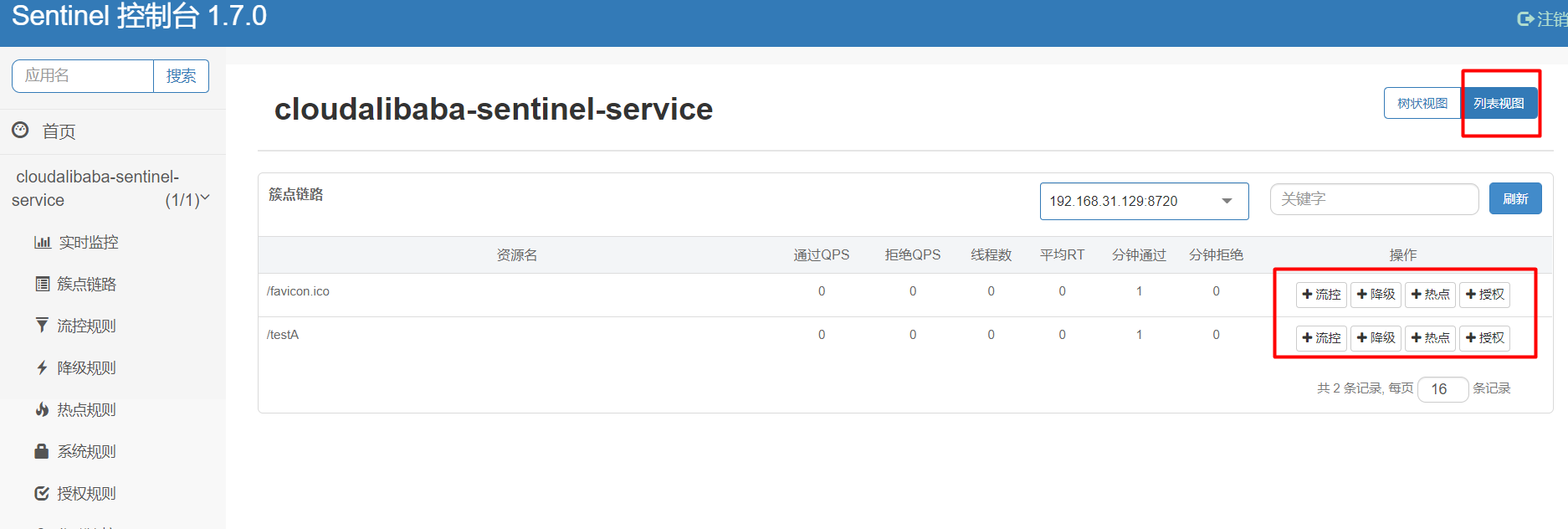

一般切到列表视图，方便查看 ，显示的访问的 url
可以对url进行相应的配置

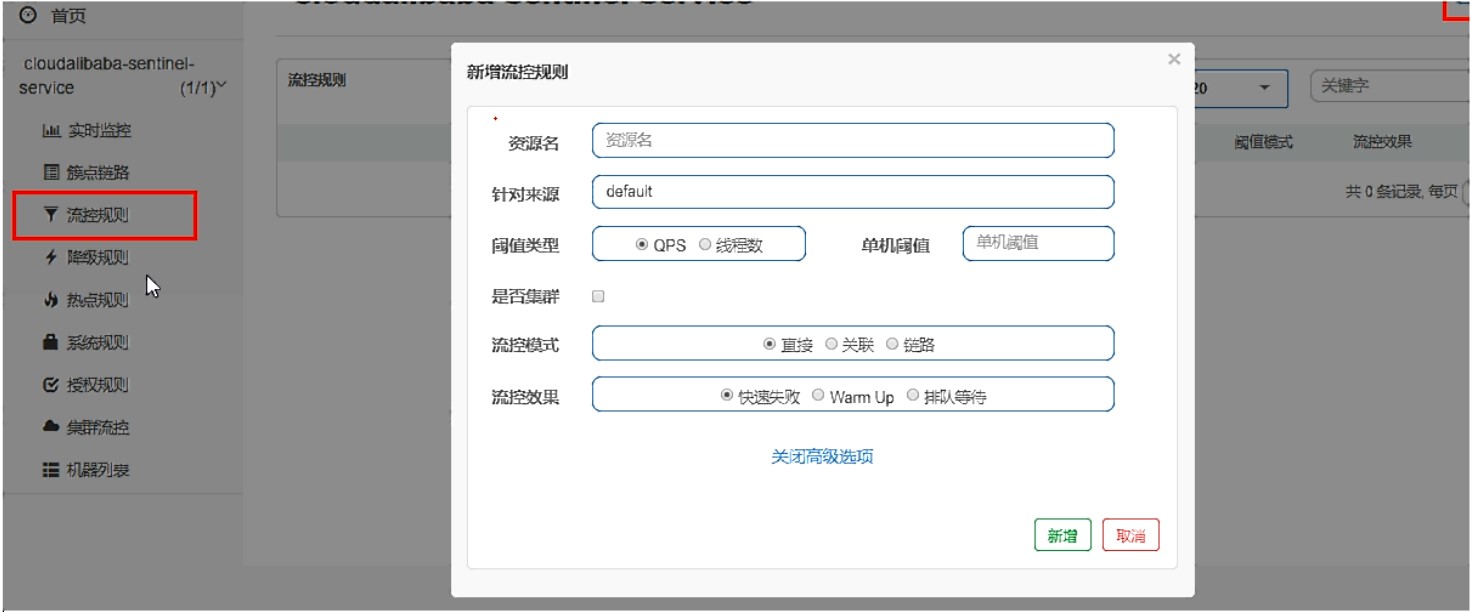

4.流控规则

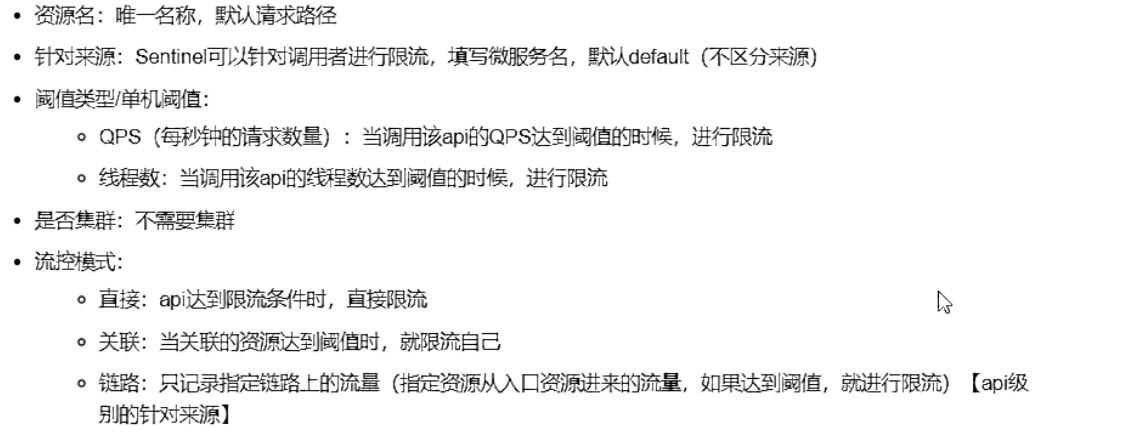

基本介绍

  • 也可以在族点链路，对链路添加配置

  • 可以在流控规则上面添加配置

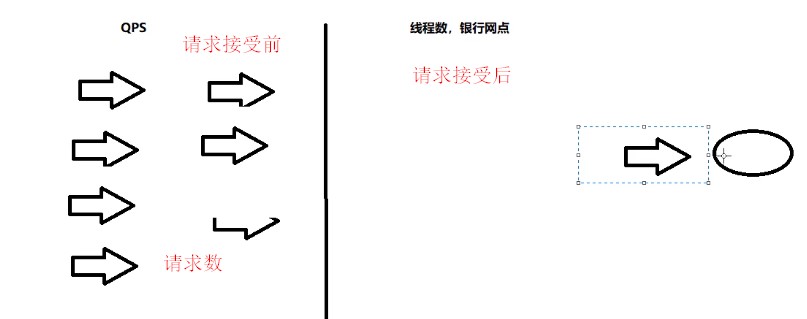

GPS和线程数的区别

  • QPS是请求接受前(拒之门外)
  • 线程数就是接受了这个请求(关门打狗)

流控模式

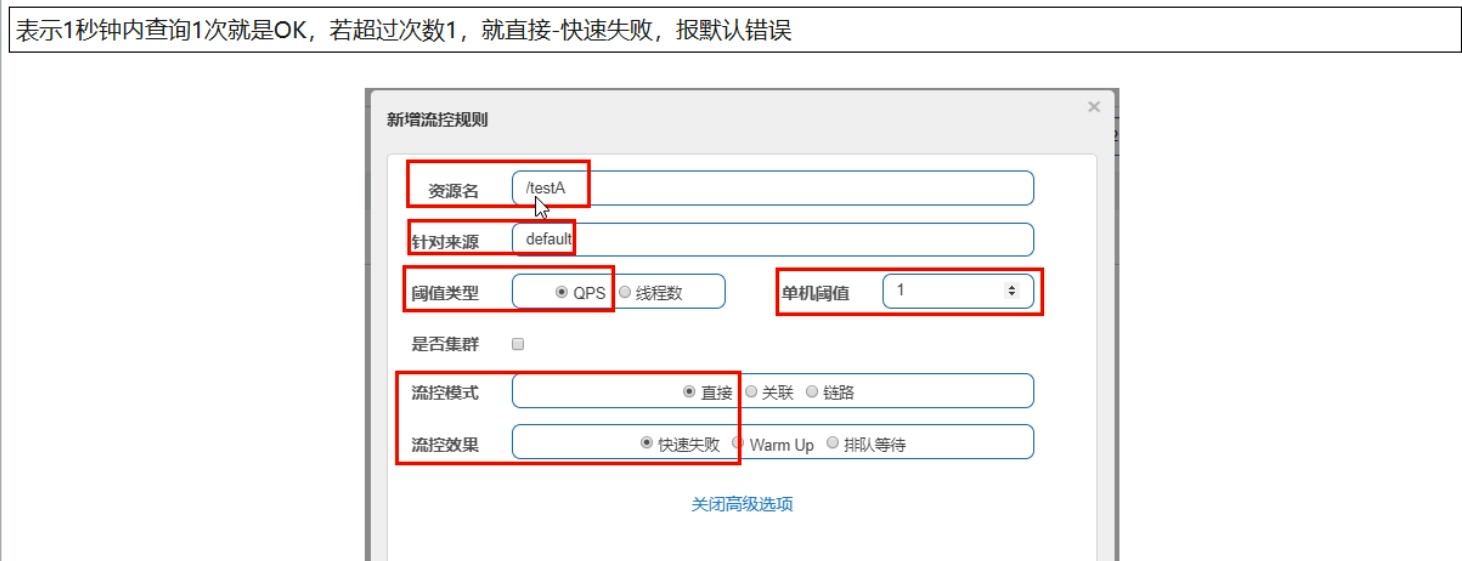

直接（默认）

系统默认就是直接失败
快速点击访问 http://localhost:8401/testA

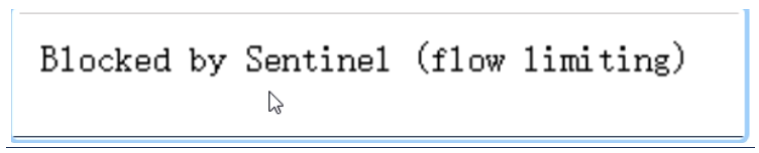

接着页面显示  Blocked by Sentinel (flow limiting)

思考
  • 直接调用默认报错信息，技术方面OK but，是否应该有我们自己的后续处理？
  • 类似有一个hystrix的fallback的兜底方法？

关联

  • 当关联的资源达到阈值时，就限流自己
  • 当与A（订单模块）关联的资源B（支付模块）达到阈值后，就限流自己
  • 就好比如我的支付模块处理不过来了，就限流订单模块，不让继续下单

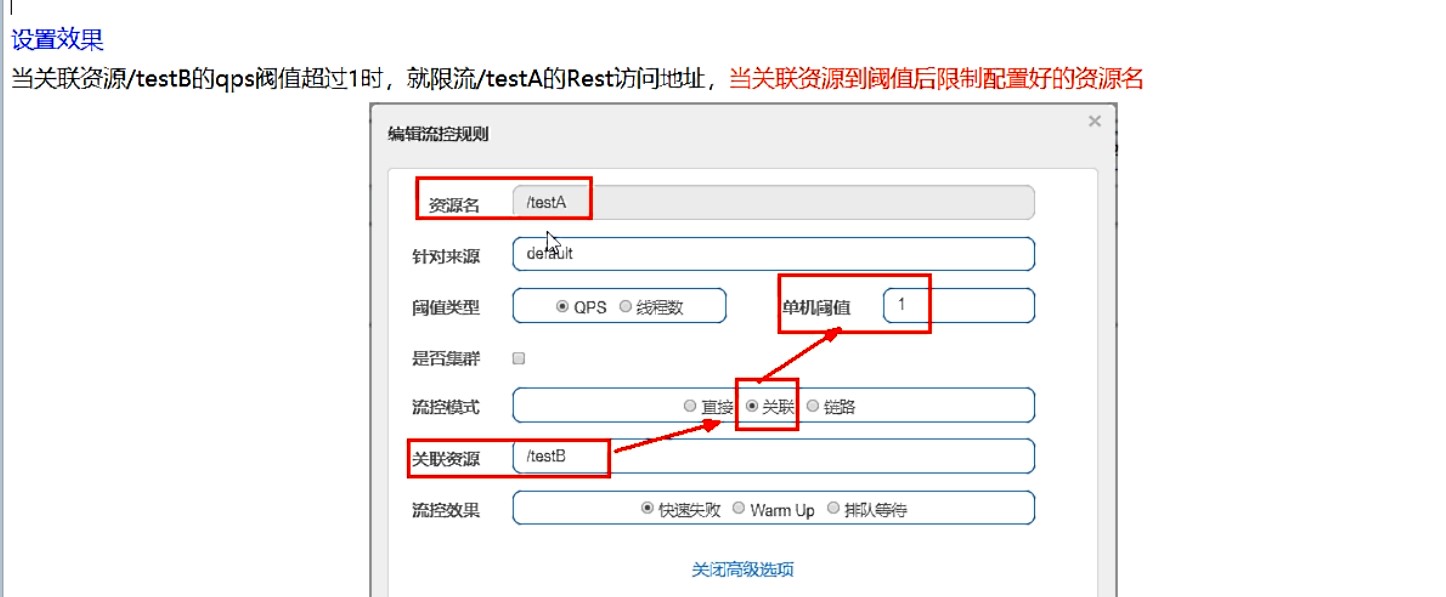

配置


测试
postman模拟并发密集访问testB

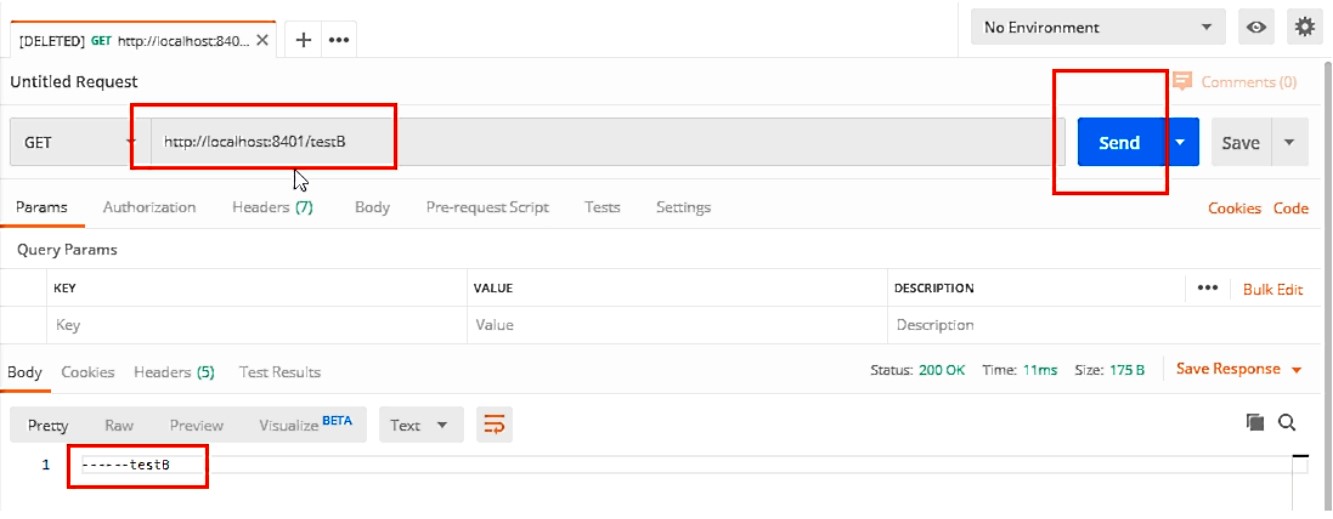

单纯访问成功  /testB

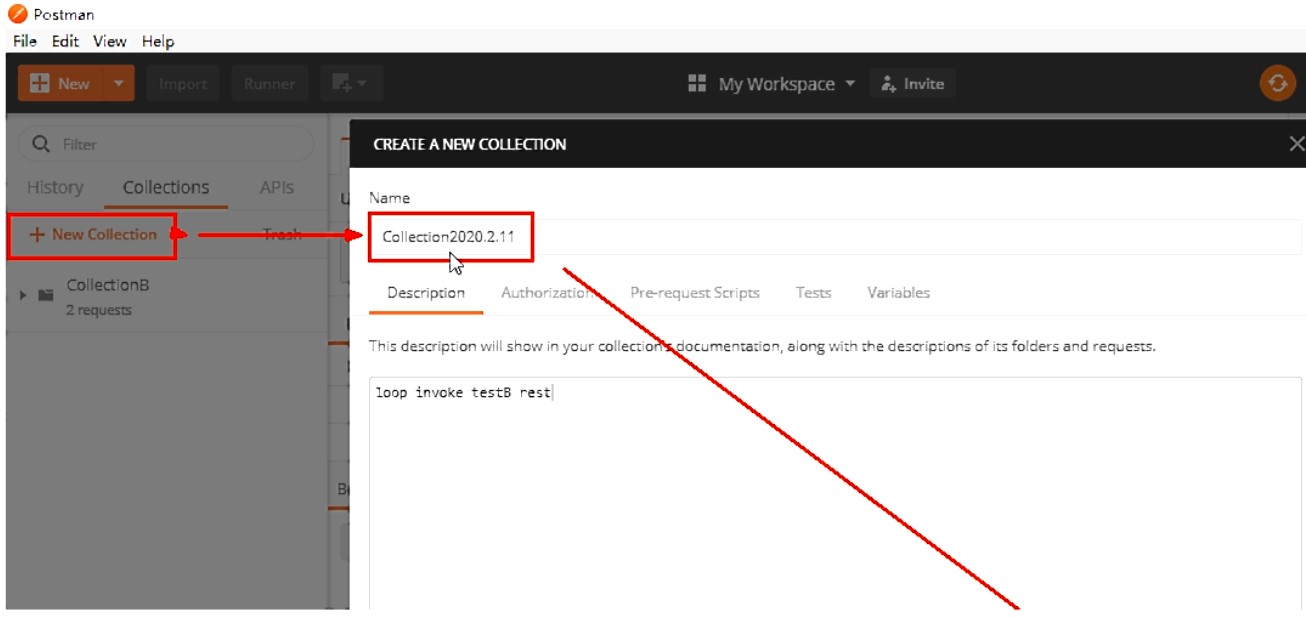

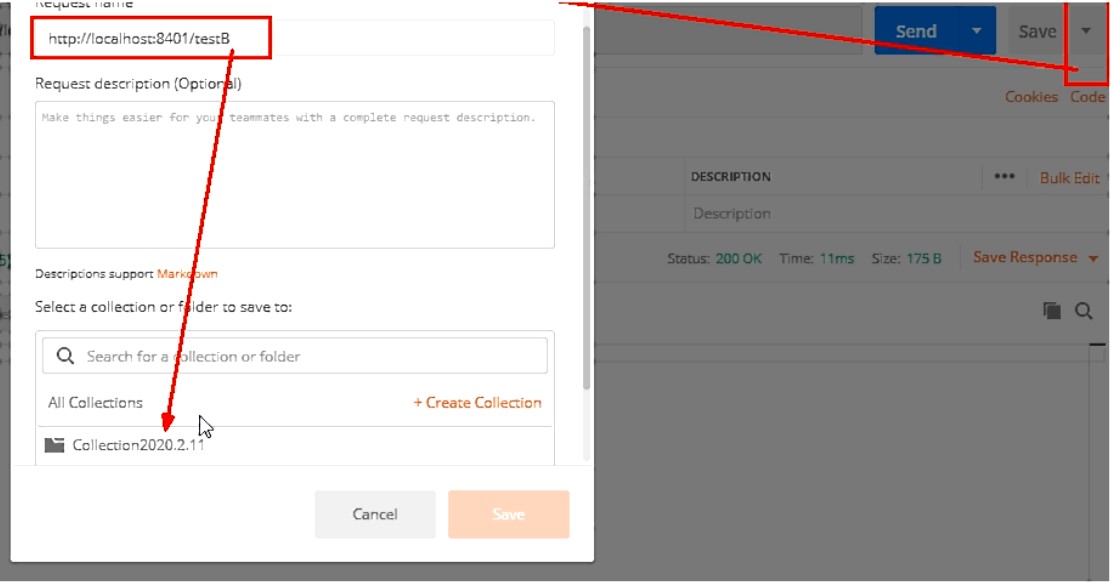

postman里新建多线程集合组

将 /testB的 url添加进线程组

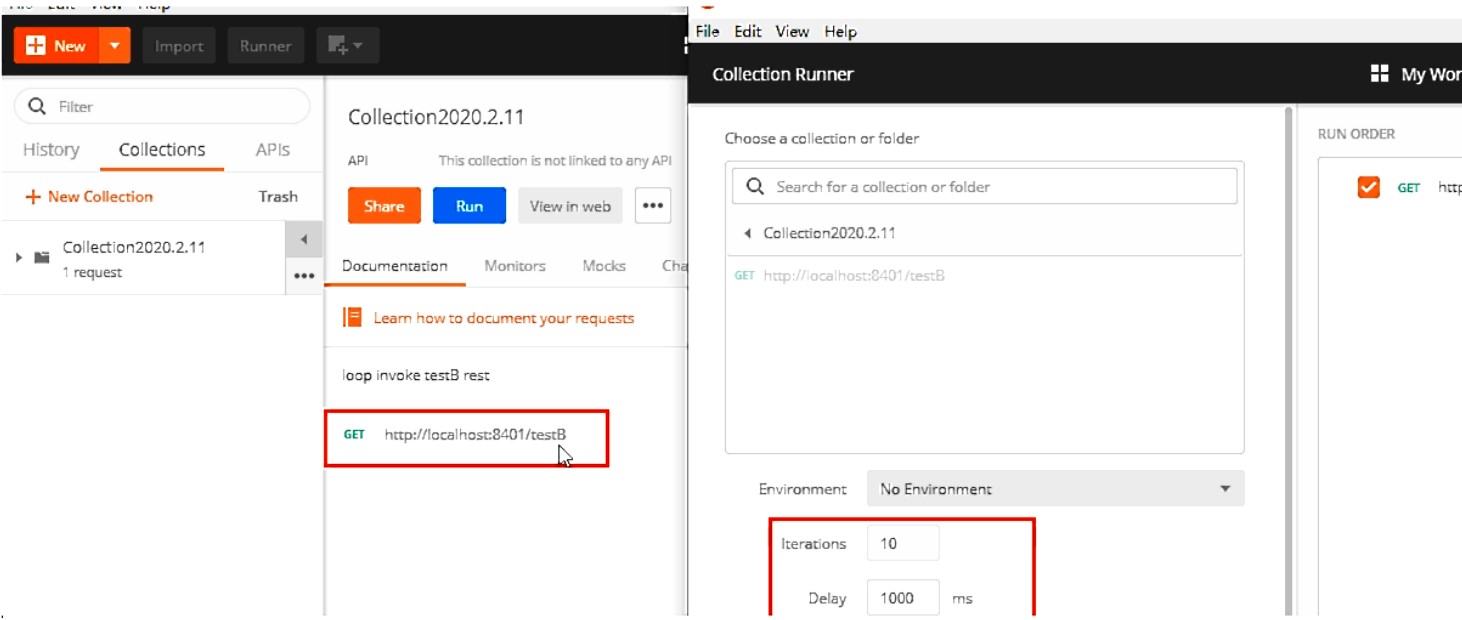

接着启动线程组
postMan 线程组运行期间，接着去访问testA  http://localhost:8401/testA, 发现testA挂了
页面结果  Blocked by Sentinel (flow limiting)
结论 大批量线程高并发访问B，导致A失效了

链路 (待补充)

多个请求调用了同一个微服务

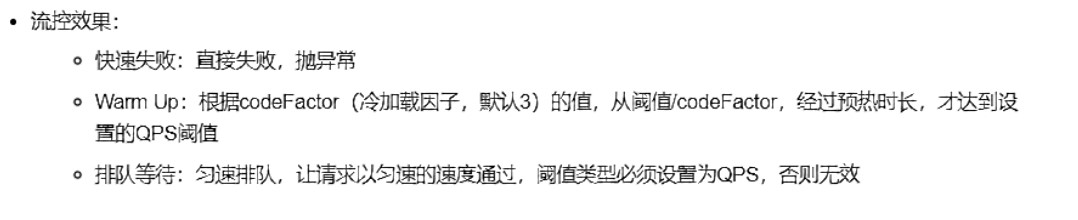

流控效果

直接->快速失败（默认的流控处理）

直接失败，抛出异常，Blocked by Sentinel (flow limiting)
源码相应的类如下：
com.alibaba.csp.sentinel.slots.block.flow.controller.DefaultController

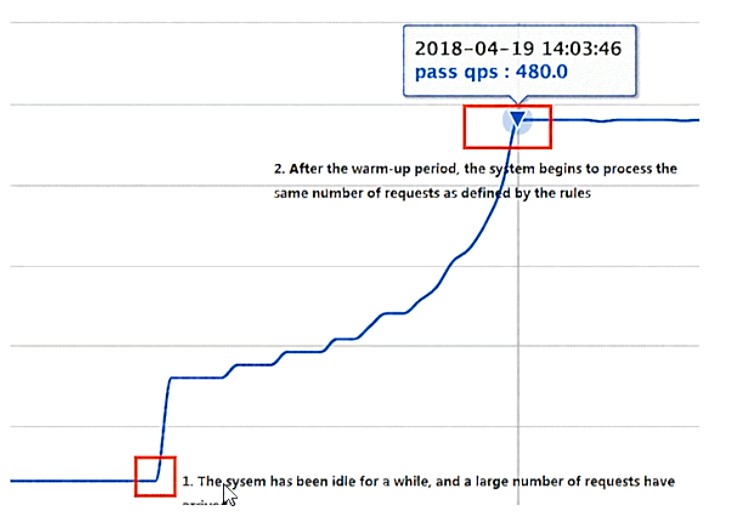

预热

基本介绍

就是平时不怎么访问的资源，例如，秒杀的东西，突然急剧上升，用预热搞得让进来的请求慢慢的处理完，而不是一下子请求这么多导致系统崩溃

公式：阈值除以coldFactor（默认值为3），经过预热时长后才会达到阈值
默认coldFactor为3，即请求QPS从threshold/3开始，经预热时长逐渐升至设定的QPS阈值。

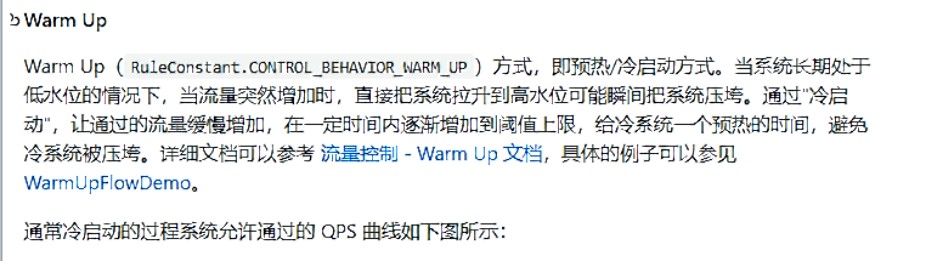

官网

官网链接  限流 冷启动

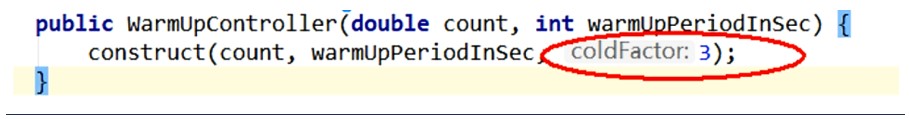

源码

com.alibaba.csp.sentinel.slots.block.flow.controller.WarmUpController

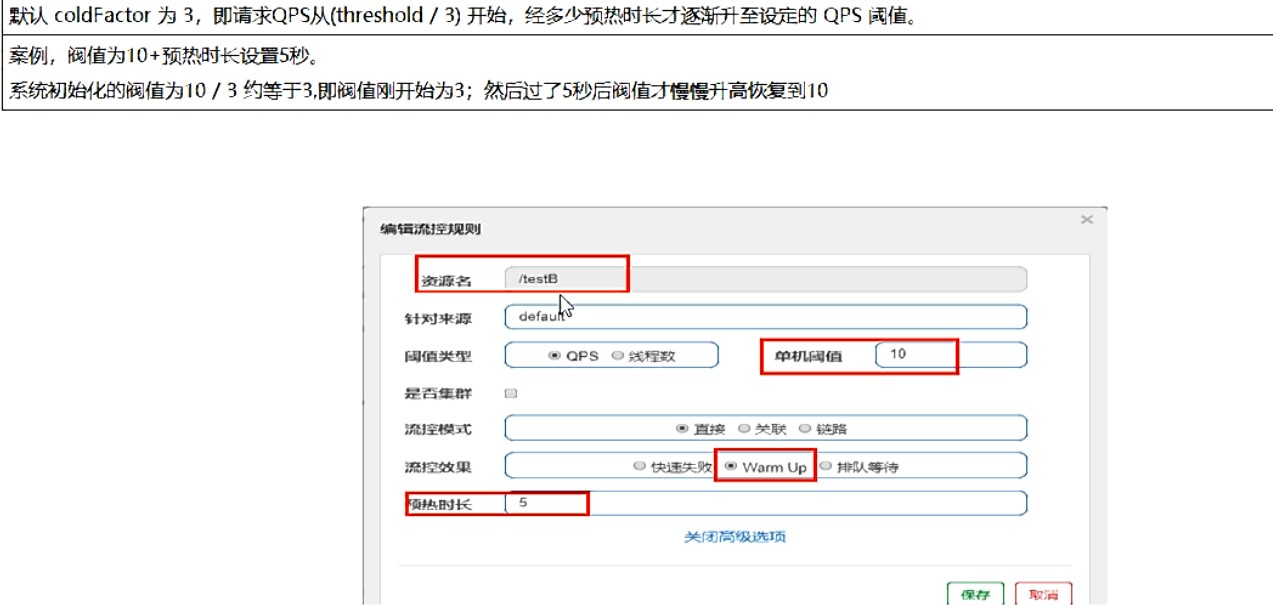

wakeup配置


测试

多次点击http://localhost:8401/testB
刚开始不行，后续慢慢OK

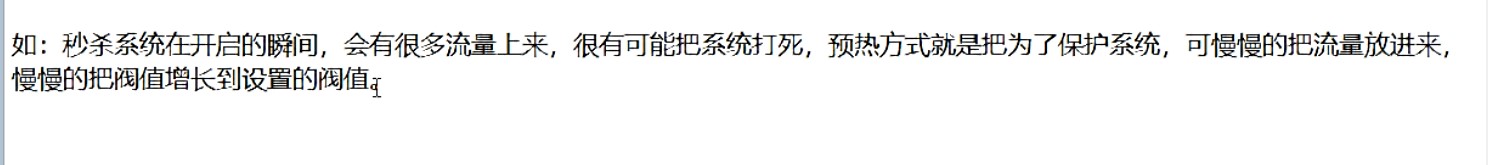

应用场景

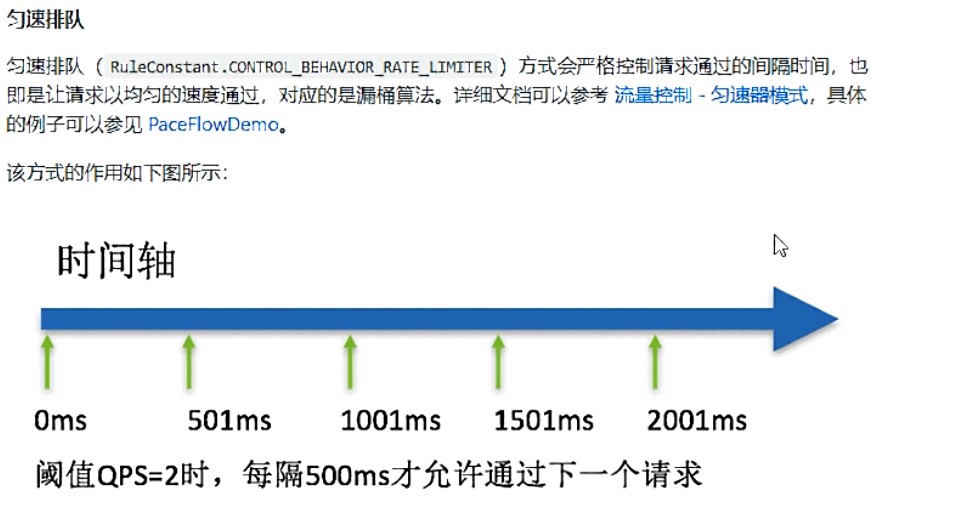

排队等待

基本介绍

匀速排队，阈值必须设置为QPS

官网


源码

com.alibaba.csp.sentinel.slots.block.flow.controller.RateLimiterController

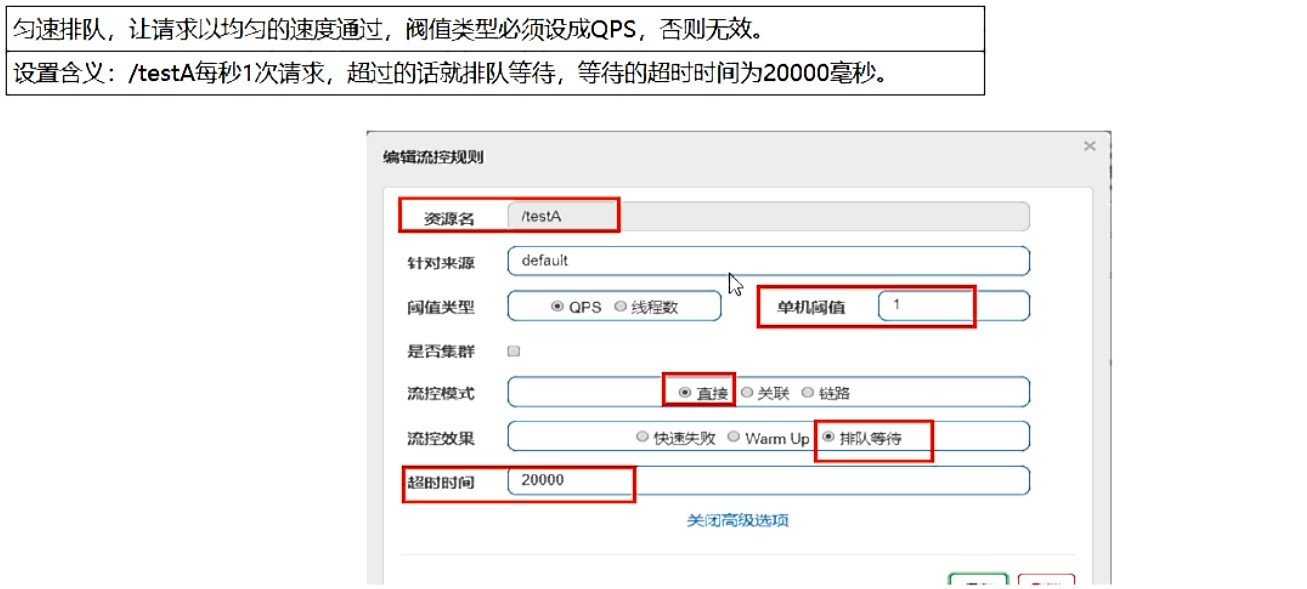

配置


测试

用postman测试，1秒一个

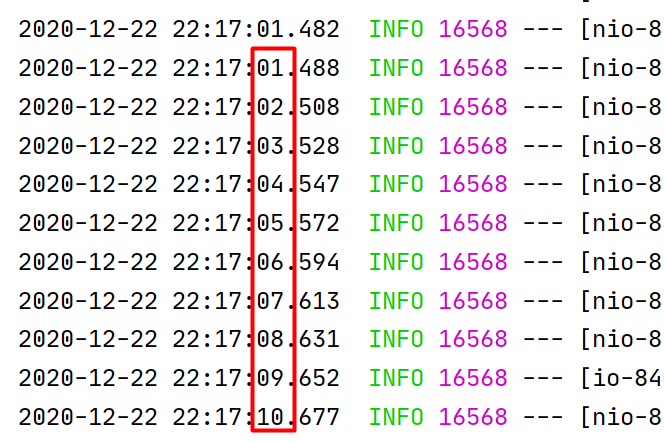

看后台，打印的匀速测试，1秒通过一个


5.降级规则


基本介绍


这三个降级规则条件满足，都是两个条件，并列条件，都满足才会触发

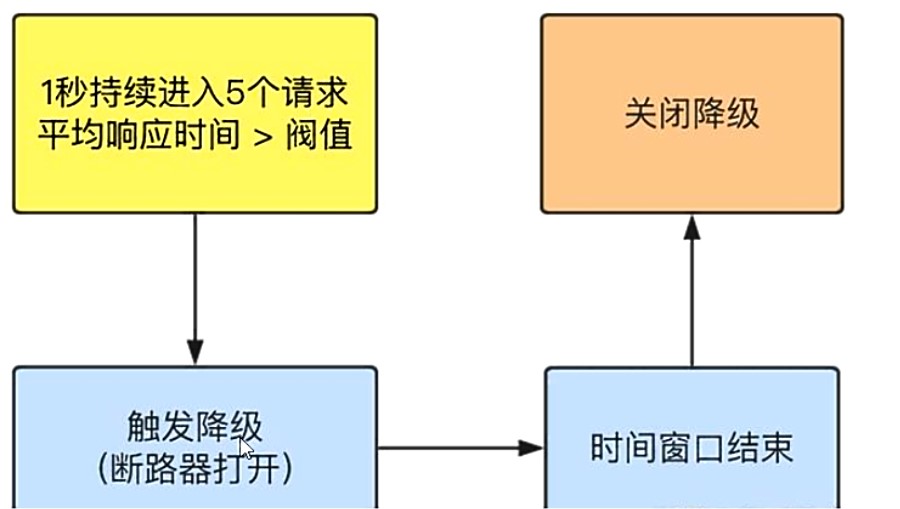

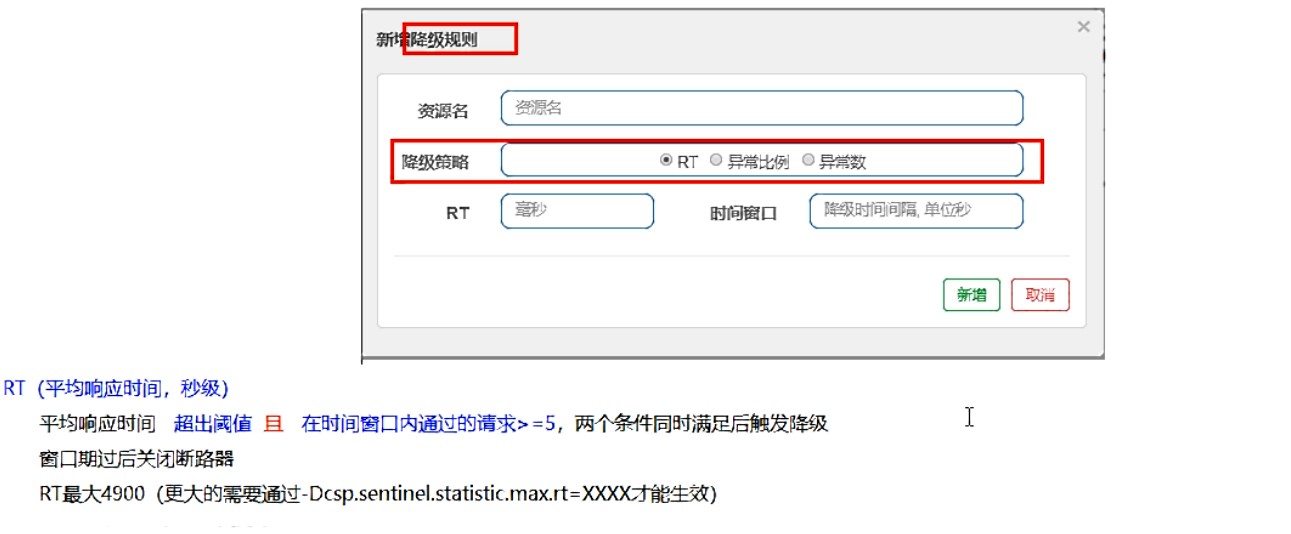

RT (平均相应时间，秒级)


在cloudalibaba-sentinel-service8401 添加一个测试方法
  @GetMapping("/testD")
    public String testD() {
        //测试RT 平均响应时间 ，如果这么多个请求，你的响应时间都大于设置的平均响应时间
        //就降级
        try {
            TimeUnit.SECONDS.sleep(1); //睡一秒
         } catch (InterruptedException e) {
            e.printStackTrace();
        }
        log.info("testD 测试RT");

        return "------testD";
    }

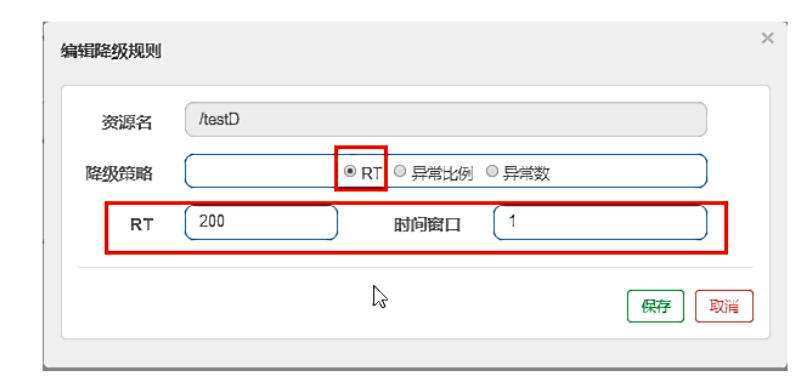

配置
测试

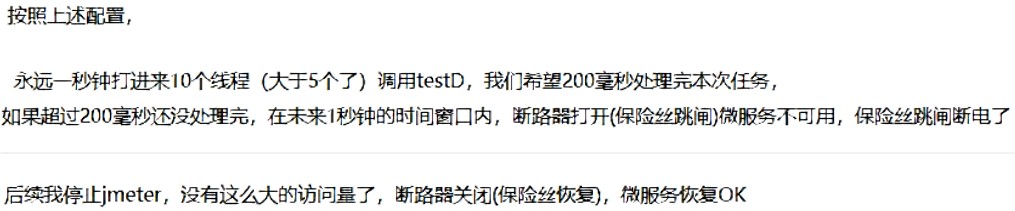

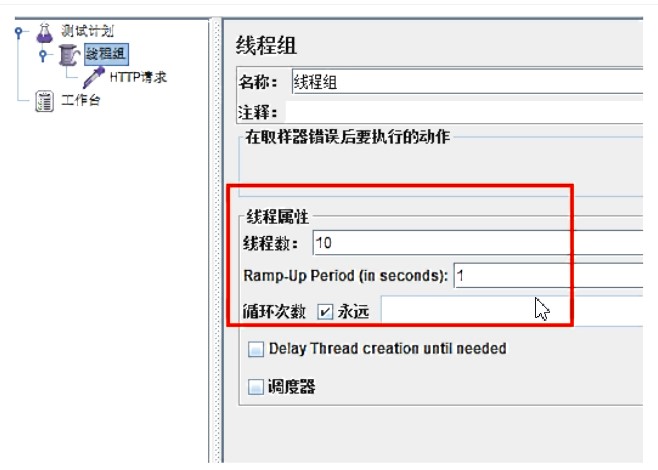

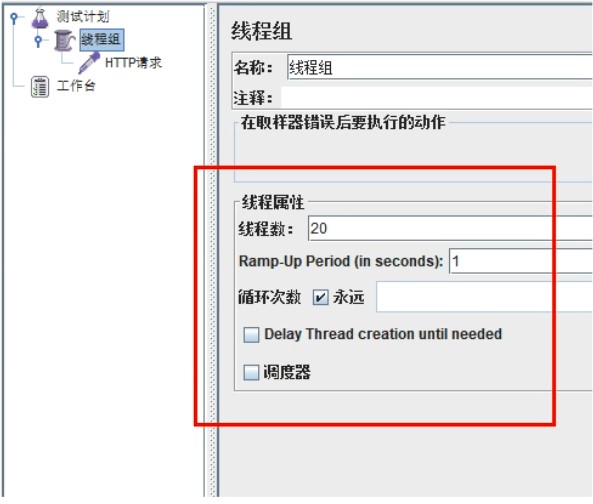

接着jmeter压测，一秒发10个请求访问 testD

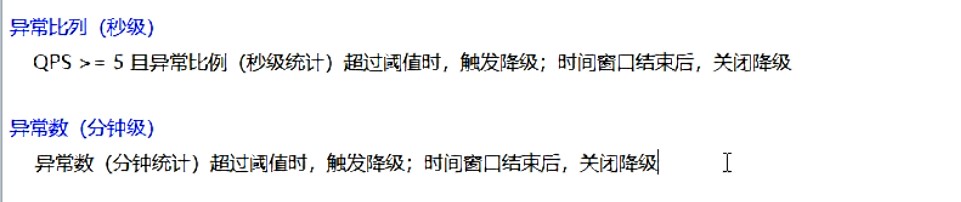

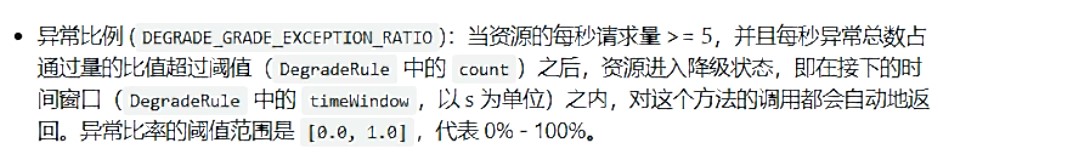

异常比例

在cloudalibaba-sentinel-service8401 添加一个测试方法
 @GetMapping("/testD")
    public String testD() {
        //测试异常比例
        int i = 1/0;
        log.info("testD 测试异常比例");
        return "------testD";
    }

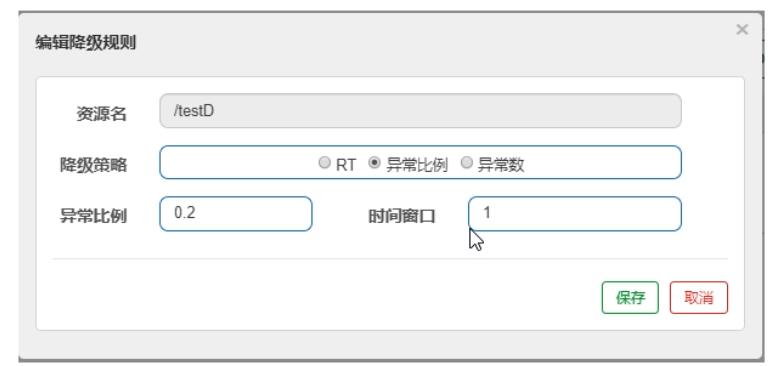

配置
测试

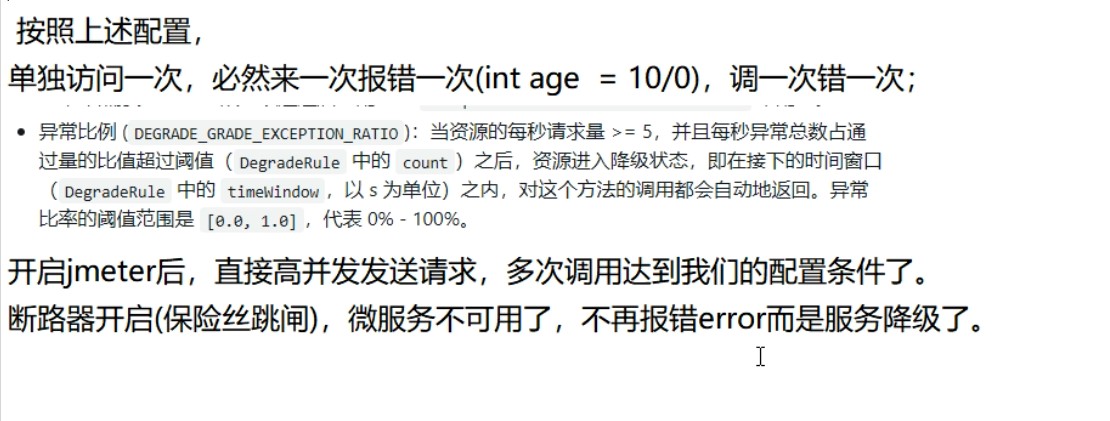

jmeter压测
结果

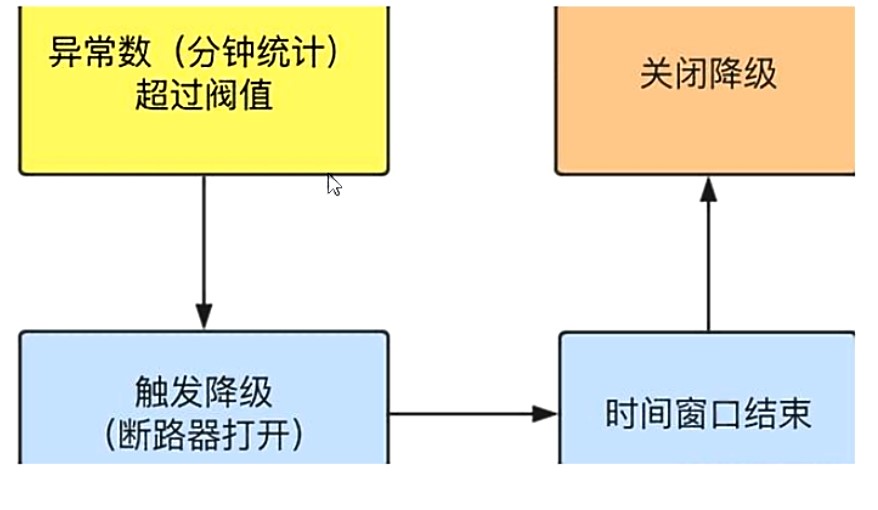

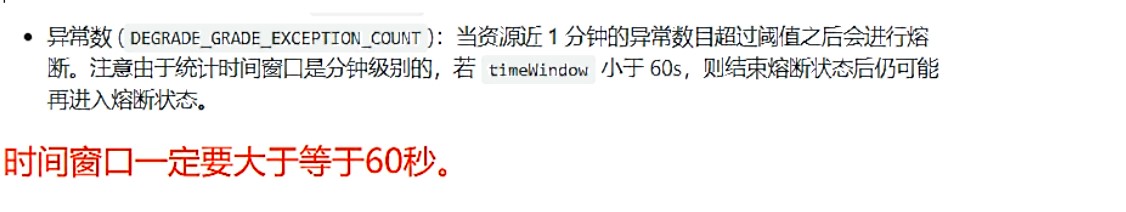

异常数

异常数是按照分钟统计的
  //testE 测试异常数
    @GetMapping("/testE")
    public String testE() {
        log.info("testE 测试异常数");
        int age = 10/0;
        return "------testE 测试异常数";
    }

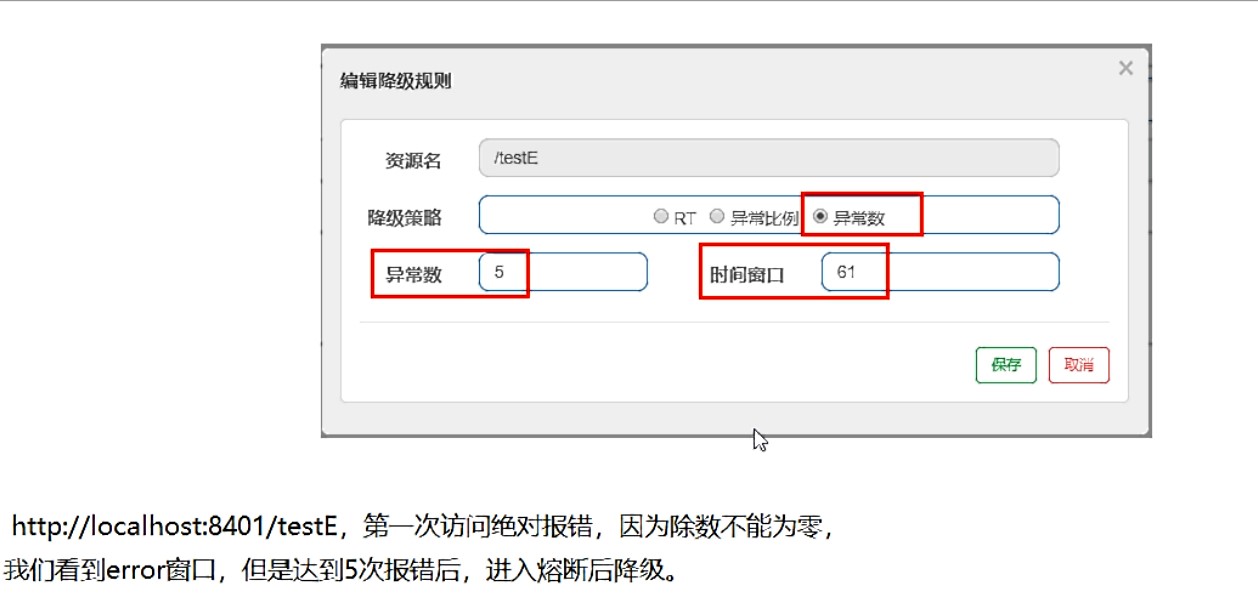

配置
测试
直接浏览器，访问成功，点多几次就不报错了，直接跳sentinel的 Blocked by Sentinel (flow limiting)

6.热点key限流

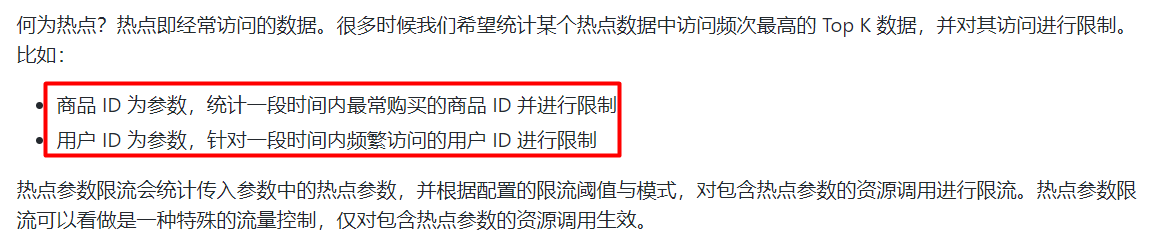

官网
本次案例用一下 @SentinelResource

不符合配置规则的异常 com.alibaba.csp.sentinel.slots.block.BlockException

在cloudalibaba-sentinel-service8401 添加一个测试方法
 //热点key测试
    @GetMapping("/testHotKey")
    //这里的value,就是热点规则，配置的资源名
    @SentinelResource(value = "testHotKey",blockHandler = "deal_testHotKey")
    public String testHotKey(@RequestParam(value = "p1",required = false) String p1,
                             @RequestParam(value = "p2",required = false) String p2) {
        //int age = 10/0;
        return "------testHotKey";
    }

    //兜底方法
    public String deal_testHotKey (String p1, String p2, BlockException exception){
        return "------deal_testHotKey,o(╥﹏╥)o";
    }

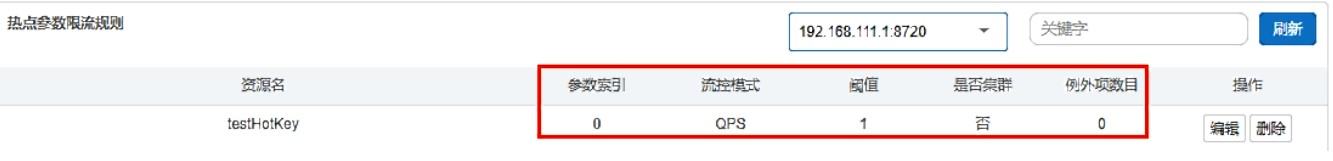

配置
这里我们直接添加资源名的限流规则

资源名和默认的url区别

  • 资源名就是@SentinelResource，设置的value值，是没有 / 的，这个才能配置走我们自定义的
  • 而默认的url,是有 / 的          url方式走不了自定义兜底

参数索引说明

// 从0 开始  即p1 是索引是0 , p2 是索引是1
@RequestParam(value = "p1",required = false) String p1,
@RequestParam(value = "p2",required = false) String p2
就是带有第一个参数 p1 访问的就限流
http://localhost:8401/testHotKey?p1=abc     //限流
http://localhost:8401/testHotKey?p1=abc&p2=33   //限流
http://localhost:8401/testHotKey?p2=abc    //不限流


测试
@SentinelResource(value = "testHotKey")
没有配置自定义的blockBack，返回的是Blocked by Sentinel (flow limiting)

@SentinelResource(value = "testHotKey",blockHandler = "deal_testHotKey")
方法testHostKey里面第一个参数只要QPS超过每秒1次，马上降级处理，配置了blockBack，走自定义的blockBack

参数例外项

特殊情况说明

上述案例演示了第一个参数p1,当QPS超过1秒1次点击后马上被限流
  • 超过1秒钟一个后，达到阈值1后马上被限流
  • 我们期望p1参数当它是某个特殊值时，它的限流值和平时不一样
  • 假如当p1的值等于5时，它的阈值可以达到200

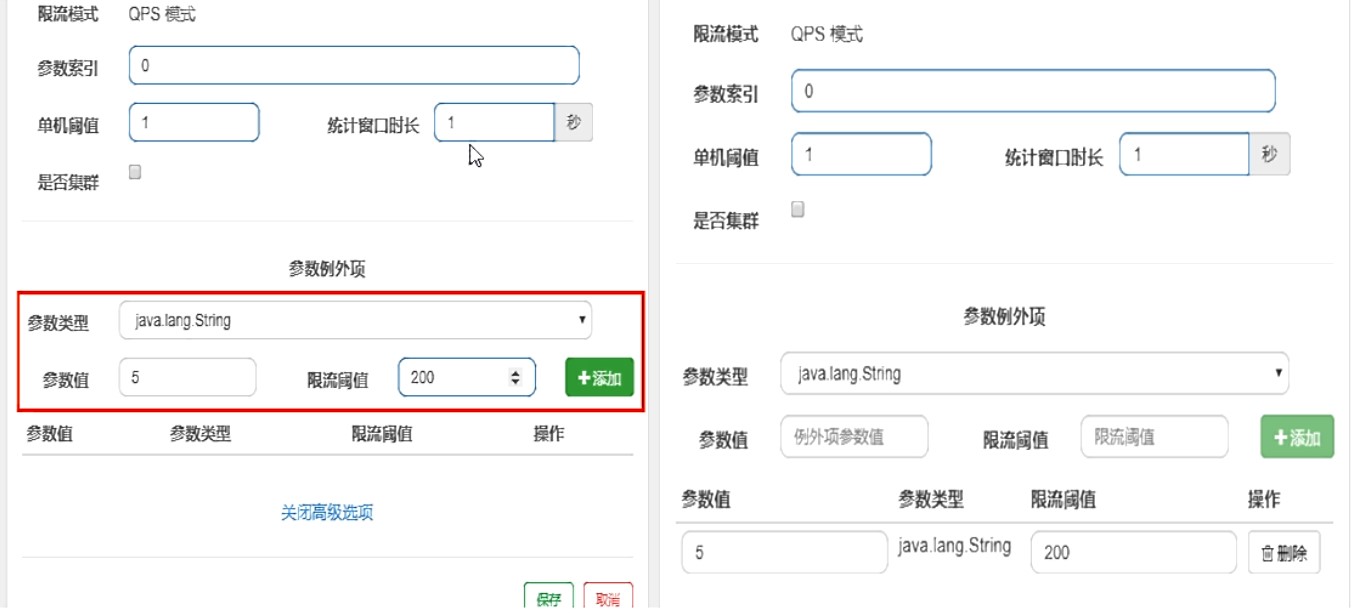

配置

写好参数值等相应参数，就点击添加按钮

测试

疯狂访问这个
http://localhost:8401/testHotKey?p1=5  //不限流   当p1等于5的时候，阈值变为200
http://localhost:8401/testHotKey?p1=3 //被限流   当p1不等于5的时候，阈值就是平常的1
热点参数的注意点，参数必须是基本类型或者String

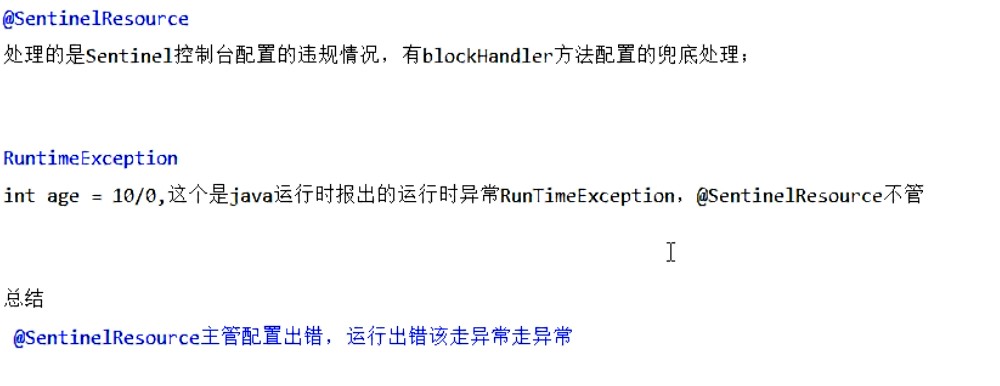

其他

手贱添加异常看看....   异常的兜底后面讲

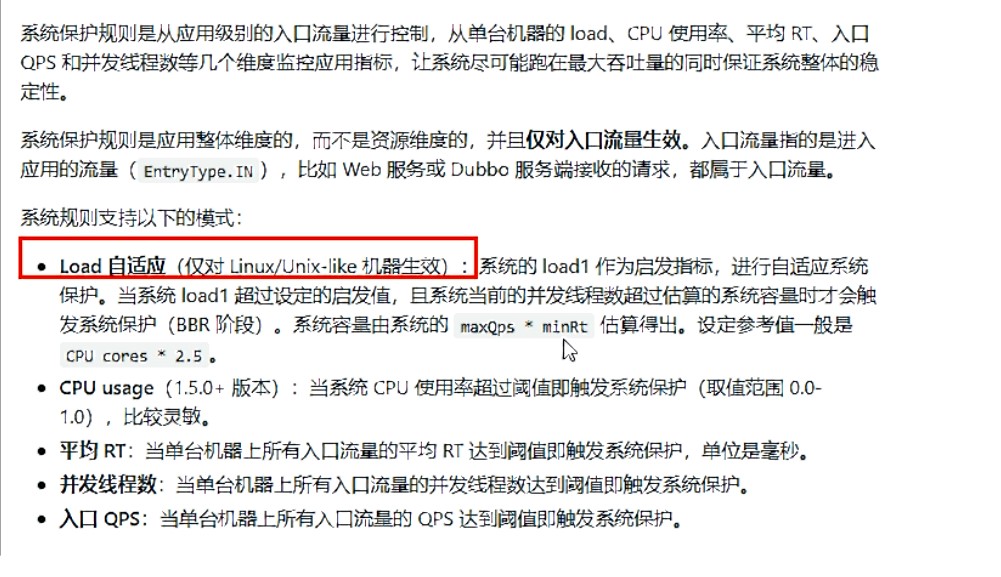

7.系统规则

就是整体的全部 的相应配置  统一配置的意思   这个还是少用
可以配置全局QPS  来玩下


8.@SentinelResource

按资源名称限流+后续处理

启动Nacos成功,启动Sentinel成功
在cloudalibaba-sentinel-service8401
pom
 <dependency><!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
     <groupId>com.chl.springcloud</groupId>
     <artifactId>cloud-api-commons</artifactId>
     <version>1.0-SNAPSHOT</version>
</dependency>
yml
server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848  #注册到nacos
    sentinel:
      transport:
        dashboard: localhost:8080 #sentinal的控制面板
        port: 8719  #默认8719，假如被占用了会自动从8719开始依次+1扫描。直至找到未被占用的端口

#暴露这个，被监控
management:
  endpoints:
    web:
      exposure:
        include: '*'
业务类
@RestController
@Slf4j
public class FlowLimitController {
    //测试资源名 走自定义兜底方法
    //测试兜底的方法
    @GetMapping("/byResource")
    @SentinelResource(value = "byResource",blockHandler = "handleException")
    public CommonResult byResource() {
        return new CommonResult(200,"按资源名称限流测试OK",new Payment(2020L,"serial001"));
    }
    public CommonResult handleException(BlockException exception) {
        return new CommonResult(444,exception.getClass().getCanonicalName()+"\t 服务不可用");
    }
}

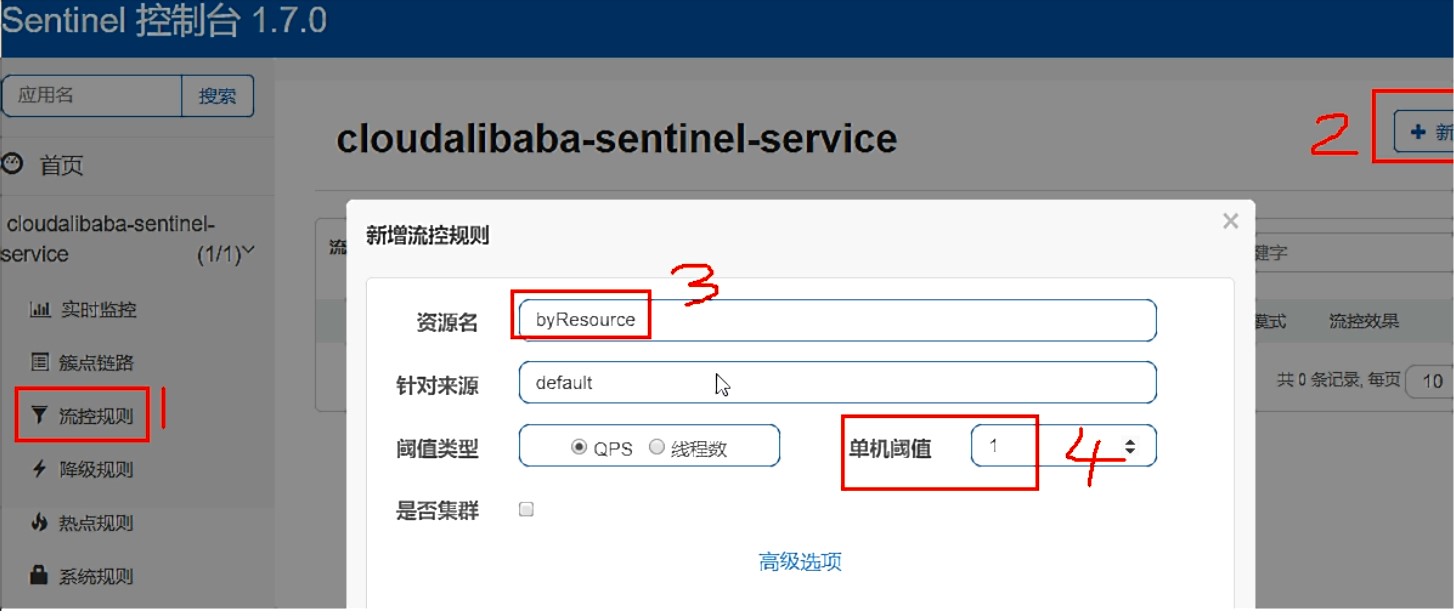

配置

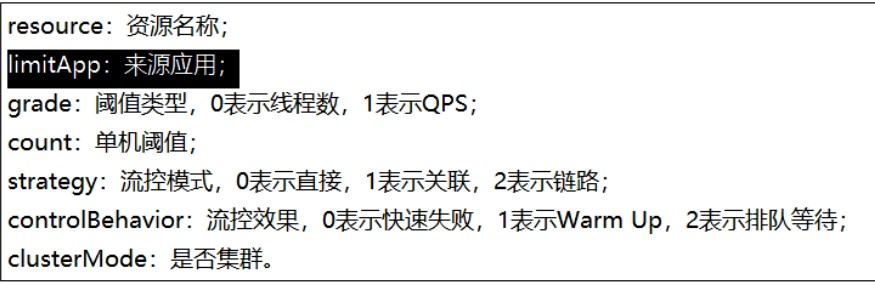

图形配置和代码关系：
表示1秒钟内查询次数大于1，就跑到我们自定义的处流，限流

测试
  • 1秒钟点击1下，OK
  • 超过上述问题，疯狂点击，返回了自己定义的限流处理信息，限流发送

额外问题

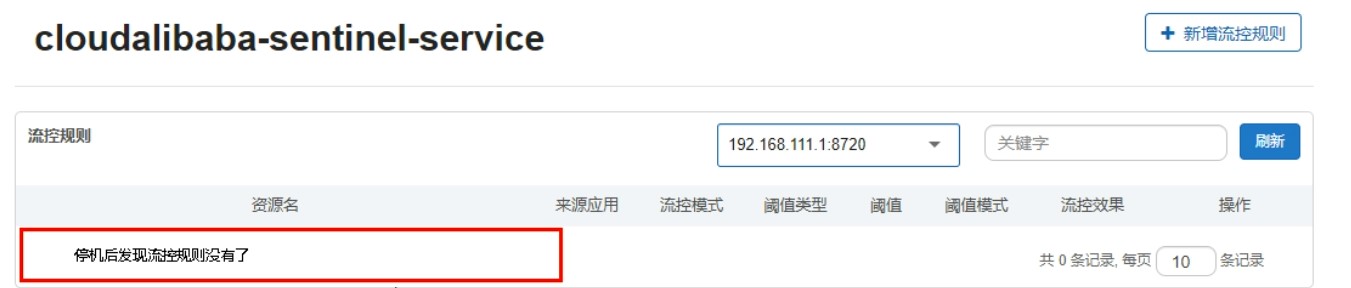

此时关闭微服务8401看看，Sentinel控制台，流控规则消失了？？？？？  临时/持久？
所以就是临时的

按照Url地址限流+后续处理

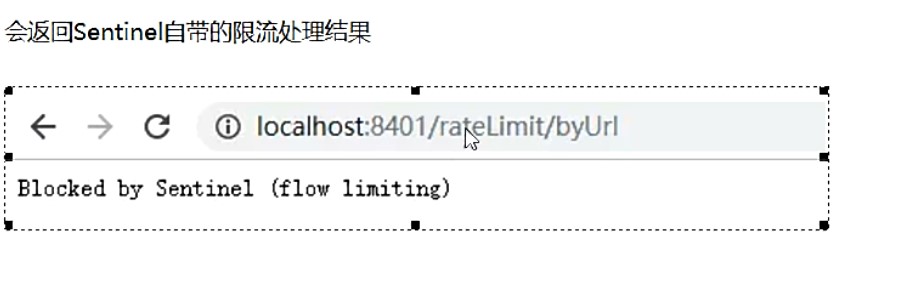

通过访问的URL来限流，会返回Sentinel自带默认的限流处理信息
添加测试代码
 //测试url 走的默认兜底方法
    @GetMapping("/rateLimit/byUrl")
    @SentinelResource(value = "byUrl")
    public CommonResult byUrl() {
        return new CommonResult(200,"按url限流测试OK",new Payment(2020L,"serial002"));
    }

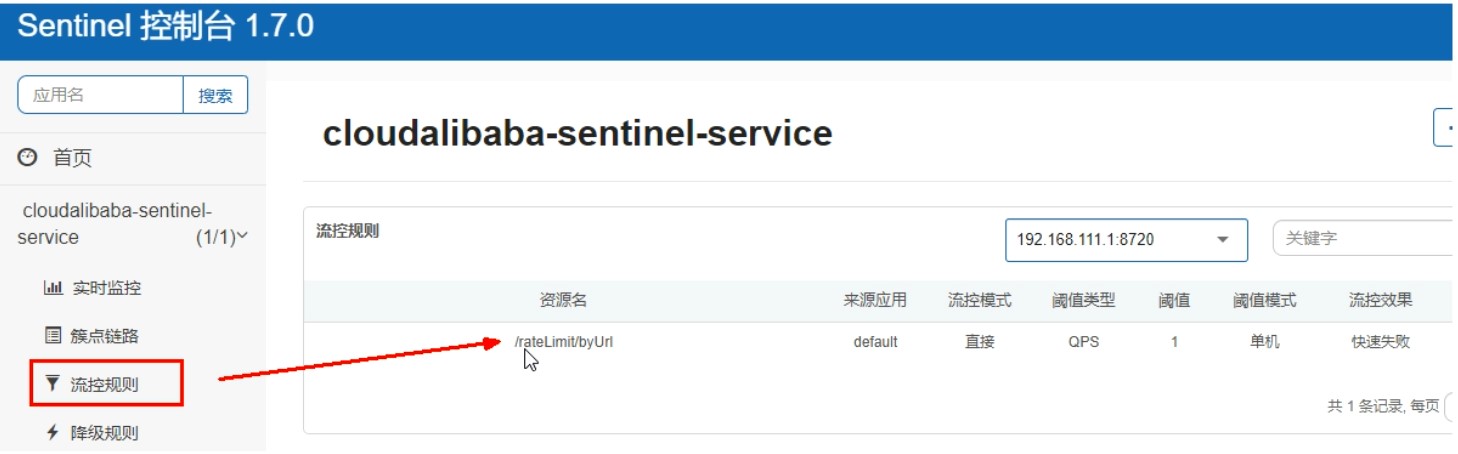

访问一次这个链接，控制台就出现了

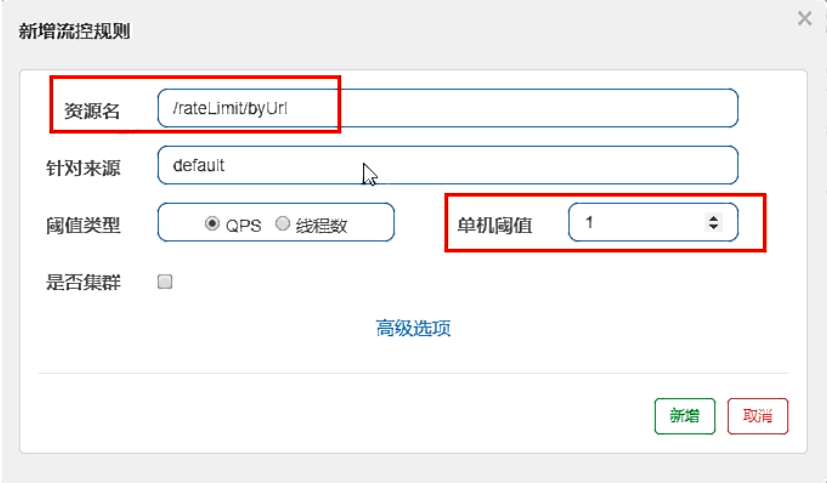

配置

测试
疯狂点击http://localhost:8401/rateLimit/byUrl

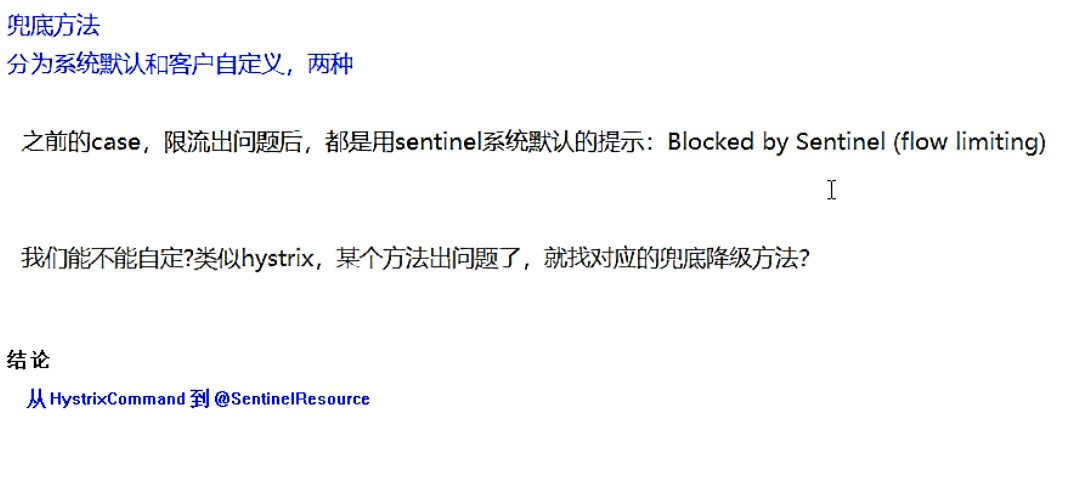

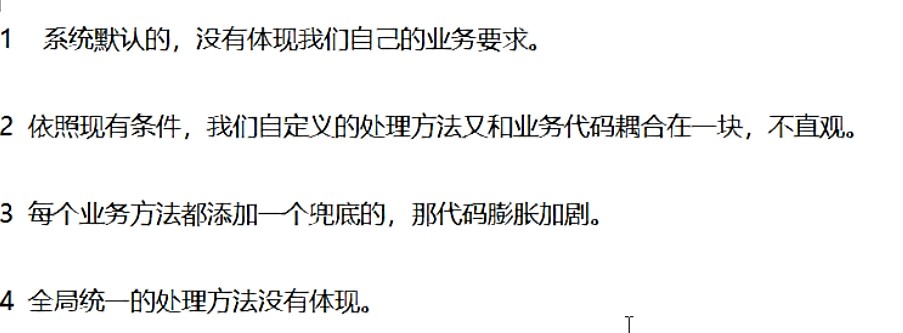

上面兜底方法面临的问题


客户自定义限流处理逻辑

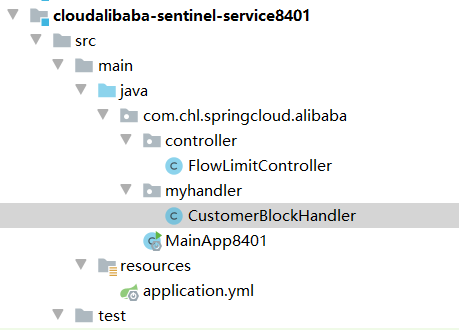

创建customerBlockHandler类用于自定义限流处理逻辑
自定义限流处理类
//自定义兜底的方法 要写静态的
public class CustomerBlockHandler {

    //兜底方法1
    public static CommonResult handleException(BlockException exception) {
        return new CommonResult(2020, "自定义限流处理信息....CustomerBlockHandler");

    }

    //兜底方法2
    public static CommonResult handlerException2(BlockException exception) {
        return new CommonResult(2020, "自定义限流处理信息....CustomerBlockHandler2");

    }
}

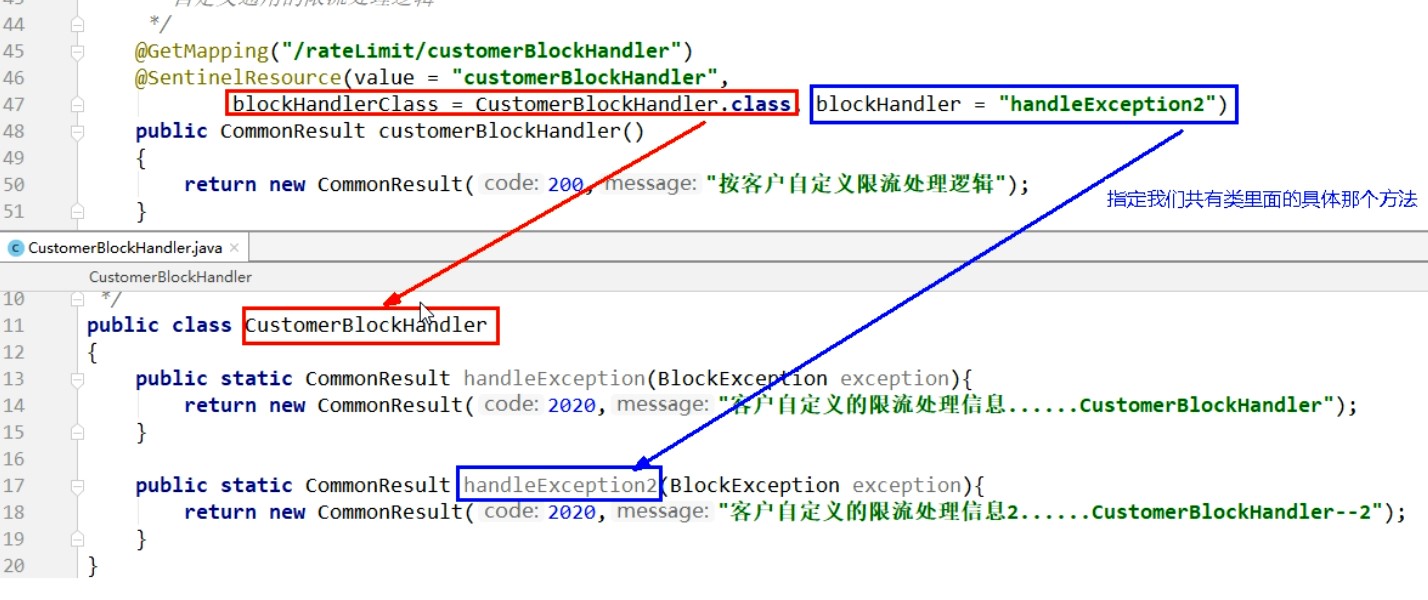

在RateLimitController添加测试方法
//测试走用户自定义限流的 ，实现代码也业务类分离
    @GetMapping("/rateLimit/customerBlockHandler")
    @SentinelResource(value = "customerBlockHandler",
            blockHandlerClass = CustomerBlockHandler.class, //兜底的类
            blockHandler = "handlerException2") //兜底的哪个方法
    public CommonResult customerBlockHandler() {
        return new CommonResult(200,"按客戶自定义",new Payment(2020L,"serial003"));
    }
启动微服务后先调用一次
配置
直接设置普通的限流 阀值 1
测试
我们自定义的出来了，访问我们自定义的兜底类，和相应的兜底方法
进一步说明

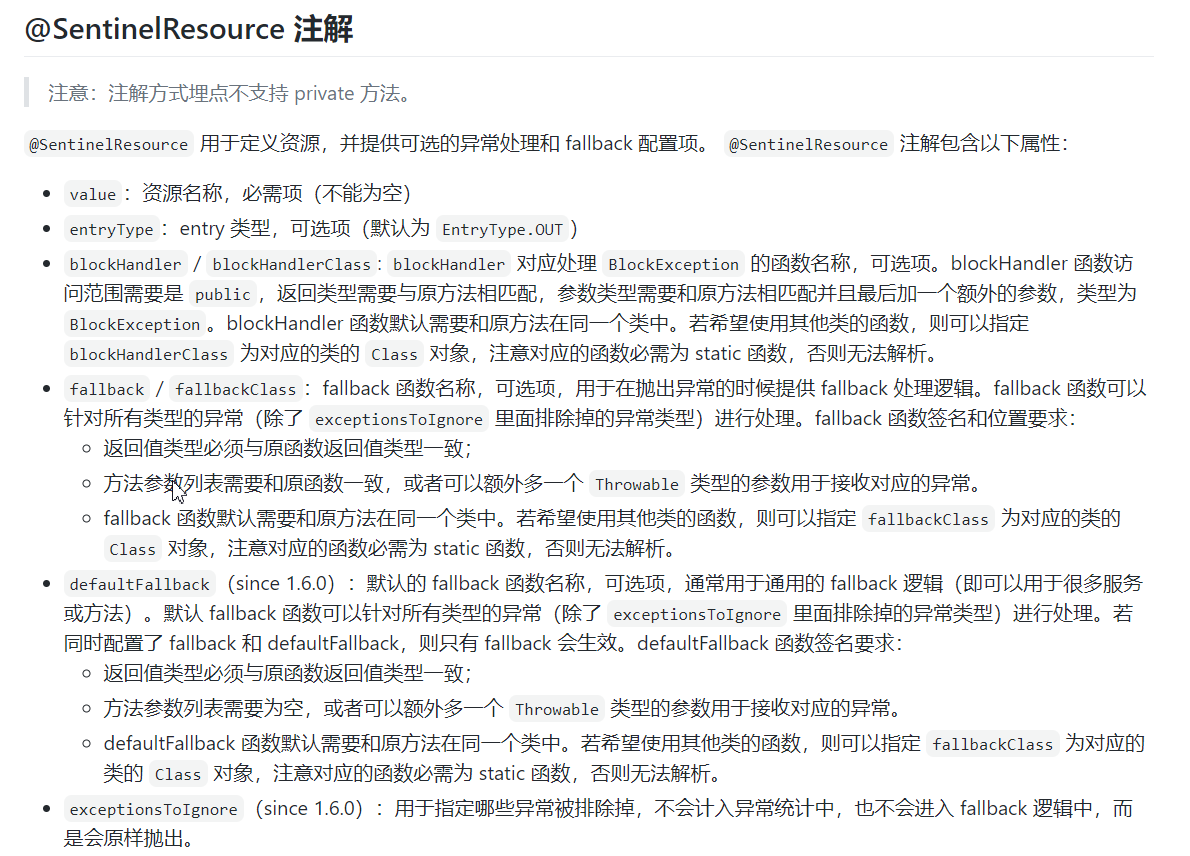

更多注解属性说明

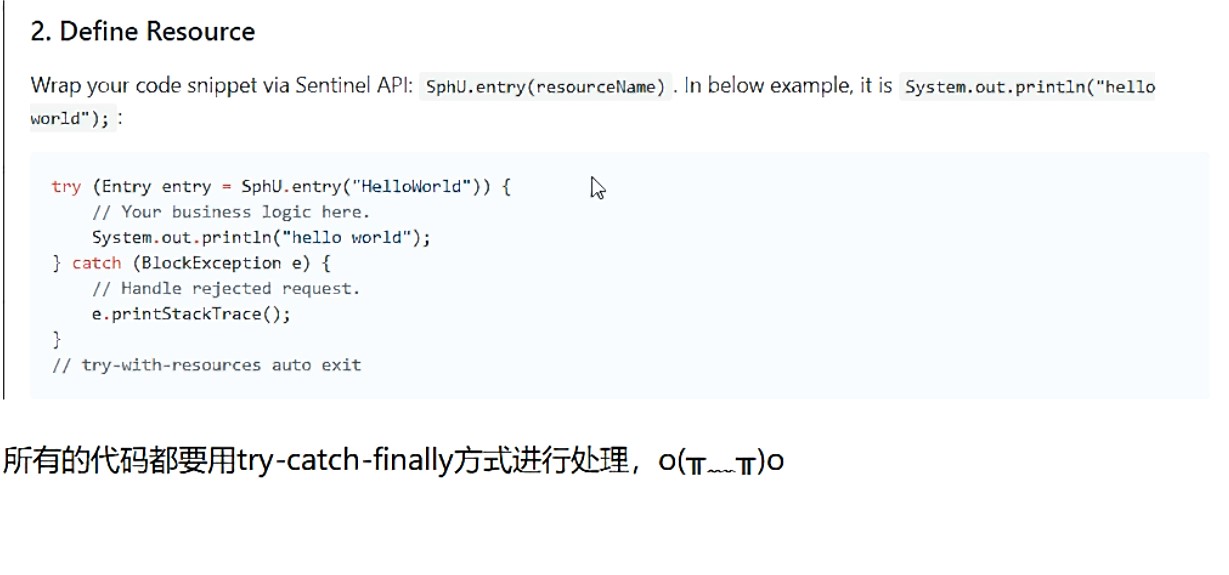

Java代码形式配置（了解即可）

Sentinel主要有三个核心API
  • SphU定义资源
  • Tracer定义统计
  • ContextUtil定义了上下文

9.服务熔断

整合ribbon

启动nacos和sentinel
新建模块cloudalibaba-provider-payment9003/9004
pom
<dependencies>
        <!--SpringCloud ailibaba nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency><!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
            <groupId>com.chl.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

yml
server:     #记得修改不同的端口号   9003 / 9004
  port: 9003

spring:
  application:
    name: nacos-payment-provider
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #配置Nacos地址
#暴露端口被监控
management:
  endpoints:
    web:
      exposure:
        include: '*'
主启动
@SpringBootApplication
@EnableDiscoveryClient
public class PaymentMain9003 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain9003.class, args);
    }
}
业务类

@RestController
public class PaymentController {
    @Value("${server.port}")
    private String serverPort;

    public static HashMap<Long, Payment> hashMap = new HashMap<>();
    static{
        hashMap.put(1L,new Payment(1L,"28a8c1e3bc2742d8848569891fb42181"));
        hashMap.put(2L,new Payment(2L,"bba8c1e3bc2742d8848569891ac32182"));
        hashMap.put(3L,new Payment(3L,"6ua8c1e3bc2742d8848569891xt92183"));
    }

    @GetMapping(value = "/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id){
        Payment payment = hashMap.get(id);
        CommonResult<Payment> result = new CommonResult(200,"from mysql,serverPort:  "+serverPort,payment);
        return result;
    }

}
测试地址

新建cloudalibaba-consumer-nacos-order84
pom

<dependencies>
        <!--open feign的依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--nacos-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--setinel监控-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>
        <dependency>
            <groupId>com.chl.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
yml
server:
  port: 84
spring:
  application:
    name: nacos-order-consumer
  cloud:
    nacos:   #注册进nacos
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:  #受sentinel的监控
        dashboard: localhost:8080
        port: 8719

service-url:
  nacos-user-service: http://nacos-payment-provider

#暴露这个，被监控
management:
  endpoints:
    web:
      exposure:
        include: '*'
启动类
@EnableDiscoveryClient
@SpringBootApplication
public class OrderNacosMain84 {
    public static void main(String[] args) {
        SpringApplication.run(OrderNacosMain84.class, args);
    }
}
业务类
ribbon,要使用restTemplate
@Configuration
public class ApplicationContextConfig {

    //注入restTemplate
    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate() {
        return new RestTemplate();
    }
}
CircleBreakerController
@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;

    @RequestMapping("/consumer/fallback/{id}")
    //@SentinelResource(value = "fallback") //没有配置
    //单单测试异常兜底 fallback
    //@SentinelResource(value = "fallback",fallback = "handlerFallback") //fallback只负责业务异常
    //单单测试限流兜底  blockHandler
    //@SentinelResource(value = "fallback",blockHandler = "blockHandler") //blockHandler只负责sentinel控制台配置违规
    //同时测试  fallback blockHandler
    @SentinelResource(value = "fallback",fallback = "handlerFallback",blockHandler = "blockHandler",
           exceptionsToIgnore = {IllegalArgumentException.class} //测试哪个异常排除，不走异常兜底的方法
           )
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }

    //fallback  处理异常的 兜底
    public CommonResult handlerFallback(@PathVariable  Long id,Throwable e) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(444,"兜底异常handlerFallback,exception内容  "+e.getMessage(),payment);
    }

    //blockHandler  处理降级的 兜底
    public CommonResult blockHandler(@PathVariable  Long id, BlockException blockException) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(445,"blockHandler-sentinel限流,无此流水: blockException  "+blockException.getMessage(),payment);
    }
}
热部署对java代码级生效及时，对@SentinelResource注解内属性，有时效果不好
修改@SentinelResource后，请重启微服务

fallBack和blockHandler

  • fallback管运行异常
  • blockHandler管配置违规

测试地址

测试

没有任何配置

给客户error页面，不友好
@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;

    @RequestMapping("/consumer/fallback/{id}")
    @SentinelResource(value = "fallback") //没有配置
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }
}


只配置fallback

出现异常，走异常的兜底
@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;

    @RequestMapping("/consumer/fallback/{id}")
    //单单测试异常兜底 fallback
    @SentinelResource(value = "fallback",fallback = "handlerFallback") //fallback只负责业务异常
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }

    //fallback  处理异常的 兜底
    public CommonResult handlerFallback(@PathVariable  Long id,Throwable e) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(444,"兜底异常handlerFallback,exception内容  "+e.getMessage(),payment);
    }

}


只配置blockHandler

服务降级，走降级的兜底
@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;

    @RequestMapping("/consumer/fallback/{id}")
    //单单测试限流兜底  blockHandler
    //@SentinelResource(value = "fallback",blockHandler = "blockHandler") //blockHandler只负责sentinel控制台配置违规
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }

    //blockHandler  处理降级的 兜底
    public CommonResult blockHandler(@PathVariable  Long id, BlockException blockException) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(445,"blockHandler-sentinel限流,无此流水: blockException  "+blockException.getMessage(),payment);
    }
}


fallback和blockHandler都配置

  • 正常符合限流规则的访问，走异常的兜底
  • 当不符合限流的配置，就走限流的兜底
@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;

    @RequestMapping("/consumer/fallback/{id}")
    //同时测试  fallback blockHandler
    @SentinelResource(value = "fallback",fallback = "handlerFallback",blockHandler = "blockHandler")
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }

    //fallback  处理异常的 兜底
    public CommonResult handlerFallback(@PathVariable  Long id,Throwable e) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(444,"兜底异常handlerFallback,exception内容  "+e.getMessage(),payment);
    }

    //blockHandler  处理降级的 兜底
    public CommonResult blockHandler(@PathVariable  Long id, BlockException blockException) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(445,"blockHandler-sentinel限流,无此流水: blockException  "+blockException.getMessage(),payment);
    }
}

忽略属性

就是哪个异常不走异常兜底  方便排查错误
@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;

    @RequestMapping("/consumer/fallback/{id}")
    //同时测试  fallback blockHandler
    @SentinelResource(value = "fallback",fallback = "handlerFallback",blockHandler = "blockHandler",
           exceptionsToIgnore = {IllegalArgumentException.class} //测试哪个异常排除，不走异常兜底的方法
           )
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }

    //fallback  处理异常的 兜底
    public CommonResult handlerFallback(@PathVariable  Long id,Throwable e) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(444,"兜底异常handlerFallback,exception内容  "+e.getMessage(),payment);
    }

    //blockHandler  处理降级的 兜底
    public CommonResult blockHandler(@PathVariable  Long id, BlockException blockException) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(445,"blockHandler-sentinel限流,无此流水: blockException  "+blockException.getMessage(),payment);
    }
}

整合openFeign

修改cloudalibaba-consumer-nacos-order84 模块
pom  添加openFeign的依赖
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
yml   打开对Feign的支持
server:
  port: 84
spring:
  application:
    name: nacos-order-consumer
  cloud:
    nacos:   #注册进nacos
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:  #受sentinel的监控
        dashboard: localhost:8080
        port: 8719

service-url:
  nacos-user-service: http://nacos-payment-provider

#暴露这个，被监控
management:
  endpoints:
    web:
      exposure:
        include: '*'

#对Feign的支持
feign:
  sentinel:
    enabled: true
业务类
新建立feign的接口    PaymentService  并指定兜底的类
// feigin 指定哪个微服务
// fallback 执行feign 式的fallback
@FeignClient(value = "nacos-payment-provider",fallback = PaymentFallbackService.class)
public interface PaymentService {
    @GetMapping(value = "/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id);
}
实现PaymentService 用于  对feign接口调用的统一兜底方法
//实现feign的接口，来自定义兜底
@Component
public class PaymentFallbackService implements PaymentService {
    @Override
    public CommonResult<Payment> paymentSQL(Long id) {
        return new CommonResult<>(44444,"服务降级返回,---PaymentFallbackService",new Payment(id,"errorSerial"));
    }
}
在CircleBreakerController，添加测试方法
 // 测试和 OpenFeign 的整合 和openfeign整合的fallback
    @Resource
    private PaymentService paymentService;

    @GetMapping(value = "/consumer/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id) {
        return paymentService.paymentSQL(id);
    }
启动类
@EnableDiscoveryClient
@SpringBootApplication
@EnableFeignClients //开启openfeign
public class OrderNacosMain84 {
    public static void main(String[] args) {
        SpringApplication.run(OrderNacosMain84.class, args);
    }
}
测试
测试84调用9003，此时故意关闭9003微服务提供者，看84消费侧自动降级，不会被耗死

熔断框架的比较


10.规则持久化

一旦我们重启应用，Sentinel规则将消失，生产环境需要将配置规则进行持久化
官网建议我们将限流配置规则持久化进Nacos保存
只要刷新8401某个rest地址，sentinel控制台的流控规则就能看到，只要Nacos里面的配置不删除，针对8401上Sentinel上的流控规则持续有效

修改cloudalibaba-sentinel-service8401
pom
 <!--sentinel和nacos的整合 将sentinel的数据存到nocas-->
 <dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
 </dependency>
yml
server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848  #注册到nacos
    sentinel:
      transport:
        dashboard: localhost:8080 #sentinal的控制面板
        port: 8719  #默认8719，假如被占用了会自动从8719开始依次+1扫描。直至找到未被占用的端口
      datasource:   #这个是将就是 sentinel 将规则持久化到 nacos 的配置
        ds1:
          nacos:  #将这个微服务的限流存到 nacos的这个配置文件
            server-addr: localhost:8848
            dataId: cloudalibaba-sentinel-service #创建的dataId
            groupId: DEFAULT_GROUP
            data-type: json
            rule-type: flow
#暴露这个，被监控
management:
  endpoints:
    web:
      exposure:
        include: '*'

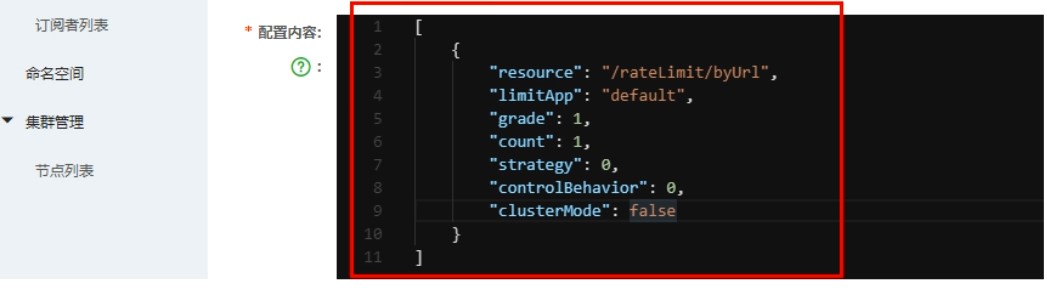

将业务规则配置添加进nacos的配置


内容解析

[
    {
         "resource": "/retaLimit/byUrl",
         "limitApp": "default",
         "grade":   1,
         "count":   1,
         "strategy": 0,
         "controlBehavior": 0,
         "clusterMode": false
    }
]

启动8401后，接着访问一下接口
刷新sentinel发现业务规则有了

测试
http://localhost:8401/rateLimit/byUrl    快速访问测试接口

停止8401再看sentinel

重新启动8401再看sentinel
扎一看还是没有，稍等一会儿
重新配置出现了，持久化验证通过





附件列表



    posted @ 2020-12-26 15:15  超极本online  阅读(393)  评论(0)    收藏  举报
