zedboard + AD-FMCOMMS3-EBZ AD9361 （二） matlab 支持包安装

旧版本支持包：适用于 R2014B 到 R2023B

Communications Toolbox Support Package for Xilinx Zynq-Based Radio - File Exchange - MATLAB Central

新版本支持包：R2024A 以及以后的版本

SoC Blockset Support Package for AMD FPGA and SoC Devices - File Exchange - MATLAB Central

对应文档

AMD FPGA and SoC Devices

参考官方文档，搭建 matlab 环境，写的非常详细

Set Up AMD FPGA and SoC Devices - MATLAB & Simulink

一、我的 matlab 2025b 因此安装 SoC Blockset Support Package for AMD FPGA and SoC Devices

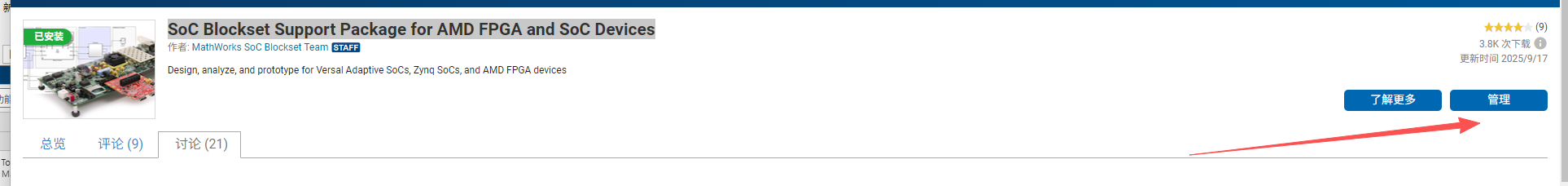

　　matlab 菜单栏→ 附加功能 → 安装 SoC Blockset Support Package for AMD FPGA and SoC Devices

二、进入管理界面，进行安装

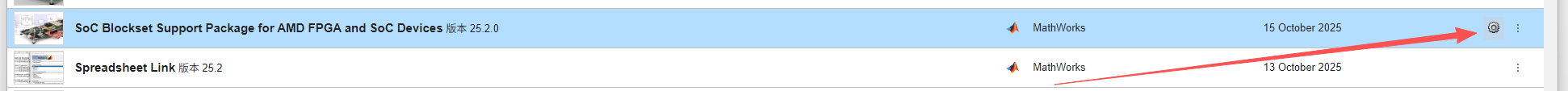

点击小齿轮

点击安装库 C盘少了差不多 10个G

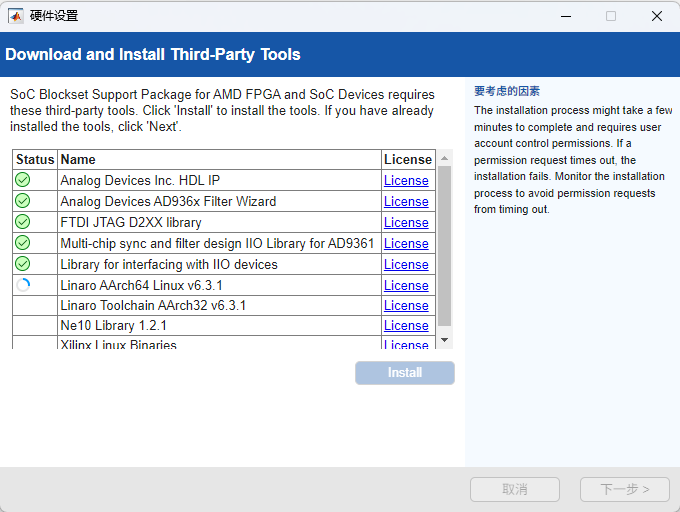

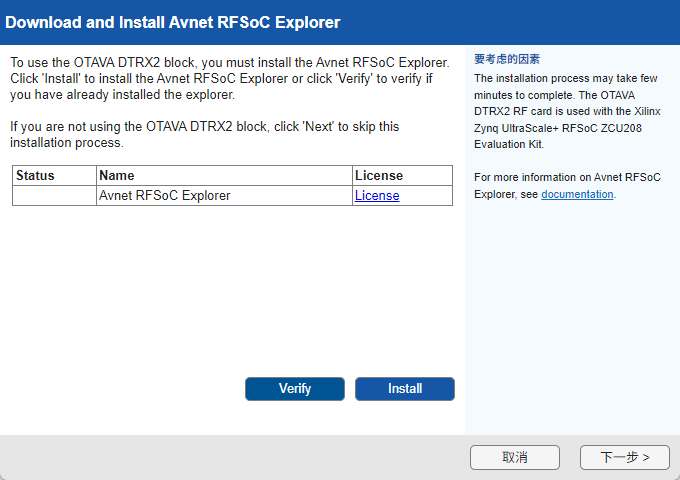

下一步这个可以不安装，因为不是用于 zedboard ，但是我也安装了

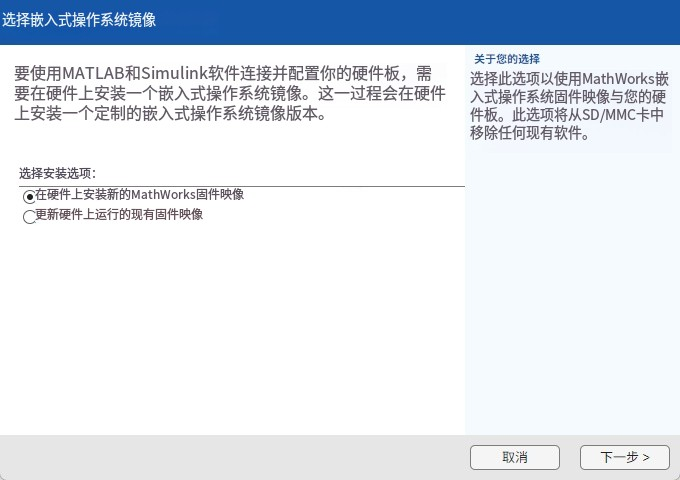

上面这个界面，中文翻一下：

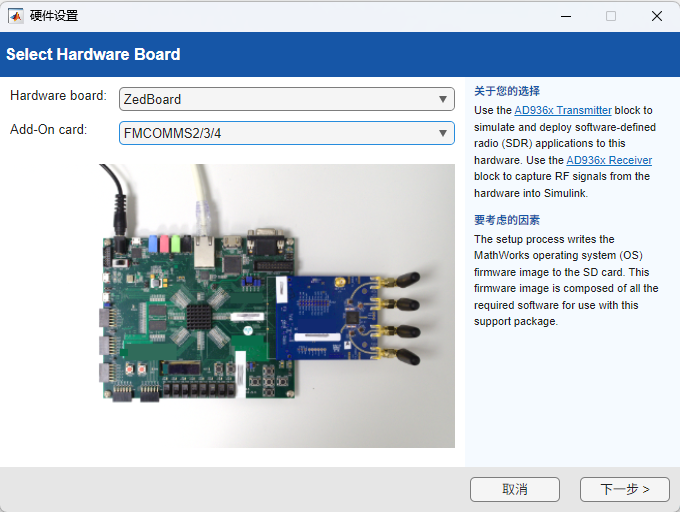

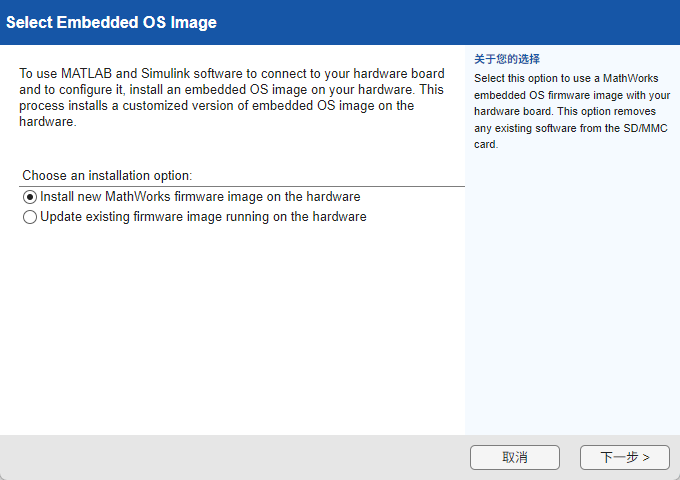

点击下一步：安装新的固件，选择 zedboard 和 FMCOMM2/3/4, 下一步

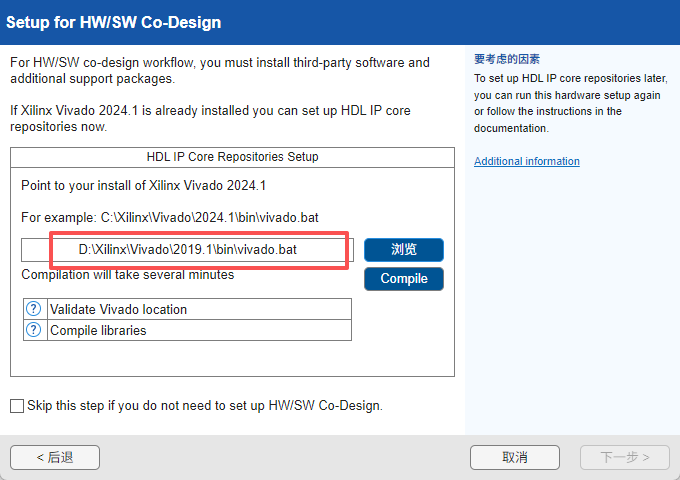

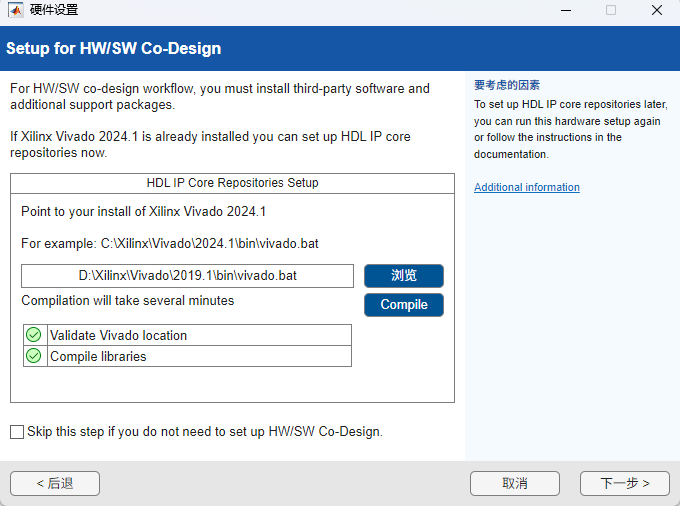

设置 VIVADO 路径，不知道我的 2019.1 能否使用，

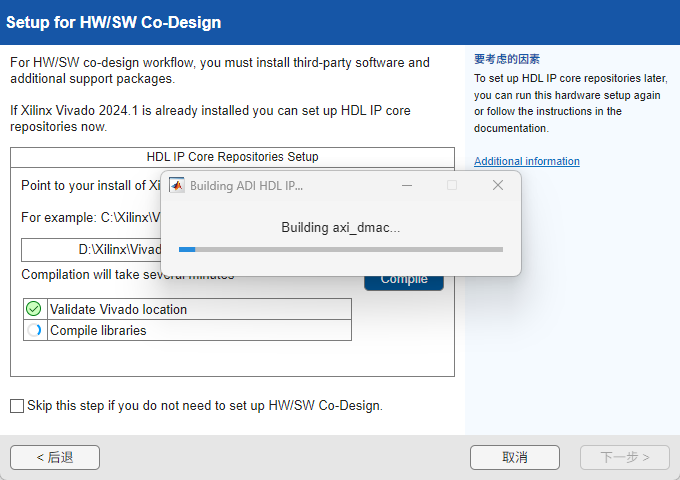

点击 compile

编译完成点击下一步

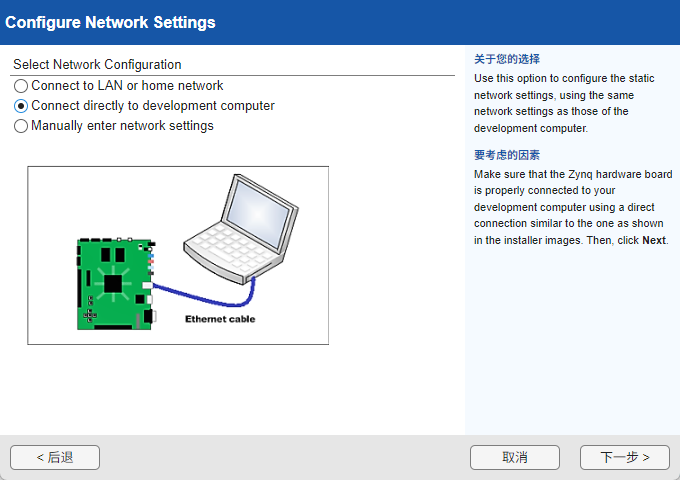

选择网线直连，下一步

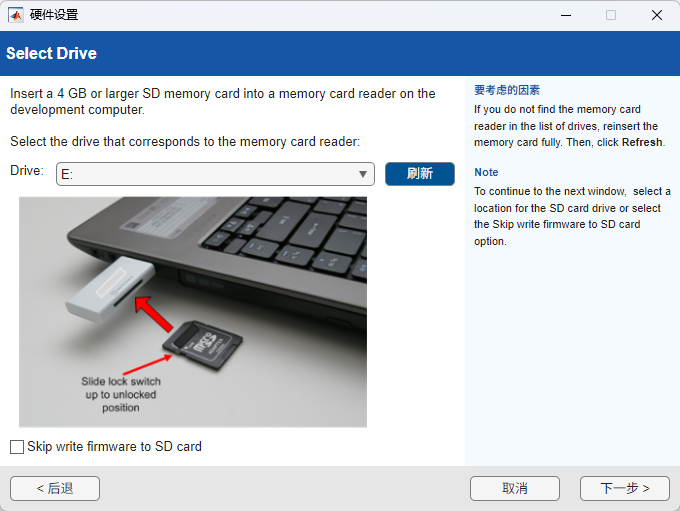

准备一个 4GB 的卡，连接到电脑上：，点击刷新就出来了，点击下一步

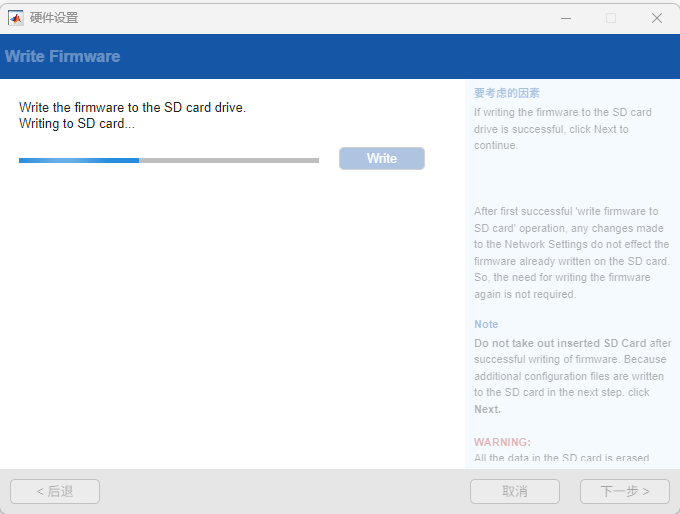

点击 write SD卡写入中，写入完成点击下一步

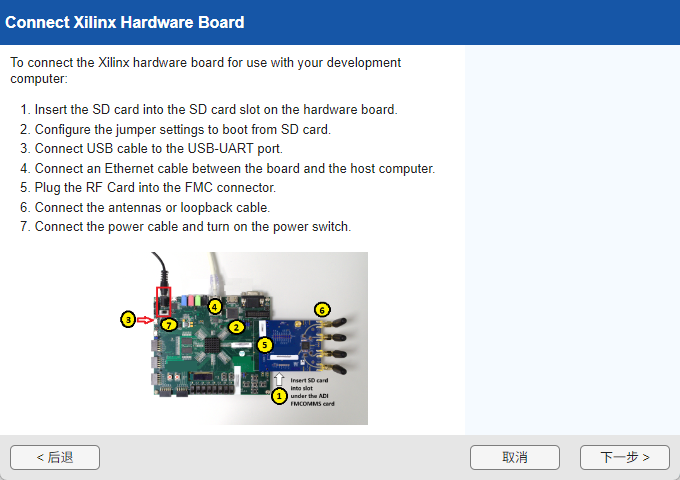

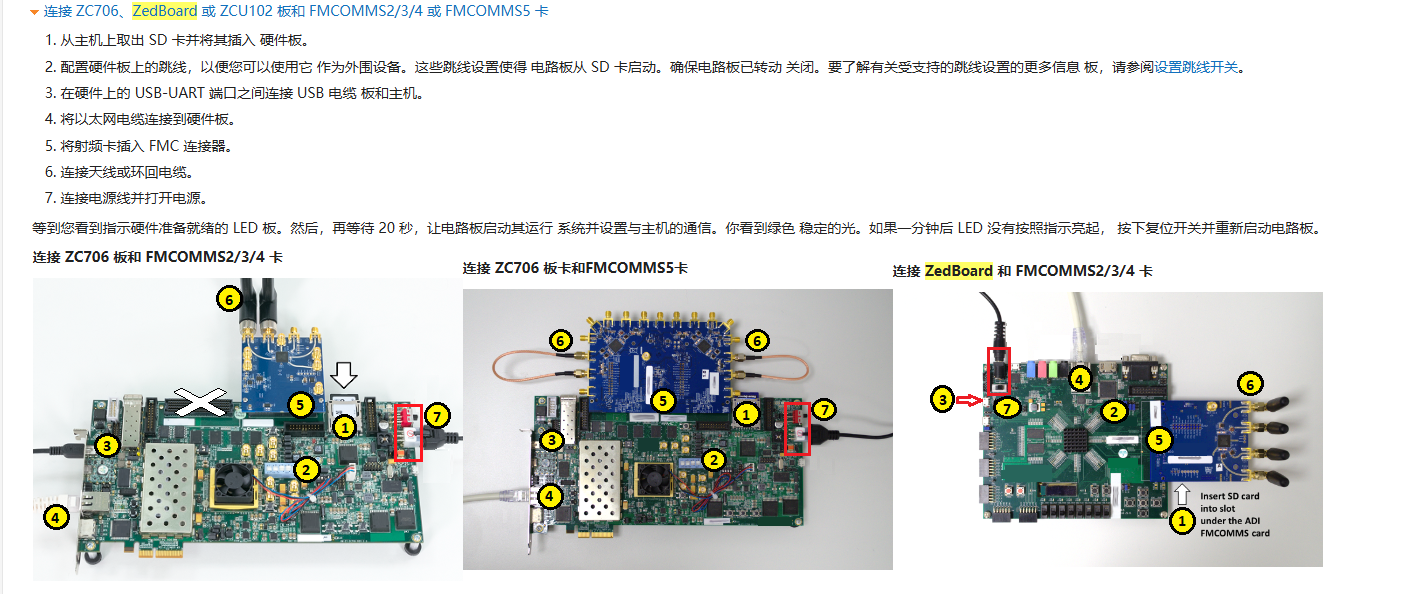

这里有中文连线方式：

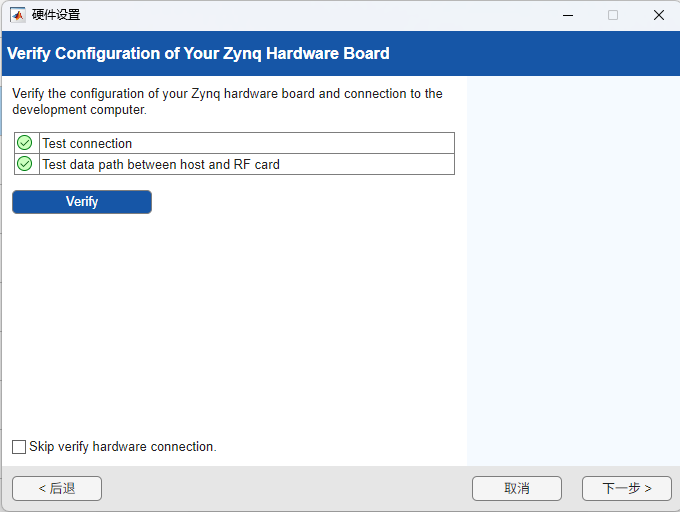

按照上面步骤操作后，点击 verfy ，测试连接，点击下一步

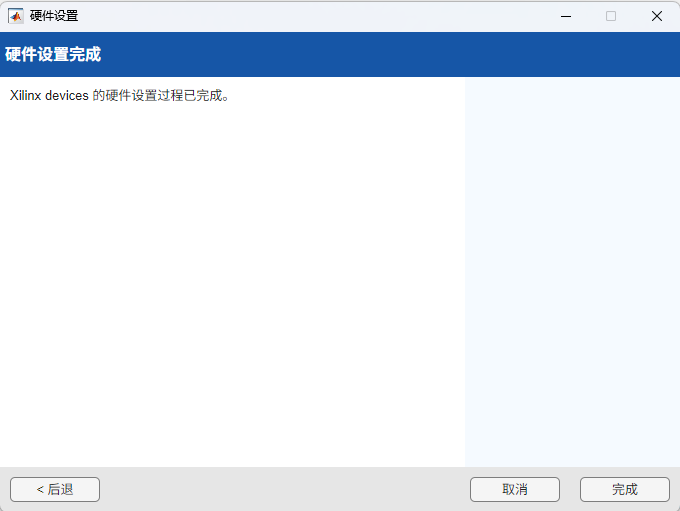

设置完成

启动日志保存：

U-Boot SPL 2017.01 (Dec 08 2023 - 15:34:34)
mmc boot
Trying to boot from MMC1
reading fpga.bin
spl_load_image_fat: error reading image fpga.bin, err - -1
spl: error reading image fpga.bin, err - 1
reading system.dtb
spl_load_image_fat_os: error reading image system.dtb, err - -1
reading u-boot.img
reading u-boot.img

U-Boot 2017.01 (Dec 08 2023 - 15:34:34 +0530)

Model: Zynq Zed Development Board
Board: Xilinx Zynq
DRAM: ECC disabled 512 MiB
MMC: sdhci@e0100000: 0 (SD)
reading uboot.env
In: serial@e0001000
Out: serial@e0001000
Err: serial@e0001000
Model: Zynq Zed Development Board
Board: Xilinx Zynq
Net: ZYNQ GEM: e000b000, phyaddr 0, interface rgmii-id
eth0: ethernet@e000b000
Hit any key to stop autoboot: 2 1 0
Device: sdhci@e0100000
Manufacturer ID: 27
OEM: 5048
Name: SD04G
Tran Speed: 50000000
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 3.7 GiB
Bus Width: 4-bit
Erase Group Size: 512 Bytes
reading uEnv.txt
** Unable to read file uEnv.txt **
Loading bitstream from SD/MMC/eMMC to RAM..
Device: sdhci@e0100000
Manufacturer ID: 27
OEM: 5048
Name: SD04G
Tran Speed: 50000000
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 3.7 GiB
Bus Width: 4-bit
Erase Group Size: 512 Bytes
reading system.bit
4045670 bytes read in 355 ms (10.9 MiB/s)
design filename = "system_top;UserID=0XFFFFFFFF;Version=2024.1"
part number = "7z020clg484"
date = "2025/08/23"
time = "15:44:36"
bytes in bitstream = 4045564
zynq_align_dma_buffer: Align buffer at 10006a to fff80(swap 1)
Copying Linux from SD to RAM...
reading uImage
4550320 bytes read in 397 ms (10.9 MiB/s)
reading devicetree.dtb
25874 bytes read in 17 ms (1.5 MiB/s)
reading uramdisk.image.gz
24318243 bytes read in 2049 ms (11.3 MiB/s)
## Booting kernel from Legacy Image at 02080000 ...
Image Name: Linux-4.9.0-mathworks
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 4550256 Bytes = 4.3 MiB
Load Address: 00008000
Entry Point: 00008000
Verifying Checksum ... OK
## Loading init Ramdisk from Legacy Image at 04000000 ...
Image Name:
Image Type: ARM Linux RAMDisk Image (uncompressed)
Data Size: 24318179 Bytes = 23.2 MiB
Load Address: 00000000
Entry Point: 00000000
Verifying Checksum ... OK
## Flattened Device Tree blob at 02000000
Booting using the fdt blob at 0x2000000
Loading Kernel Image ... OK
Loading Ramdisk to 1d3f3000, end 1eb240e3 ... OK
Loading Device Tree to 1d3e9000, end 1d3f2511 ... OK

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
