workflow-core 数据传递

使用workflow 过程中一定涉及数据在各stepbody专递，下面建立一个 工作流，演示如何通过传值计算两个数乘积

一、建立用于传值的类 mydata

/// <summary>
    /// 功能传值 使用
    /// </summary>
        public class myData {
        /// <summary>
        /// 传递 给input1
        /// </summary>
        public int Value1 { get; set; }
        /// <summary>
        /// 传递 给input2
        /// </summary>
        public int Value2 { get; set; }
        /// <summary>
        /// 传递 给Output
        /// </summary>
        public int Value3 { get; set; }

    }

二、建立过程体（StepBody） Multiplication 用于计算 input1* Input2=Output

 /// <summary>
    /// 功能  计算 input1*input2=Output
    /// </summary>
    public class Multiplication : StepBody
    {
        public int Input1 { get; set; }
        public int Input2 { get; set; }
        public int Output { get; set; }

        public override ExecutionResult Run(IStepExecutionContext context)
        {
            Output =  Input1 * Input2 ;
            return ExecutionResult.Next();
        }
    }

三、建立过程体用于输出计算结果  PrintResult

 /// <summary>
    /// 功能 输出结果
    /// </summary>
    public class PrintResult : StepBody
    {
        public string Message { get; set; }
        public override ExecutionResult Run(IStepExecutionContext context)
        {
            Console.WriteLine(Message);
            return ExecutionResult.Next();
        }
    }

四、新建工作流（passDataWorkFlow），用于启动工作流、传参，计算结果



  public class passDataWorkFlow:IWorkflow<myData>
    {
        public string Id => "PassingDataWorkflow";

        public int Version => 1;
        public void Build(IWorkflowBuilder<myData> builder)
    {
        builder
            .StartWith(context =>
            {
                Console.WriteLine("工作流启动!!!");
               return ExecutionResult.Next();
            })
            .Then<Multiplication>()
                .Input (step => step.Input1, data => data.Value1)//将 Value1赋值 给input1
                .Input (step => step.Input2, data => data.Value2)//将 Value2赋值 给input2
                .Output(data => data.Value3, step => step.Output)//将 Output 给 value3
                .Then<PrintResult>()
            .Input(step => step.Message, data => $"工作流执行结果{data.Value1}*{data.Value2}= " + data.Value3.ToString())
            .Then(context =>
            {
                Console.WriteLine("工作流执行完毕！！");
                 return ExecutionResult.Next();
            });
    }
}

五、启动工作流

  在asp.net  core HomeController  新建一个Action 启动工作流



 public class HomeController : Controller{
        IServiceProvider serviceProvider1 = null;
        public HomeController(IServiceProvider serviceProvider1 )
        {  this.serviceProvider1 = serviceProvider1;            }

        public IActionResult passingData()
        {
          var host=  serviceProvider1.GetService<IWorkflowHost>();
            host.RegisterWorkflow<passDataWorkFlow, myData>();
            host.Start();
            var initialData = new myData
            {
                Value1 = 100,
                Value2 = 1000
            }; //传入 两个数据 计算乘积
            host.StartWorkflow("PassingDataWorkflow", 1, initialData);
            Console.ReadLine();
            host.Stop();
            return Json(null);
        }
    }

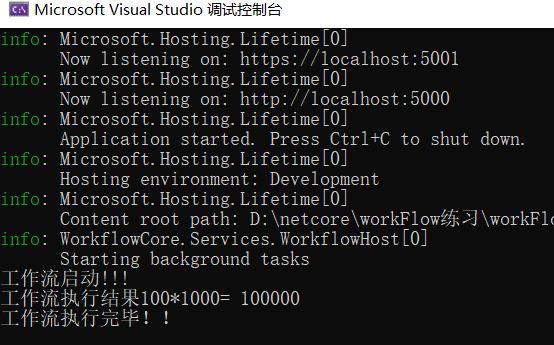

结果如下：
