搭建最简单的spring boot案例

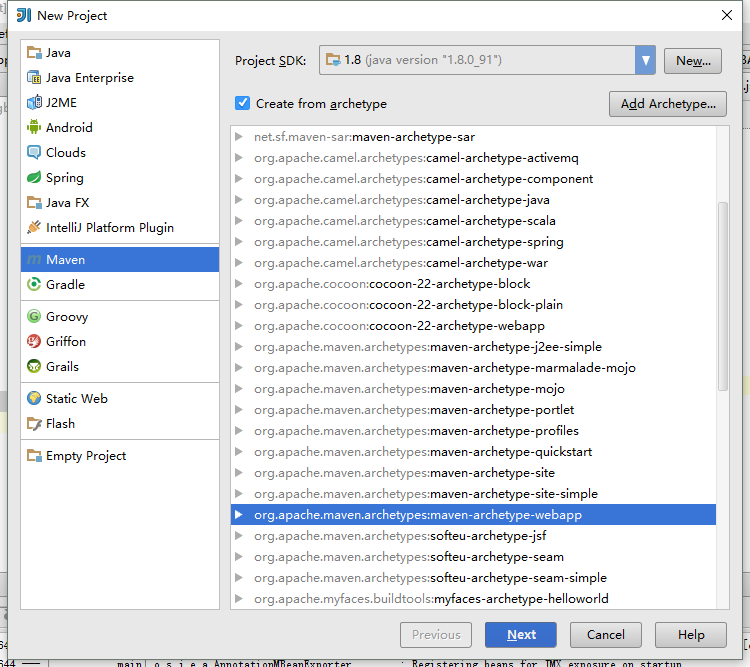

1.创建基于maven的web工程

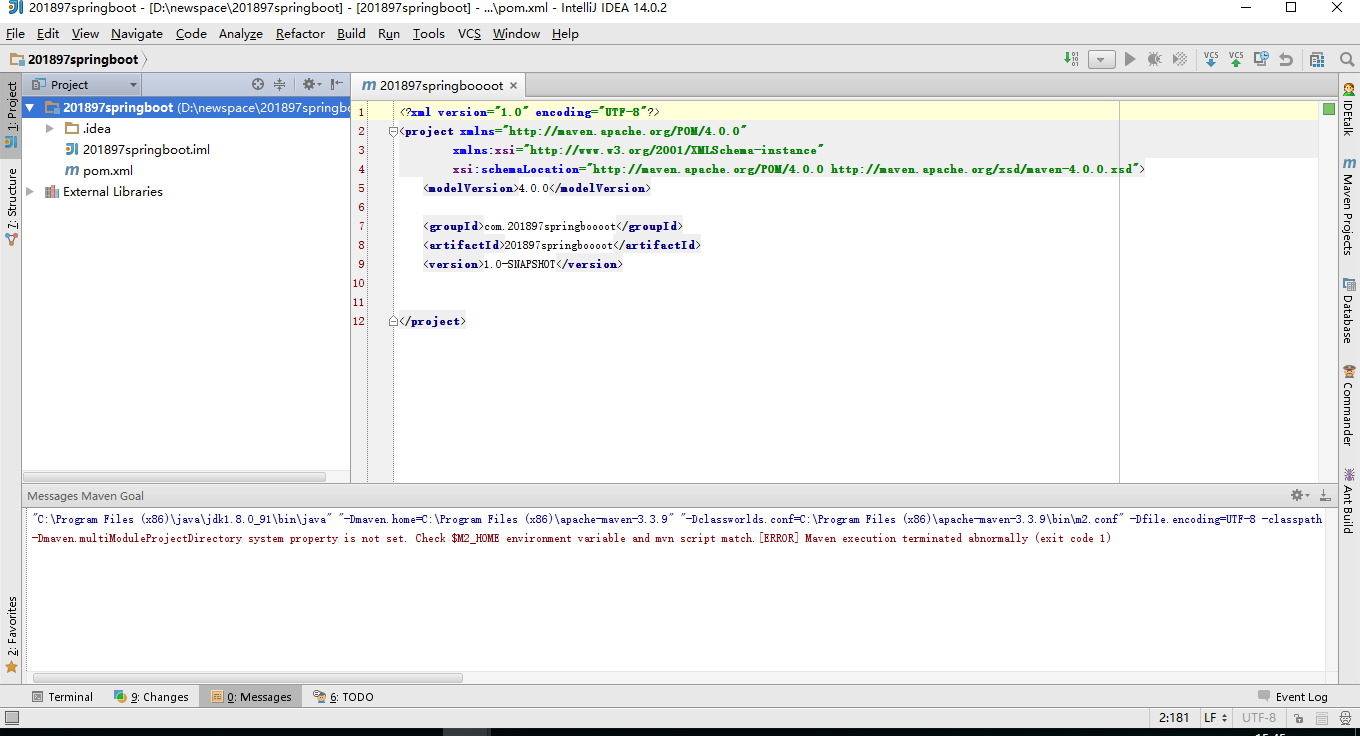

直接创建到下面

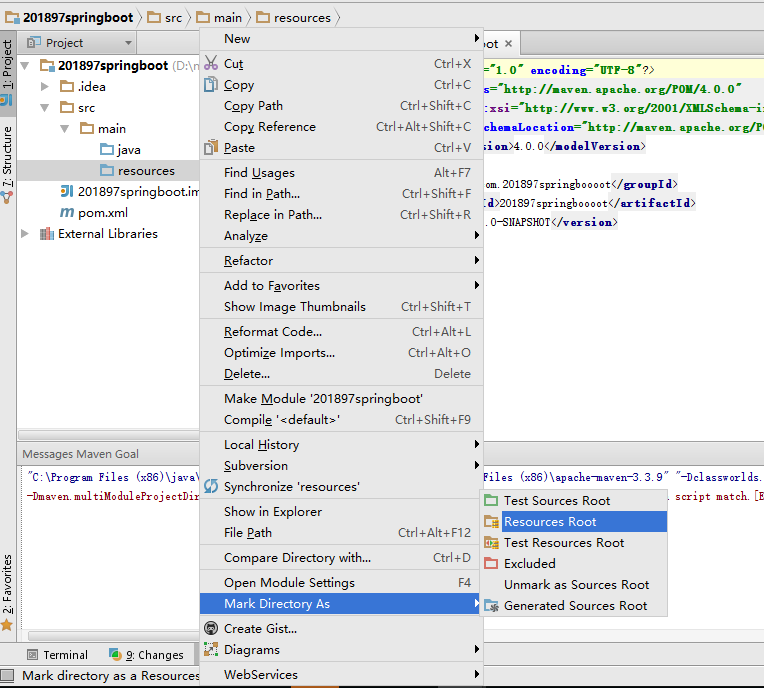

接下来创建目录并将java作为代码根目录，resources作为配置文件根目录

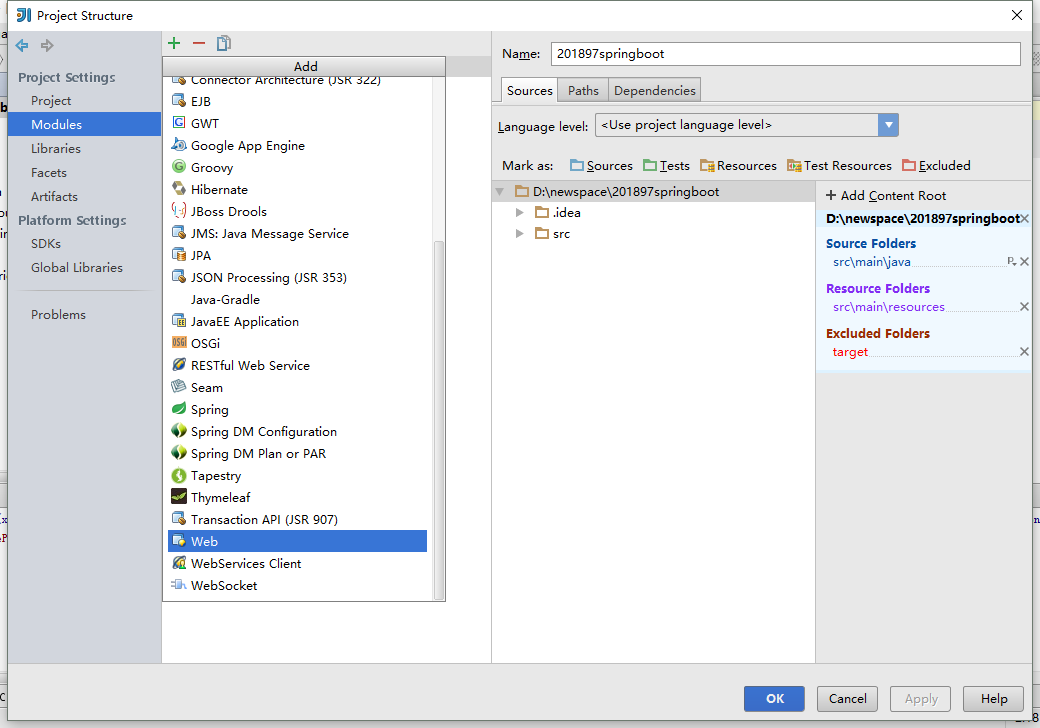

接下来创建webapp目录，首先点击Project Structure 选中modules，

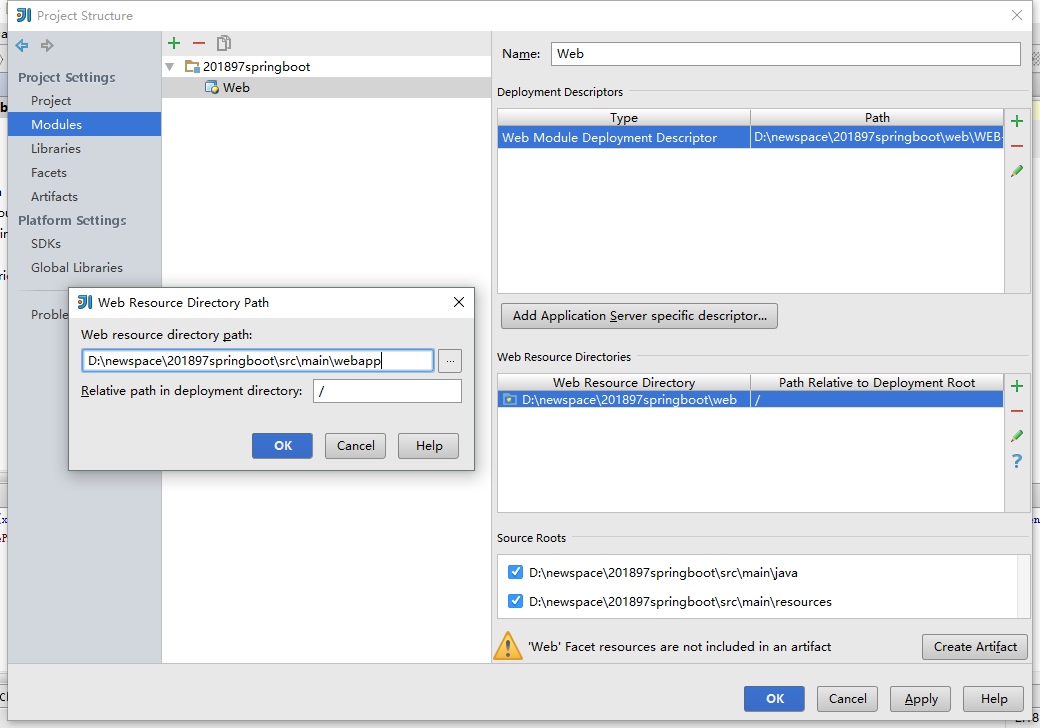

添加后，填写webapp路径

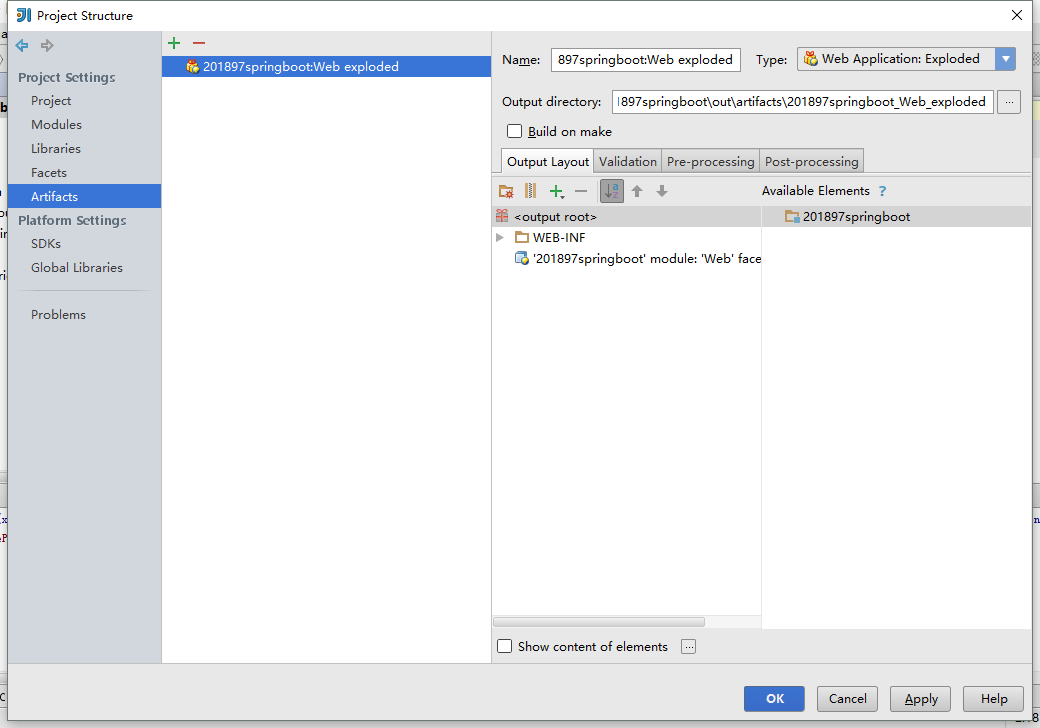

再点击右下角Create Artifact 创建 Artifact

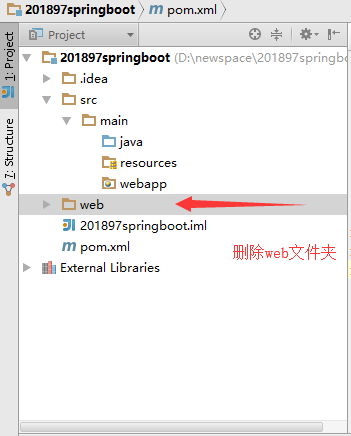

此时目录结构如下(删除web文件夹)

至此，整个工程的目录就创建好了，下面添加pom依赖，这里只添加一些基本的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.201897springboooot</groupId>
    <artifactId>201897springboooot</artifactId>
    <version>1.0-SNAPSHOT</version>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.4.0.RELEASE</version>
    </parent>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <!-- 添加springboot的web模板 -->
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- servlet 依赖 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!-- tomcat 的支持.-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
        </dependency>
        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>11.2.0.1.0</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

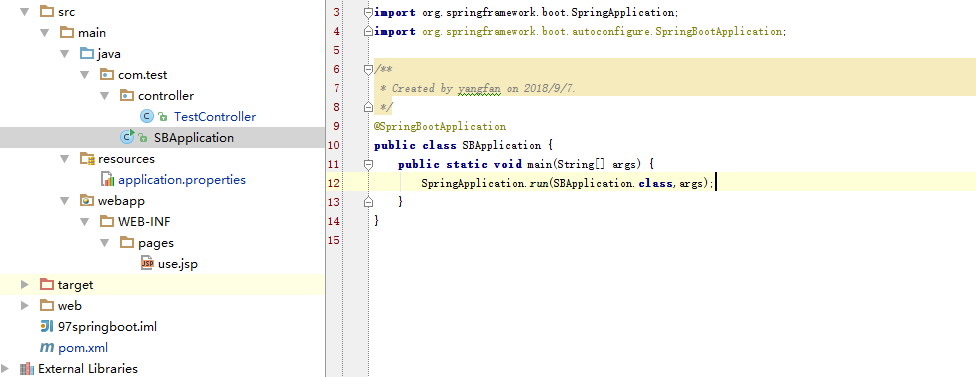

接下来开始写启动类

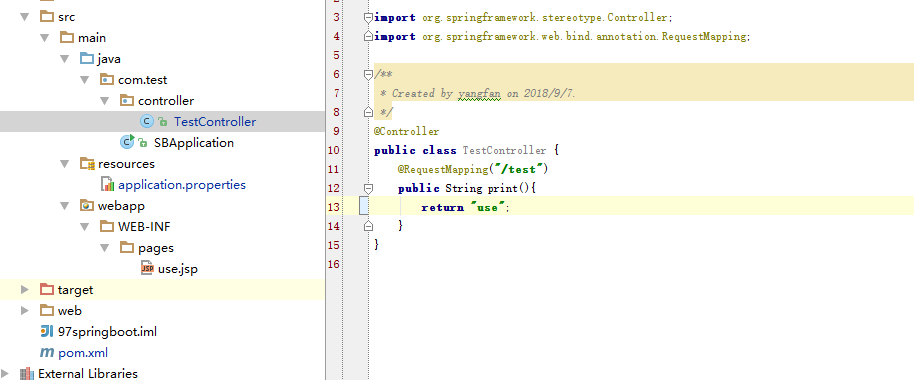

接着写控制层

创建application.properties如下

spring.mvc.view.prefix=/WEB-INF/pages/
spring.mvc.view.suffix=.jsp
server.port=8080

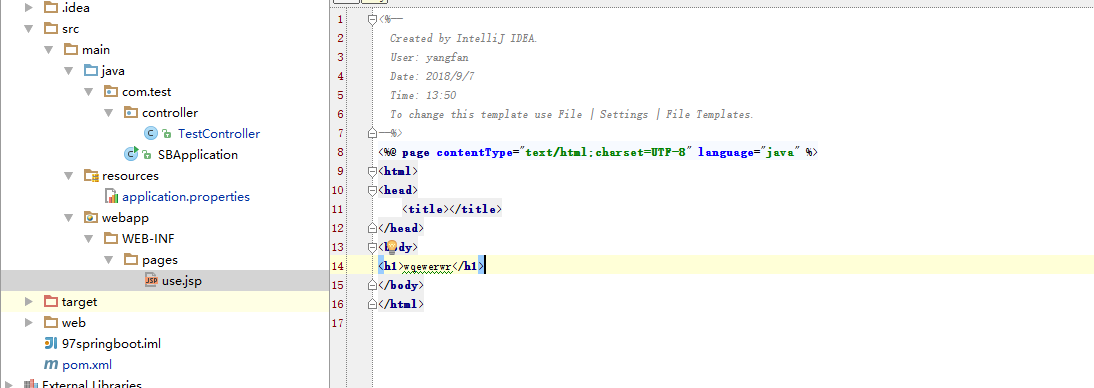

创建jsp页面

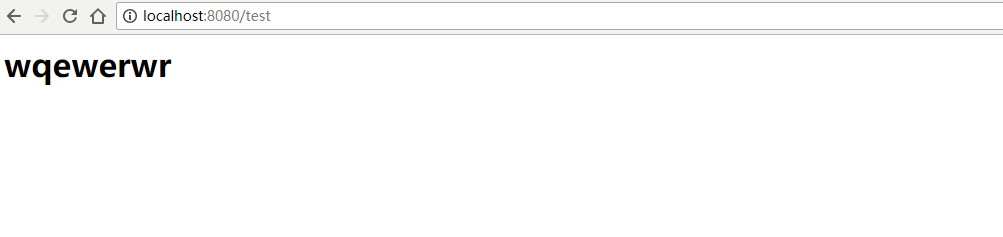

直接运行SBApplication，在地址栏输入：localhost:8080/test，显示

至此，最简单的spring boot项目便搭建完成
