12.logstash解耦之队列消息02

通过redis-in.conf和redis-out.conf明白了redis的具体用法，
下面结合ES集群实现把完整版的all.conf，将日志写到node1的redis里面，然后node2，负责从redis里面去读，并且输出到ES
node1:192.168.56.11
将日志从目录地址里面读取出来，输出到redis里面
vim shipper.conf
input {
  file {
    path => "/var/log/messages"
    type => "system"
    start_position => "beginning"
  }
  file {
    path => "/var/log/nginx/access_json.log"
    codec => "json"
 start_position => "beginning"
type => "nginx-log"
}
  file {
    path => "/var/log/elasticsearch/kye.log"
    type => "es-error"
    start_position => "beginning"
    codec => multiline{
pattern => "^\["
negate => "true"
what => "previous"
}
  }
}
output {
if [type] == "system"{
redis{
hosts => "192.168.56.11:9200"
port => "6379"
db => "6"
data_type => "list"
key => "system"
}
}
if [type] == "es-error"{
redis{
hosts => "192.168.56.11:9200"
port => "6379"
db => "6"
data_type => "list"
key => "es-error"
}
}
if [type] == "nginx-log"{
redis{
hosts => "192.168.56.11:9200"
port => "6379"
db => "6"
data_type => "list"
key => "nginx-log"
}
}
}

/opt/logstash/bin/logstash -f shipper.conf

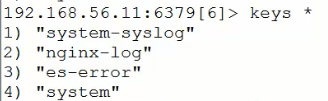

可以发现数据已经写到redis里面了


node2:192.168.56.12
从node1 192.168.56.11的redis里面读取数据(input)，输出到ES里面(output)
vim redis_to_ES.conf

input {
redis{
type => "system"
hosts => "192.168.56.11:9200"
port => "6379"
db => "6"
data_type => "list"
key => "system"
}
redis{
type => "es-log"
hosts => "192.168.56.11:9200"
port => "6379"
db => "6"
data_type => "list"
key => "es-log"
}
redis{
type => "nginx-log"
hosts => "192.168.56.11:9200"
port => "6379"
db => "6"
data_type => "list"
key => "nginx-log"
}
}
output {
if [type] == "system"{
elasticsearch {
 hosts => ["192.168.56.11:9200"]
 index => "system-%{+YYYY.MM.dd}"
}
}
if [type] == "es-error"{
elasticsearch {
 hosts => ["192.168.56.11:9200"]
 index => "es-error-%{+YYYY.MM.dd}"
}
}
if [type] == "nginx-log"{
elasticsearch {
 hosts => ["192.168.56.11:9200"]
 index => "nginx-log-%{+YYYY.MM.dd}"
}
}
}

/opt/logstash/bin/logstash -f redis_to_ES.conf

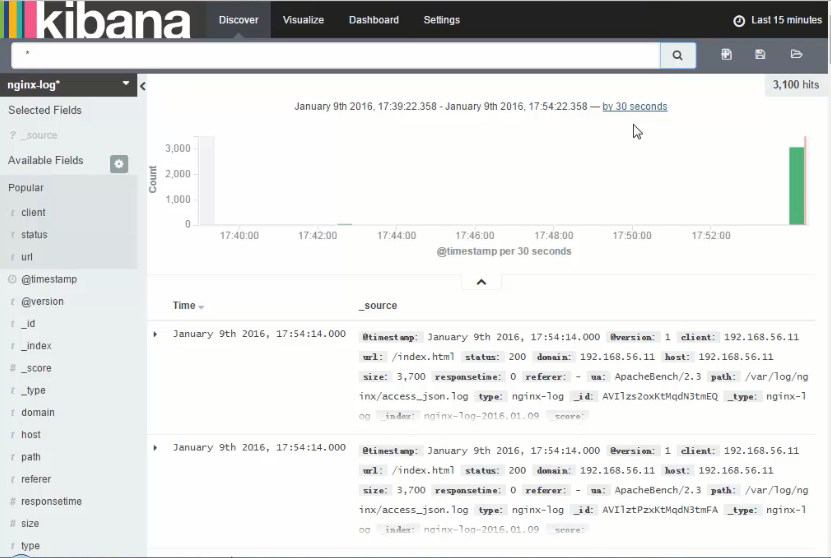

从kibana可以发现数据已经传到ES里面了
