Docker/Nacos2.1.1/Seata1.5.2/Spring Cloud alibaba

1、Docker安装Seata1.5.2

version: '3.9'
services:
  mysql: #服务名
    container_name: mysql #容器名
    image: mysql:${MYSQL_VERSION}
    privileged: true
    env_file:
      - env/mysql/mysql.env
    environment:
      MYSQL_ROOT_PASSWORD: ${MYSQL_ROOT_PASSWORD} #加载.env文件里的配置变量，查看隐藏文件.env需要ls -a命令
    ports:
      - "3306:3306"
    volumes:
      - ./config/mysql/my.cnf:/etc/mysql/my.cnf
      - ./init/mysql/:/docker-entrypoint-initdb.d/ #初始化sql脚本数据
      - ./data/mysql/data/:/var/lib/mysql/
      - ./data/mysql/mysql-files/:/var/lib/mysql-files/ #mysql8需要这个配置
      - ./log/mysql/:/var/log/mysql/
    command:
      --character-set-server=utf8mb4
      --collation-server=utf8mb4_unicode_ci
    restart: always #开机启动

  nacos1:
    hostname: nacos1 #IP配置方式无此项
    container_name: nacos1
    image: nacos/nacos-server:${NACOS_VERSION}
    privileged: true
    env_file:
      - env/nacos/nacos.env
    environment:
      MYSQL_SERVICE_USER: ${MYSQL_SERVICE_USER}
      MYSQL_SERVICE_PASSWORD: ${MYSQL_ROOT_PASSWORD}
    ports:
      - "8848:8848" #与IP配置方式不同的地方
      - "9848:9848"
      - "9849:9849"
      - "7848:7848"
    volumes:
      - ./data/nacos1/:/home/nacos/data/
      - ./log/nacos1/:/home/nacos/logs/
    depends_on:
      - mysql
    restart: always

  seata-server:
    hostname: seata-server
    container_name: seata-server
    image: seataio/seata-server:1.5.2
    privileged: true
    ports:
      - "8091:8091"
      - "7091:7091"
    environment:
      SEATA_PORT: 8091
      STORE_MODE: db
      SEATA_IP: 121.199.160.167
      TZ: Asia/Shanghai
    volumes:
      - ./config/seata/application.yml:/seata-server/resources/application.yml
    depends_on:
      - nacos1
    restart: always

2、导入Mysql脚本seata-1.5.2\script\server\db\mysql.sql

3、复制seata-1.5.2\server\src\main\resources\application.yml并修改

server:
  port: 7091

spring:
  application:
    name: seata-server

logging:
# 文件不存在就注释掉，否则会提示报错信息：'io.seata.server.console.service.BranchSessionService' that could not be found
#  config: classpath:logback-spring.xml
  file:
    path: ${user.home}/docker/log/seata
#  extend:
#    logstash-appender:
#      destination: 127.0.0.1:4560
#    kafka-appender:
#      bootstrap-servers: 127.0.0.1:9092
#      topic: logback_to_logstash

console:
  user:
    username: seata
    password: 2004

seata:
  config:
    # support: nacos, consul, apollo, zk, etcd3
    type: nacos
    nacos:
      server-addr: 172.26.3.104:8848
      namespace: seata
      group: SEATA_GROUP
      username: nacos
      password: 2004
      data-id: seataServer.properties
  registry:
    # support: nacos, eureka, redis, zk, consul, etcd3, sofa
    type: nacos
    nacos:
      application: seata-server
      server-addr: 172.26.3.104:8848
      group: SEATA_GROUP
      namespace: seata
      cluster: default
      username: nacos
      password: 200412aaAA
  store:
    # support: file 、 db 、 redis
#    mode: file
#  server:
#    service-port: 8091 #If not configured, the default is '${server.port} + 1000'
  security:
    secretKey: SeataSecretKey0c382ef121d778043159209298fd40bf3850a017
    tokenValidityInMilliseconds: 1800000
    ignore:
      urls: /,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-fe/public/**,/api/v1/auth/login

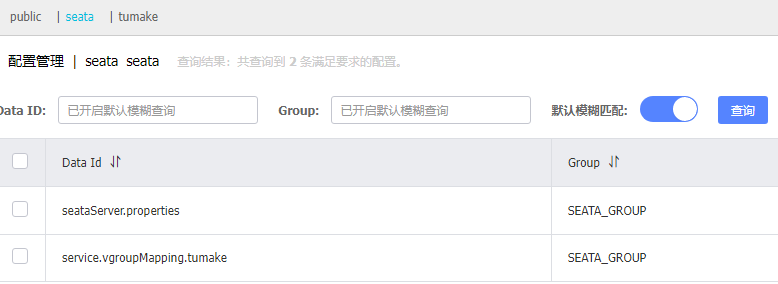

4、Nacos增加配置文件 Data Id：seataServer.properties，Group：SEATA_GROUP，复制seata-1.5.2\script\config-center\config.txt到里面并修改

#For details about configuration items, see https://seata.io/zh-cn/docs/user/configurations.html
#Transport configuration, for client and server
transport.type=TCP
transport.server=NIO
transport.heartbeat=true
transport.enableTmClientBatchSendRequest=false
transport.enableRmClientBatchSendRequest=true
transport.enableTcServerBatchSendResponse=false
transport.rpcRmRequestTimeout=30000
transport.rpcTmRequestTimeout=30000
transport.rpcTcRequestTimeout=30000
transport.threadFactory.bossThreadPrefix=NettyBoss
transport.threadFactory.workerThreadPrefix=NettyServerNIOWorker
transport.threadFactory.serverExecutorThreadPrefix=NettyServerBizHandler
transport.threadFactory.shareBossWorker=false
transport.threadFactory.clientSelectorThreadPrefix=NettyClientSelector
transport.threadFactory.clientSelectorThreadSize=1
transport.threadFactory.clientWorkerThreadPrefix=NettyClientWorkerThread
transport.threadFactory.bossThreadSize=1
transport.threadFactory.workerThreadSize=default
transport.shutdown.wait=3
transport.serialization=seata
transport.compressor=none

#Transaction routing rules configuration, only for the client
#注意自定义事务tumake
service.vgroupMapping.tumake=default
#If you use a registry, you can ignore it
#注意改IP地址
service.default.grouplist=121.199.160.167:8091
service.enableDegrade=false
service.disableGlobalTransaction=false

#Transaction rule configuration, only for the client
client.rm.asyncCommitBufferLimit=10000
client.rm.lock.retryInterval=10
client.rm.lock.retryTimes=30
client.rm.lock.retryPolicyBranchRollbackOnConflict=true
client.rm.reportRetryCount=5
client.rm.tableMetaCheckEnable=true
client.rm.tableMetaCheckerInterval=60000
client.rm.sqlParserType=druid
client.rm.reportSuccessEnable=false
client.rm.sagaBranchRegisterEnable=false
client.rm.sagaJsonParser=fastjson
client.rm.tccActionInterceptorOrder=-2147482648
client.tm.commitRetryCount=5
client.tm.rollbackRetryCount=5
client.tm.defaultGlobalTransactionTimeout=60000
client.tm.degradeCheck=false
client.tm.degradeCheckAllowTimes=10
client.tm.degradeCheckPeriod=2000
client.tm.interceptorOrder=-2147482648
client.undo.dataValidation=true
client.undo.logSerialization=jackson
client.undo.onlyCareUpdateColumns=true
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000
client.undo.logTable=undo_log
client.undo.compress.enable=true
client.undo.compress.type=zip
client.undo.compress.threshold=64k
#For TCC transaction mode
tcc.fence.logTableName=tcc_fence_log
tcc.fence.cleanPeriod=1h

#Log rule configuration, for client and server
log.exceptionRate=100

#Transaction storage configuration, only for the server. The file, DB, and redis configuration values are optional.
#改为数据库模式
store.mode=db
store.lock.mode=db
store.session.mode=db
#Used for password encryption
store.publicKey=

#If `store.mode,store.lock.mode,store.session.mode` are not equal to `file`, you can remove the configuration block.
store.file.dir=file_store/data
store.file.maxBranchSessionSize=16384
store.file.maxGlobalSessionSize=512
store.file.fileWriteBufferCacheSize=16384
store.file.flushDiskMode=async
store.file.sessionReloadReadSize=100

#These configurations are required if the `store mode` is `db`. If `store.mode,store.lock.mode,store.session.mode` are not equal to `db`, you can remove the configuration block.
#修改数据库连接信息
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://121.199.160.167:3306/seata?useUnicode=true&rewriteBatchedStatements=true
store.db.user=root
store.db.password=2004
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.distributedLockTable=distributed_lock
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000

#These configurations are required if the `store mode` is `redis`. If `store.mode,store.lock.mode,store.session.mode` are not equal to `redis`, you can remove the configuration block.
store.redis.mode=single
store.redis.single.host=127.0.0.1
store.redis.single.port=6379
store.redis.sentinel.masterName=
store.redis.sentinel.sentinelHosts=
store.redis.maxConn=10
store.redis.minConn=1
store.redis.maxTotal=100
store.redis.database=0
store.redis.password=
store.redis.queryLimit=100

#Transaction rule configuration, only for the server
server.recovery.committingRetryPeriod=1000
server.recovery.asynCommittingRetryPeriod=1000
server.recovery.rollbackingRetryPeriod=1000
server.recovery.timeoutRetryPeriod=1000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
server.distributedLockExpireTime=10000
server.xaerNotaRetryTimeout=60000
server.session.branchAsyncQueueSize=5000
server.session.enableBranchAsyncRemove=false
server.enableParallelRequestHandle=false

#Metrics configuration, only for the server
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898

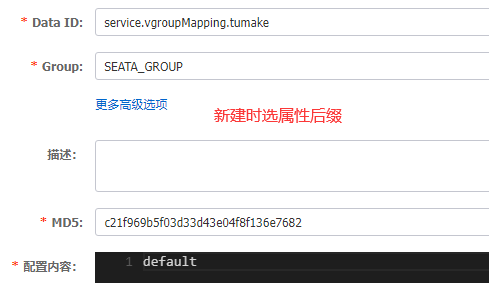

5、增加一个配置Data Id：service.vgroupMapping.tumake，Group：SEATA_GROUP
