zephyr入门_移植正点原子探索者STM32F407

环境: WSL2 ubuntu20.4
开发板: 正点原子探索者STM32F407

搭建开发环境

参考官方文档<Getting Started Guide>

ubuntu安装工具包

sudo apt install --no-install-recommends git cmake ninja-build gperf \
  ccache dfu-util device-tree-compiler wget python3-dev python3-venv python3-tk \
  xz-utils file make gcc gcc-multilib g++-multilib libsdl2-dev libmagic1
  • 补充安装cmake、python、dtc

这三个工具要满足版本要求, 否则后续操作会出错

官网版本要求

Tool Min. Version
CMake 3.20.5
Python 3.10
Devicetree compiler 1.4.6

1、python：Ubuntu20.04下更新系统Python版本_ubuntu20.04 python版本-CSDN博客
2、cmake：ubuntu 20.04安装(升级)cmake - 知乎

  • 安装完验证
cmake --version
python3 --version
dtc --version

虚拟环境拉取源码和包 & 安装SDK

1、创建一个虚拟环境

python3 -m venv ~/zephyrproject/.venv

2、激活虚拟环境

source ~/zephyrproject/.venv/bin/activate

❗python --version再验证一下python的版本

3、安装管理zephyr的库工具west

pip install west

4、拉取Zephyr源代码

west init ~/zephyrproject
cd ~/zephyrproject
west update

5、导出Zephyr的包Package

west zephyr-export

6、安装python依赖

west packages pip --install

7、安装SDK

cd ~/zephyrproject/zephyr
west sdk install

安装USB透传工具 & ST-LINK下载工具

由于采用的是ST-LINK, 要在WSL2环境下载程序需要安装stm32cubeprogrammer
同时还需要把ST-LINK透传到WSL2里

安装USB透传工具

  • 1、管理员打开powershell安装
winget install --interactive --exact dorssel.usbipd-win

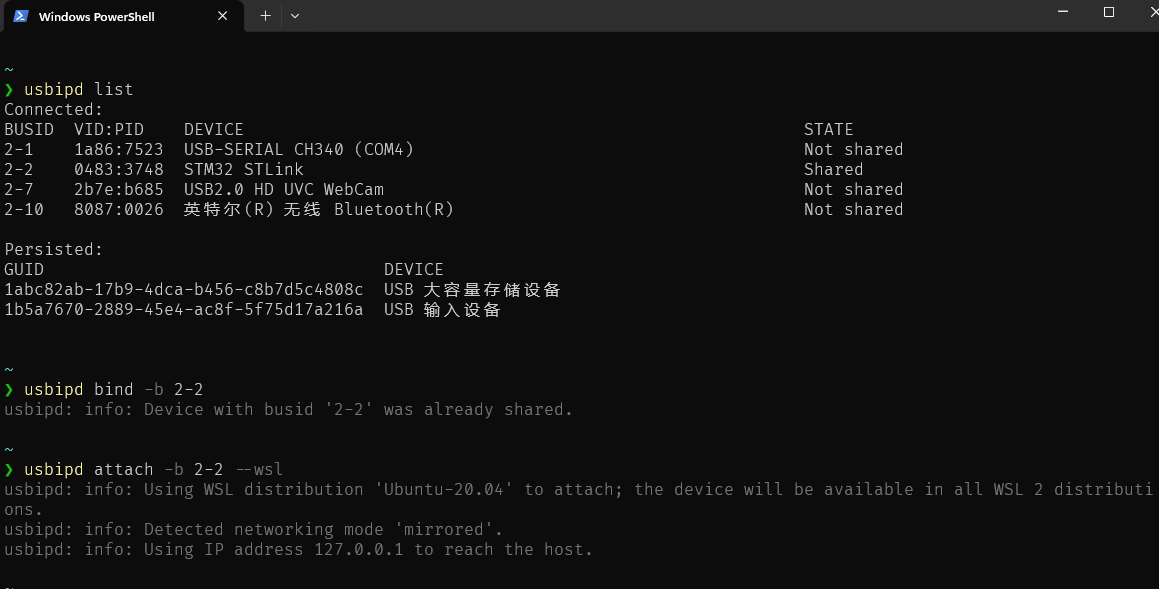

  • 2、插入ST-LINK, 终端依次输入
usbipd list // 查看usb列表
usbipd bind -b <bus_id> // 共享USB设备
usbipd attach -b <bus_id> --wsl // 共享到WSL里

  • 3、打开WSL2，输入lsusb，能看到stlink即可

安装ST-LINK下载工具

echo 'export PATH=$PATH:$HOME/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin' >> ~/.bashrc source ~/.bashrc
  • 测试 STM32_Programmer_CLI --version

编译工程烧录测试

  • 选择stm32f4_disco开发板编译blinky例程
    • west build -p always -b stm32f4_disco samples/basic/blinky
  • 烧录west flash

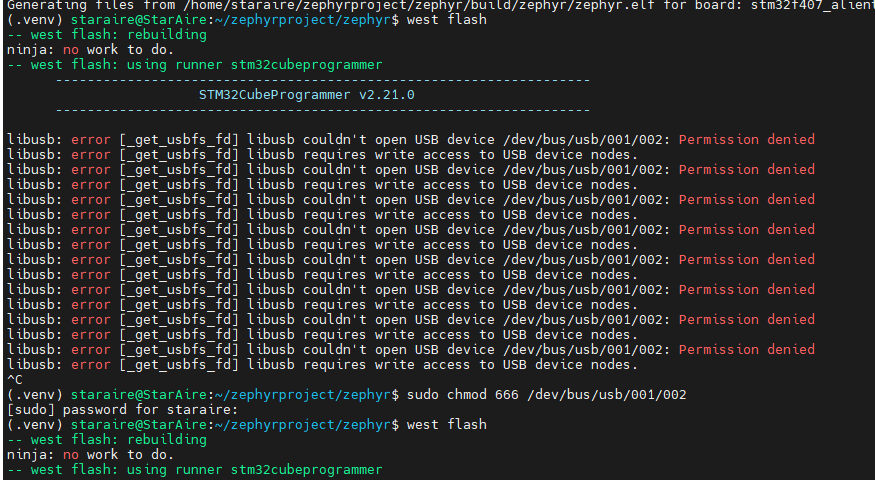

❗如果usb无权限，可临时修改usb权限
sudo chmod 666 /dev/bus/usb/001/003 # 根据你的设备路径调整

  • 烧录成功即跑通, 接下来我们适配探索者开发板

适配正点原子探索者开发板

探索者开发板基于STM32F4, 所以我们找一个类似的开发板进行修改即可

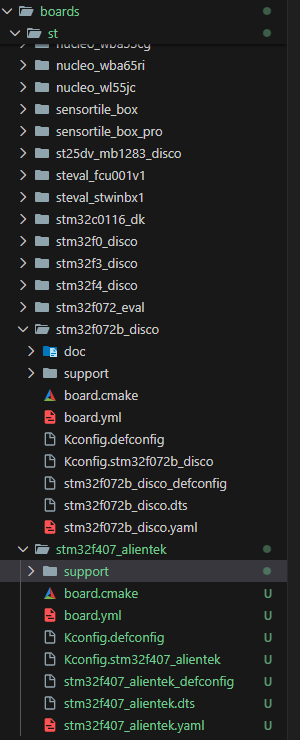

打开zephyr源码路径下boards/st, 从stm32f072b_disco拷贝到新建文件夹stm32f407_alientek, 且将几个文件修改为和文件夹名一致, 参考下面

修改以下几个文件

  • board.cmake
  • board.yml
  • Kconfig.defconfig
  • Kconfig.stm32f407_alientek
  • stm32f407_alientek_defconfig
  • stm32f407_alientek.dts
  • stm32f407_alientek.yaml
  • board.cmake
# SPDX-License-Identifier: Apache-2.0

# keep first
board_runner_args(stm32cubeprogrammer "--port=swd" "--reset-mode=hw")
board_runner_args(jlink "--device=STM32F407VG" "--speed=4000")

# keep first
include(${ZEPHYR_BASE}/boards/common/stm32cubeprogrammer.board.cmake)
include(${ZEPHYR_BASE}/boards/common/openocd-stm32.board.cmake)
include(${ZEPHYR_BASE}/boards/common/jlink.board.cmake)
include(${ZEPHYR_BASE}/boards/common/stlink_gdbserver.board.cmake)
  • board.yml
board:
  name: stm32f407_alientek
  full_name: STM32F407 ALIENTEK
  vendor: st
  socs:
    - name: stm32f407xx
  • Kconfig.defconfig
# STM32F072B-DISCO board configuration

# Copyright (c) 2017 Clage GmbH
# SPDX-License-Identifier: Apache-2.0

if BOARD_STM32F4_ALIENTEK

endif #
  • Kconfig.stm32f407_alientek
# Copyright (c) 2016 Linaro Limited.
# SPDX-License-Identifier: Apache-2.0

config BOARD_STM32F407_ALIENTEK
	select SOC_STM32F407XG
  • stm32f407_alientek_defconfig
# SPDX-License-Identifier: Apache-2.0

# Enable MPU
CONFIG_ARM_MPU=n


# Enable HW stack protection
CONFIG_HW_STACK_PROTECTION=n

CONFIG_SERIAL=y

# console
CONFIG_CONSOLE=y
CONFIG_UART_CONSOLE=y

# enable GPIO
CONFIG_GPIO=y
  • stm32f407_alientek.dts

拷贝boards/st/stm32f4_disco底下的stm32f4_disco.dts

修改led0映射的green_led_4, 探索者的LED0接的是PF9引脚, 低电平使能

		green_led_4: led_4 {
			gpios = <&gpiof 9 GPIO_ACTIVE_LOW>;
			label = "User LD4";
		};

修改设备树里的外部时钟和系统时钟, HSE时钟晶振为25M

&clk_hse {
	clock-frequency = <DT_FREQ_M(25)>;
	status = "okay";
};

&rcc {
	clocks = <&pll>;
	clock-frequency = <DT_FREQ_M(168)>;
	ahb-prescaler = <1>;
	apb1-prescaler = <4>;
	apb2-prescaler = <2>;
};

修改锁相环PLL参数

&pll {
	div-m = <25>;
	mul-n = <336>;
	div-p = <2>;
	div-q = <7>;
	clocks = <&clk_hse>;
	status = "okay";
};
  • stm32f407_alientek.yaml
identifier: stm32f407_alientek
name: ST STM32F4 ALIENTEK
type: mcu
arch: arm
toolchain:
  - zephyr
  - gnuarmemb
ram: 128
flash: 1024
supported:
  - can
  - pwm
  - counter
  - adc
vendor: st

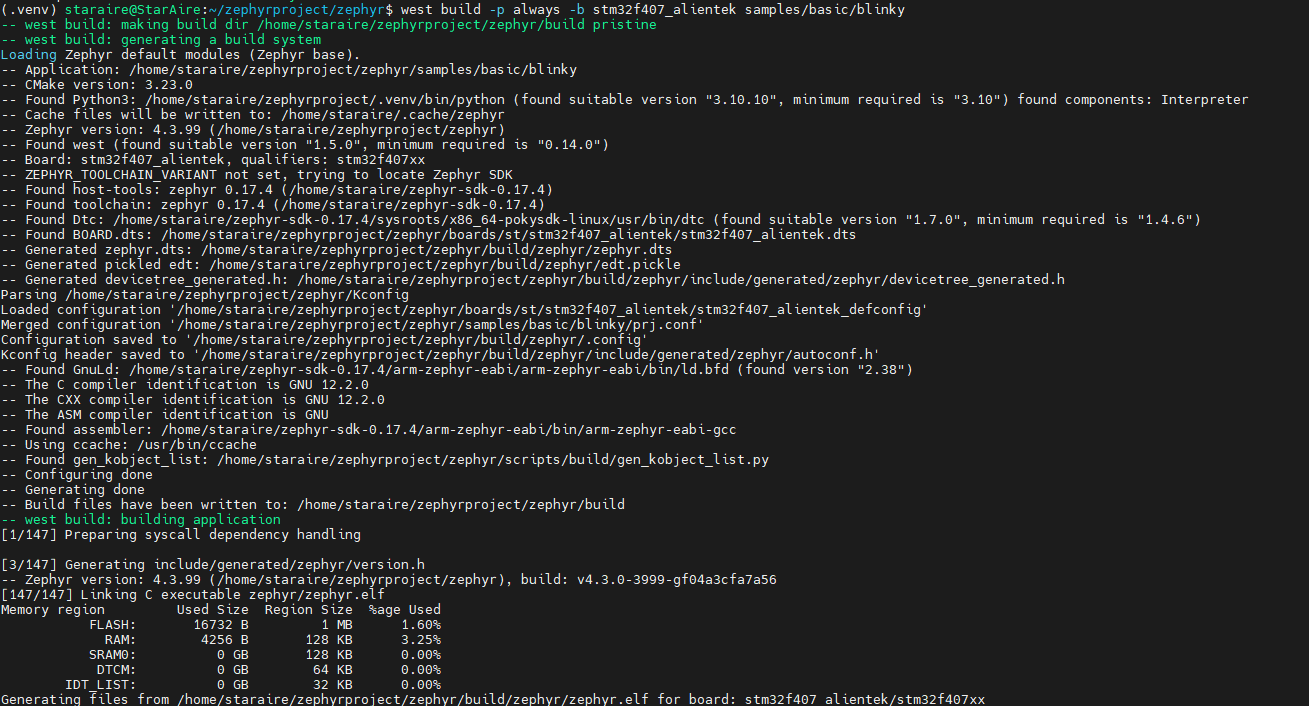

修改完之后进行编译

west build -p always -b stm32f407_alientek samples/basic/blinky

烧录

west flash

观察开发板灯闪烁
