Moving Average
简单移动平均(sma)
def moving_average(f_t): if type(f_t) is not np.ndarray: raise TypeError\ ('Expected one dimensional numpy array.') if f_t.shape[1] != 1: raise IndexError\ ('Expected one dimensional numpy array, %d dimensions given.' % (f_t.shape[1])) f_t = f_t.flatten() window = 5 mode = 'same' g_t = np.ones(int(window))/float(window) # array([0.2, 0.2, 0.2, 0.2, 0.2]) # Deal with boundaries with atleast lag/2 day window # ma = np.convolve(f_t,g_t,mode) # ma = np.convolve(f_t,g_t,mode)[window-1:-window+1] ma = np.convolve(f_t,g_t)[window-1:-window+1] #numpy卷积实现 return ma

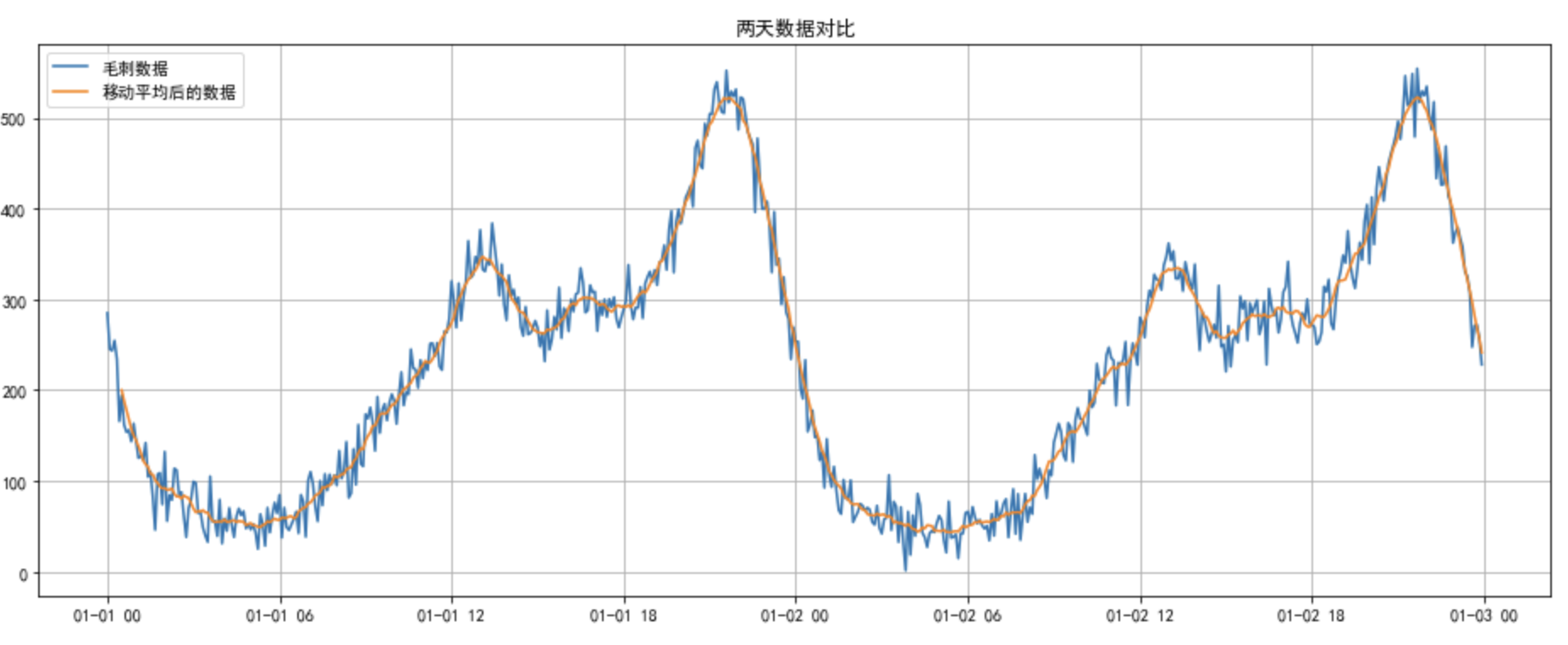

执行结果:
蓝色是原始数据,棕色是经过移动平均算法弱化后的数据。
也可以使用pandas的DataFrame的rolling函数:
df[<metric>].rolling(5).mean()
指数加权移动平均(ewma)
指数加权(exponentially weighted)的权重通过指数函数计算得到,
越近期的数据具有越小的衰减因子(decay factor),对应更大的权重。

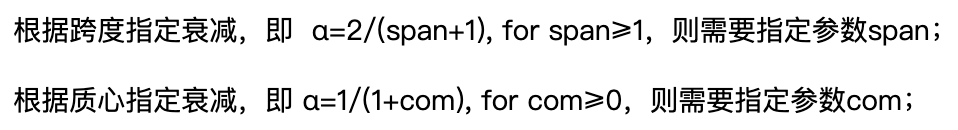

根据跨度指定衰减,即 α=2/(span+1), for span≥1,则需要指定参数span;
根据质心指定衰减,即 α=1/(1+com), for com≥0,则需要指定参数com;
# 根据质心指定衰减参数 ewma1 = pd.Series.ewm(series, ignore_na=False, min_periods=0, adjust=True, com=1).mean() ewma2 = pd.Series.ewm(series, ignore_na=False, min_periods=0, adjust=True, com=2).mean() ewma5 = pd.Series.ewm(series, ignore_na=False, min_periods=0, adjust=True, com=5).mean() plt.figure(figsize=(20,8)) plt.plot(v,label='raw') plt.plot(ewma1,label='ewma1') plt.plot(ewma2,label='ewma2') plt.plot(ewma5,label='ewma5') plt.grid(True, which='major', c='gray', ls='-', lw=1, alpha=0.2) plt.legend() # plt.gca().yaxis.set_major_formatter(mticker.FormatStrFormatter('%.2f mbps')) plt.show()
rolling是简单移动平均;
可以看出com值越小,衰减因子α越大,相同位置的真实值对应权重越小,则最终加权移动平均效果越接近真实值。
卷积运算
2018-08-07 补充
import numpy as np from matplotlib import pyplot as plt def moving_average(array, window=3): N = window n=np.ones(N) weights=n/N sma=np.convolve(weights,array)[N-1:-N+1] t=np.arange(N-1,len(array)) plt.plot(t,array[N-1:],lw=1) plt.plot(t,sma,lw=2) plt.show() return sma
numpy.convolve(weights,array)[N-1:-N+1] weight = [a,b,c] array = [i,j,k,m,n] Result: [ai, bi+aj, ci+bj+ak, cj+bk+am, ck+bm+an, cm+bn, cn][N-1:-N+1]
参考:https://www.cnblogs.com/21207-iHome/p/6231607.html
参考:https://docs.scipy.org/doc/numpy/reference/generated/numpy.convolve.html
