gem5_cache_分区与不同读写延迟设置
1. gem5 cache: 若采用gem5的classic缓存模型，是不支持多bank模式的，需自己配置。操作如下：
src/mem/cache/
a.【src/mem/cache/Cache.py】cache 的声明源代码：定义了cache的基本参数，以及三个文件：cache.hh, base.hh, noncoherent_cache.hh；
在该文件中添加：enable_bank_model, num_banks, bank_intlv_high_bit
class BaseCache(ClockedObject): type = 'BaseCache' abstract = True cxx_header = "mem/cache/base.hh"
size = Param.MemorySize("Capacity")
assoc = Param.Unsigned("Associativity")
tag_latency = Param.Cycles("Tag lookup latency")
data_latency = Param.Cycles("Data access latency")
response_latency = Param.Cycles("Latency for the return path on a miss");
# reset by zhengyi enable_bank_model = Param.Bool(True,
"knob to control is the bank model is used")
num_banks = Param.Undesigned(1,"Number of cache data array banks")
bank_intlv_hifh_bit = Param.Int(0,
"cache data array bank interleave highest bit"
"(0=automatically alighed to cache line granularity)")
# reset over
b. 【src/mem/cache/base.hh】
需要修改的地方很多，参考链接：
c. 【src/mem/cache/base.cc】cache 代码源文件
需要修改的地方很多，参考链接：
configs/common/ : 这部分主要定义cache的参数配置，默认值等；

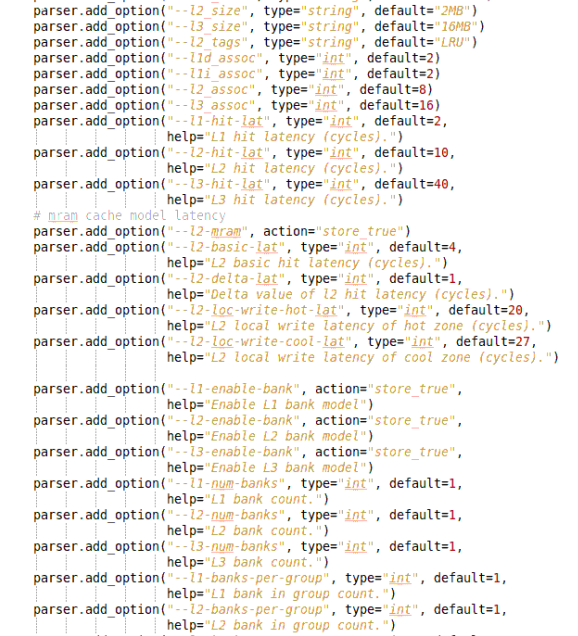

a. 【configs/common/Options.py】定义常用的变量的初始值；在其中添加--part定义，此为LLC分区的块数，默认64；
# Cache Options parser.add_option("--external-memory-system", type="string", help="use external ports of this port_type for caches") parser.add_option("--tlm-memory", type="string", help="use external port for SystemC TLM cosimulation") parser.add_option("--caches", action="store_true") parser.add_option("--l2cache", action="store_true") parser.add_option("--num-dirs", type="int", default=1) parser.add_option("--num-l2caches", type="int", default=1) parser.add_option("--num-l3caches", type="int", default=1) parser.add_option("--l1d_size", type="string", default="64kB") parser.add_option("--l1i_size", type="string", default="32kB") parser.add_option("--l2_size", type="string", default="2MB") parser.add_option("--l3_size", type="string", default="16MB") parser.add_option("--l1d_assoc", type="int", default=2) parser.add_option("--l1i_assoc", type="int", default=2) parser.add_option("--l2_assoc", type="int", default=8) parser.add_option("--l3_assoc", type="int", default=16) # reset by zhengyi parser.add_option("--l1_enable_bank", action="store_true", help="Enable L1bank model") parser.add_option("--l2_enable_bank", action="store_true", help="Enable L2bank model") parser.add_option("--l3_enable_bank", action="store_true", help="Enable L3bank model") parser.add_option("--l1_num_banks", type="int", default=1, help="L1 bank count") parser.add_option("--l2_num_banks", type="int", default=1, help="L2 bank count") parser.add_option("--l3_num_banks", type="int", default=1, help="L3 bank count") parser.add_option("--l1_intlv_bit", type="int", default=0, help="L1 bank interleave highest bit") parser.add_option("--l2_intlv_bit", type="int", default=0, help="L2 bank interleave highest bit") parser.add_option("--l3_intlv_bit", type="int", default=0, help="L3 bank interleave highest bit") parser.add_option("--cacheline_size", type="int", default=64) # reset over
b. 【configs/common/CacheConfig.py】定义cache的基本配置，1/2级缓存，及其分区，替换策略等；在该文件中，为每一级cache添加bank相关属性；
# reset by zhengyi ################## if options.l2cache: # Provide a clock for the L2 and the L1-to-L2 bus here as they # are not connected using addTwoLevelCacheHierarchy. Use the # same clock as the CPUs. system.l2 = l2_cache_class(clk_domain=system.cpu_clk_domain, size=options.l2_size, assoc=options.l2_assoc, enable_bank_model=options.l2_enable_bank, num_banks=options.l2_num_banks, bank_intlv_high_bit=options.l2_intlv_bit) .... if options.memchecker: system.memchecker = MemChecker() for i in range(options.num_cpus): if options.caches: icache = icache_class(size=options.l1i_size, assoc=options.l1i_assoc, enable_bank_model=options.l1_enable_bank, num_banks=options.l1_num_banks, bank_intlv_high_bit=options.l1_intlv_bit) dcache = dcache_class(size=options.l1d_size, assoc=options.l1d_assoc, enable_bank_model=options.l1_enable_bank, num_banks=options.l1_num_banks, bank_intlv_high_bit=options.l1_intlv_bit) ################# reset by zhengyi over
c. 【configs/common/Caches.py】各级缓存默认参数设置：
class L1Cache(Cache): assoc = 2 tag_latency = 2 data_latency = 2 response_latency = 2 mshrs = 4 tgts_per_mshr = 20 enable_bank_model = False class L1_ICache(L1Cache): is_read_only = True # Writeback clean lines as well writeback_clean = True class L1_DCache(L1Cache): pass class L2Cache(Cache): assoc = 8 tag_latency = 20 data_latency = 20 response_latency = 20 mshrs = 20 tgts_per_mshr = 12 write_buffers = 8 enable_bank_model = False class IOCache(Cache): assoc = 8 tag_latency = 50 data_latency = 50 response_latency = 50 mshrs = 20 size = '1kB' tgts_per_mshr = 12 enable_bank_model = False class PageTableWalkerCache(Cache): assoc = 2 tag_latency = 2 data_latency = 2 response_latency = 2 mshrs = 10 size = '1kB' tgts_per_mshr = 12 enable_bank_model = False
2. gem5: different read and write latency of cache.
注：新版gem5中，关于latency的源代码部分从src/mem/cache/tag/中迁移到了src/mem/cache/base.cc
1. 修改: src/mem/cache/BaseCache.py (老版本，新版本中是：gem5/src/mem/cache/Cache.py)
将默认的hit_latency视为 read_latency; 添加自定义的 write_latency;
block_size = Param.Int("block size in bytes")
hit_latency = Param.Cycles("The hit latency for this cache")
+ write_latency = Param.Cycles("The write latency for this cache")
response_latency = Param.Cycles(
"Additional cache latency for the return path to core on a miss");
#reset by bi
class BaseCache(MemObject): type = 'BaseCache' cxx_header = "mem/cache/base.hh" assoc = Param.Int("associativity") basic_latency = Param.Cycles("The hit latency for the first line of this cache") delta_latency = Param.Cycles("The hit latency for hit one more line") loc_write_hot_latency = Param.Cycles("Additional latency for write one line in hot zone.") //reset by bi loc_write_cool_latency = Param.Cycles("Additional latency for write one line in cool zone.")//reset by bi response_latency = Param.Cycles( "Additional cache latency for the return path to core on a miss")
2. 修改： src/mem/cache/base.hh;
添加 write_latency 的 const 定义，以及bank group ID
const Cycles writeLatency;
/**
* Return Bank Group ID. according to BankId(Bi set)
*/
unsigned
getGroupId(unsigned bankId, int bank_num_per_group) const
{
double temp_id = ceil(bankId/bank_num_per_group); //get double type group_id
unsigned group_id = (unsigned)(temp_id); //convert double type to unsigned type
return group_id;
}
/** * Return Bank Group Read Latency. according to GroupId(Bi set) */ //unsigned //getGroupReadLatency(unsigned groupId, unsigned latency) const //{ // double deta = 1/clock; // latency = latency + ((int)((groupId-1)*deta+0.001))+1; // return latency; //} /** * Return Bank Group Write Latency. according to GroupId(Bi set) */ //unsigned //getGroupWriteLatency(unsigned groupId, unsigned latency) const //{ // double deta = 1/clock; // latency = latency + ((int)((groupId-1)*deta+0.001))+1; // return latency; //}
3. 修改： src/mem/cache/cache_impl.cc:
如果 way == assoc -1，那么它是该组的最后一路。定义为PUF其中一路。

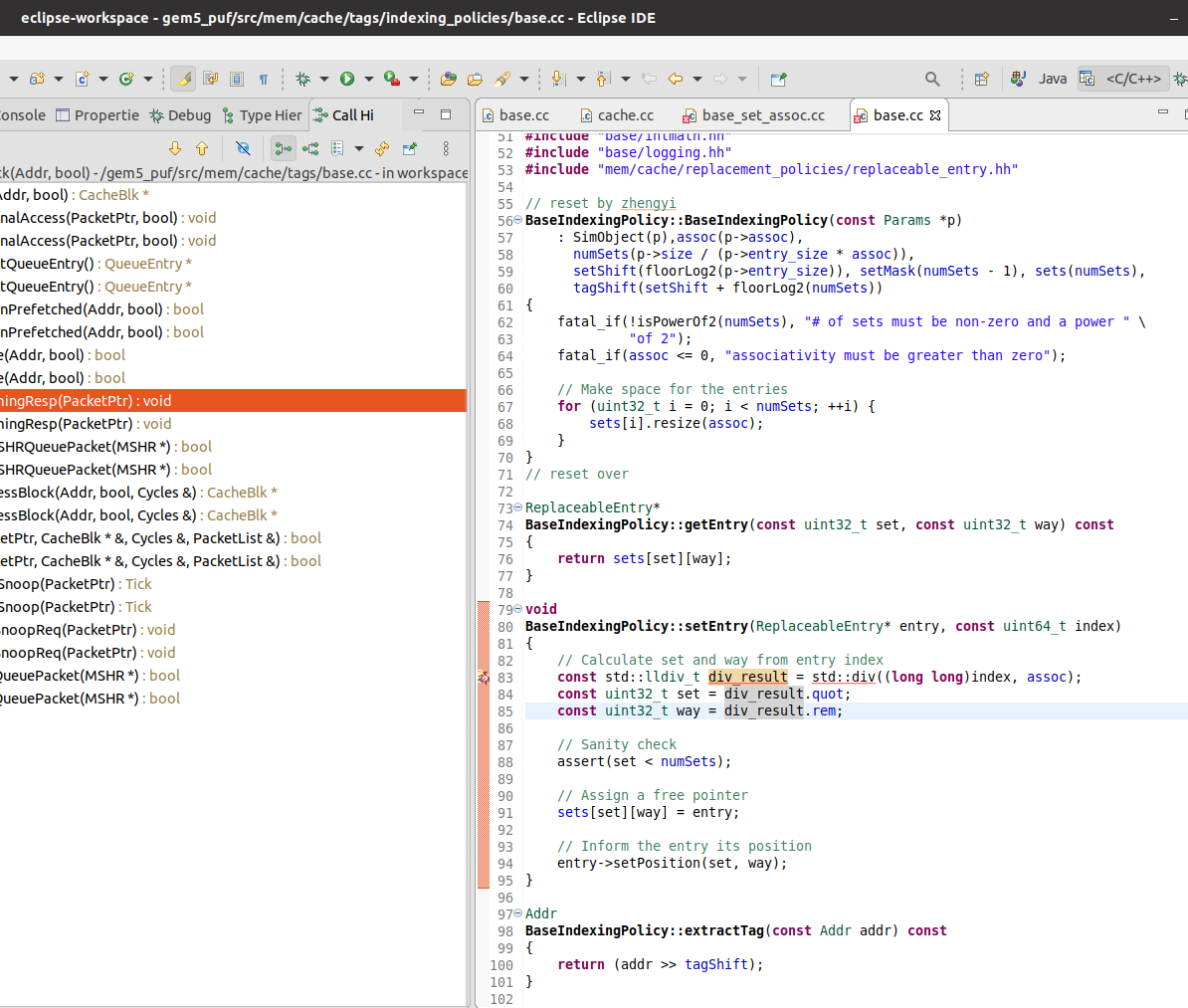

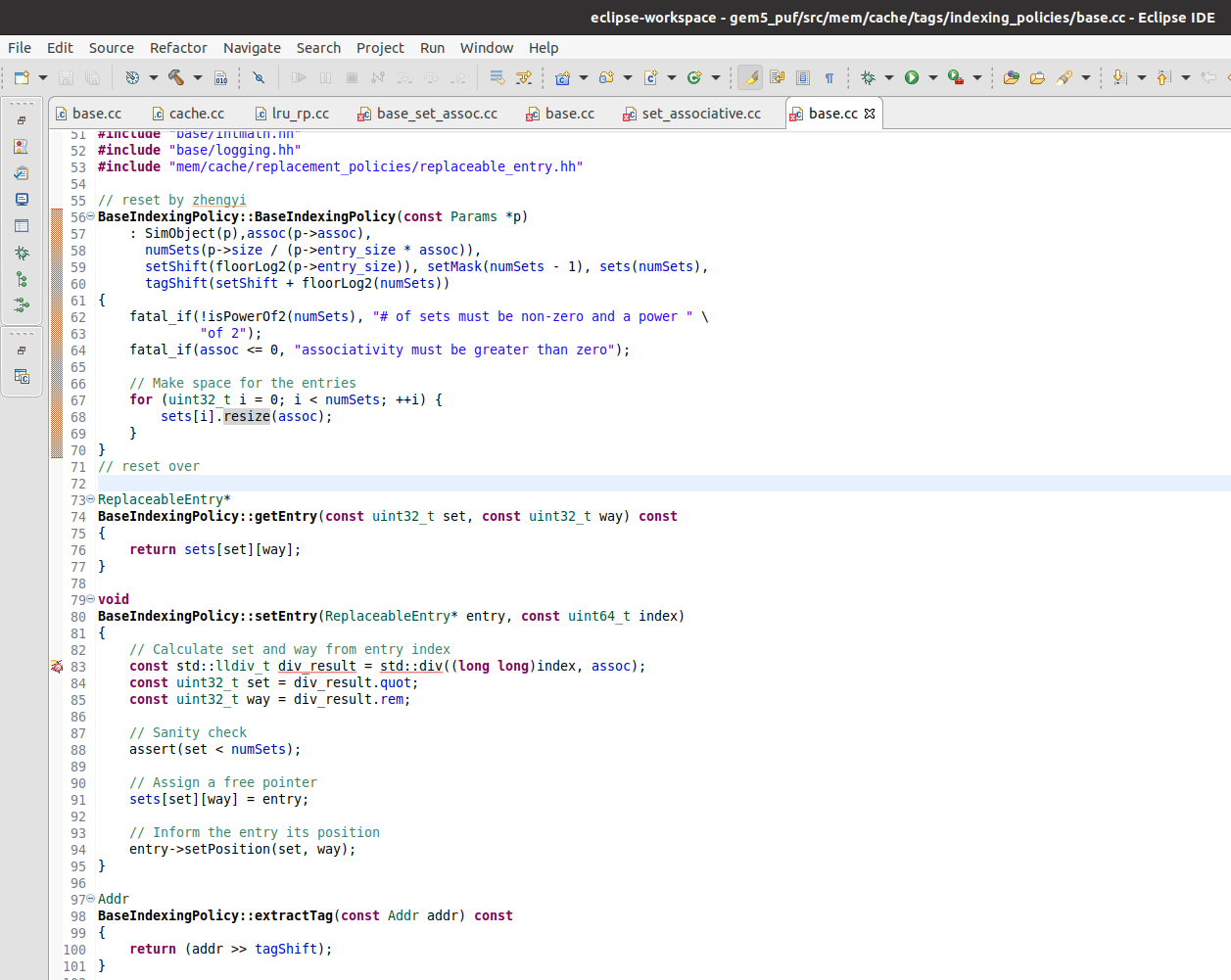

这里是分组的位置，index为blk的索引编号，assoc为相联系数--即路数or每组的blk数
各延迟的初始值
