C# WPF image控件 图片 Source

加载图片的几种方式

1、加载网络图片

<Image Source="http://example.com/path/to/image.jpg" Stretch="UniformToFill"/>



2、加载项目中的图片

<Image Source="path/to/your/image.jpg" Stretch="UniformToFill"/>

图片需先加入项目：





3、加载本地图片（相对路径）

<Image Source="pack://siteoforigin:,,,/imgs/1.jpg" />

在后台代码中，则写成：

img.Source = new BitmapImage(new Uri("pack://siteoforigin:,,,/imgs/1.jpg", UriKind.Absolute));

虽然是相对路径，但是参数必须选择 UriKind.Absolute。搞不懂。



这种写法，图片不必事先加入项目，只需要在程序运行时，该路径下的图片存在即可（如果图片不存在，则程序直接崩溃并退出）





如果写成：

img.Source = new BitmapImage(new Uri(@"imgs/1.jpg", UriKind.Relative));

则要求图片必须先添加的项目的资源中，因为以上写法是以下写法的简写：

img.Source = new BitmapImage(new Uri(@"pack://application:,,,/imgs/1.jpg", UriKind.Absolute));



4、加载本地图片（绝对路径）

<Image Source="pack://siteoforigin:,,,/e:/imgs/1.jpg" />





路径斜杠的两张书写格式：

img.Source = new BitmapImage(new Uri("pack://siteoforigin:,,,/E:\\04Window.png", UriKind.Absolute));

或

img.Source = new BitmapImage(new Uri("pack://siteoforigin:,,,/E:/04Window.png", UriKind.Absolute));



可以直接写文件路径？：

img.Source = new BitmapImage(new Uri(@"E:\04 Window.png", UriKind.Absolute));

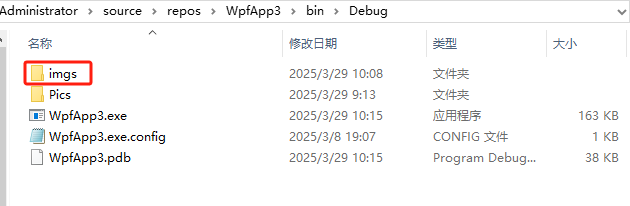

循环显示文件夹中的图片：

    public partial class MainWindow : Window
    {
        string[] files = Directory.GetFiles(@"C:\Users\Administrator\source\repos\WpfApp3\bin\Debug\imgs");
        int position = -1;

        public MainWindow()
        {
            InitializeComponent();
        }

        private void btnPre_Click(object sender, RoutedEventArgs e)
        {

        }

        private void btnNext_Click(object sender, RoutedEventArgs e)
        {
            position++;
            if(position == files.Length)
            {
                position = 0;
            }
            img.Source = new BitmapImage(new Uri(files[position], UriKind.Absolute));

        }
    }

或者(把文件路径写成相对路径)

    public partial class MainWindow : Window
    {
        string[] files = Directory.GetFiles(@".\imgs");
        int position = -1;

        public MainWindow()
        {
            InitializeComponent();
        }

        private void btnPre_Click(object sender, RoutedEventArgs e)
        {
            position--;
            if (position < 0)
            {
                position = files.Length - 1;
            }
            string str = Directory.GetCurrentDirectory();
            img.Source = new BitmapImage(new Uri(str + files[position], UriKind.Absolute));
        }

        private void btnNext_Click(object sender, RoutedEventArgs e)
        {
            position++;
            if(position == files.Length)
            {
                position = 0;
            }
            string str = Directory.GetCurrentDirectory();
            img.Source = new BitmapImage(new Uri(str + files[position], UriKind.Absolute));
        }
    }

 或

public partial class MainWindow : Window
{
    string[] files = Directory.GetFiles("imgs");
    int position = -1;

    public MainWindow()
    {
        InitializeComponent();
        //img.Source = new BitmapImage(new Uri("pack://siteoforigin:,,,/Pics/mm.jpg", UriKind.Absolute));
    }

    private void btnPre_Click(object sender, RoutedEventArgs e)
    {
        position--;
        if (position < 0)
        {
            position = files.Length - 1;
        }
        img.Source = new BitmapImage(new Uri("pack://siteoforigin:,,,/" + files[position], UriKind.Absolute));
    }

    private void btnNext_Click(object sender, RoutedEventArgs e)
    {
        position++;
        if(position == files.Length)
        {
            position = 0;
        }
        img.Source = new BitmapImage(new Uri("pack://siteoforigin:,,,/" + files[position], UriKind.Absolute));
    }
}
