实验四

Posted on 2021-11-24 16:49  蒟蒻是果冻  阅读(65)  评论(2)    收藏  举报

实验结论

实验2：验证抽象函数的使用

main.cpp



 1 #include<iostream>
 2 #include<typeinfo>
 3
 4 class Graph{
 5 public:
 6     virtual void draw() {
 7         std::cout << "Graph::drwa() : just as an interface\n";
 8     }
 9 };
10
11 class Rectangle: public Graph {
12 public:
13     void draw() {
14         std::cout << "Rectangle::drwa(): programs of draw a rectangle\n";
15     }
16 };
17
18 class Circle: public Graph {
19 public:
20     void draw() {
21         std::cout << "Circle::draw((): programs of draw a circle\n";
22     }
23 };
24
25 void fun(Graph *ptr) {
26     std::cout << "pointer type: " << typeid(ptr).name() << std::endl;
27     std::cout << "PTTI type: " << typeid(*ptr).name() << std::endl;
28     ptr->draw();
29 }
30
31 int main() {
32     Graph g1;
33     Rectangle r1;
34     Circle c1;
35
36     g1.draw();
37     r1.draw();
38     c1.draw();
39
40     std::cout << "\n";
41
42     fun(&g1);
43     fun(&r1);
44     fun(&c1);
45 }
View Code

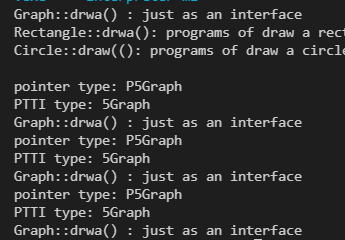

将draw设置为virtual函数之前：





将draw设置为virtual函数之后：







我的结论：

1. 在向上转型（将子类的变量转换为父类时），会优先使用父类的对应的函数，除非将该函数virtual化

2. 如果想通过子类调用父类的函数（与子类的函数申明一致，已经被重载），需要用FartherClass::function()的函数来调用父类对应的函数



实验3：模拟简单的车辆信息管理



Battery.hpp



 1 #pragma once
 2 #include<iostream>
 3 class Battery {
 4 public:
 5     Battery(int _capacity = 70);
 6 int get_capacity();
 7 private:
 8     int capacity;
 9
10 };
View Code



Car.hpp



 1 #pragma once
 2 #include<iostream>
 3
 4 using namespace std;
 5
 6 class Car
 7 {
 8 public:
 9     Car(string maker, string model, int year);
10     void info();
11     void update_odometers(int curr_odometers);
12
13 private:
14     string maker;
15     string model;
16     int year;
17     int odometers;
18 };
View Code



ElectricCar.hpp



 1 #pragma once
 2 #include "Car.hpp"
 3 #include "Battery.hpp"
 4 class ElectricCar : public Car{
 5 public:
 6     ElectricCar(string maker, string model, int year, int capacity = 70);
 7     void info();
 8
 9 private:
10     Battery battery;
11 };
View Code



ElectricCar.cpp



 1 #include "ElectricCar.hpp"
 2
 3 Battery::Battery(int _capacity) : capacity(_capacity) {
 4
 5 }
 6
 7 int Battery::get_capacity() {
 8     return capacity;
 9 }
10
11 Car::Car(string _maker, string _model, int _year) : maker(_maker), model(_model), year(_year), odometers(0) {
12
13 }
14
15 void Car::info() {
16     cout <<
17         "制造商：\t" << maker << "\n"
18         "型号：\t\t" << model << "\n"
19         "生产年份：\t" << year << "\n"
20         "当前行车里程数：" << odometers << endl;
21 }
22
23 void Car::update_odometers(int curr_odometers) {
24     if (curr_odometers < odometers) {
25         cout << "输入里程数小于原始里程数，请查证后重新输入" << endl;
26     }
27     else {
28         odometers = curr_odometers;
29     }
30 }
31
32 ElectricCar::ElectricCar(string _maker, string _model, int _year, int _capacity) : Car(_maker, _model, _year), battery(_capacity) {
33
34 }
35
36 void ElectricCar::info() {
37     Car::info();
38     cout << "电池容量：\t" << battery.get_capacity() << "-kwh" << endl;
39 }
View Code



task3.cpp



 1 #include"ElectricCar.hpp"
 2
 3 int main() {
 4     Car oldcar("Audi", "a7", 2021);
 5     cout << "------oldcar's info------" << endl;
 6     oldcar.update_odometers(30000);
 7     oldcar.info();
 8     cout << endl;
 9
10     ElectricCar newCar("Tesla", "mldel S", 2020);
11     newCar.update_odometers(3000);
12     cout << "\n------newCar's info------\n";
13     newCar.info();
14 }
View Code

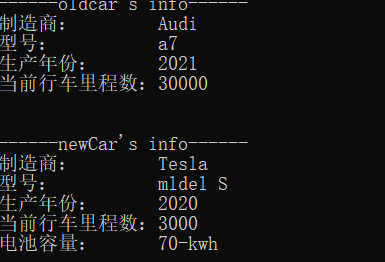

运行效果图如下：





实验4： 模拟简单的机器宠物

Pet.hpp



 1 #pragma once
 2 #include<iostream>
 3 using namespace std;
 4
 5 class MachinePet {
 6 public:
 7     MachinePet(const string s);
 8     virtual string talk();
 9     string get_nickname();
10 private:
11     string nickname;
12 };
13
14 class PetCat : public MachinePet{
15 public:
16     PetCat(const string s);
17     string talk();
18 };
19
20 class PetDog : public MachinePet{
21 public:
22     PetDog(const string s);
23     string talk();
24 };
25
26 MachinePet::MachinePet(const string s) : nickname(s) {
27
28 }
29
30 string MachinePet::get_nickname() {
31     return nickname;
32 }
33
34 string MachinePet::talk() {
35     return "动物叫";
36 }
37
38 PetCat::PetCat(const string s) : MachinePet(s) {
39
40 }
41
42 string PetCat::talk() {
43     return "喵喵喵";
44 }
45
46 PetDog::PetDog(const string s) : MachinePet(s) {
47
48 }
49
50 string PetDog::talk() {
51     return "汪汪汪";
52 }
View Code



task4.cpp

 1 #include <iostream>
 2 #include "Pet.hpp"
 3
 4 void play(MachinePet* ptr) {
 5     cout << ptr->get_nickname() << "说" << ptr->talk() << endl;
 6 }
 7
 8 int main()
 9 {
10     PetCat cat("小花");
11     PetDog    dog("大黄");
12
13     play(&cat);
14     play(&dog);
15 }
View Code



运行效果图如下：





实验总结

实验3心得

关于ElectricCar.cpp的组织形式

需要把所有的类的具体实现都发到这里，不然会报重定义的错误

其他

1.可以在子类中调用父类的方法进行“坑老”，减少子类书写的代码量，如在info中调用父类的info

2.注意构造器的传入参数的个数，我一开始写错了



实验4心得

1.一个抽象函数的使用，简简单单

2.类名应该使用单数，而不是例如“petcats"这种的复数
