实现progressbar旋转菊花加载的界面

1.写一个全屏显示菊花dialog

res/layout/dlg_srx.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center_vertical">

    <ProgressBar
        android:id="@+id/w3_progress"
        android:layout_width="32dp"
        android:layout_height="32dp"
        android:layout_gravity="center"
        android:layout_marginBottom="8dp"
        android:indeterminateBehavior="repeat"
        android:indeterminateDrawable="@drawable/anim" />
    <TextView
        android:id="@+id/w3_ptext"
        android:layout_width="wrap_content"
        android:layout_height="18dp"
        android:layout_gravity="center"
        android:layout_marginBottom="51dp"
        android:textSize="14sp"/>
</LinearLayout>

res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:contentDescription=".MainActivity">
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/button01"
        android:text="点击弹出对话框"/>
</LinearLayout>

res/drawable/anim.xml

<?xml version="1.0" encoding="utf-8"?>
<animated-rotate xmlns:android="http://schemas.android.com/apk/res/android"
    android:drawable="@drawable/loading"
    android:fromDegrees="0.0"
    android:pivotX="50.0%"
    android:pivotY="50.0%"
    android:toDegrees="360.0" />

res/drawable/loading.png

res/values/strings.xml

<resources>
    <string name="app_name">My Application</string>
    <string name="w3_shut_message">正在关闭...</string>
</resources>

res/value/styles.xml

<resources>

    <!-- Base application theme. -->
    <style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>
    </style>
    <style name="w3shutDlg" parent="android:Theme.Dialog">
    </style>
</resources>

java代码: 在java中调用显示xml

MainActivity.java

   Button mBtn = (Button)findViewById(R.id.button01);
        mBtn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                showMyDialog(MainActivity.this);
            }
        });

private void showMyDialog(Context  context){
        //1.方法1可以显示一个菊花dialog，是对话框不是全屏
        /*AlertDialog dlg = new AlertDialog.Builder(MainActivity.this, R.style.testDlg).create();
        dlg.show();
        dlg.setCancelable(false);
        dlg.setContentView(R.layout.dlg_srx);*/ //this effect is ok.
        //2.方法2可以显示一个菊花dialog,是对话框不是全屏

      /*  ProgressDialog dlg = new ProgressDialog(MainActivity.this,R.style.w3shutDlg);
        dlg.show();
        dlg.setCancelable(false);
        dlg.setContentView(R.layout.dlg_srx);*/
        //dlg.show();//这句如果放后面达不到菊花效果

        //方法3可以显示一个全屏的菊花转圈
        GradientDrawable background = new GradientDrawable(context);
        background.setAlpha((int) (1.0f * 255));

        Dialog d = new Dialog(context, R.style.w3shutDlg);
        // Window initialization
        Window window = d.getWindow();
        window.getDecorView();
        window.getAttributes().width = ViewGroup.LayoutParams.MATCH_PARENT;
        window.getAttributes().height = ViewGroup.LayoutParams.MATCH_PARENT;

        window.requestFeature(Window.FEATURE_NO_TITLE);
        window.clearFlags(WindowManager.LayoutParams.FLAG_DIM_BEHIND
                | WindowManager.LayoutParams.FLAG_LAYOUT_INSET_DECOR);
       //window.addFlags(WindowManager.LayoutParams.FLAG_LAYOUT_IN_SCREEN);
        window.setBackgroundDrawable(new ColorDrawable(Color.BLACK));//background
        d.setContentView(R.layout.dlg_srx);
        d.setCancelable(false);

        //int color = 0xff00ff00;//Utils.getColorAttr(mContext, com.android.systemui.R.attr.wallpaperTextColor);
        ProgressBar bar = d.findViewById(R.id.w3_progress);
       // bar.getIndeterminateDrawable().setTint(color);
        TextView message = d.findViewById(R.id.w3_ptext);
        //message.setTextColor(color);
        message.setText(R.string.w3_shut_message);
        //Point displaySize = new Point();
       // context.getDisplay().getRealSize(displaySize);
        //getWindowManager().getDefaultDisplay().getRealSize(displaySize);
        //background.setScreenSize(displaySize.x, displaySize.y);
        d.show();
    }
}

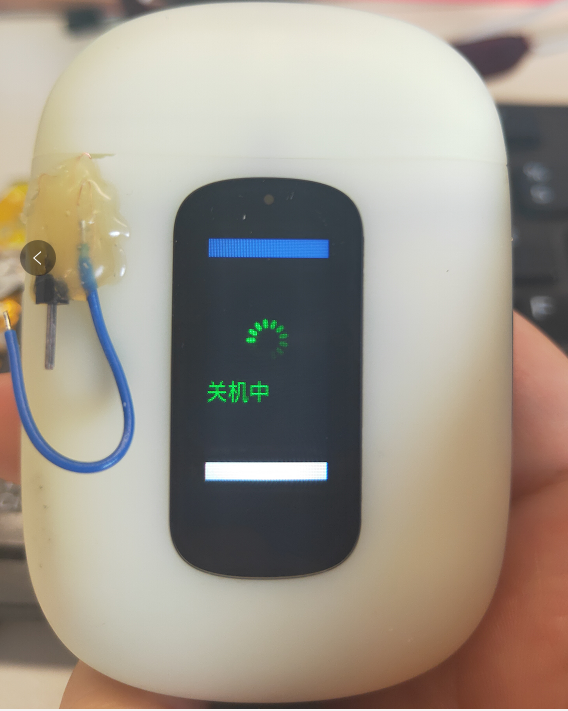

 显示如下这种时，加一个window.getDecorView();







2.写一个显示菊花dialog对话框

用方法1，2调用即可。配合的xml用这个

res/layout/dlg_srx.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:gravity="center"
    android:orientation="vertical">

    <ProgressBar
        android:id="@+id/loading"
        android:layout_width="30dp"
        android:layout_height="30dp"
        android:layout_gravity="center_horizontal"
        android:layout_marginTop="20dp"
        android:indeterminateBehavior="repeat"
        android:indeterminateDrawable="@drawable/anim" />
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        android:layout_marginTop="5dp"
        android:text="加载中..." />
</LinearLayout>

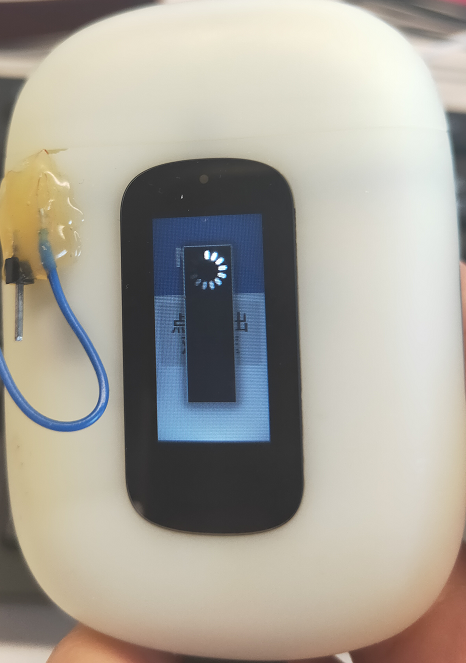

对话框显示效果大概是这种:







 ////////////////////////////下面的不用看了

只需要改xml相关即可，java代码不用动

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:contentDescription=".MainActivity">
<ProgressBar
    android:id="@+id/loading"
    android:layout_width="30dp"
    android:layout_height="30dp"
    android:layout_gravity="center_horizontal"
    android:layout_marginTop="20dp"
    android:indeterminateBehavior="repeat"
    android:indeterminateDrawable="@drawable/anim" />
<TextView
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_gravity="center_horizontal"
    android:layout_marginTop="5dp"
    android:text="加载中..." />
</LinearLayout>

drawable/anim.xml

<?xml version="1.0" encoding="utf-8"?>
<animated-rotate xmlns:android="http://schemas.android.com/apk/res/android"
    android:drawable="@drawable/loading"
    android:fromDegrees="0.0"
    android:pivotX="50.0%"
    android:pivotY="50.0%"
    android:toDegrees="360.0" />

drawable/loading.png
把那一张loading图片放到这里即可



参考实现网址:

 https://blog.csdn.net/zhangphil/article/details/79453384
