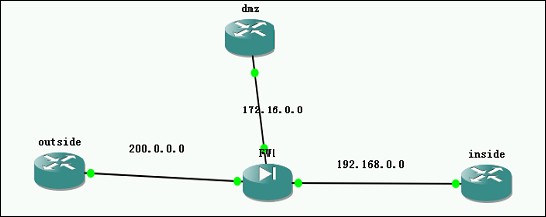

防火墙初始化配置

outside:

en

conf t

inter f0/0

no sh

ip add 200.0.0.1 255.255.255.0

no sh

ip route 0.0.0.0 0.0.0.0 200.0.0.254

end

dmz:

en

conf  t

inter f0/0

no sh

ip add 172.168.0.1 255.255.255.0no sh

ip route 0.0.0.0 0.0.0.0 172.16.0.254

inside:

en

conf t

int f0/0

no sh

ip add 192.168.0.1 255.255.255.0

exit

route 0.0.0.0 0.0.0.0 192.168.0.254

end

pix:

conf  t

interface e1

no sh

nameif inside

ip add 192.168.0.254 255.255.255.0

int e0

no sh

nameif outside

ip add 200.0.0.254 255.255.255.0

no sh

interface e2

nameif dmz

security-level 50

ip add 172.16.0.254 255.255.255.0

outside:

line vty 0 15

no login

privilege level 15

end

inside:

telnet 200.0.0.1

可以登录

ping 200.0.0.1 不通，没状态

pix:

access-list 1 permit icmp host 200.0.0.1 host 192.168.0.1

access-list 1 in interface outside

inside:

ping 200.0.0.1 通

pix:

clear configure access-list

clear config access-group

做nat配置

nat (inside) 1 192.168.0.0 255.255.255.0

global outside) 1 interface

inside:

telnet 200.0.0.1

连接上

outside:

who

静态映射配置

pix:

static (dmz,outside) 200.0.0.253 172.16.0.1

dmz:

line vty 0 15

no login

privilege level 15

outside:

telnet 200.0.0.253

不会通

pix:

access-list 1 permit tcp host 200.0.0.1 host 200.0.0.253 eq 23

access-group 1

outside:

telnet 200.0.0.253

通

inside:

telnet 192.168.0.254

默认情况下防火墙不允许telnet,写telnet让其可以通

pix:

telnet 0 0 inside

inside:

telnet 192.168.0.254

show sessions

可以通
