图形学基础光线追踪

Why Ray Tracing?
Rasterization couldn’t handle global effects well

• (Soft) shadows
• And especially when the light bounces more than once
  • Rasterization is fast, but quality is relatively low

Ray tracing is accurate, but is very slow

• Rasterization: real-time, ray tracing: offline
• ~10K CPU core hours to render one frame in production

Basic Ray-Tracing Algorithm

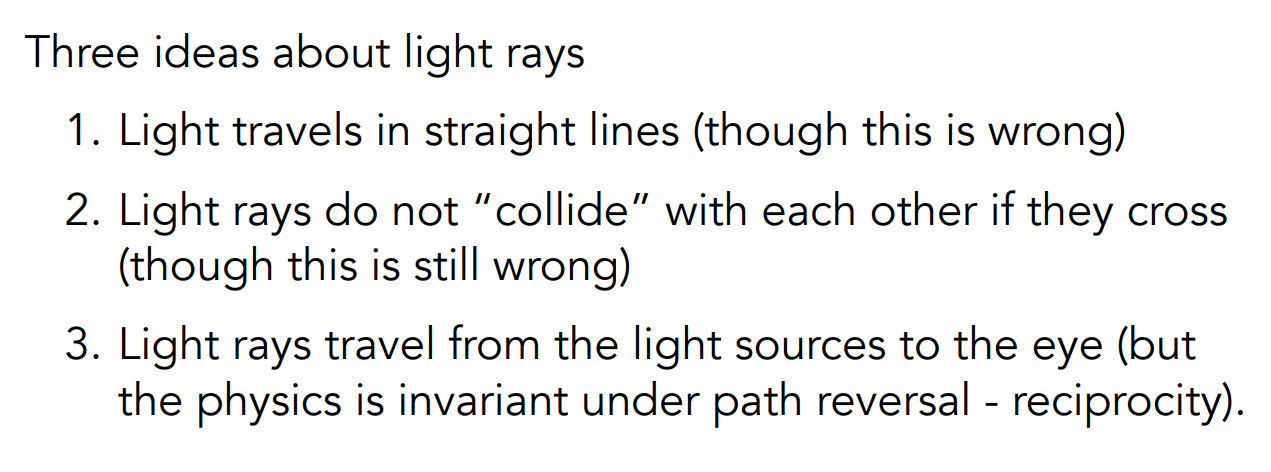

光线直线传播、不碰撞、从光源出发最终进入眼睛

Ray Casting

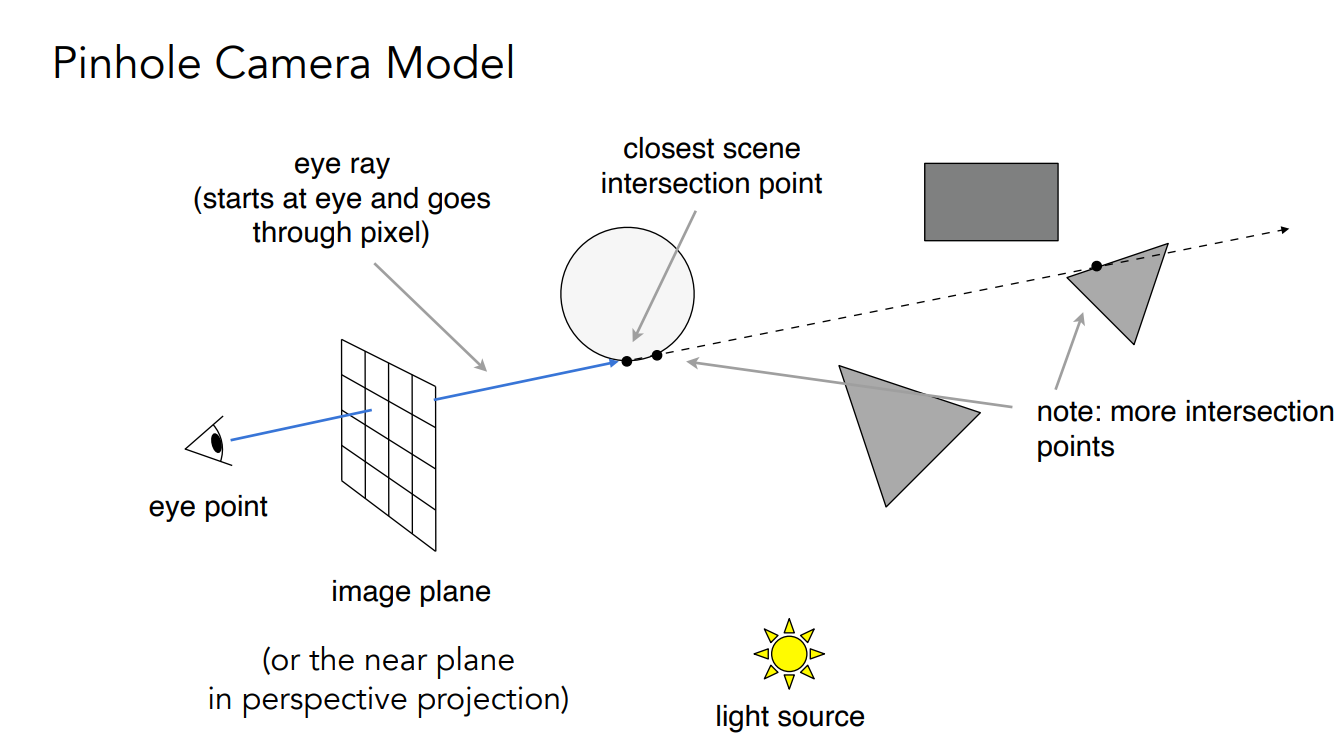

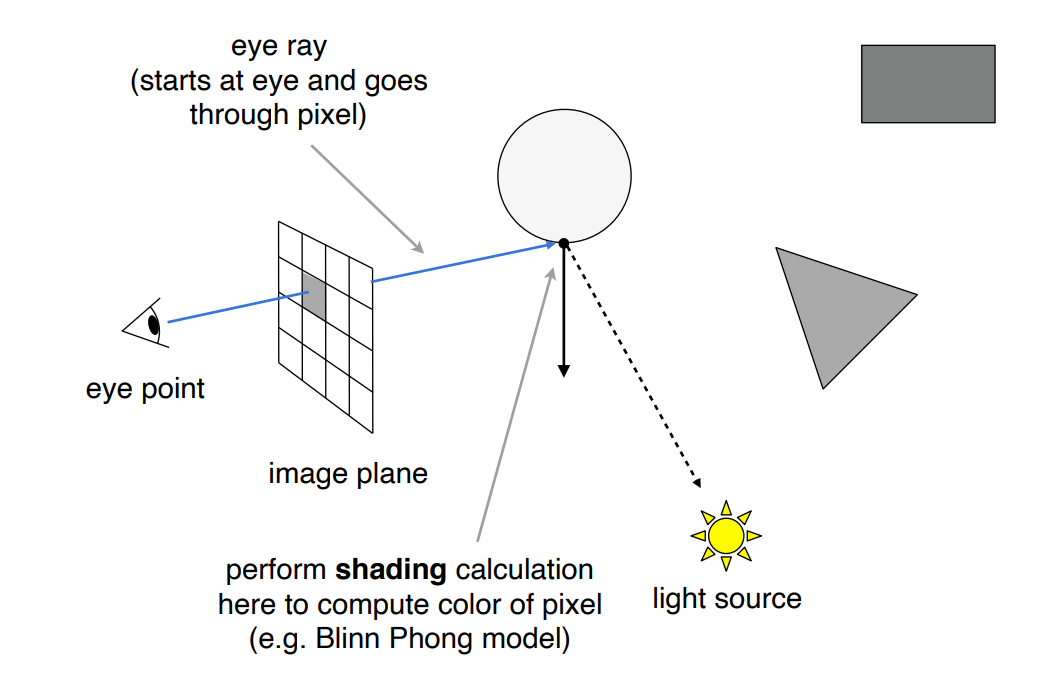

Generating Eye Rays

Shading Pixels (Local Only)

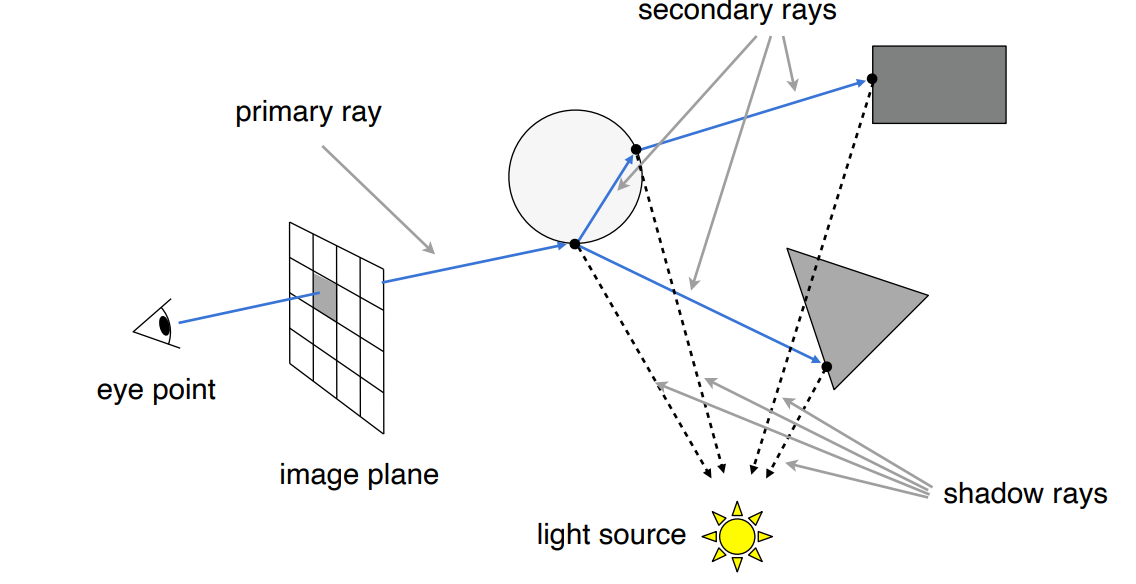

Recursive (Whitted-Style) Ray Tracing

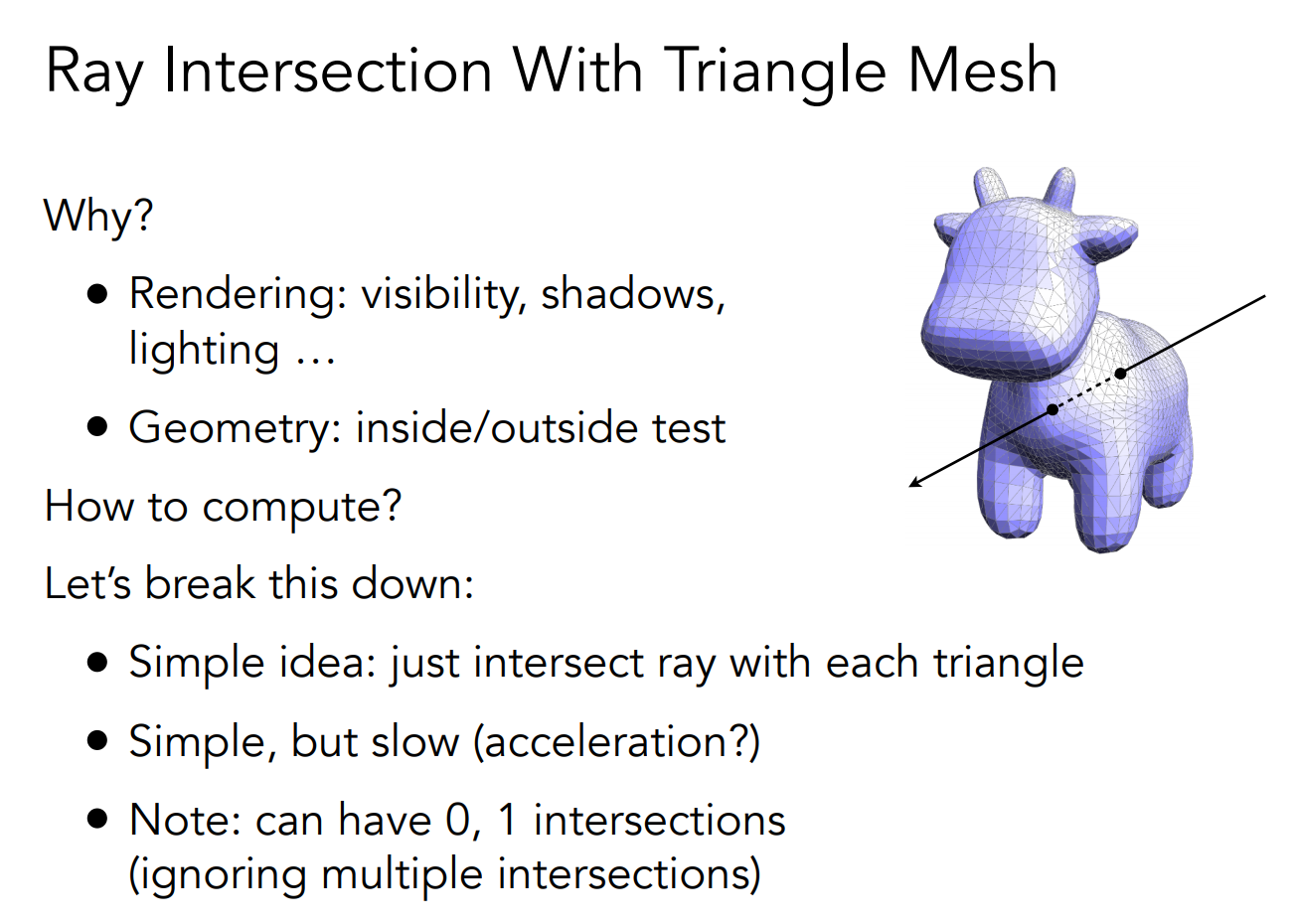

Ray-Surface Intersection

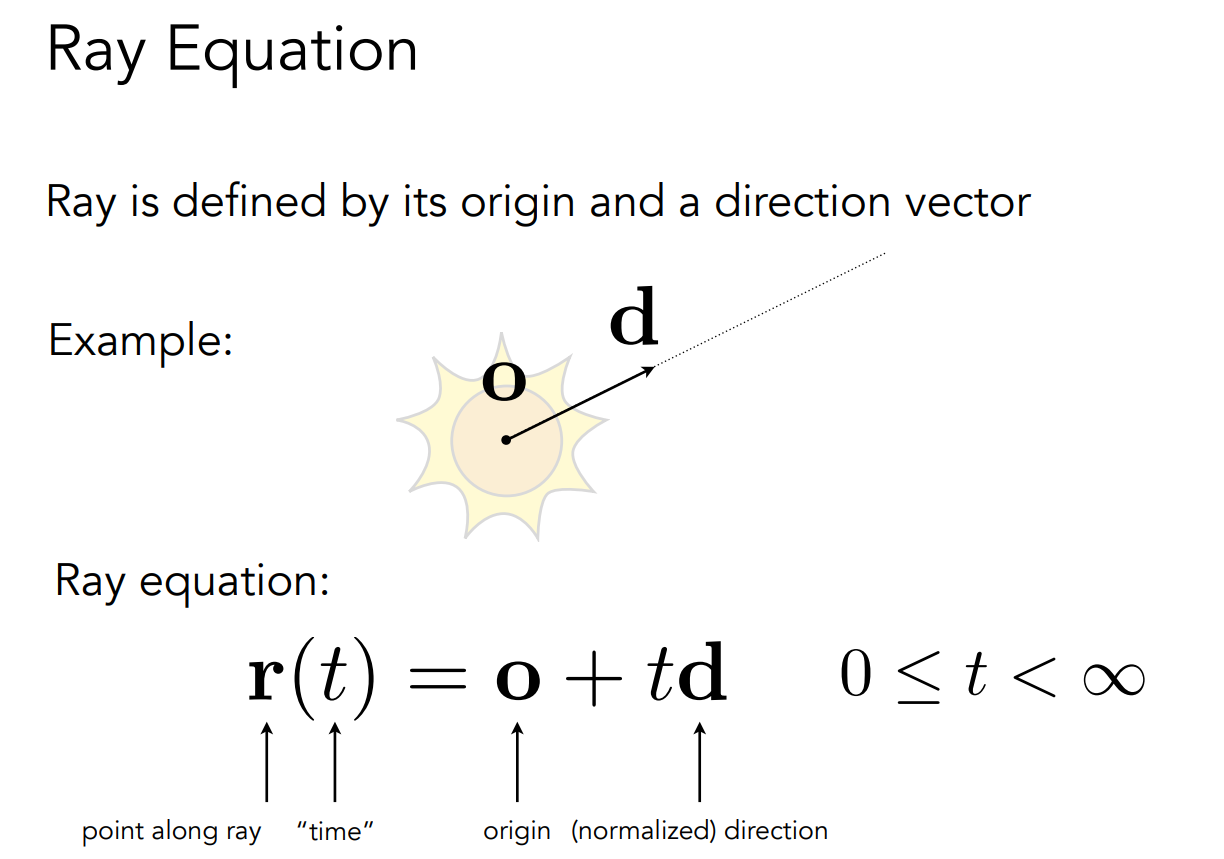

光线数学定义

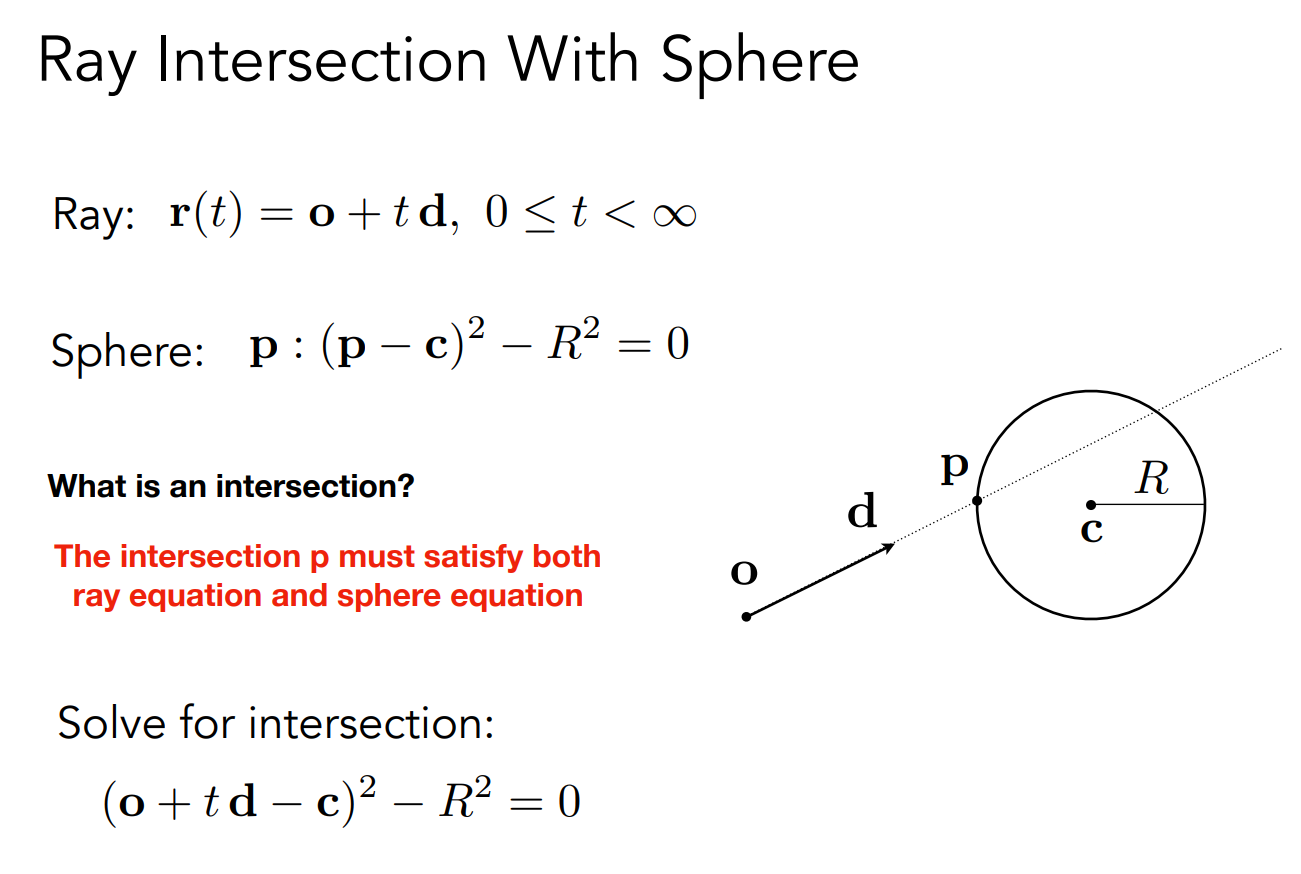

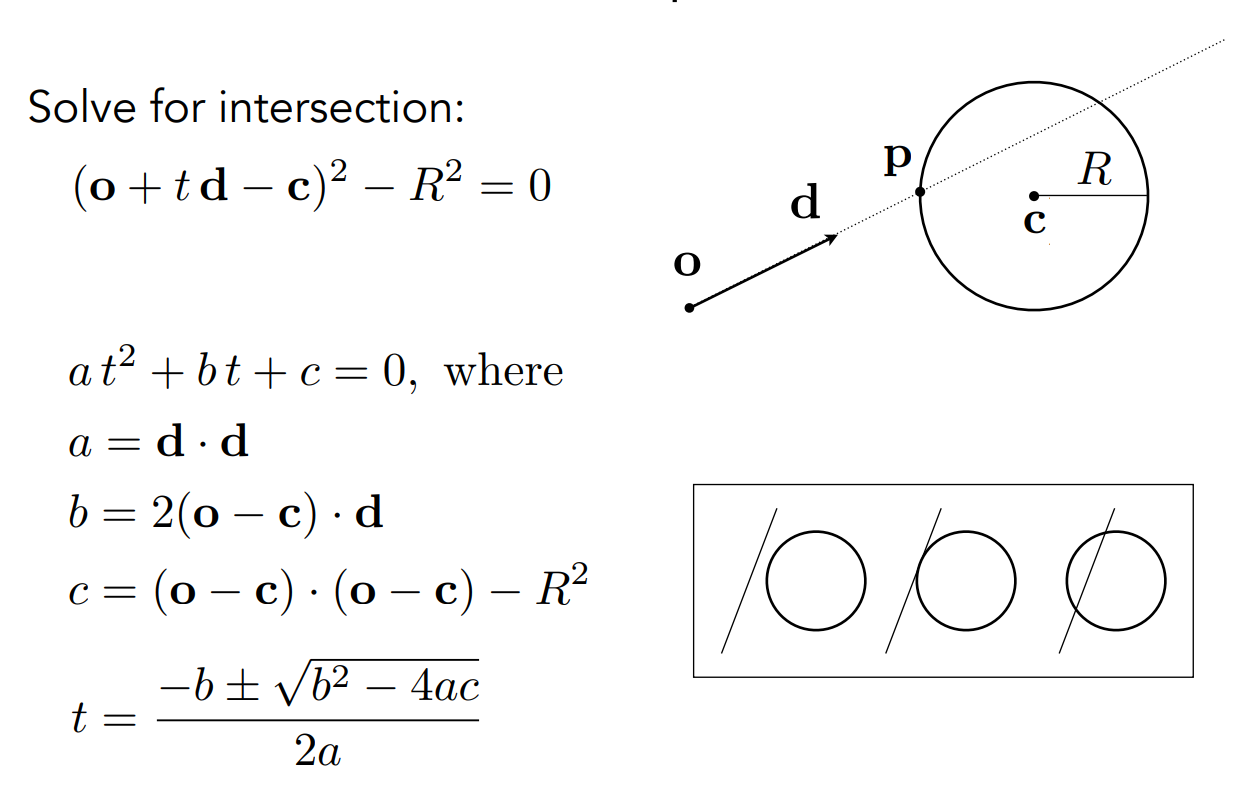

和球求交

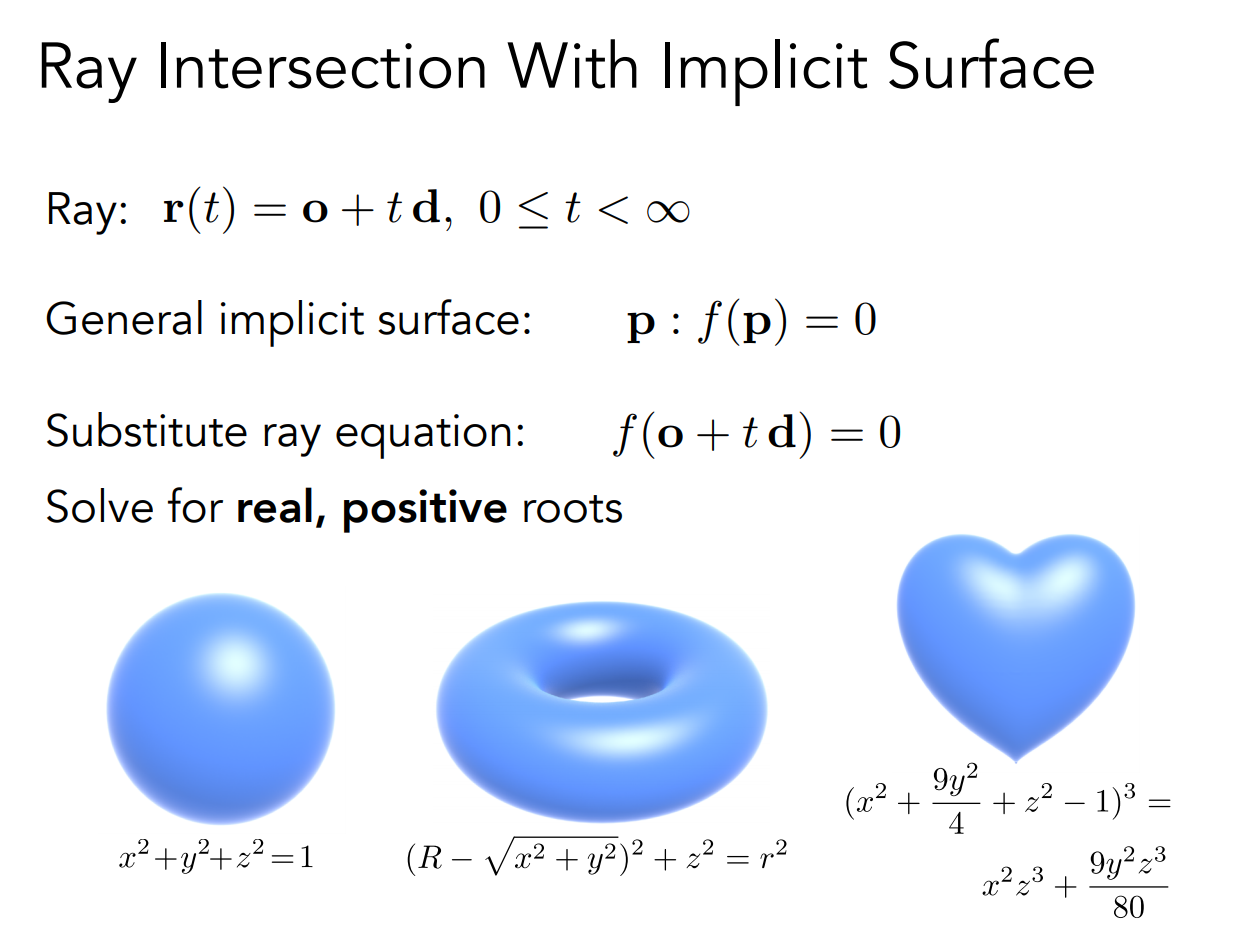

显式表面

与平面求交

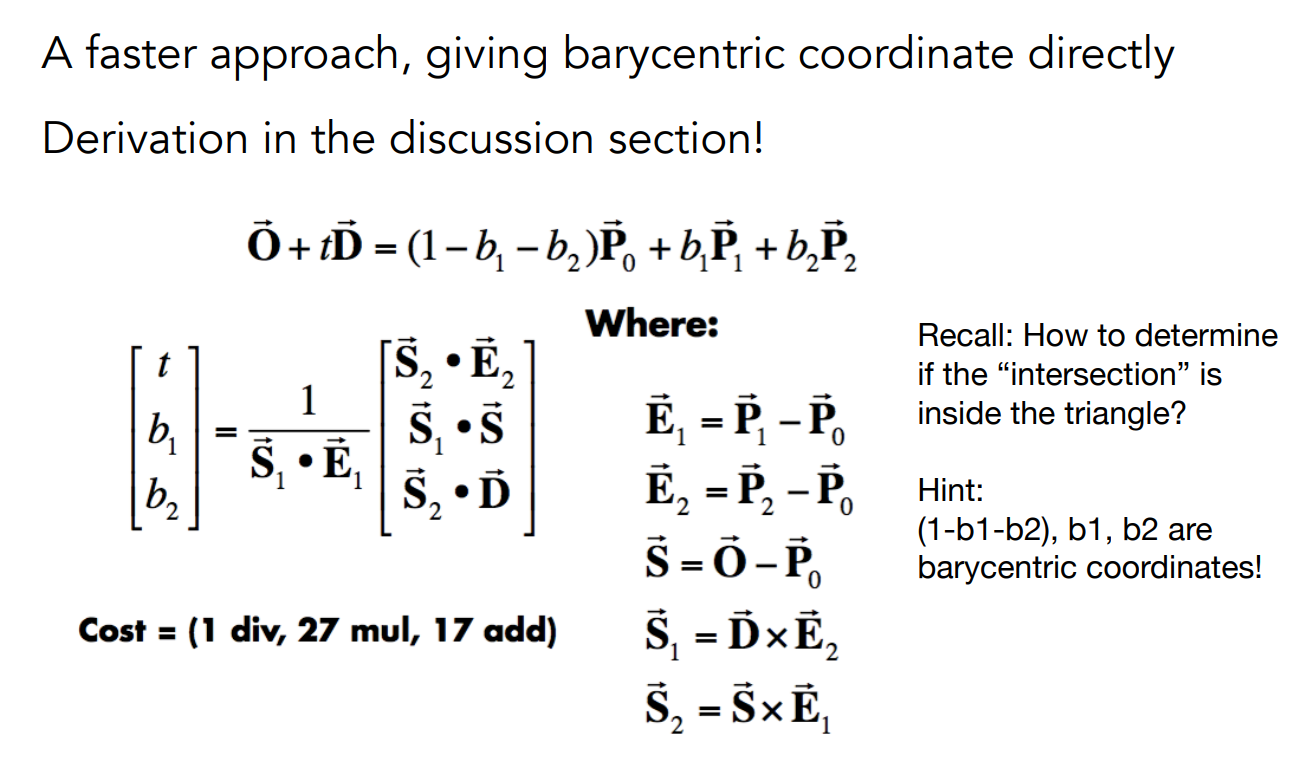

Möller Trumbore Algorithm MT算法 等式左边光线 右边三角形内部点

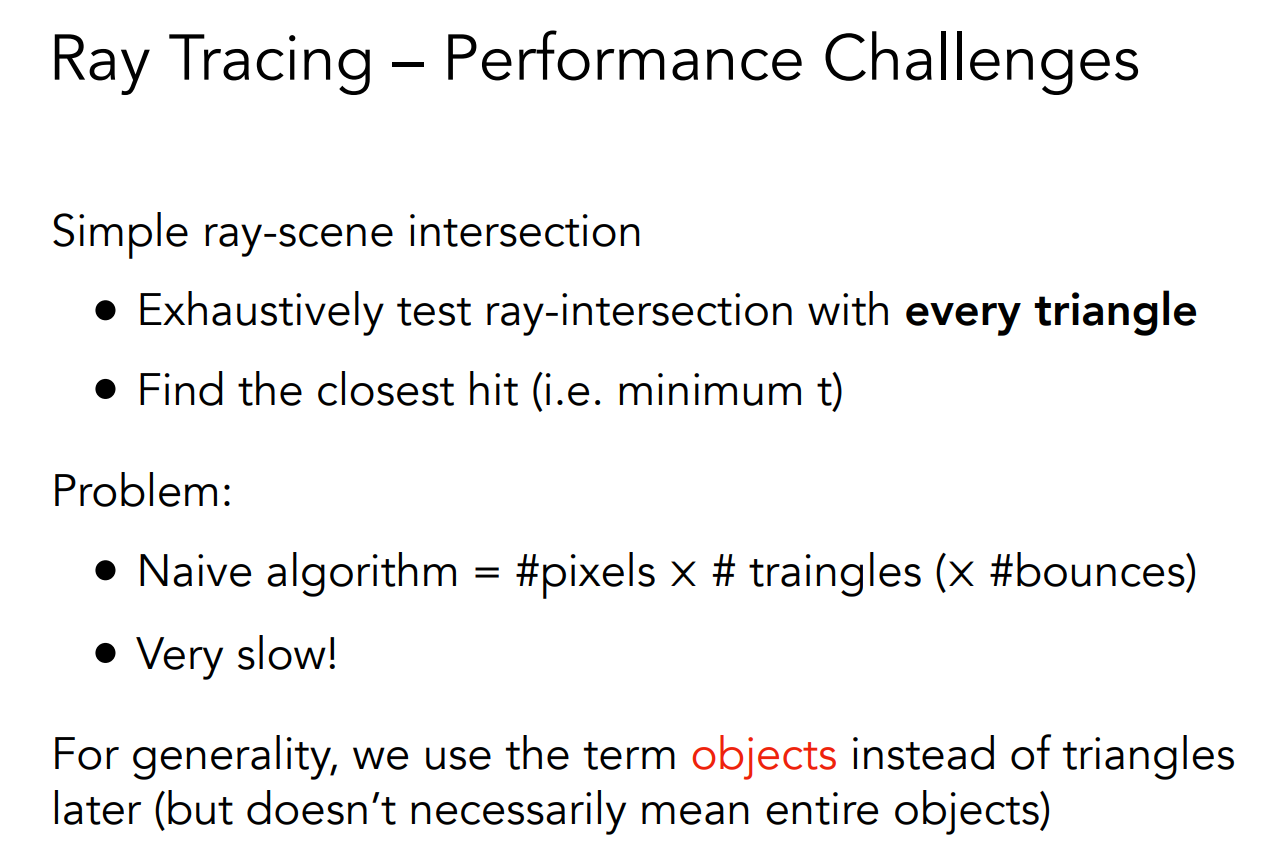

Accelerating Ray-Surface Intersection

Bounding Volumes包围体积

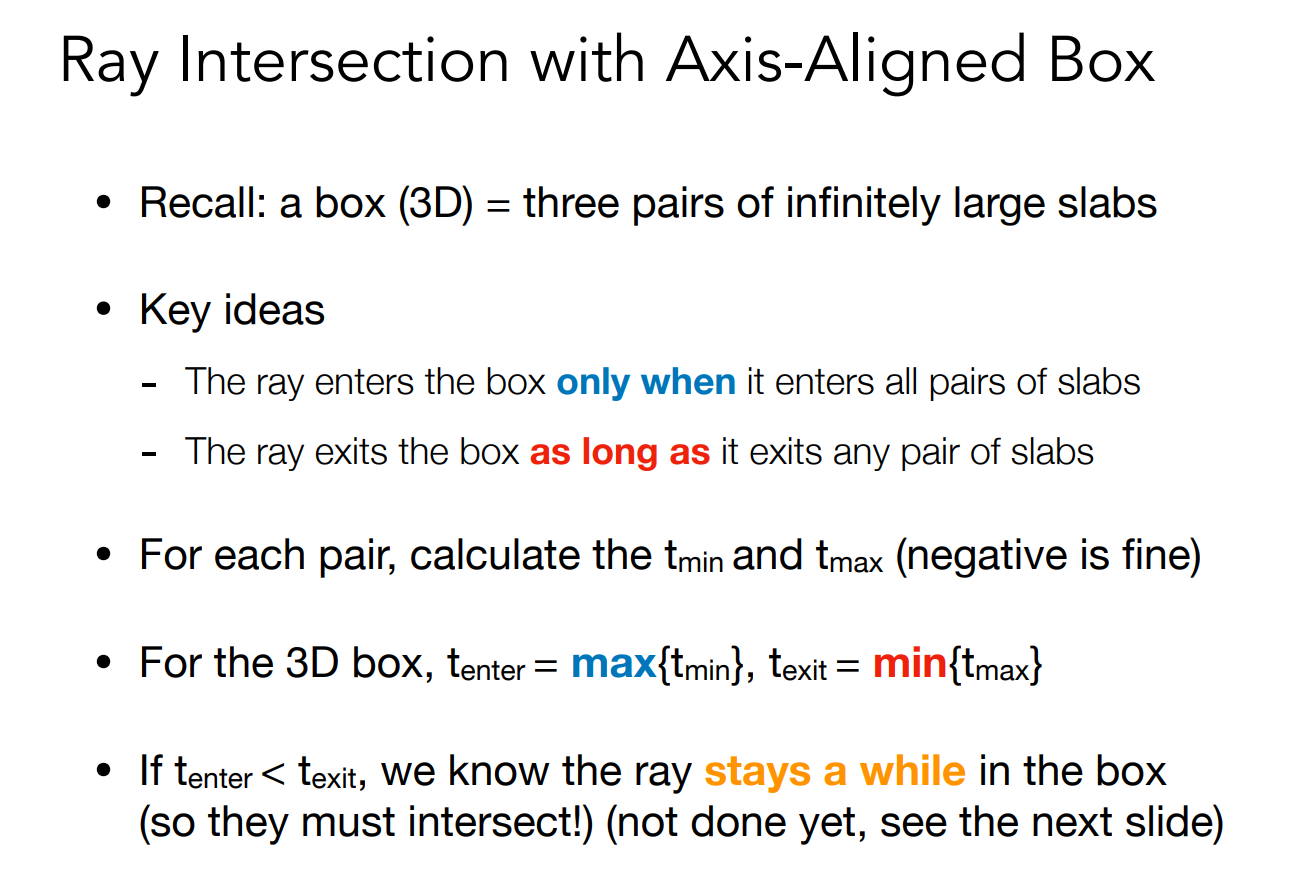

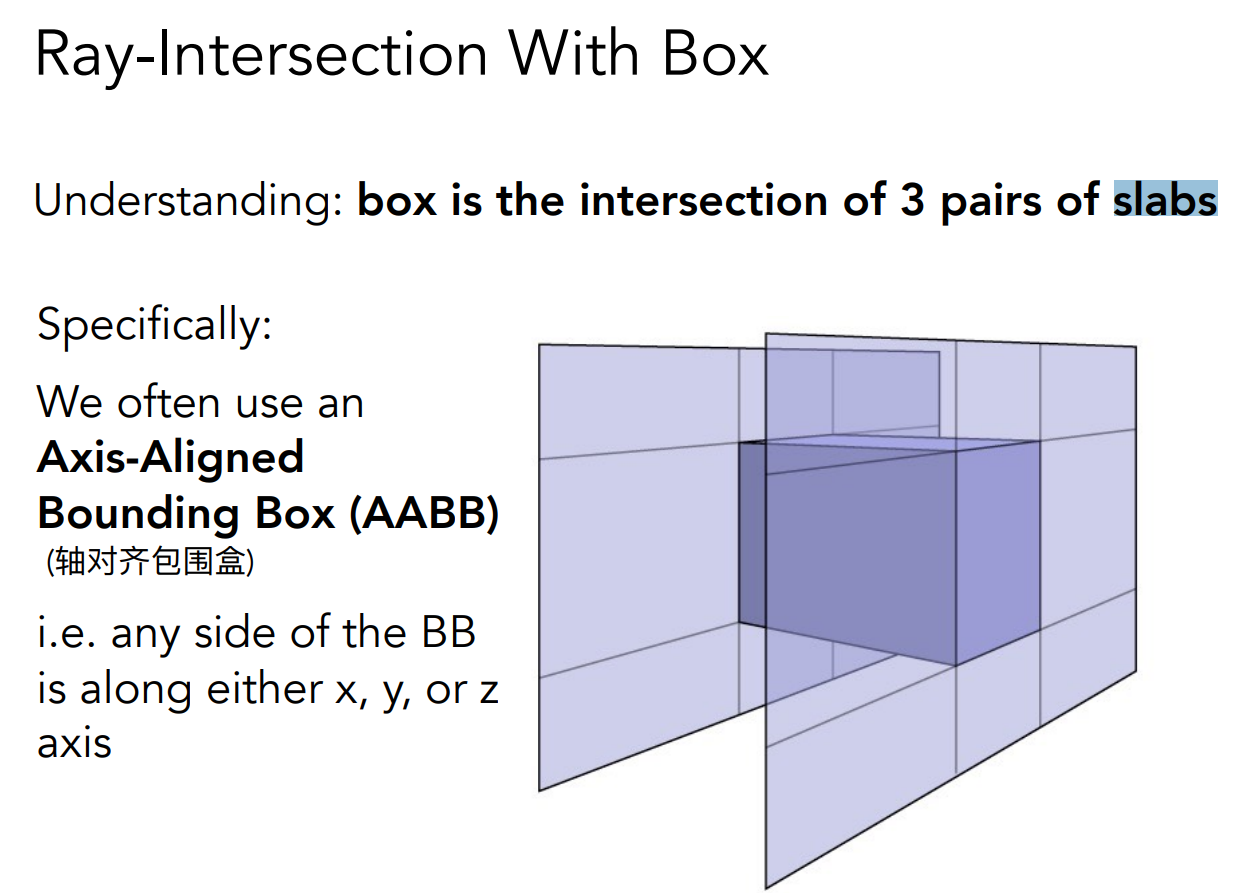

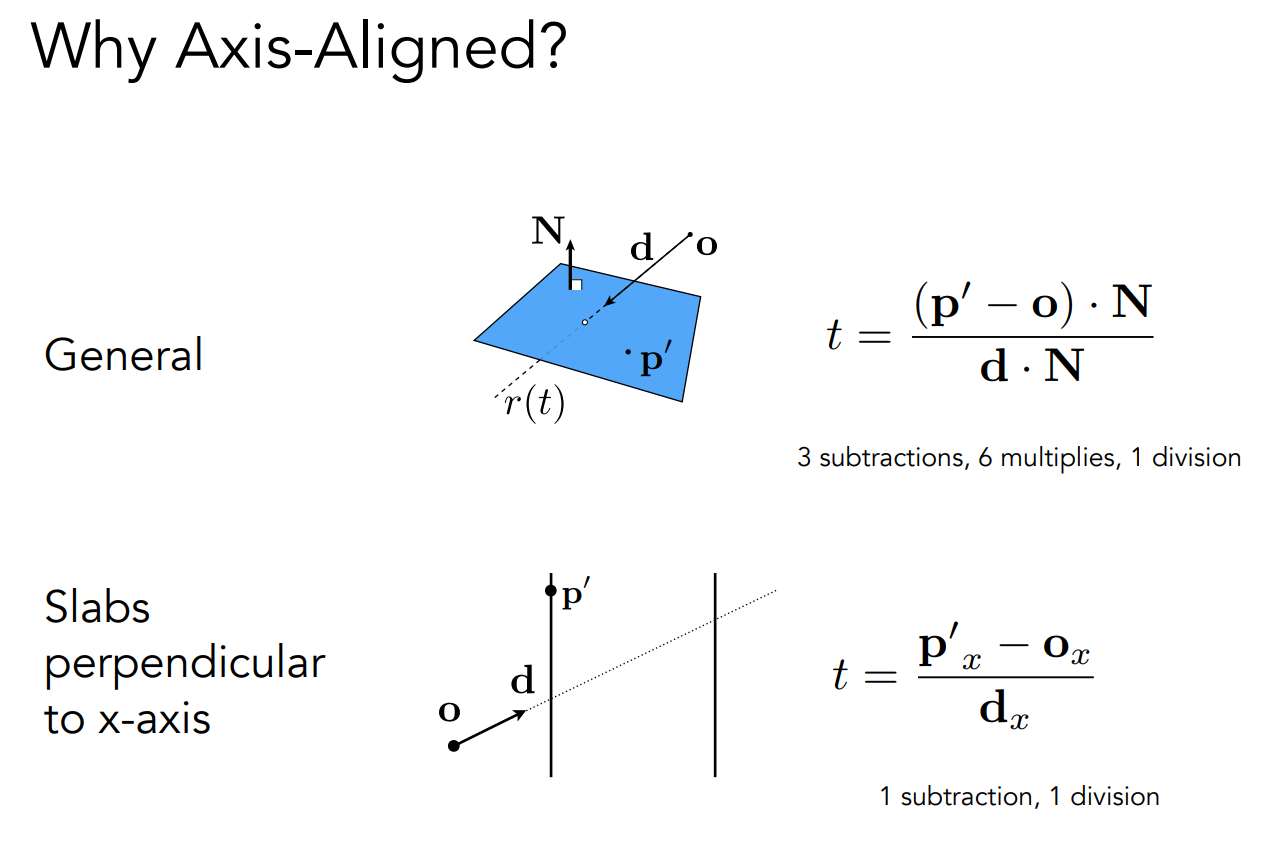

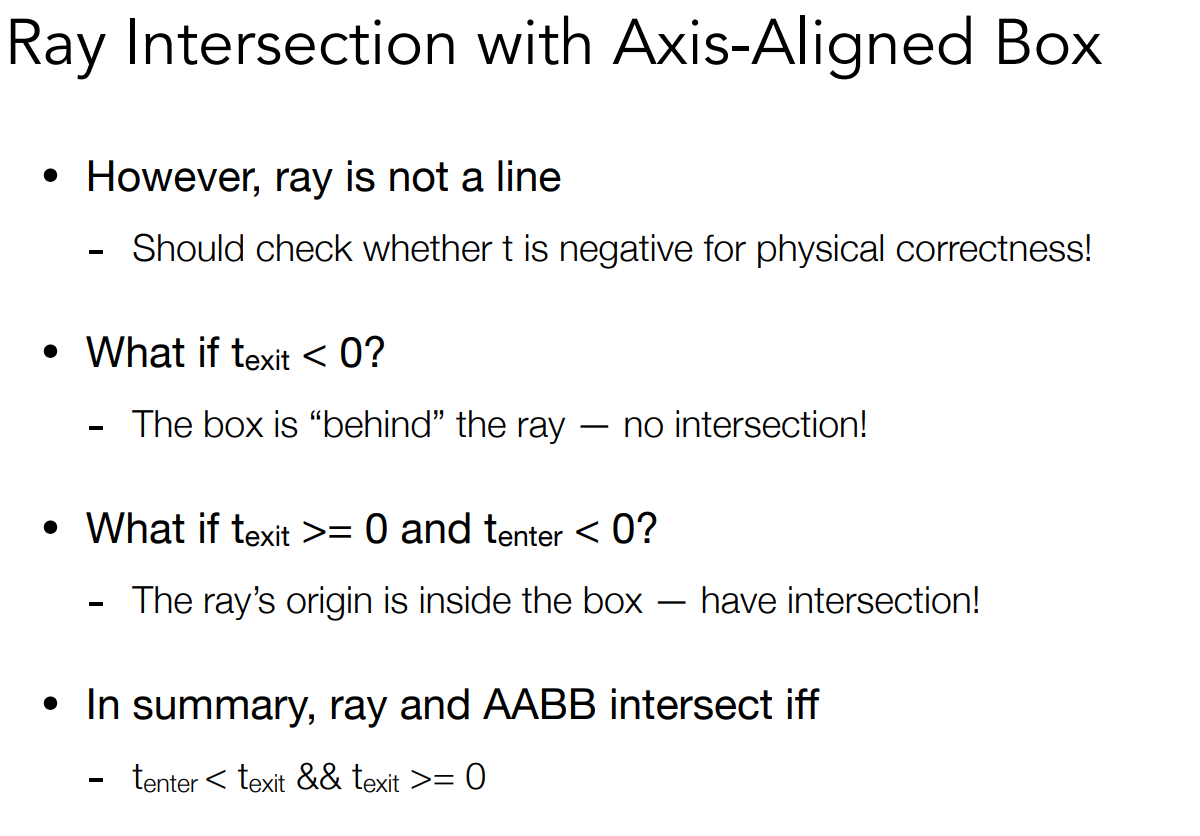

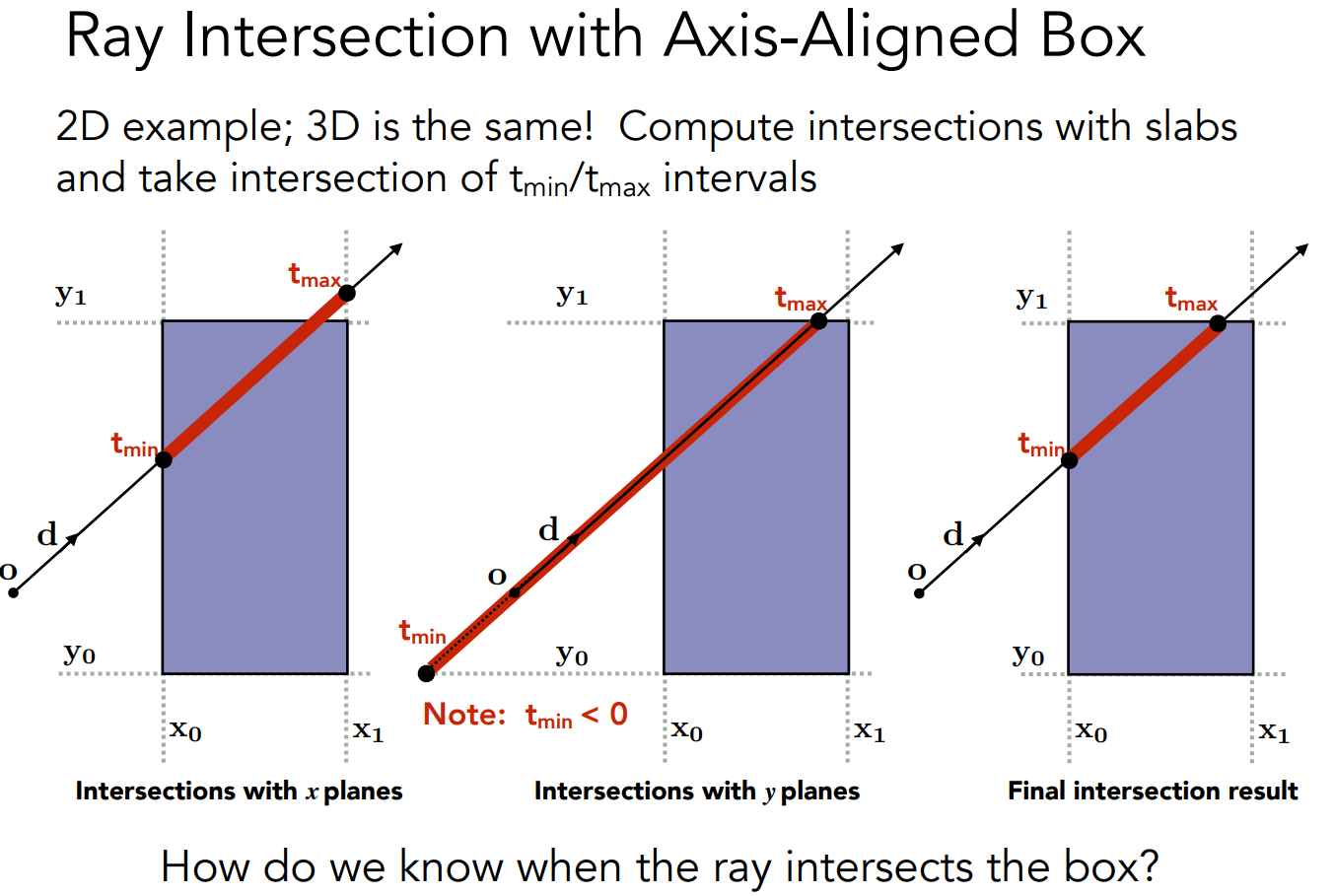

AABB

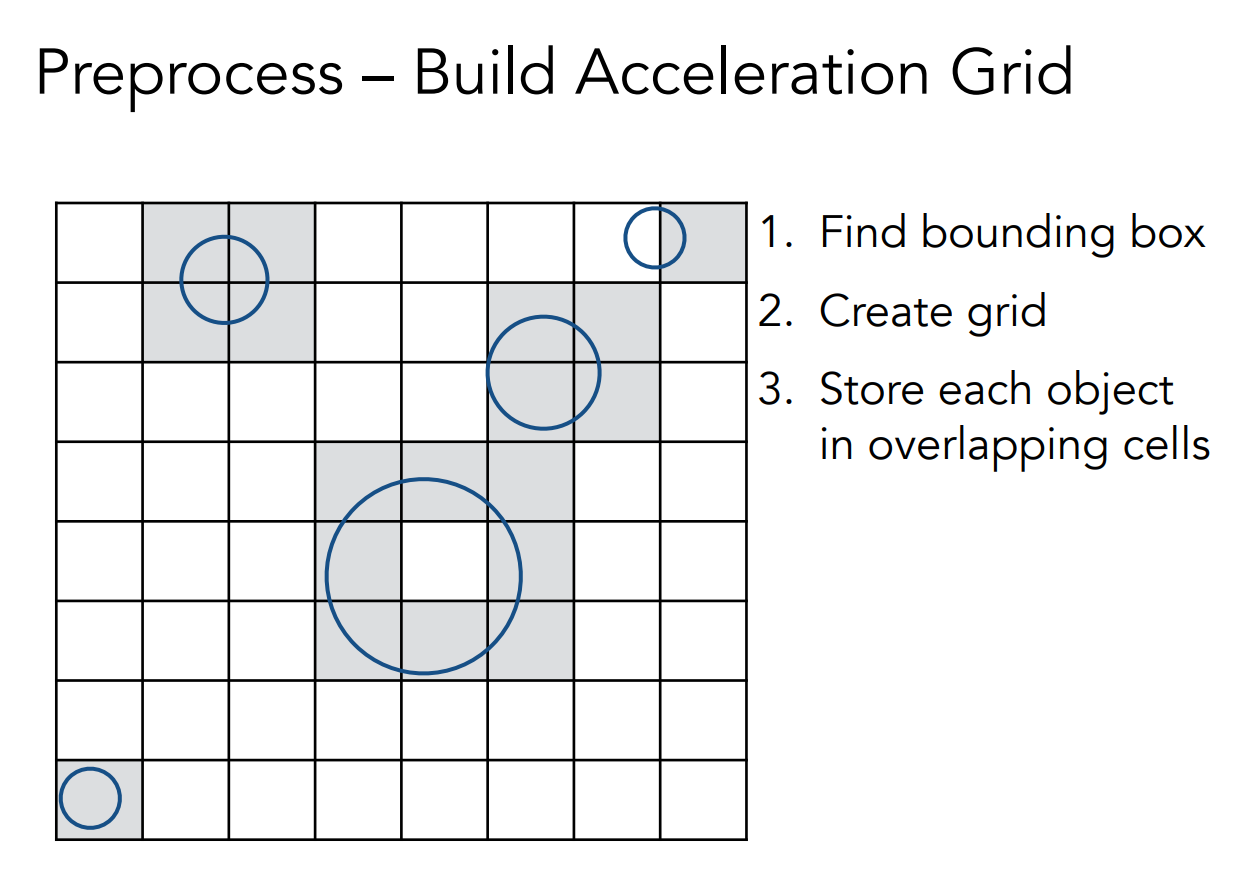

Uniform Spatial Partitions (Grids)

For each grid cell Test intersection with all objects stored at that cell

空间划分

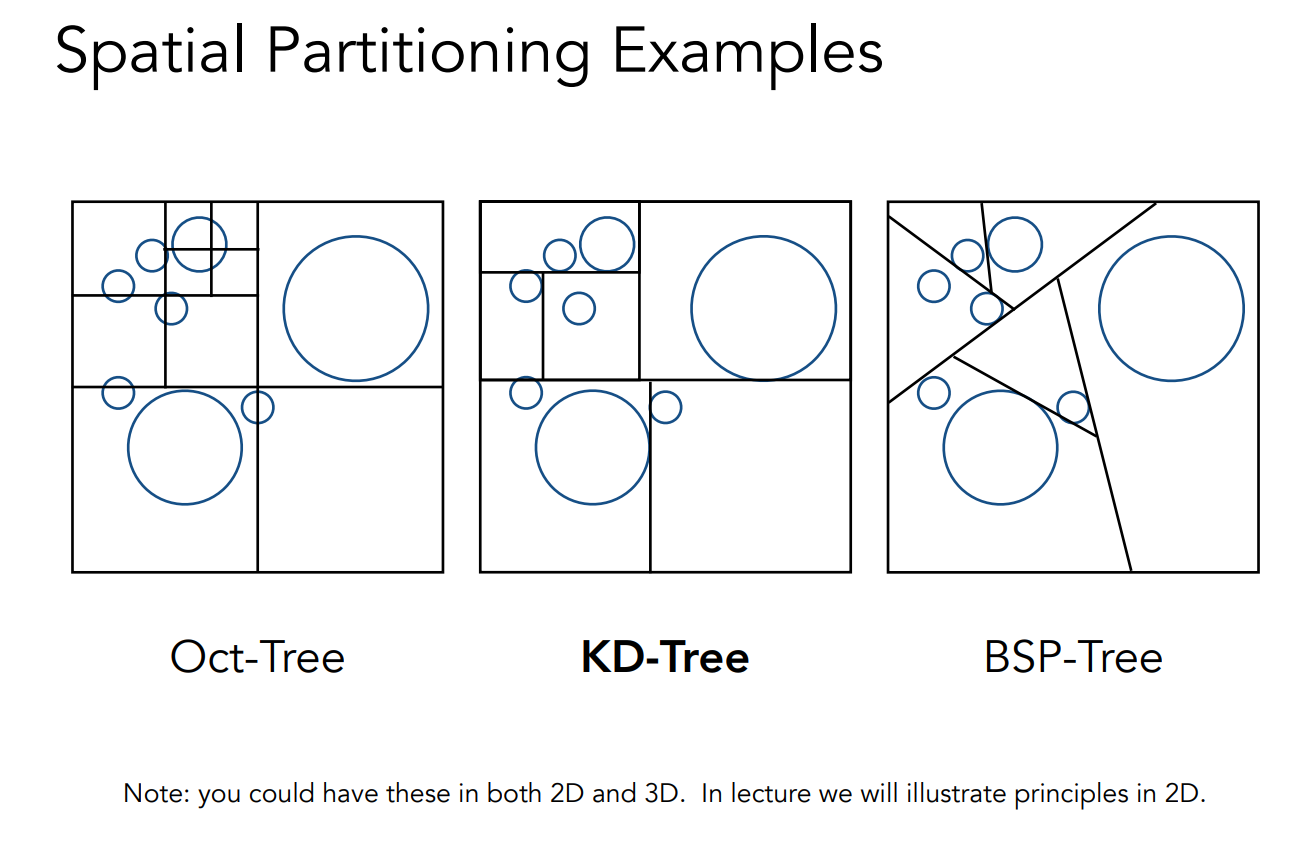

Spatial Partitions

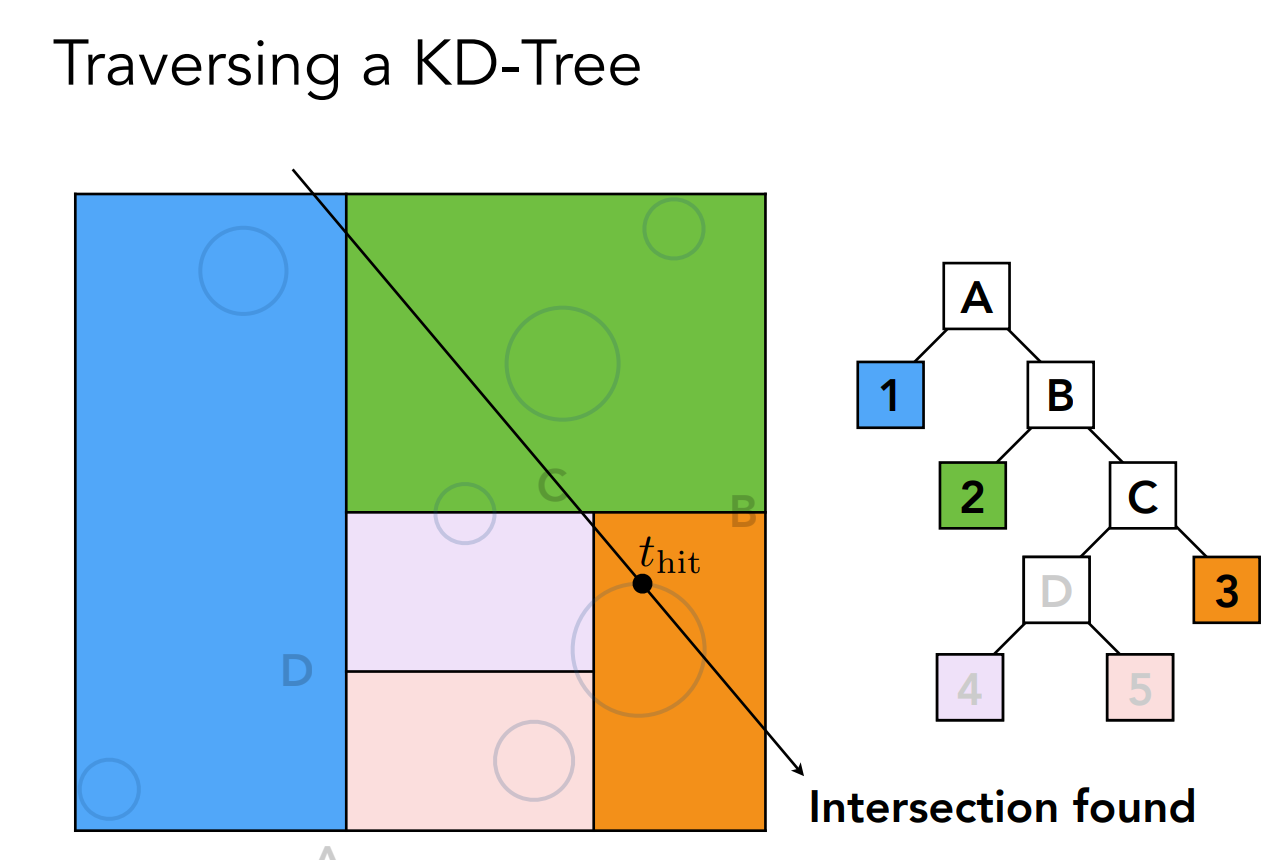

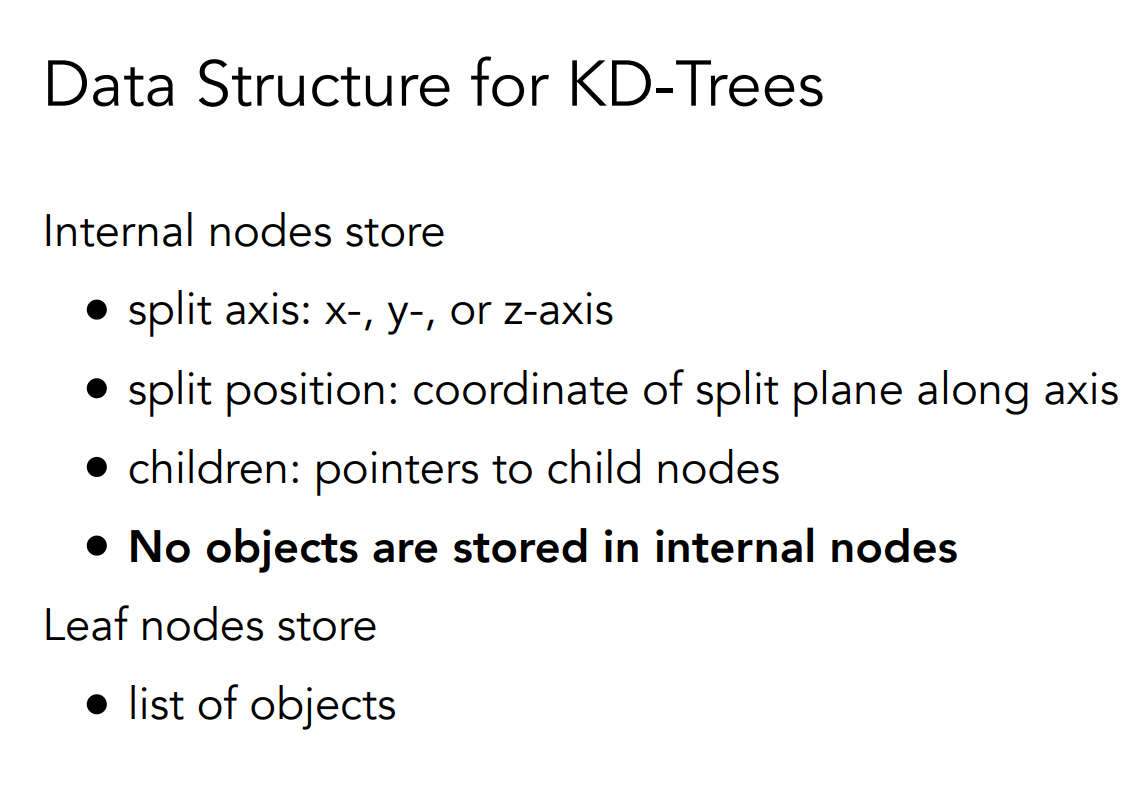

KD-tree 不好写 物体可能存在多个盒子里

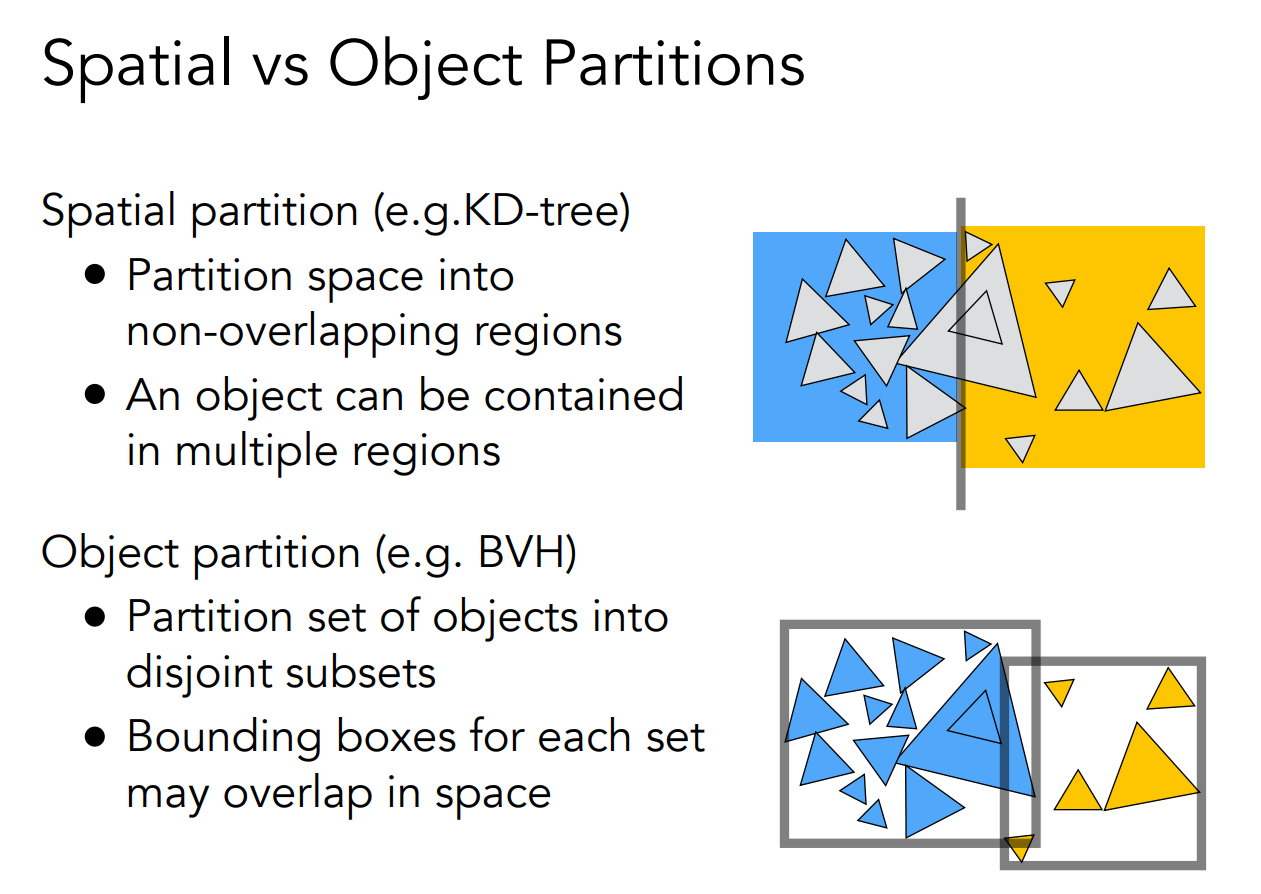

物体划分（重要）

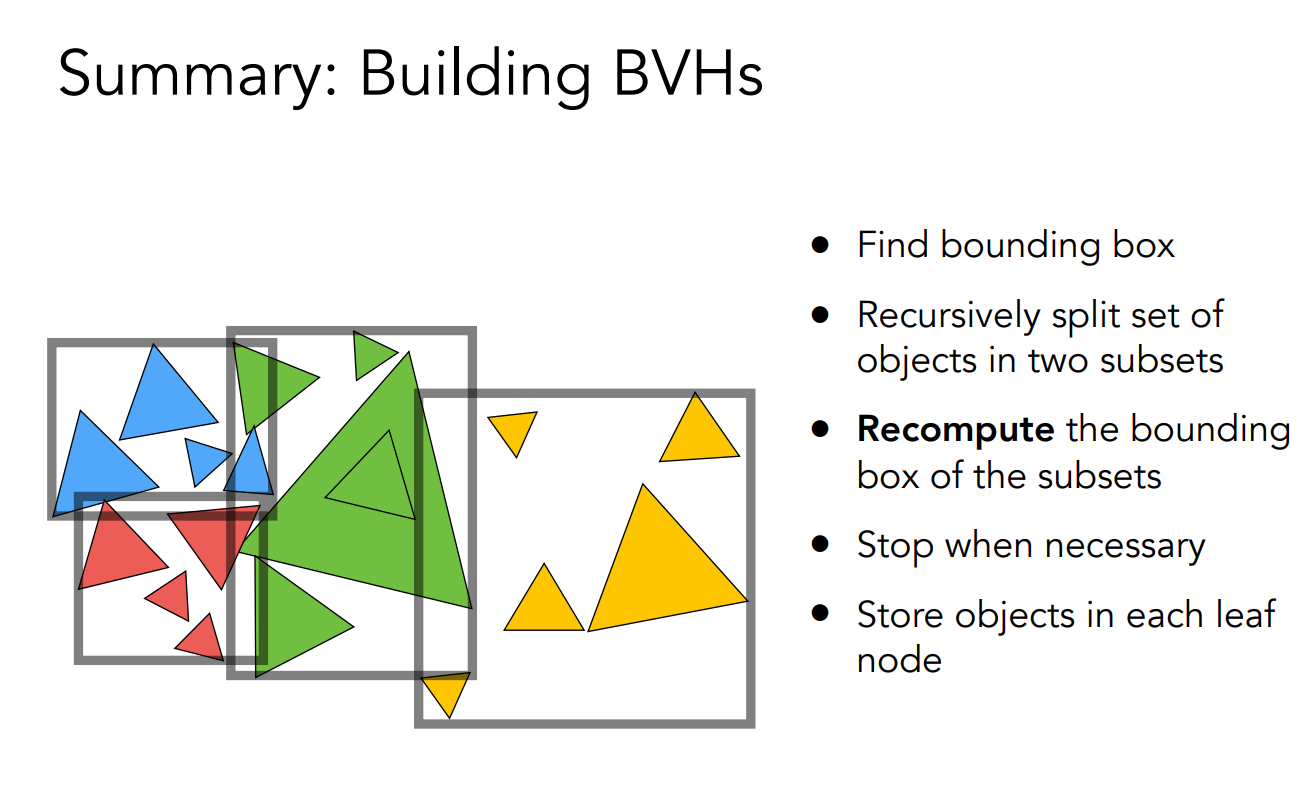

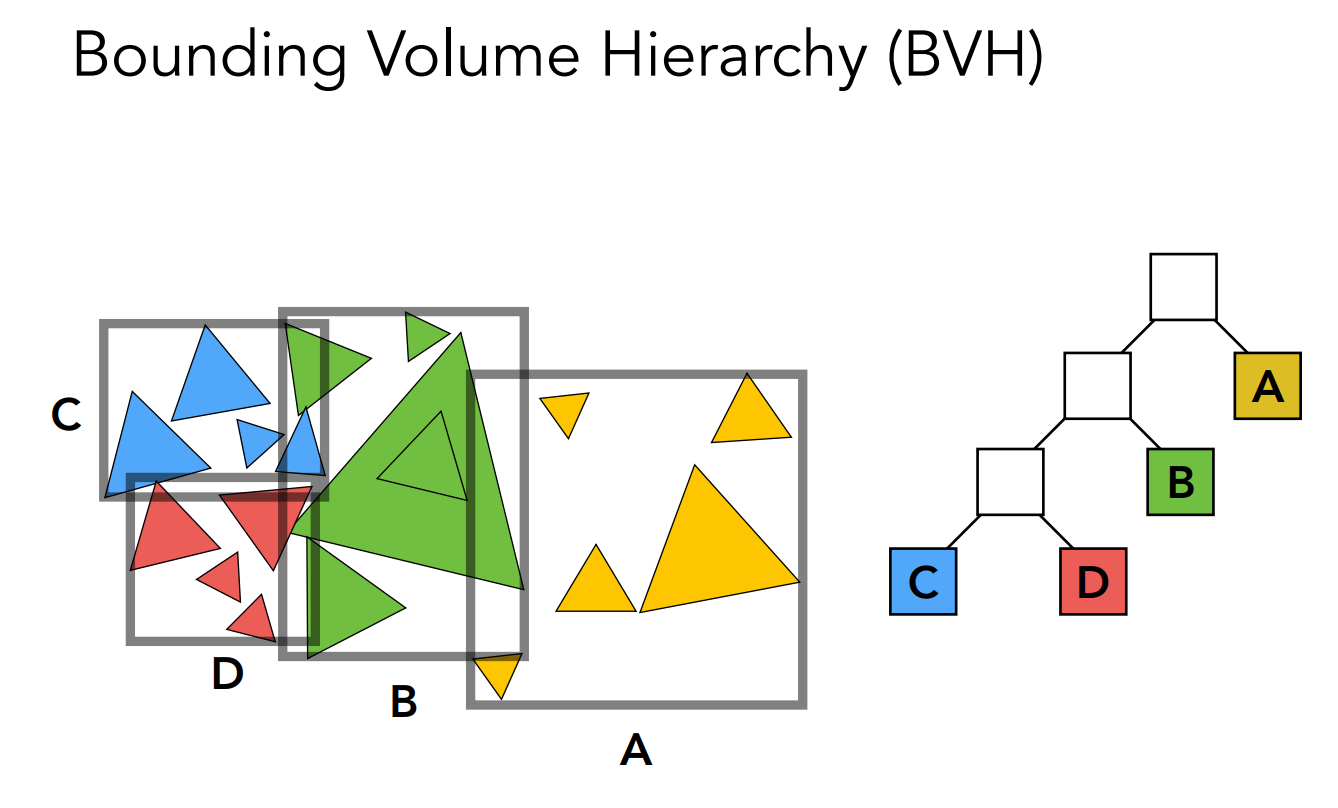

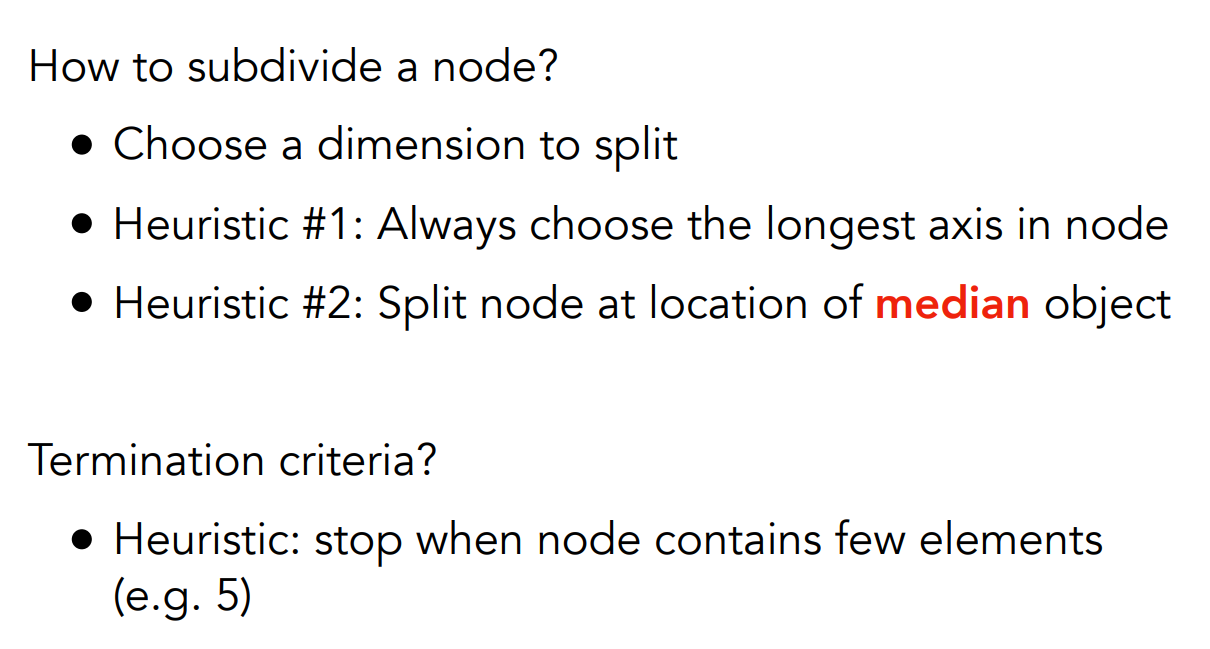

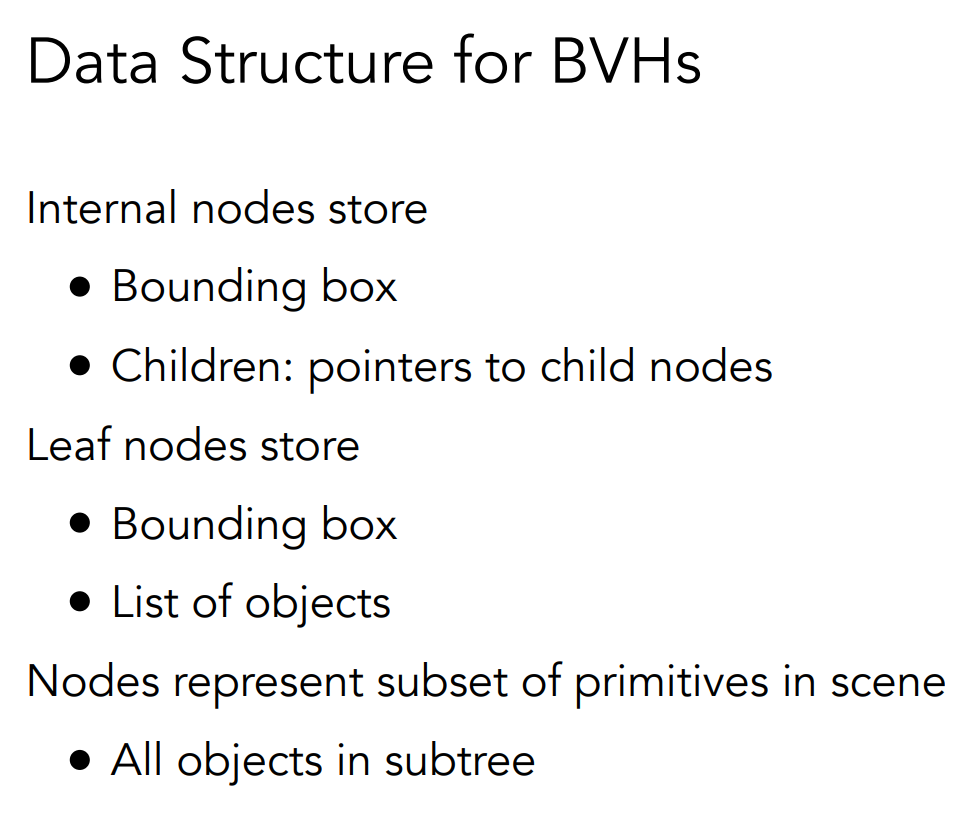

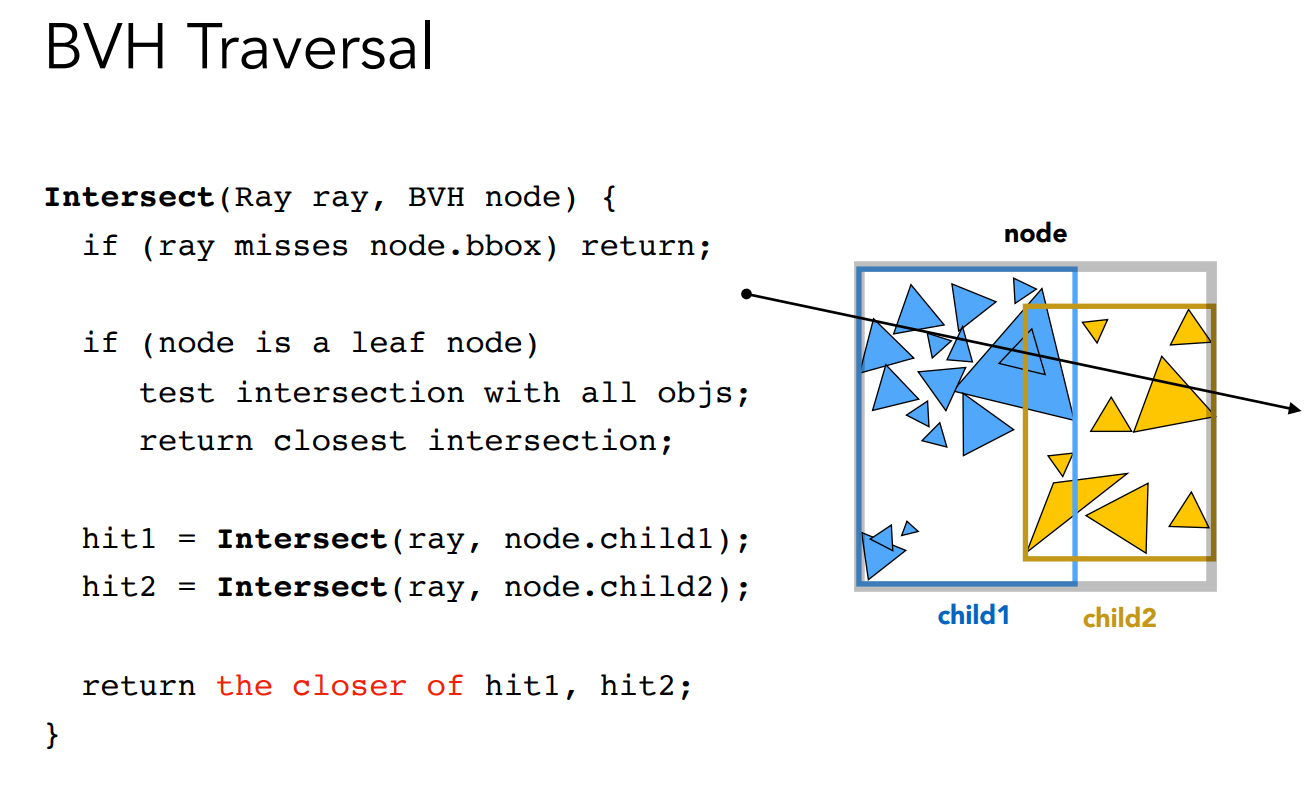

Object Partitions & Bounding Volume Hierarchy (BVH) 先分物体，再求包围盒

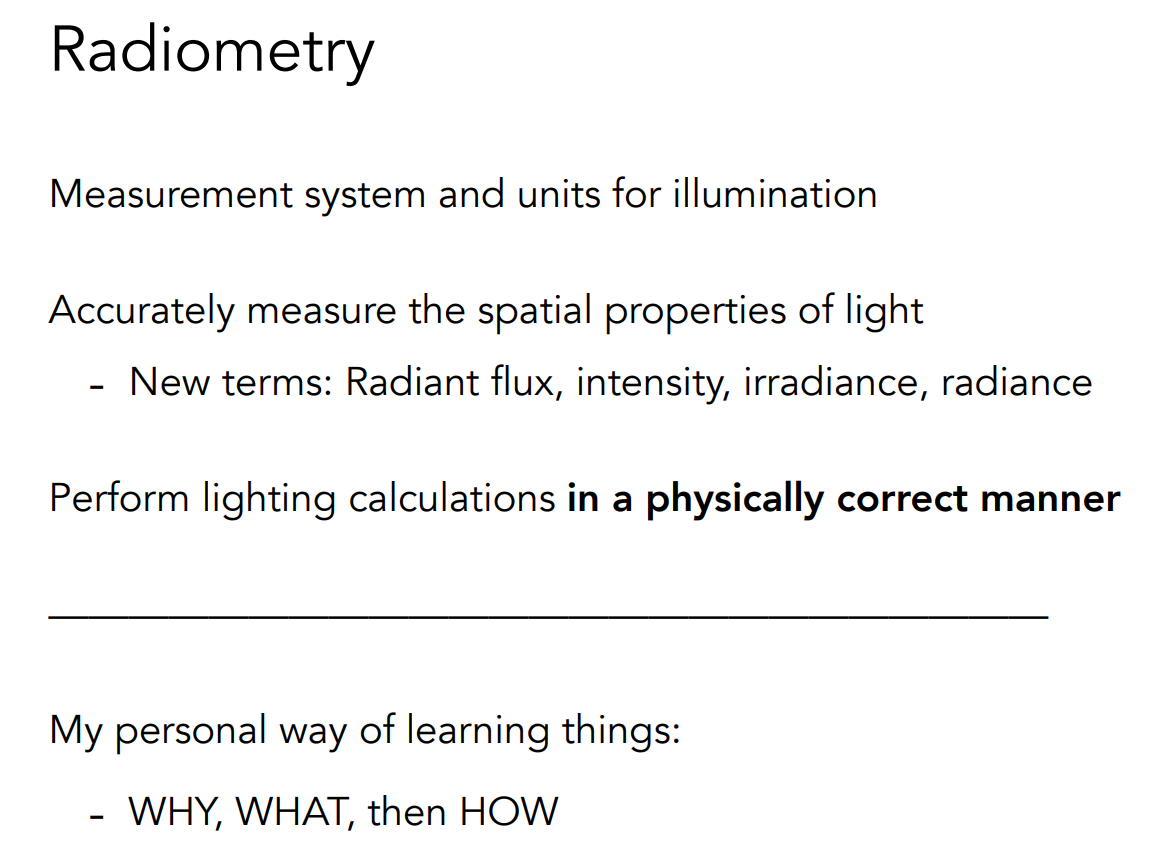

Basic radiometry (辐射度量学)

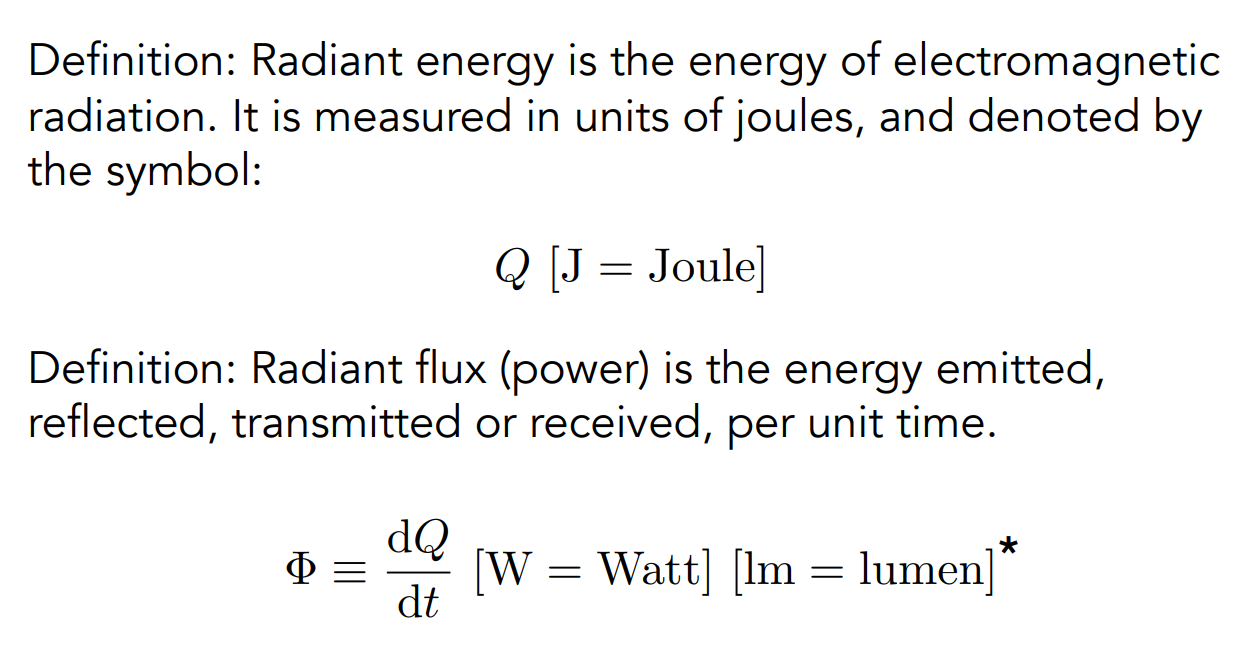

Radiant Energy and Flux (Power)

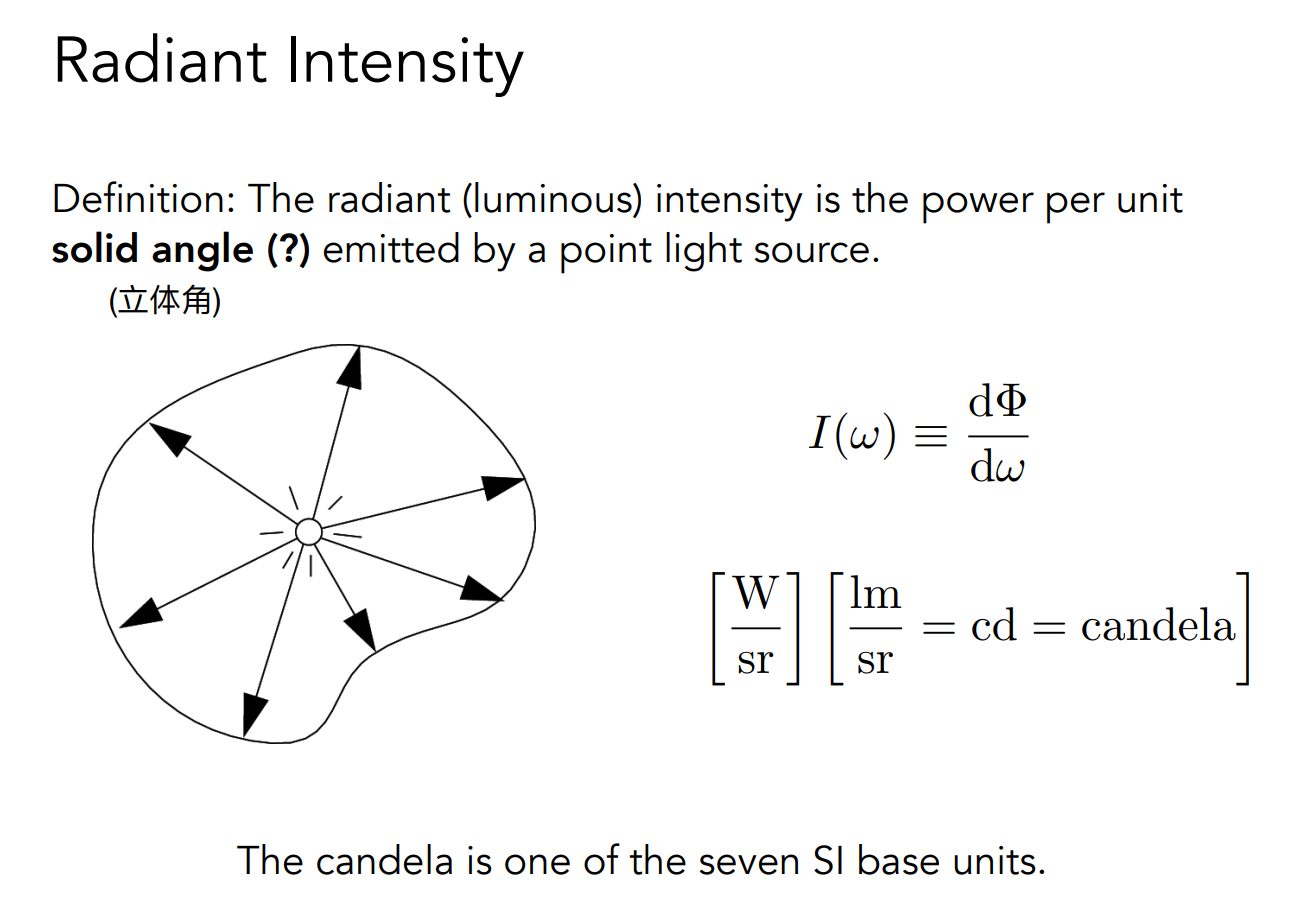

Radiant Intensity power每单位立体角

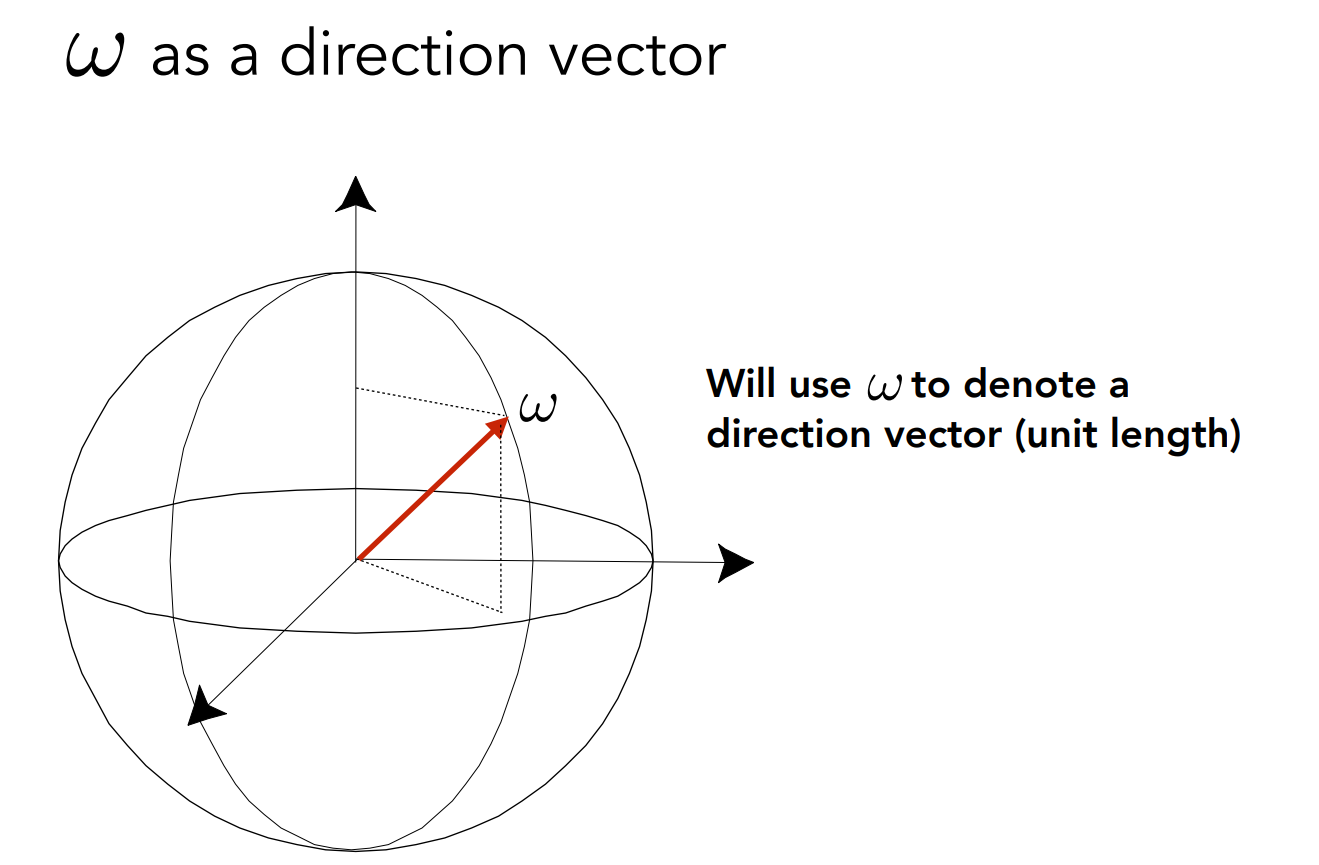

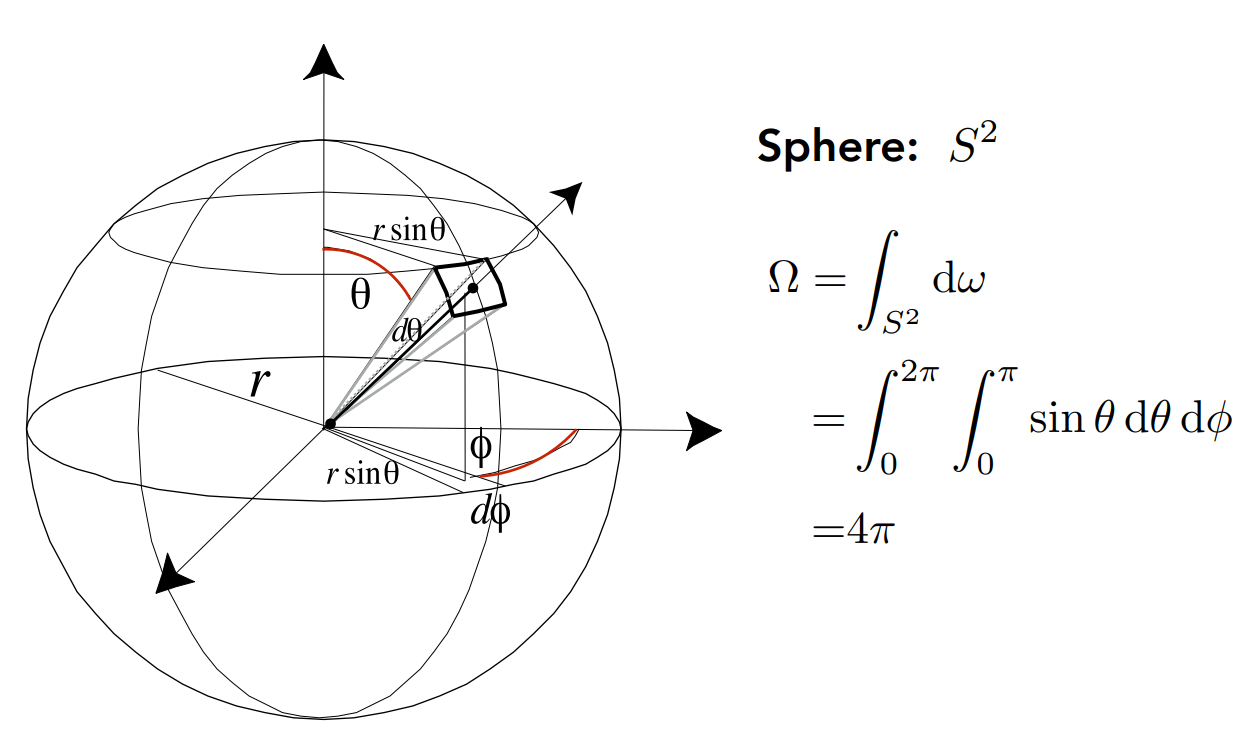

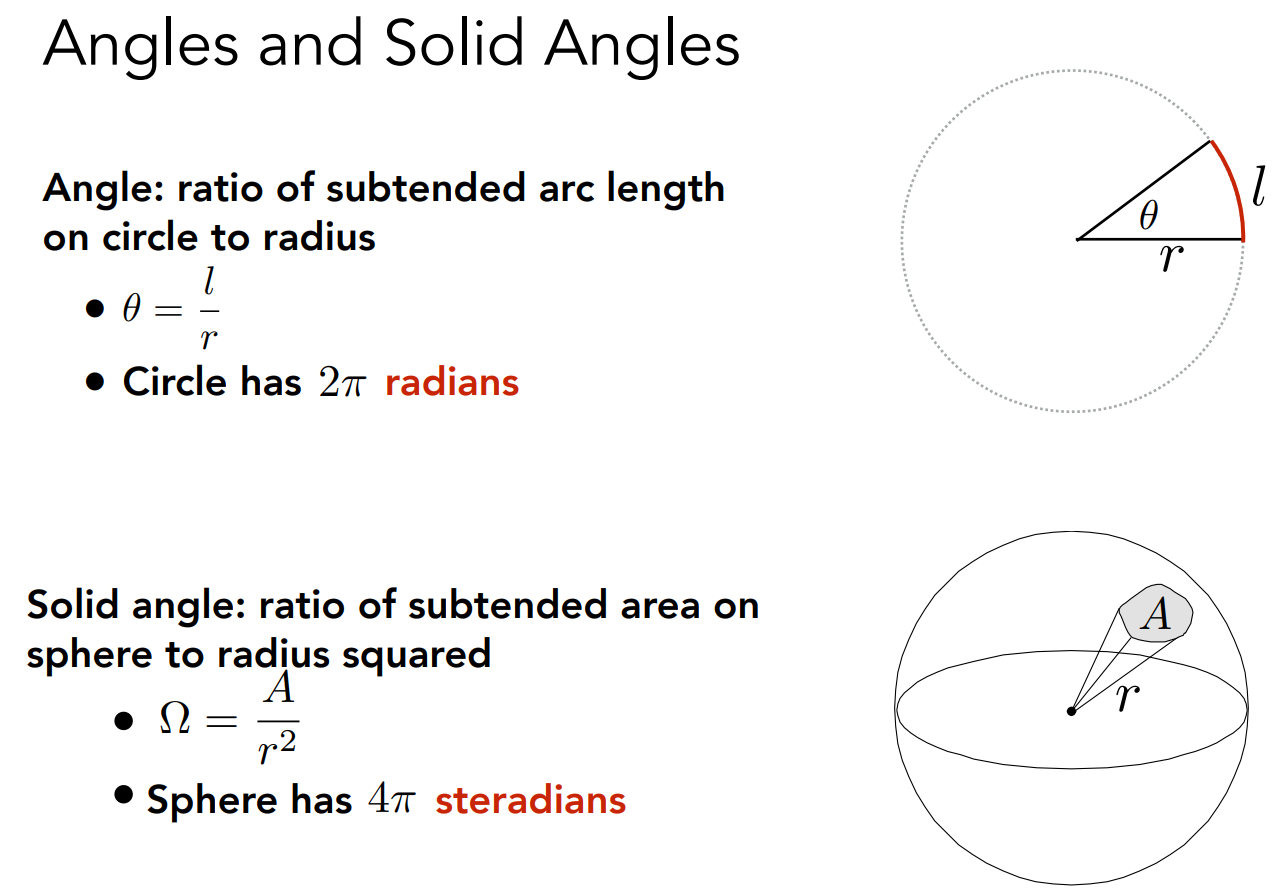

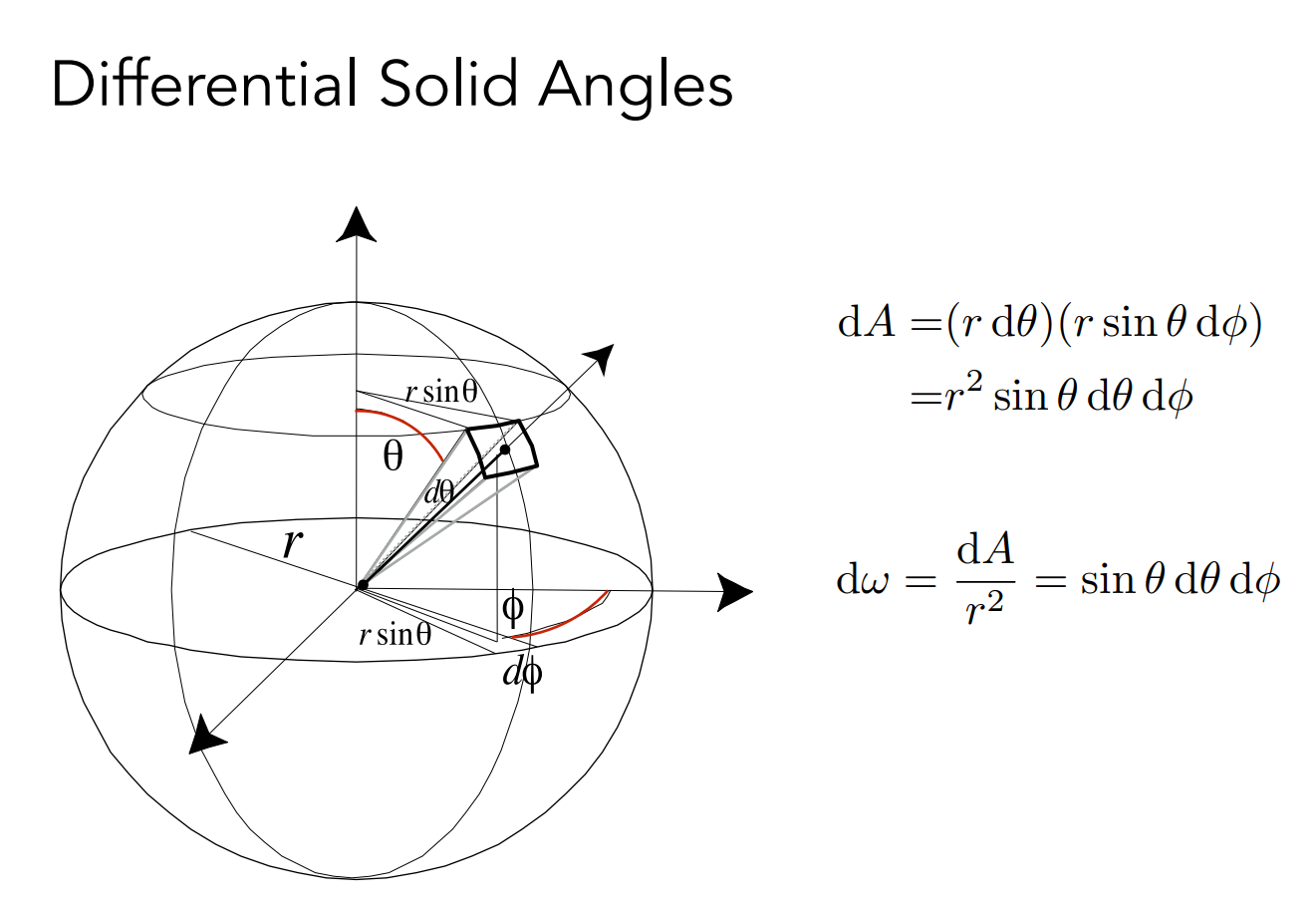

立体角的概念 锥的面积除以半径的平方

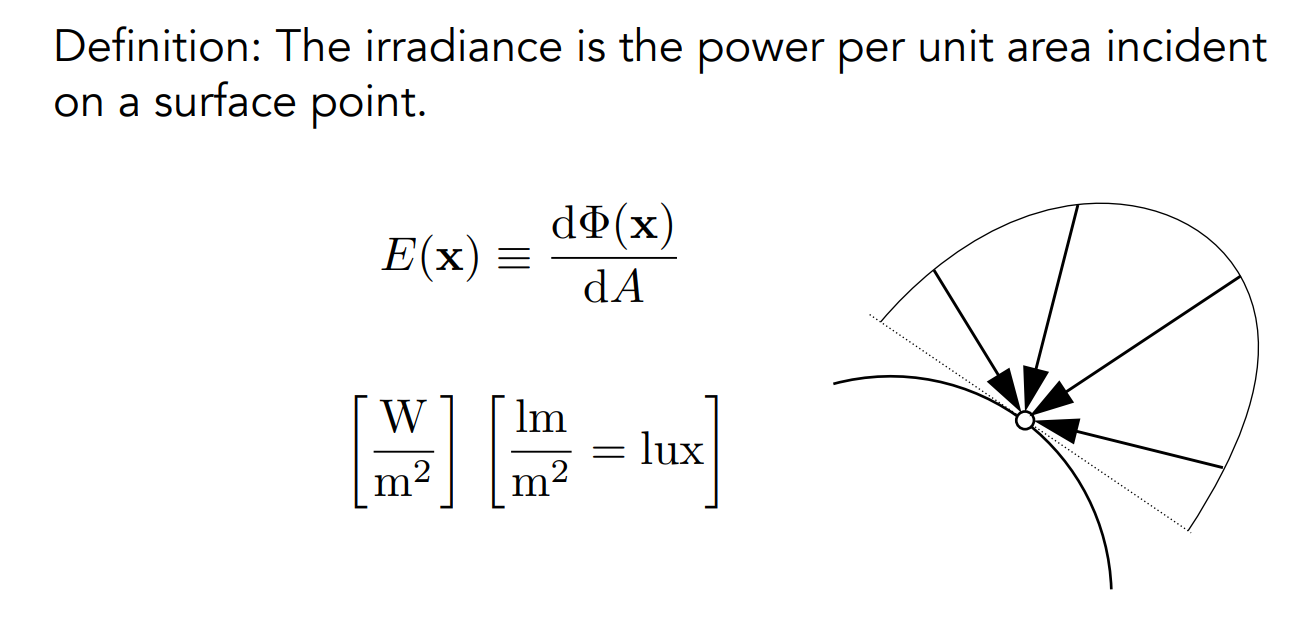

Irradiance power每单位投影面积 光线与面垂直投影

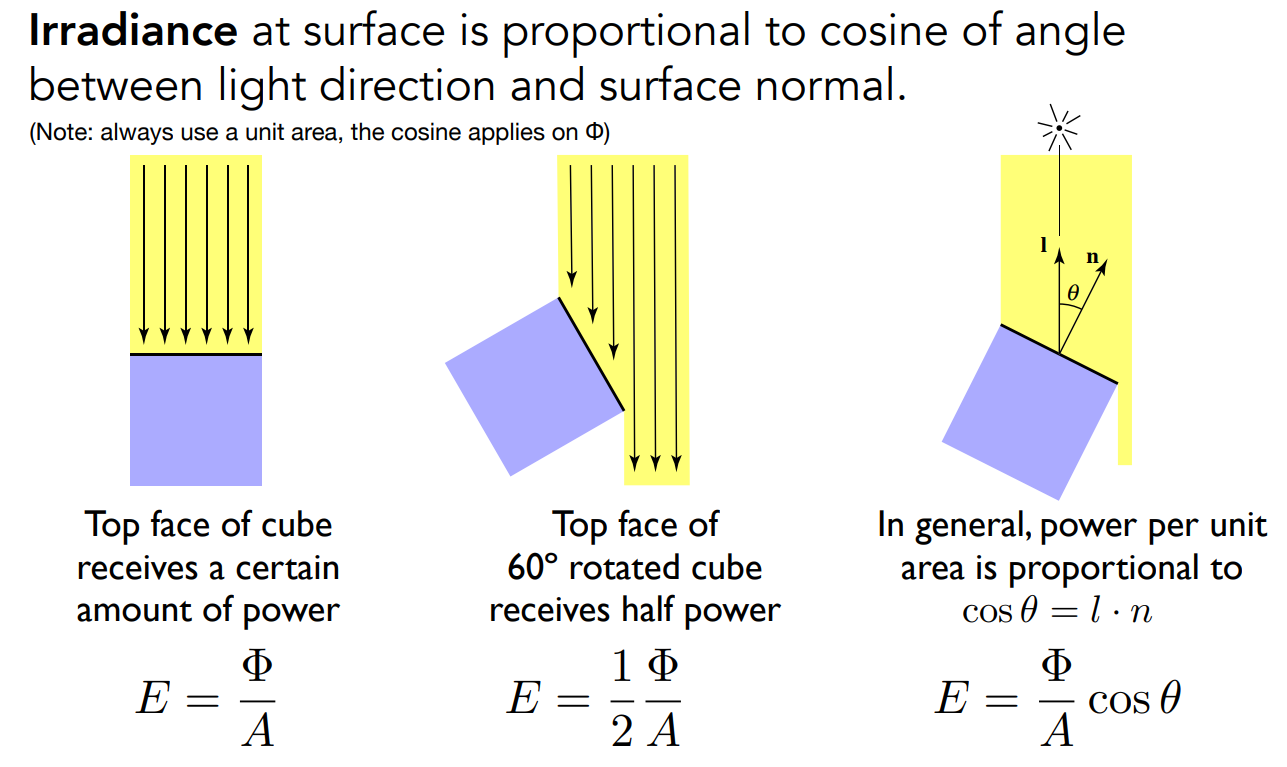

Lambert’s Cosine Law

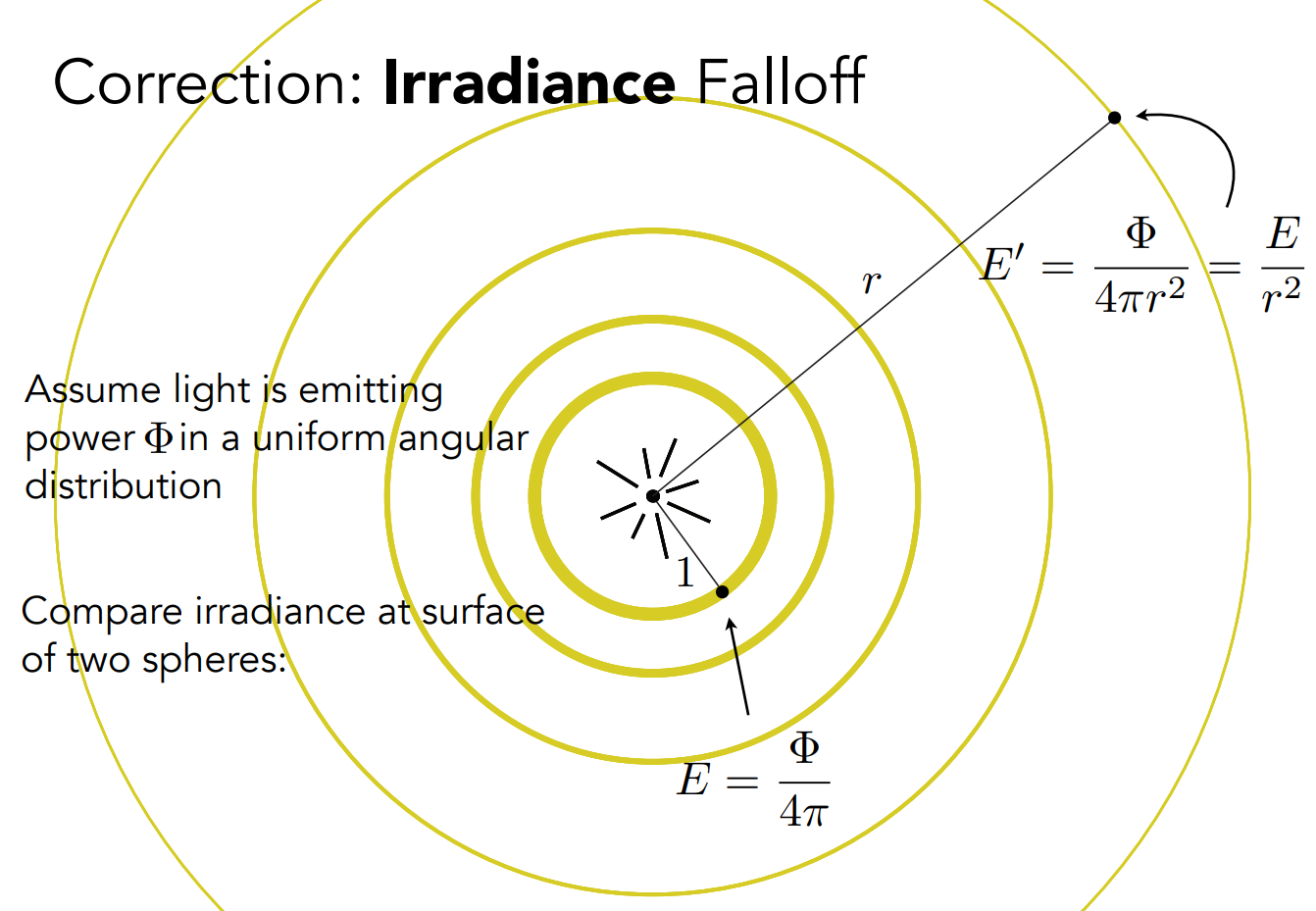

Irradiance衰减r^2

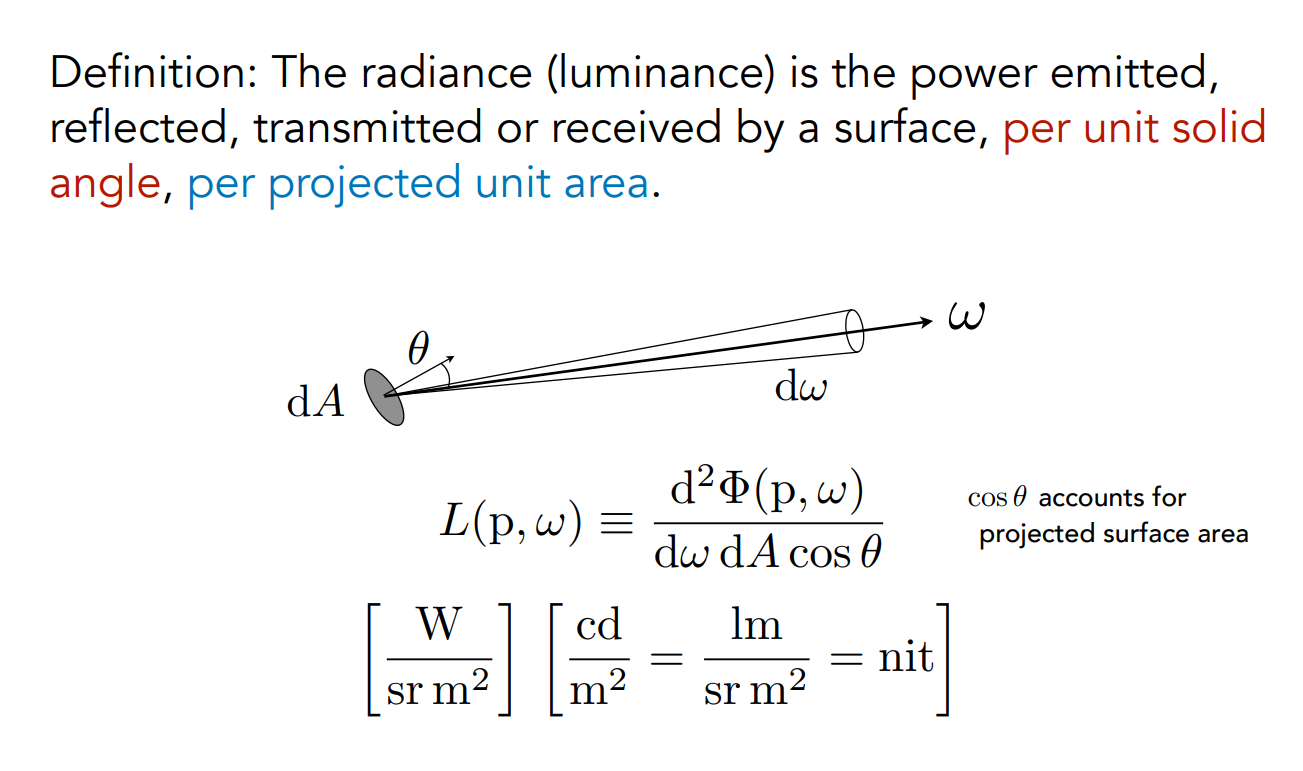

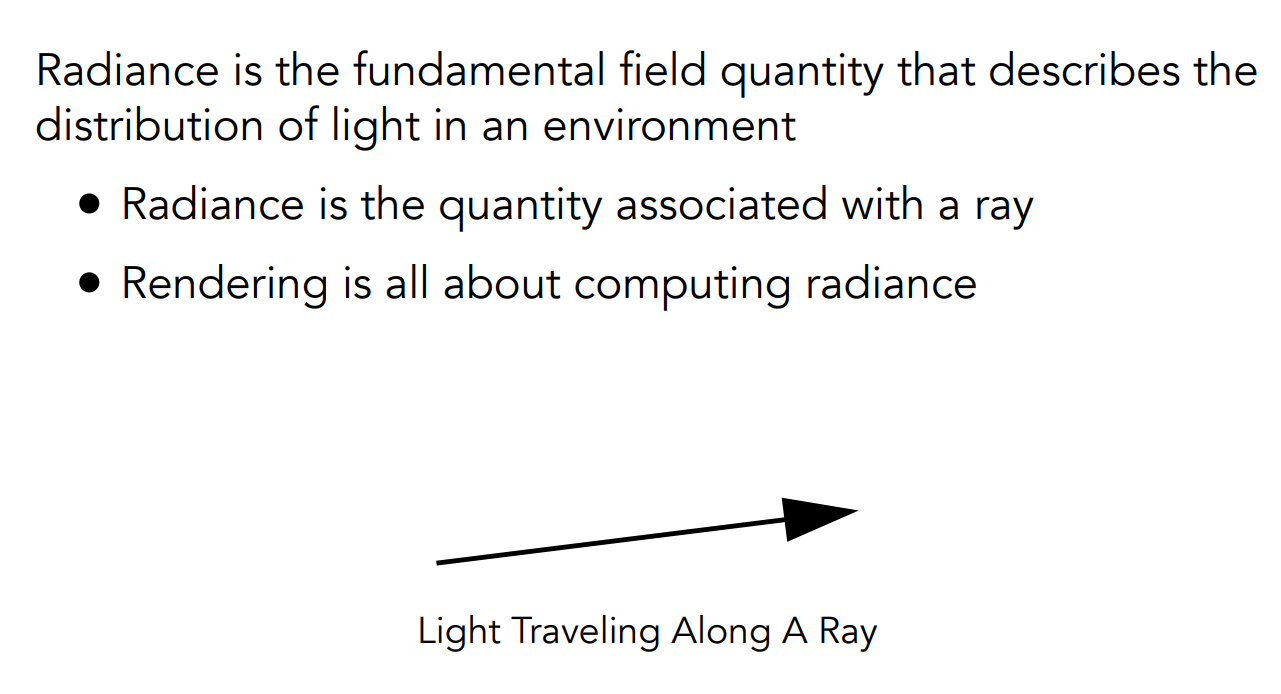

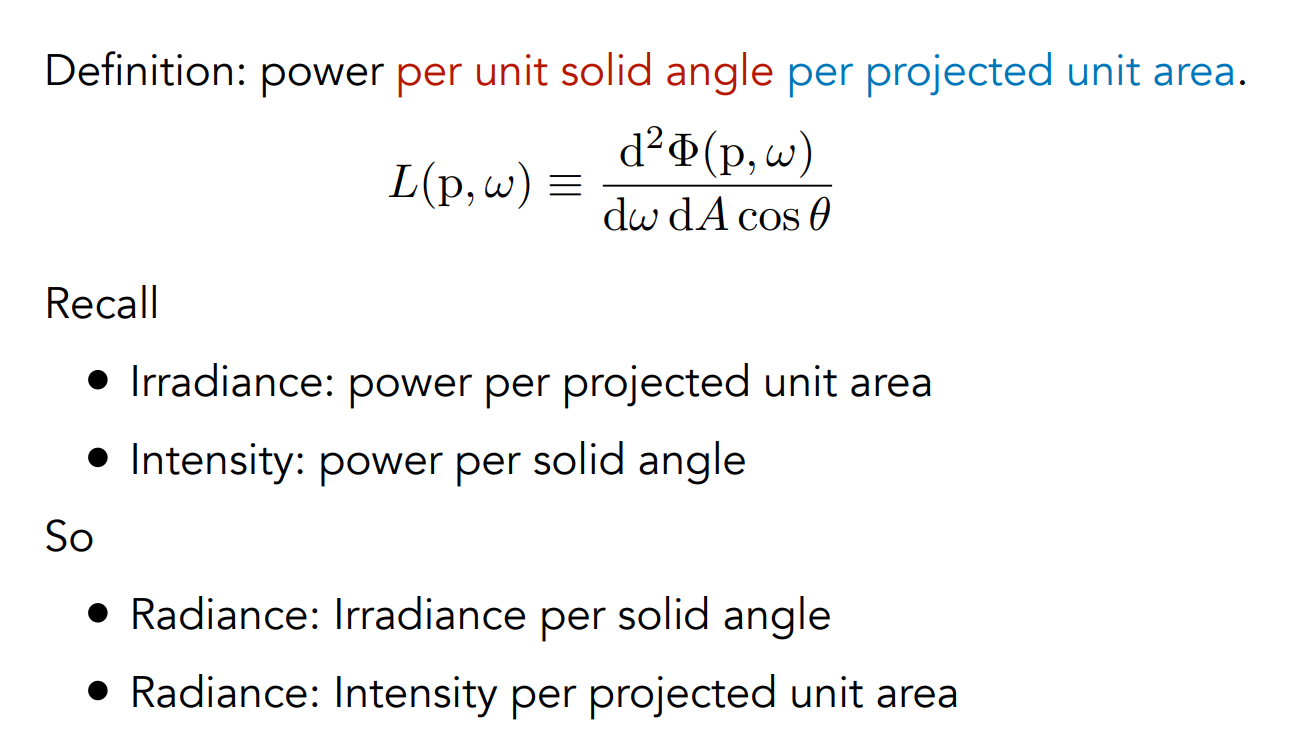

Radiance power每单位立体角每单位投影面积

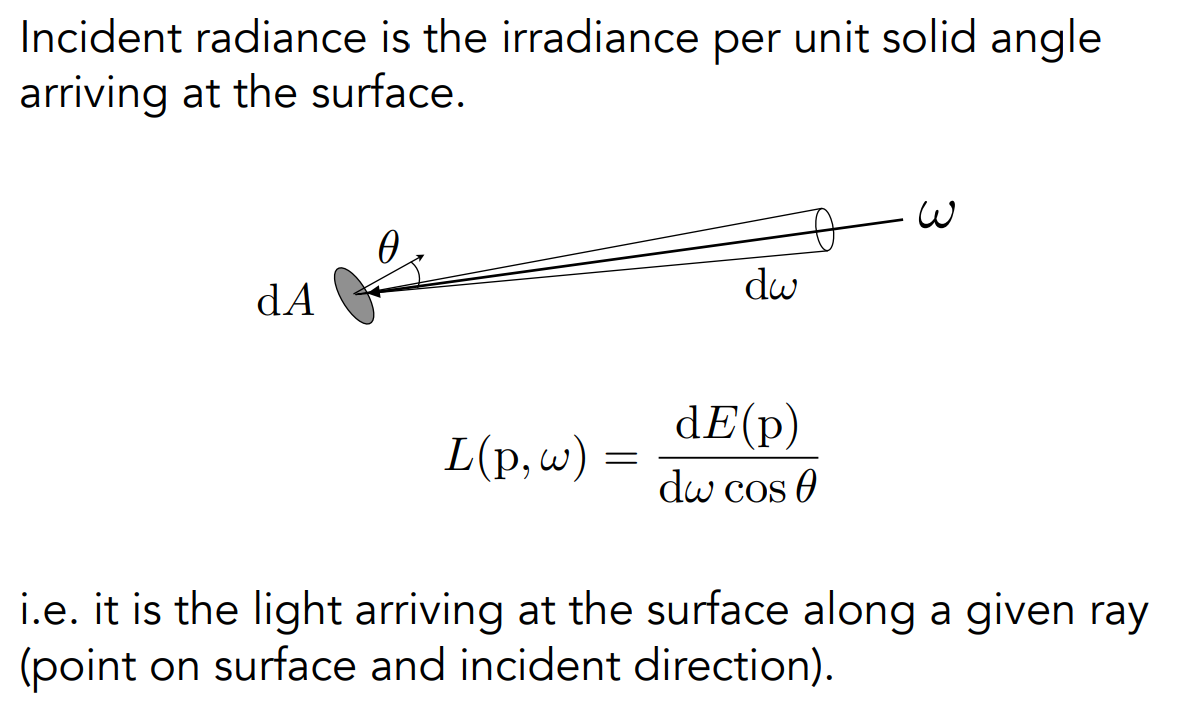

Incident Radiance：the irradiance per unit solid angle

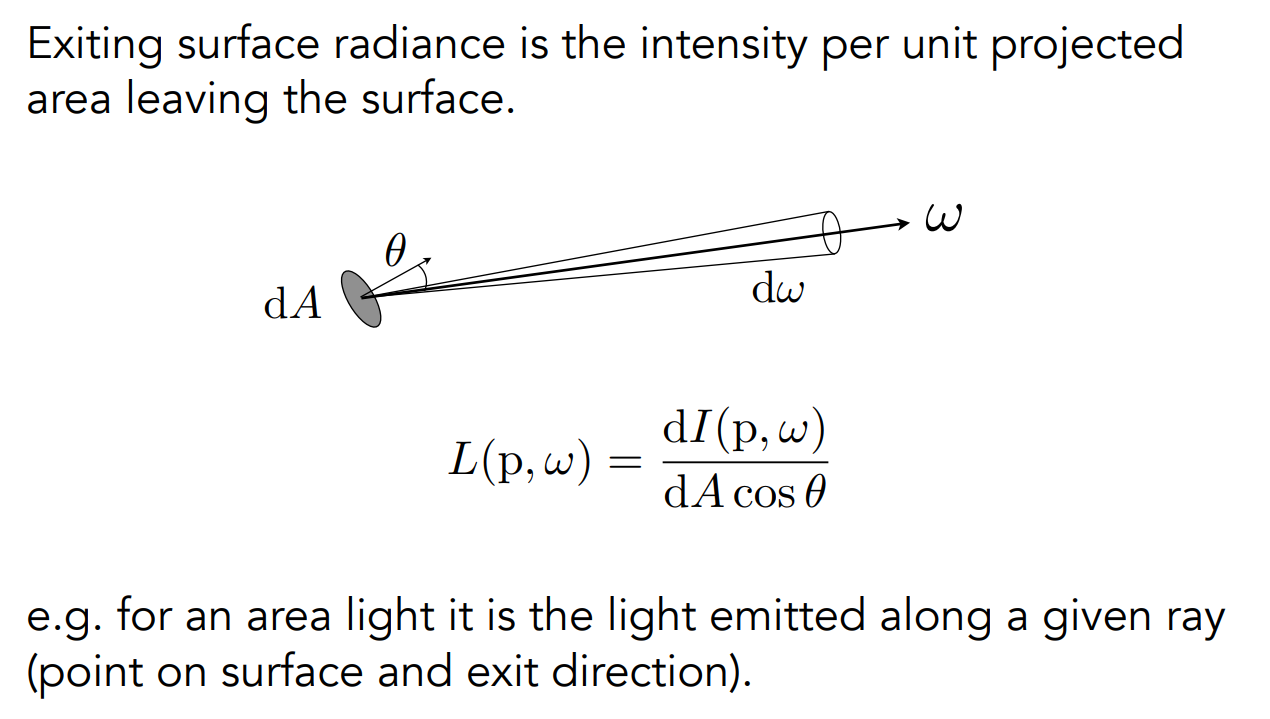

Exiting Radiance：the intensity per unit projected area

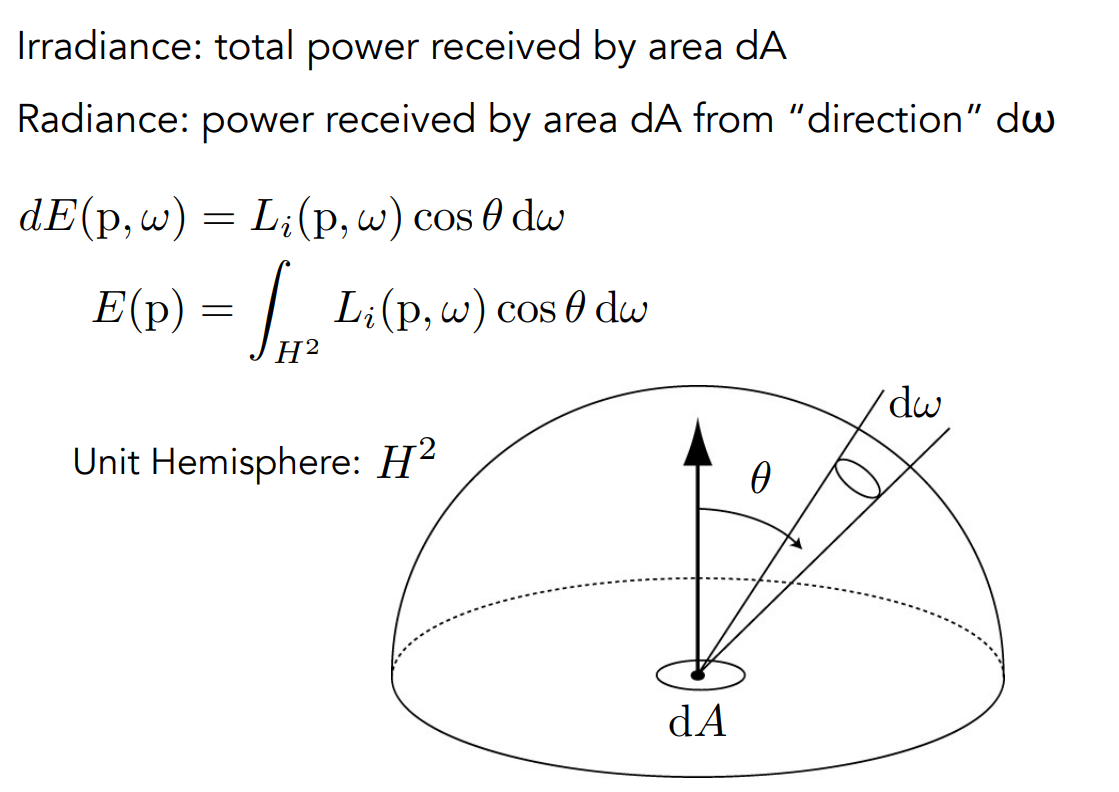

Irradiance vs. Radiance
Irradiance: total power received by area dA
Radiance: power received by area dA from “direction” dω

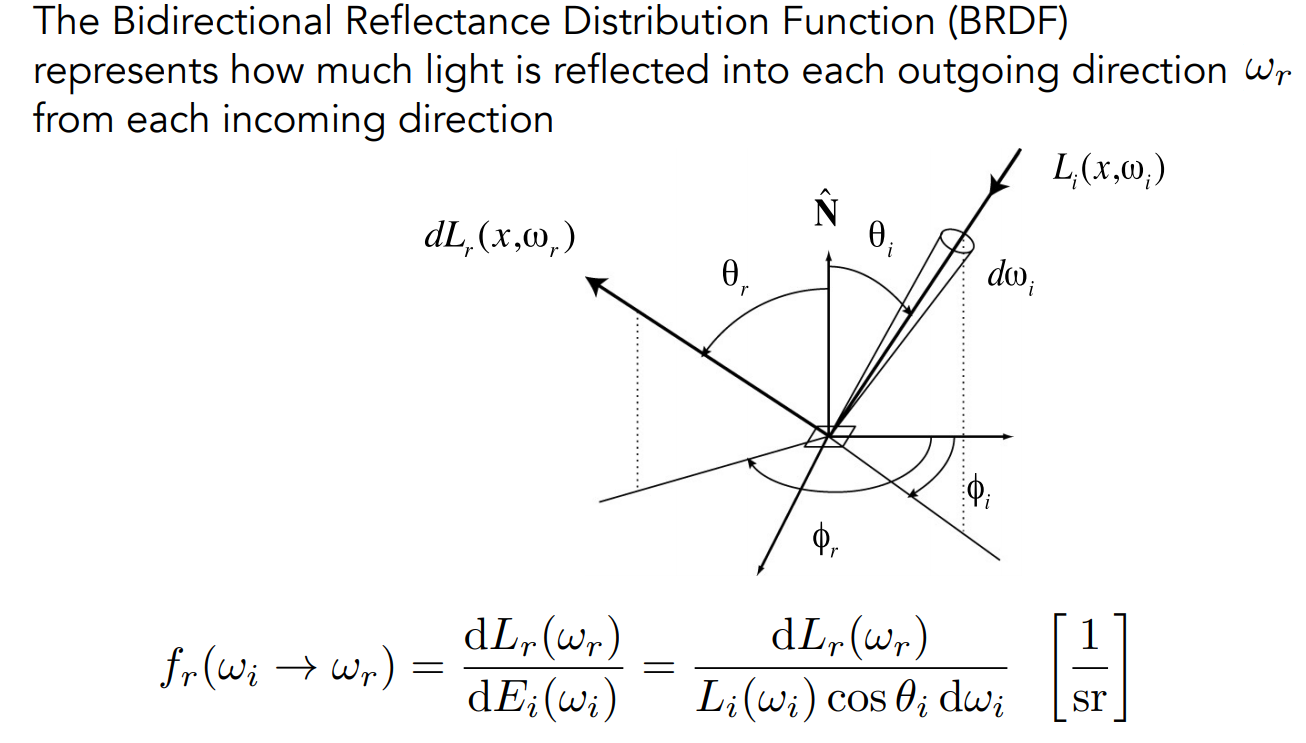

Bidirectional Reflectance Distribution Function (BRDF)双向反射分布函数 定义能量从某个方向进来以后反射方向上能量分布
Reflection at a Point

光线和物体的作用，受物体的材质影响

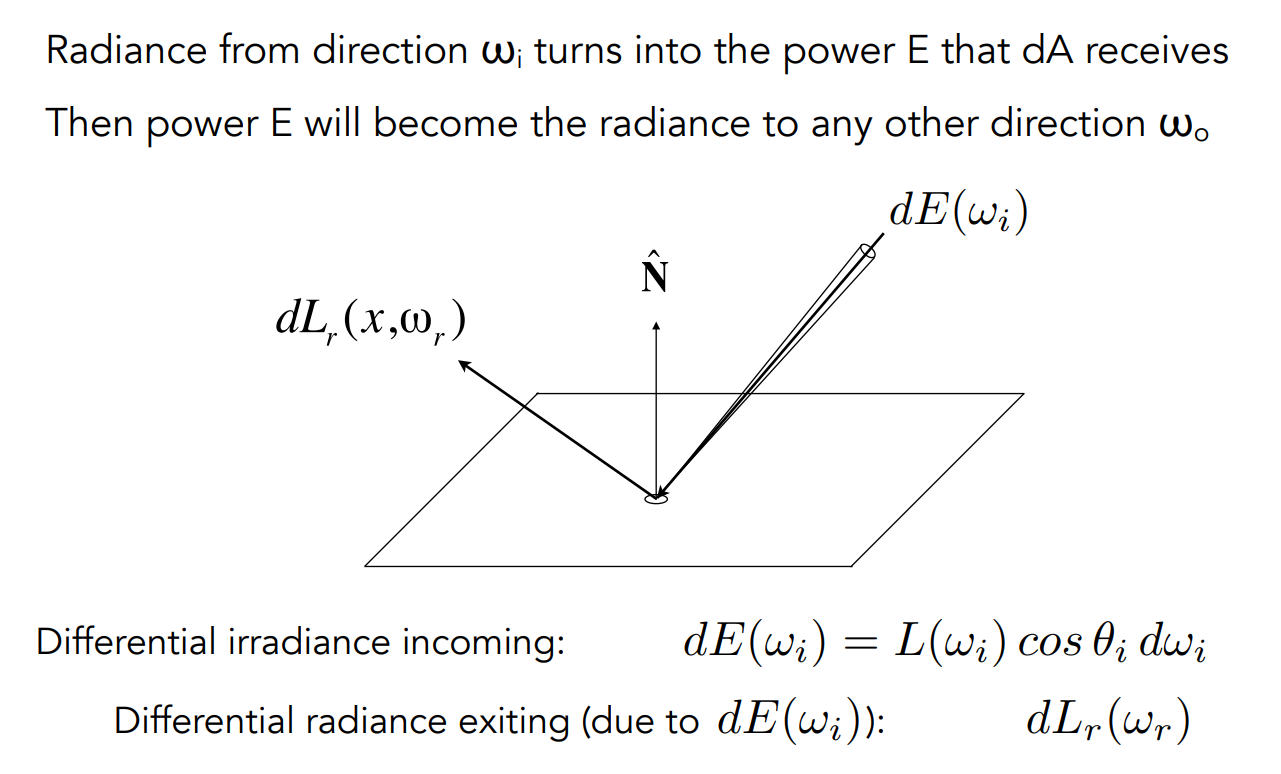

从某个方向看着色点，后三项为dA收到的能量irradiance

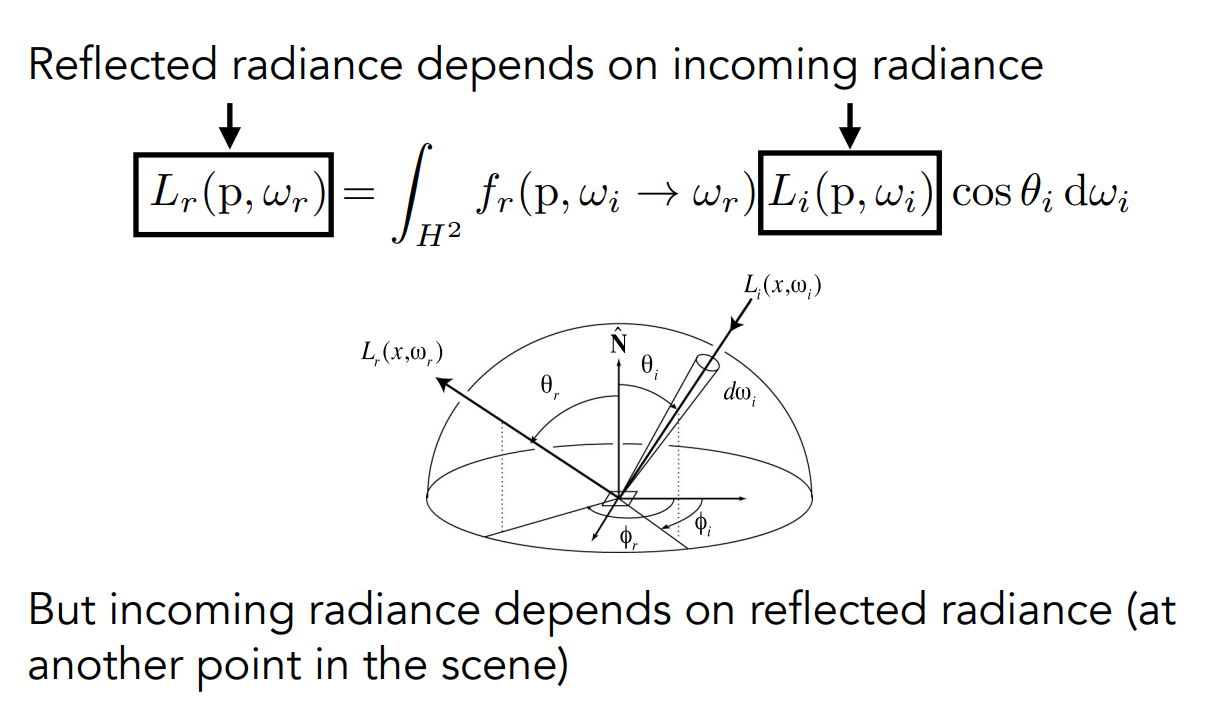

Recursive Equation除了光源，其他点反射的radiance 递归

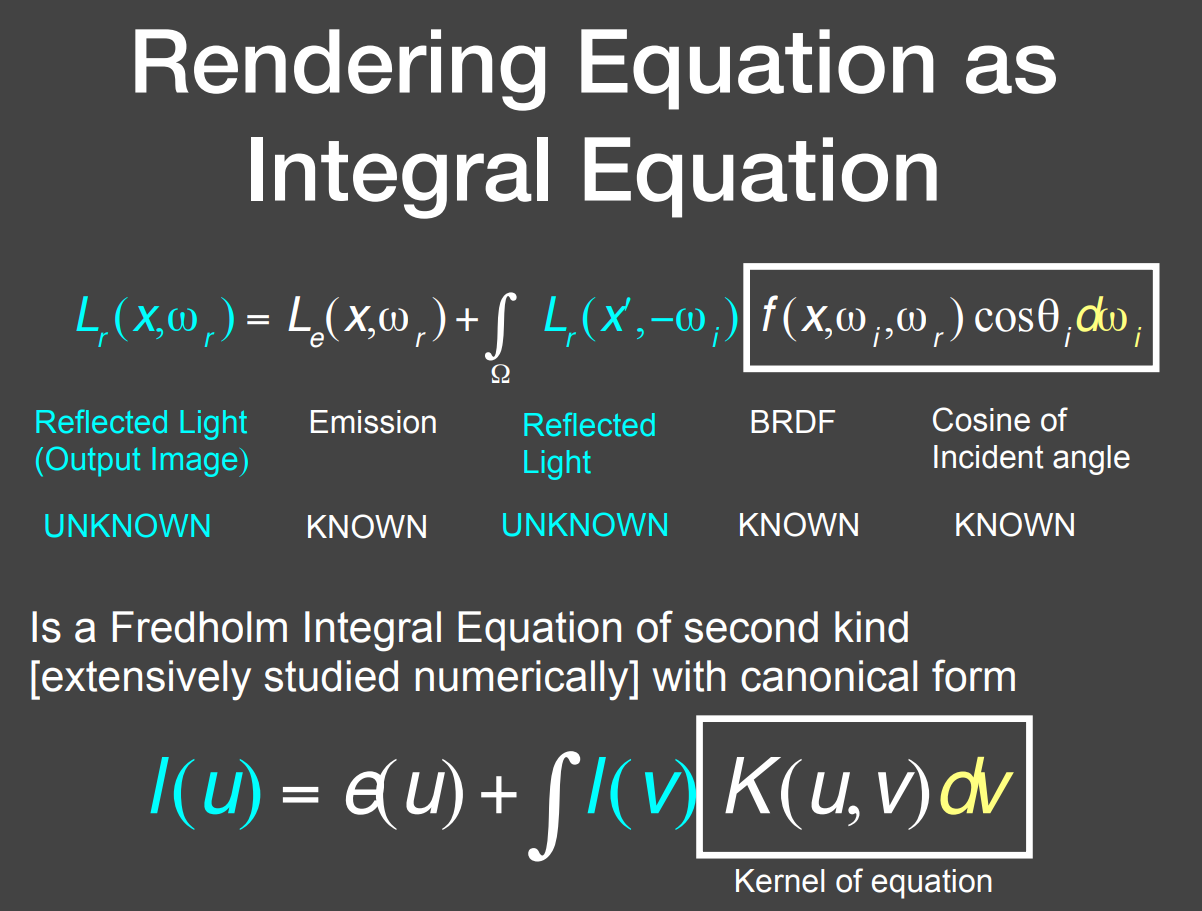

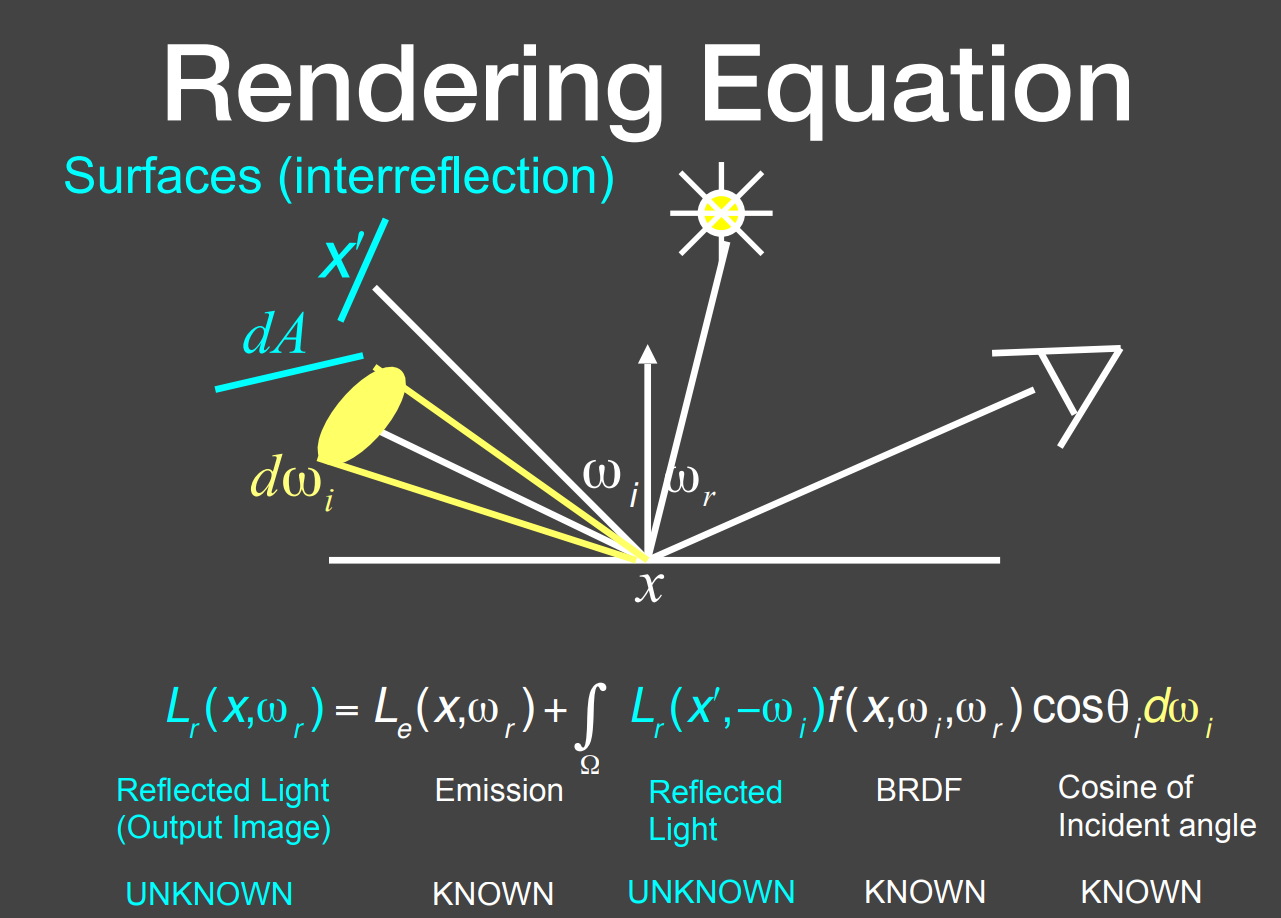

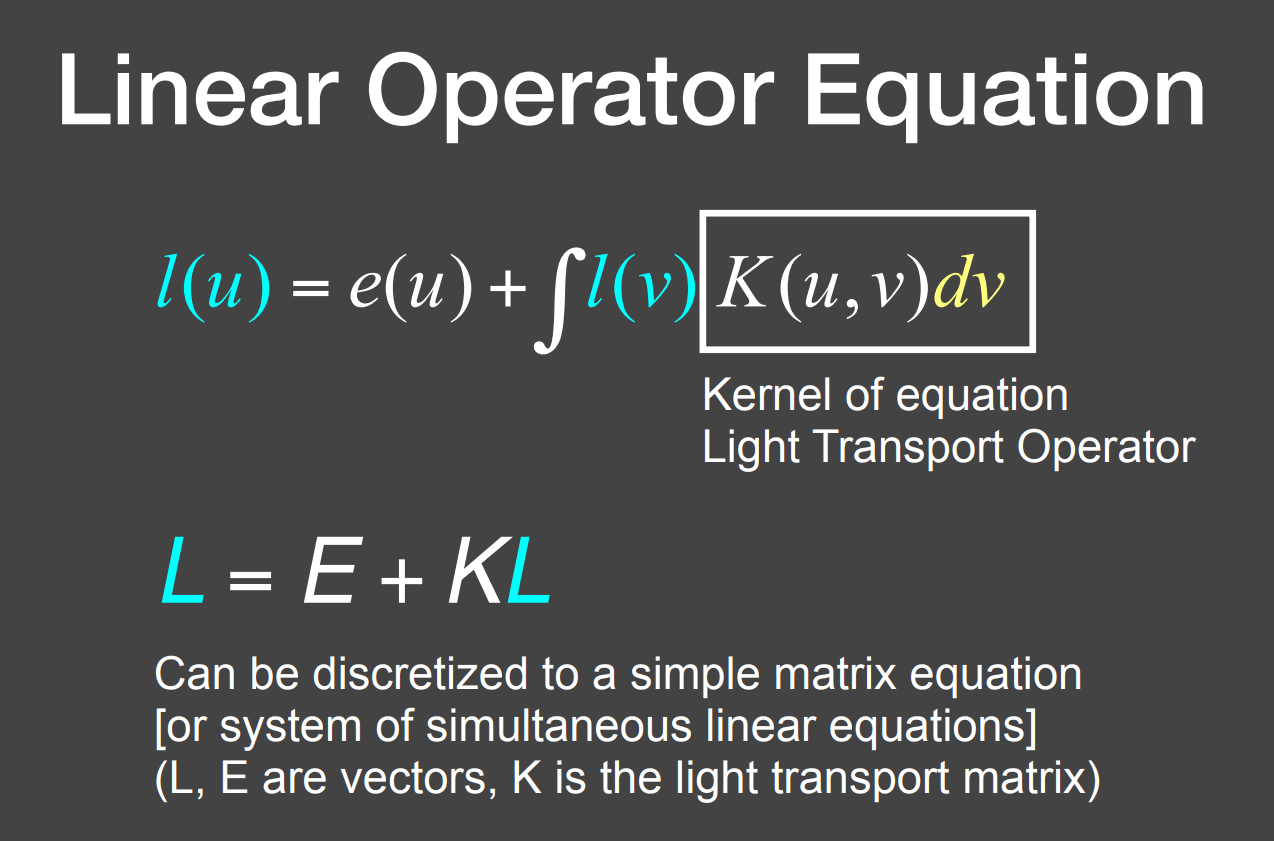

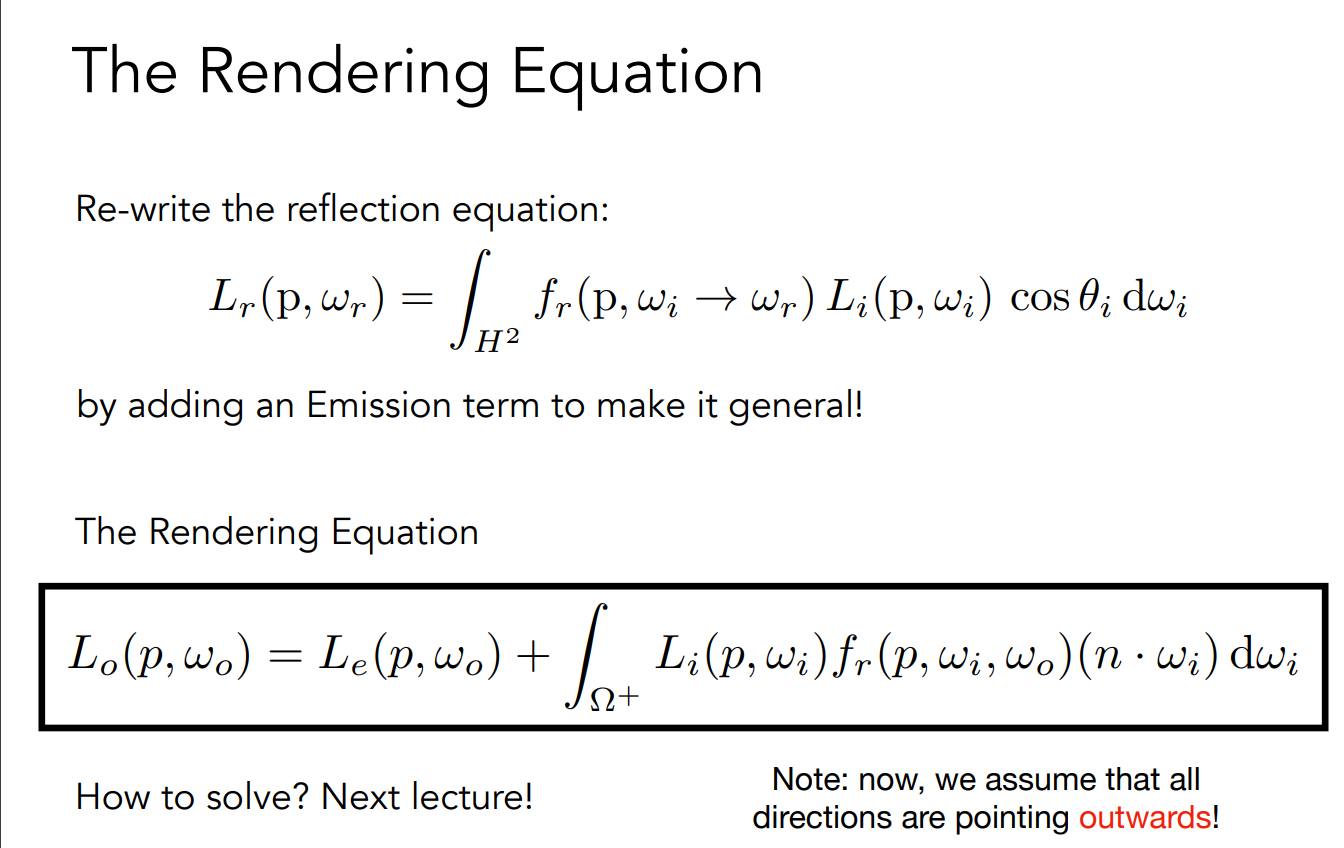

The Rendering Equation渲染方程 Le自己发射的radiance

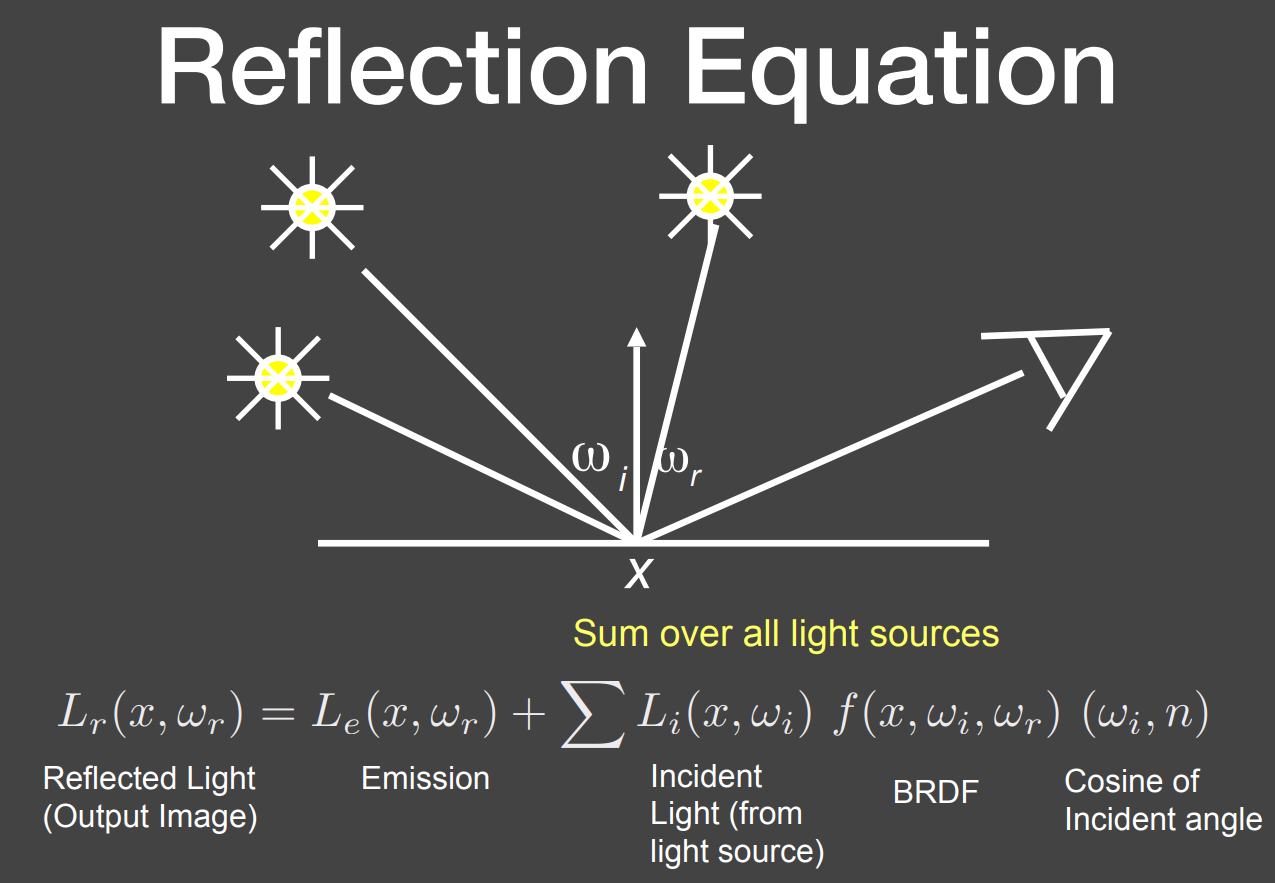

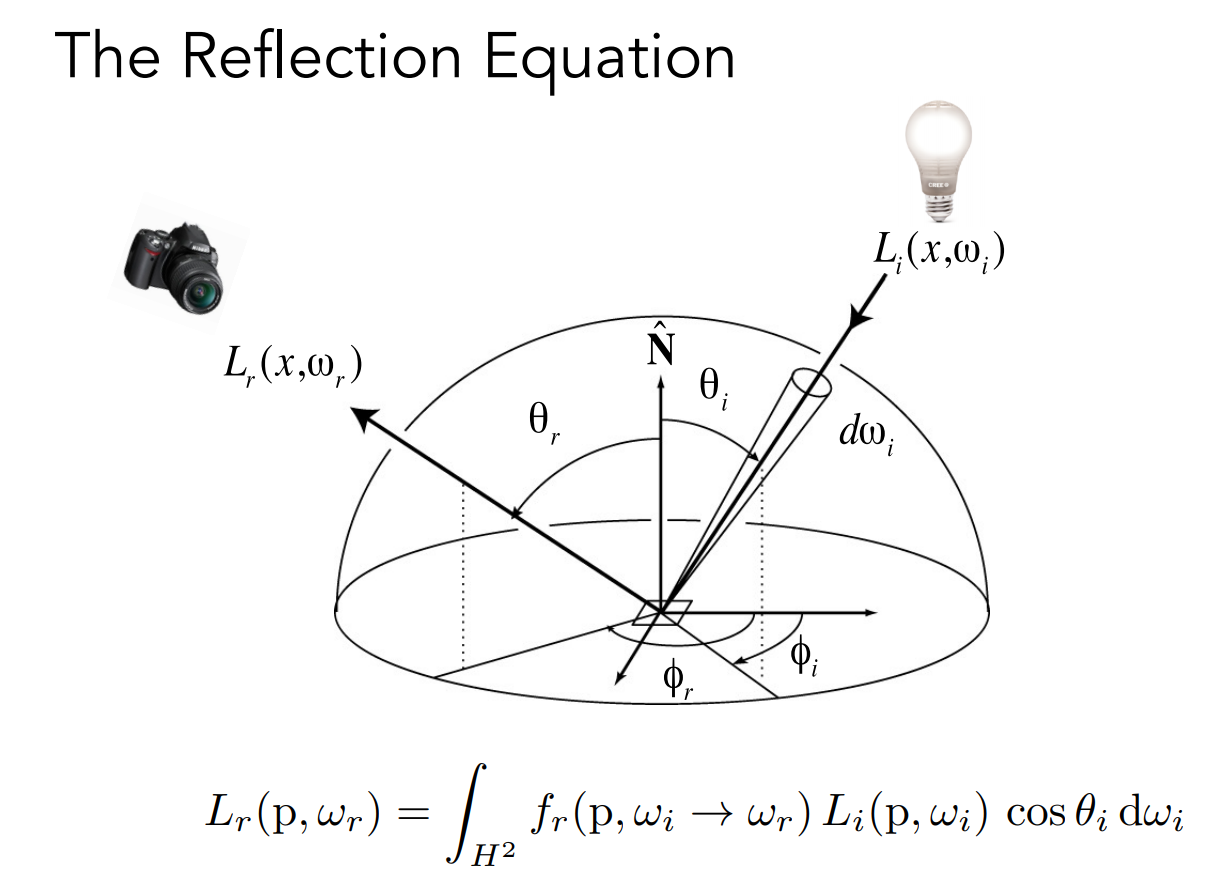

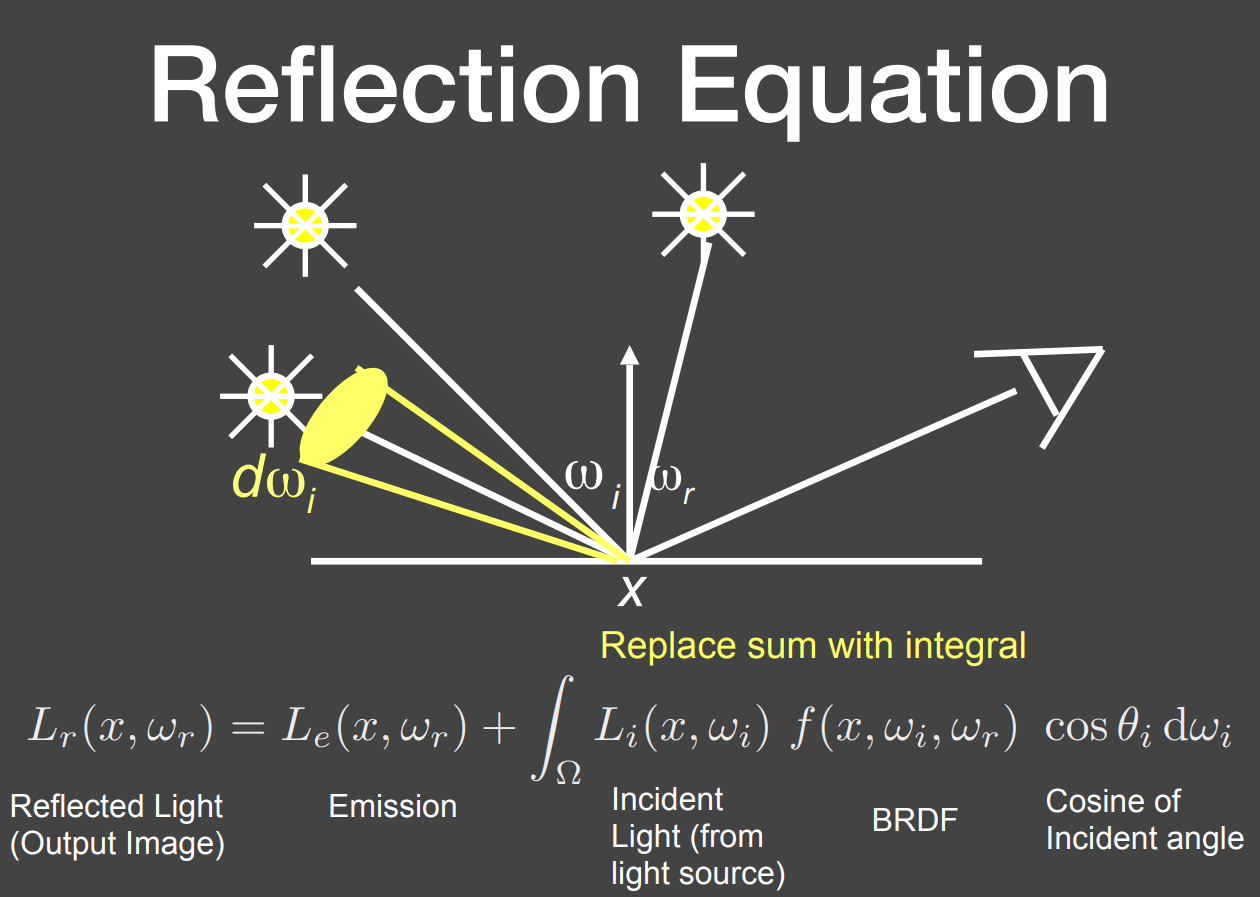

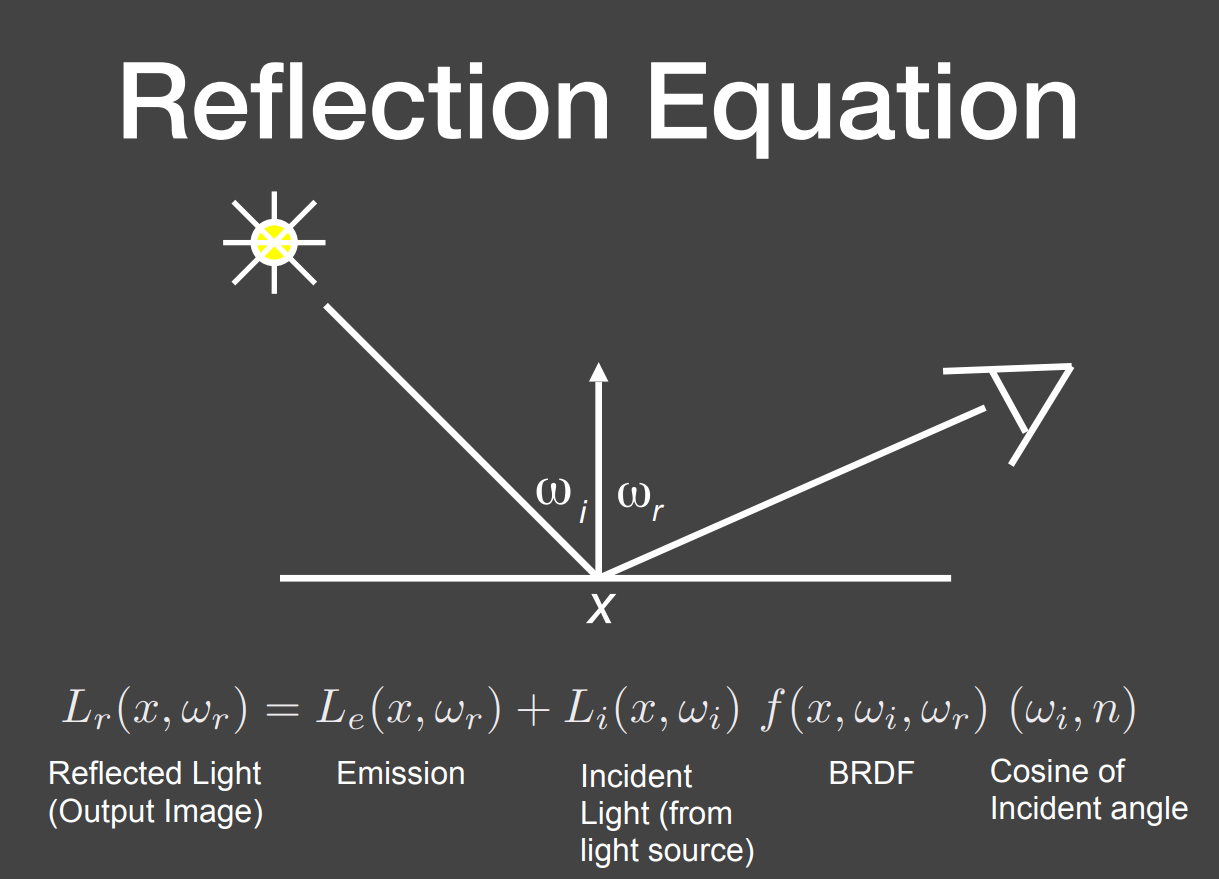

反射方程理解


面光源 积分面光源的立体角

反射面当做光源


简写

NB！！！！
弹射一次直接光照
两次间接光照

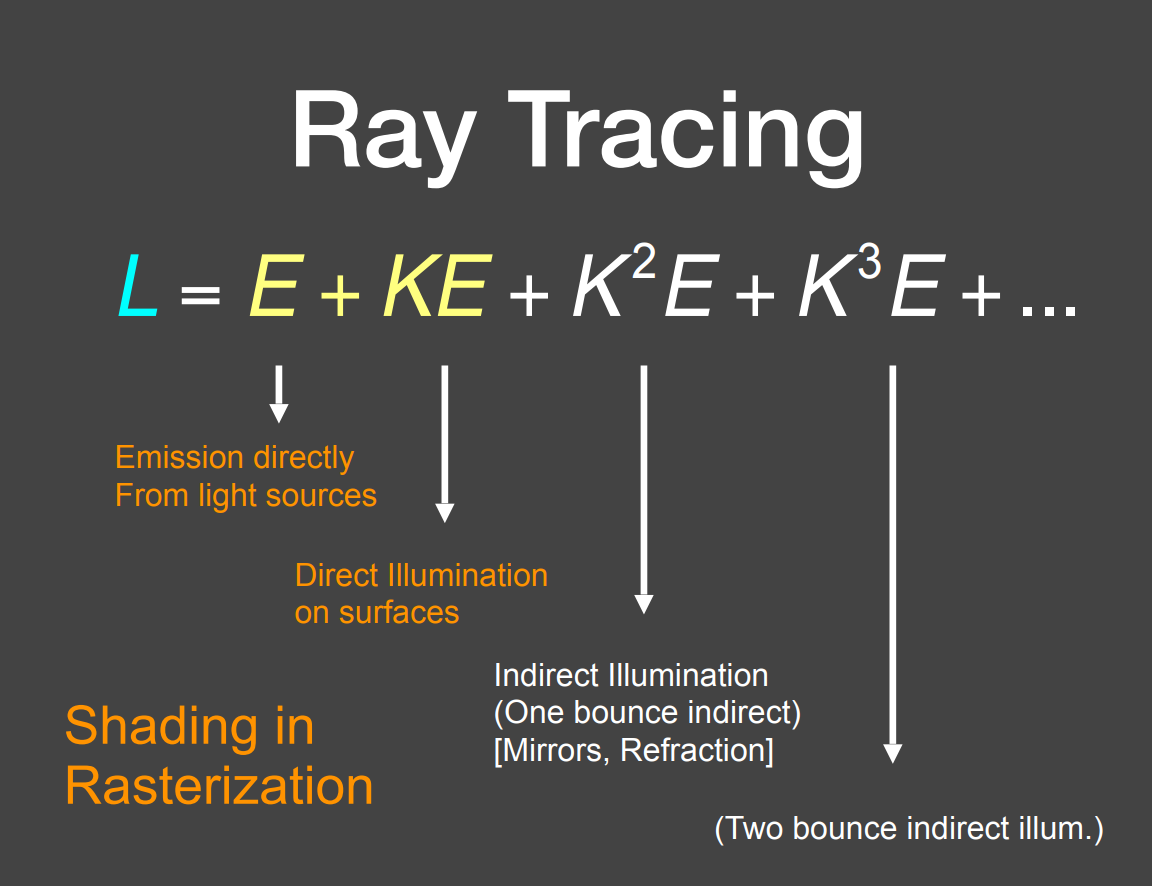

全部加起来：全局光照
无限反射会收敛至一定亮度

Probability Review 概率论回顾

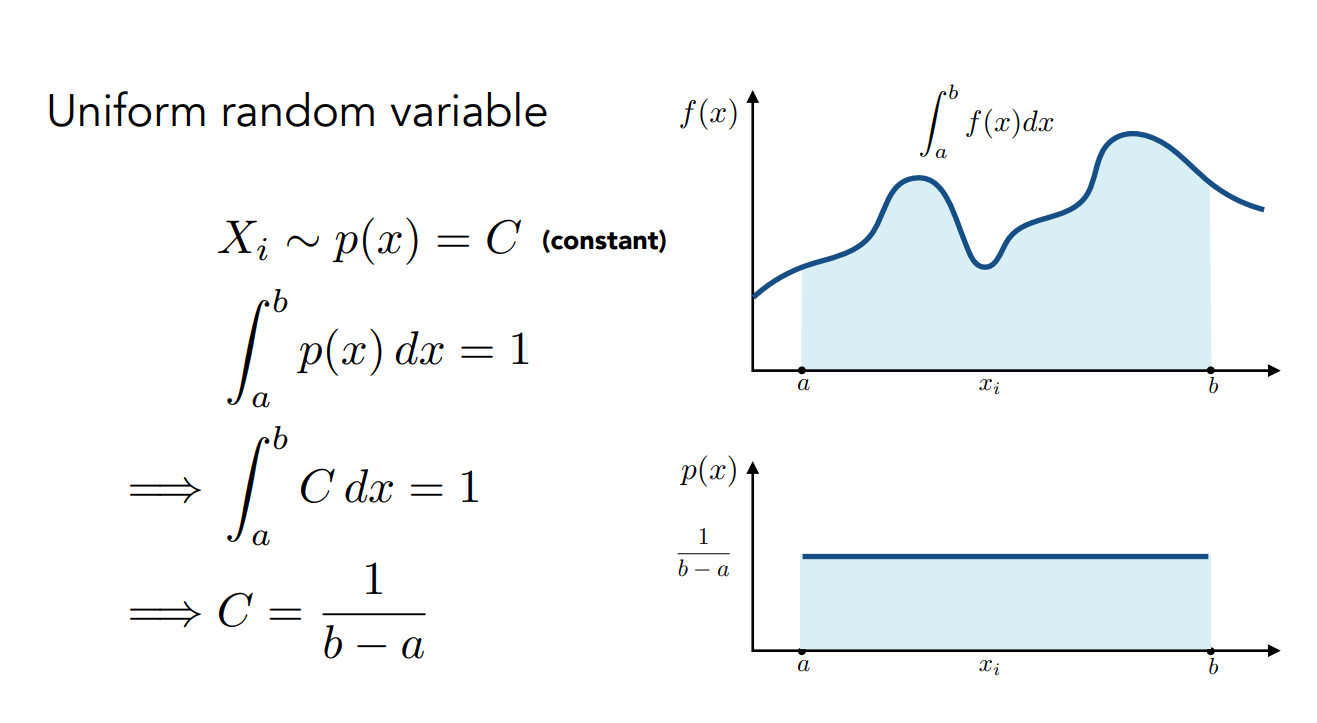

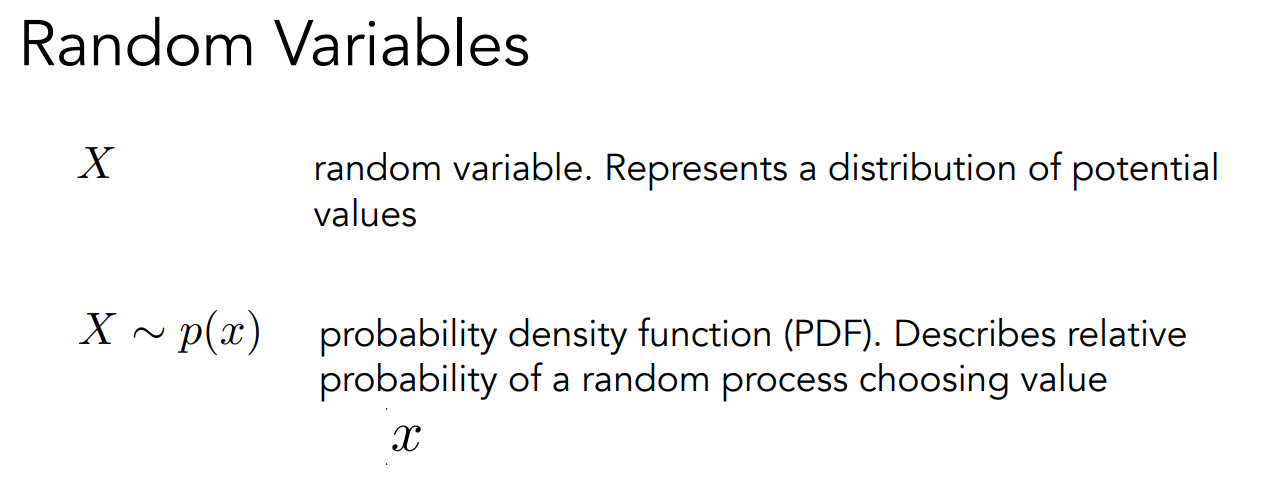

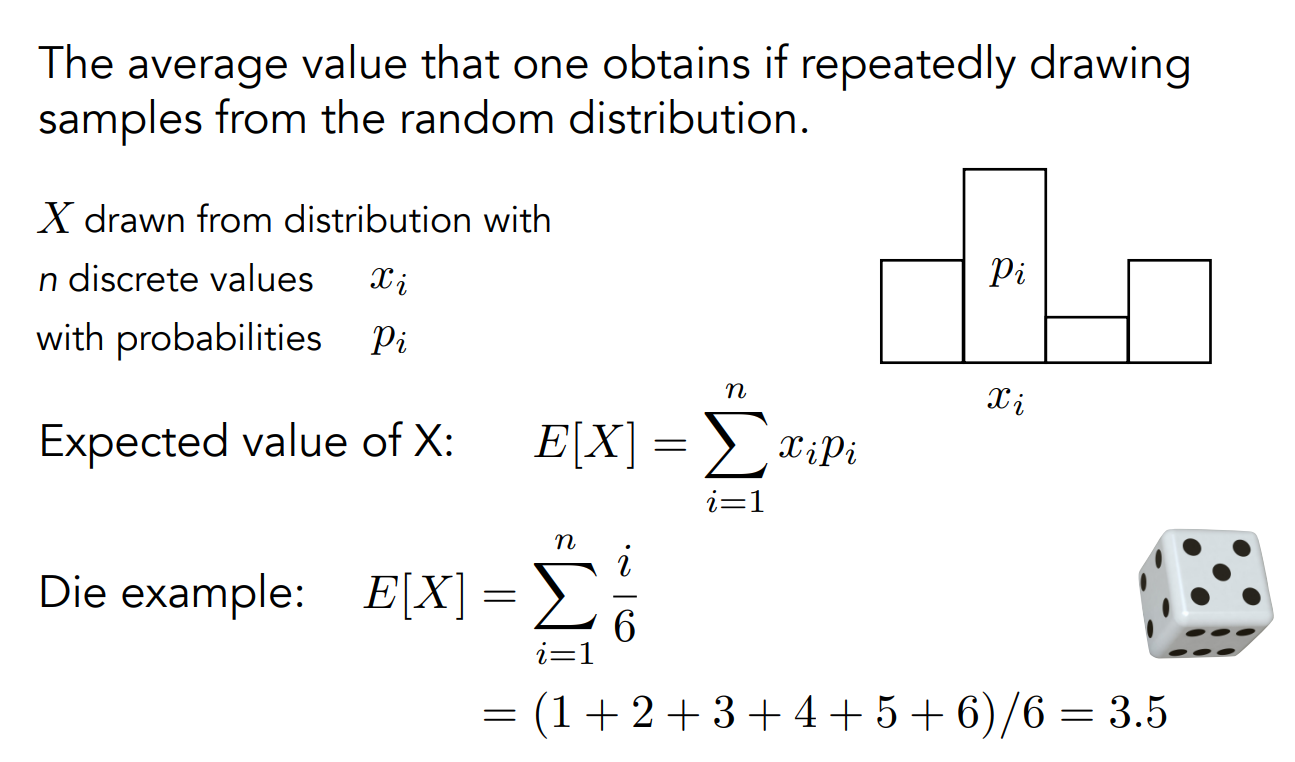

Expected Value of a Random Variable期望

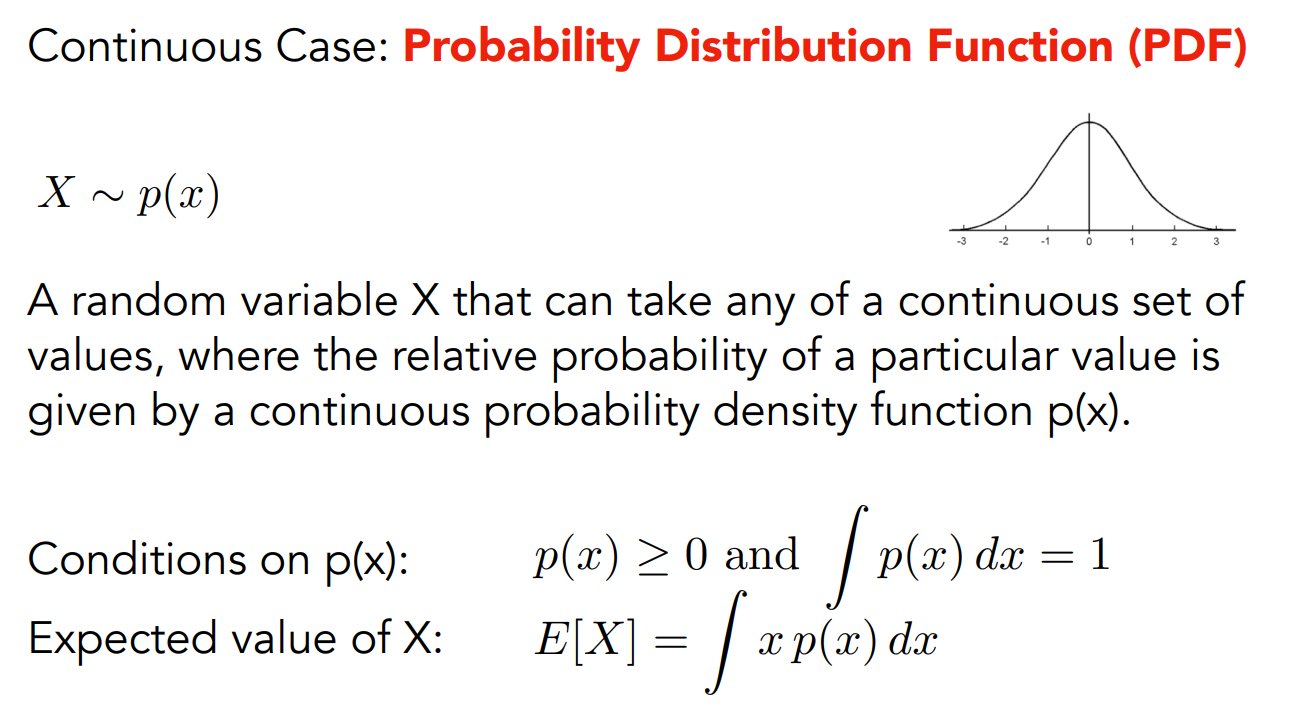

Probability Distribution Function (PDF)概率分布函数

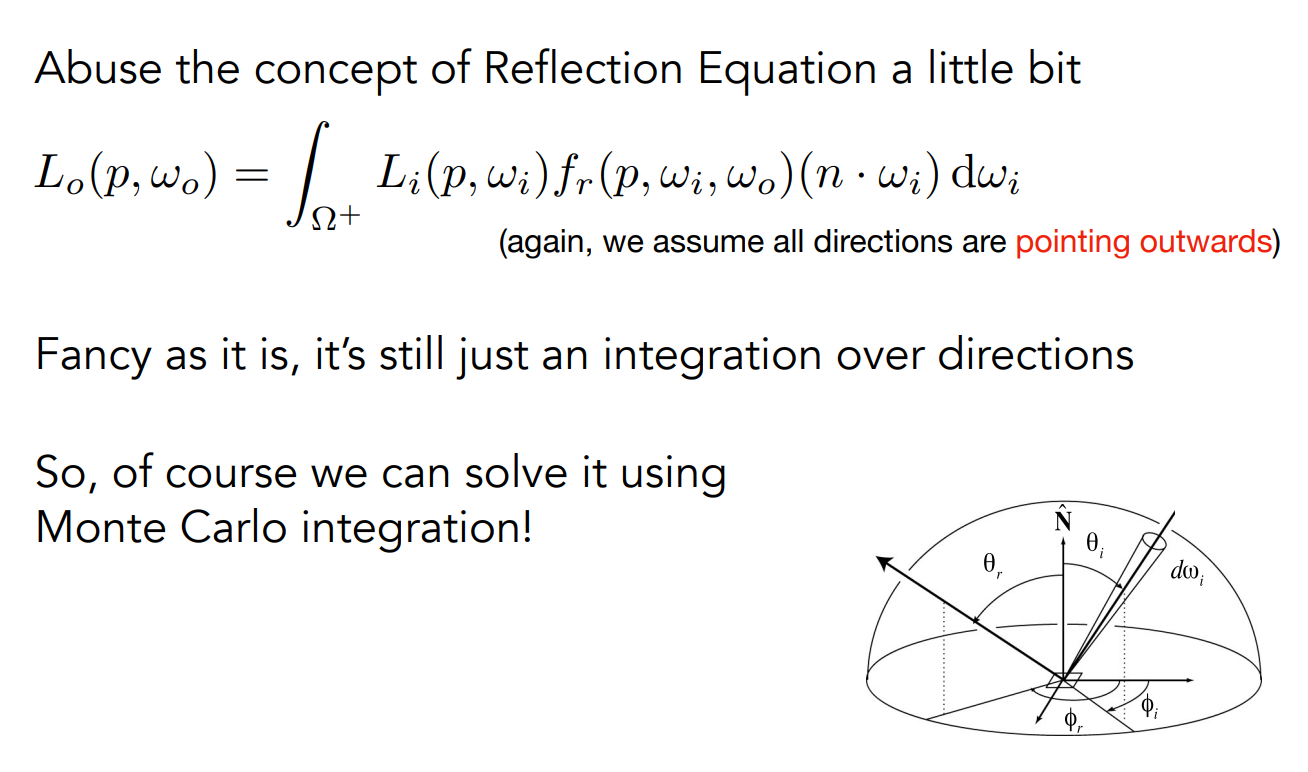

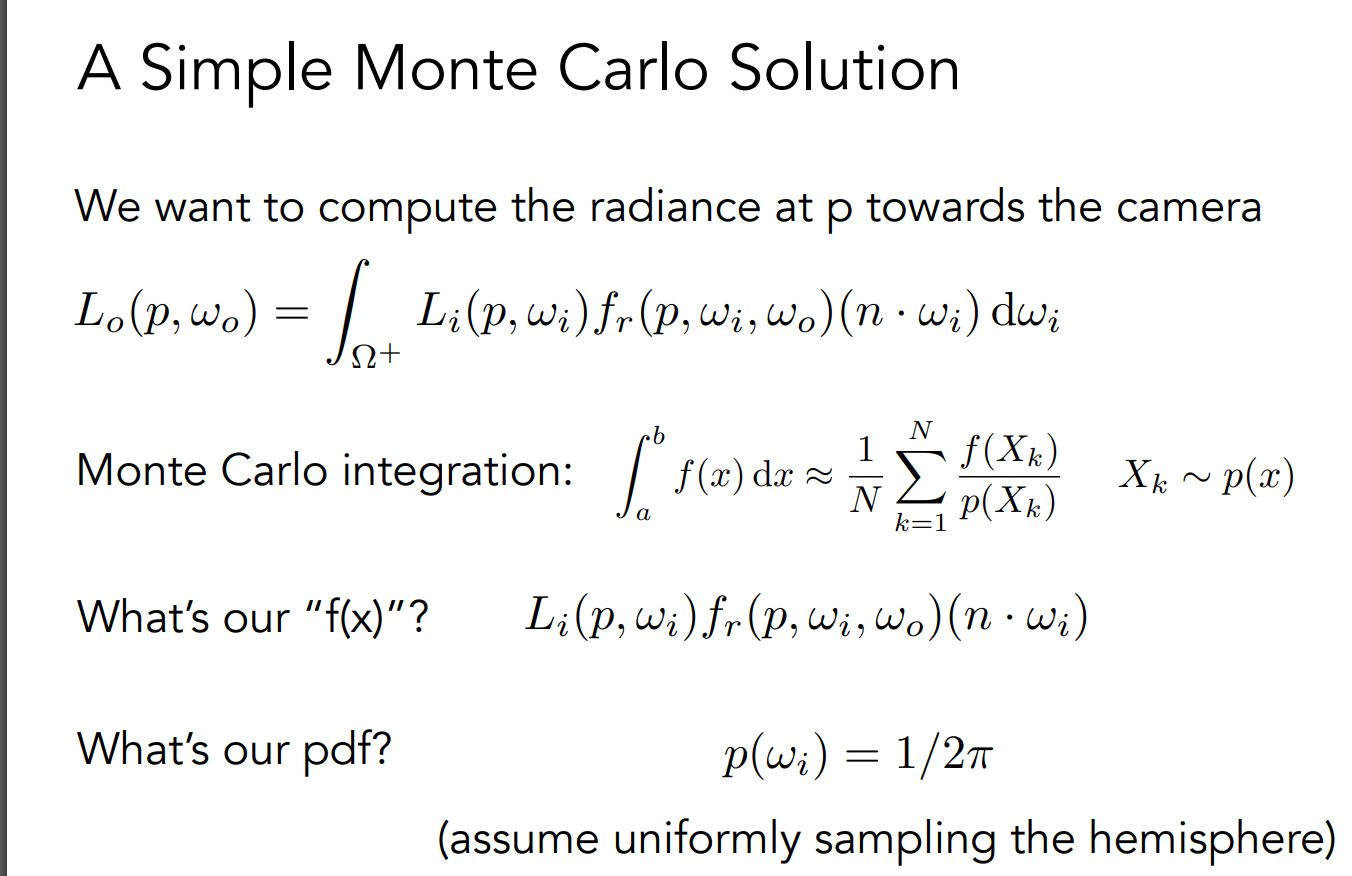

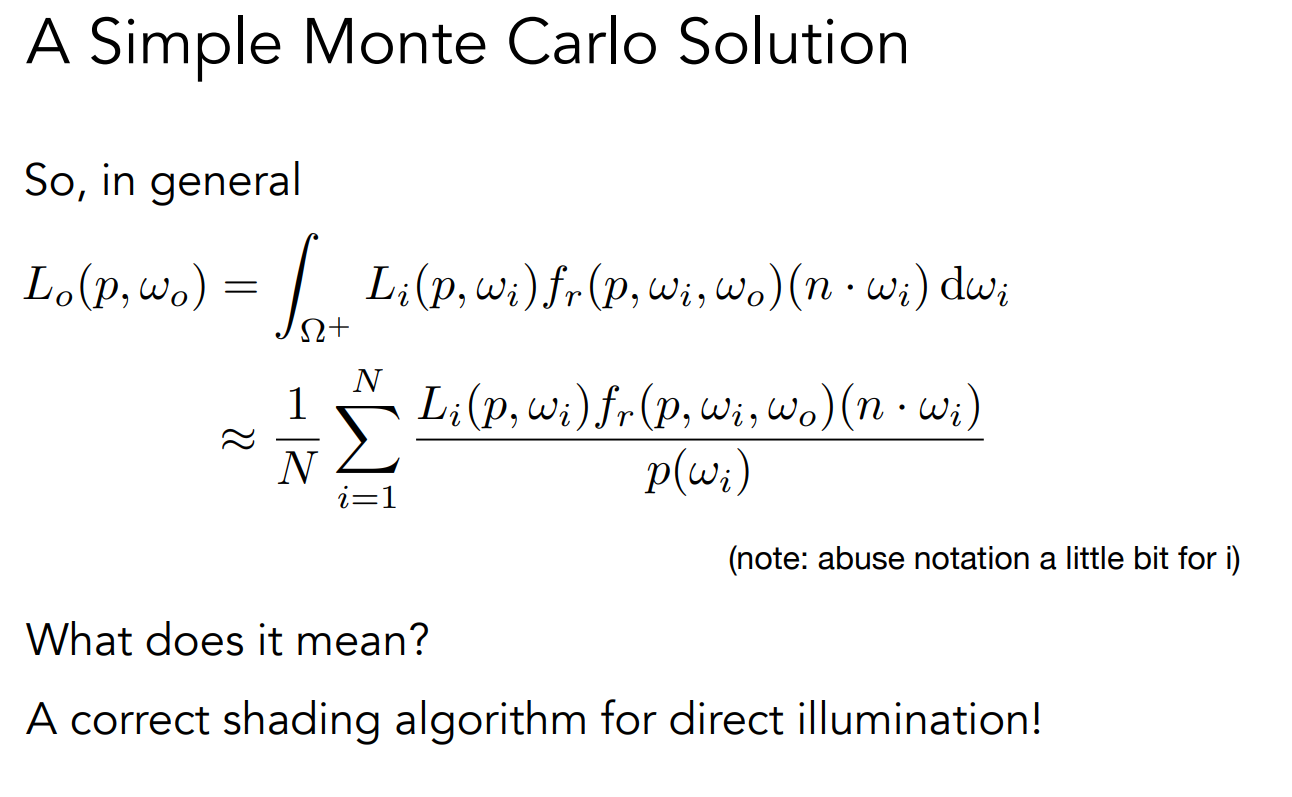

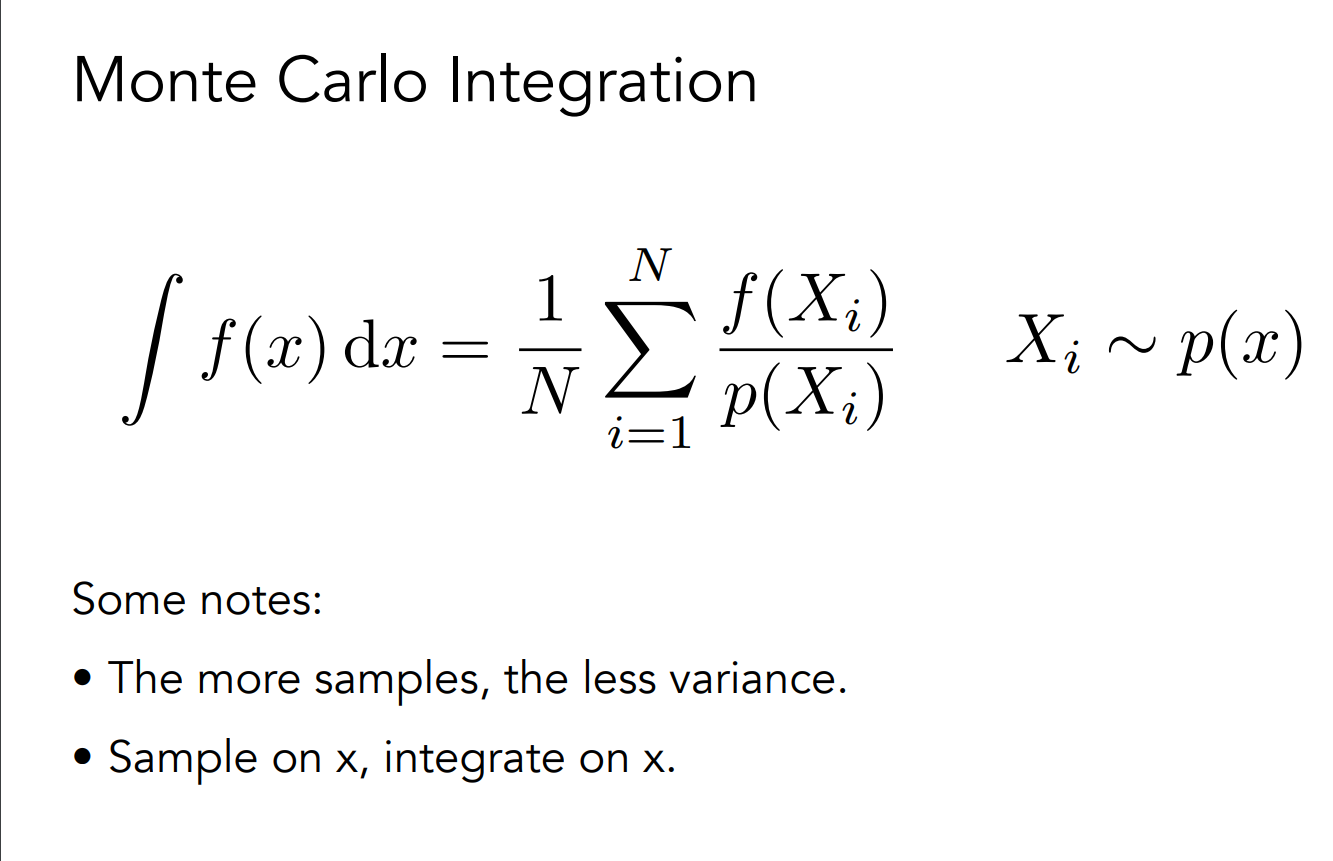

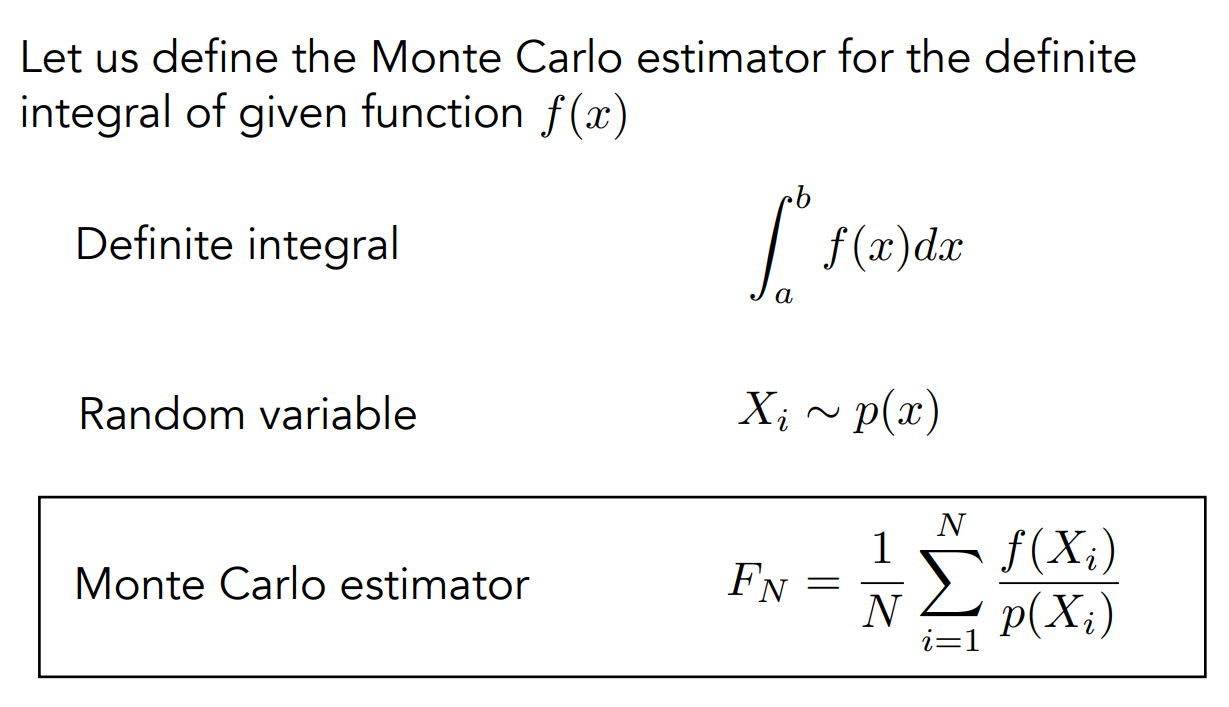

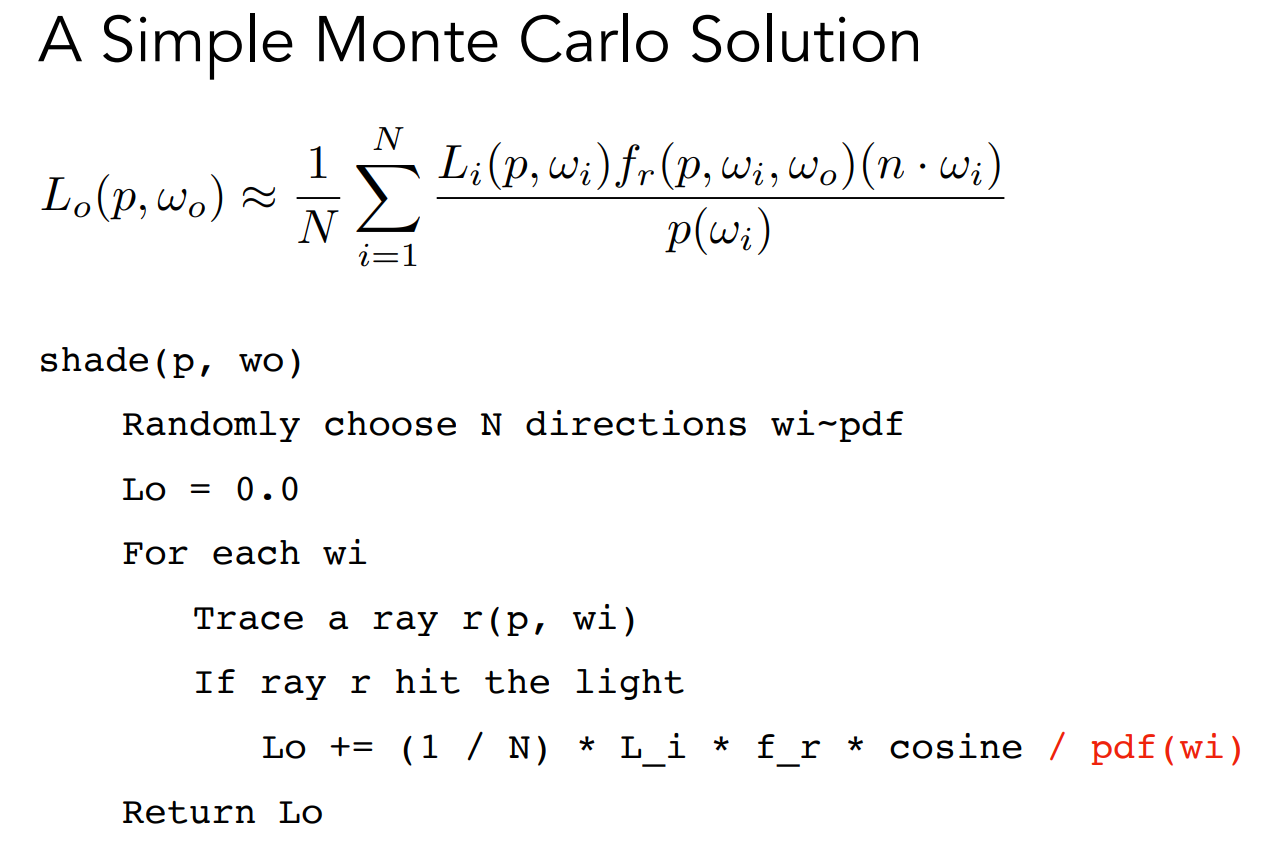

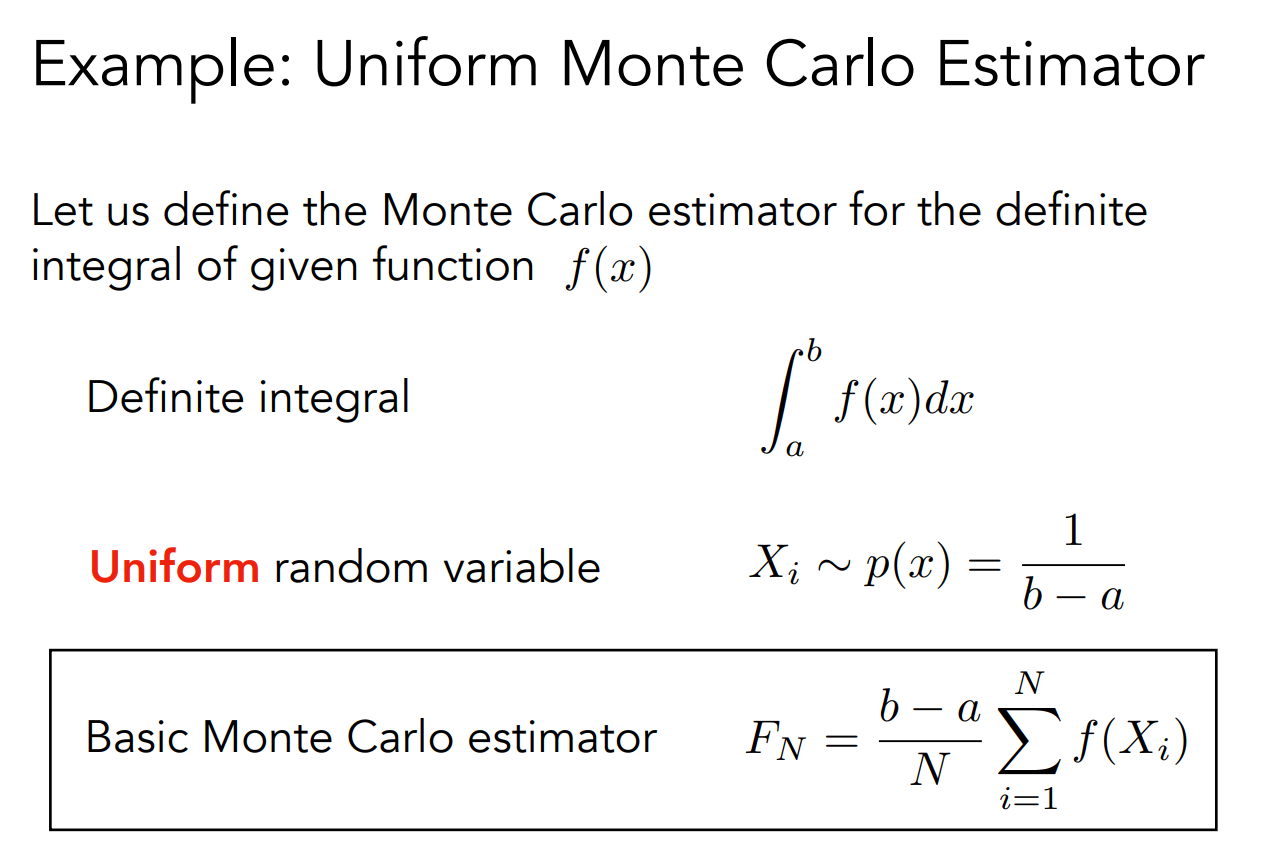

Monte Carlo Integration蒙特卡洛积分 一种近似
Why: we want to solve an integral, but it can be too difficult to solve analytically.
What & How: estimate the integral of a function by averaging random samples of the function’s value.

Path Tracing 路径追踪
Whitted-style ray tracing:

• Always perform specular（光滑） reflections / refractions
• Stop bouncing at diffuse surfaces

Are these simplifications reasonable?（why）
High level: let’s progressively improve upon Whitted-Style Ray Tracing and lead to our path tracing algorithm!

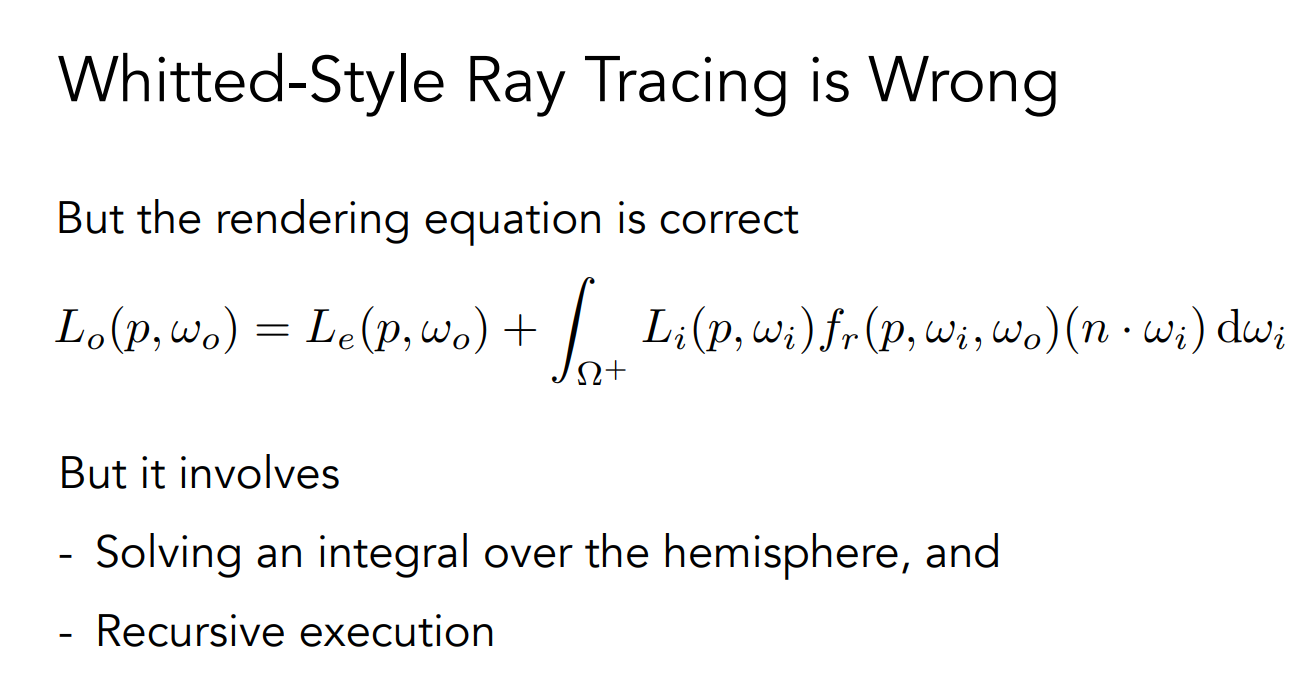

whitted-style光线追踪不对，渲染方程是对的，需要解决积分求解的问题

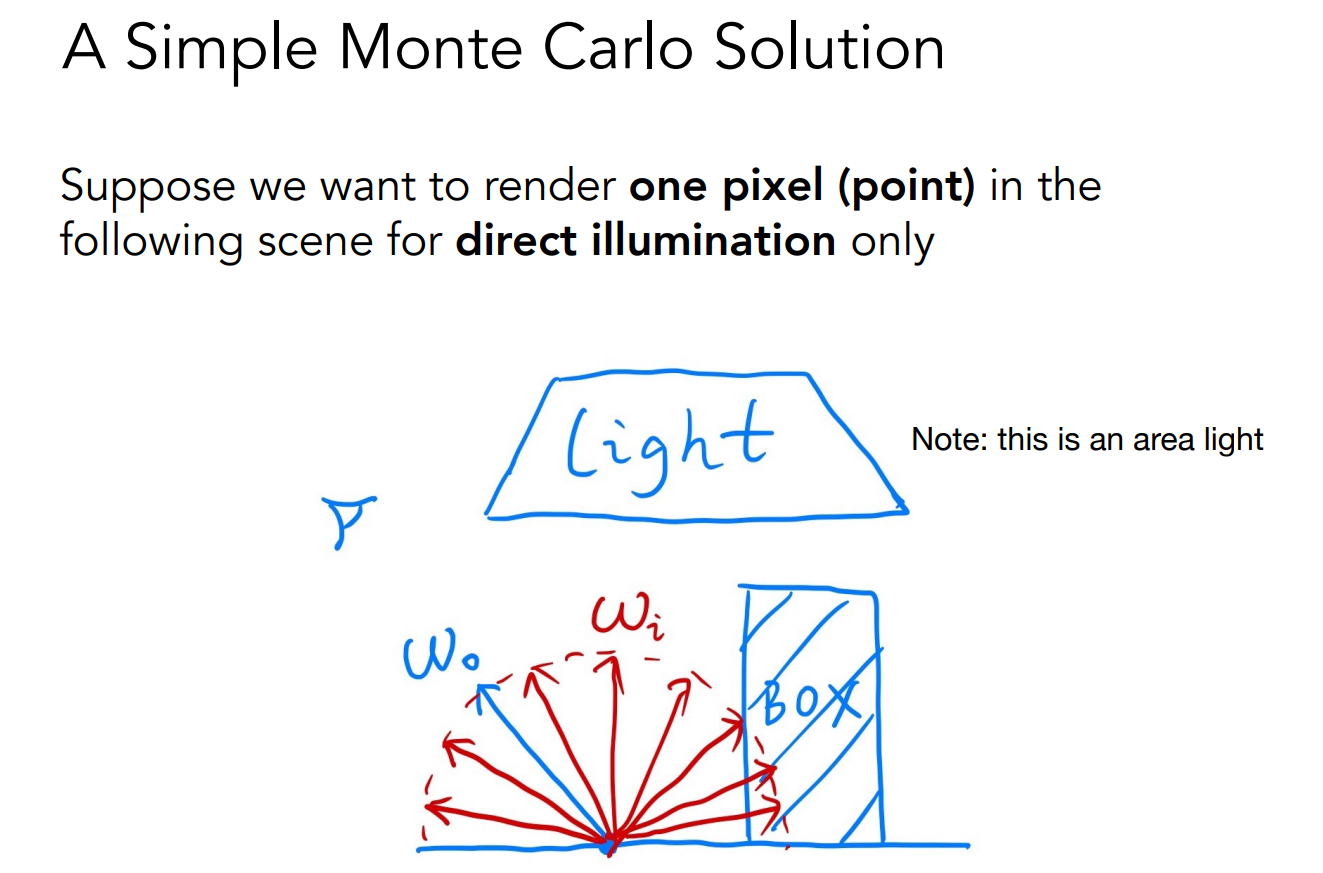

简单情况只考虑直接光照

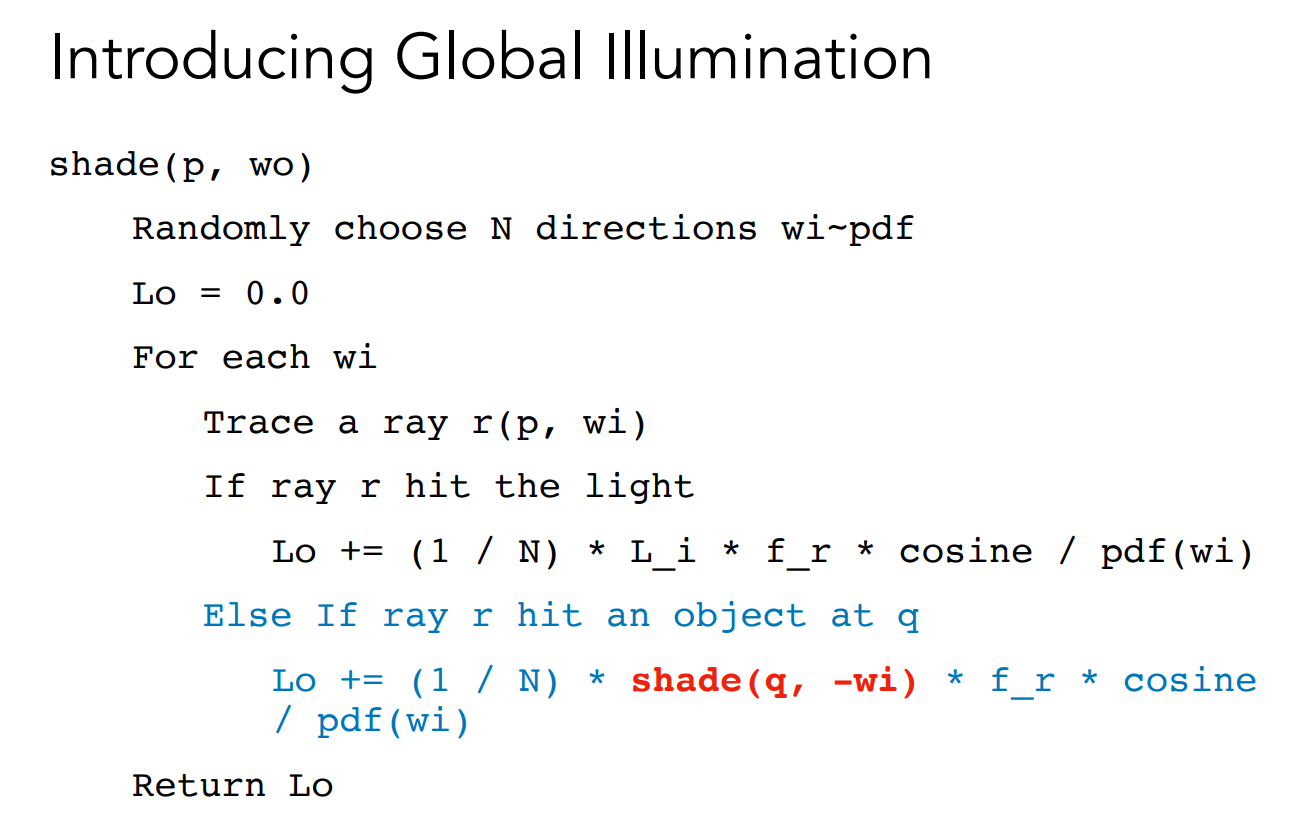

Global Illumination
One more step forward: what if a ray hits an object?


存在的问题

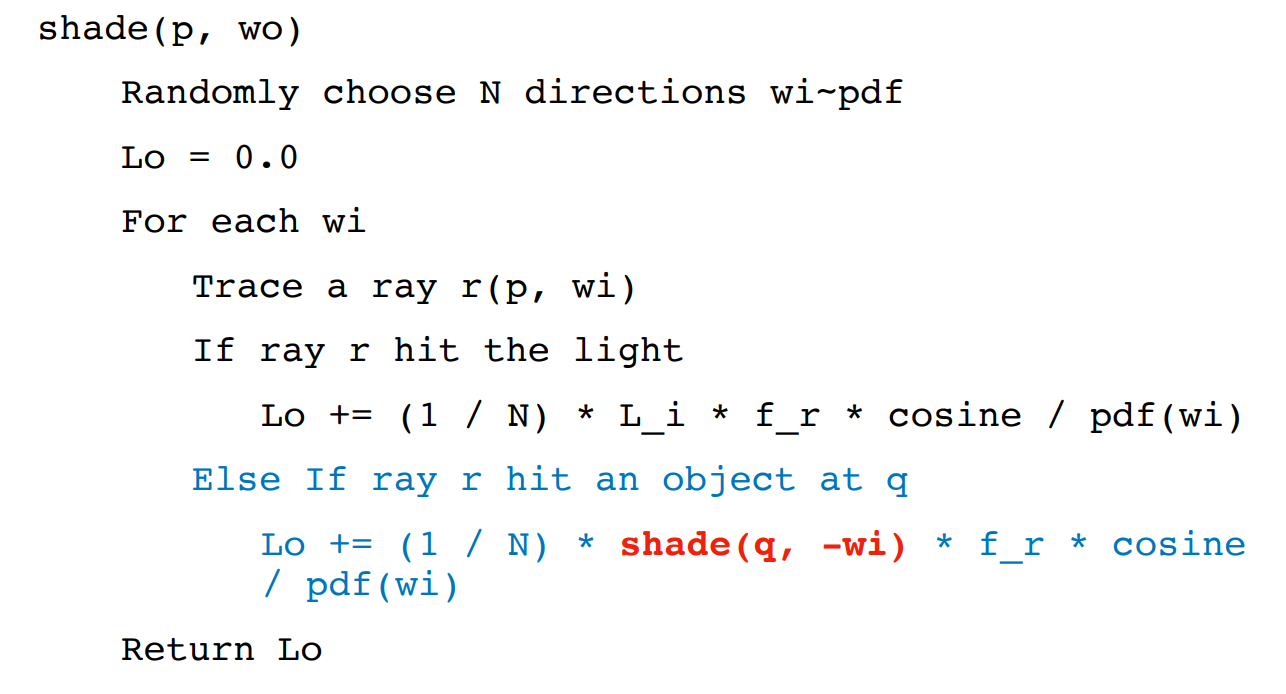

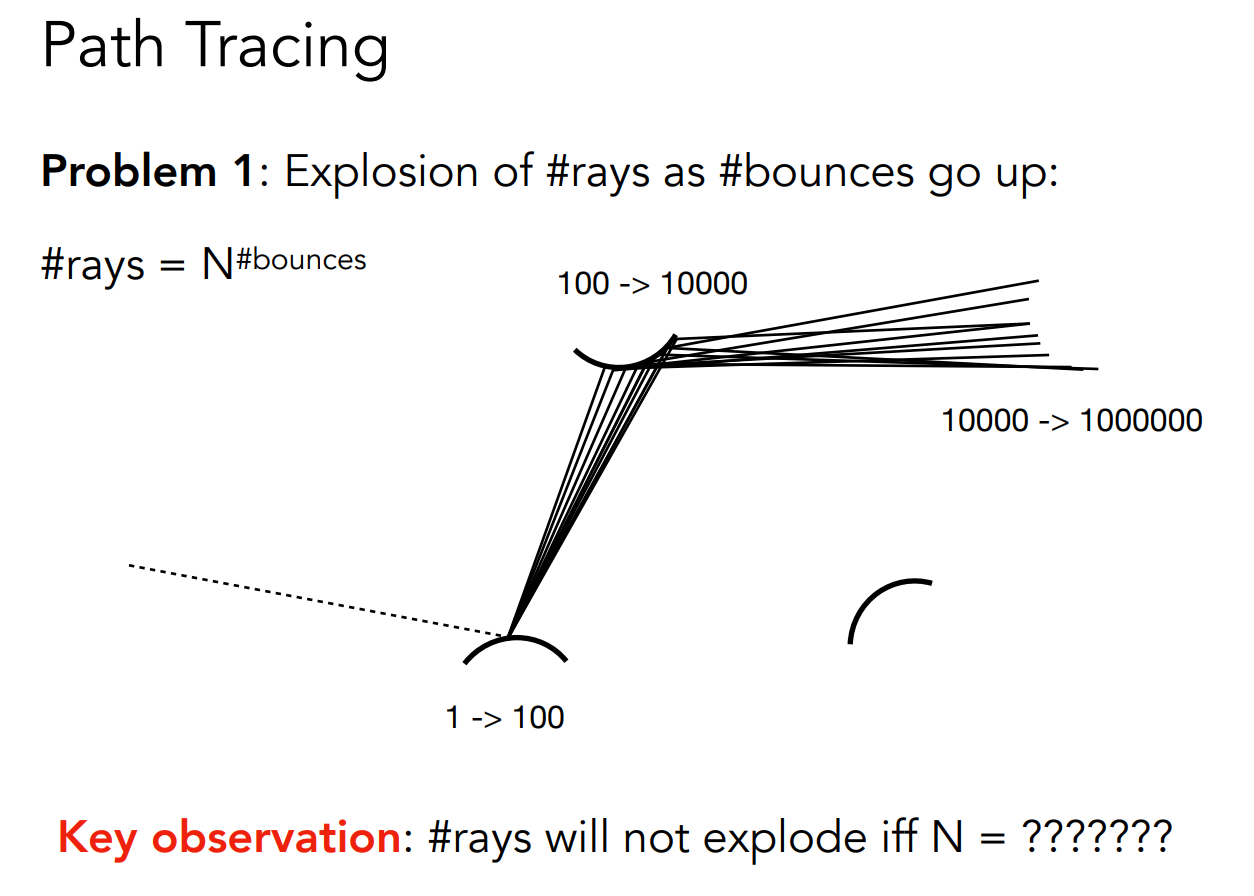

1、光线数量爆炸，指数级增长

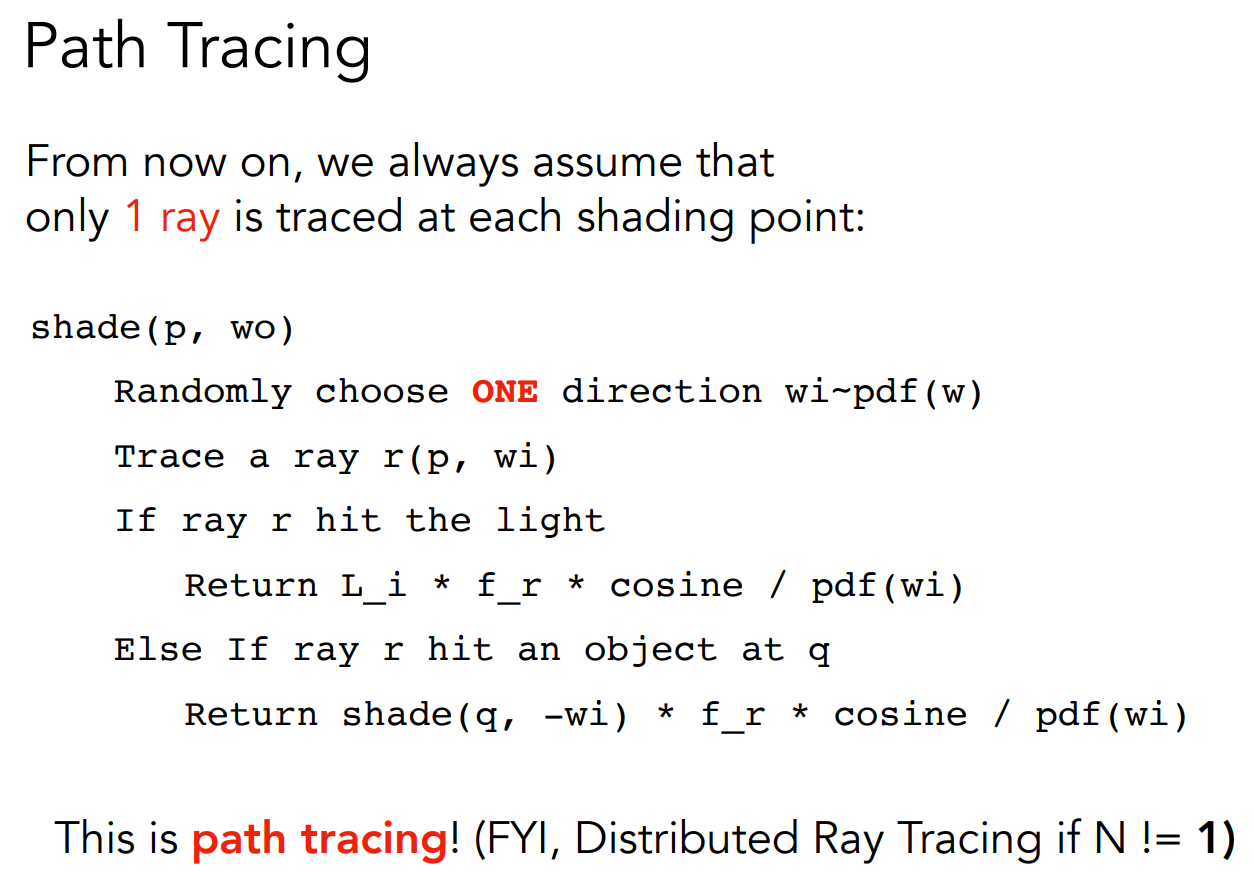

解决方法：只打出一条光线（只采样一次）n=1，路径跟踪

结果：噪声比较大

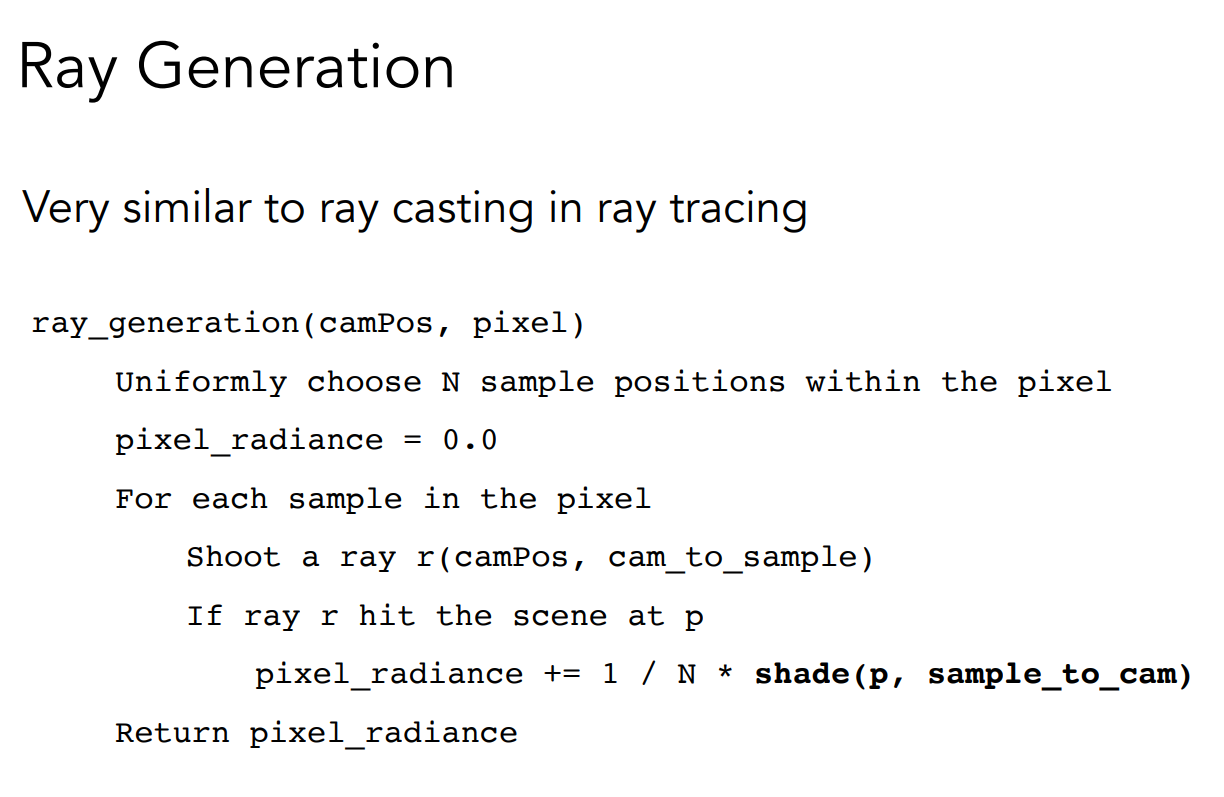

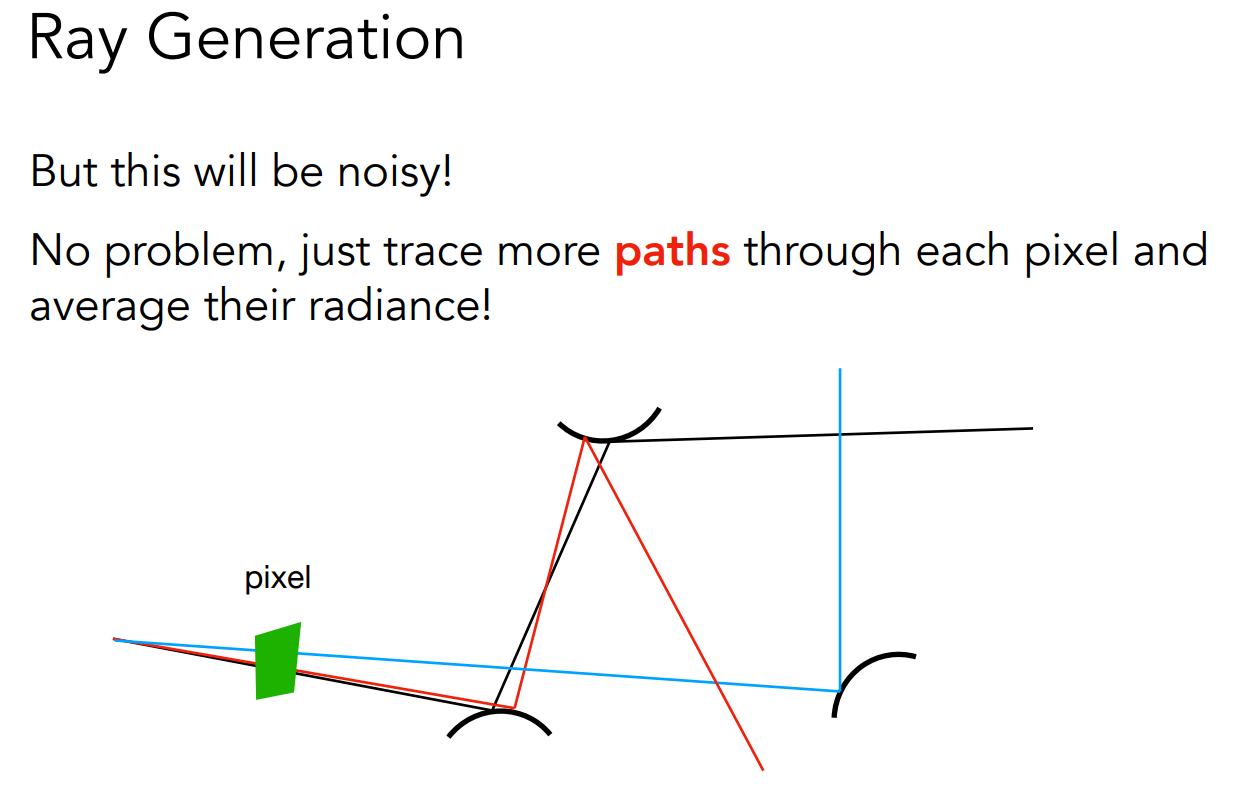

Ray Generation 用足够多的path


2、The recursive algorithm will never stop!

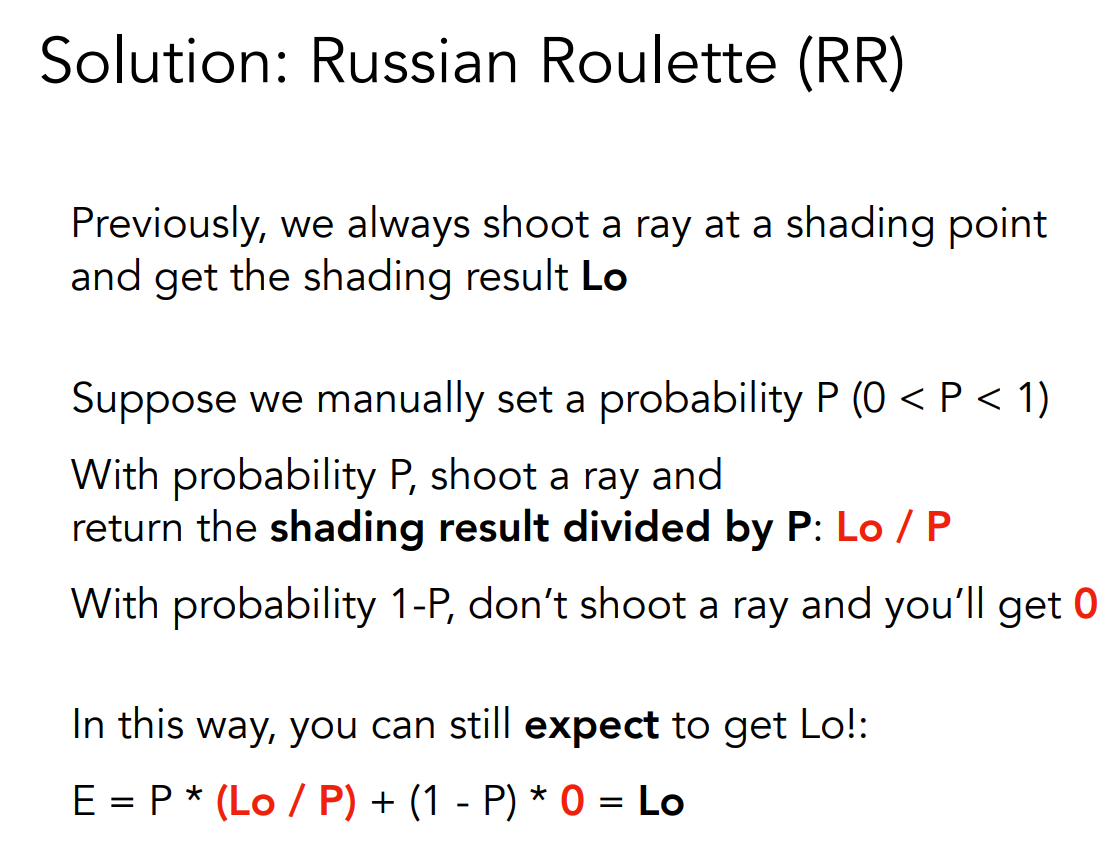

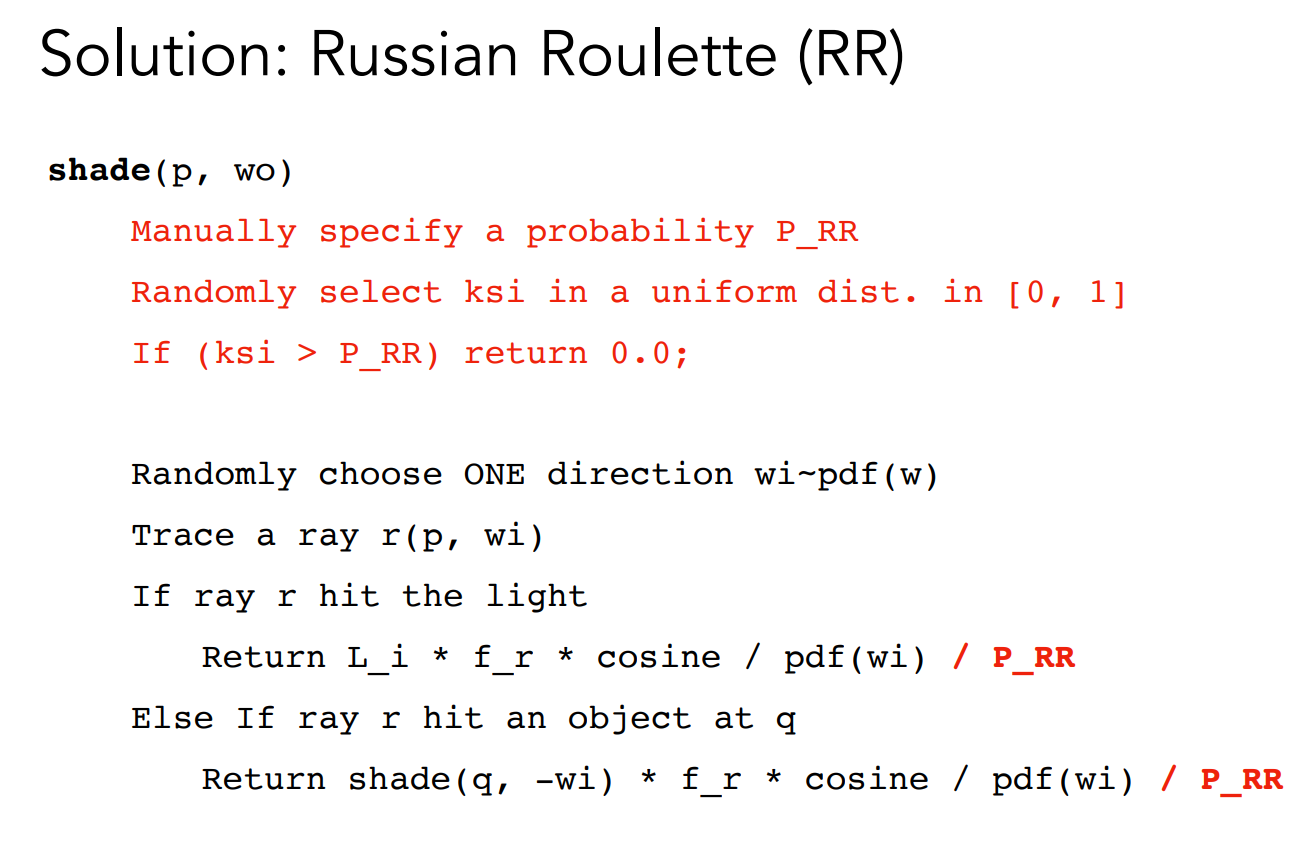

解决方法：Solution: Russian Roulette (RR)俄罗斯轮盘赌
Russian Roulette is all about probability
With probability 0 < P < 1, you are fine
With probability 1 - P, otherwise
期望仍是Lo


仍存在的问题：不够高效
SPP (samples per pixel)：一个像素打出的光线数量

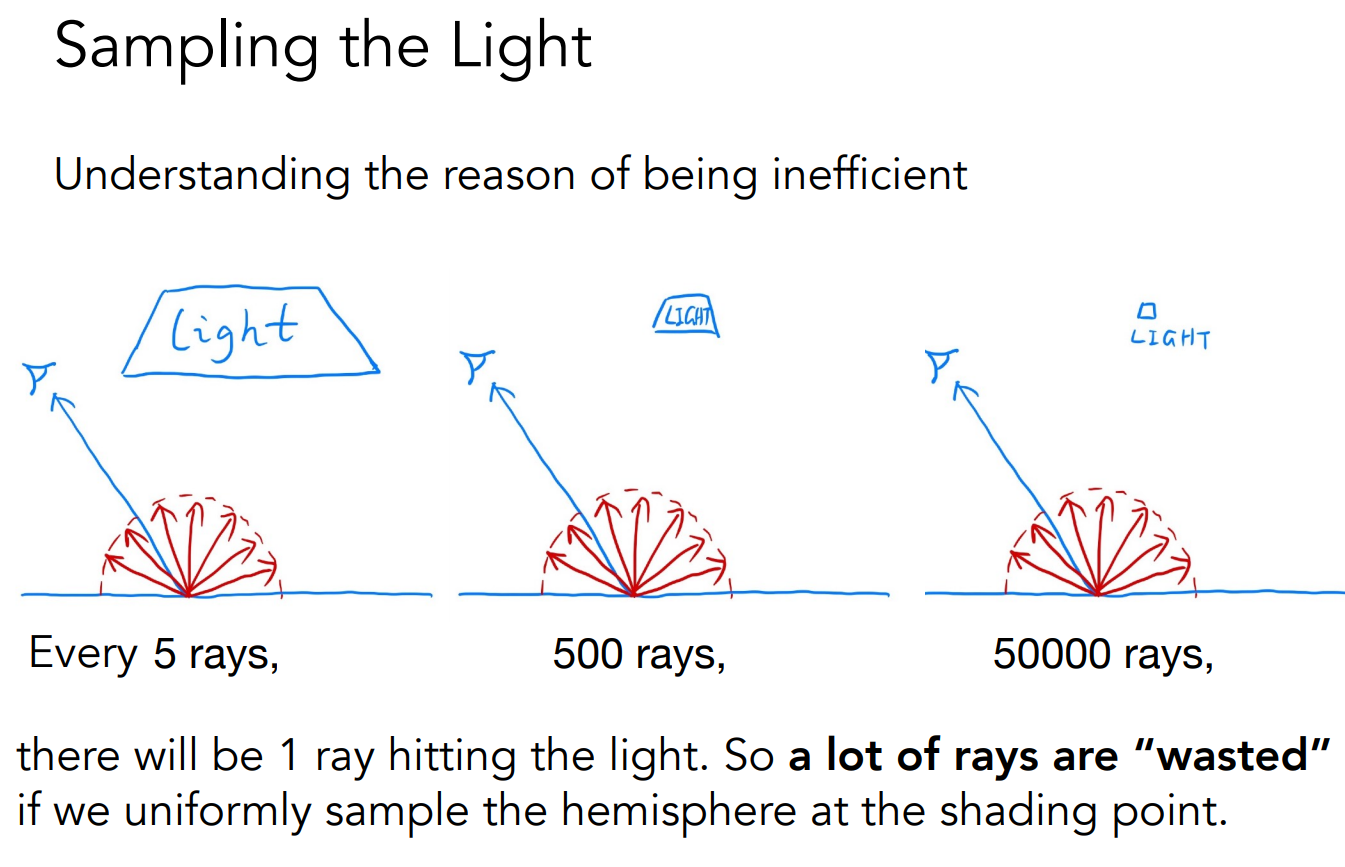

四面八方采样效率较低

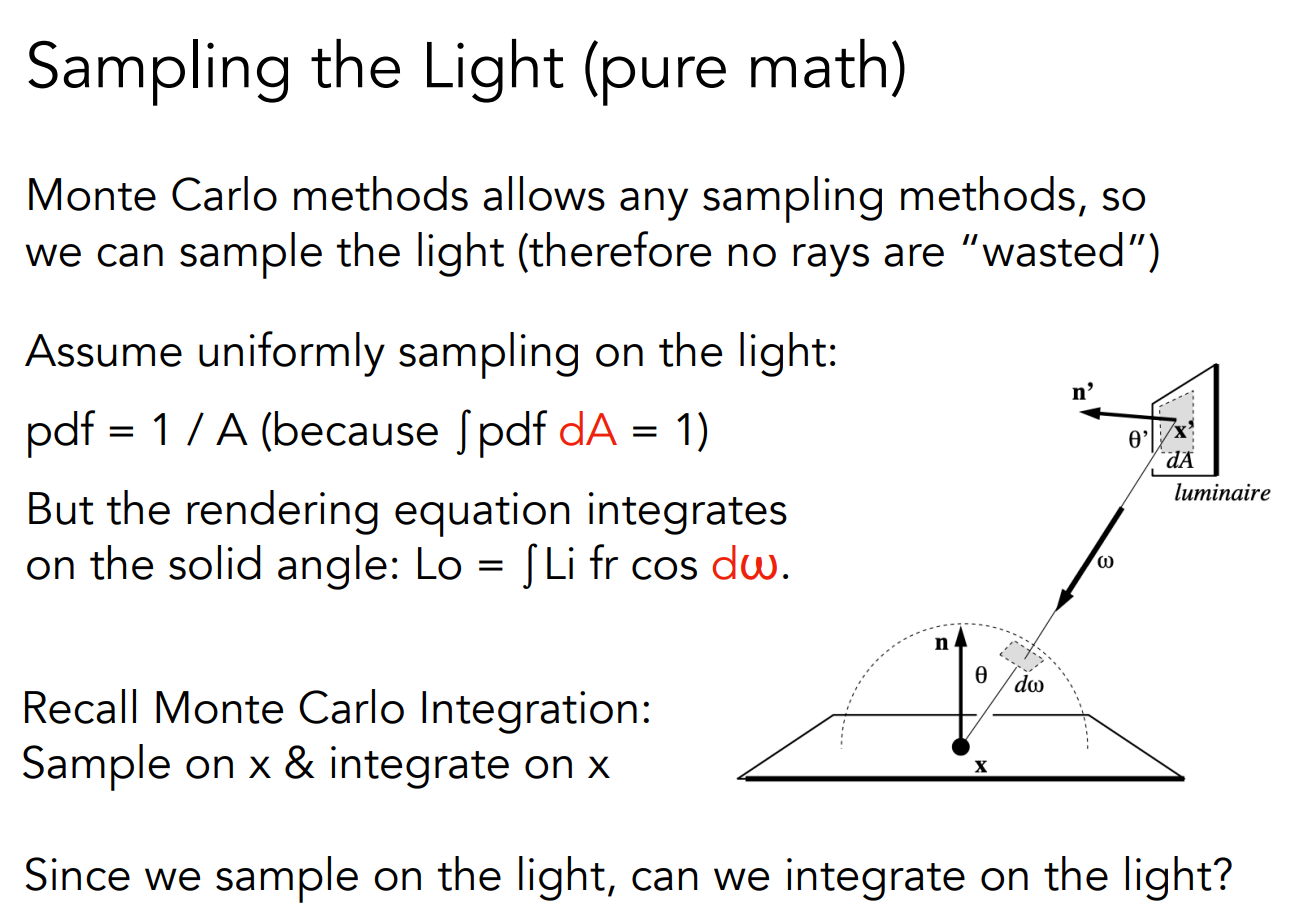

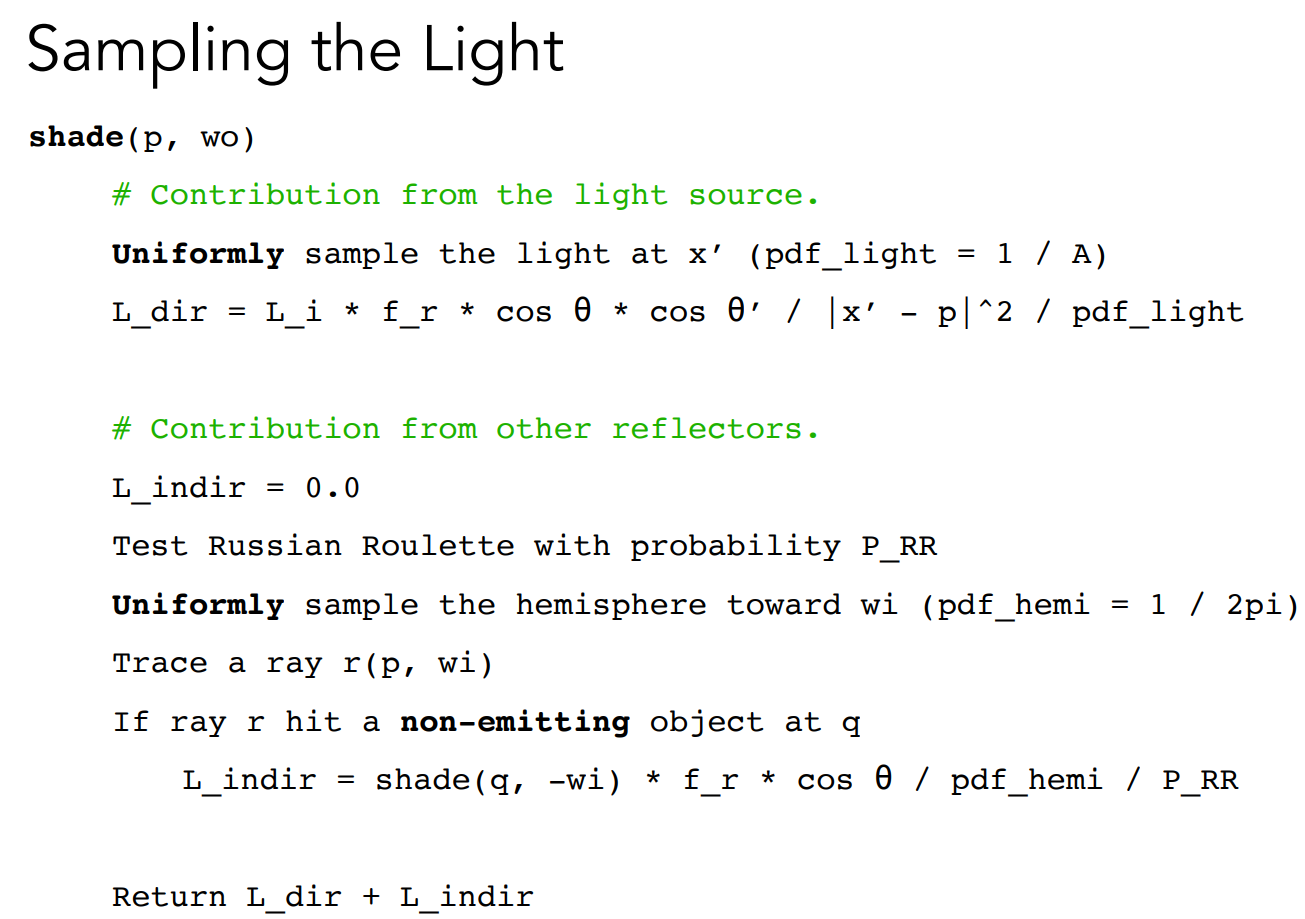

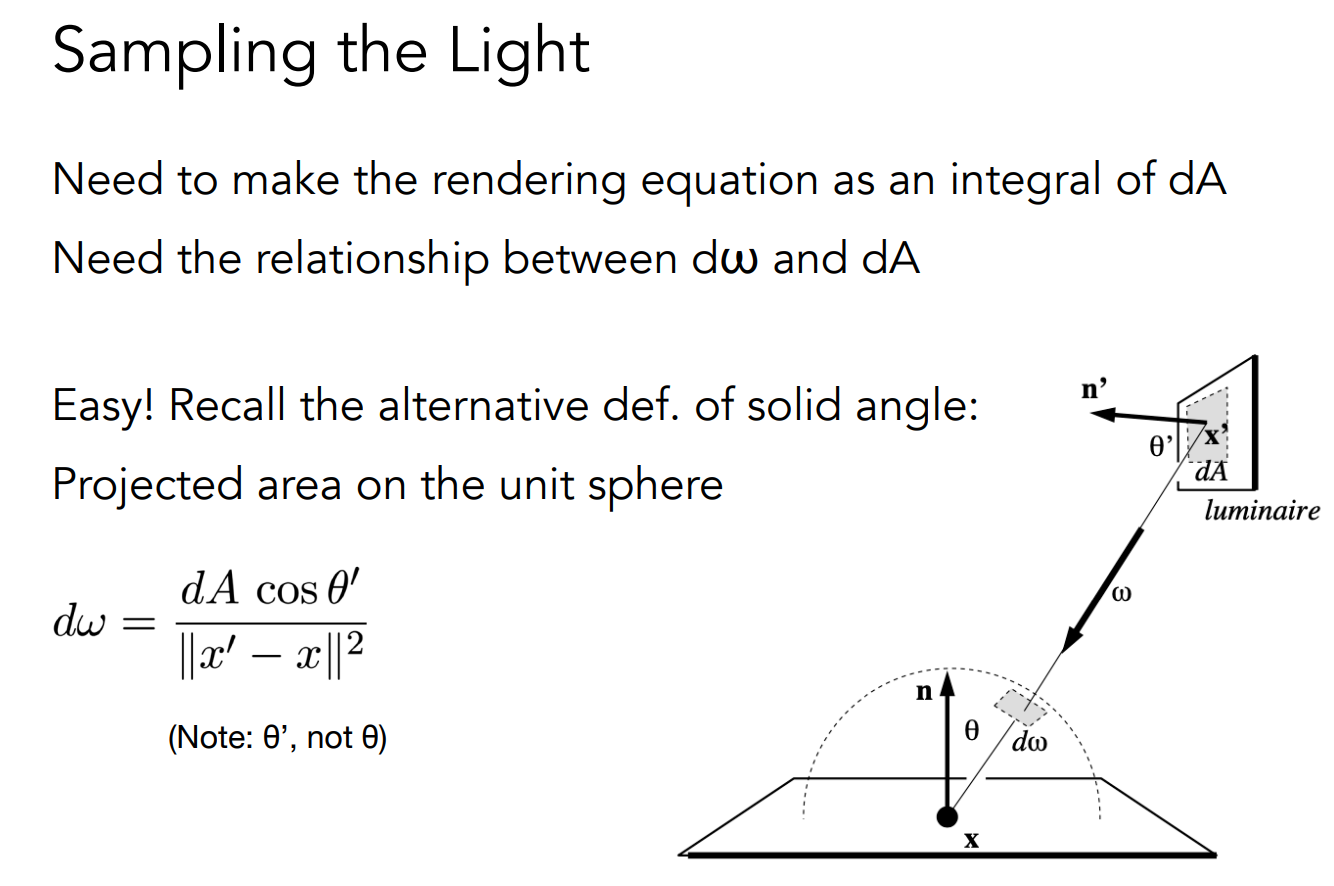

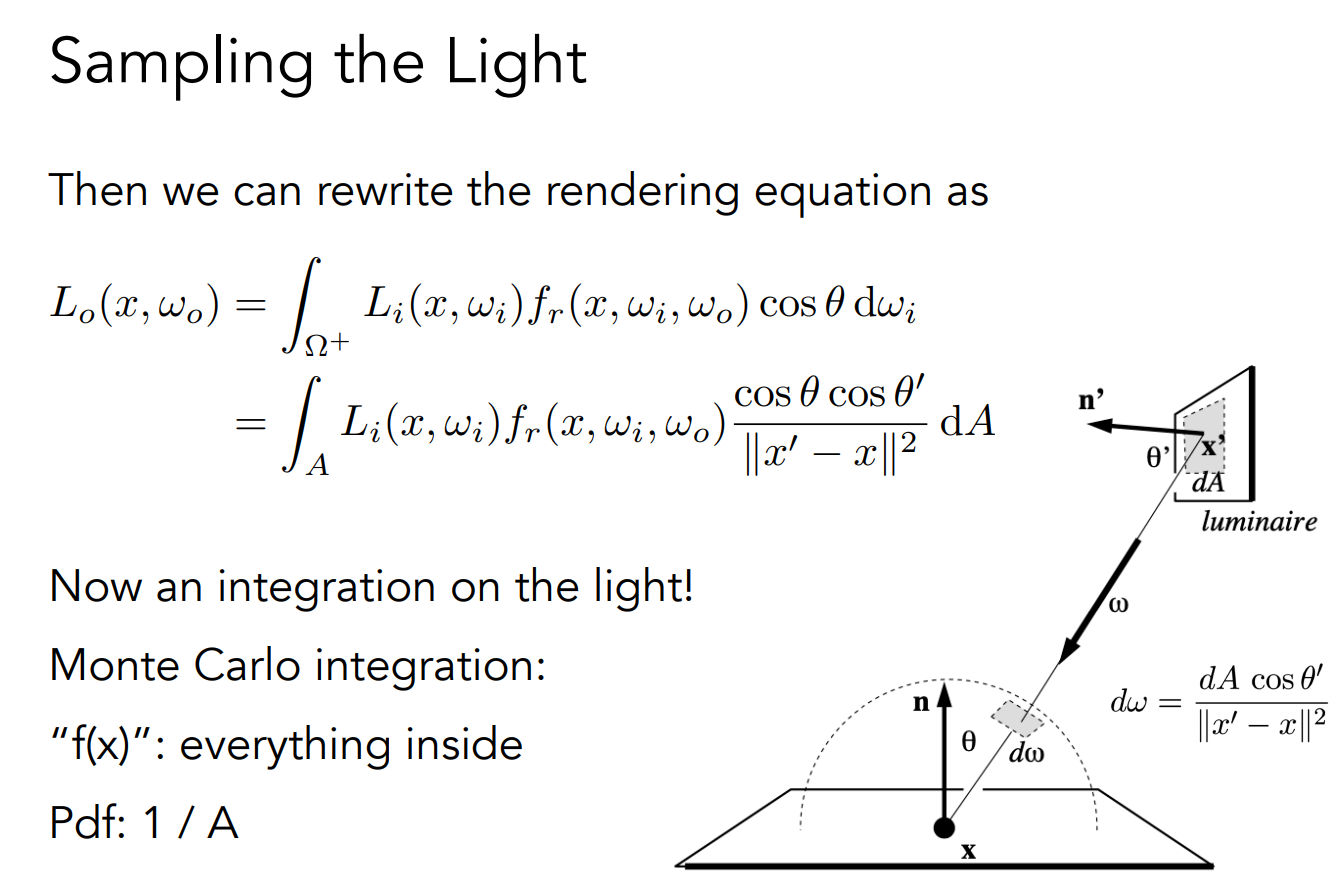

直接光源采样，蒙特卡洛积分矛盾，渲染方程得在光源处微表面积分

dA投影就是立体角

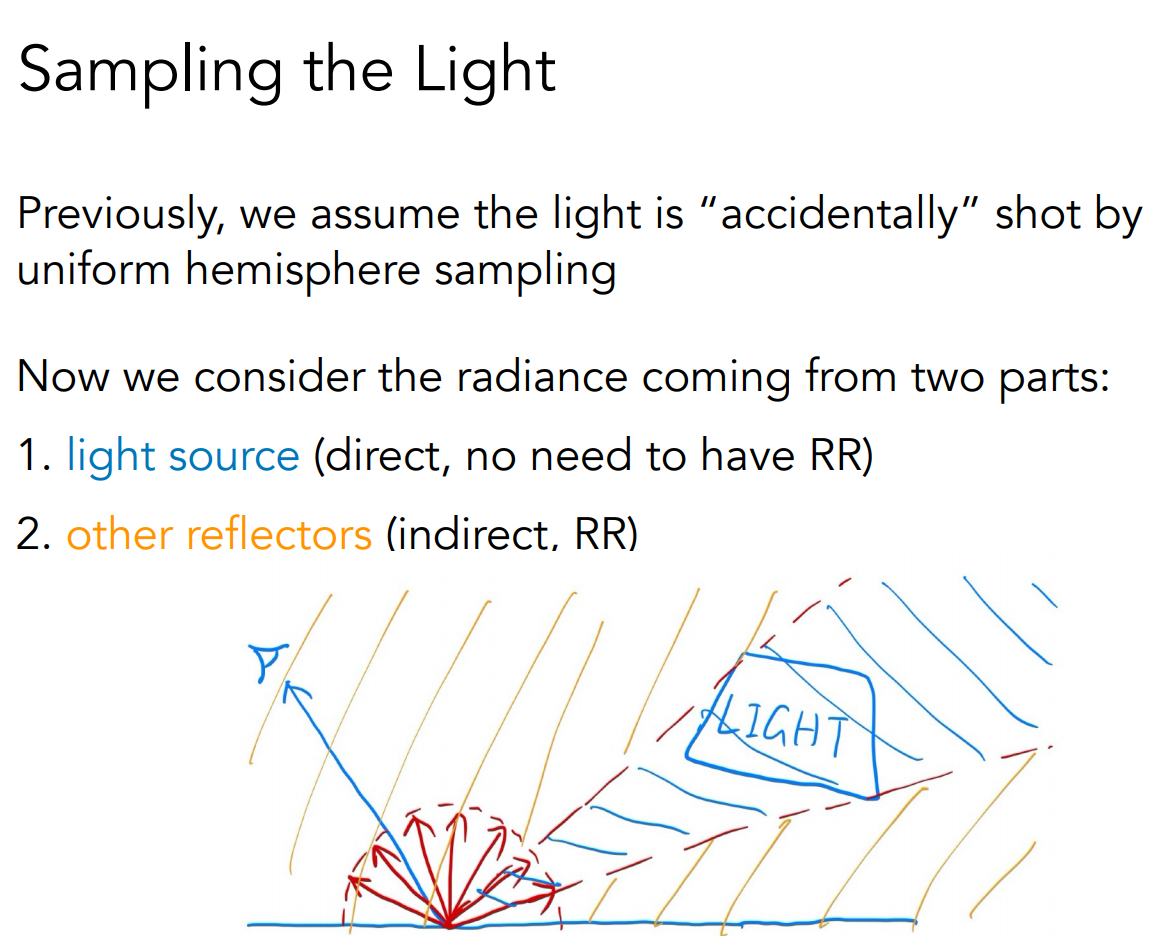

两方面的光：光源、其他反射物

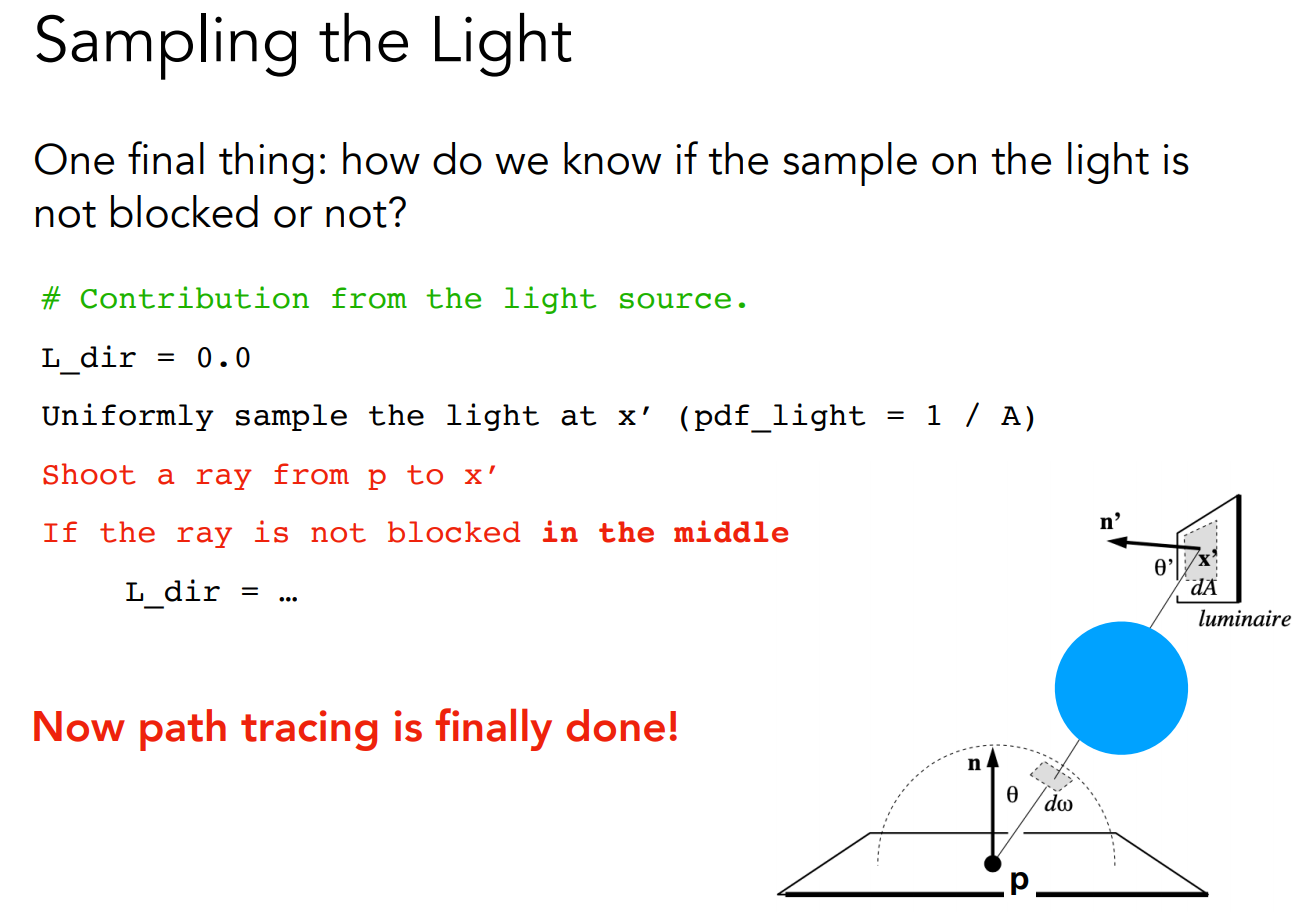

遮挡问题

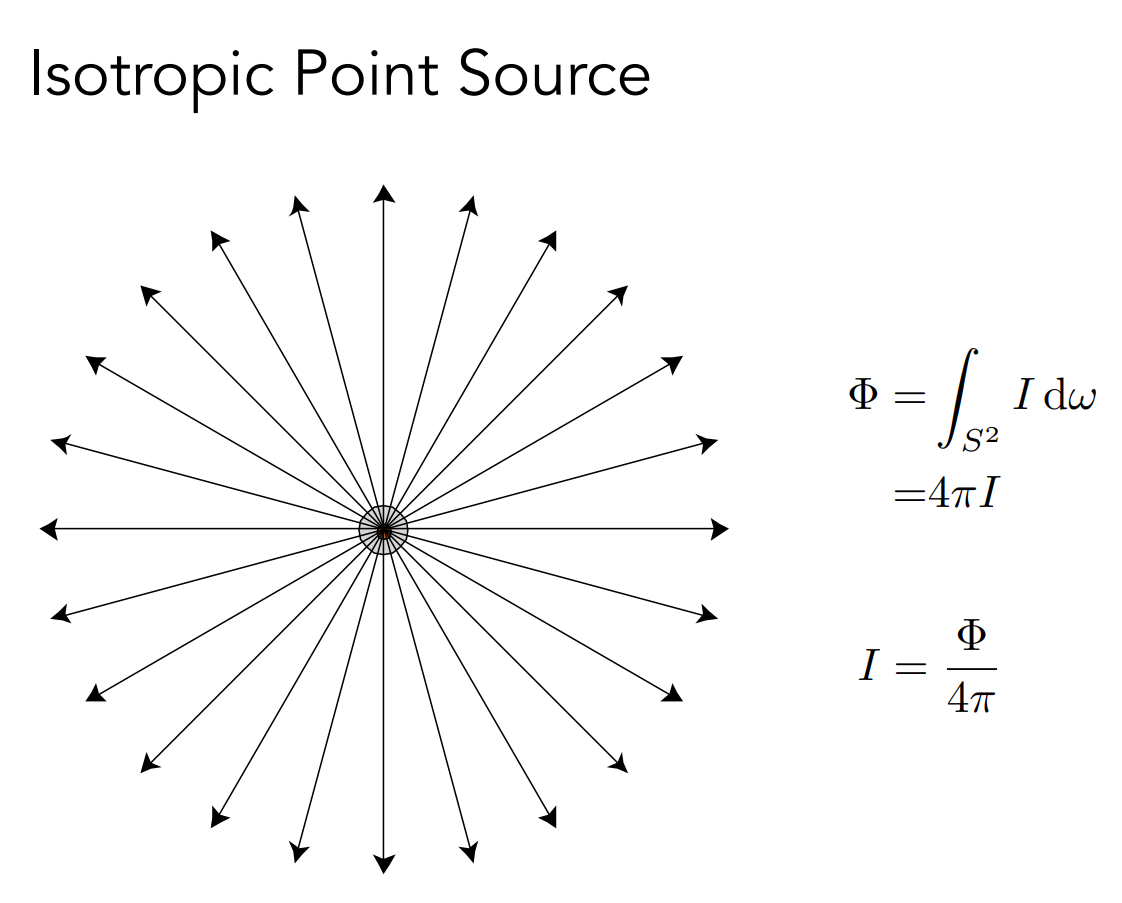

点光源？

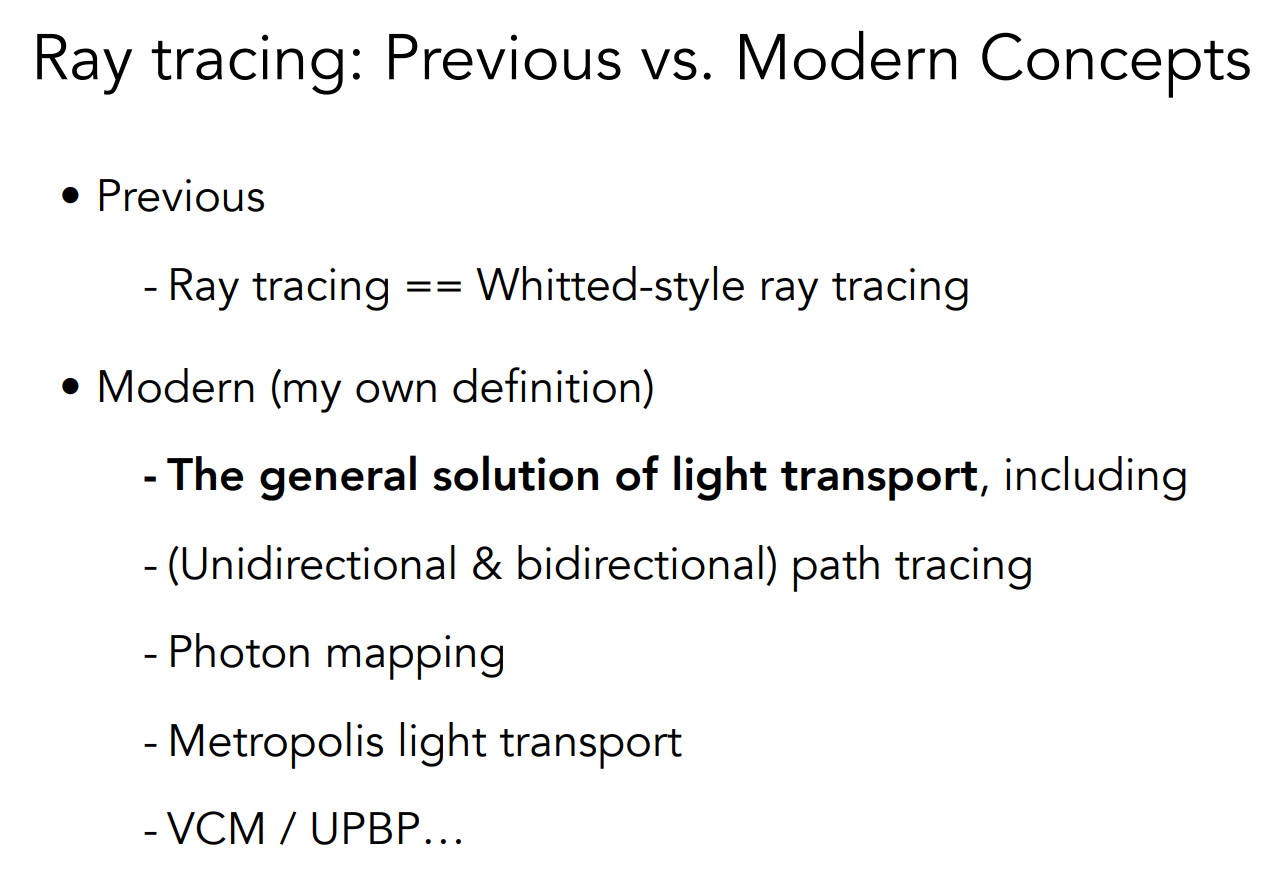

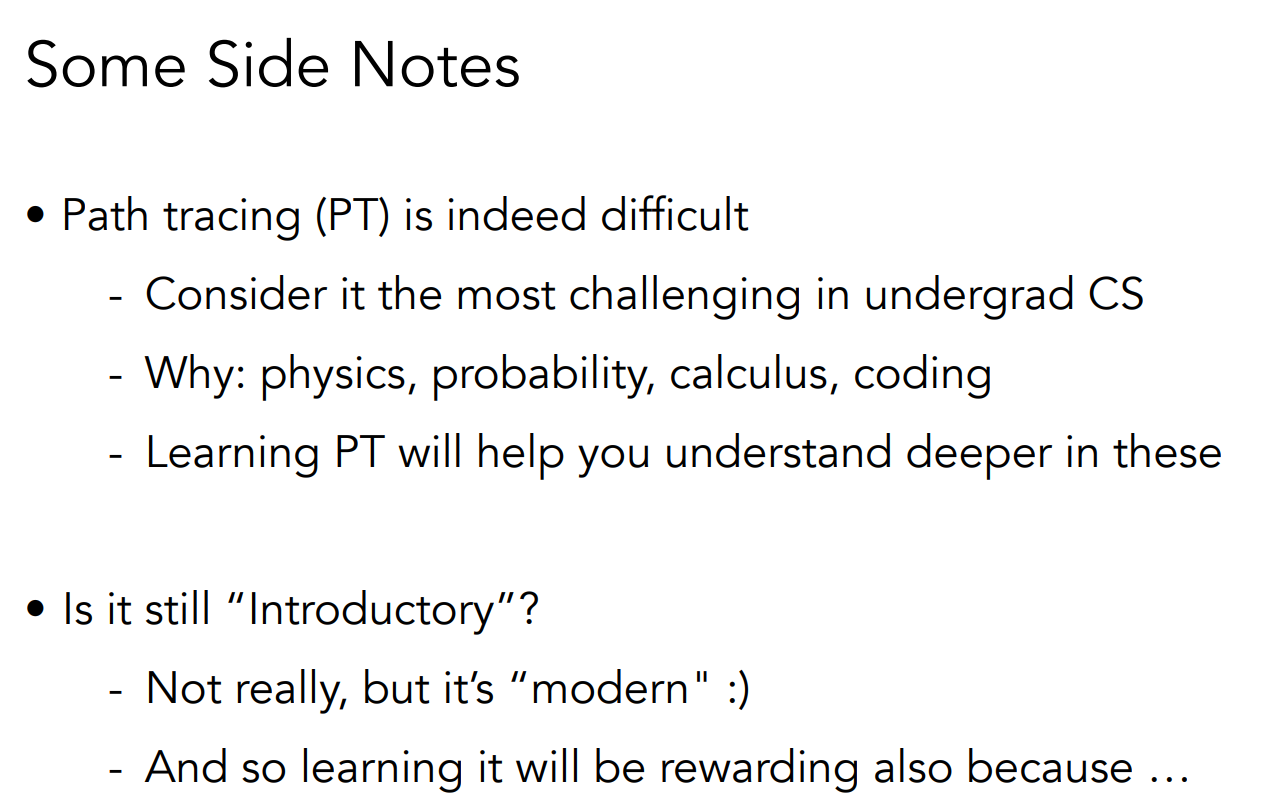

Ray tracing: Previous vs. Modern Concepts
