k8s发布hello.jar(springboot ) 20250511

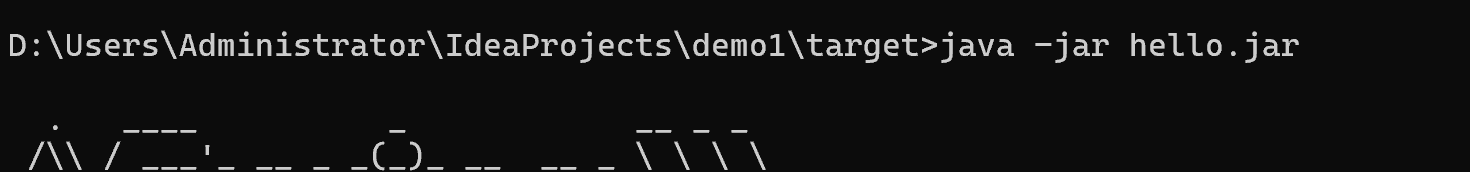

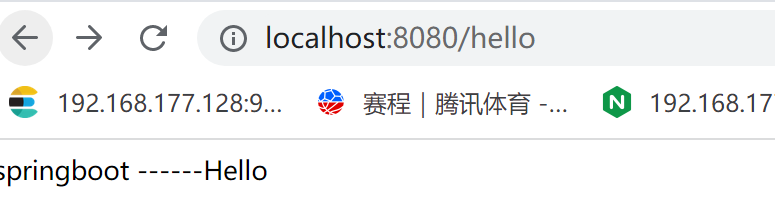

1、hello.jar   本地运行 (springboot )

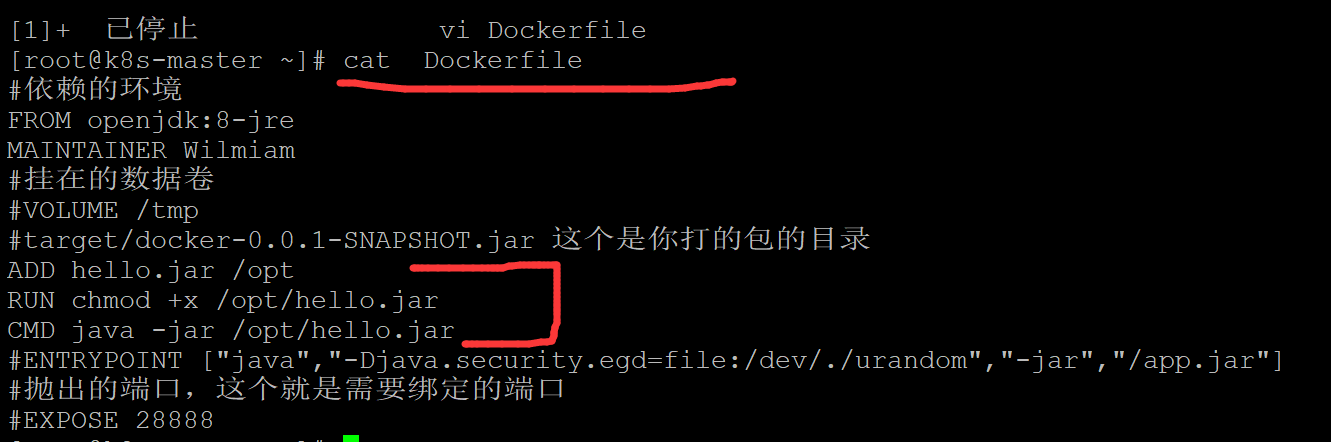

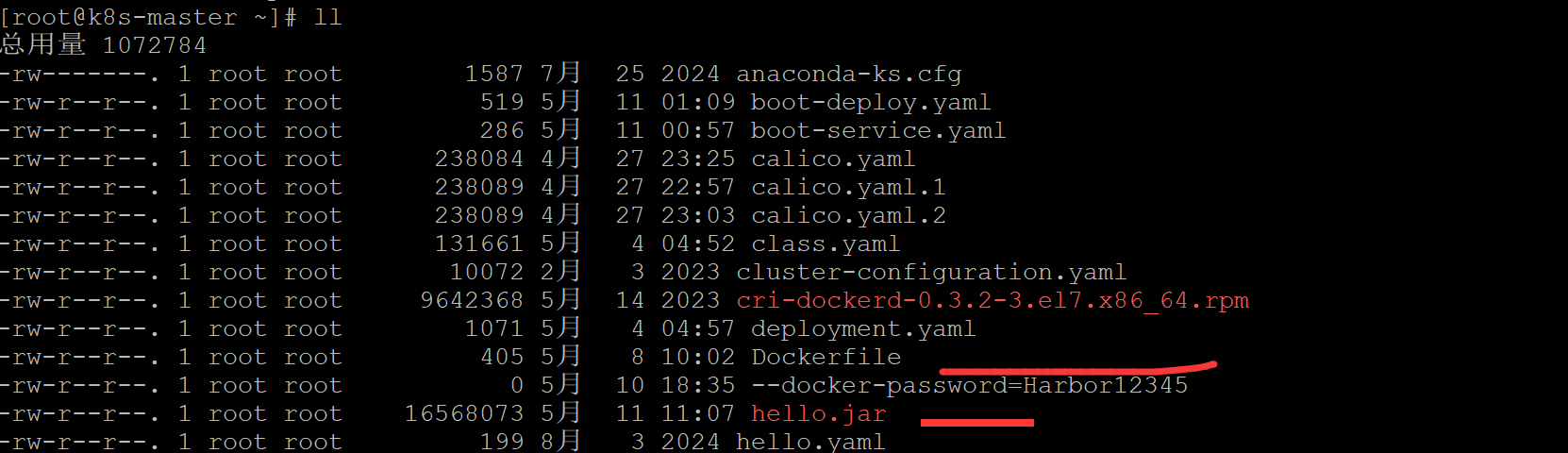

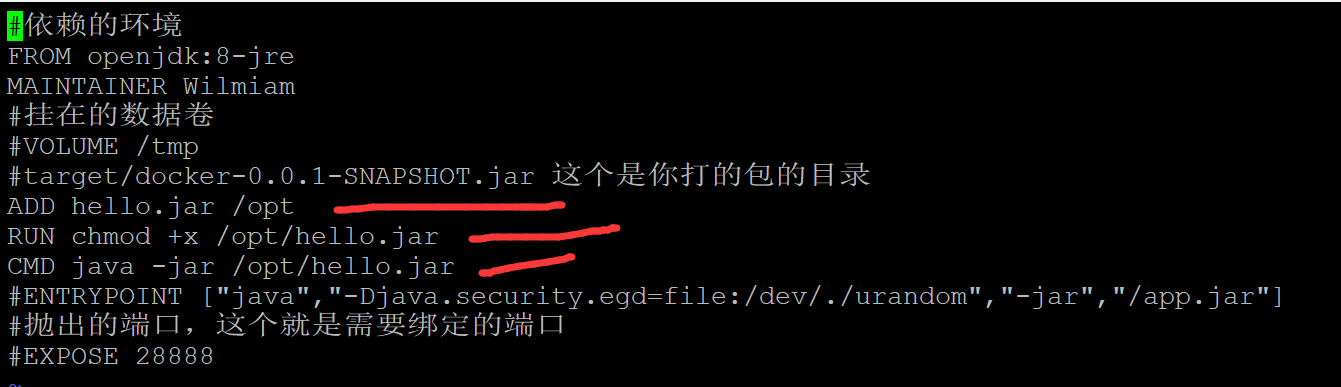

2、  hello.jar   生成镜像Image

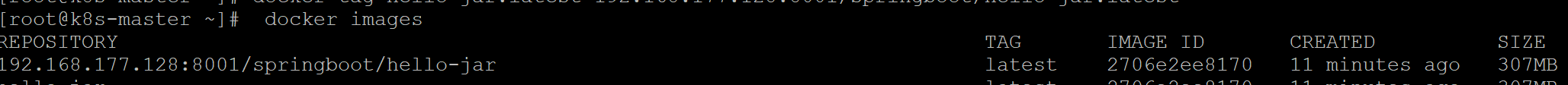

 docker build -t  hello-jar .

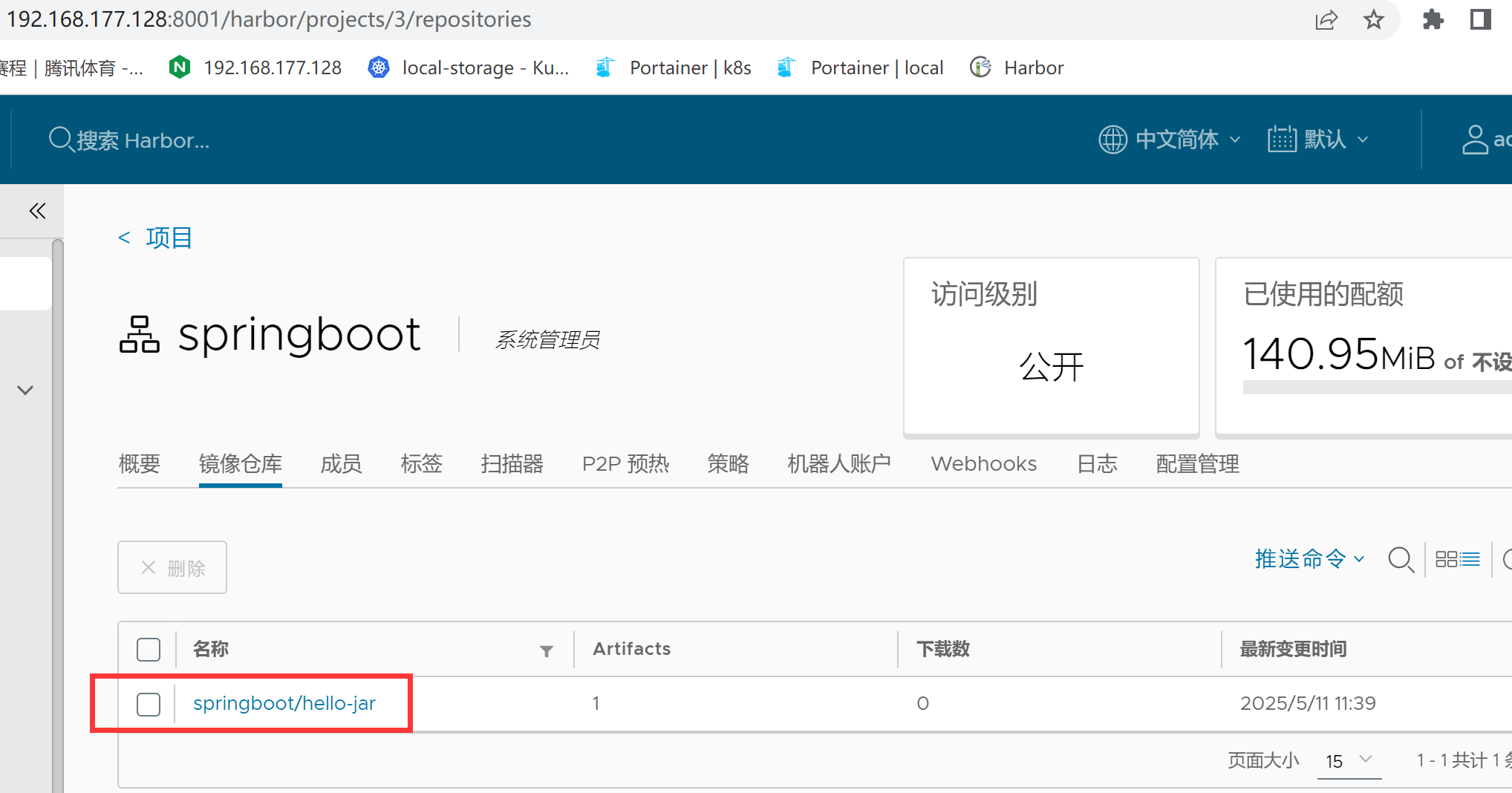

 3、  k8s-master镜像 hello-jar:latest  推送到私库harbor的springboot项目

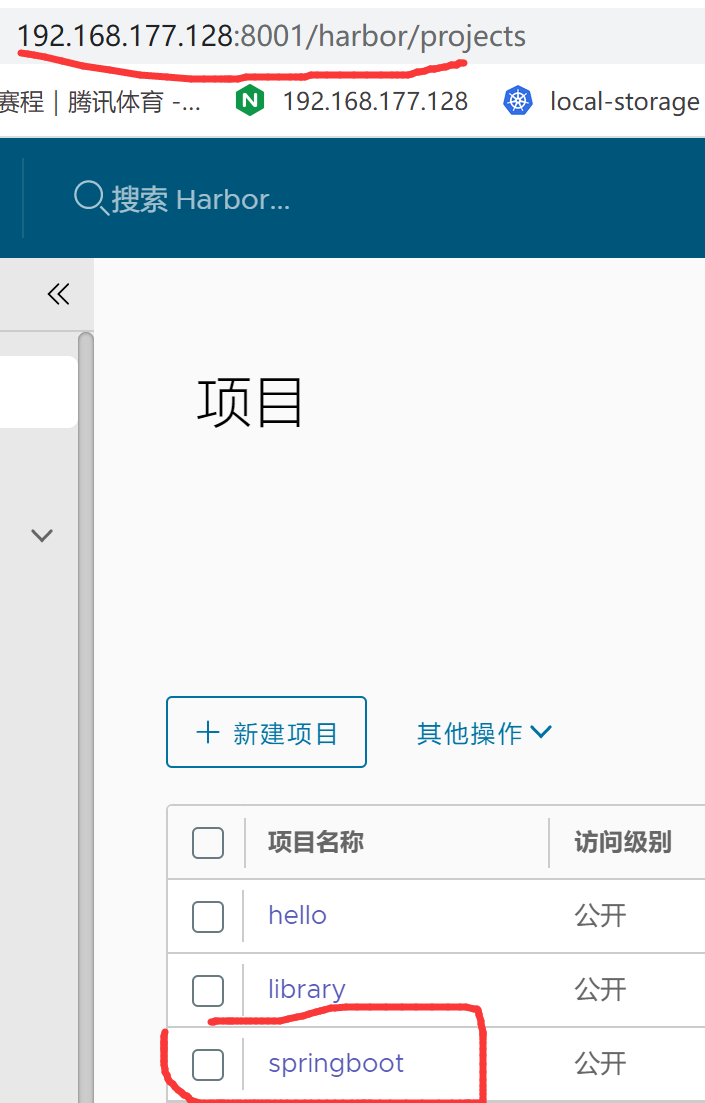

        注:私库harbor  192.168.177.128:8001





 3.1
 docker tag hello-jar:latest 192.168.177.128:8001/springboot/hello-jar:latest
 #######镜像hello-jar:latest
 #######私库192.168.177.128:8001/springboot/  镜像位置

   3.2

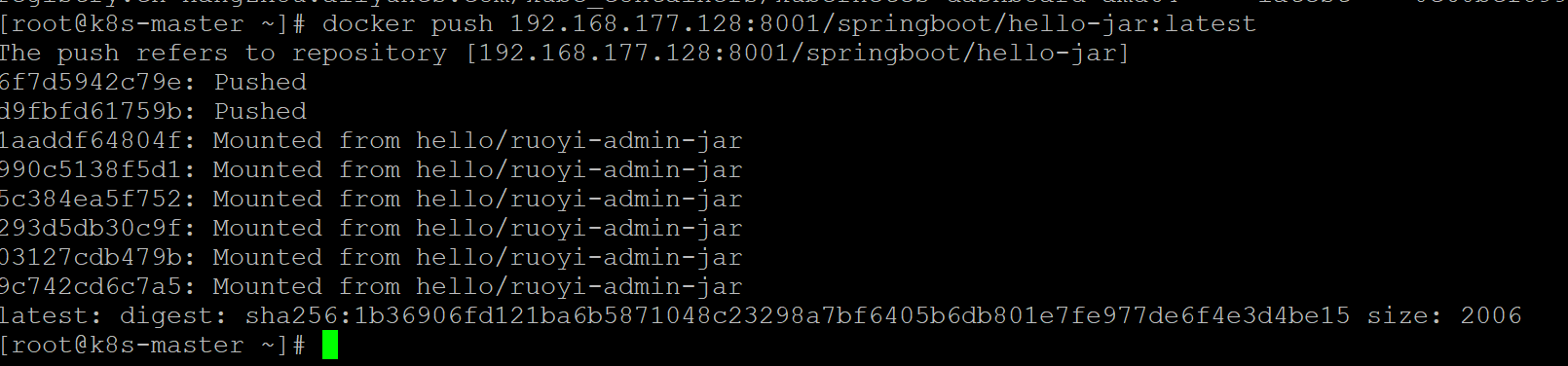

docker push 192.168.177.128:8001/springboot/hello-jar:latest



3.3

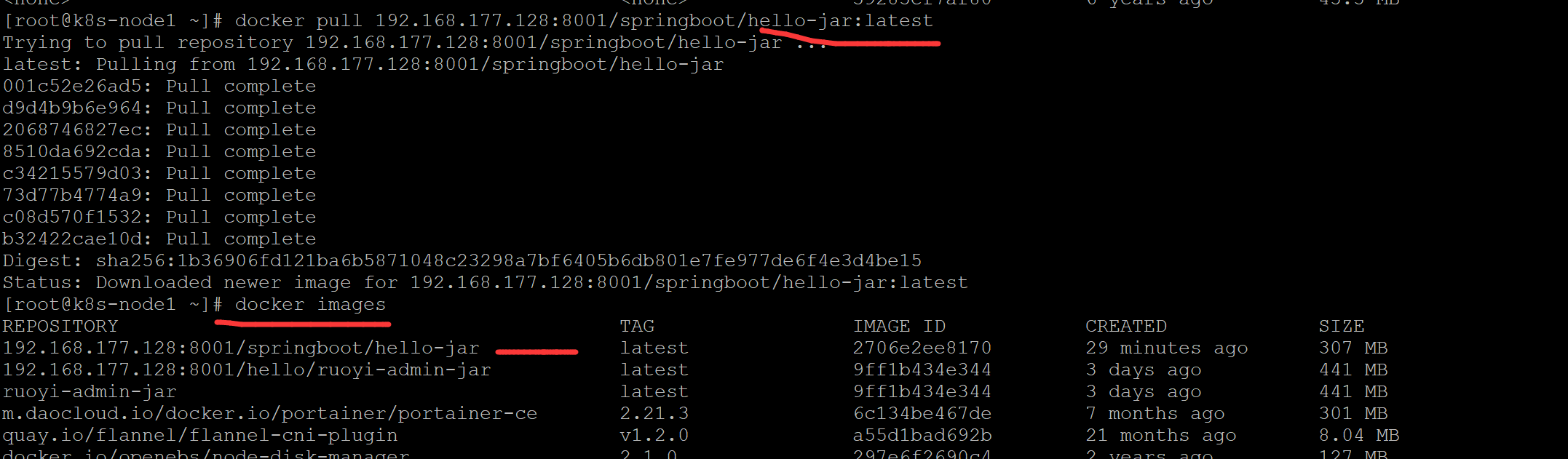

3.4 节点拉取docker pull  192.168.177.128:8001/springboot/hello-jar:latest
    注:可以验证一下私库harbor的地址是否可用



4、k8s deployment发布

4.1

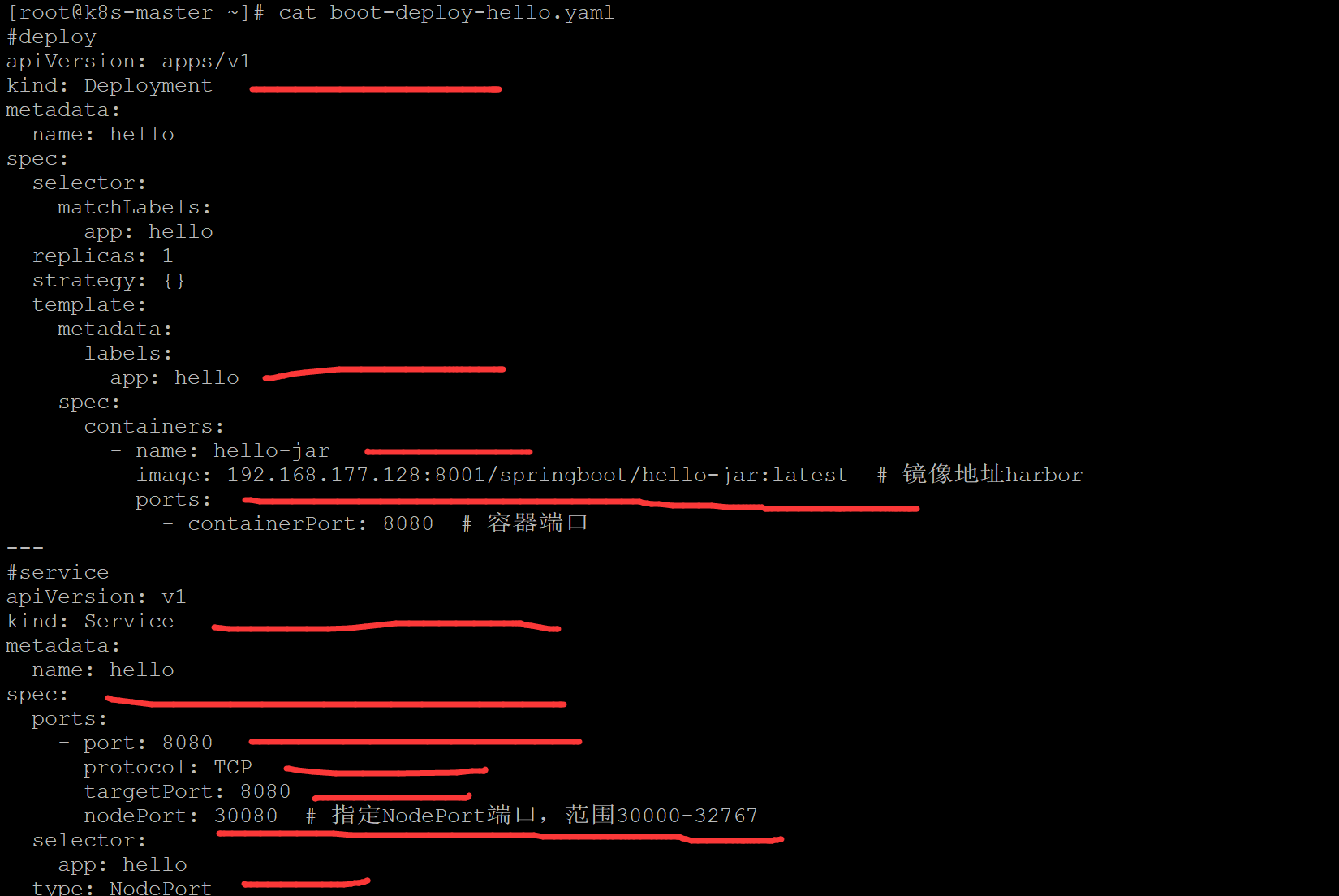

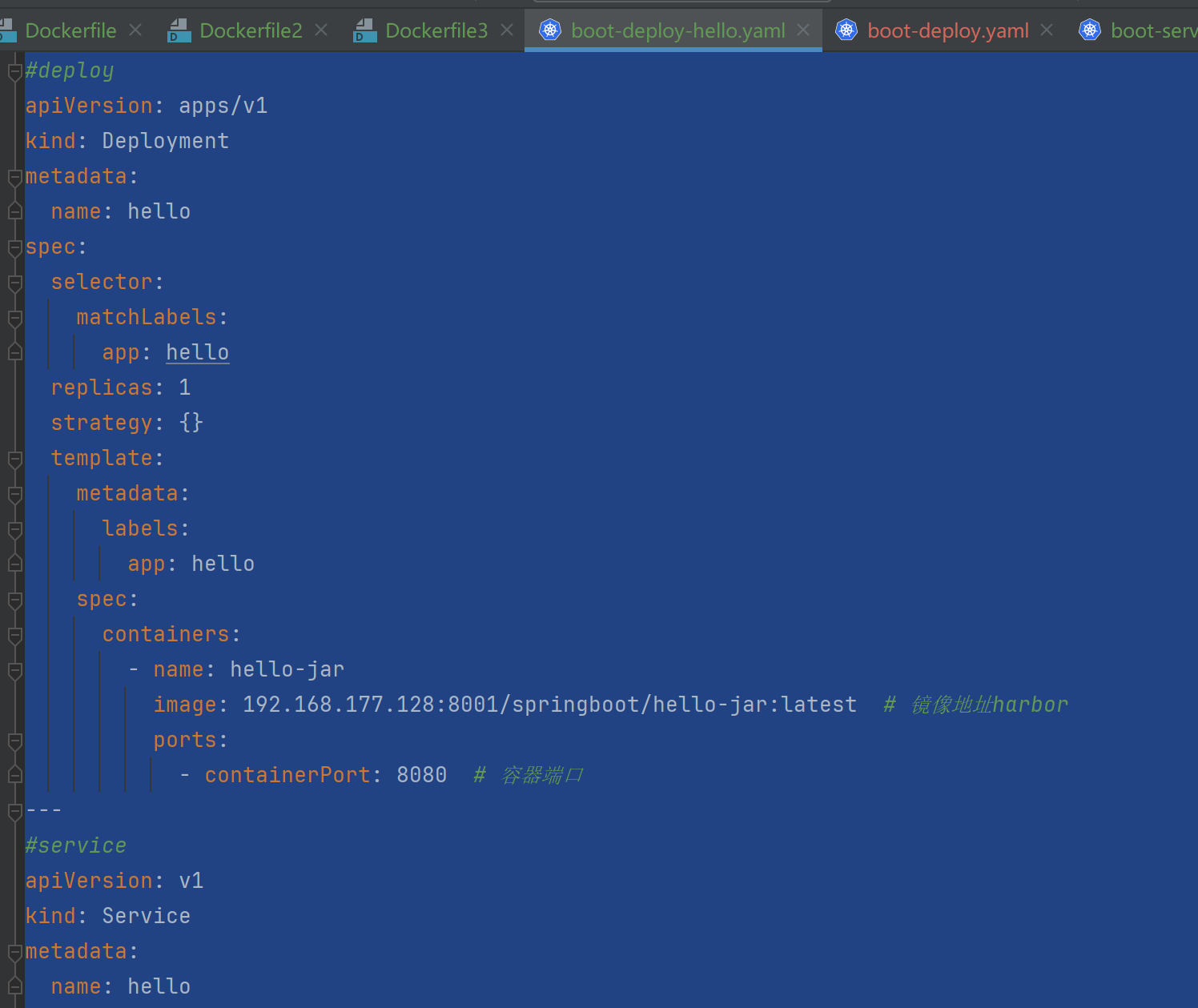

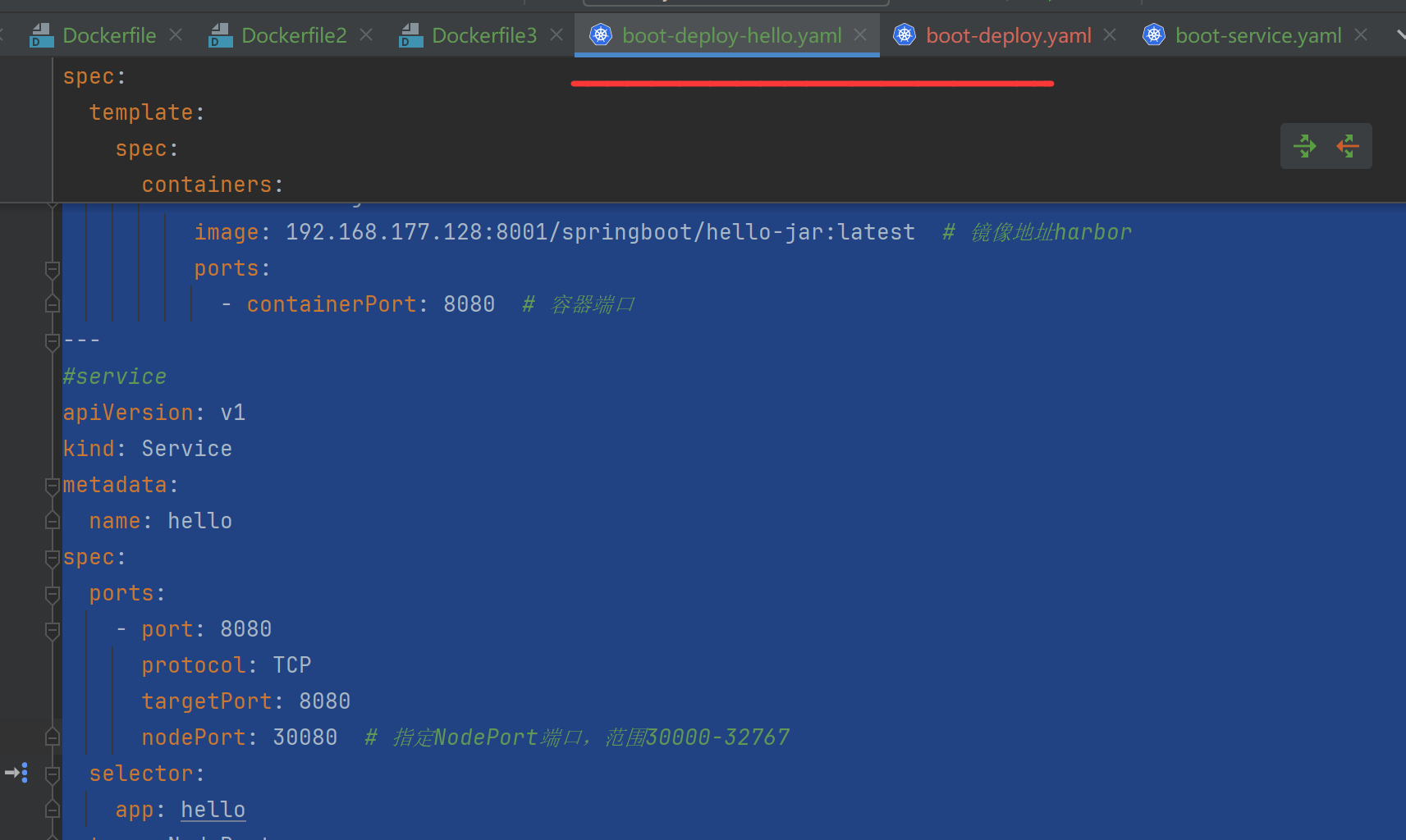

boot-deploy-hello.yaml



#deploy
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello
spec:
  selector:
    matchLabels:
      app: hello
  replicas: 1
  strategy: {}
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
        - name: hello-jar
          image: 192.168.177.128:8001/springboot/hello-jar:latest  # 镜像地址harbor
          ports:
            - containerPort: 8080  # 容器端口
---
#service
apiVersion: v1
kind: Service
metadata:
  name: hello
spec:
  ports:
    - port: 8080
      protocol: TCP
      targetPort: 8080
      nodePort: 30080  # 指定NodePort端口，范围30000-32767
  selector:
    app: hello
  type: NodePort





4.2

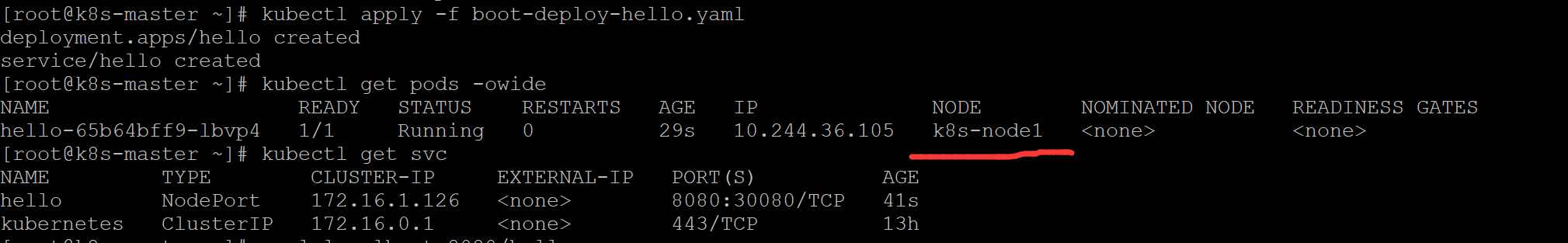

kubectl apply -f boot-deploy-hello.yaml

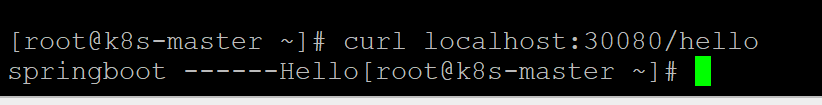

4.3 curl localhost:30080/hello

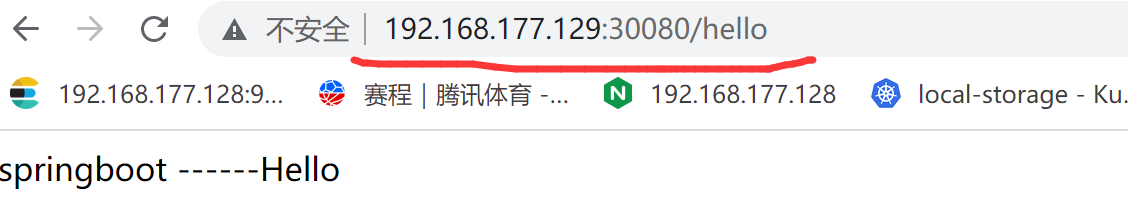

4.4 k8s-master-->http://192.168.177.129:30080/
