cenots-k8s-kubesphere-v3.3.2 20250429

一、持久存储Storage

Storage

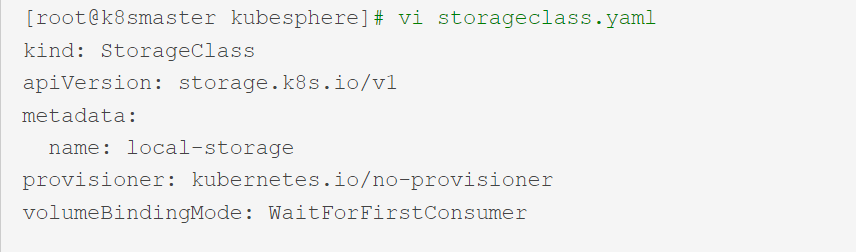

1、 storageclass.yaml

vi storageclass.yaml

kind: StorageClass

apiVersion: storage.k8s.io/v1

metadata:

　　name: local-storage

provisioner: kubernetes.io/no-provisioner

volumeBindingMode: WaitForFirstConsumer



kubectl apply -f storageclass.yaml

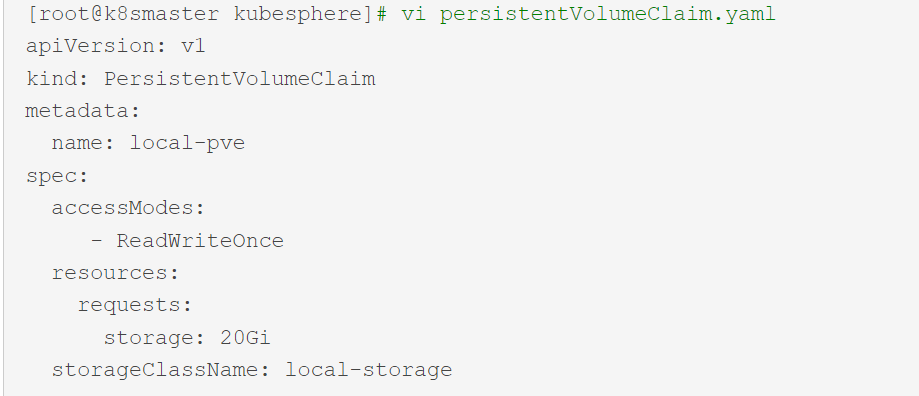

2、persistentVolumeClaim.yaml

vi persistentVolumeClaim.yaml

apiVersion: v1

kind: PersistentVolumeClaim

metadata:

　　name: local-pve

spec:

　　accessModes:

　　　　- ReadWriteOnce

　　resources:

　　　　requests:

　　　　　　storage: 20Gi

　　storageClassName: local-storage



kubectl apply -f persistentVolumeClaim.yaml

3、

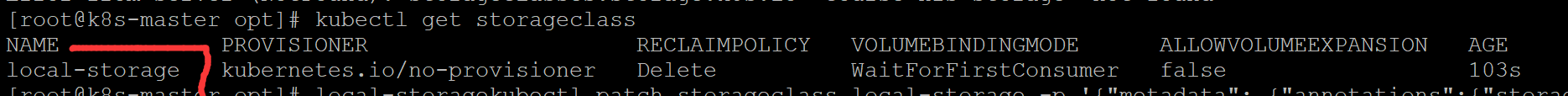

kubectl get storageclass



4、local-storage

可以设置这个local-storage 的 StorageClass 为 Kubernetes 的默认存储后端，我们可以用 kubectl patch 命令来更新

kubectl patch storageclass local-storage -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'





























 二、安装 KubeSphere

 https://www.kubesphere.io/zh/docs/v3.3/quick-start/minimal-kubesphere-on-k8s/

拉一下wget kubesphere-installer.yaml、cluster-configuration.yaml文件



kubectl apply -f https://github.com/kubesphere/ks-installer/releases/download/v3.3.2/kubesphere-installer.yaml



kubectl apply -f https://github.com/kubesphere/ks-installer/releases/download/v3.3.2/cluster-configuration.yaml



 1、registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0  先推送到私库harbor

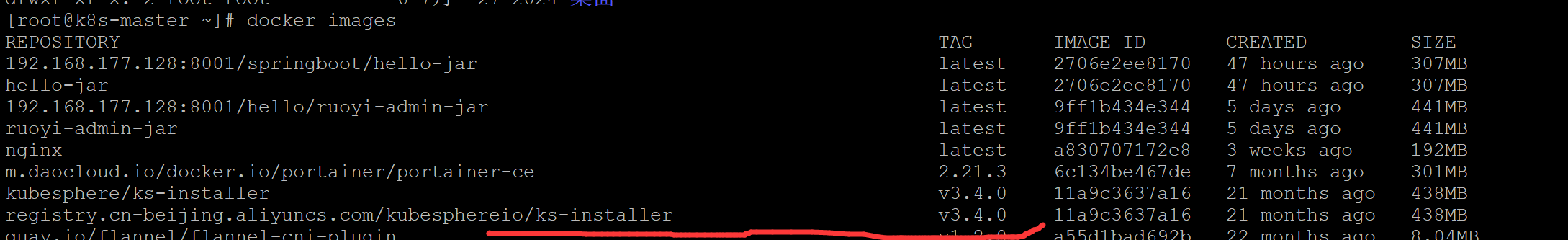

dokcer pull   registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0

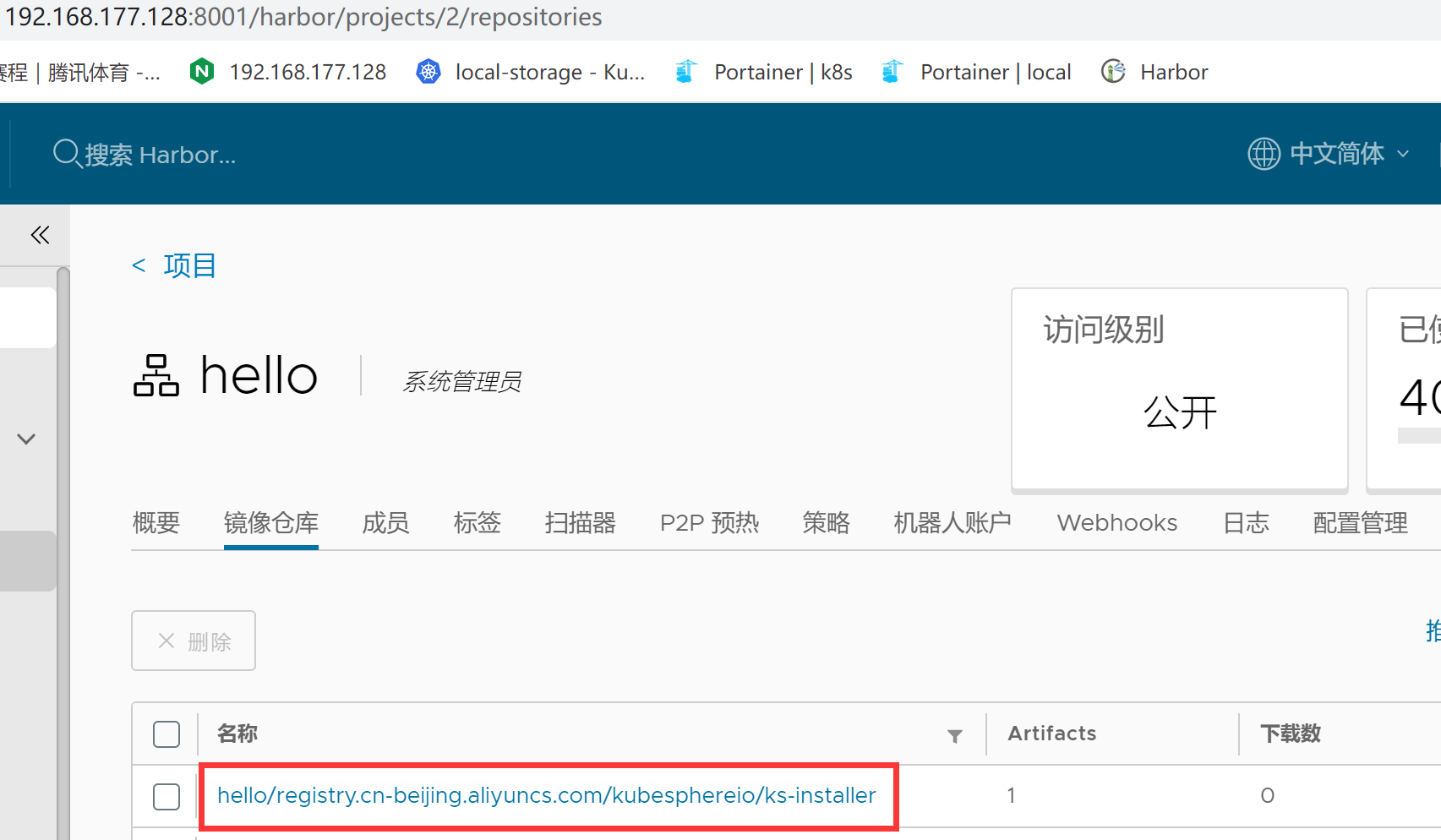

registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0  先推送到私库harbor

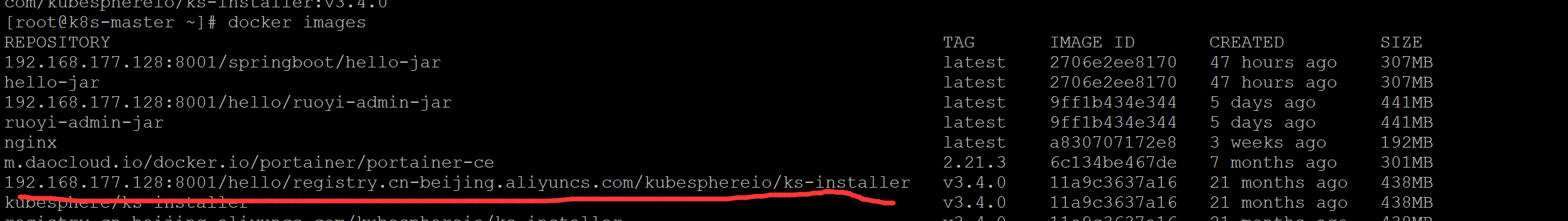

docker tag registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0    192.168.177.128:8001/hello/registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0

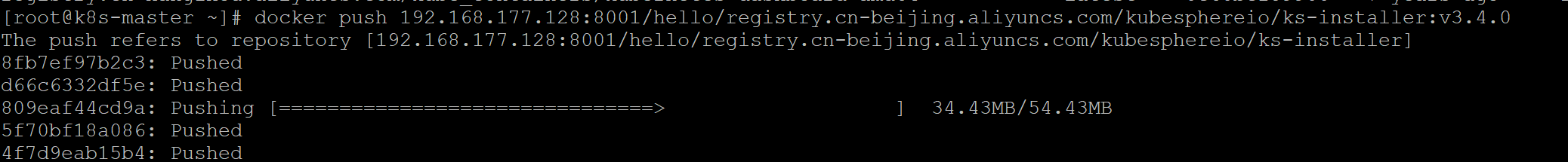

docker push 192.168.177.128:8001/hello/registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0

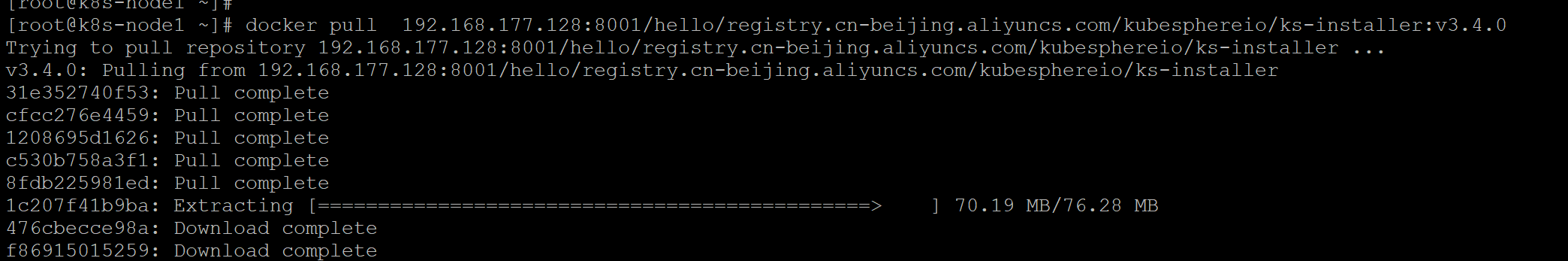

节点试一点镜像能否拉取成功

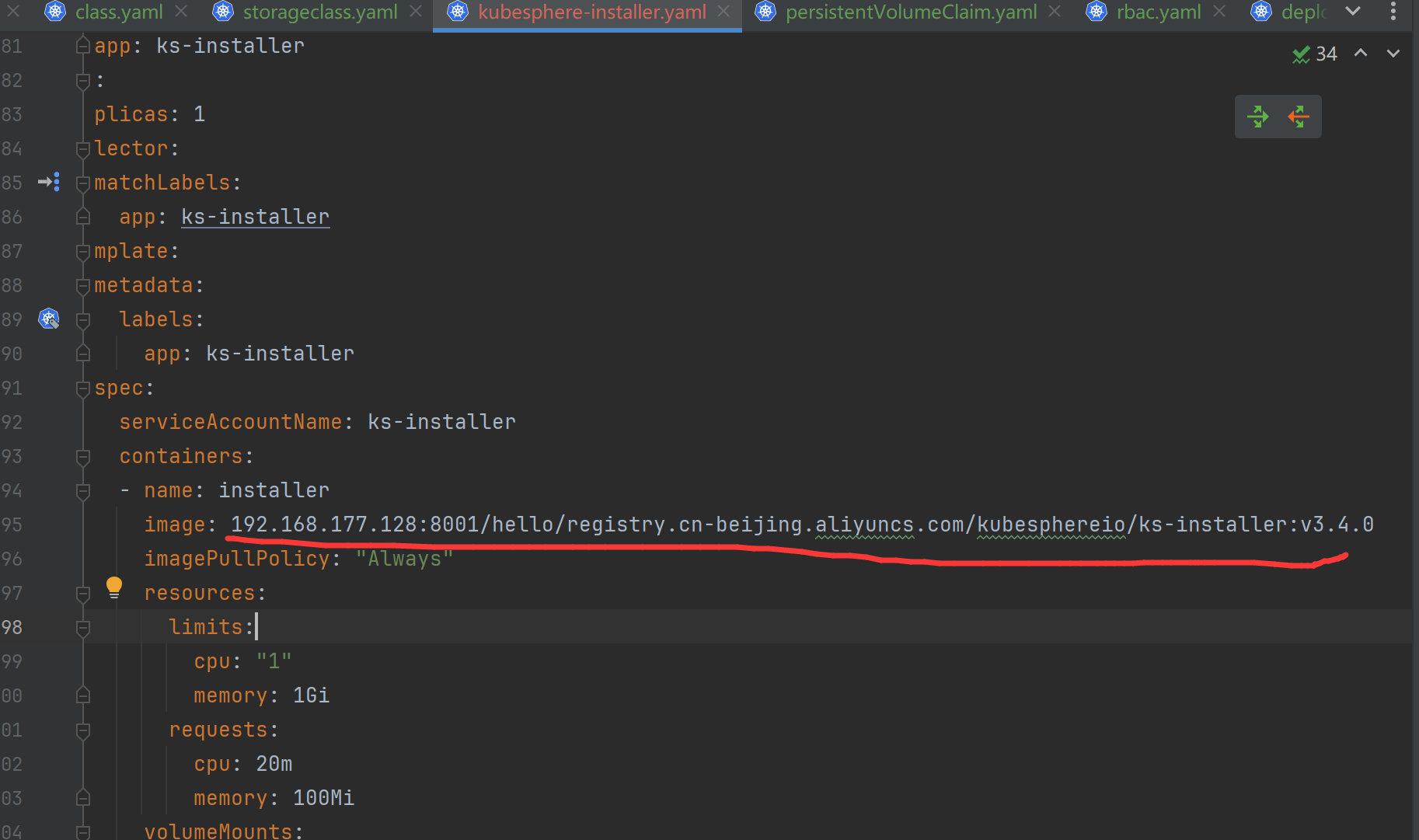

 2、vi  kubesphere-installer.yaml

    镜像改成国内

image: 192.168.177.128:8001/hello/registry.cn-beijing.aliyuncs.com/kubesphereio/ks-installer:v3.4.0

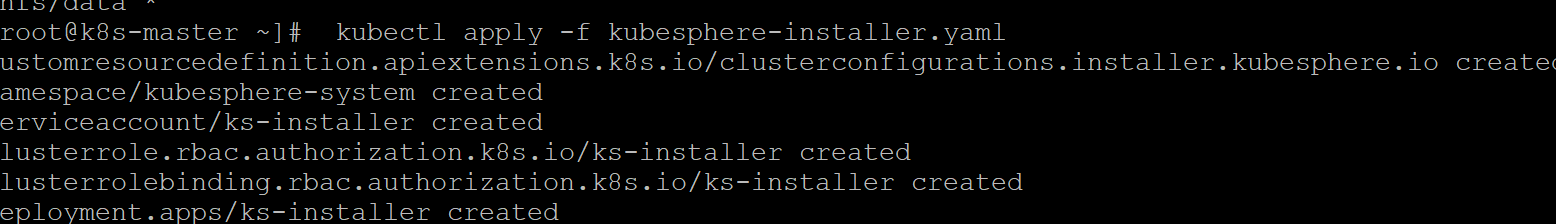

kubectl apply -f  kubesphere-installer.yaml

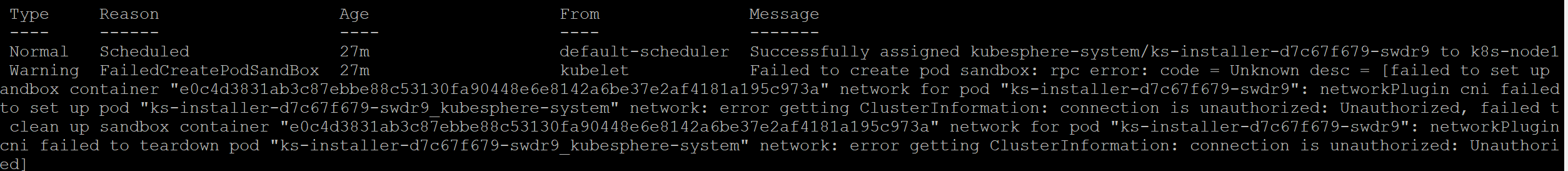

出现问题解决

Failed to create pod sandbox: rpc error: code = Unknown desc = [failed to set up sandbox container “



3、kubectl apply -f   cluster-configuration.yaml

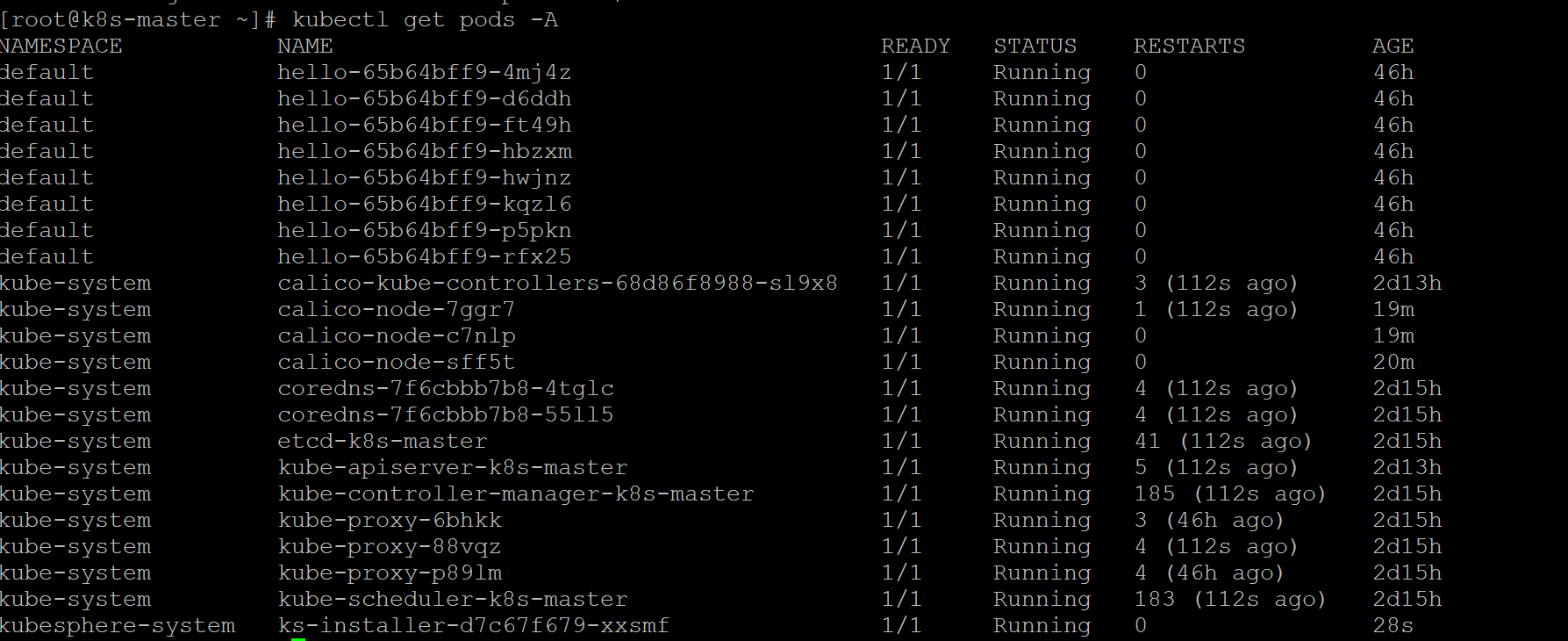

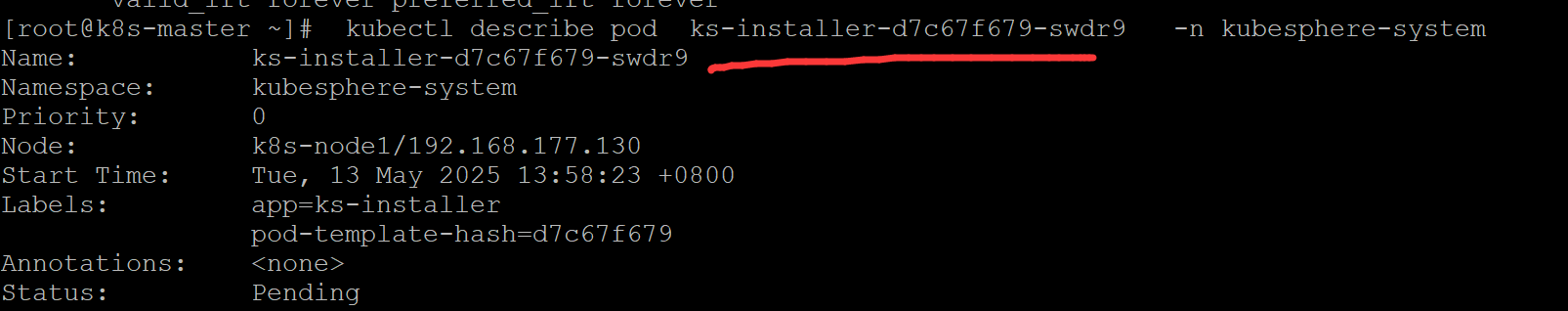

 4、查看 POD 详情



 5、kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l app=ks-installer -o jsonpath='{.items[0].metadata.name}') -f

































一、持久存储Storage

参考https://www.cnblogs.com/vipsoft/p/17345593.html

    https://www.cnblogs.com/nwnusun/p/16467240.html



二、安装 KubeSphere





kubesphere-installer.yaml

    镜像改成国内

image: registry.cn-beijing.aliyuncs.com/kubesphereio/:v3.4.0

https://www.kubesphere.io/zh/docs/v3.4/installing-on-linux/introduction/air-gapped-installation/#%E9%83%A8%E7%BD%B2%E5%87%86%E5%A4%87
